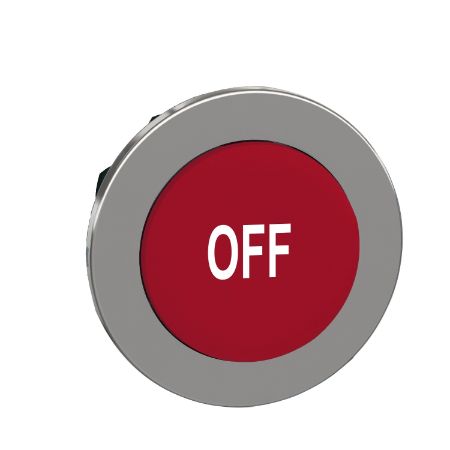

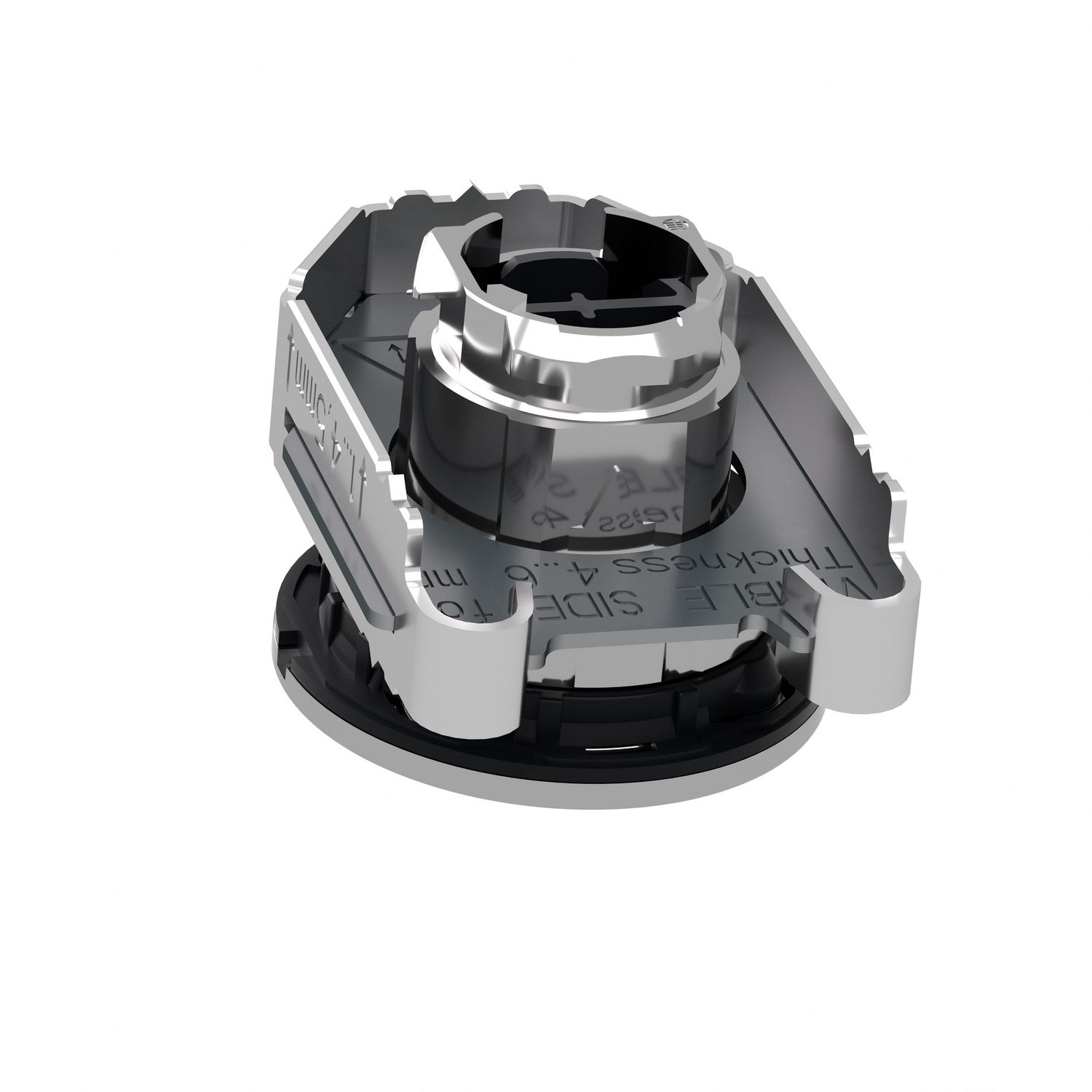

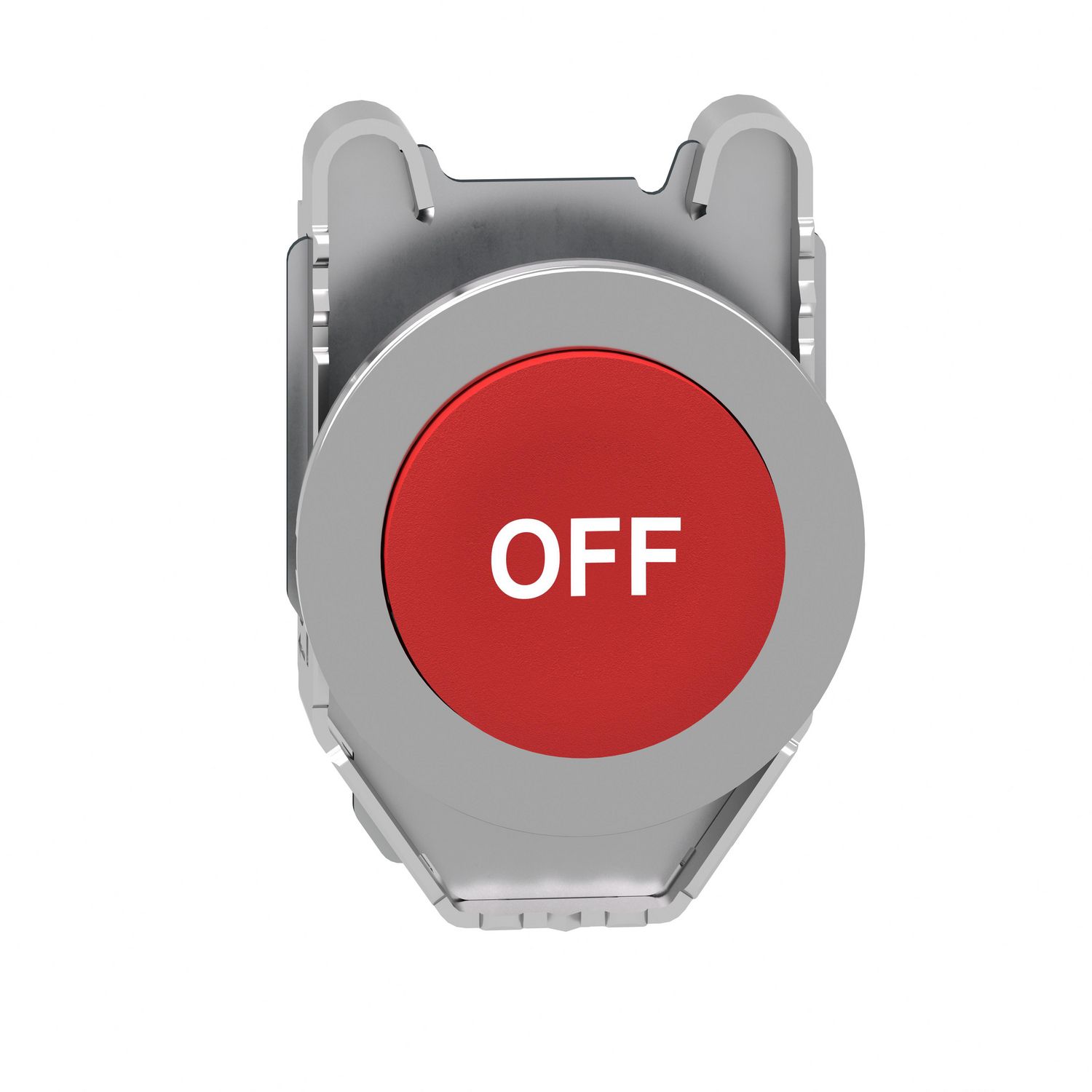

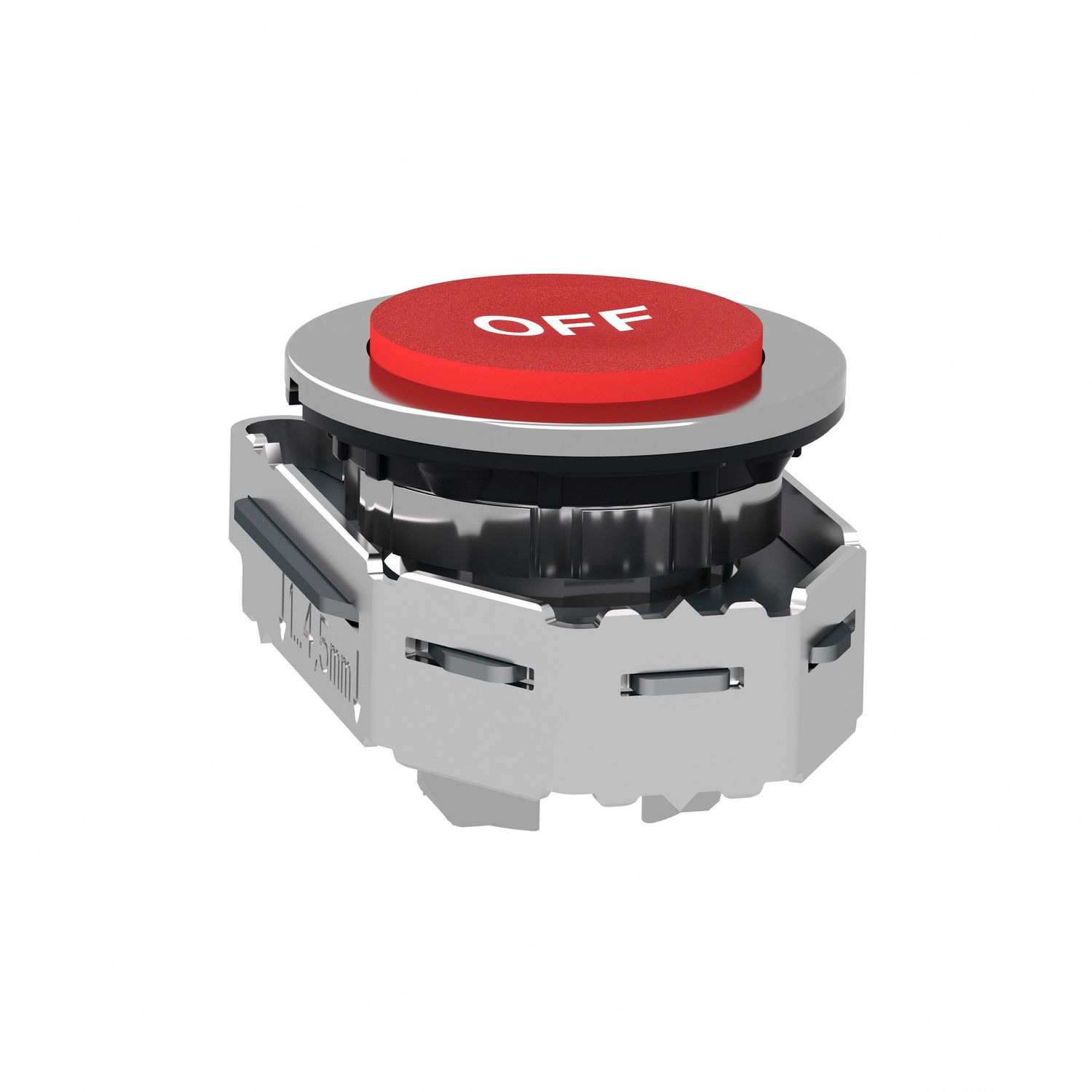

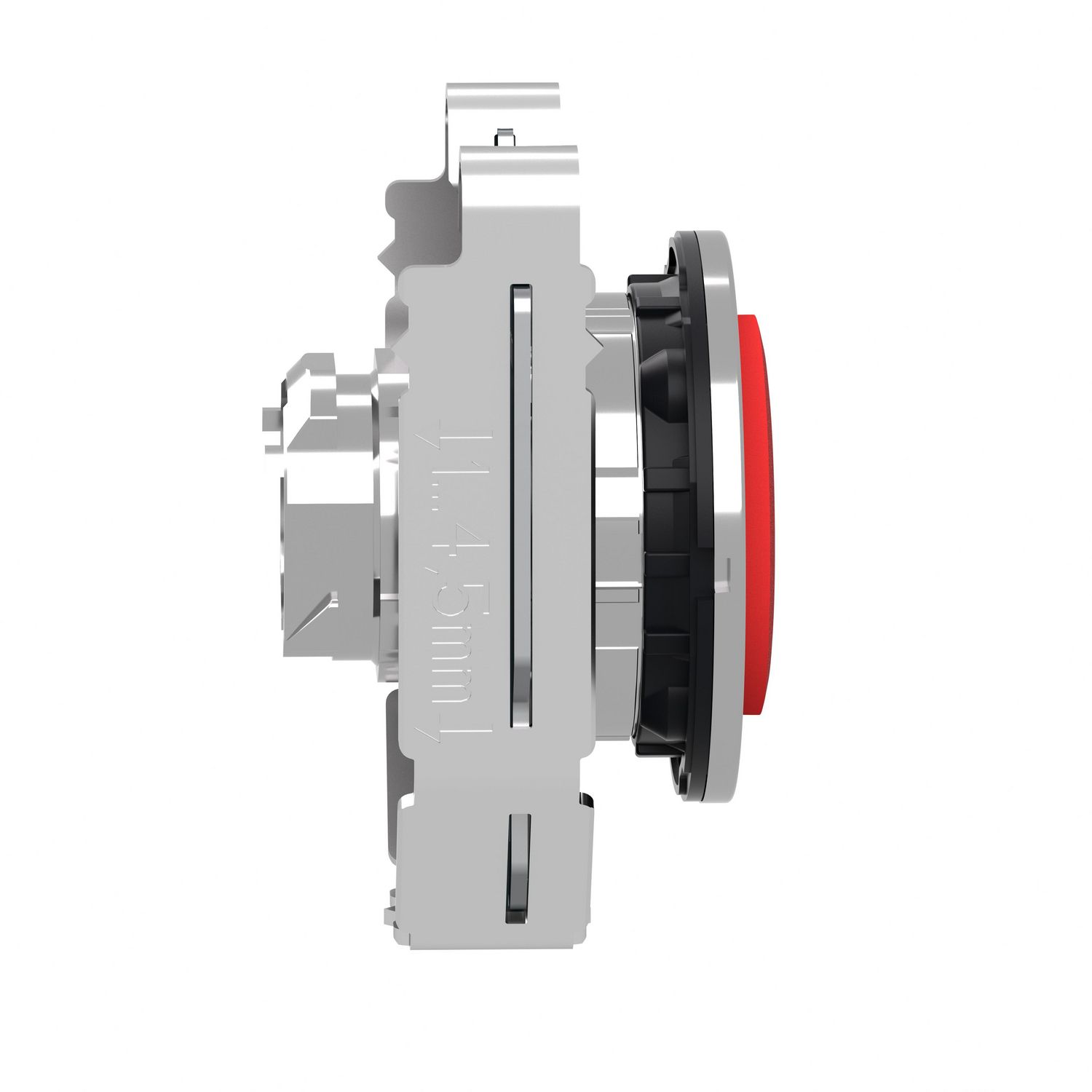

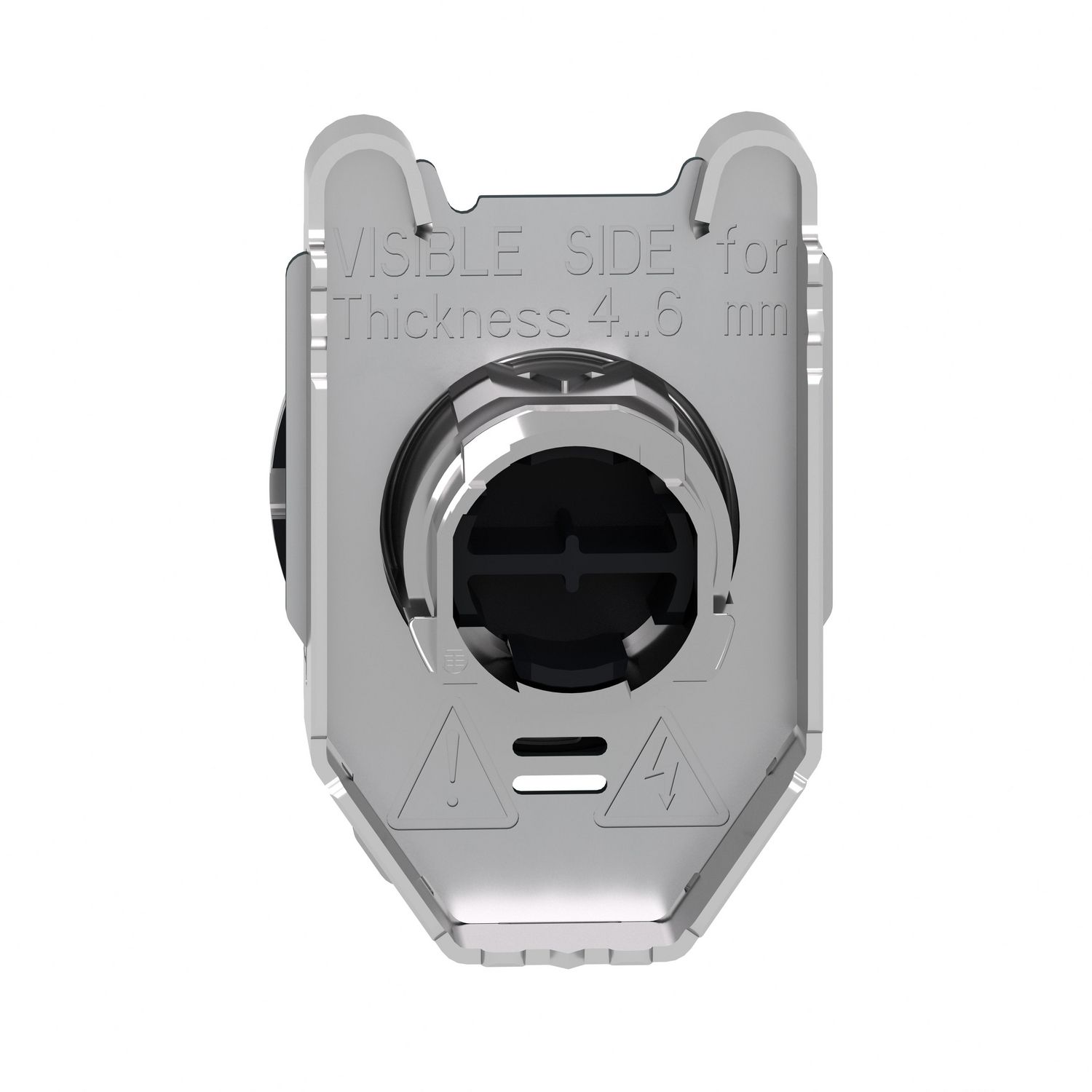

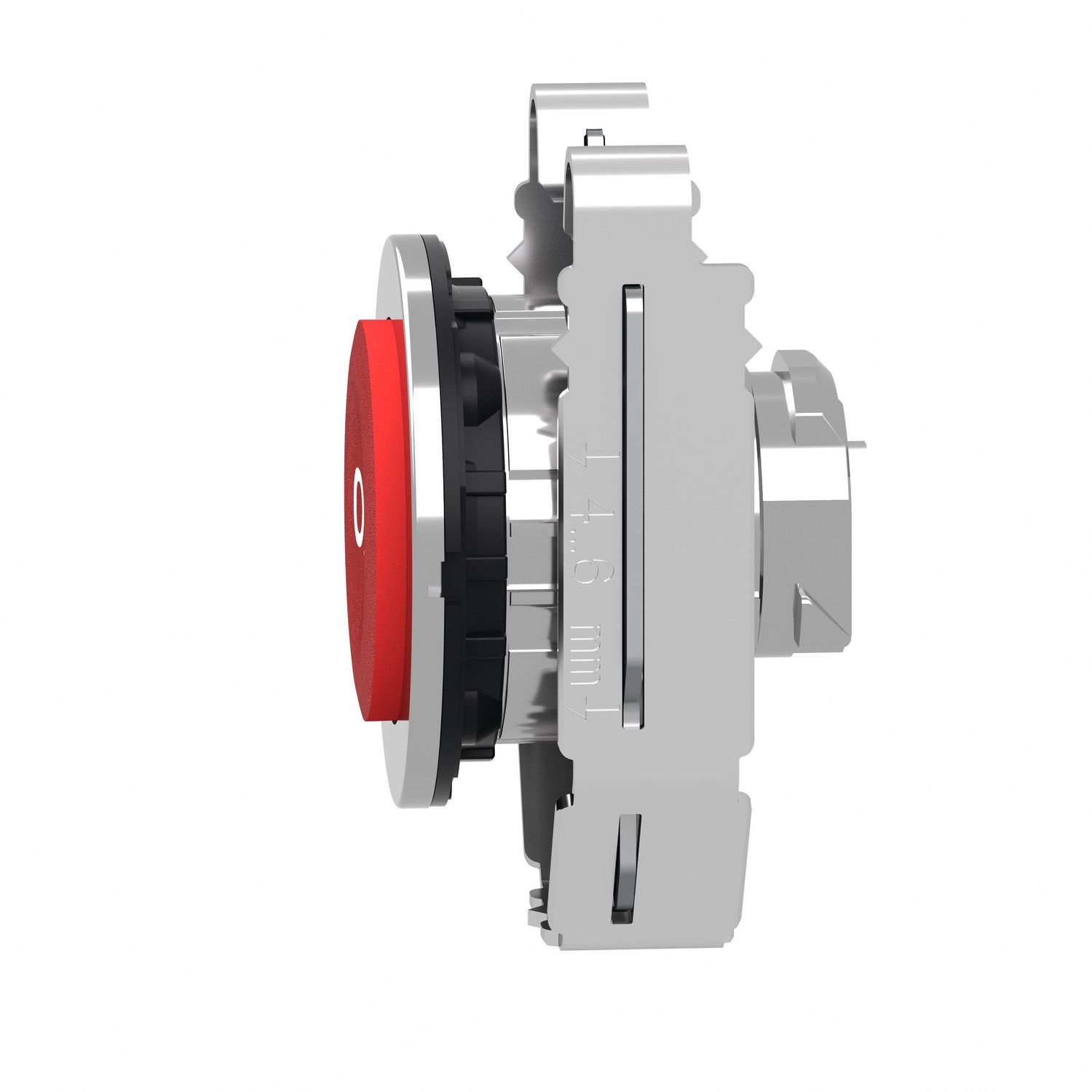

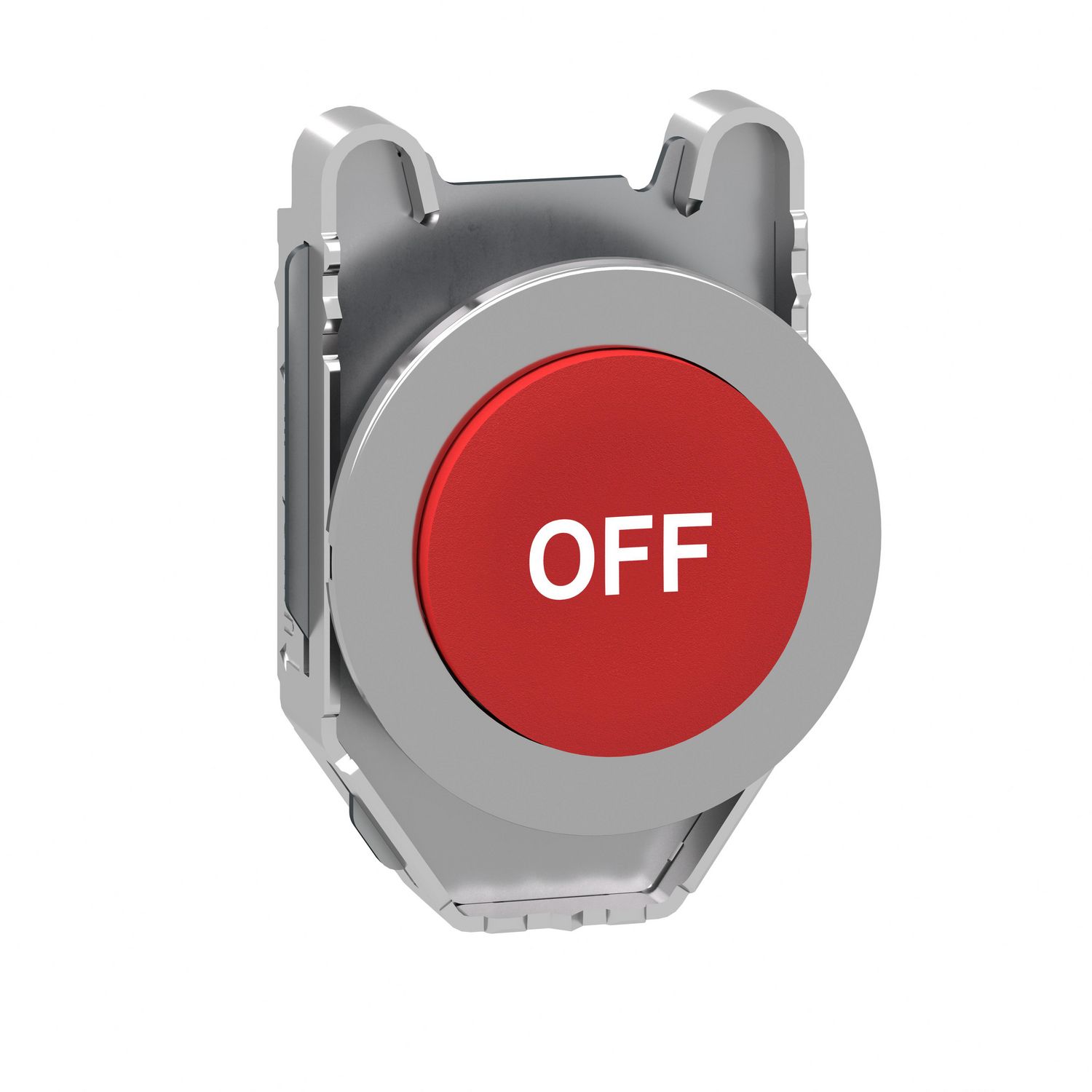

Picture of Head for non illuminated push button, Harmony XB4, flush mounted red projecting pushbutton white marked "OFF"
SKU:

ZB4FL435

Head for non illuminated push button, Harmony XB4, flush mounted red projecting pushbutton white marked "OFF"

Old price: $39.82 INC GST
$31.06 INC GST
Available for Shipping : 15-Jan-2026
Product Selector
Head for non illuminated push button, Harmony XB4, flush mounted red projecting pushbutton white marked "OFF"
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Jan-2026
Environmental Disclosure
Circularity Profile
Declaration of conformity
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color and marking. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name ZB4F
Sale per indivisible quantity 1
Head type built-in-flush
Type of operator spring return
Range of product Harmony XB4
Operator profile red projecting, OFF (white)
Bezel material chromium plated metal
Shape of signaling unit head round
Product or component type head for non-illuminated push-button
Mounting diameter 30.5 mm
Complementary
Group of product projecting push with marking
Compatibility code ZB4
Mechanical durability 10000000 cycles
Device presentation basic element
CAD overall height 36.6 mm
Customizable 0, no
Colour of marking white
Electrical composition code C15 for <1 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C2 for <9 contacts using single and double blocks in front mounting, C1 for <9 contacts using single blocks in front mounting
Main group push-button
CAD overall depth 33 mm
CAD overall width 36.6 mm
Marking OFF
Cap/operator or lens colour red
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection Type 4X conforming to UL 50E, Type 4 conforming to UL 50E, Type 12 conforming to UL 50E, Type 13 conforming to UL 50E, IP69K conforming to ISO 20653, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK06 conforming to IEC 50102
Overvoltage category class I conforming to IEC 60536
Vibration resistance 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6, 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, CE, JIS C8201-5-1, EN/IEC 60947-1, UL 508, EN/IEC 60947-5-4, EN/IEC 60947-5-1, CSA C22.2 No 14
Product certifications EAC, CCC, CSA, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.334 cm
Package 1 Width 4.318 cm
Package 1 Length 5.588 cm
Package 1 Weight 58.968 g
