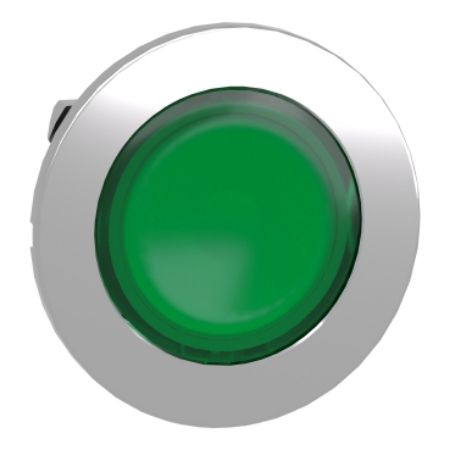

Picture of Head for illuminated push button, Harmony XB4, metal, green flush mounted, 30mm, universal LED, for legend of insertion

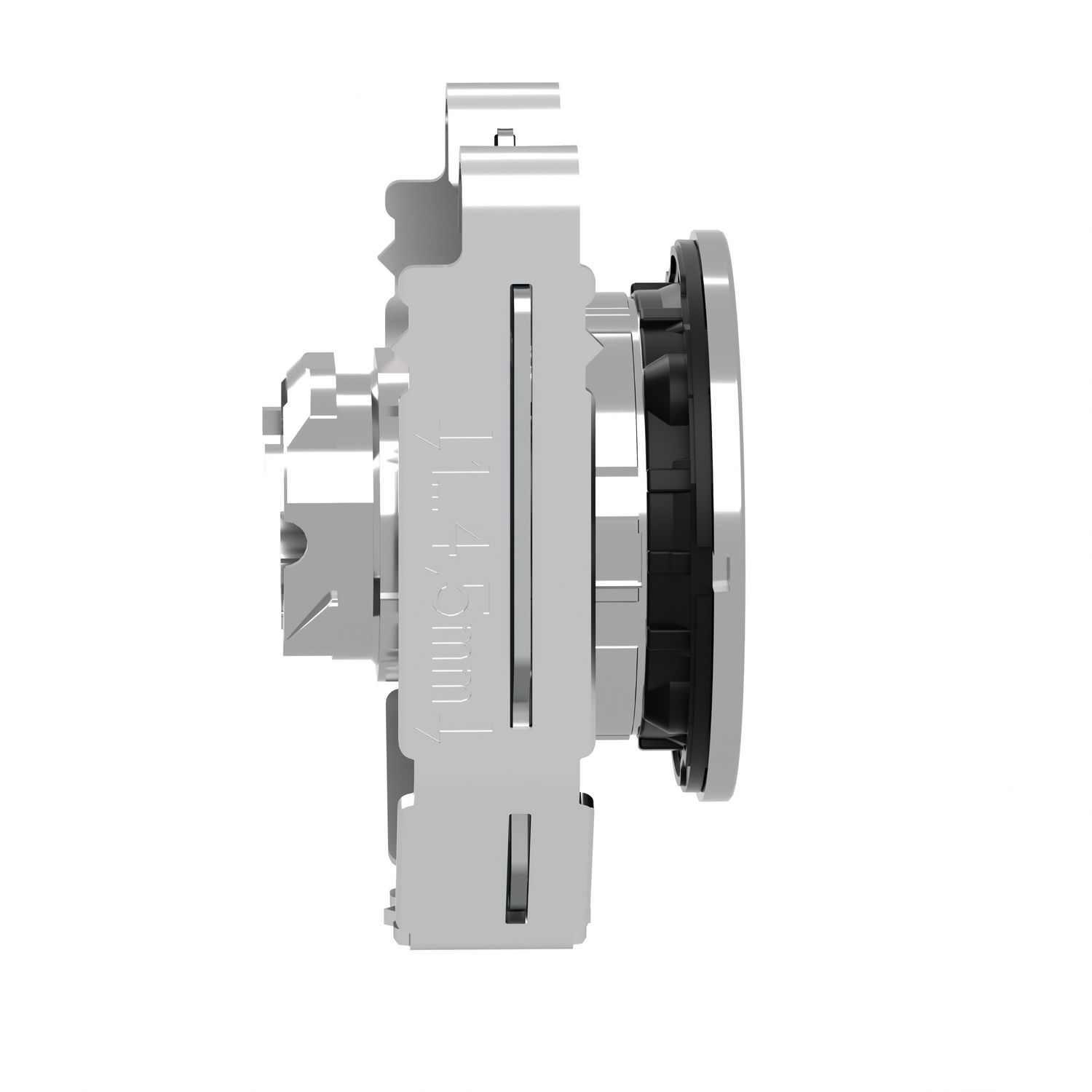

Picture of Head for illuminated push button, Harmony XB4, metal, green flush mounted, 30mm, universal LED, for legend of insertion

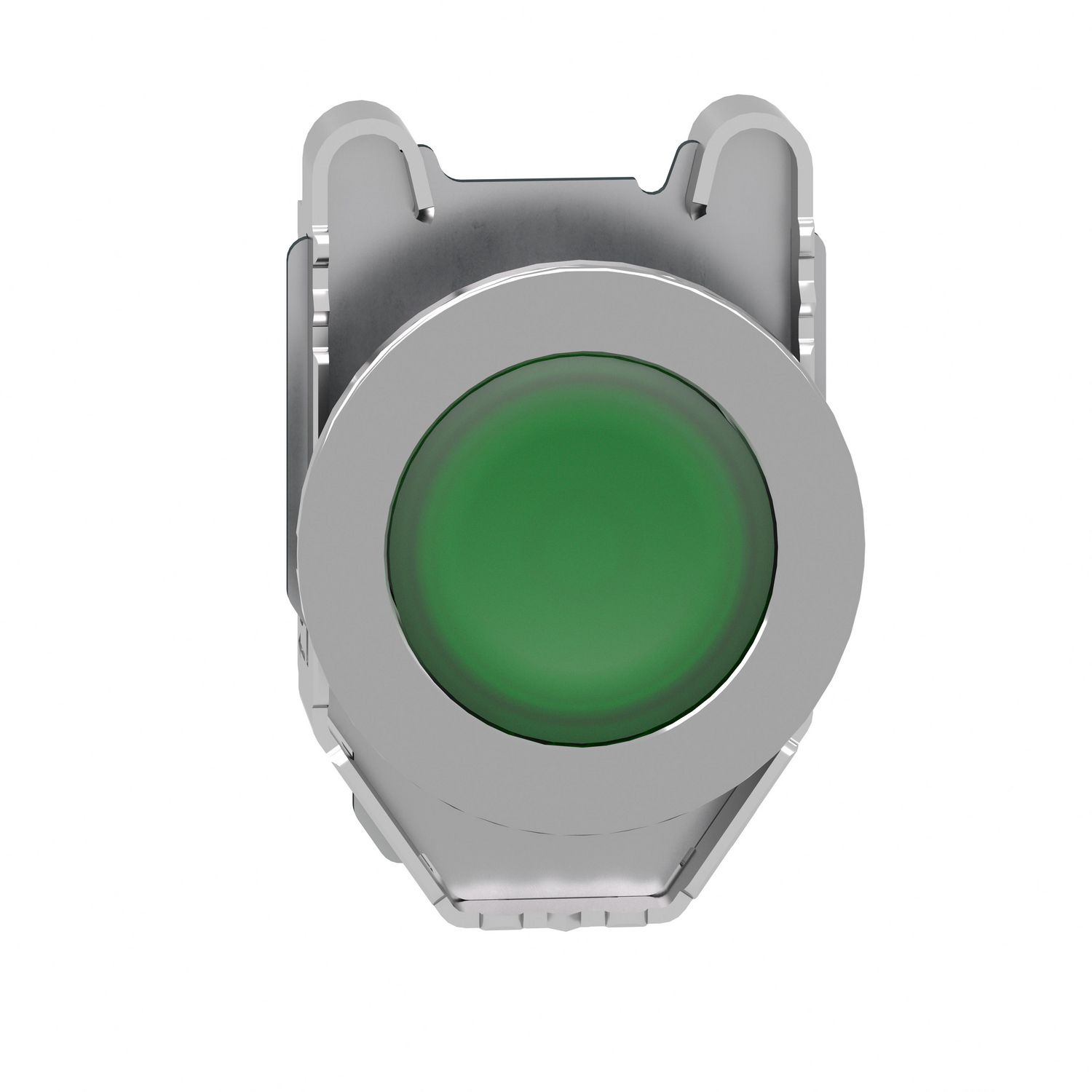

Picture of Head for illuminated push button, Harmony XB4, metal, green flush mounted, 30mm, universal LED, for legend of insertion

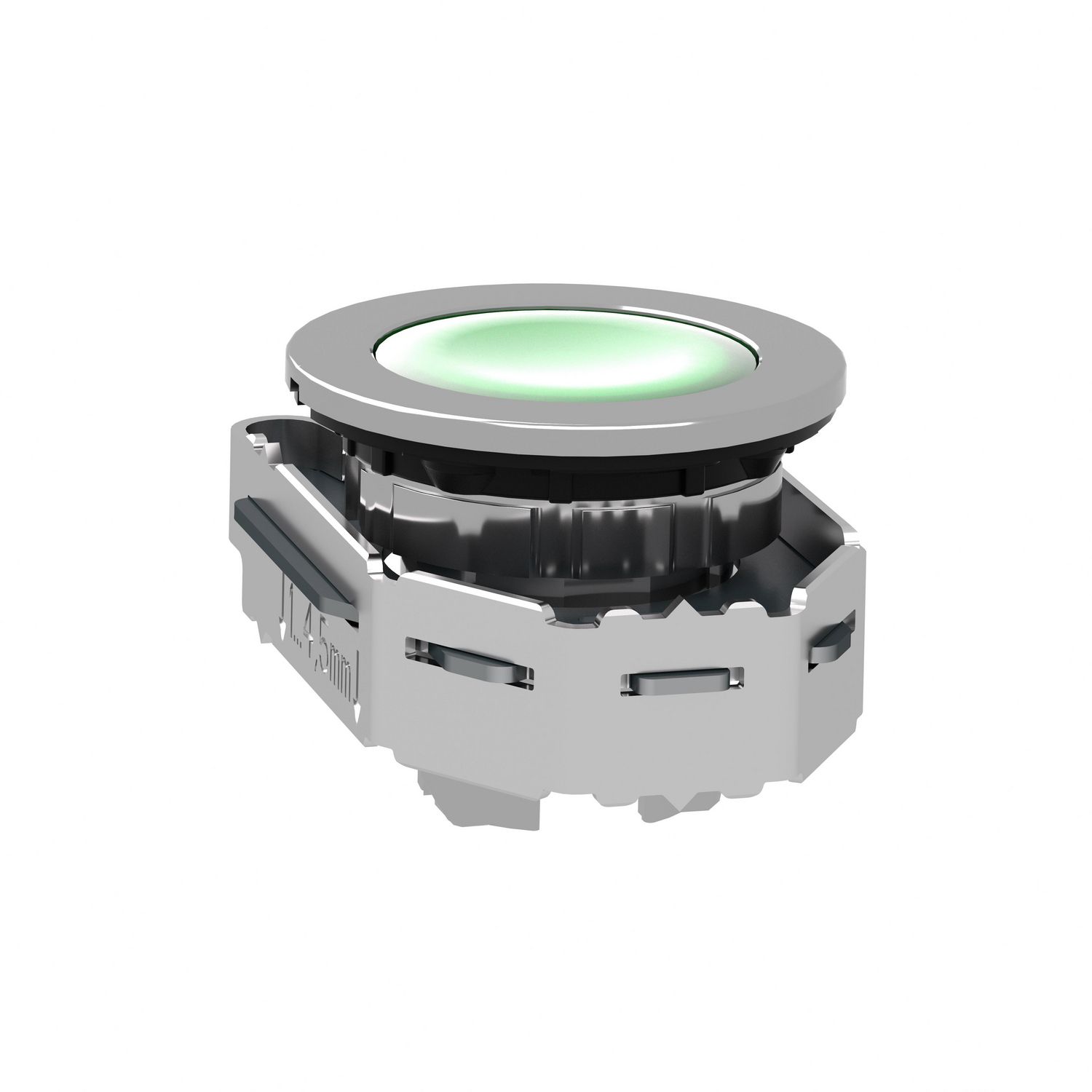

Picture of Head for illuminated push button, Harmony XB4, metal, green flush mounted, 30mm, universal LED, for legend of insertion

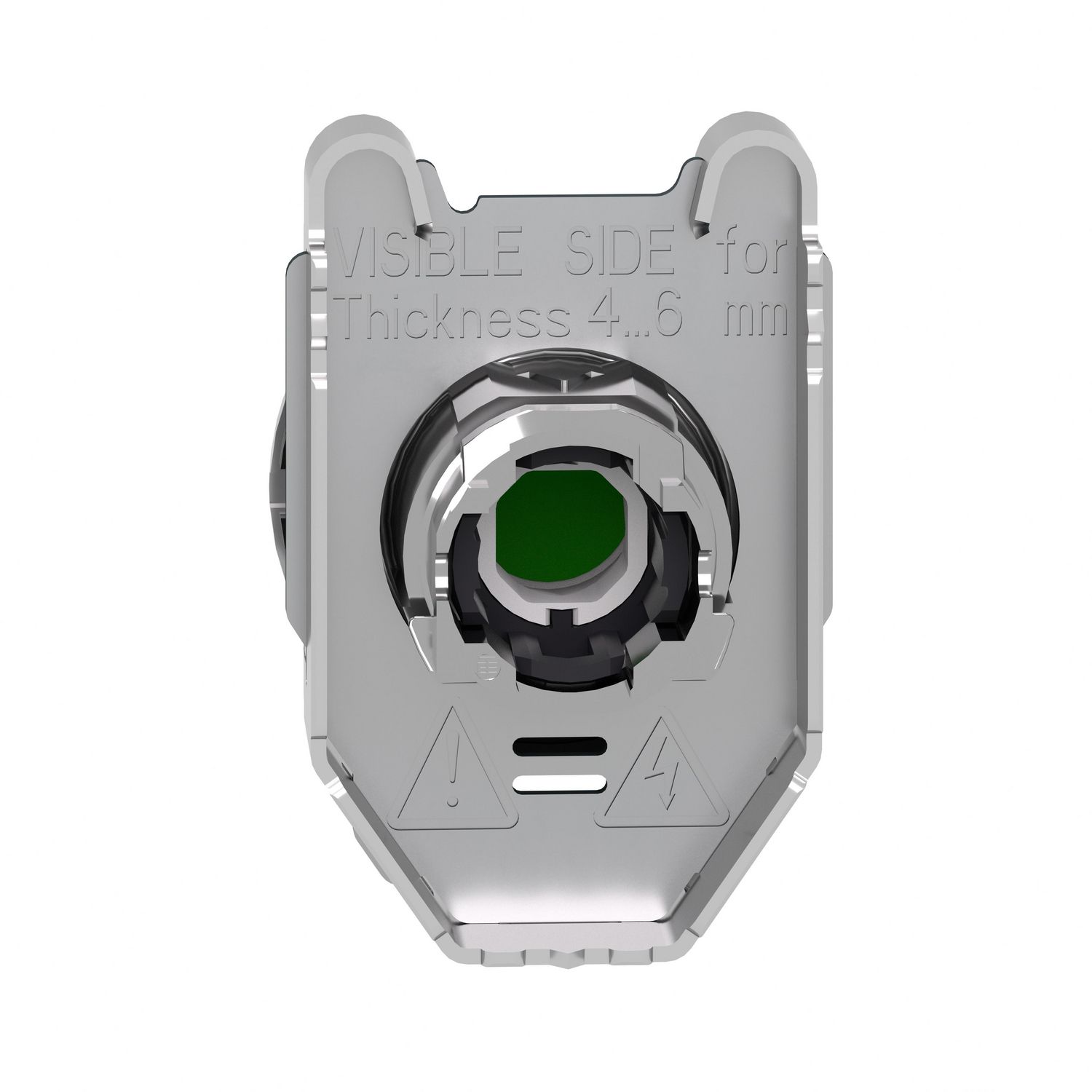

Picture of Head for illuminated push button, Harmony XB4, metal, green flush mounted, 30mm, universal LED, for legend of insertion

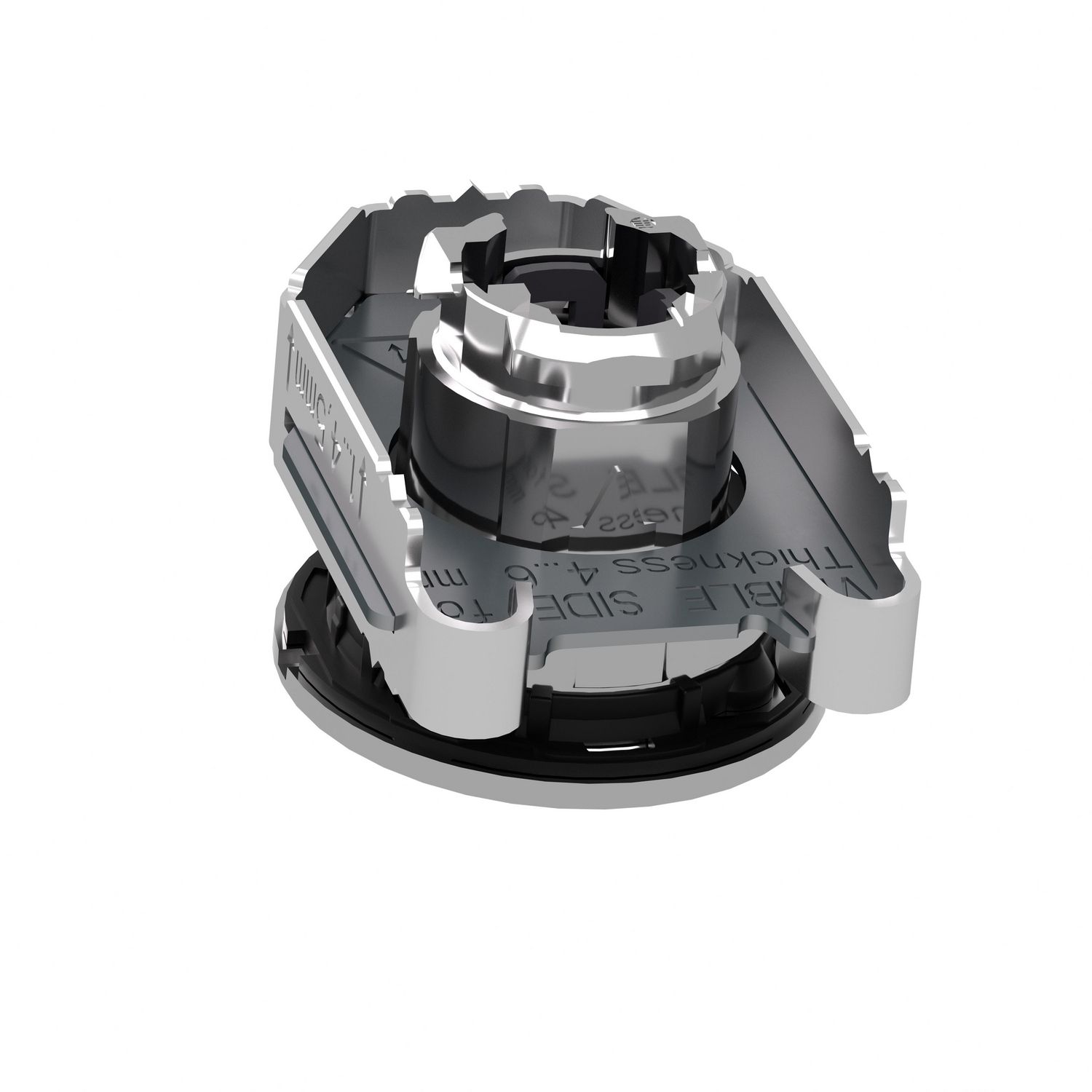

Picture of Head for illuminated push button, Harmony XB4, metal, green flush mounted, 30mm, universal LED, for legend of insertion

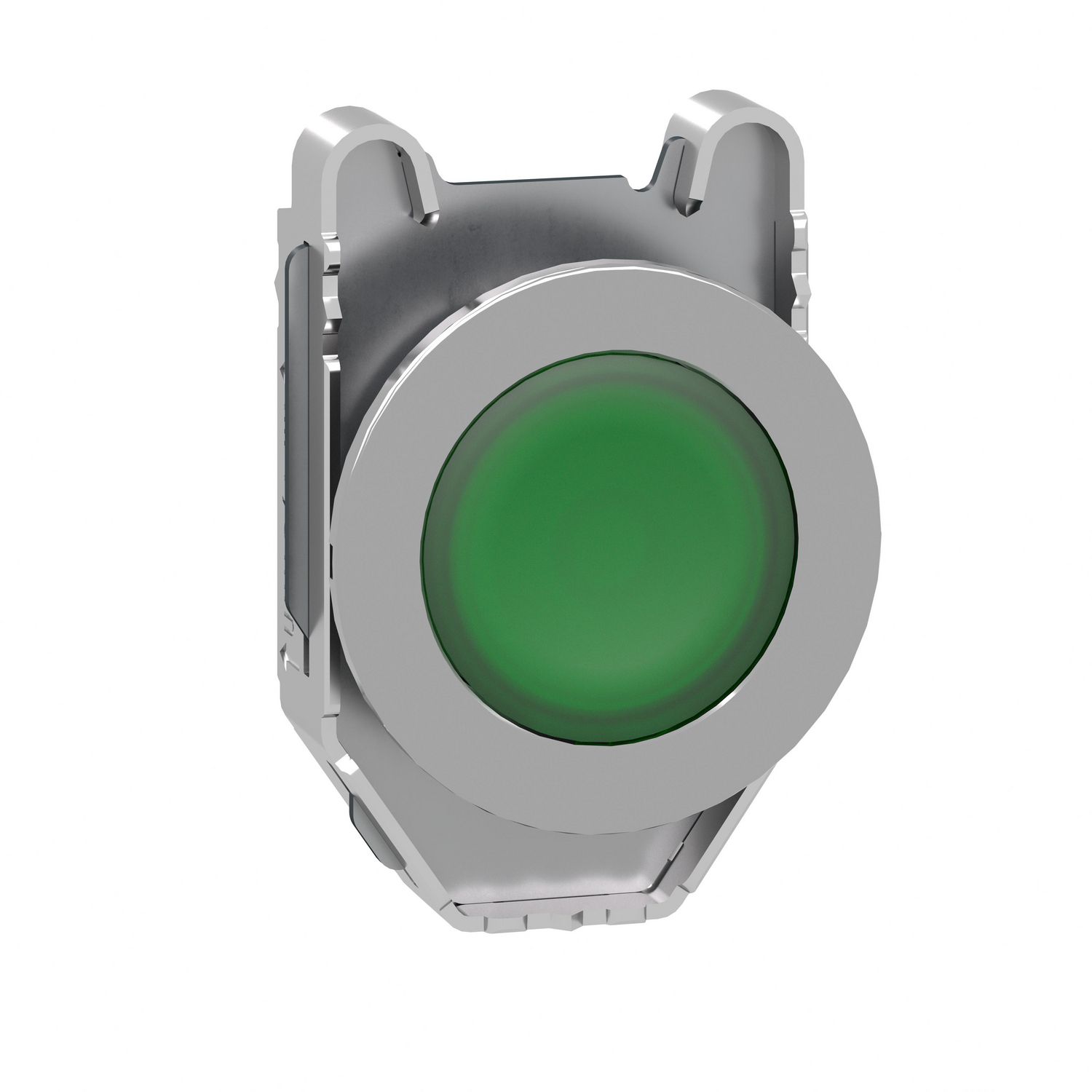

Picture of Head for illuminated push button, Harmony XB4, metal, green flush mounted, 30mm, universal LED, for legend of insertion

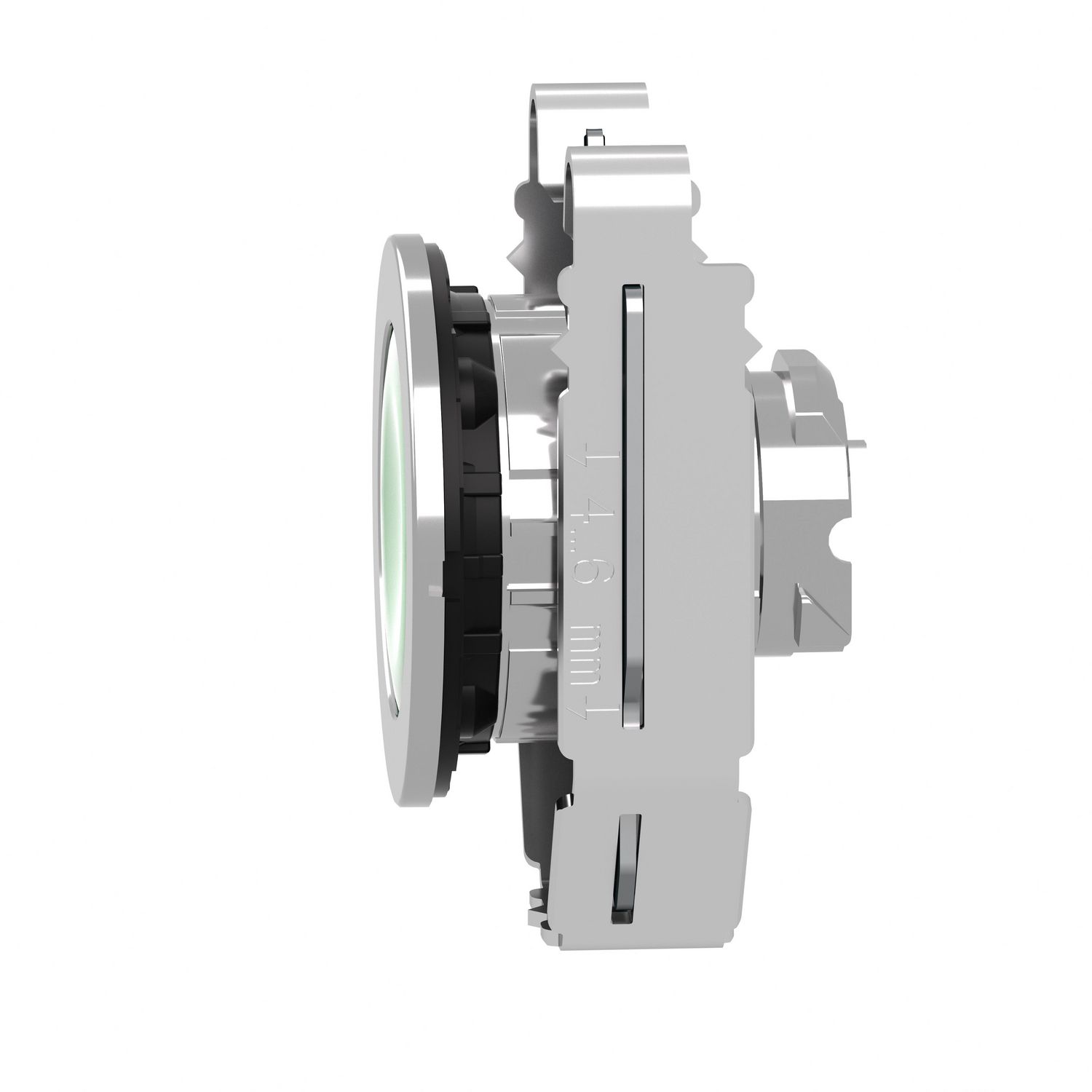

Picture of Head for illuminated push button, Harmony XB4, metal, green flush mounted, 30mm, universal LED, for legend of insertion
SKU:

ZB4FA38

Head for illuminated push button, Harmony XB4, metal, green flush mounted, 30mm, universal LED, for legend of insertion

Old price: $40.26 INC GST
$31.40 INC GST
Available for Shipping : 15-Jan-2026
Product Selector
Head for illuminated push button, Harmony XB4, metal, green flush mounted, 30mm, universal LED, for legend of insertion
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Jan-2026
Catalog
Environmental Disclosure
Circularity Profile
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
This 30.5 mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its illuminated clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name ZB4F
Sale per indivisible quantity 1
Head type built-in-flush
Type of operator spring return
Range of product Harmony XB4
Operator profile green flush
Bezel material chromium plated metal
Shape of signaling unit head round
Product or component type head for illuminated push-button
Mounting diameter 30.5 mm
Operator additional information for insertion of legend
Complementary
Group of product flush push with inser of legend
Compatibility code ZB4
Mechanical durability 10000000 cycles
Device presentation basic element
CAD overall height 36.6 mm
Customizable 1, no
Electrical composition code C14 for <2 contacts using single blocks in front mounting, C4 for <6 contacts using single and double blocks in front mounting, C3 for <6 contacts using single blocks in front mounting, M10 for <2 contacts using single blocks in front mounting with integral LED, M6 for <2 contacts using single blocks in front mounting with integral LED and transformer, M2 for <6 contacts using single and double blocks in front mounting with integral LED, M1 for <6 contacts using single blocks in front mounting with integral LED
Main group illum push-button
CAD overall depth 31 mm
CAD overall width 36.6 mm
Marking unmarked
Cap/operator or lens colour green
GCR BRIDGE ZB4FACUST03
Net weight 0.06 kg
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection Type 4X conforming to UL 50E, Type 4 conforming to UL 50E, Type 12 conforming to UL 50E, Type 13 conforming to UL 50E, IP69K conforming to ISO 20653, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK06 conforming to IEC 50102
Overvoltage category class I conforming to IEC 60536
Vibration resistance 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6, 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, CE, JIS C8201-5-1, EN/IEC 60947-1, UL 508, EN/IEC 60947-5-4, EN/IEC 60947-5-1, CSA C22.2 No 14
Product certifications EAC, CCC, CSA, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.400 cm
Package 1 Width 5.300 cm
Package 1 Length 9.300 cm
Package 1 Weight 62.000 g
