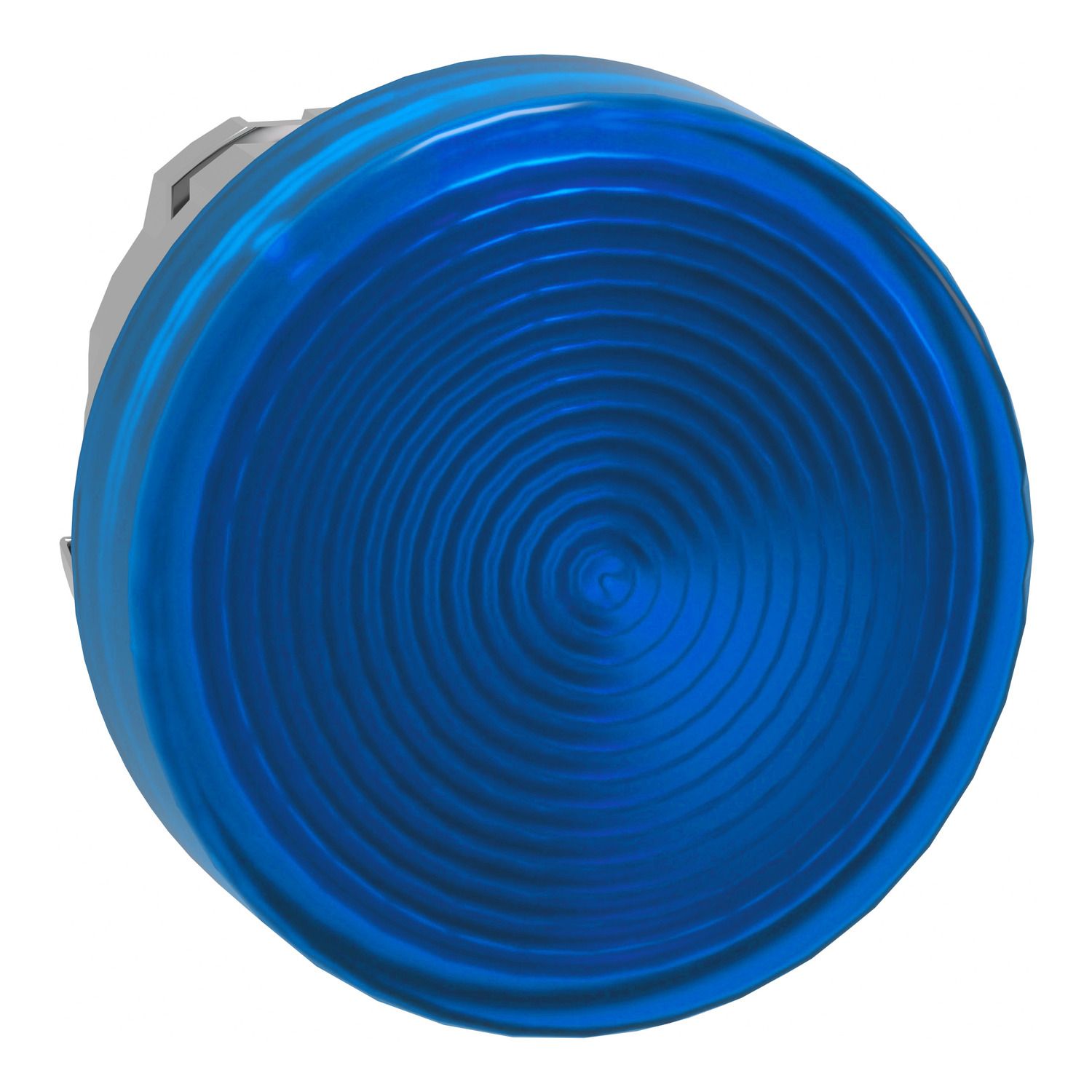

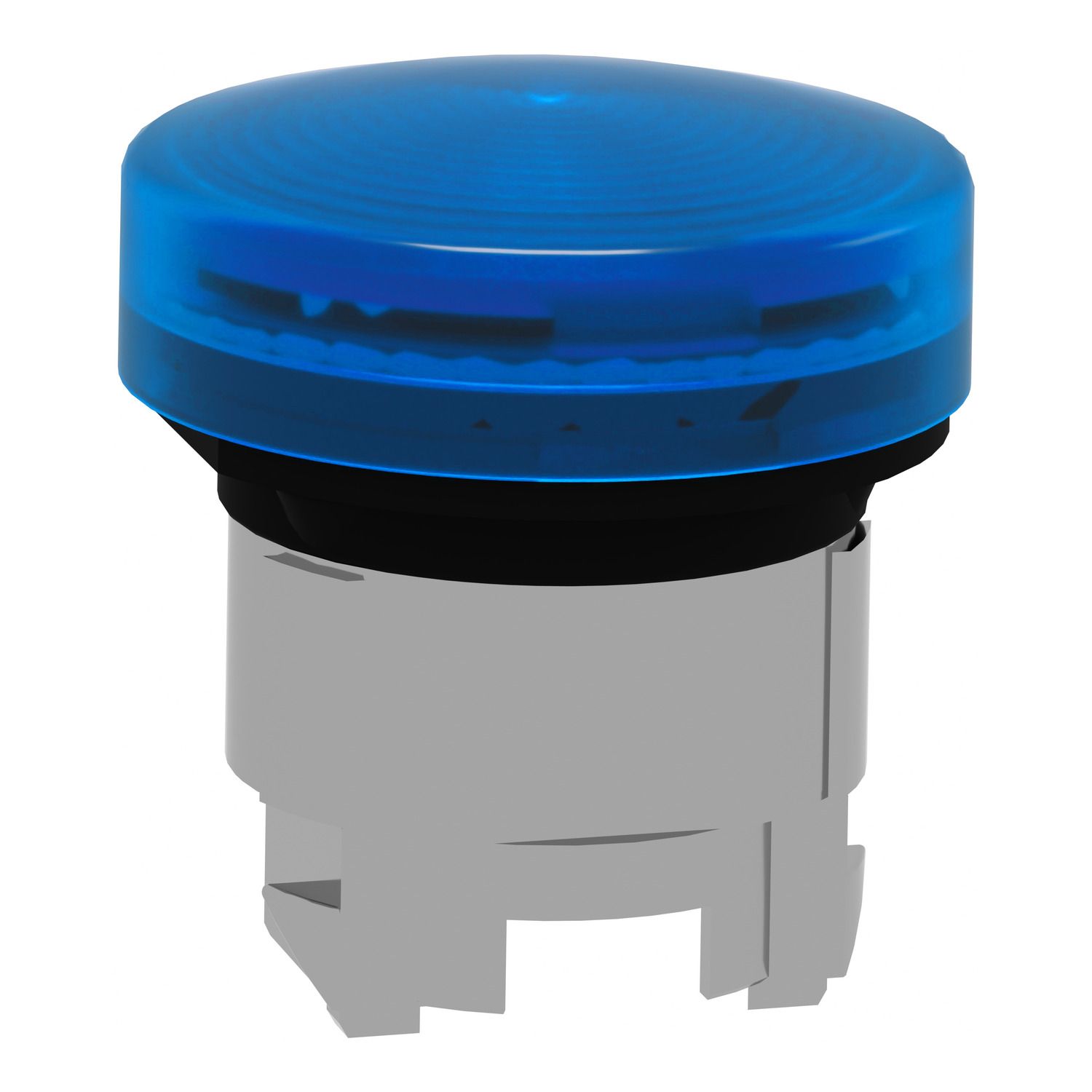

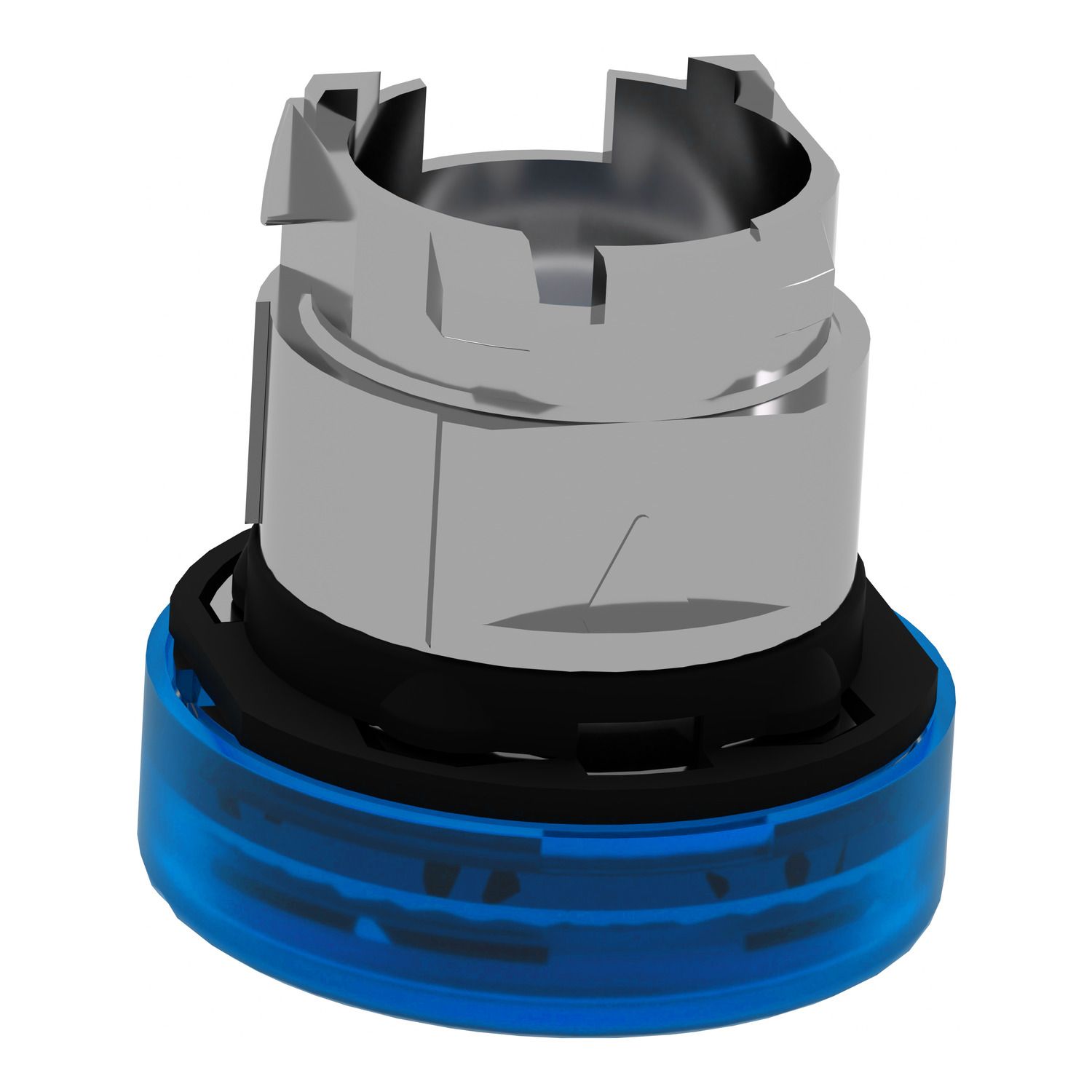

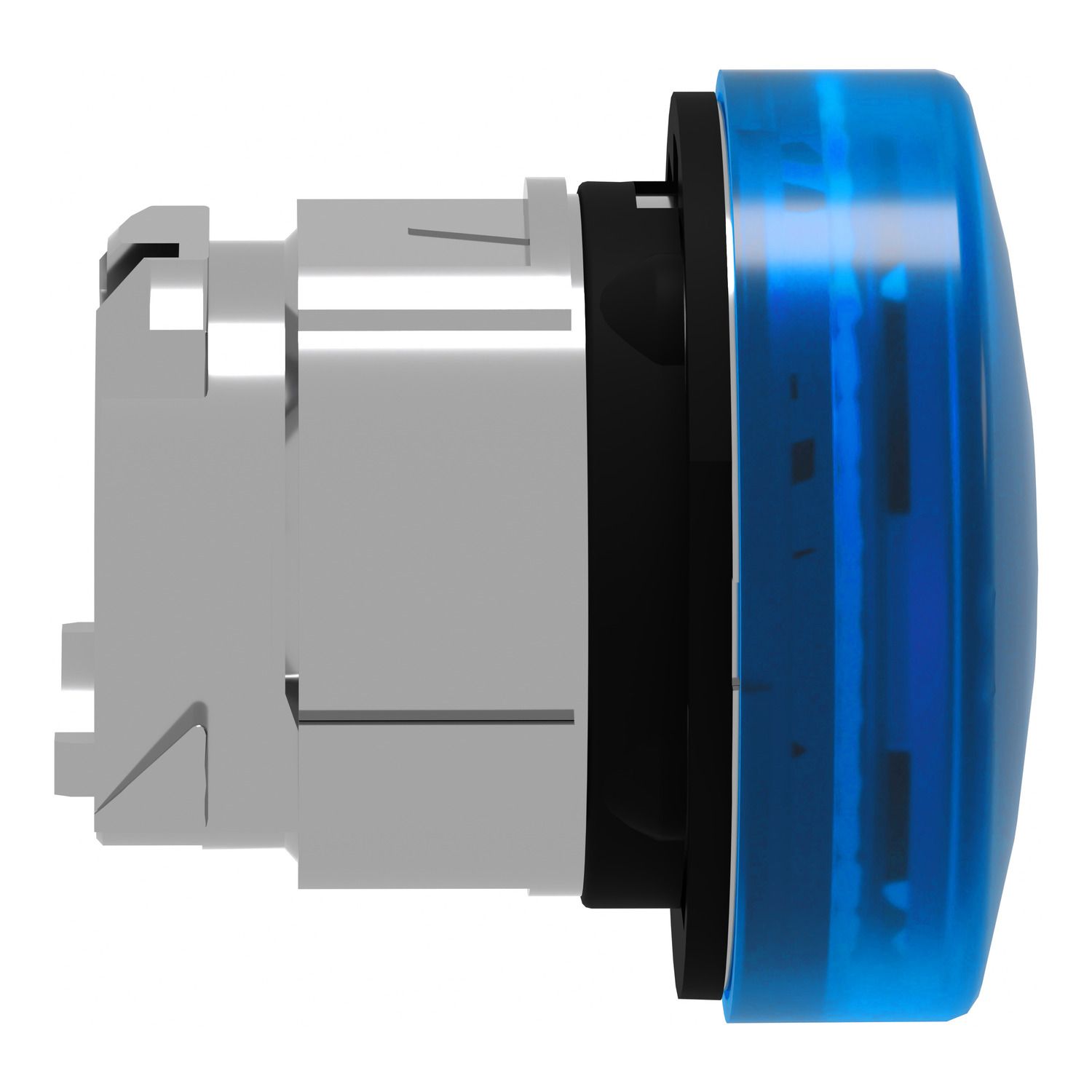

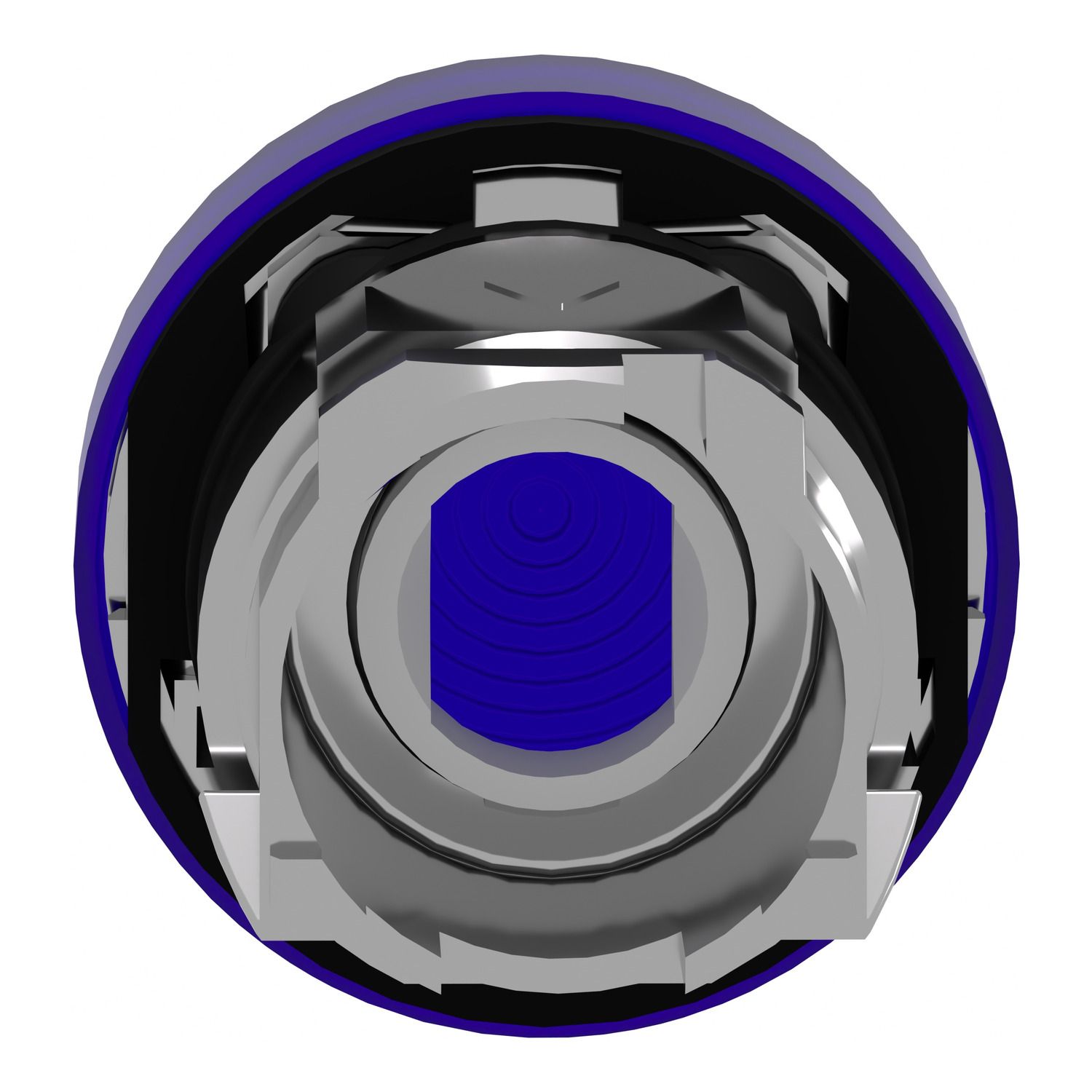

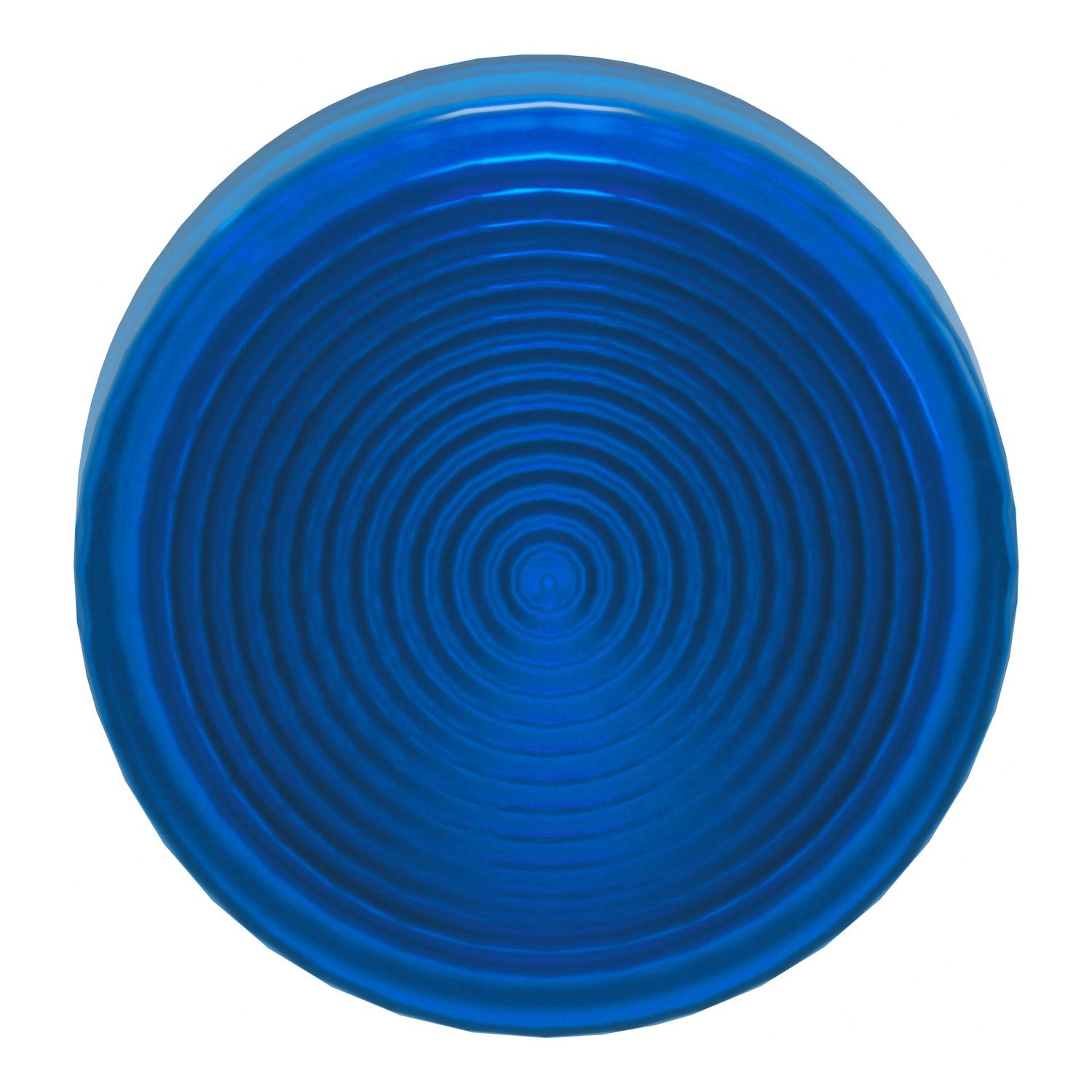

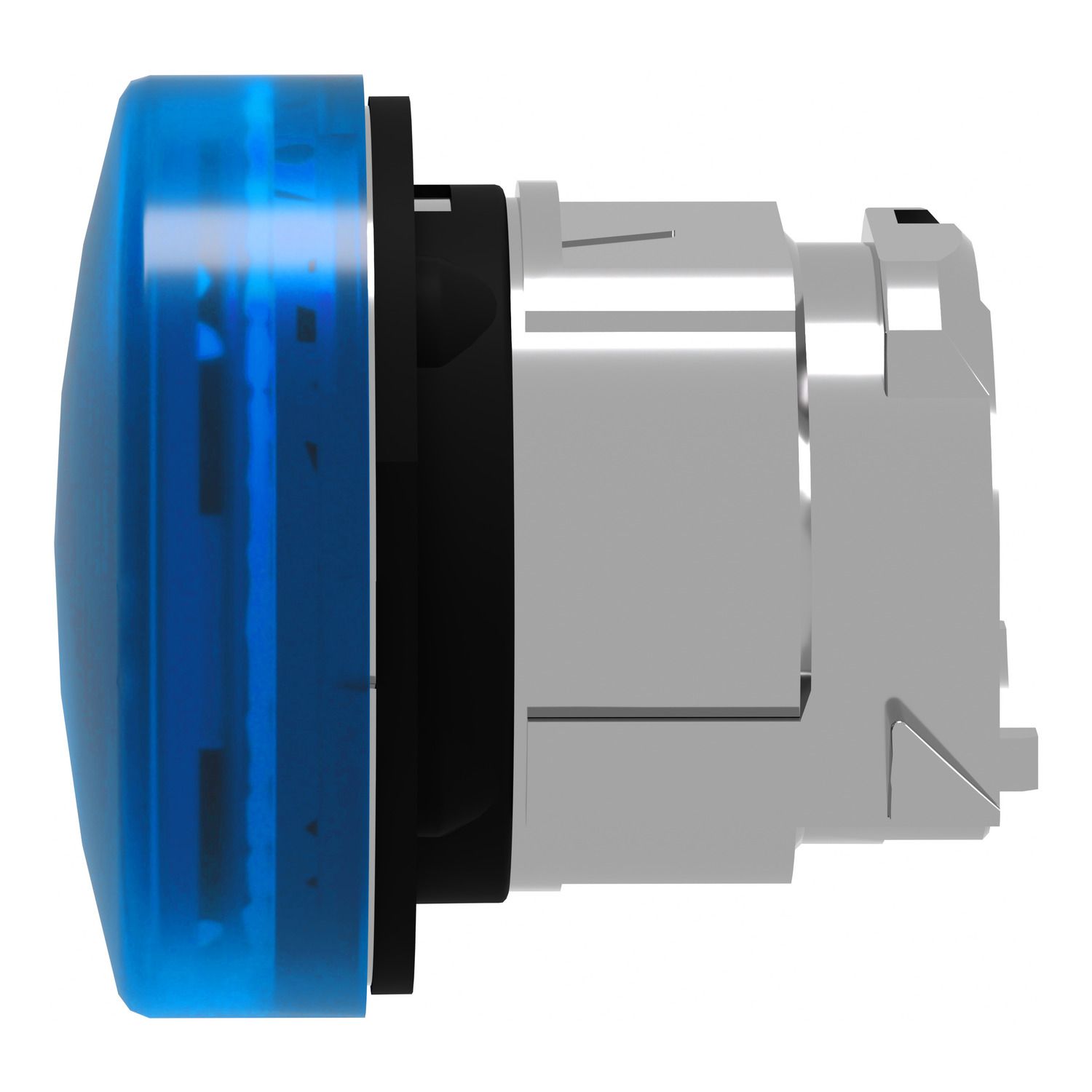

Picture of Head for pilot light, Harmony XB4, blue, 22mm, with grooved lens, universal LED
Picture of Head for pilot light, Harmony XB4, blue, 22mm, with grooved lens, universal LED
Picture of Head for pilot light, Harmony XB4, blue, 22mm, with grooved lens, universal LED
Picture of Head for pilot light, Harmony XB4, blue, 22mm, with grooved lens, universal LED
Picture of Head for pilot light, Harmony XB4, blue, 22mm, with grooved lens, universal LED
Picture of Head for pilot light, Harmony XB4, blue, 22mm, with grooved lens, universal LED
Picture of Head for pilot light, Harmony XB4, blue, 22mm, with grooved lens, universal LED
Picture of Head for pilot light, Harmony XB4, blue, 22mm, with grooved lens, universal LED
Picture of Head for pilot light, Harmony XB4, blue, 22mm, with grooved lens, universal LED
Picture of Head for pilot light, Harmony XB4, blue, 22mm, with grooved lens, universal LED
Picture of Head for pilot light, Harmony XB4, blue, 22mm, with grooved lens, universal LED
Picture of Head for pilot light, Harmony XB4, blue, 22mm, with grooved lens, universal LED
Picture of Head for pilot light, Harmony XB4, blue, 22mm, with grooved lens, universal LED
Picture of Head for pilot light, Harmony XB4, blue, 22mm, with grooved lens, universal LED
Picture of Head for pilot light, Harmony XB4, blue, 22mm, with grooved lens, universal LED
Picture of Head for pilot light, Harmony XB4, blue, 22mm, with grooved lens, universal LED
Picture of Head for pilot light, Harmony XB4, blue, 22mm, with grooved lens, universal LED
Picture of Head for pilot light, Harmony XB4, blue, 22mm, with grooved lens, universal LED
Picture of Head for pilot light, Harmony XB4, blue, 22mm, with grooved lens, universal LED
Picture of Head for pilot light, Harmony XB4, blue, 22mm, with grooved lens, universal LED
Picture of Head for pilot light, Harmony XB4, blue, 22mm, with grooved lens, universal LED
Picture of Head for pilot light, Harmony XB4, blue, 22mm, with grooved lens, universal LED
Picture of Head for pilot light, Harmony XB4, blue, 22mm, with grooved lens, universal LED
SKU:

ZB4BV063S

Head for pilot light, Harmony XB4, blue, 22mm, with grooved lens, universal LED

Old price: $32.01 INC GST
$24.97 INC GST
Available for Shipping : 15-Jan-2026
Product Selector
Head for pilot light, Harmony XB4, blue, 22mm, with grooved lens, universal LED
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Jan-2026

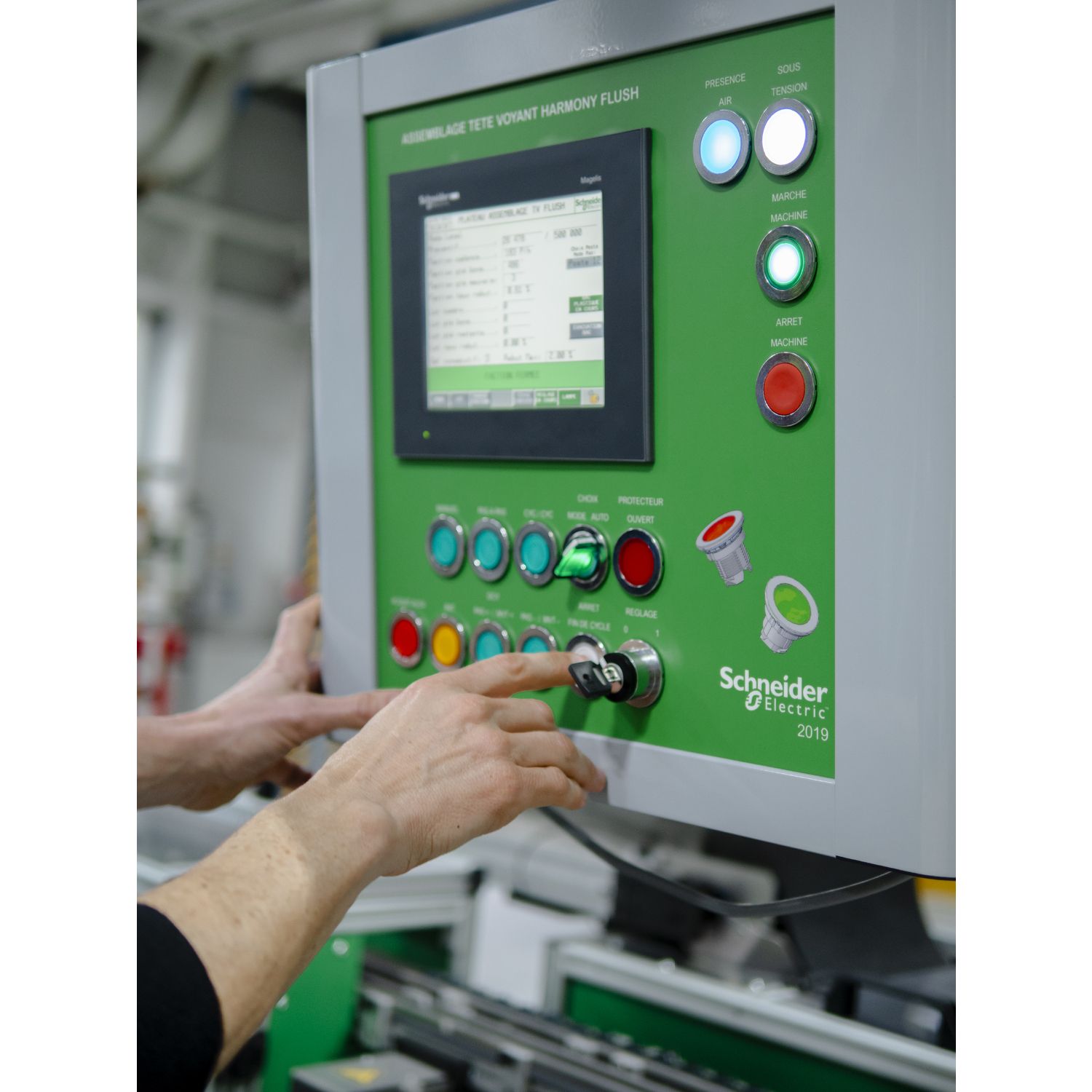

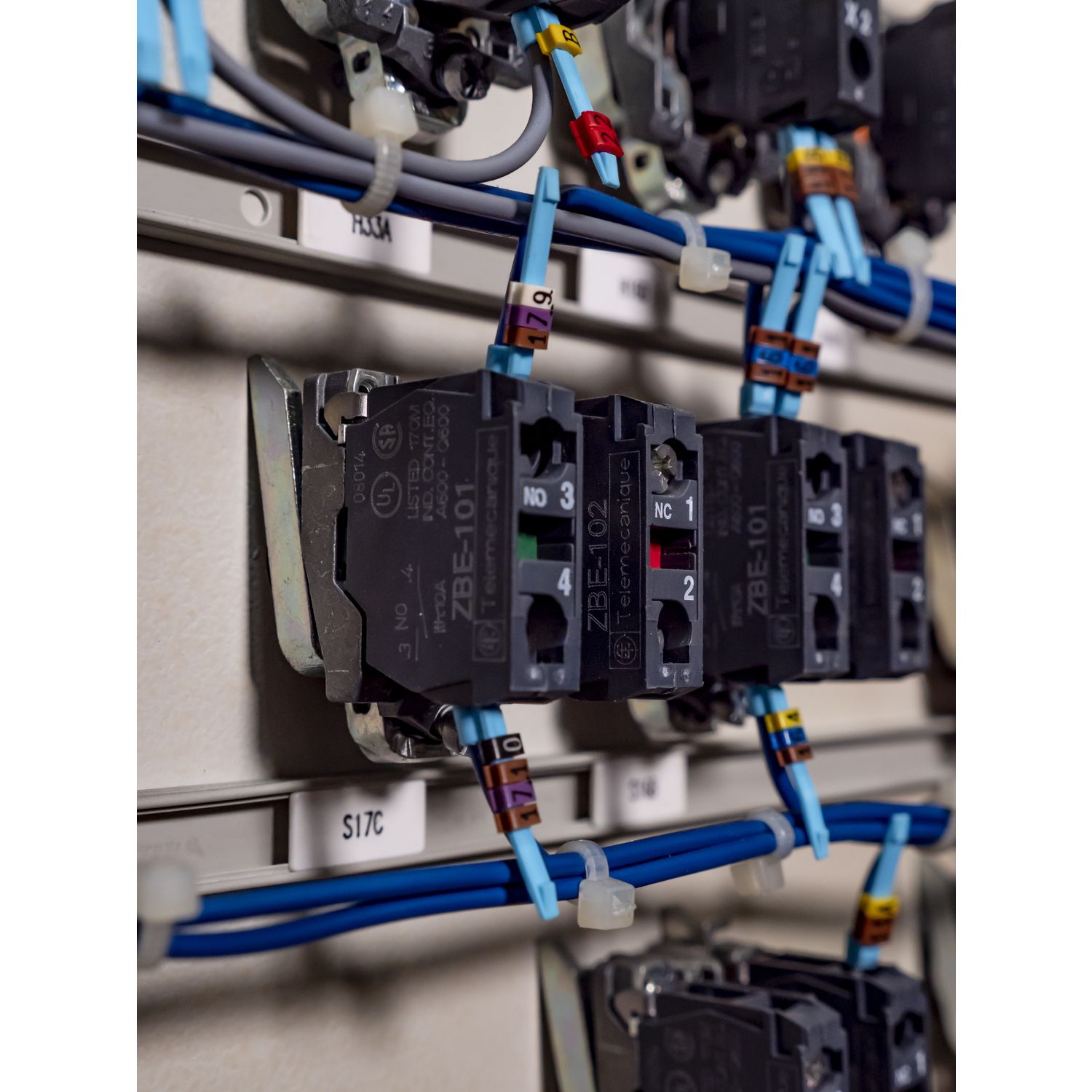

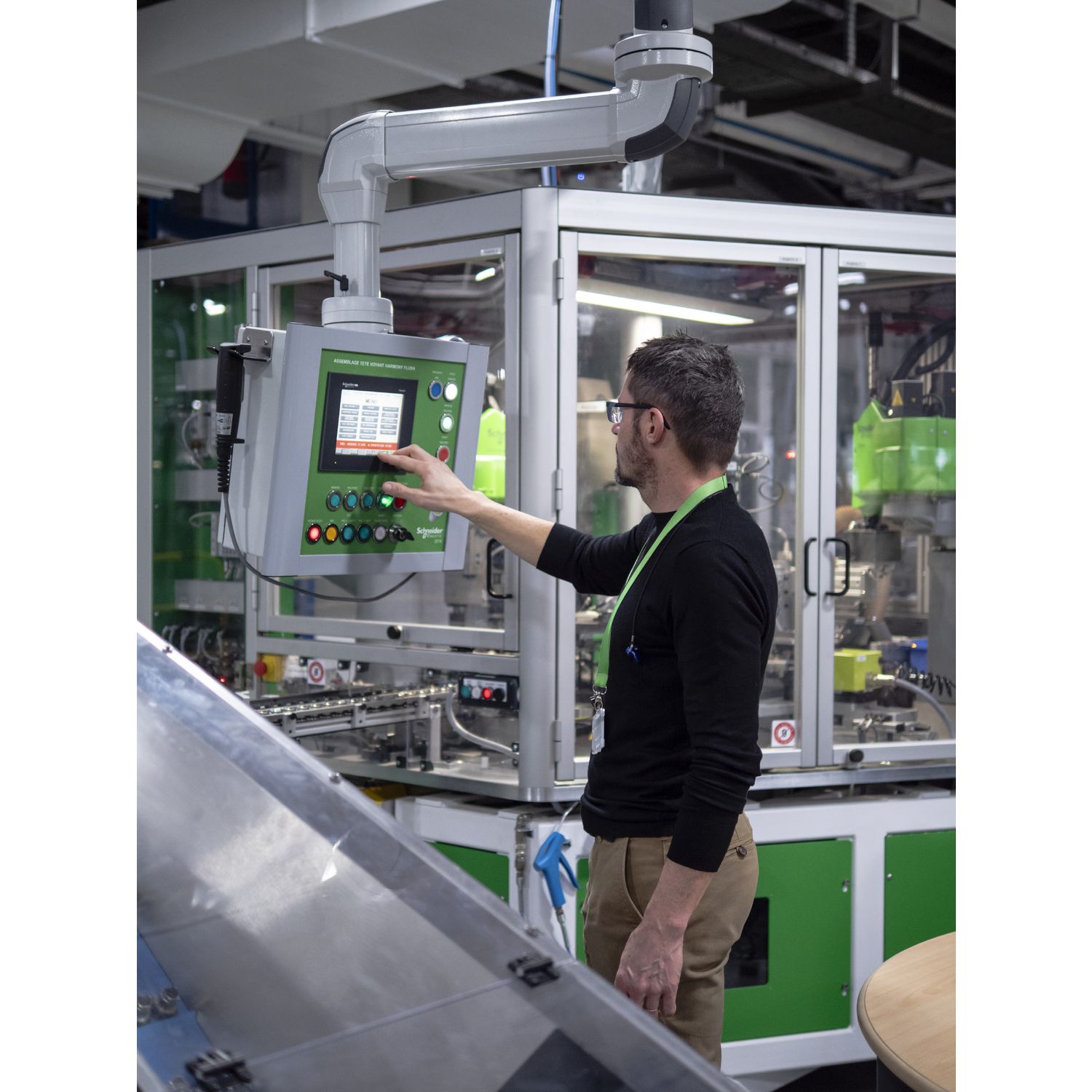

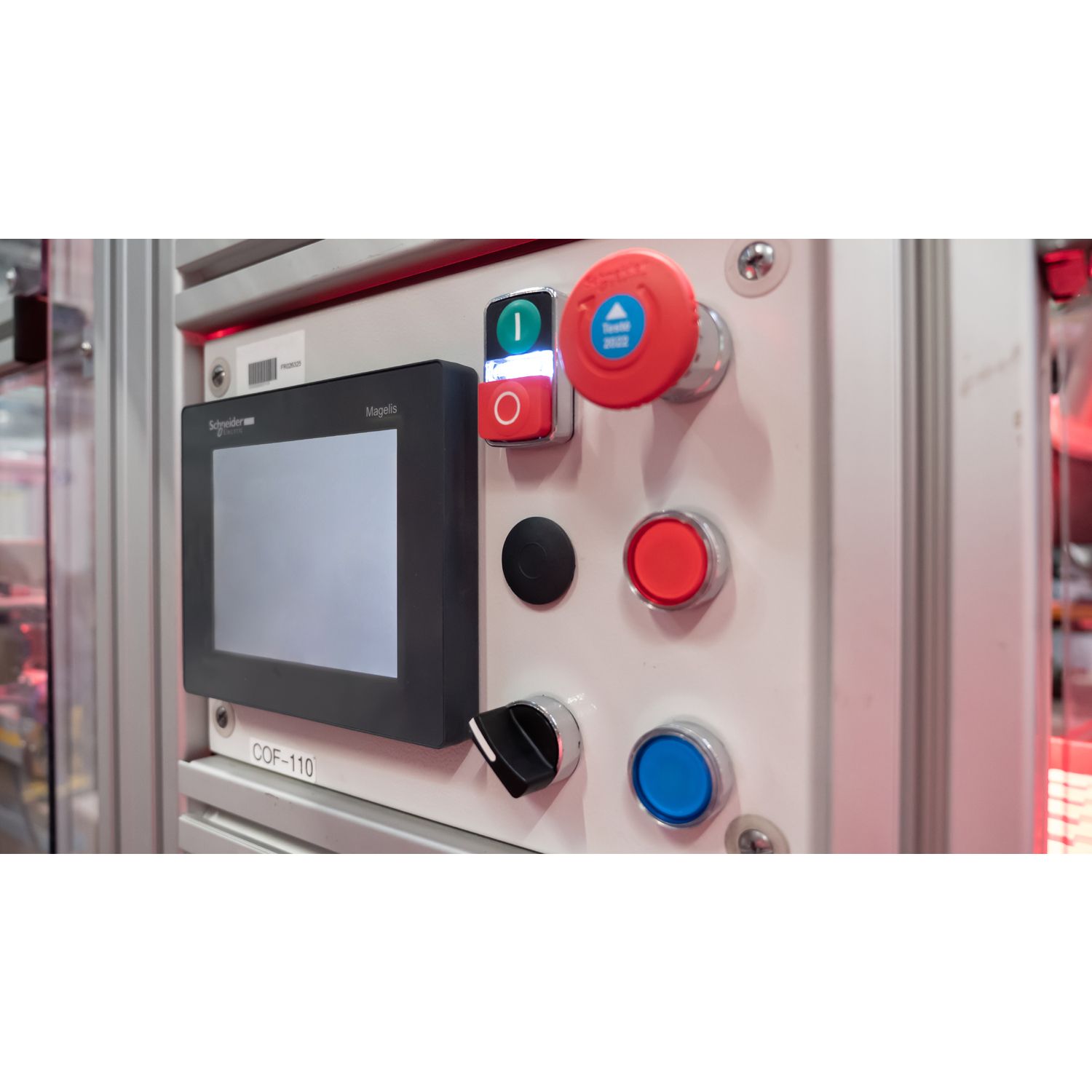

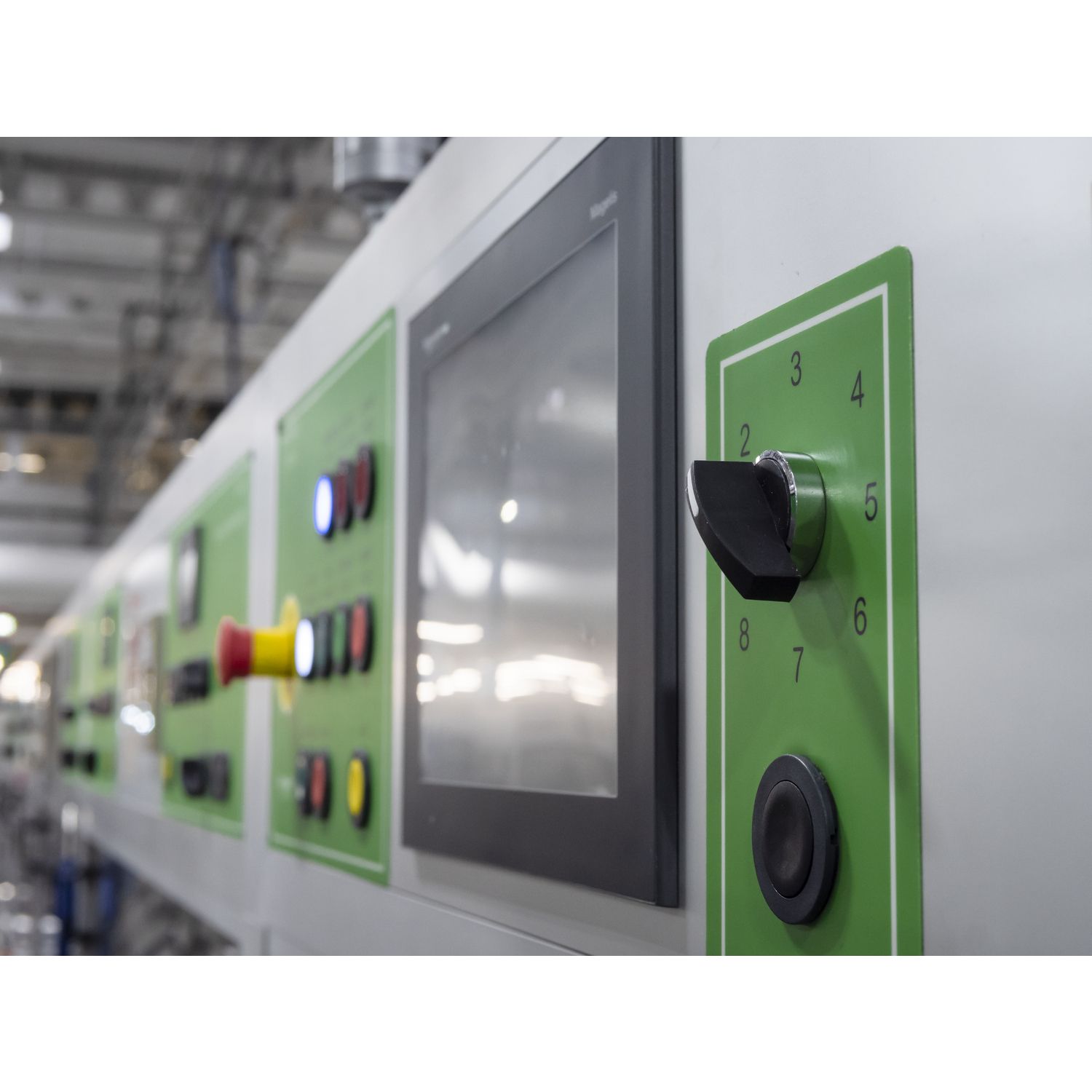

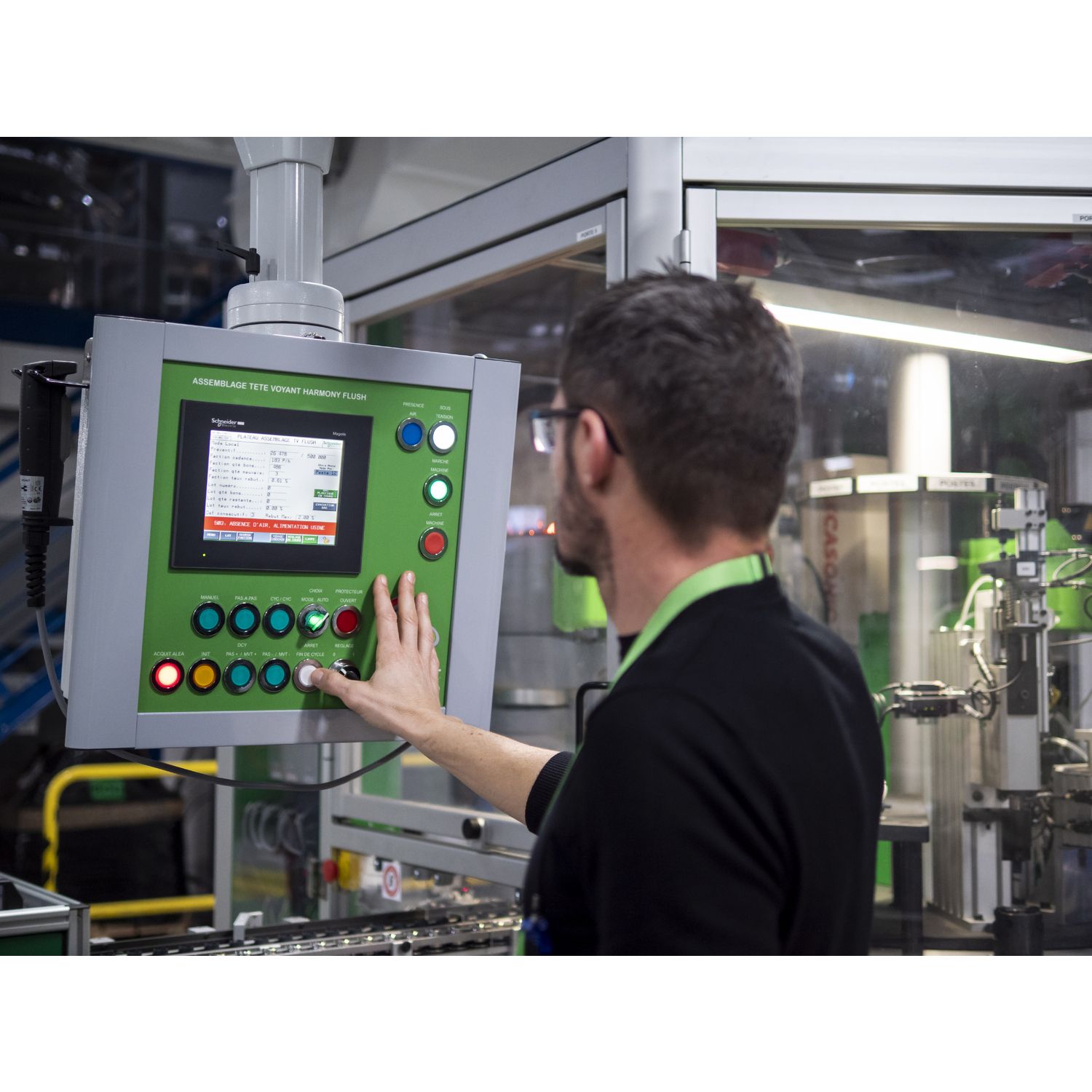

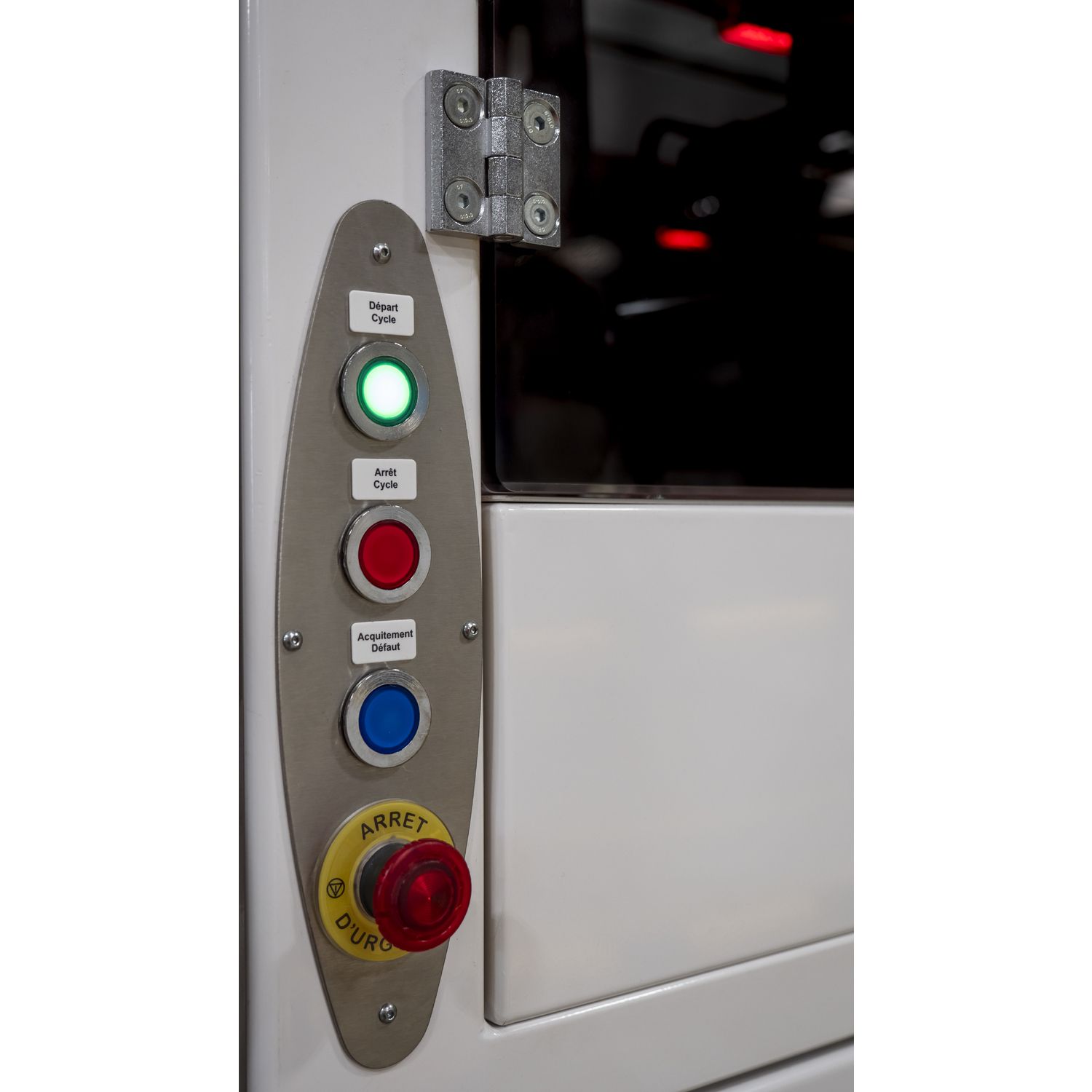

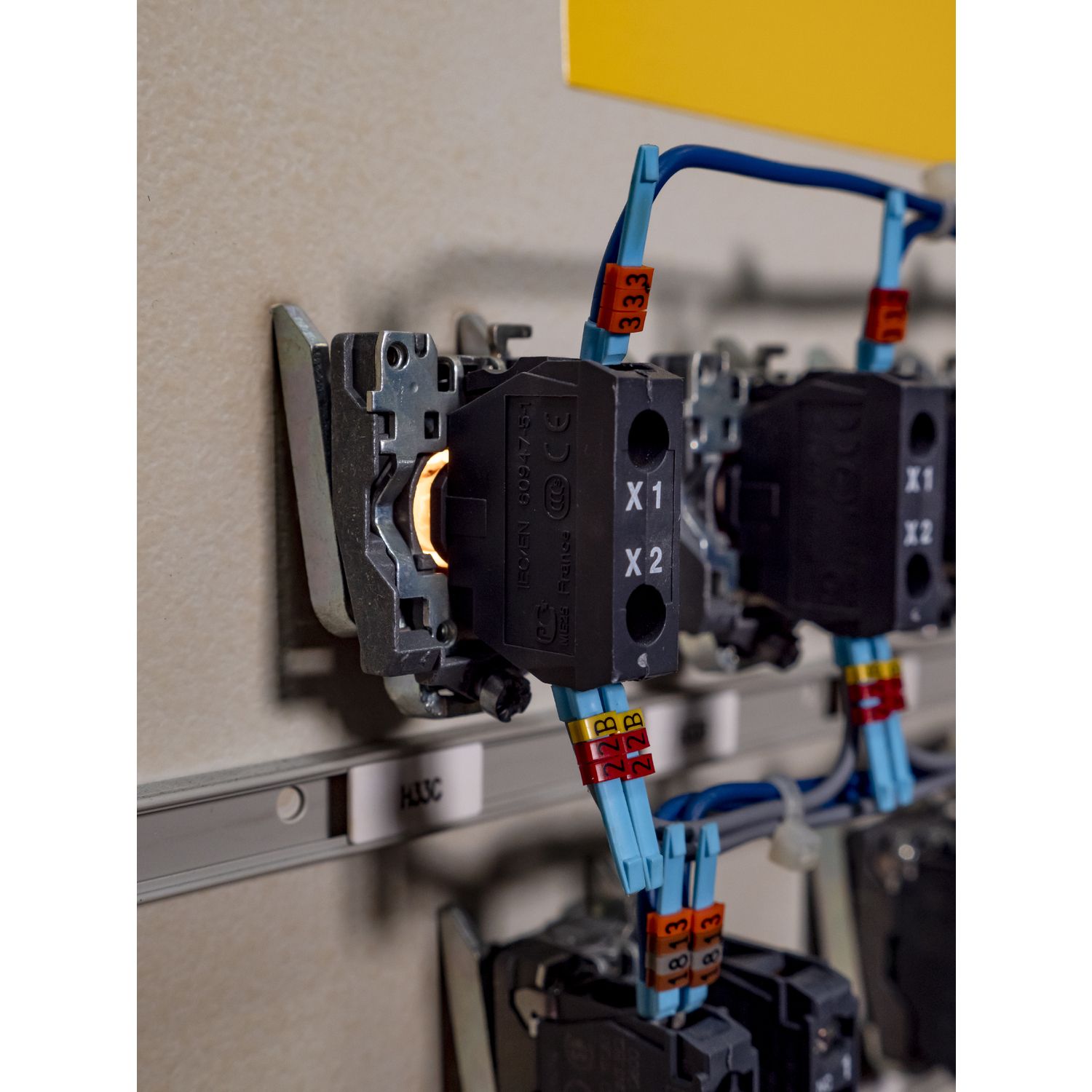

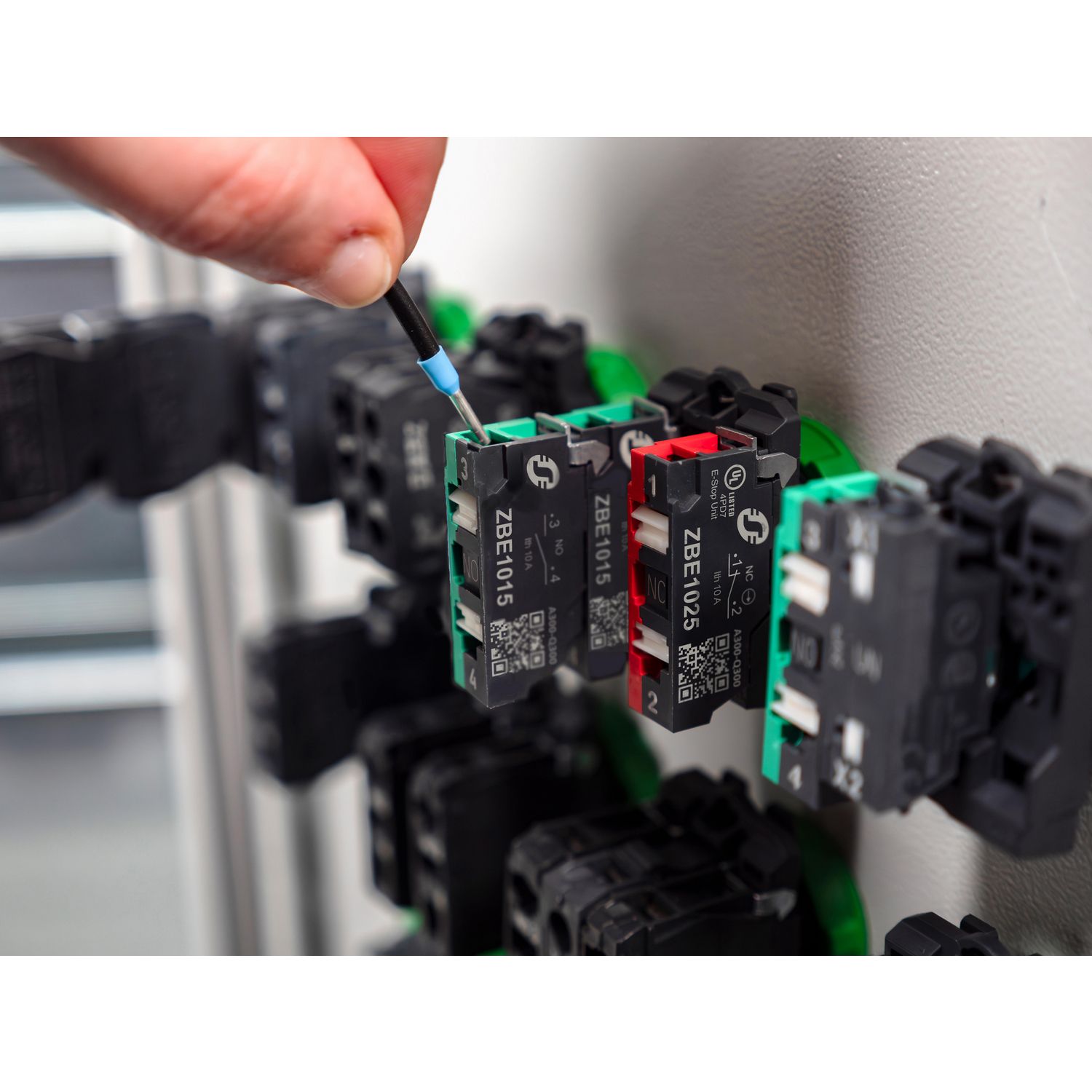

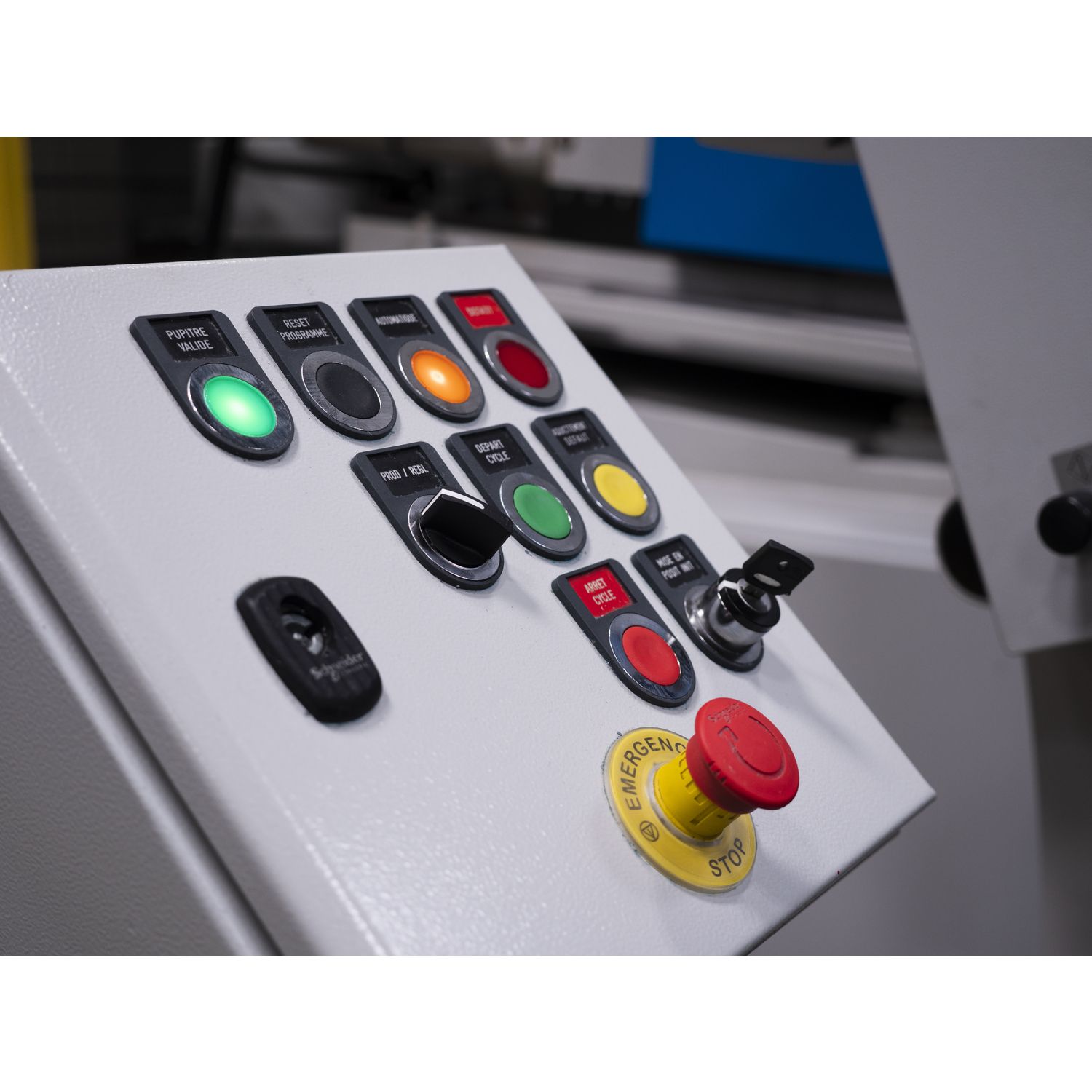

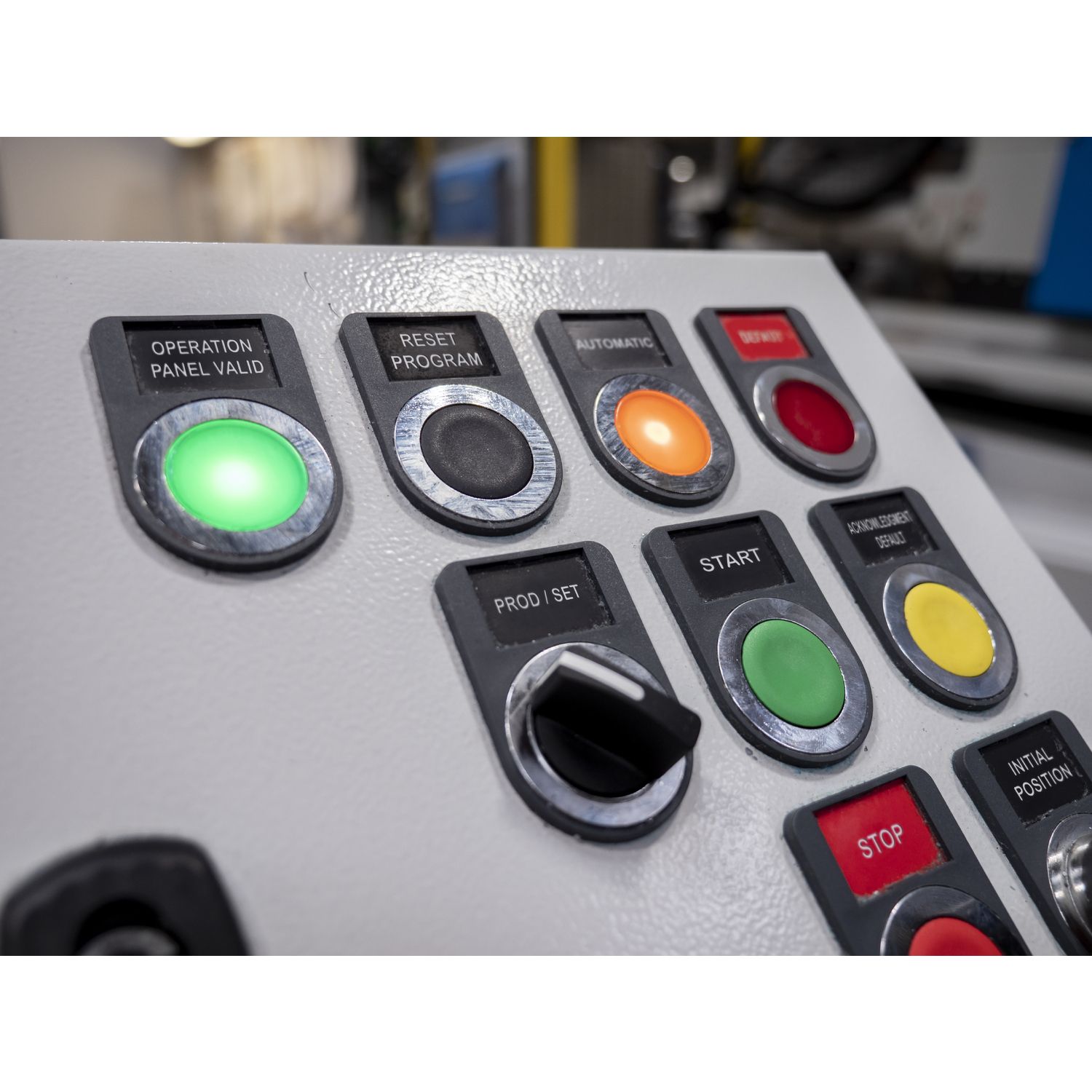

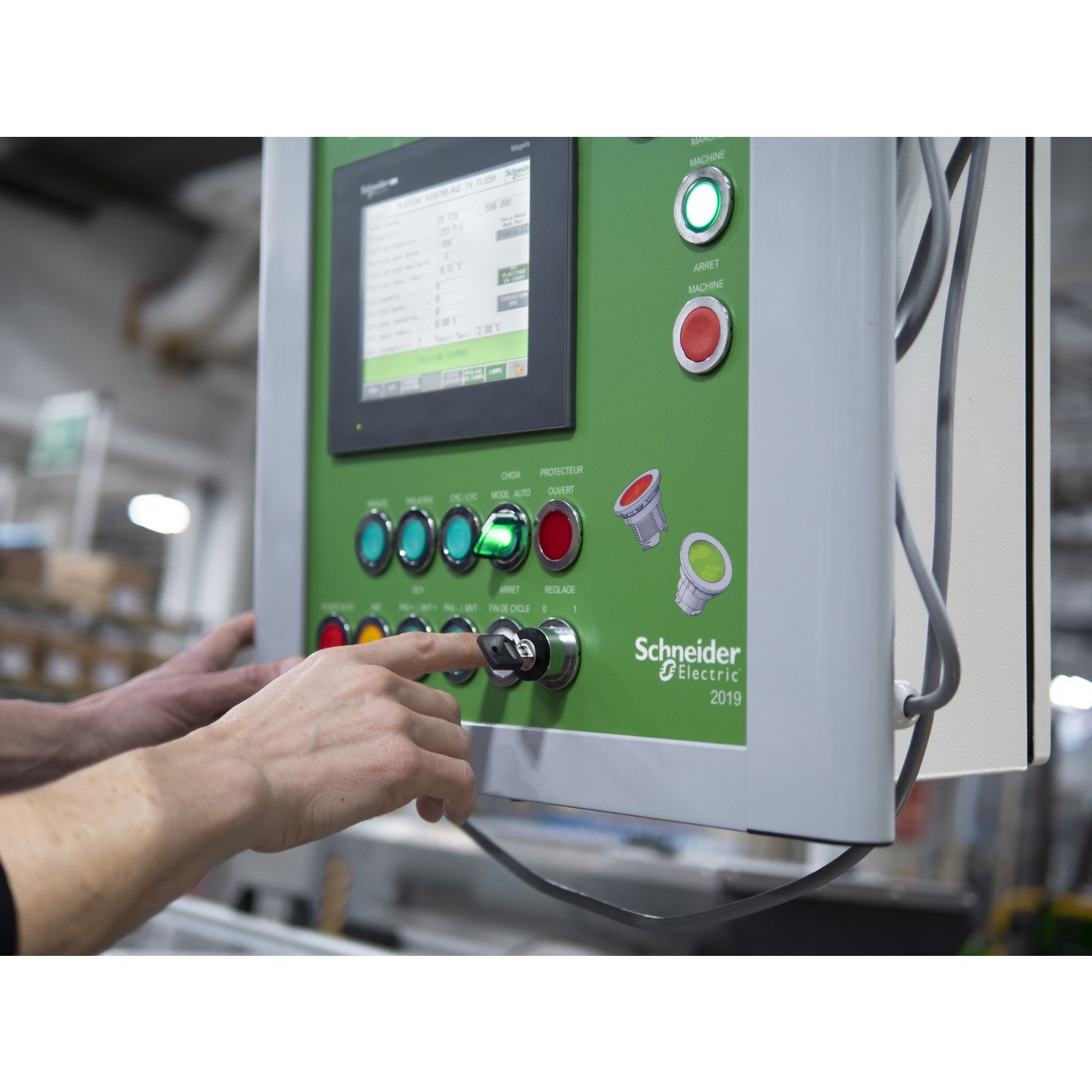

Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Circularity Profile
Image of product in real life situation
Instruction sheet
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Catalog
Environmental Disclosure
Image of product in real life situation
Image of product in real life situation
CAD
Image of product in real life situation
Declaration of conformity
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Product Page Link
Product Data Sheet
This Harmony XB4, grooved lens head for pilot light with integral LED is blue. This head for integral LED pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZB4
Product compatibility universal LED
Environmental characteristic high ambient lighting environment
Sale per indivisible quantity 1
Head type standard
Cap/operator or lens colour blue
Range of product Harmony XB4
Bezel material chromium plated metal
Shape of signaling unit head round
Product or component type head for pilot light
Mounting diameter 22 mm
Operator additional information with grooved lens
Complementary
Group of product lens fitted integral LED
Compatibility code ZB4
Device presentation basic element
CAD overall height 29 mm
Customizable 1, no
Electrical composition code P2 in front mounting with integral LED and transformer, P1 in front mounting with integral LED
Main group pilot light
CAD overall depth 30 mm
CAD overall width 29 mm
Cap/operator or lens colour blue
GCR BRIDGE ZB4BVCUST01
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Net weight 0.026 kg
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK06 conforming to IEC 50102
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class I conforming to IEC 60536
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-5-4, IEC 60947-1, UL 508, IEC 60947-5-5, IEC 60947-5-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.400 cm
Package 1 Width 4.700 cm
Package 1 Length 5.300 cm
Package 1 Weight 26.000 g
