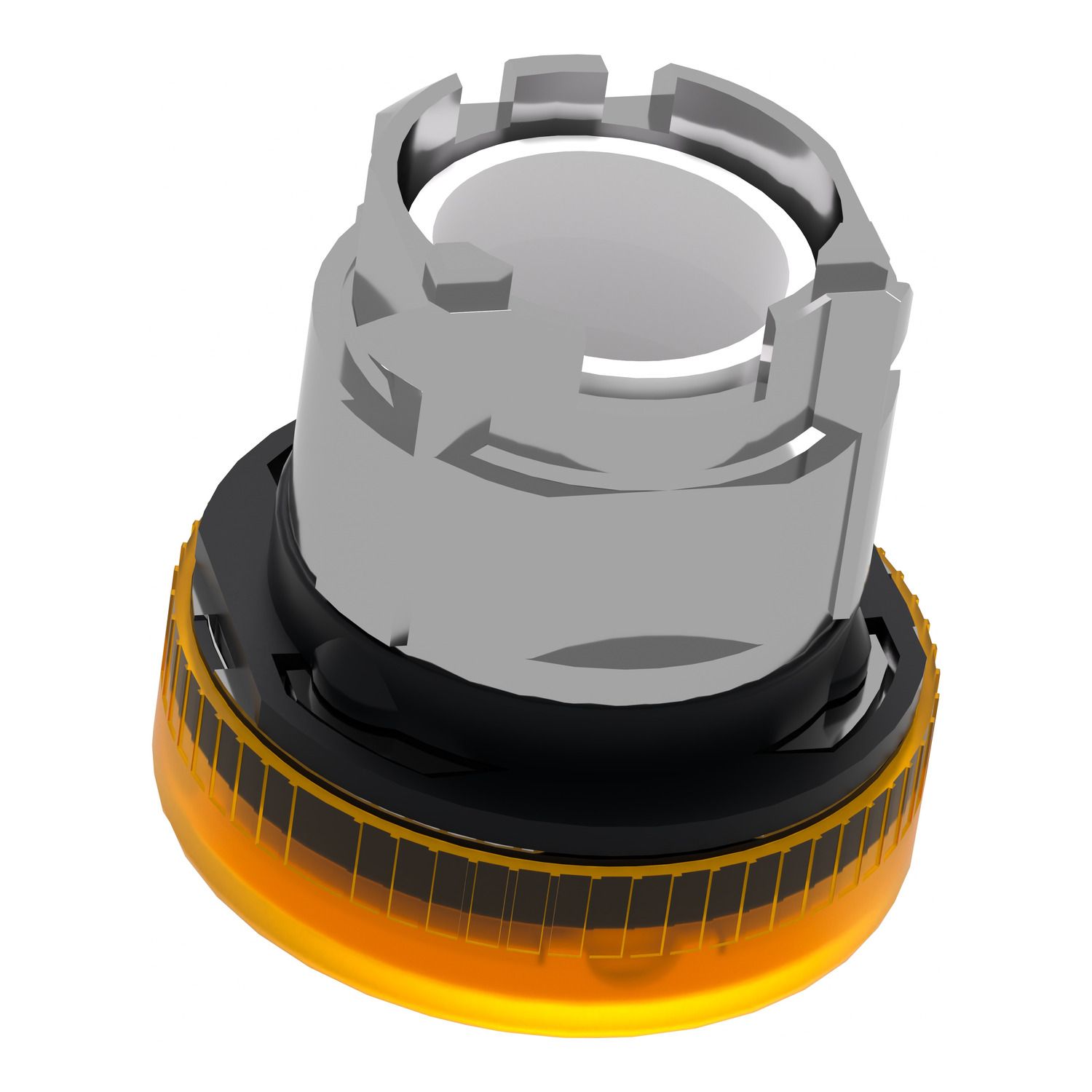

Picture of Head for pilot light, Harmony XB4, metal, orange, 22mm, plain lens for BA9s bulb

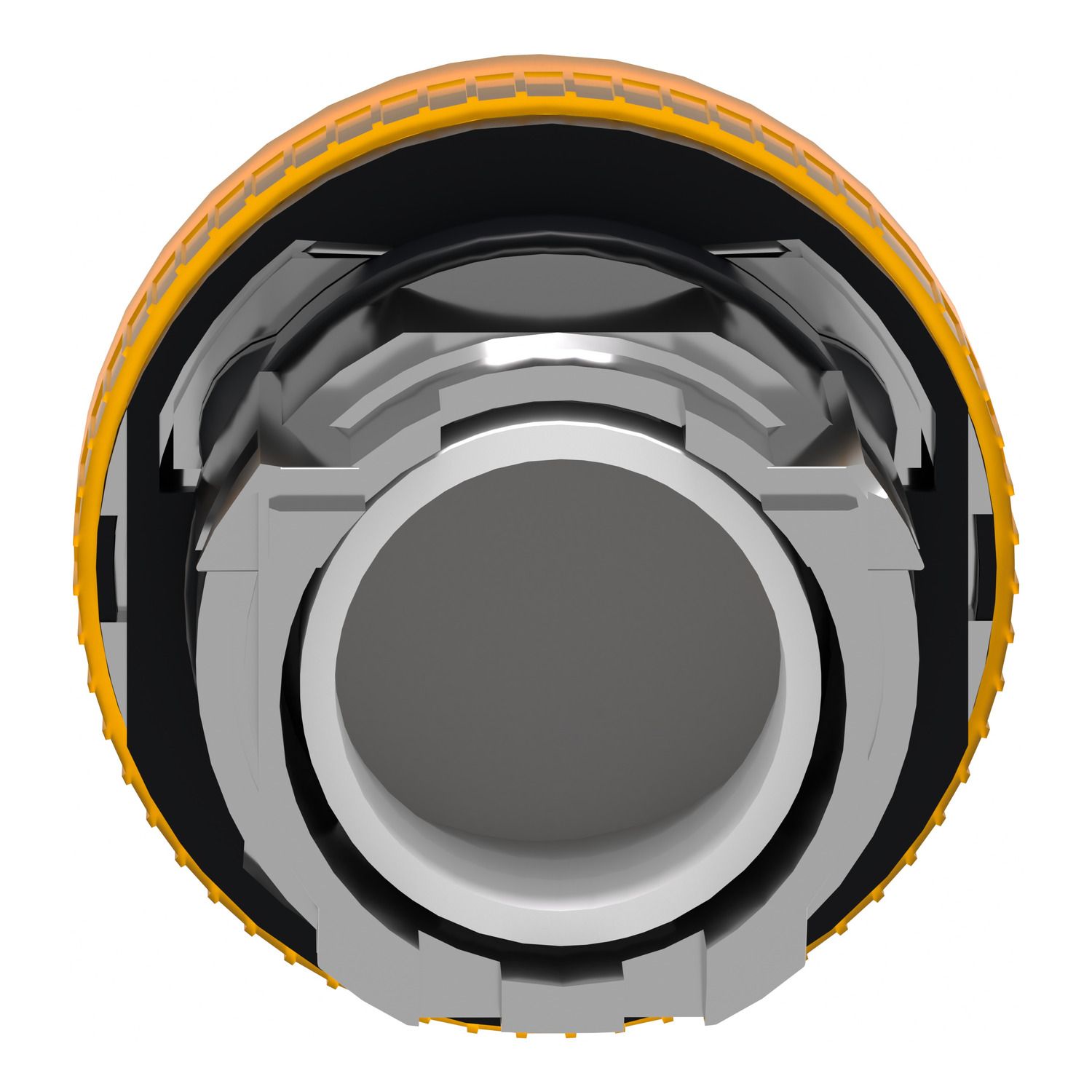

Picture of Head for pilot light, Harmony XB4, metal, orange, 22mm, plain lens for BA9s bulb

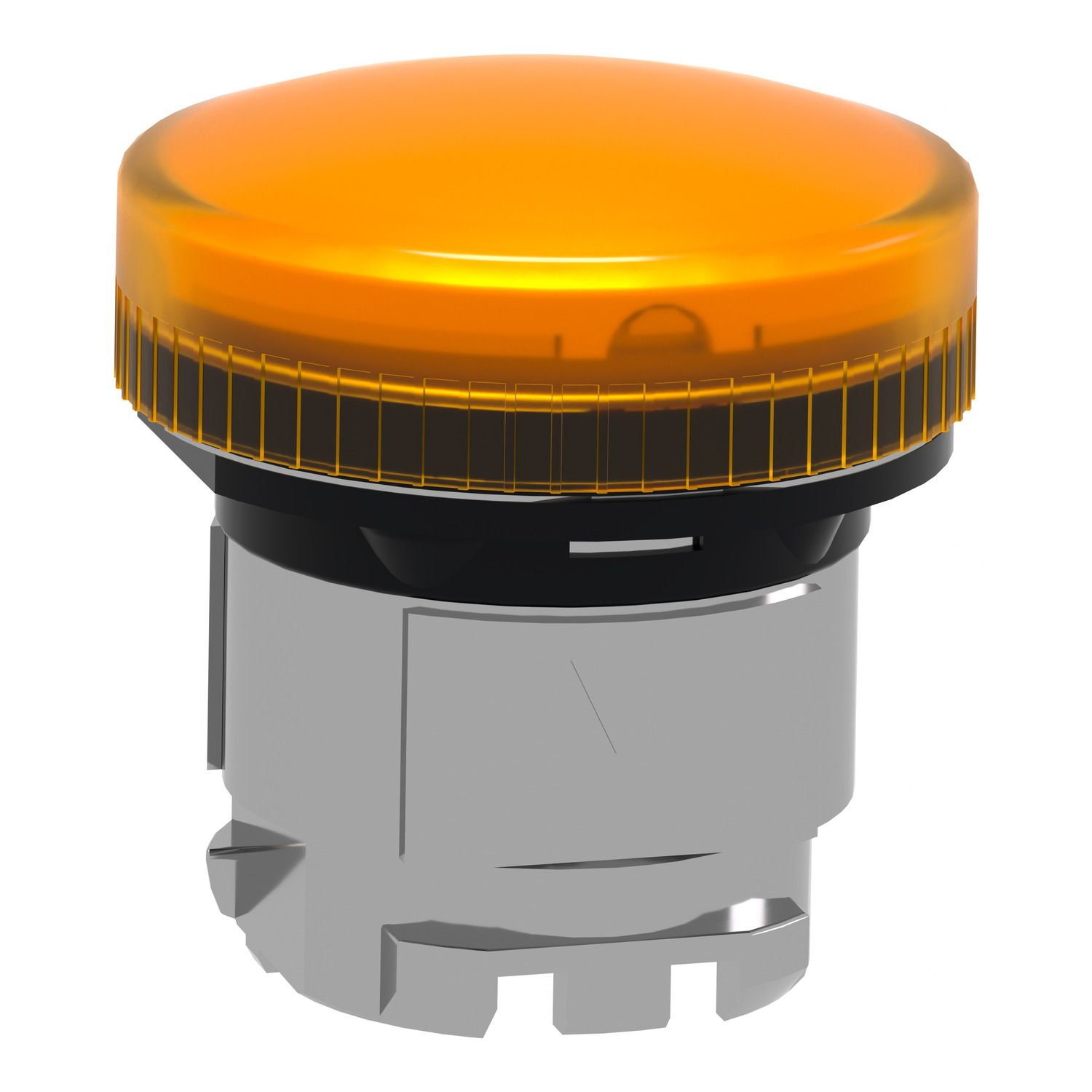

Picture of Head for pilot light, Harmony XB4, metal, orange, 22mm, plain lens for BA9s bulb

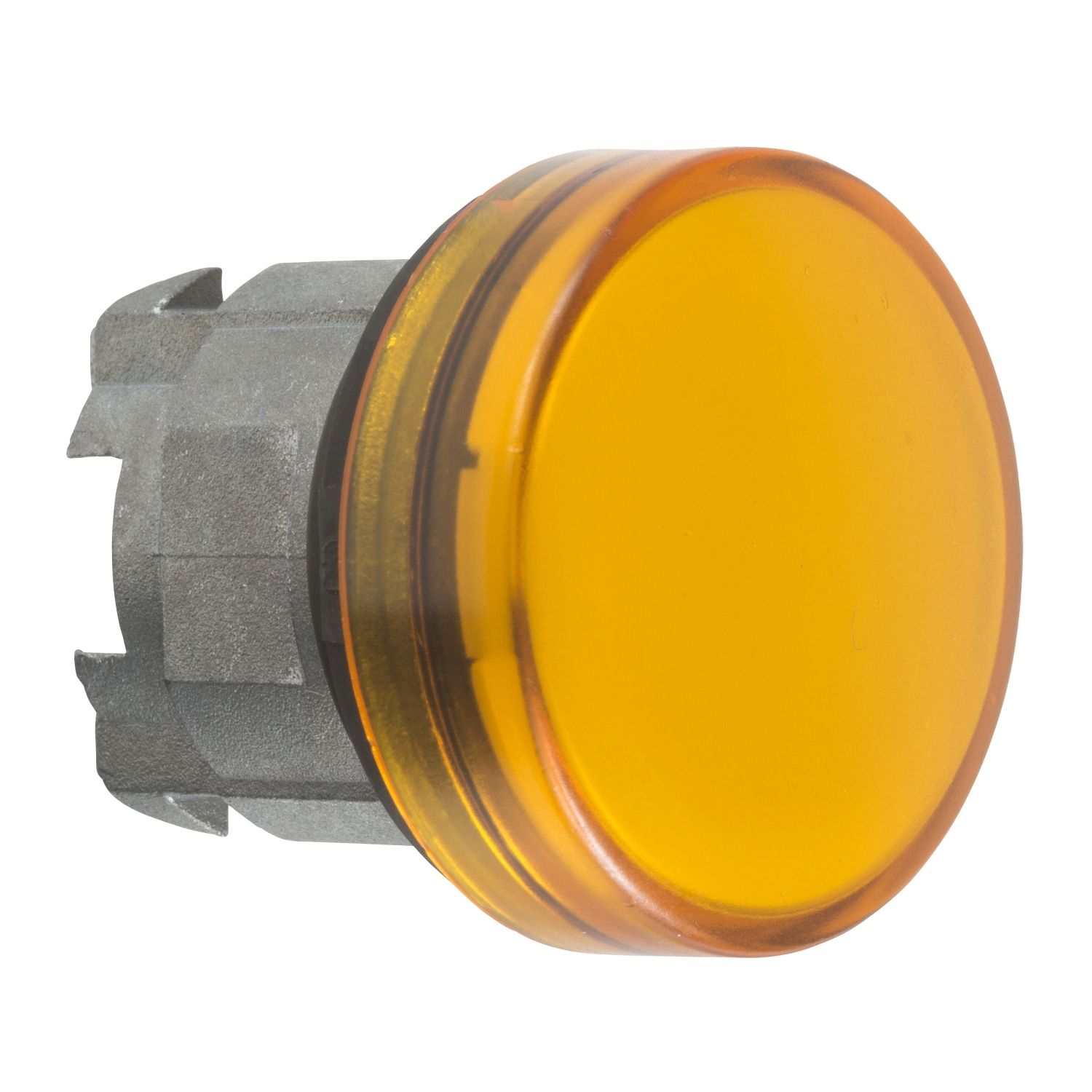

Picture of Head for pilot light, Harmony XB4, metal, orange, 22mm, plain lens for BA9s bulb

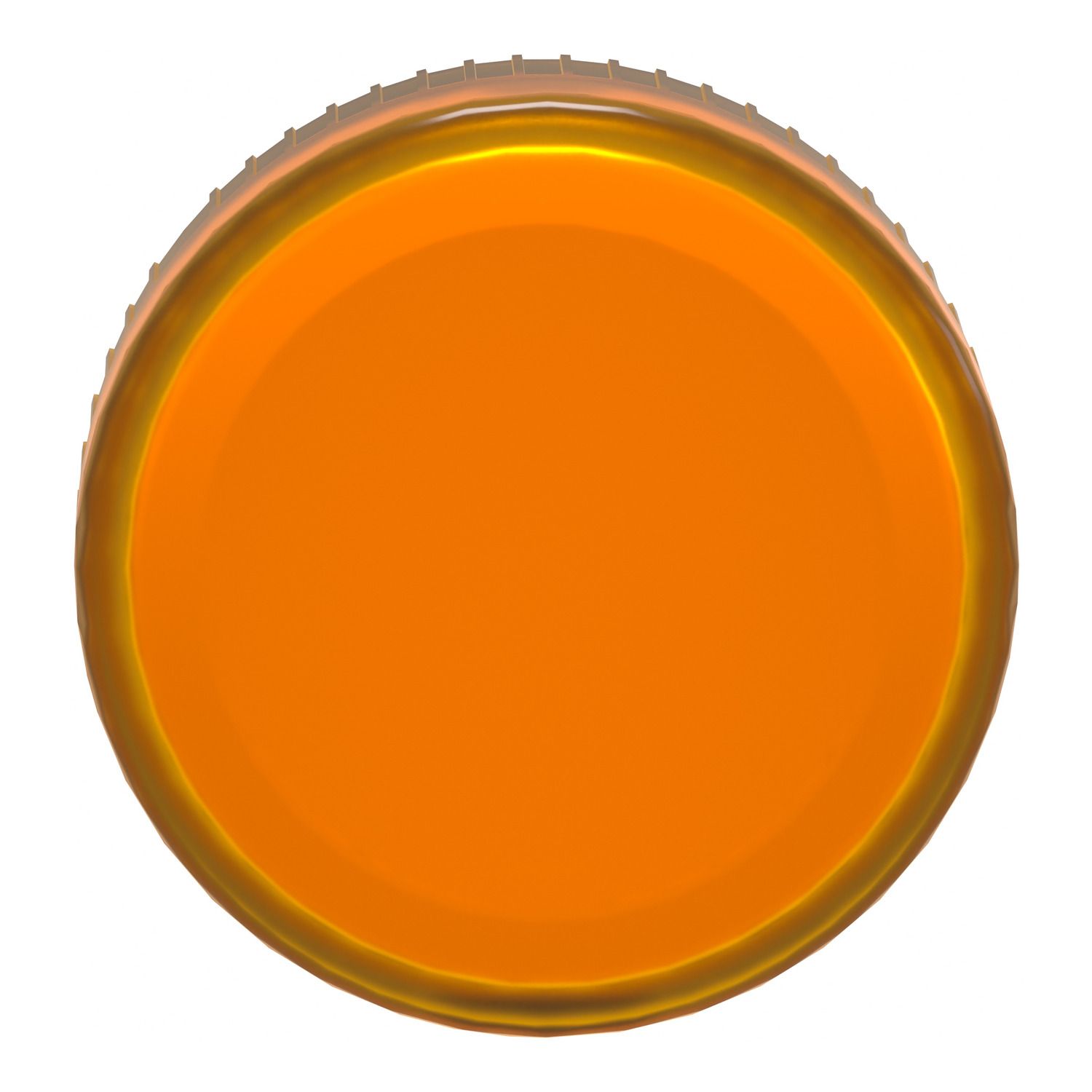

Picture of Head for pilot light, Harmony XB4, metal, orange, 22mm, plain lens for BA9s bulb

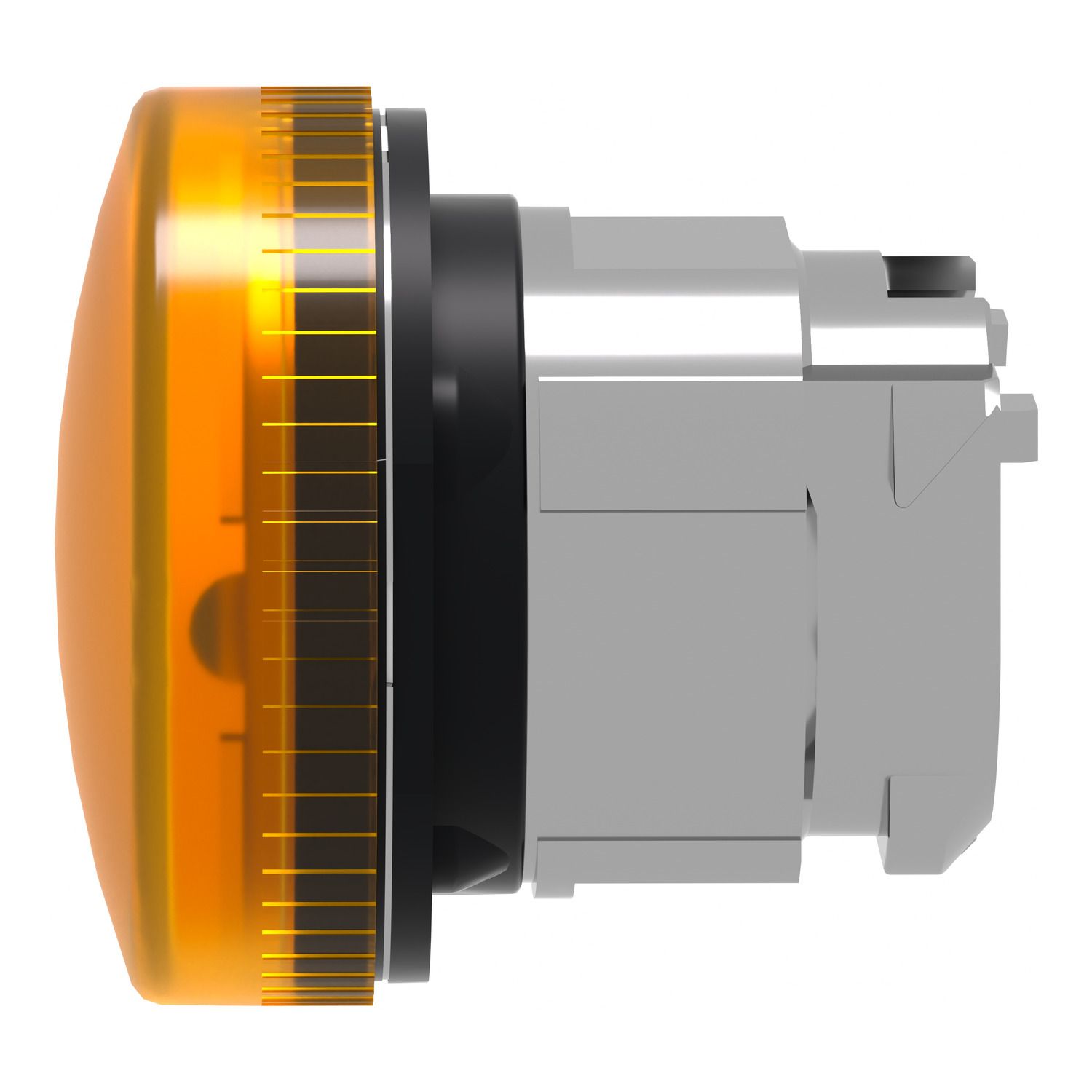

Picture of Head for pilot light, Harmony XB4, metal, orange, 22mm, plain lens for BA9s bulb

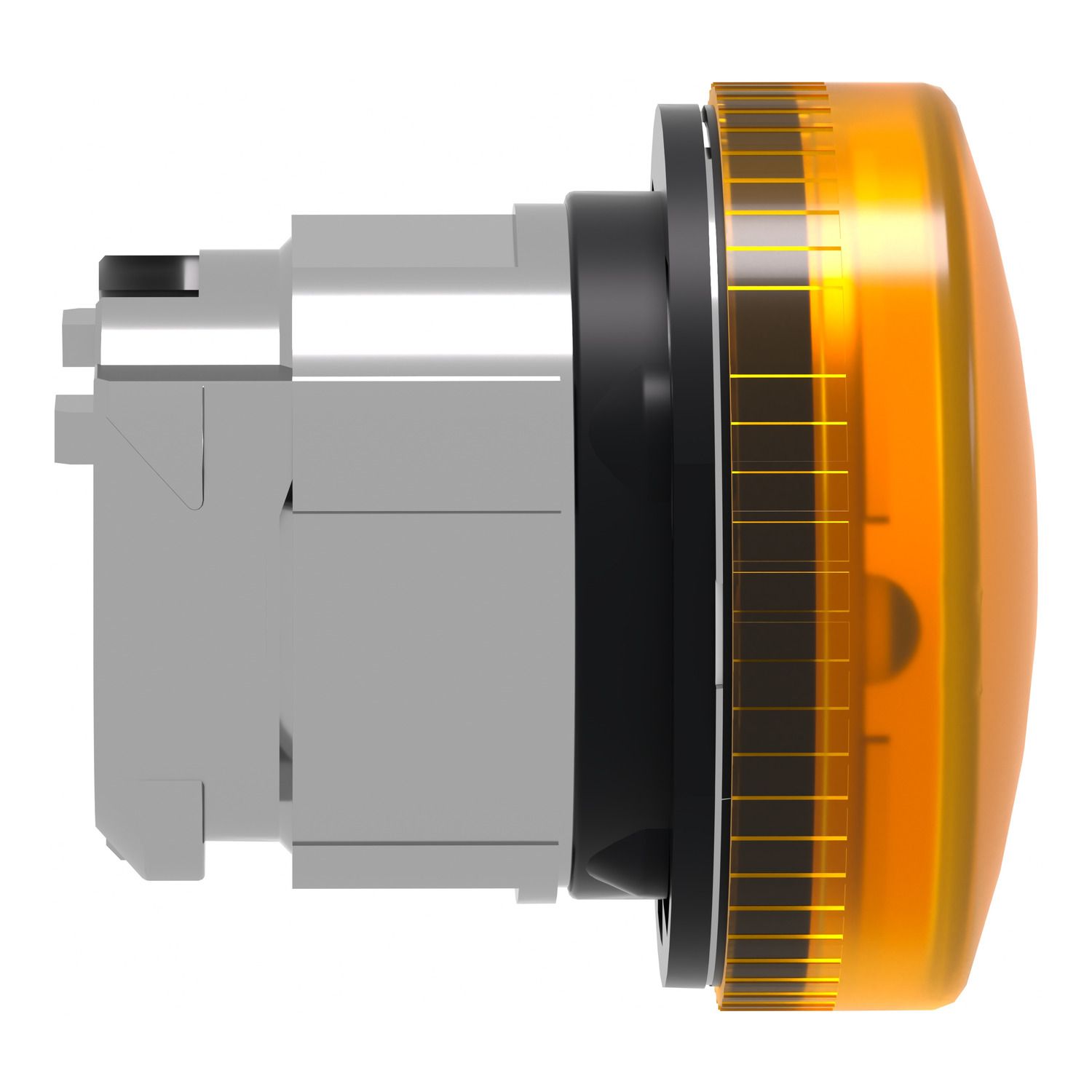

Picture of Head for pilot light, Harmony XB4, metal, orange, 22mm, plain lens for BA9s bulb
Picture of Head for pilot light, Harmony XB4, metal, orange, 22mm, plain lens for BA9s bulb
Picture of Head for pilot light, Harmony XB4, metal, orange, 22mm, plain lens for BA9s bulb
Picture of Head for pilot light, Harmony XB4, metal, orange, 22mm, plain lens for BA9s bulb
Picture of Head for pilot light, Harmony XB4, metal, orange, 22mm, plain lens for BA9s bulb
SKU:

ZB4BV05

Head for pilot light, Harmony XB4, metal, orange, 22mm, plain lens for BA9s bulb

Old price: $24.97 INC GST
$19.48 INC GST
Available for Shipping : 10-Dec-2025
Product Selector
Head for pilot light, Harmony XB4, metal, orange, 22mm, plain lens for BA9s bulb
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 10-Dec-2025
Image of product in real life situation
Image of product in real life situation
CAD
Catalog
Environmental Disclosure
Declaration of conformity
Circularity Profile
Instruction sheet
Image of product in real life situation
Product Page Link
Product Data Sheet
This Harmony XB4, plain lens orange head for pilot light is supplied with BA9s base. This head with BA9s base pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZB4
Product compatibility BA 9s
Sale per indivisible quantity 1
Head type standard
Cap/operator or lens colour orange
Range of product Harmony XB4
Bezel material chromium plated metal
Shape of signaling unit head round
Product or component type head for pilot light
Mounting diameter 22 mm
Operator additional information with plain lens
Complementary
Group of product lens fitted BA9s
Compatibility code ZB4
Device presentation basic element
CAD overall height 29 mm
Customizable 1, no
Electrical composition code P4 in front mounting with BA 9s and transformer, P3 in front mounting with BA 9s
Main group pilot light
CAD overall depth 31 mm
CAD overall width 29 mm
Cap/operator or lens colour orange
GCR BRIDGE ZB4BVCUST01
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Net weight 0.027 kg
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Ambient air temperature for operation -40-55 °C
IK degree of protection IK06 conforming to IEC 50102
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class I conforming to IEC 60536
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-1, UL 508, JIS C8201-5-1, IEC 60947-5-5, IEC 60947-5-4, CSA C22.2 No 14, IEC 60947-5-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.500 cm
Package 1 Width 3.400 cm
Package 1 Length 5.400 cm
Package 1 Weight 23.000 g
Unit Type of Package 2 2
Number of Units in Package 2 300
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.464 kg
Unit Type of Package 3 3
Number of Units in Package 3 2400
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 70.364 kg
