SKU:

ZB4BPA3

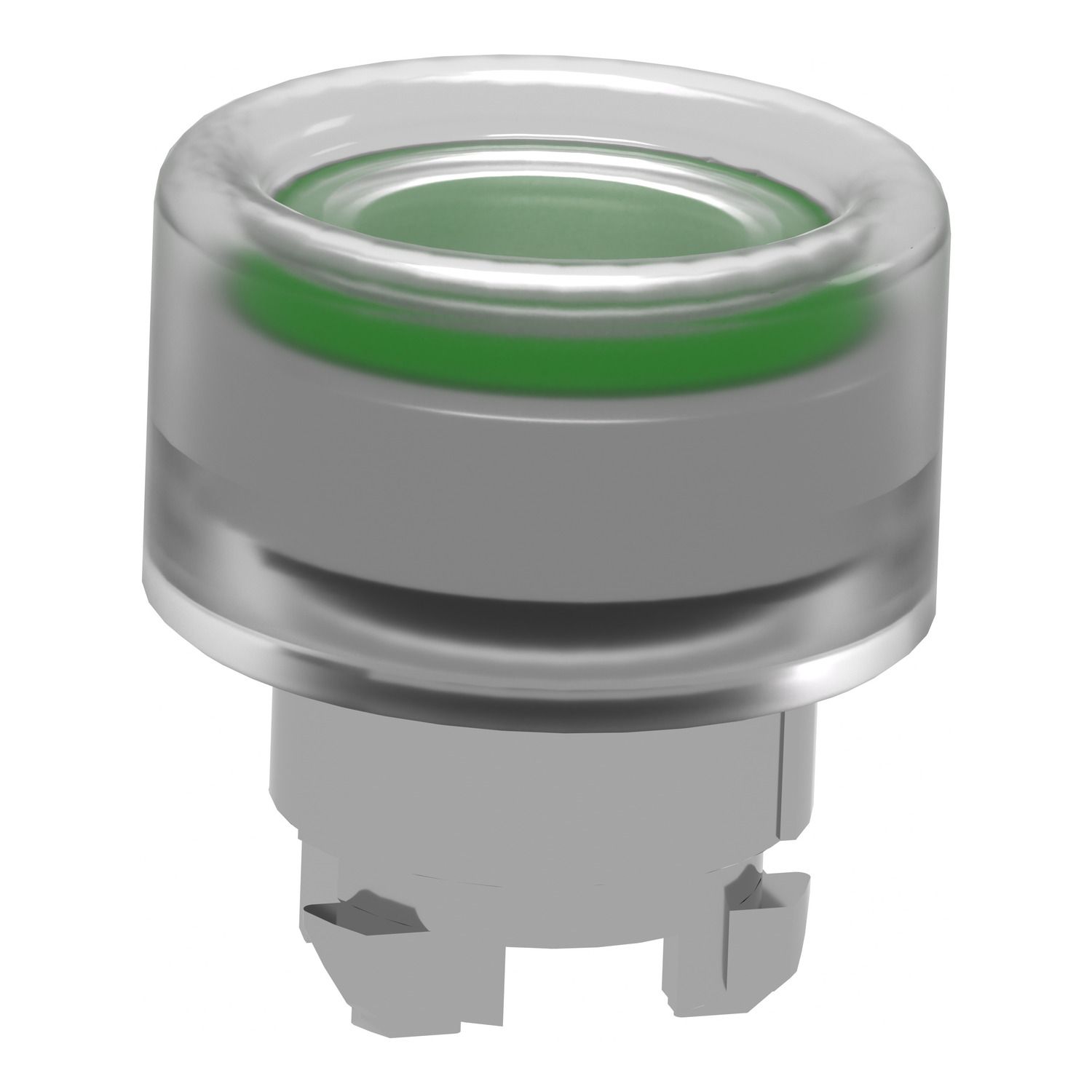

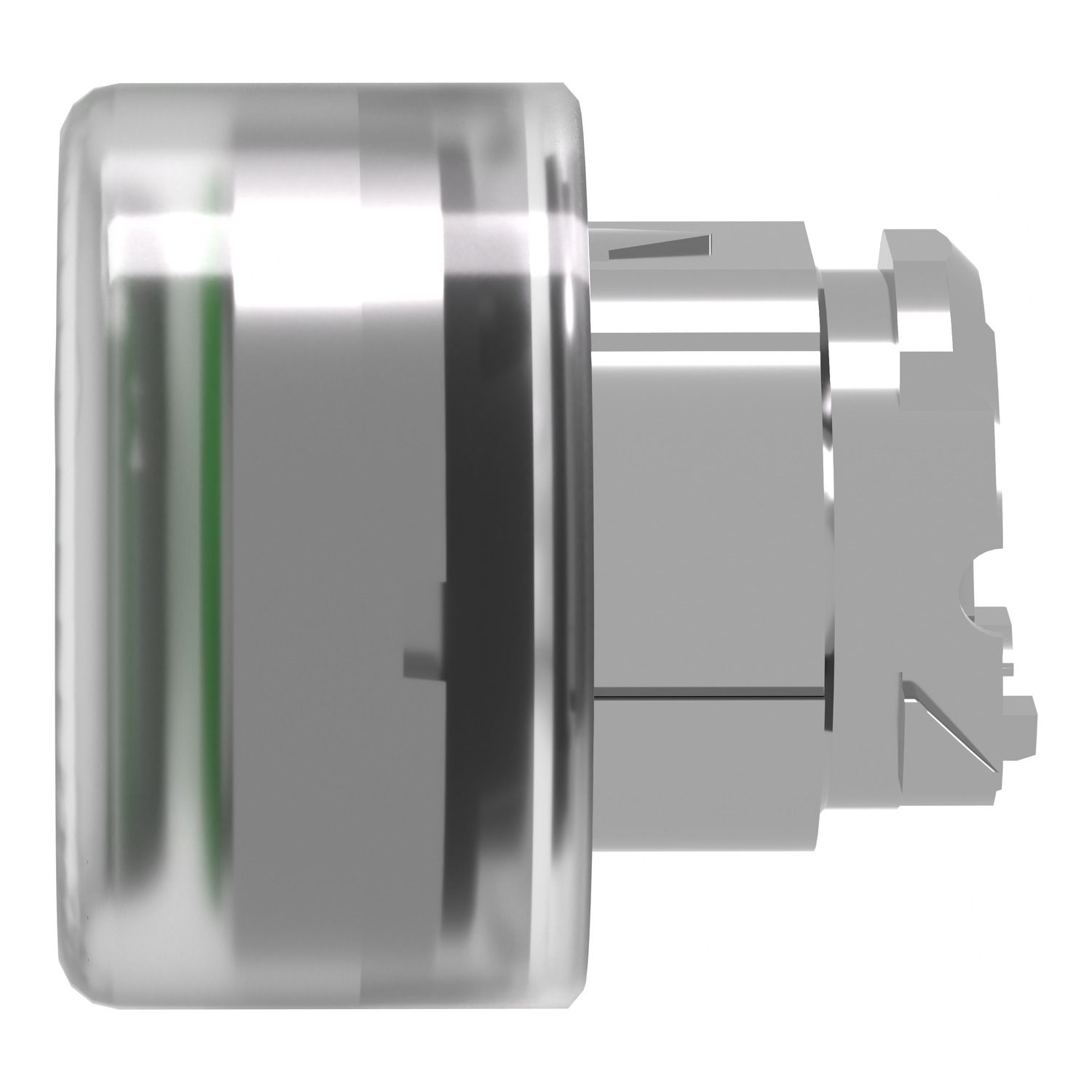

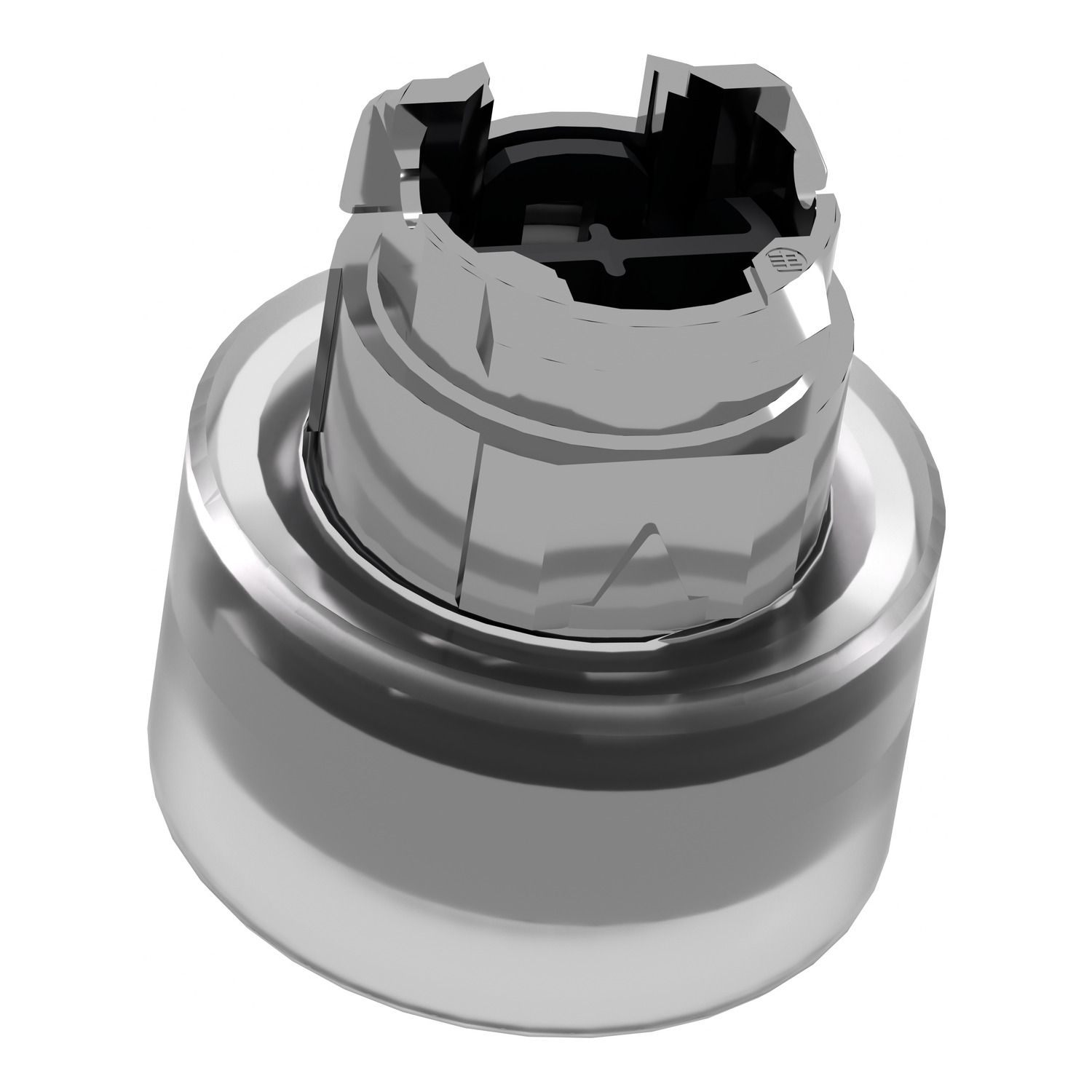

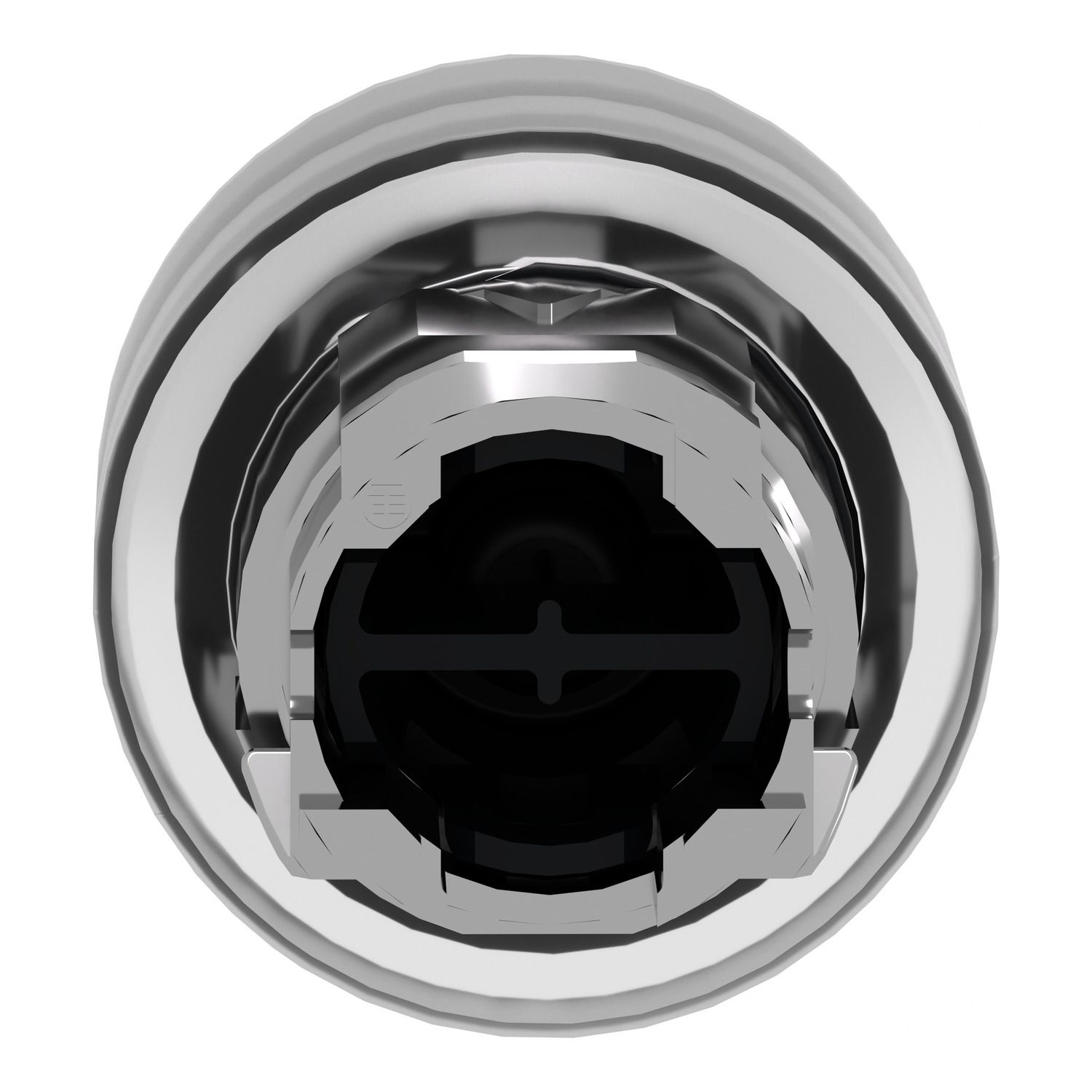

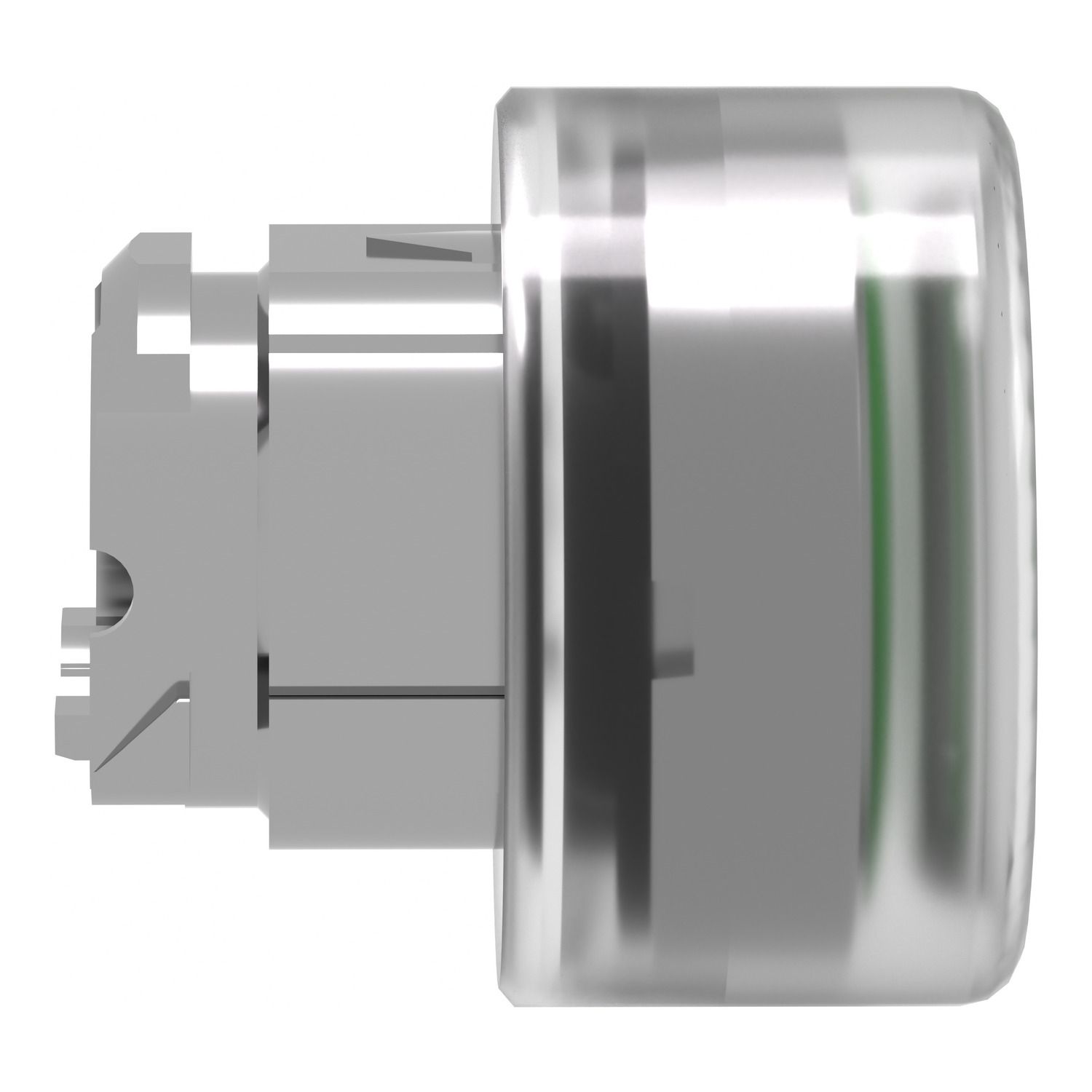

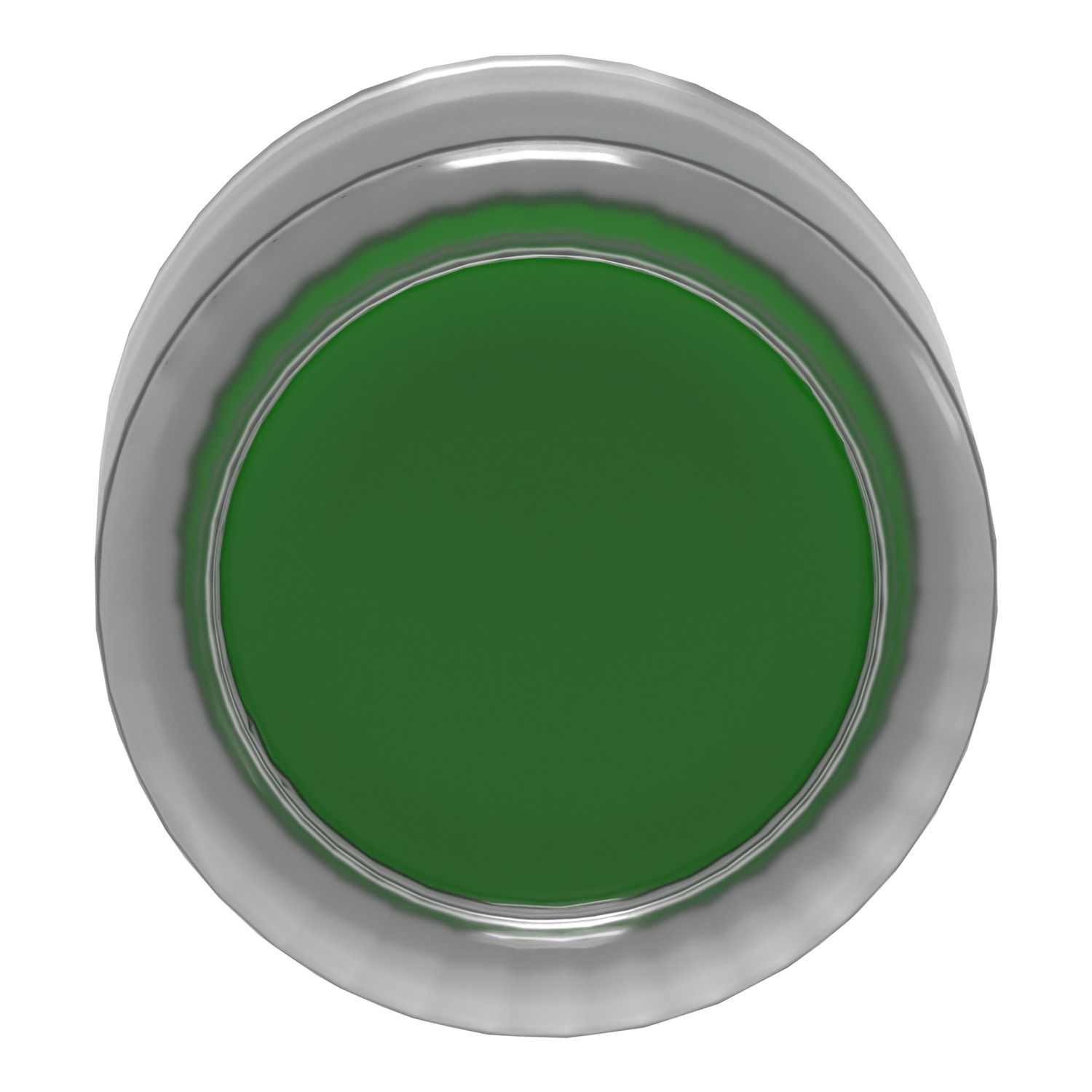

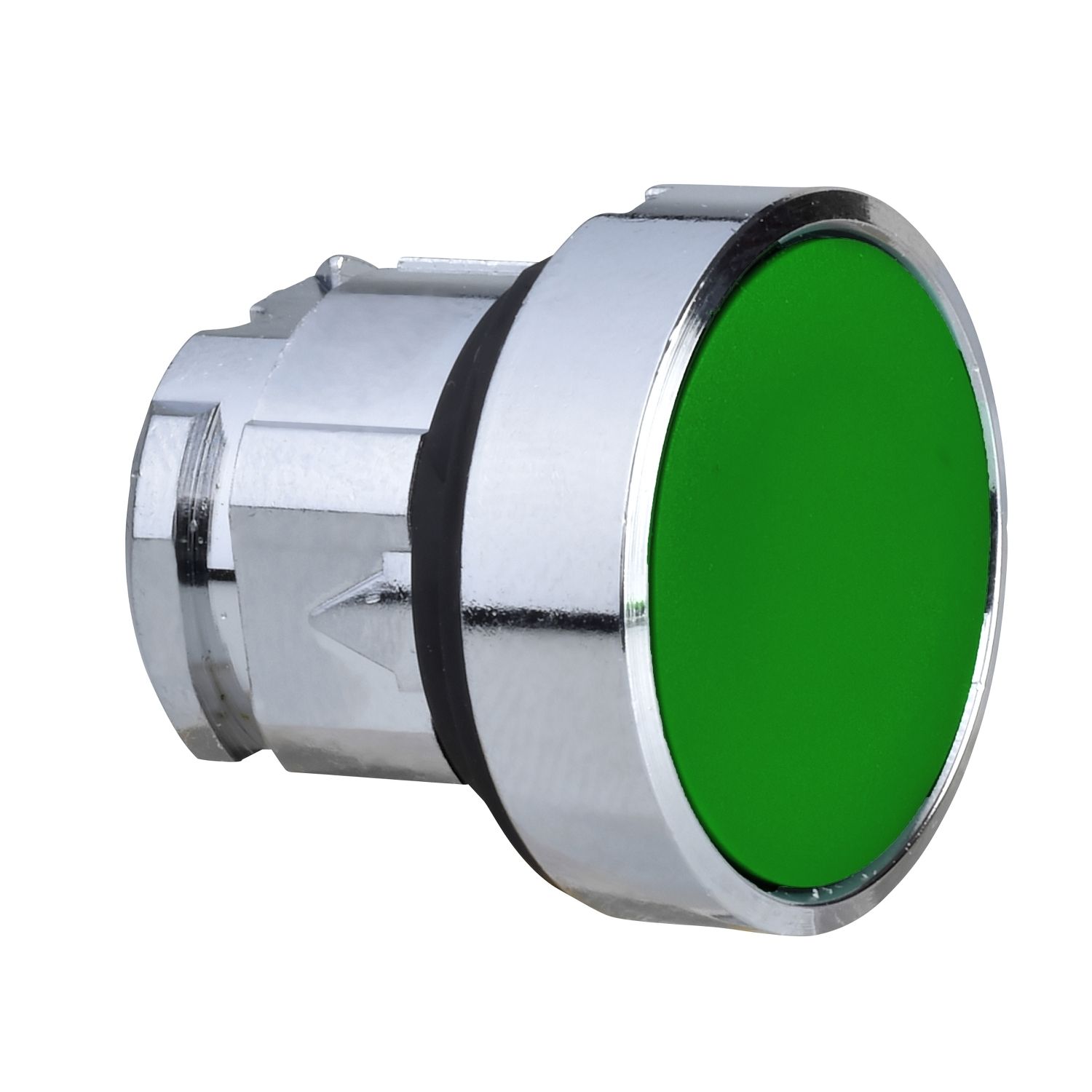

Head for non illuminated push button, Harmony XB4, metal, flush, green, 22mm, spring return, booted, unmarked

Old price: $39.16 INC GST
$30.54 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Head for non illuminated push button, Harmony XB4, metal, flush, green, 22mm, spring return, booted, unmarked
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026

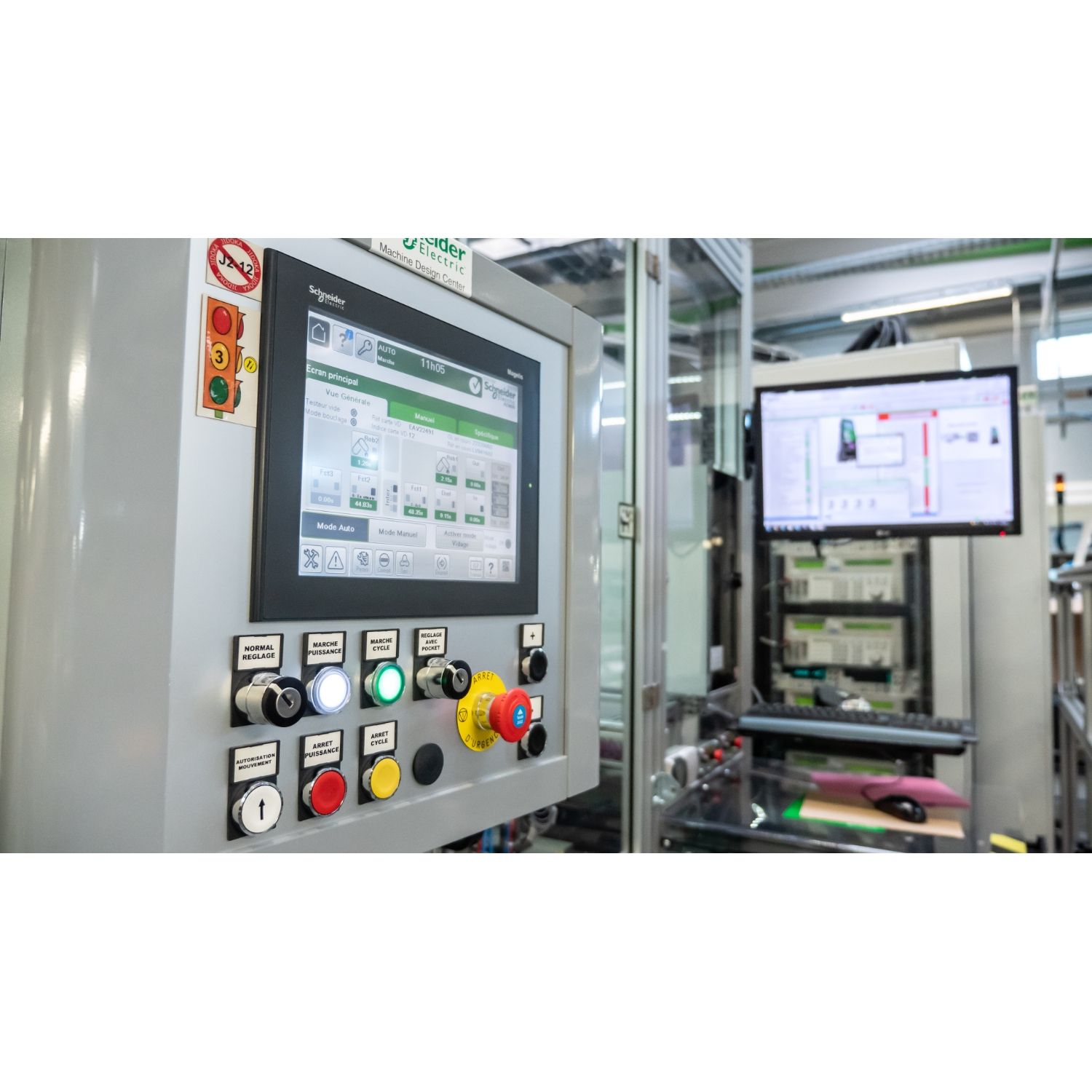

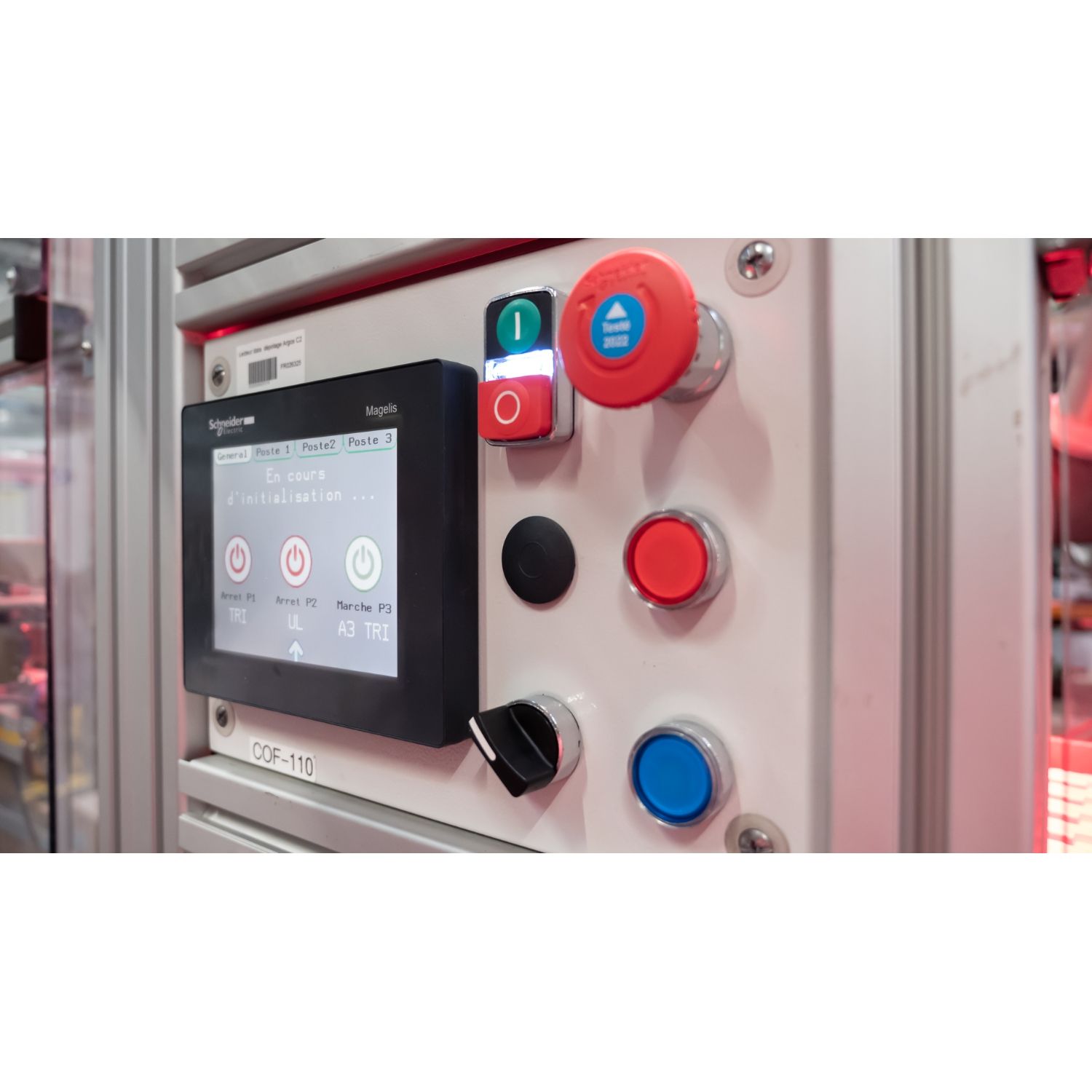

Image of product in real life situation

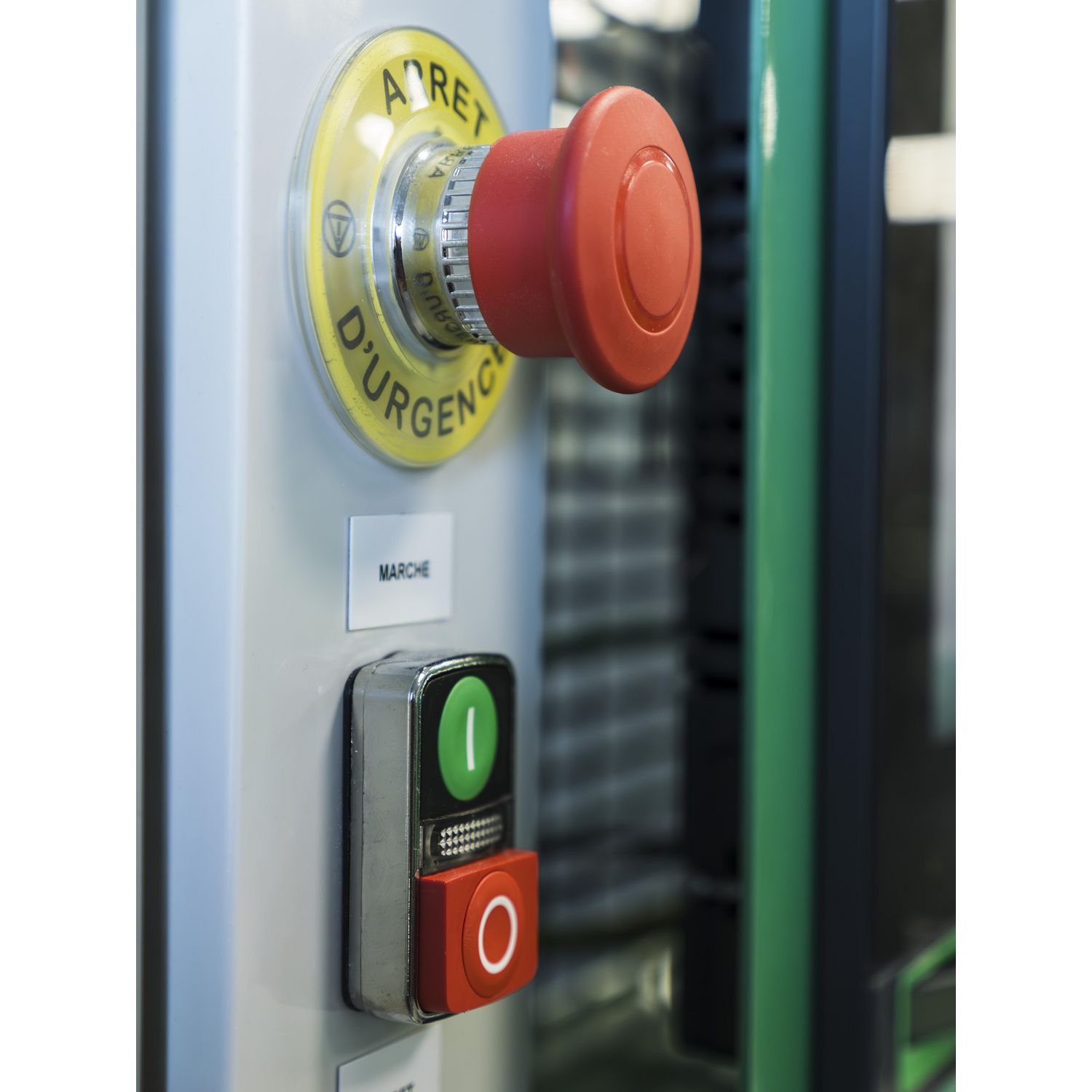

Image of product in real life situation
Catalog
Environmental Disclosure
Circularity Profile
Declaration of conformity
Instruction sheet
Image of product in real life situation
CAD
Product Page Link
Product Data Sheet
This Harmony XB4, flush green button head with clear boot operates with a spring return / impulse mechanism. This button head with clear boot provides an ergonomic interface for controlling your machines and a simple solution to prevent dirt and contaminants. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. The clear boot prevents growth of bacteria in joints and gaps, it makes this product ideal for high hygiene environments.

Products specifications

Attribute name Attribute value
Main
Device short name ZB4
Sale per indivisible quantity 1
Head type standard
Type of operator spring return
Range of product Harmony XB4
Product compatibility not compatible with legend holder
Operator profile green flush, unmarked
Bezel material chromium plated metal
Shape of signaling unit head round
Product or component type head for non-illuminated push-button
Mounting diameter 22 mm
Operator additional information clear boot
Complementary
Compatibility code ZB4
Mechanical durability 10000000 cycles
Device presentation basic element
CAD overall height 30 mm
Customizable 1, no
CAD overall depth 37 mm
CAD overall width 30 mm
Marking unmarked
Cap/operator or lens colour green
GCR BRIDGE ZB4BPCUST01
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP67, IP66 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK06 conforming to IEC 50102
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class I conforming to IEC 60536
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-5-5, IEC 60947-5-4, UL 508, IEC 60947-5-1, JIS C8201-5-1, IEC 60947-1, CSA C22.2 No 14
Product certifications BV, GL, LROS (Lloyds register of shipping), CSA, DNV, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.6 cm
Package 1 Width 4.8 cm
Package 1 Length 3.0 cm
Package 1 Weight 30.0 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.408 kg
