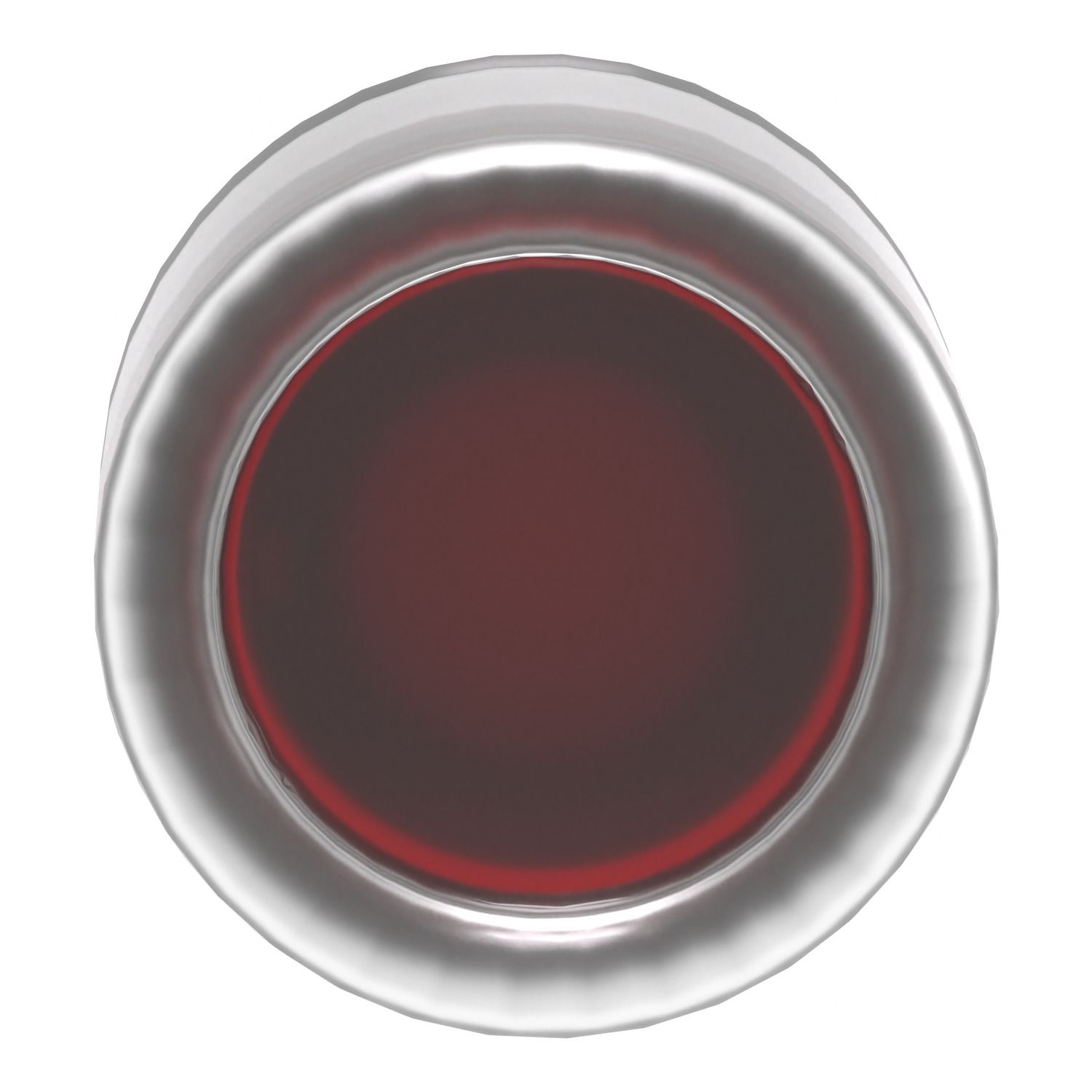

Picture of Head for non illuminated push button, Harmony XB4, red flush, 22mm, spring return, clear boot, unmarked

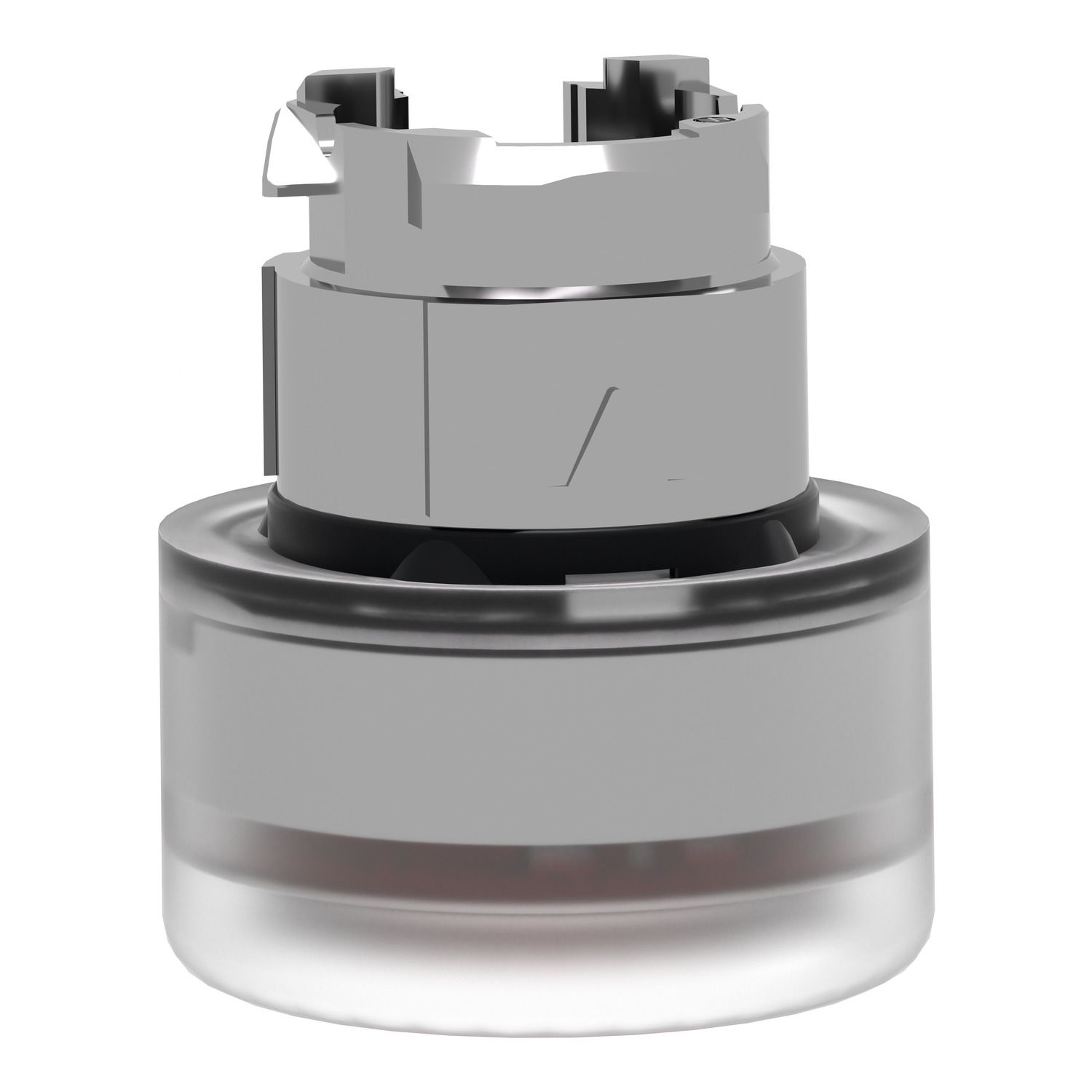

Picture of Head for non illuminated push button, Harmony XB4, red flush, 22mm, spring return, clear boot, unmarked

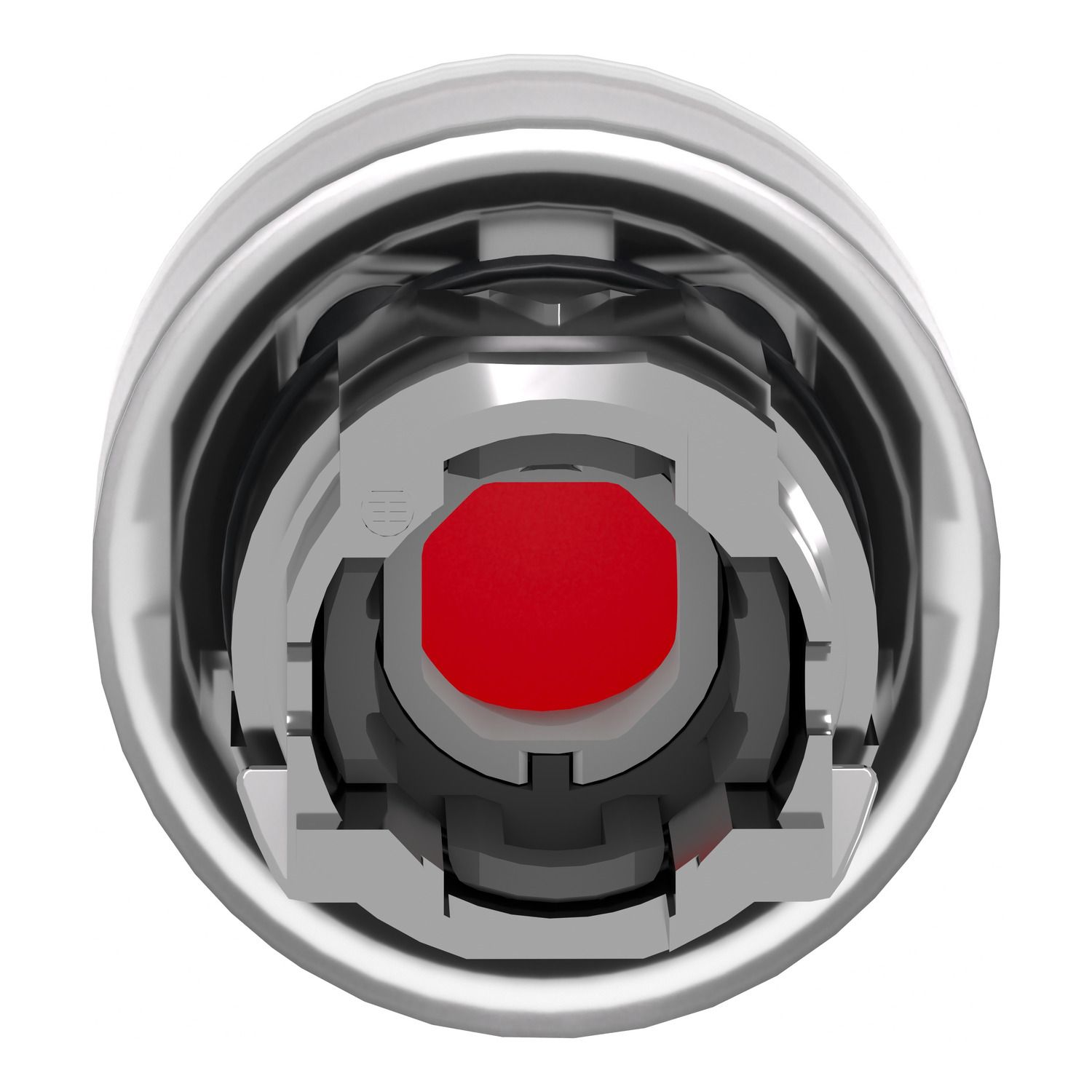

Picture of Head for non illuminated push button, Harmony XB4, red flush, 22mm, spring return, clear boot, unmarked

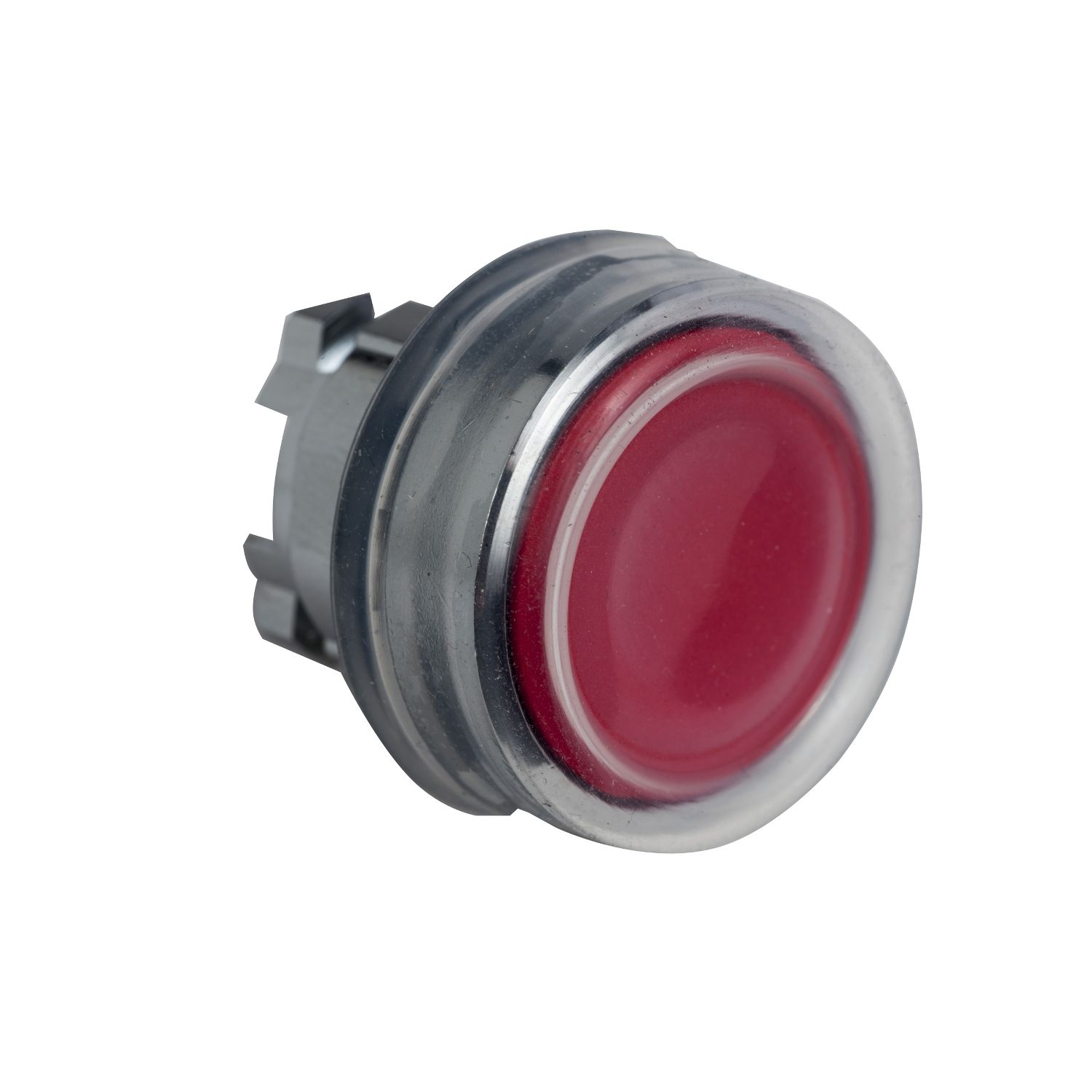

Picture of Head for non illuminated push button, Harmony XB4, red flush, 22mm, spring return, clear boot, unmarked

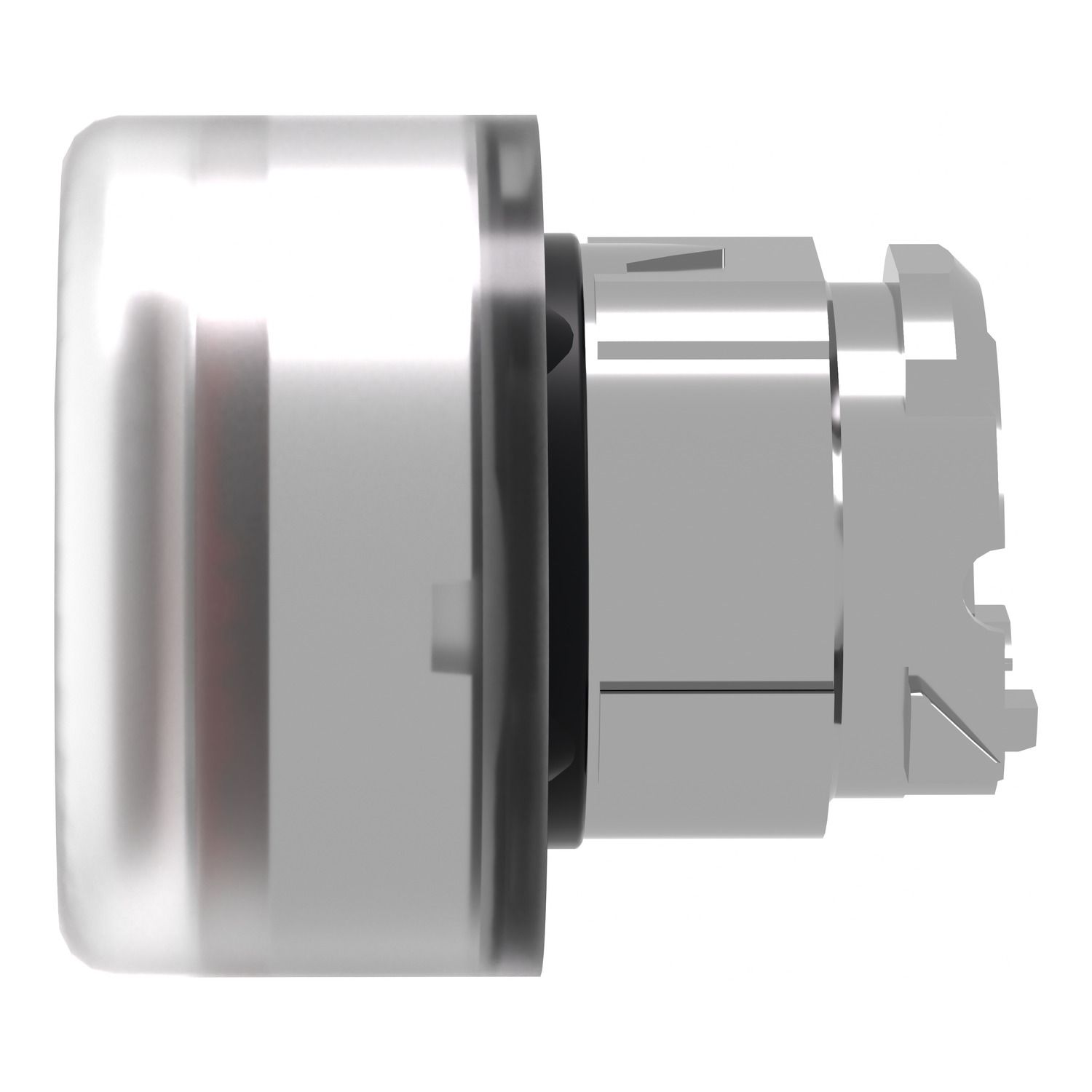

Picture of Head for non illuminated push button, Harmony XB4, red flush, 22mm, spring return, clear boot, unmarked

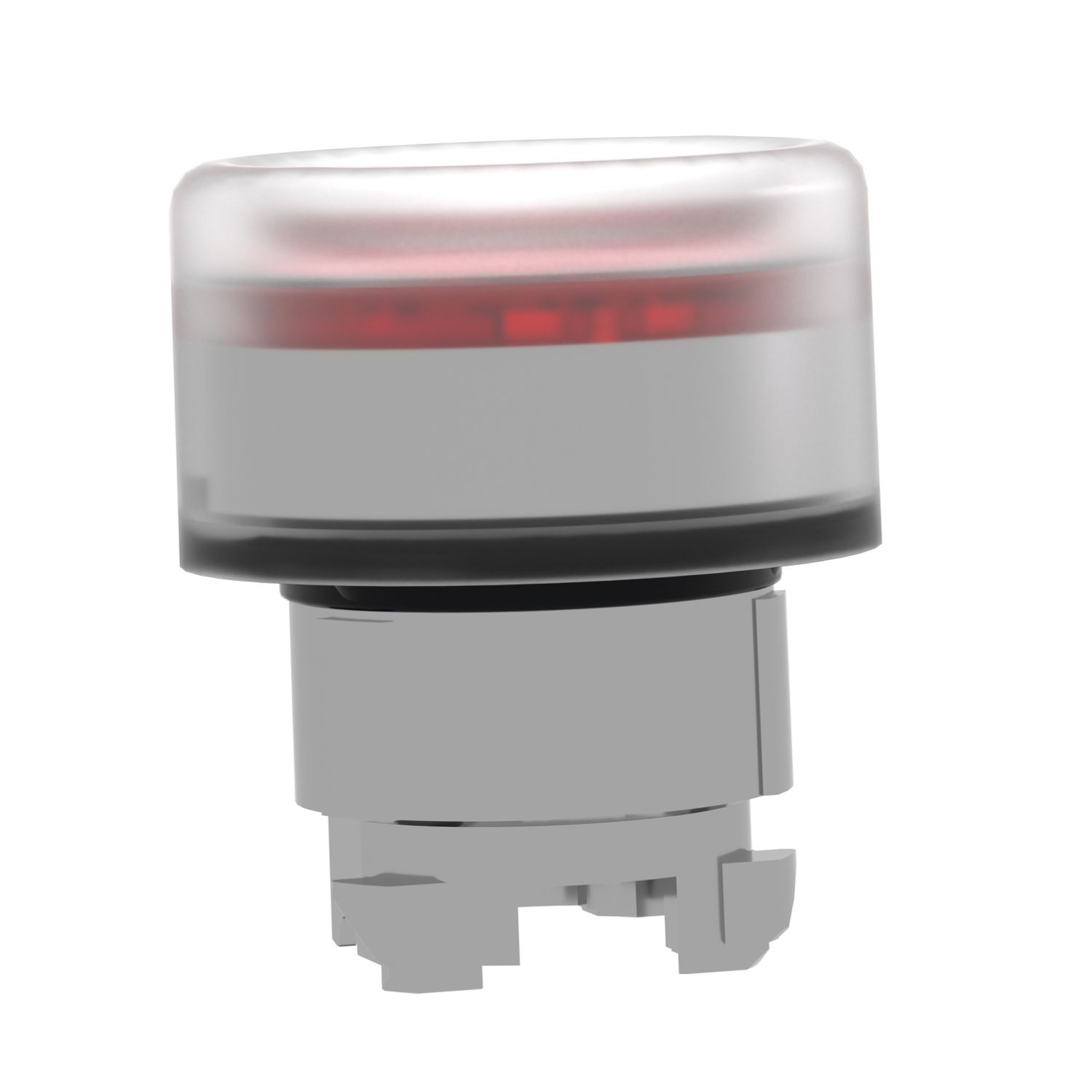

Picture of Head for non illuminated push button, Harmony XB4, red flush, 22mm, spring return, clear boot, unmarked

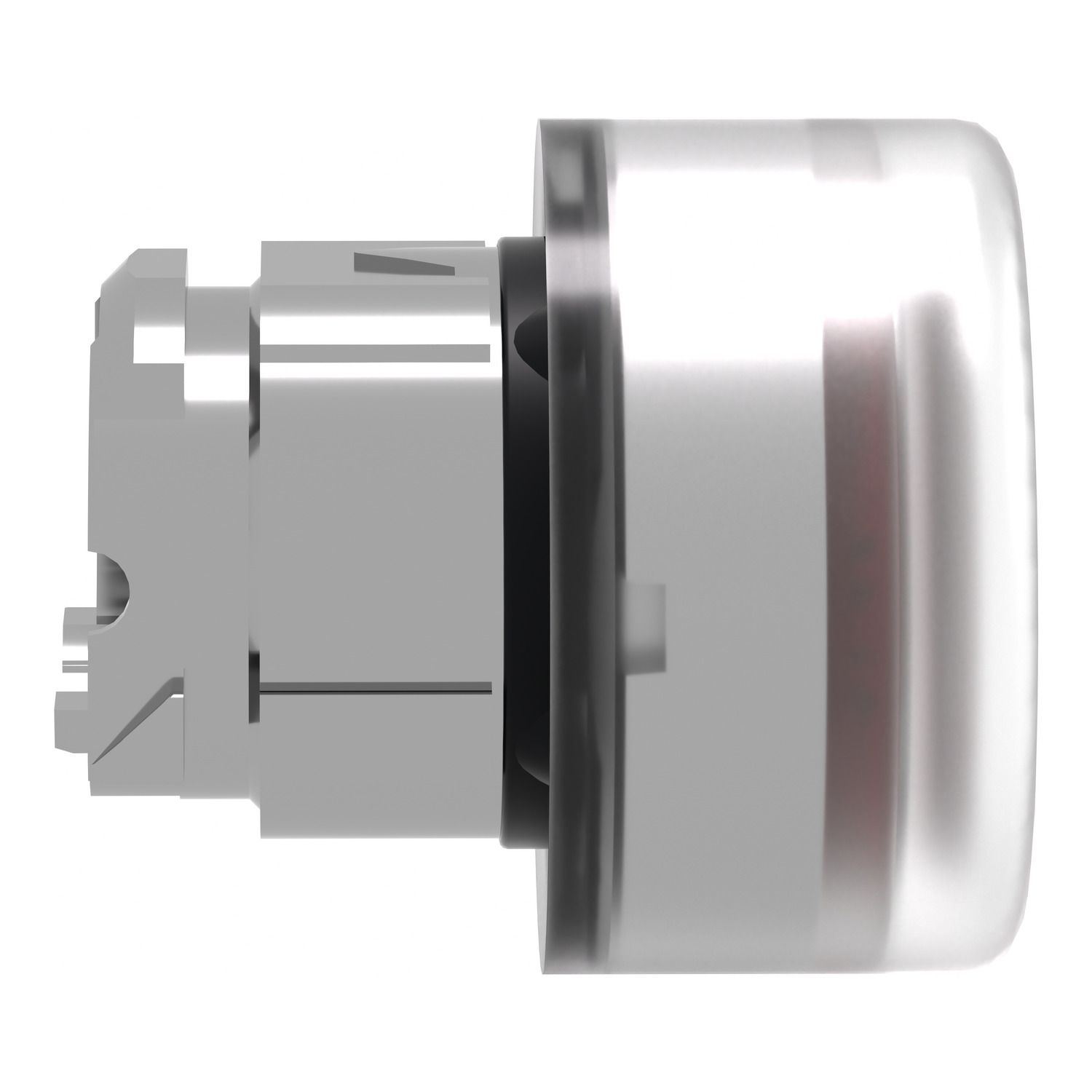

Picture of Head for non illuminated push button, Harmony XB4, red flush, 22mm, spring return, clear boot, unmarked
Picture of Head for non illuminated push button, Harmony XB4, red flush, 22mm, spring return, clear boot, unmarked
Picture of Head for non illuminated push button, Harmony XB4, red flush, 22mm, spring return, clear boot, unmarked
Picture of Head for non illuminated push button, Harmony XB4, red flush, 22mm, spring return, clear boot, unmarked
SKU:

ZB4BP48

Head for non illuminated push button, Harmony XB4, red flush, 22mm, spring return, clear boot, unmarked

Old price: $49.83 INC GST
$38.87 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Head for non illuminated push button, Harmony XB4, red flush, 22mm, spring return, clear boot, unmarked
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Image of product in real life situation
Catalog
CAD
Environmental Disclosure
Circularity Profile
Declaration of conformity
Instruction sheet
Image of product in real life situation
Product Page Link
Product Data Sheet
This Harmony XB4, flush red button head with clear silicone membrane booted operates with a spring return / impulse mechanism. This clear silicone booted button head provides a simple solution to comply with hygiene requirement in food, beverage industries as well as healthcare and pharmaceuticals. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. The clear boot prevents growth of bacteria in joints and gaps, it makes this product ideal for high hygiene environments.

Products specifications

Attribute name Attribute value
Main
Device short name ZB4
Sale per indivisible quantity 1
Head type standard
Type of operator spring return
Range of product Harmony XB4
Product compatibility not compatible with legend holder
Operator profile red flush, unmarked
Bezel material chromium plated metal
Shape of signaling unit head round
Product or component type head for non-illuminated push-button
Mounting diameter 22 mm
Operator additional information clear boot for insertion of protected legend within head
Complementary
Group of product silicone boot push
Compatibility code ZB4
Mechanical durability 10000000 cycles
Device presentation basic element
CAD overall height 30 mm
Customizable 0, no
Electrical composition code C14 for <2 contacts using single blocks in front mounting, C4 for <6 contacts using single and double blocks in front mounting, C3 for <6 contacts using single blocks in front mounting
Main group push-button
CAD overall depth 37 mm
CAD overall width 30 mm
Marking unmarked
Cap/operator or lens colour red
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP67, IP66 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK06 conforming to IEC 50102
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class I conforming to IEC 60536
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, EN/IEC 60947-5-5, JIS C8201-5-1, UL 508, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14
Product certifications GL, CSA, BV, DNV, LROS (Lloyds register of shipping), UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.200 cm
Package 1 Width 5.200 cm
Package 1 Length 8.200 cm
Package 1 Weight 33.000 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 8.800 cm
Package 2 Width 3.400 cm
Package 2 Length 26.500 cm
Package 2 Weight 167.000 g
Unit Type of Package 3 3
Number of Units in Package 3 150
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 5.633 kg
