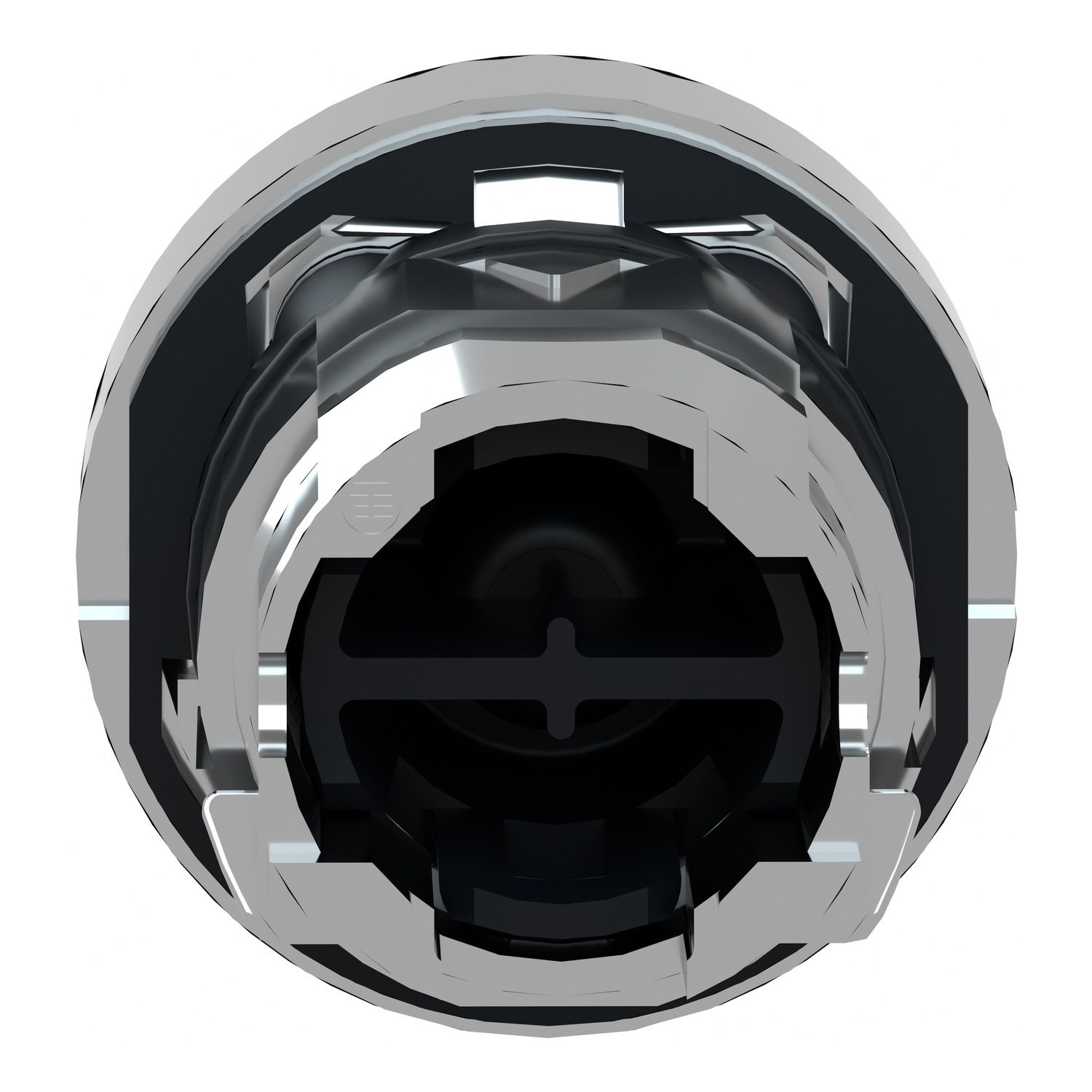

Picture of Projecting push button head 40mm, Harmony XB4, metal, red, 22mm, spring return, marked STOP

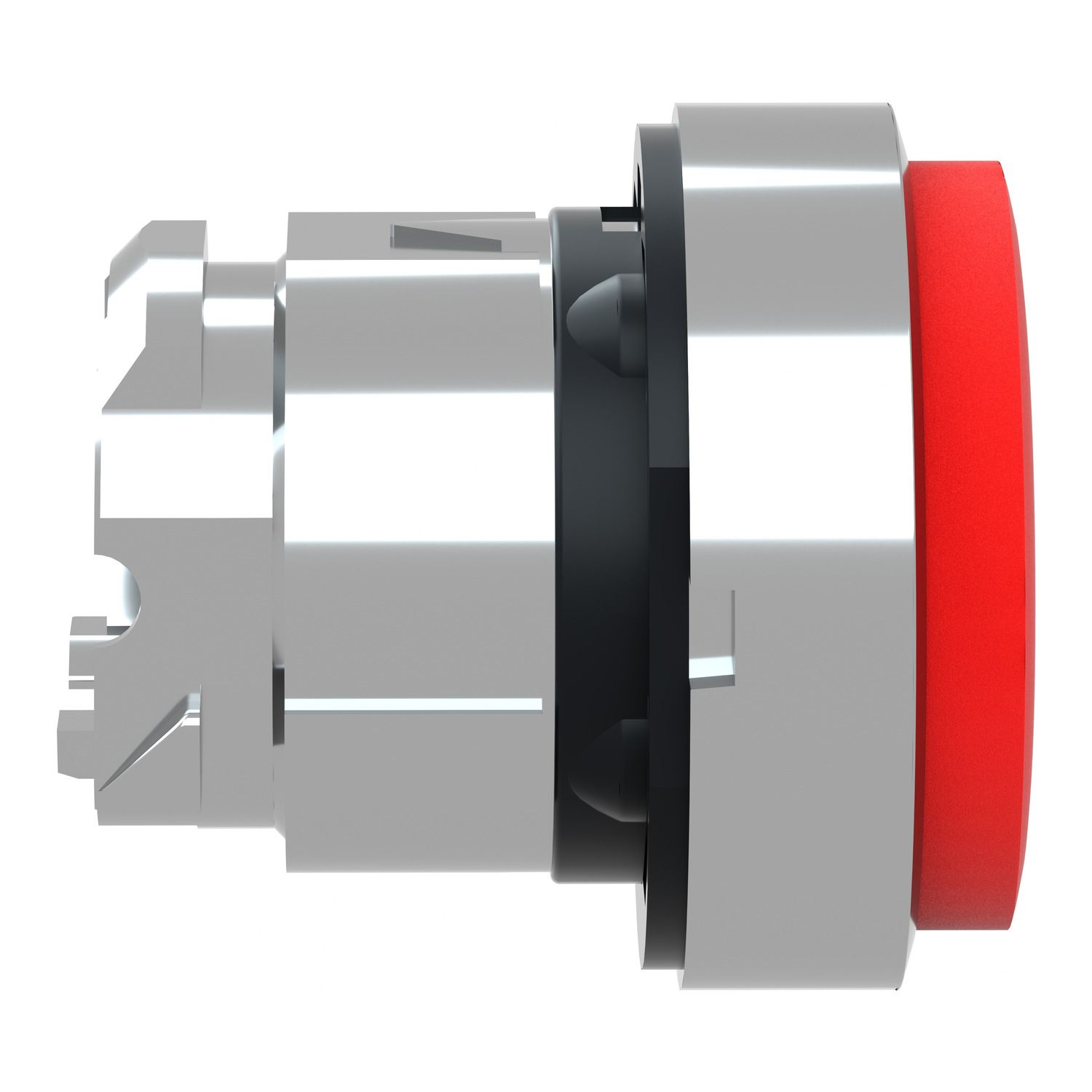

Picture of Projecting push button head 40mm, Harmony XB4, metal, red, 22mm, spring return, marked STOP

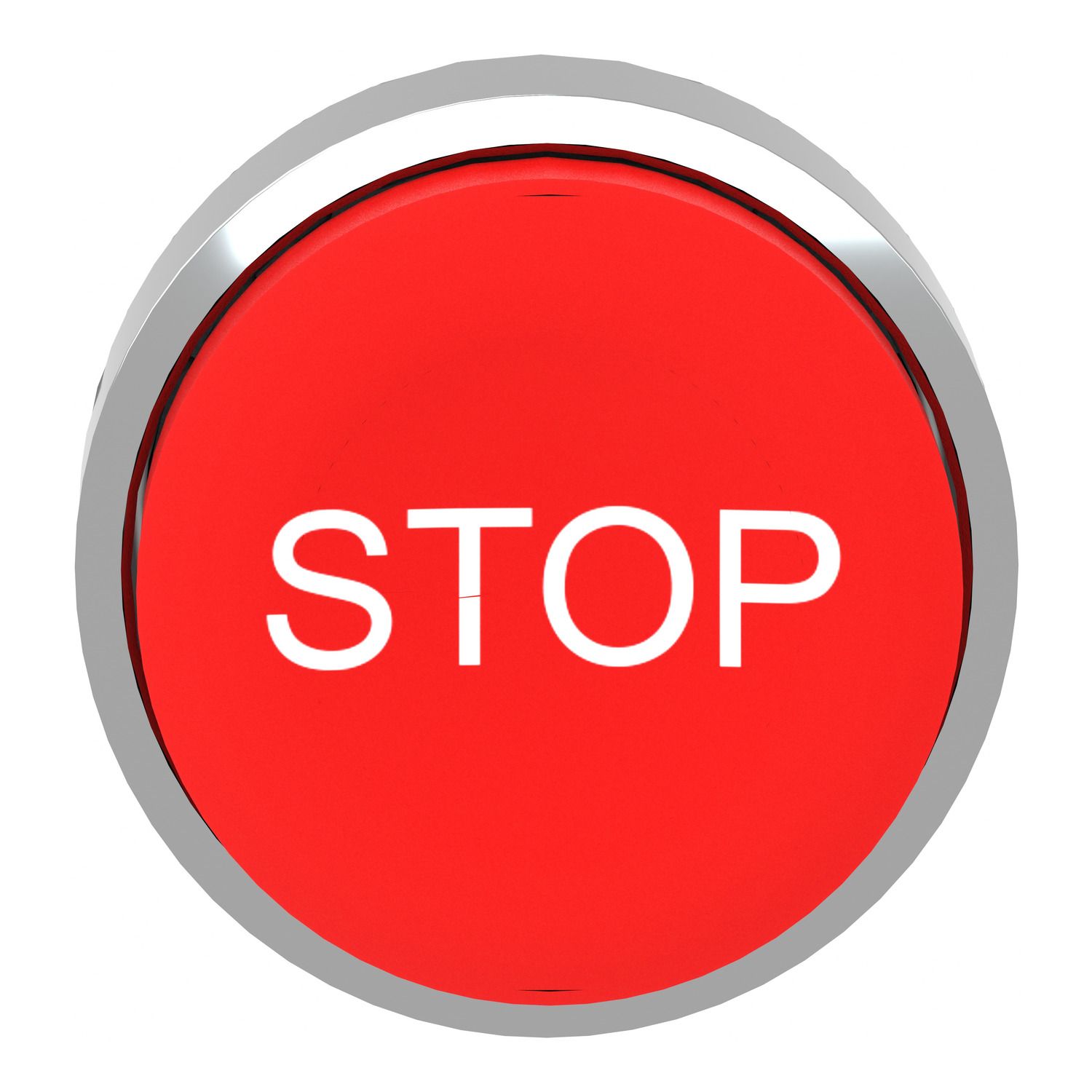

Picture of Projecting push button head 40mm, Harmony XB4, metal, red, 22mm, spring return, marked STOP

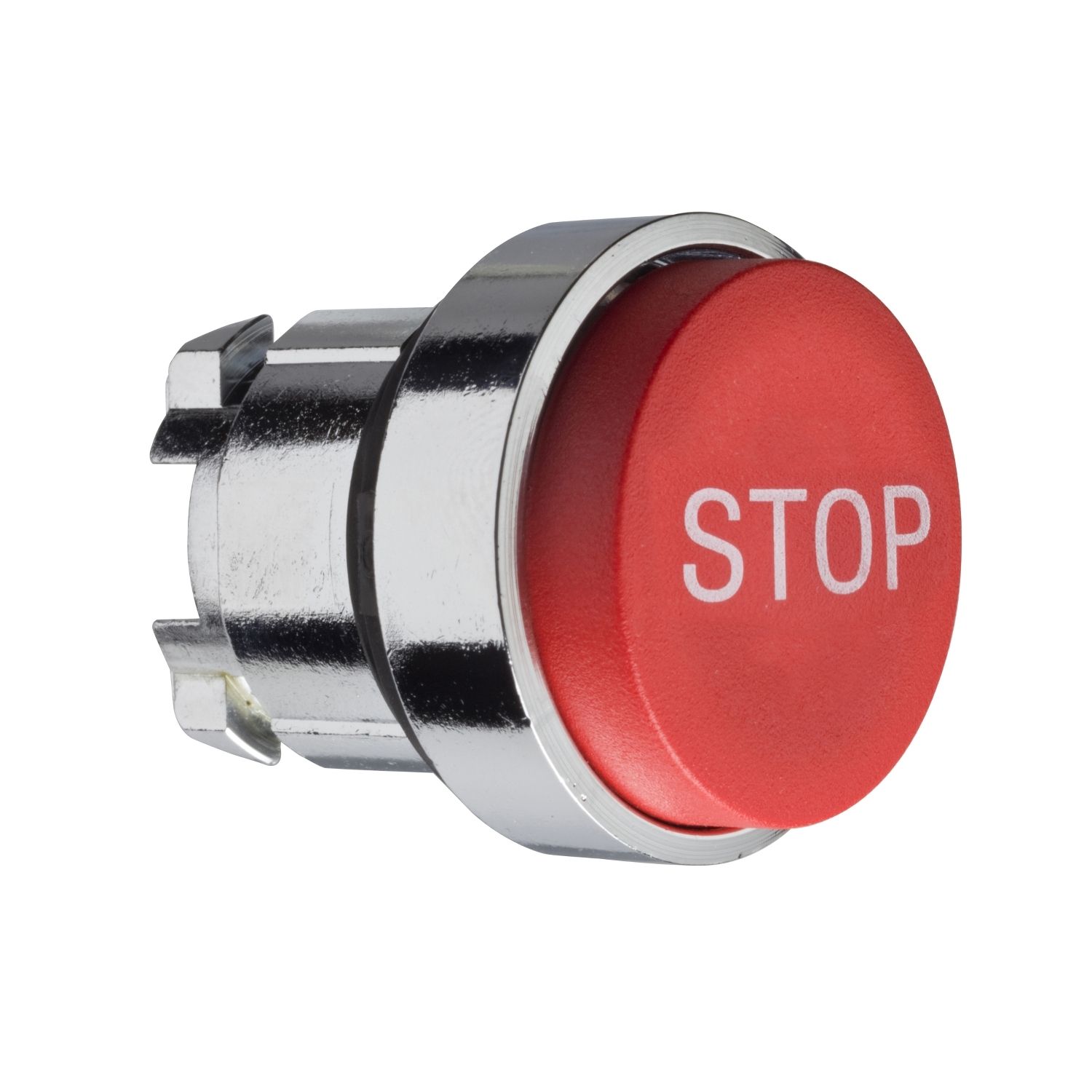

Picture of Projecting push button head 40mm, Harmony XB4, metal, red, 22mm, spring return, marked STOP

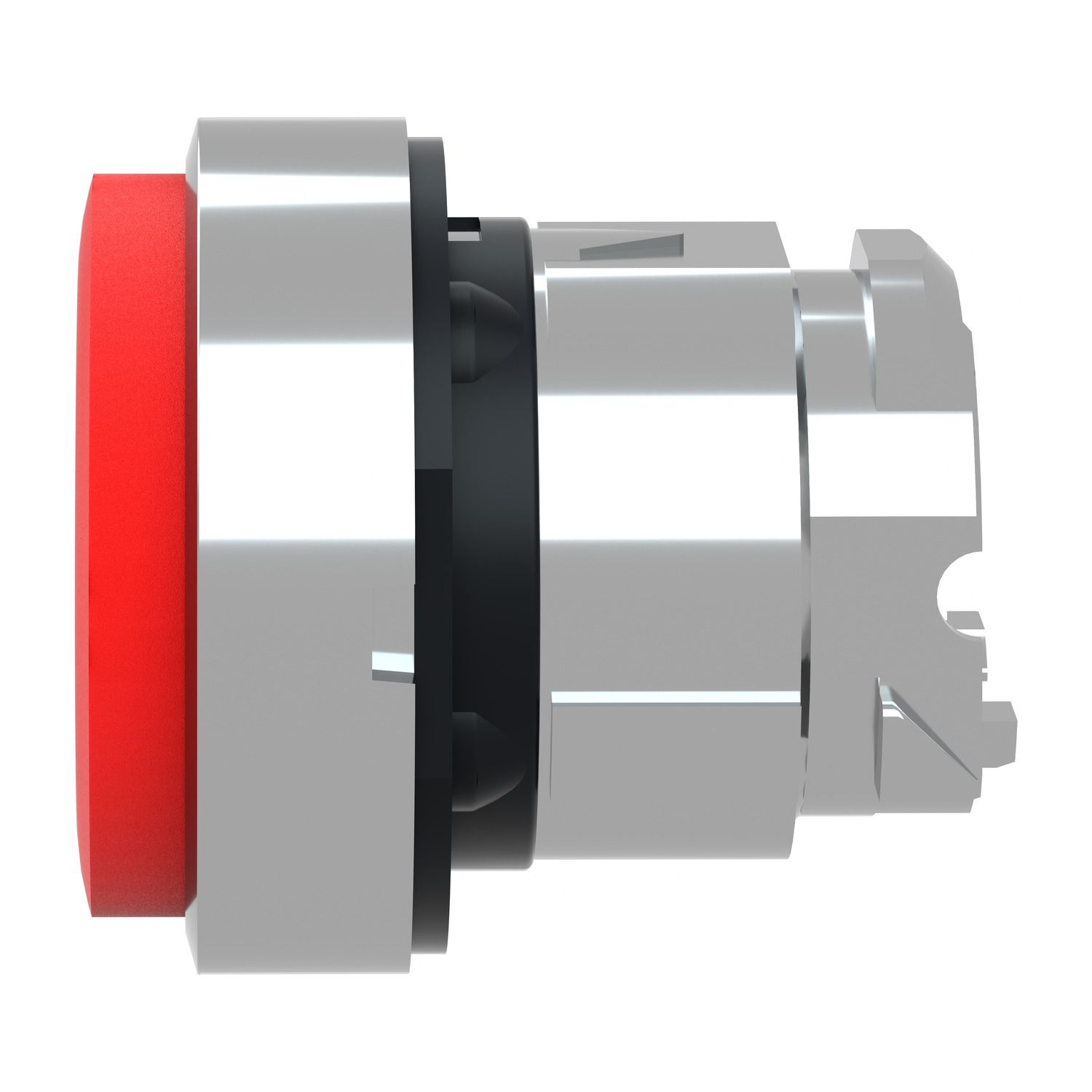

Picture of Projecting push button head 40mm, Harmony XB4, metal, red, 22mm, spring return, marked STOP
Picture of Projecting push button head 40mm, Harmony XB4, metal, red, 22mm, spring return, marked STOP
Picture of Projecting push button head 40mm, Harmony XB4, metal, red, 22mm, spring return, marked STOP
Picture of Projecting push button head 40mm, Harmony XB4, metal, red, 22mm, spring return, marked STOP
Picture of Projecting push button head 40mm, Harmony XB4, metal, red, 22mm, spring return, marked STOP
SKU:

ZB4BL434

Projecting push button head 40mm, Harmony XB4, metal, red, 22mm, spring return, marked STOP

Old price: $38.06 INC GST
$29.69 INC GST
Available for Shipping : 10-Dec-2025
Product Selector
Projecting push button head 40mm, Harmony XB4, metal, red, 22mm, spring return, marked STOP
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 10-Dec-2025
Image of product in real life situation
Image of product in real life situation
Catalog
Environmental Disclosure
Circularity Profile
Declaration of conformity
CAD
Instruction sheet
Image of product in real life situation
Product Page Link
Product Data Sheet
This Harmony XB4, projecting red button head operates with a spring return / impulse mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of pushbuttons and contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its clear color and marking. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZB4
Sale per indivisible quantity 1
Head type standard
Type of operator spring return
Range of product Harmony XB4
Operator profile red projecting, STOP (white)
Bezel material chromium plated metal
Shape of signaling unit head round
Product or component type head for non-illuminated push-button
Mounting diameter 22 mm
Complementary
Group of product projecting push with marking
Compatibility code ZB4
Mechanical durability 10000000 cycles
Device presentation basic element
CAD overall height 29 mm
Customizable 0, no
Colour of marking white
Electrical composition code C15 for <1 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C2 for <9 contacts using single and double blocks in front mounting, C1 for <9 contacts using single blocks in front mounting
Main group push-button
CAD overall depth 33 mm
CAD overall width 29 mm
Marking STOP
Cap/operator or lens colour red
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK06 conforming to IEC 50102
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class I conforming to IEC 60536
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-5-1, UL 508, JIS C8201-5-1, IEC 60947-5-5, IEC 60947-5-4, IEC 60947-1, CSA C22.2 No 14
Product certifications BV, UL listed, CSA, DNV, LROS (Lloyds register of shipping), GL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.500 cm
Package 1 Width 3.400 cm
Package 1 Length 5.400 cm
Package 1 Weight 29.500 g
Unit Type of Package 2 2
Number of Units in Package 2 150
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.731 kg
