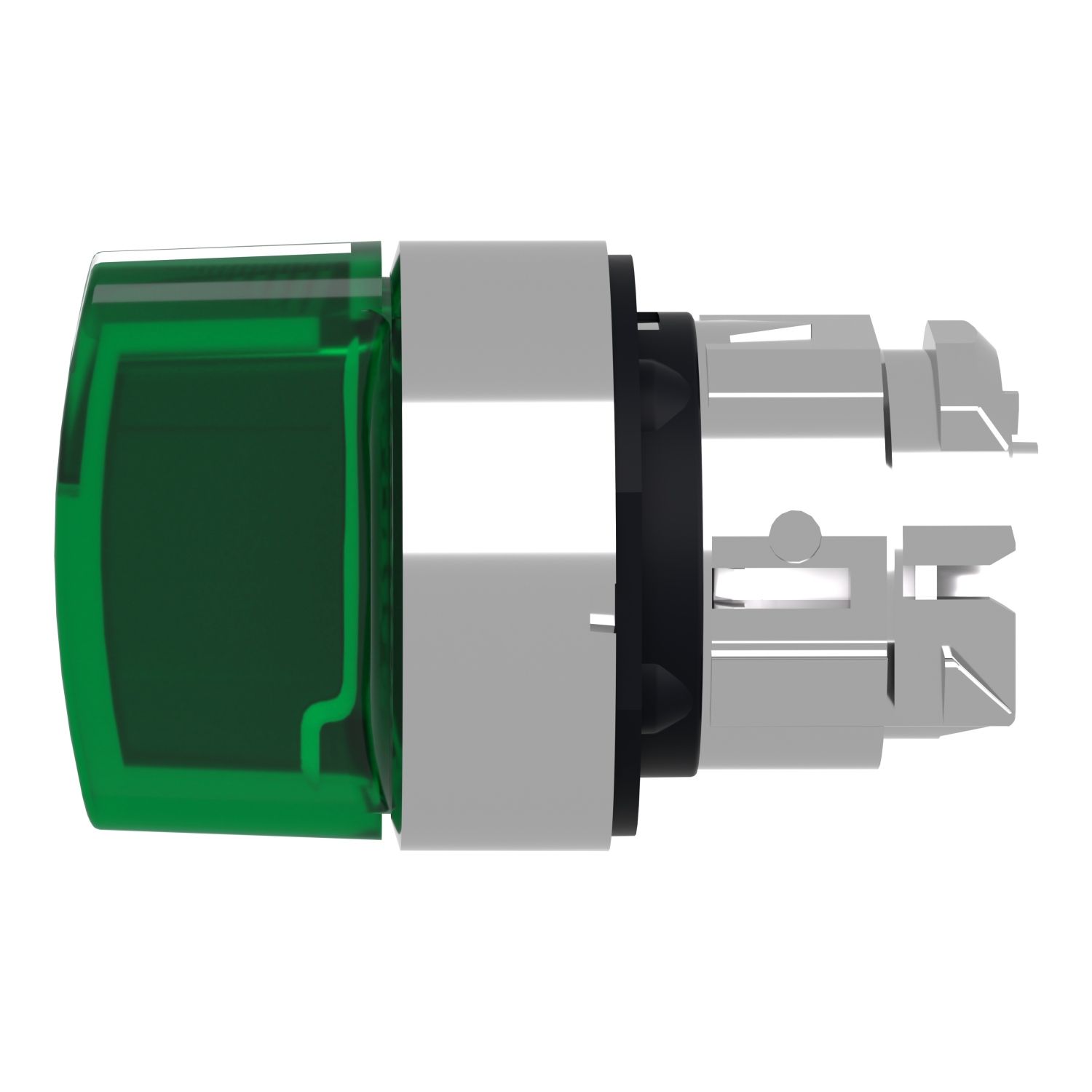

Picture of Head for illuminated selector switch, Harmony XB4, chromium metal, green handle, 22mm, universal LED, 3 positions, right to center

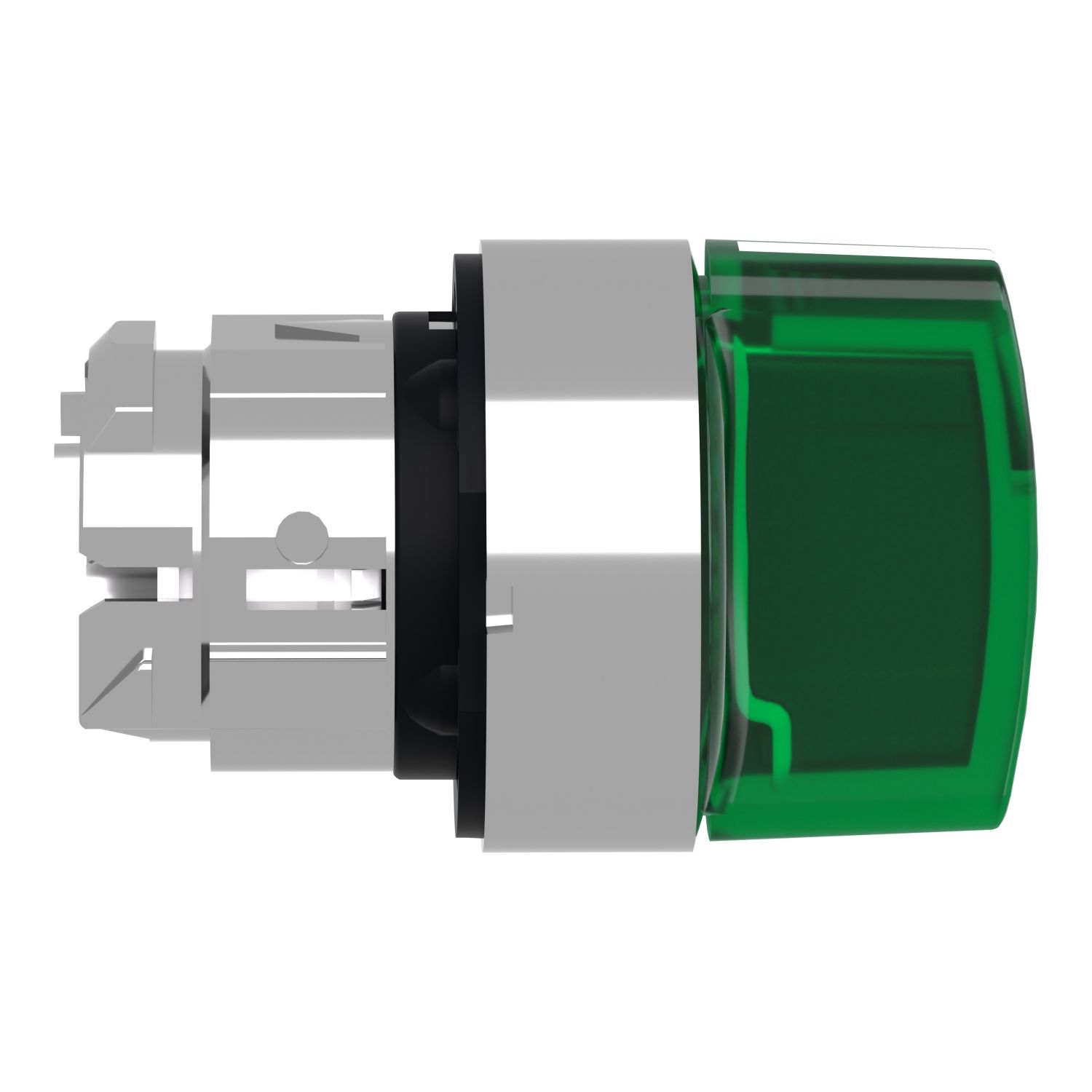

Picture of Head for illuminated selector switch, Harmony XB4, chromium metal, green handle, 22mm, universal LED, 3 positions, right to center

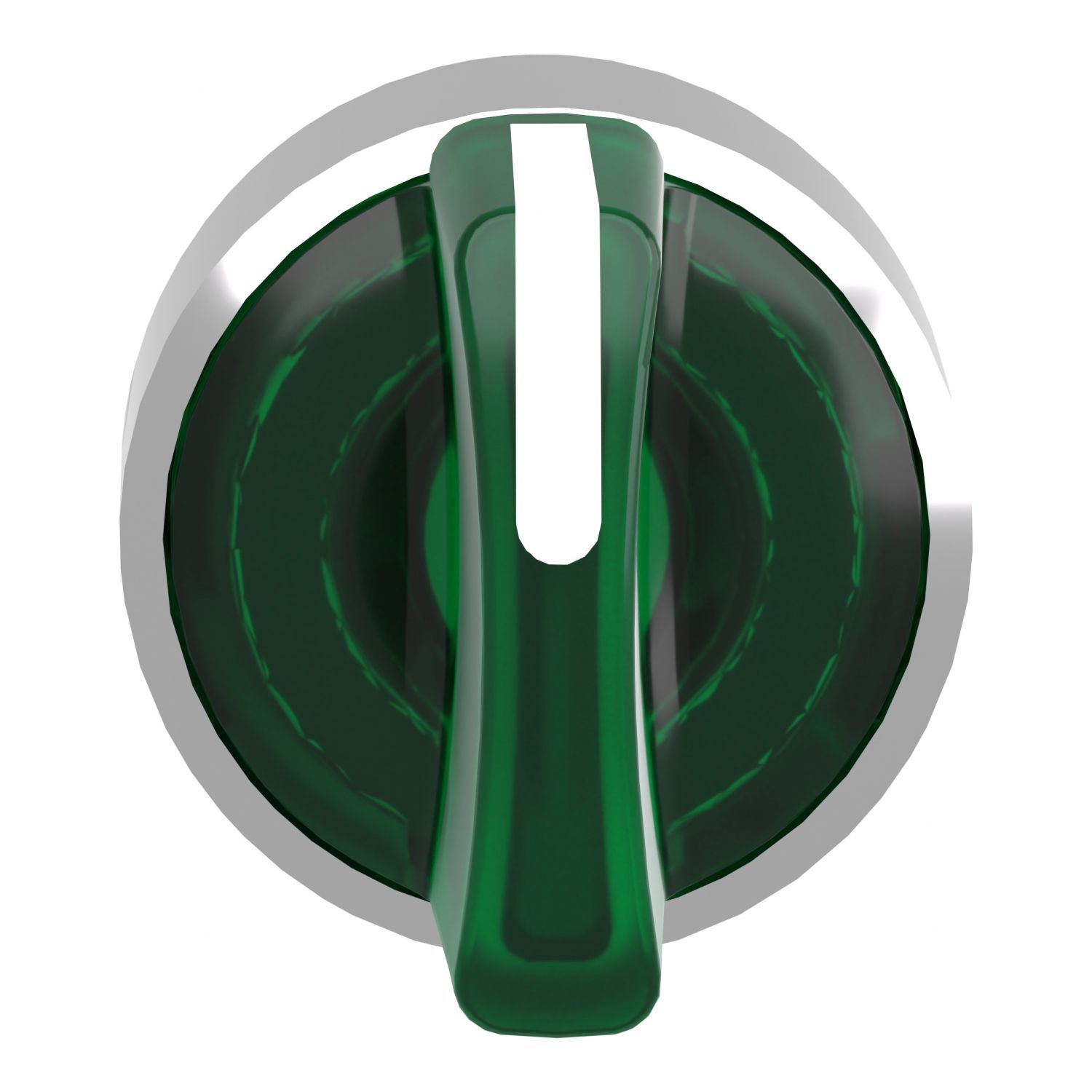

Picture of Head for illuminated selector switch, Harmony XB4, chromium metal, green handle, 22mm, universal LED, 3 positions, right to center

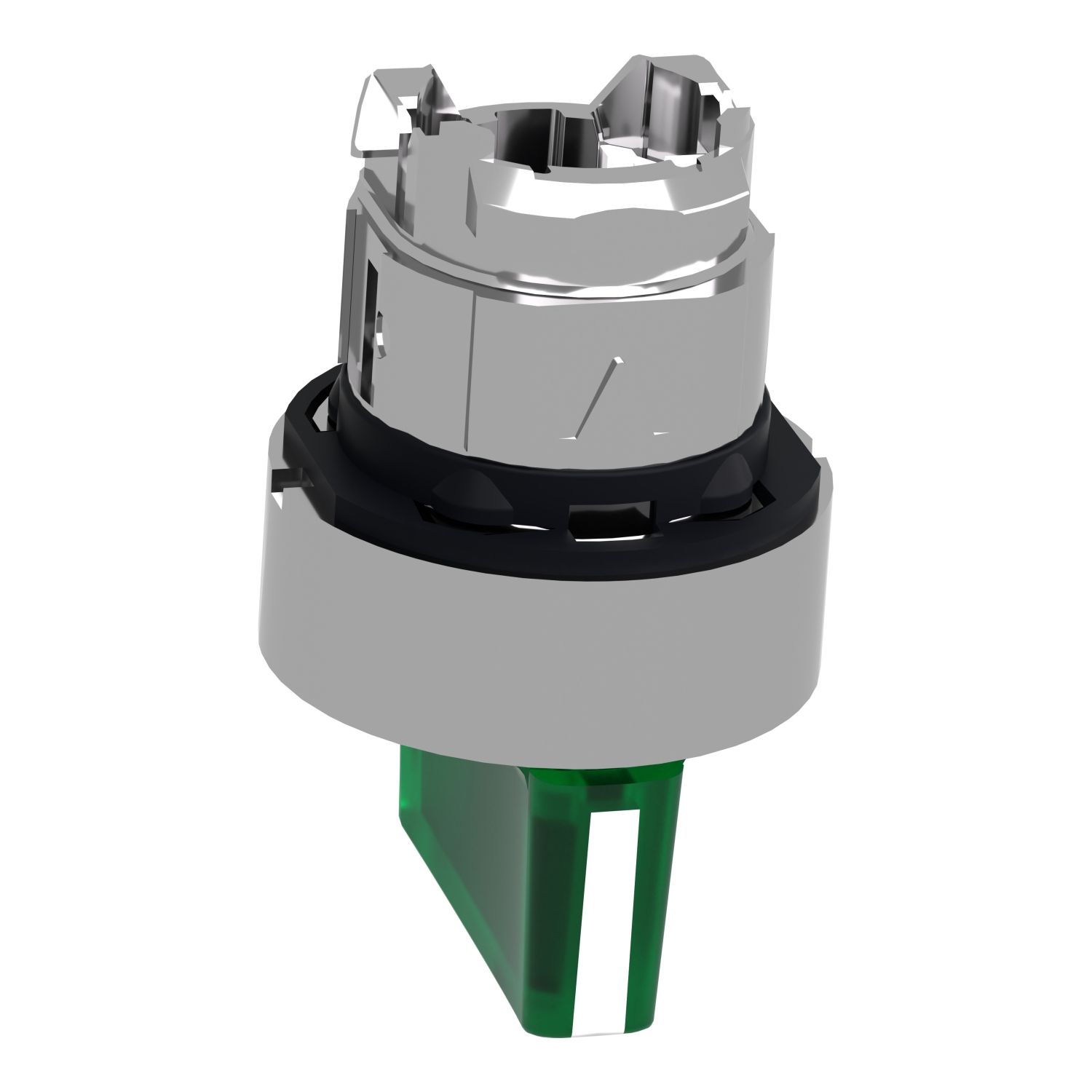

Picture of Head for illuminated selector switch, Harmony XB4, chromium metal, green handle, 22mm, universal LED, 3 positions, right to center

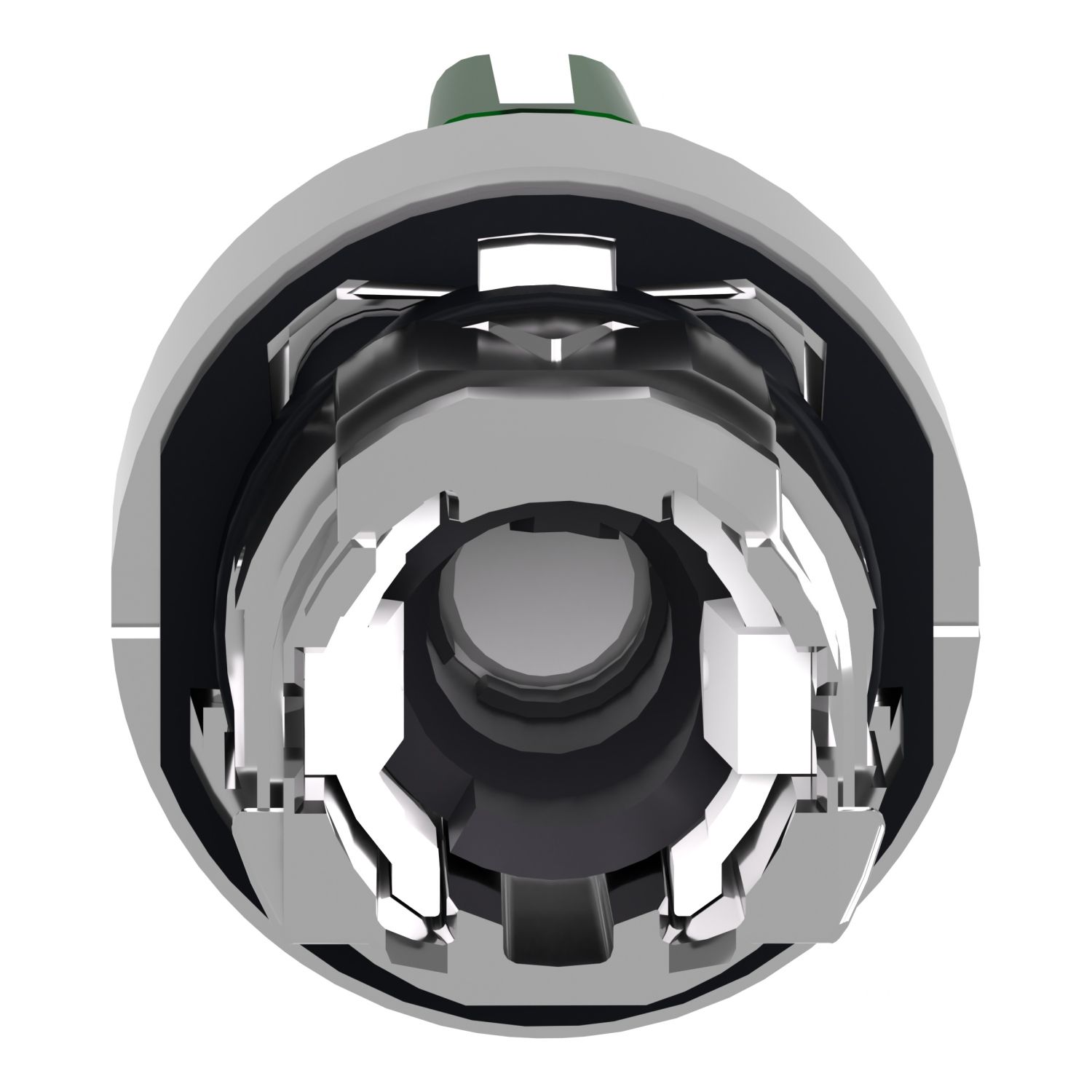

Picture of Head for illuminated selector switch, Harmony XB4, chromium metal, green handle, 22mm, universal LED, 3 positions, right to center

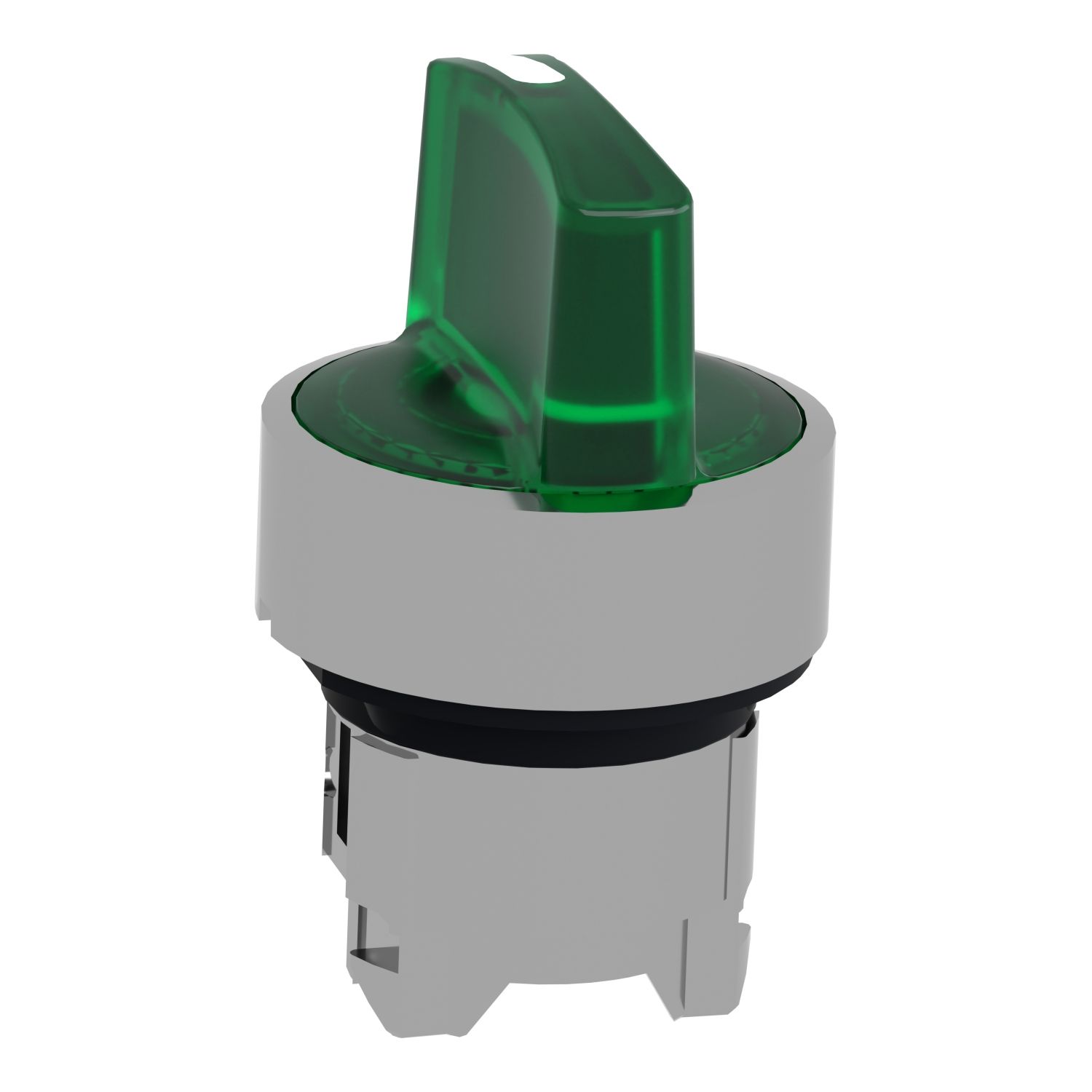

Picture of Head for illuminated selector switch, Harmony XB4, chromium metal, green handle, 22mm, universal LED, 3 positions, right to center

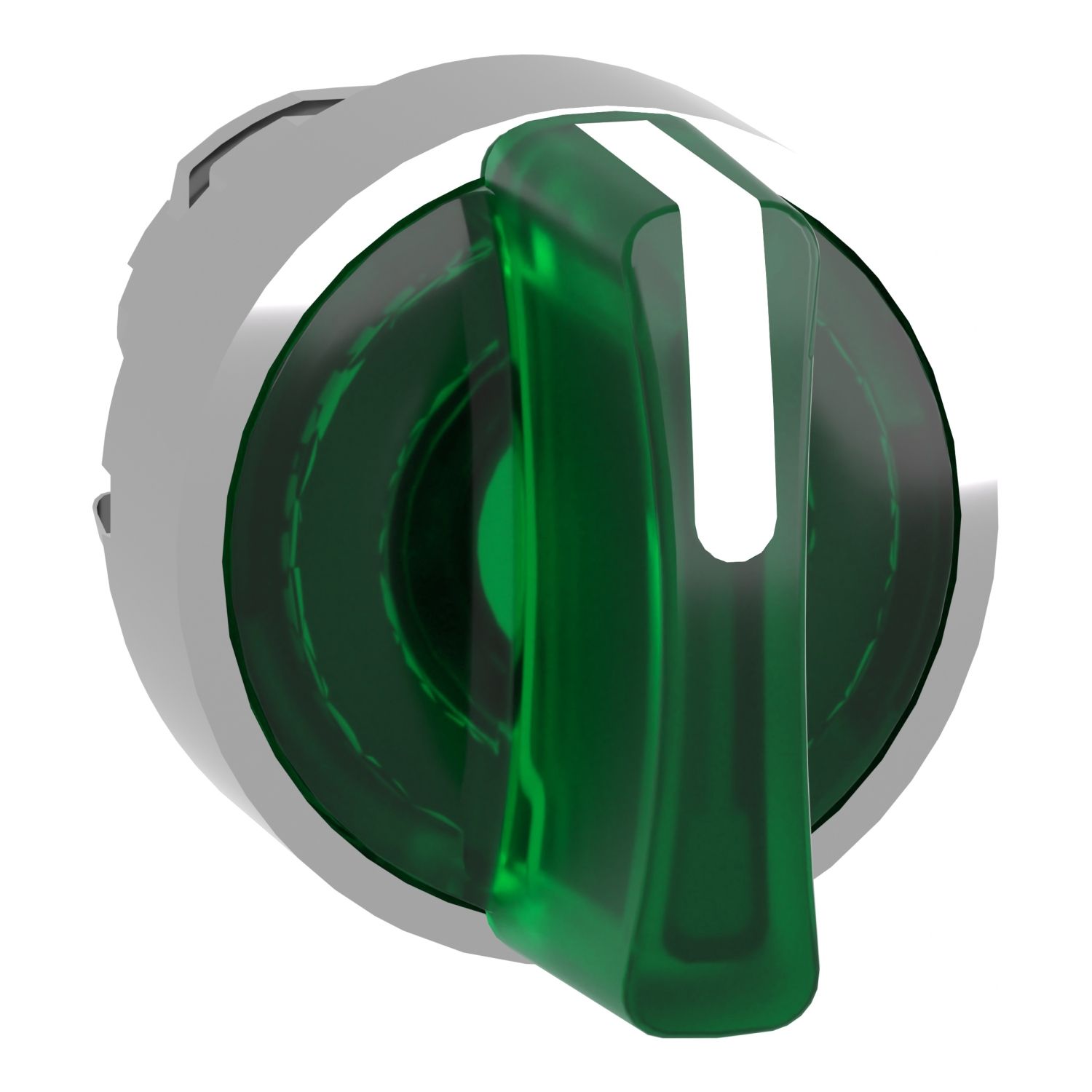

Picture of Head for illuminated selector switch, Harmony XB4, chromium metal, green handle, 22mm, universal LED, 3 positions, right to center
Picture of Head for illuminated selector switch, Harmony XB4, chromium metal, green handle, 22mm, universal LED, 3 positions, right to center
Picture of Head for illuminated selector switch, Harmony XB4, chromium metal, green handle, 22mm, universal LED, 3 positions, right to center
Picture of Head for illuminated selector switch, Harmony XB4, chromium metal, green handle, 22mm, universal LED, 3 positions, right to center
Picture of Head for illuminated selector switch, Harmony XB4, chromium metal, green handle, 22mm, universal LED, 3 positions, right to center
SKU:

ZB4BK1833

Head for illuminated selector switch, Harmony XB4, chromium metal, green handle, 22mm, universal LED, 3 positions, right to center

Old price: $91.19 INC GST
$71.13 INC GST
Available for Shipping : 10-Dec-2025
Product Selector
Head for illuminated selector switch, Harmony XB4, chromium metal, green handle, 22mm, universal LED, 3 positions, right to center
  • Chromium plated metal bezel
  • Wide range of operating temperature from -40°C to 70°C
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 10-Dec-2025
Image of product in real life situation
Image of product in real life situation
Catalog
Circularity Profile
CAD
Environmental Disclosure
Declaration of conformity
Image of product in real life situation
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony XB4, illuminated green selector switch head for integral LED with standard handle has 3 positions, operates with spring return from right to center mechanism. This illuminated switch head for integral LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZB4
Product compatibility universal LED
Sale per indivisible quantity 1
Head type standard
Type of operator right to centre spring return
Range of product Harmony XB4
Operator position information 3 positions +/- 45°
Operator profile green standard handle
Bezel material chromium plated metal
Shape of signaling unit head round
Product or component type head for illuminated selector switch
Mounting diameter 22 mm
Complementary
Group of product illum. integral LED
Compatibility code ZB4
Mechanical durability 500000 cycles
Device presentation basic element
CAD overall height 29 mm
Customizable 0, no
Electrical composition code M4 for <4 contacts using single and double blocks in front mounting with integral LED, M10 for <2 contacts using single blocks in front mounting with integral LED, M6 for <2 contacts using single blocks in front mounting with integral LED and transformer, M3 for <4 contacts using single blocks in front mounting with integral LED
Main group illum select switch
CAD overall depth 43 mm
CAD overall width 29 mm
Cap/operator or lens colour green
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Net weight 0.036 kg
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK04 conforming to IEC 50102
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class I conforming to IEC 60536
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, EN/IEC 60947-1, UL 508, JIS C8201-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-5-5
Product certifications LROS (Lloyds register of shipping), CSA, BV, GL, DNV, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.3 cm
Package 1 Width 4.8 cm
Package 1 Length 5.2 cm
Package 1 Weight 42 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 4.8 cm
Package 2 Width 26.5 cm
Package 2 Length 3.3 cm
Package 2 Weight 210 g
Unit Type of Package 3 3
Number of Units in Package 3 250
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 11 kg
