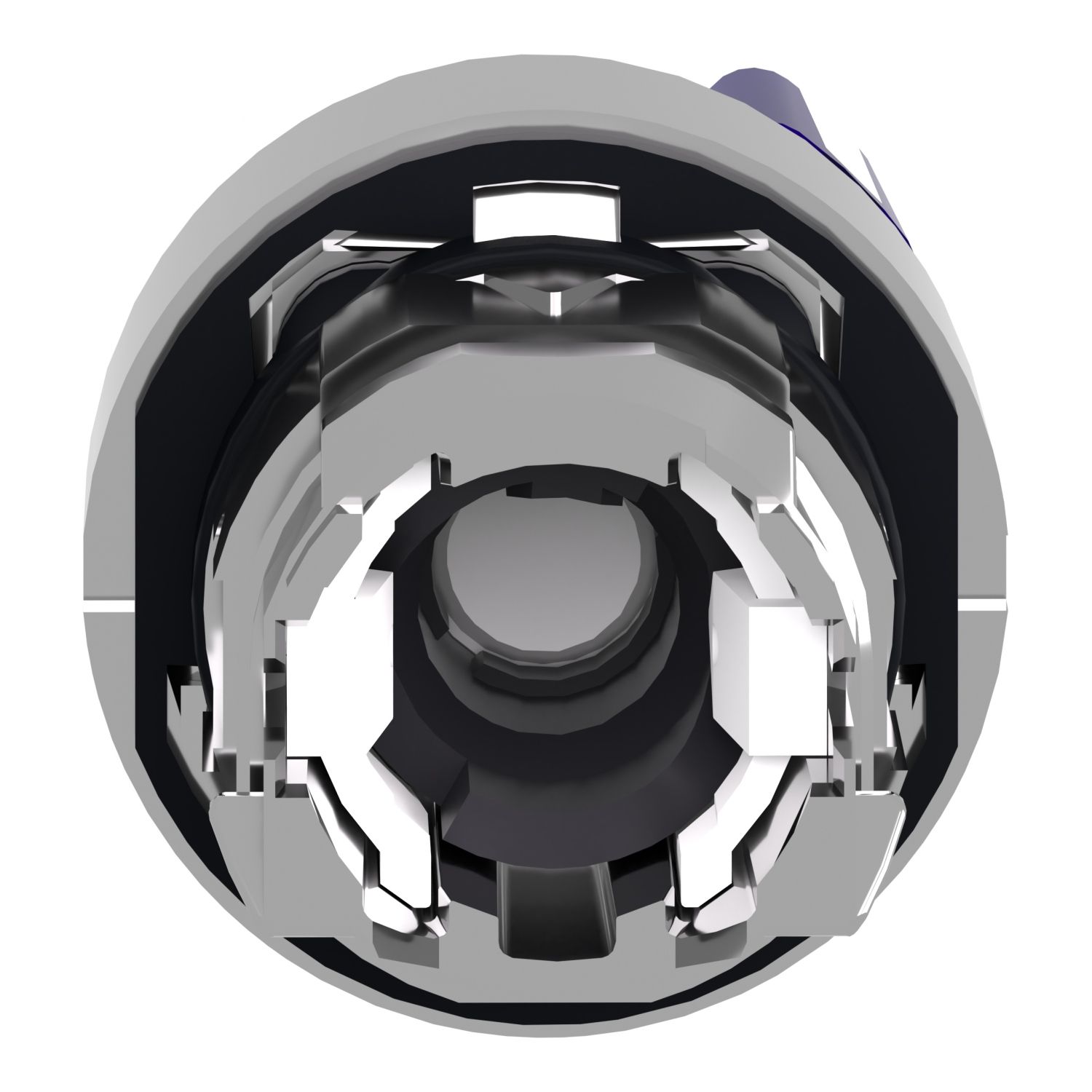

Picture of Head for illuminated selector switch, Harmony XB4, chromium metal, blue handle, 22mm, universal LED, 2 positions,

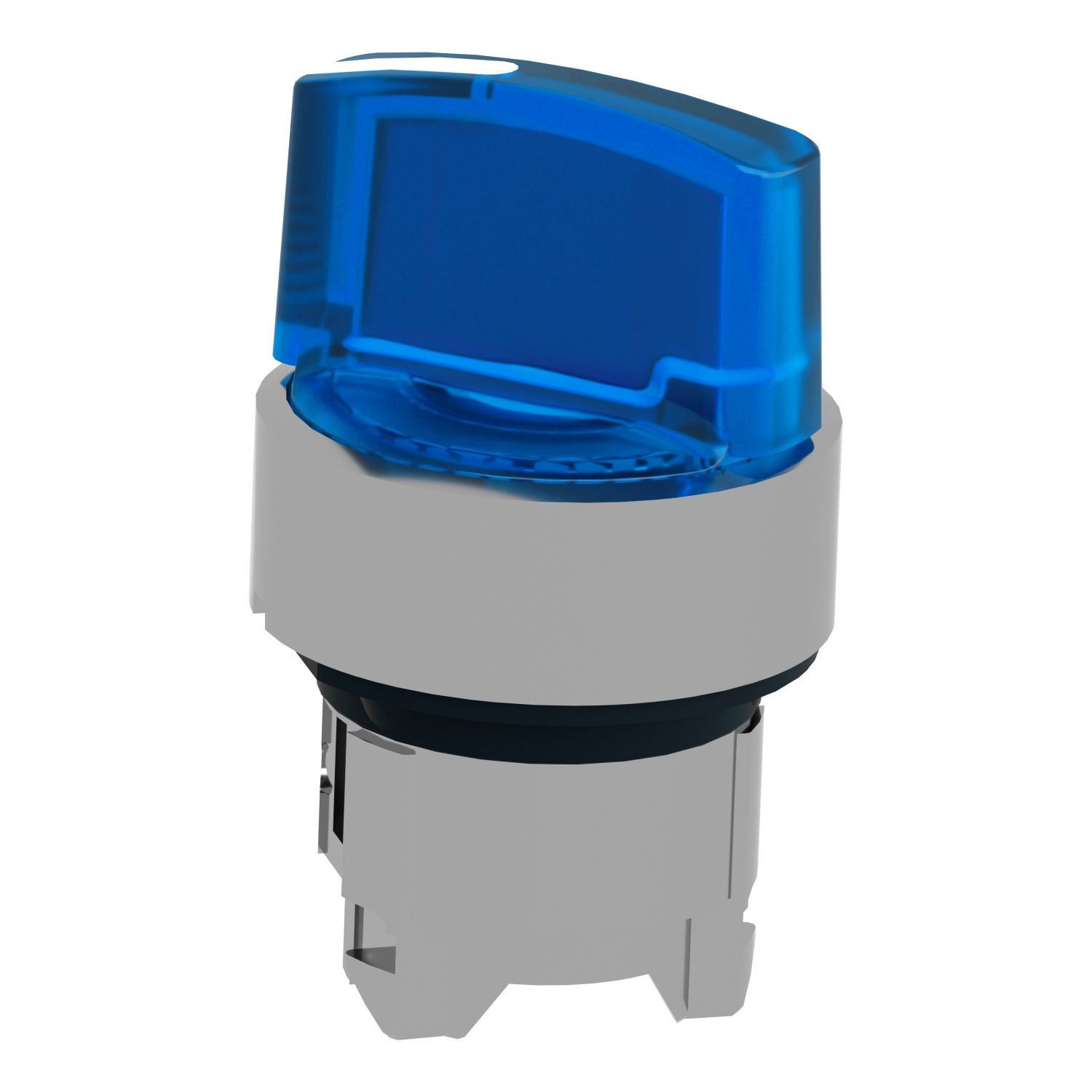

Picture of Head for illuminated selector switch, Harmony XB4, chromium metal, blue handle, 22mm, universal LED, 2 positions,

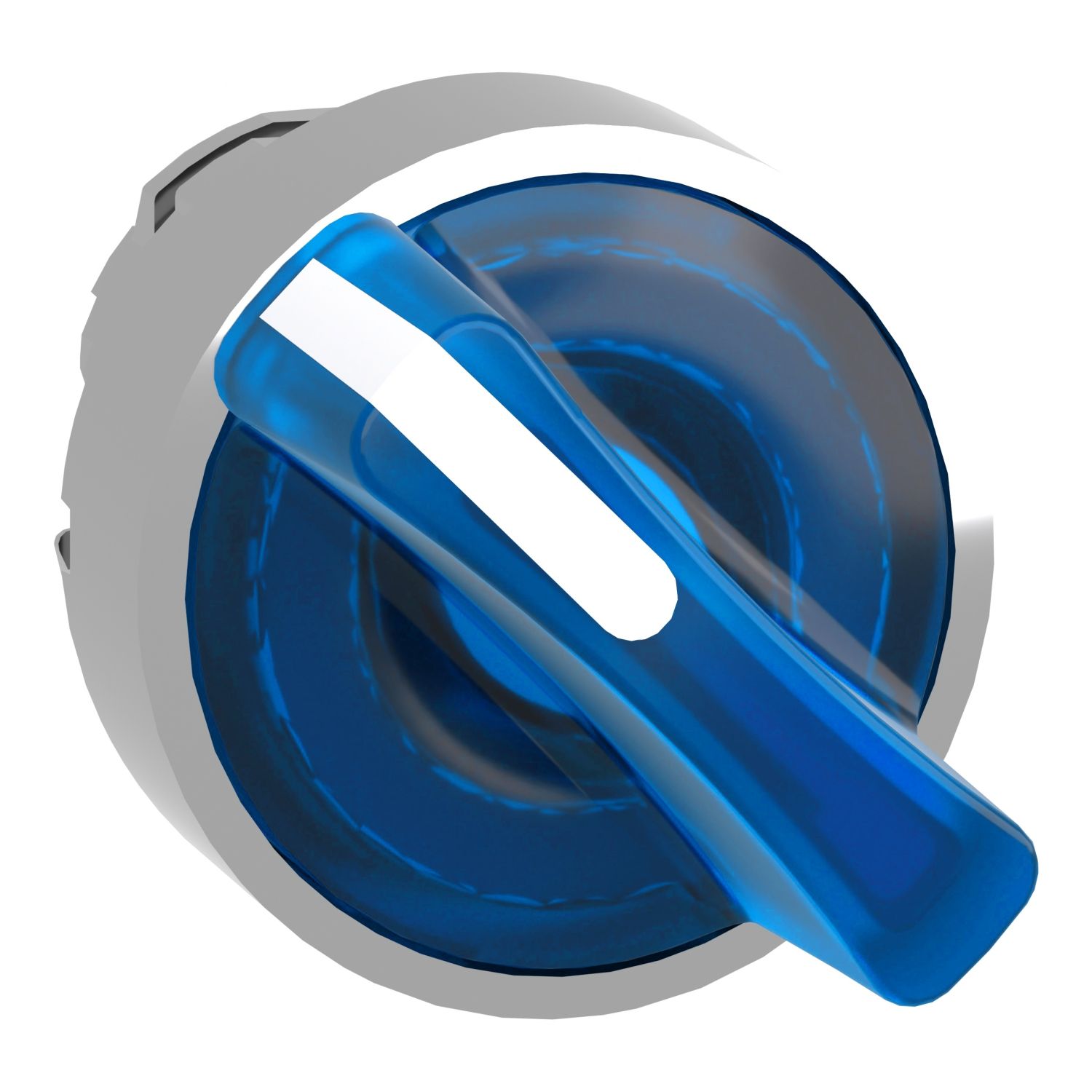

Picture of Head for illuminated selector switch, Harmony XB4, chromium metal, blue handle, 22mm, universal LED, 2 positions,

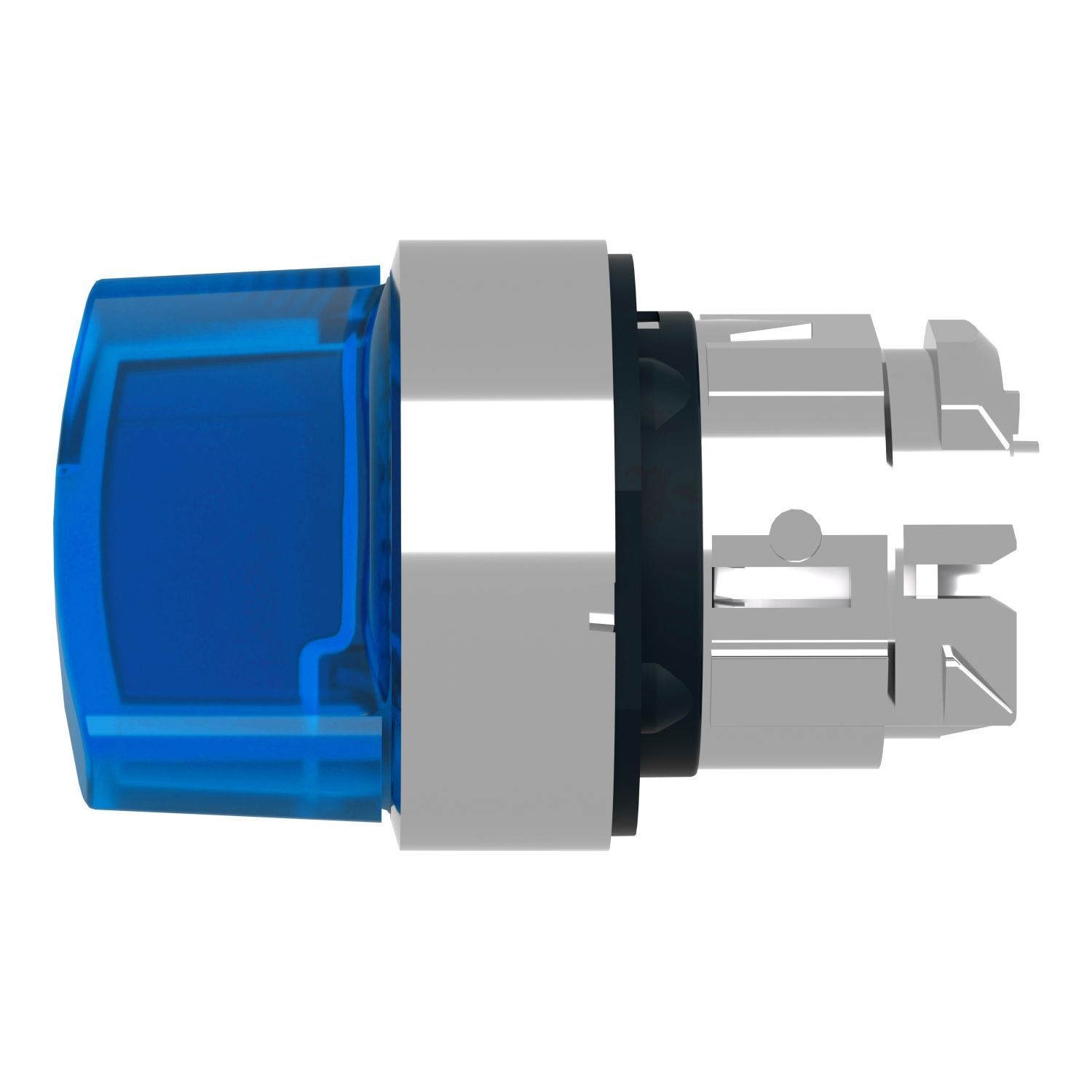

Picture of Head for illuminated selector switch, Harmony XB4, chromium metal, blue handle, 22mm, universal LED, 2 positions,

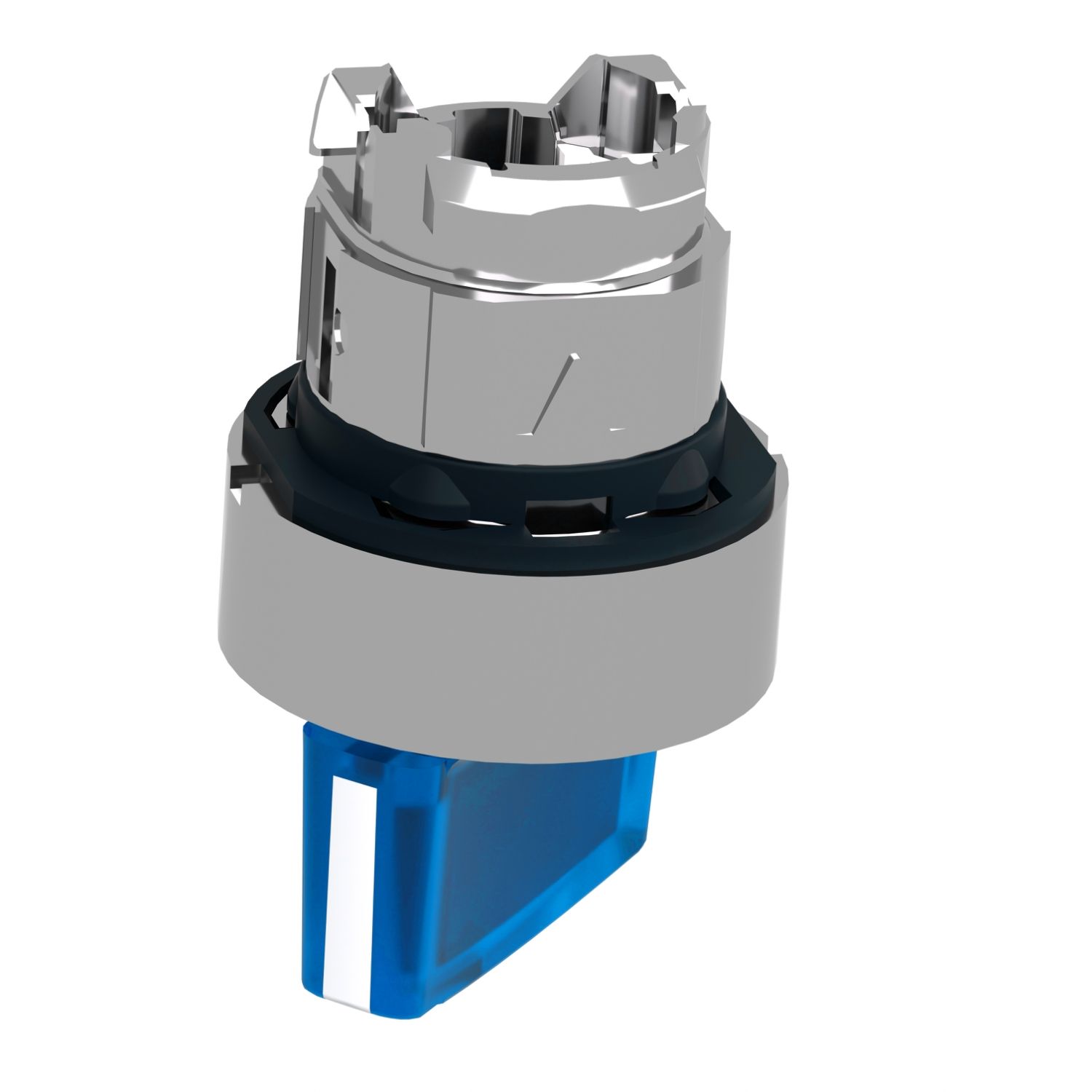

Picture of Head for illuminated selector switch, Harmony XB4, chromium metal, blue handle, 22mm, universal LED, 2 positions,

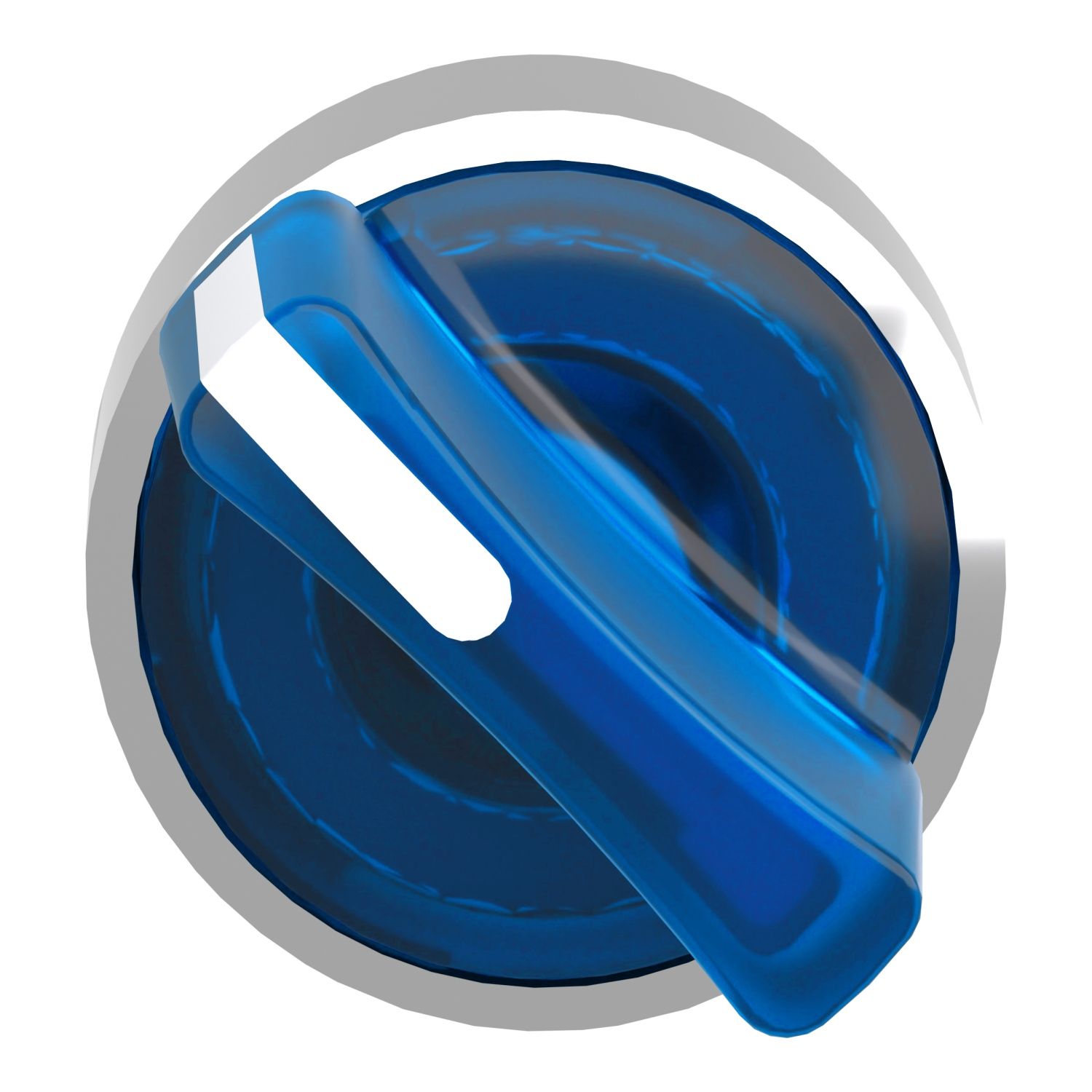

Picture of Head for illuminated selector switch, Harmony XB4, chromium metal, blue handle, 22mm, universal LED, 2 positions,

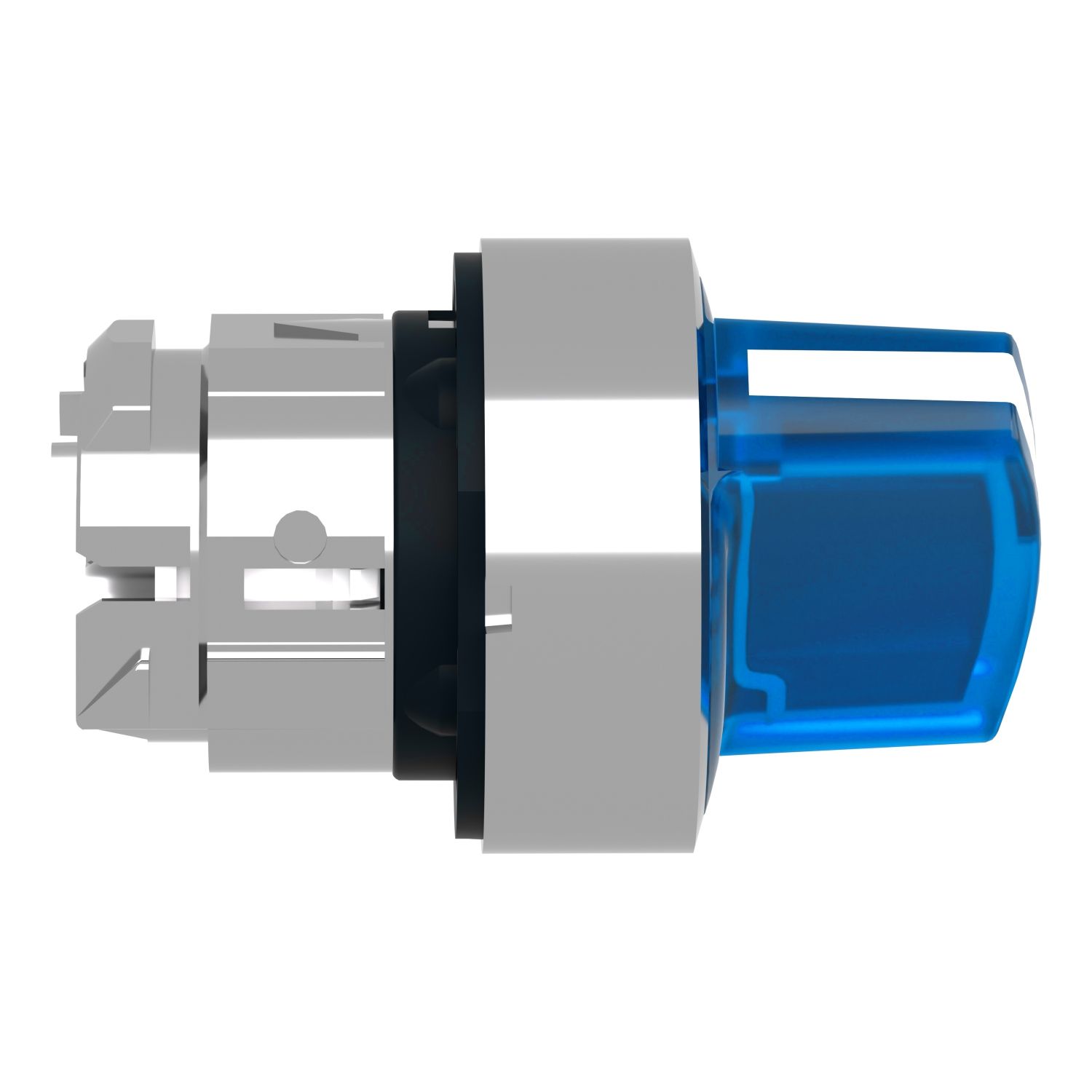

Picture of Head for illuminated selector switch, Harmony XB4, chromium metal, blue handle, 22mm, universal LED, 2 positions,
Picture of Head for illuminated selector switch, Harmony XB4, chromium metal, blue handle, 22mm, universal LED, 2 positions,
Picture of Head for illuminated selector switch, Harmony XB4, chromium metal, blue handle, 22mm, universal LED, 2 positions,
Picture of Head for illuminated selector switch, Harmony XB4, chromium metal, blue handle, 22mm, universal LED, 2 positions,
SKU:

ZB4BK1463

Head for illuminated selector switch, Harmony XB4, chromium metal, blue handle, 22mm, universal LED, 2 positions,

Old price: $91.19 INC GST
$71.13 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Head for illuminated selector switch, Harmony XB4, chromium metal, blue handle, 22mm, universal LED, 2 positions,
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Image of product in real life situation
Catalog
Circularity Profile
Environmental Disclosure
Declaration of conformity
CAD
Instruction sheet
Image of product in real life situation
Product Page Link
Product Data Sheet
This Harmony XB4, illuminated blue selector switch head for integral LED with standard handle has 2 positions, operates with spring return from right to left mechanism. This illuminated switch head for integral LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZB4
Product compatibility universal LED
Sale per indivisible quantity 1
Head type standard
Type of operator right to left spring return
Range of product Harmony XB4
Operator position information 2 positions 90°
Operator profile blue standard handle
Bezel material chromium plated metal
Shape of signaling unit head round
Product or component type head for illuminated selector switch
Mounting diameter 22 mm
Complementary
Group of product illum. integral LED
Compatibility code ZB4
Mechanical durability 500000 cycles
Device presentation basic element
CAD overall height 29 mm
Customizable 0, no
Electrical composition code M4 for <4 contacts using single and double blocks in front mounting with integral LED, M10 for <2 contacts using single blocks in front mounting with integral LED, M6 for <2 contacts using single blocks in front mounting with integral LED and transformer, M3 for <4 contacts using single blocks in front mounting with integral LED
Main group illum select switch
CAD overall depth 43 mm
CAD overall width 29 mm
Cap/operator or lens colour blue
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Net weight 0.037 kg
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK04 conforming to IEC 50102
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class I conforming to IEC 60536
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, EN/IEC 60947-5-4, EN/IEC 60947-1, EN/IEC 60947-5-5, JIS C8201-5-1, UL 508, EN/IEC 60947-5-1, CSA C22.2 No 14
Product certifications UL listed, CSA, GL, BV, LROS (Lloyds register of shipping), DNV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.500 cm
Package 1 Width 4.600 cm
Package 1 Length 5.300 cm
Package 1 Weight 40.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 7.000 cm
Package 2 Width 26.500 cm
Package 2 Length 100.000 cm
Package 2 Weight 800.000 g
Unit Type of Package 3 3
Number of Units in Package 3 50
Package 3 Height 15.000 cm
Package 3 Width 15.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 2.275 kg
