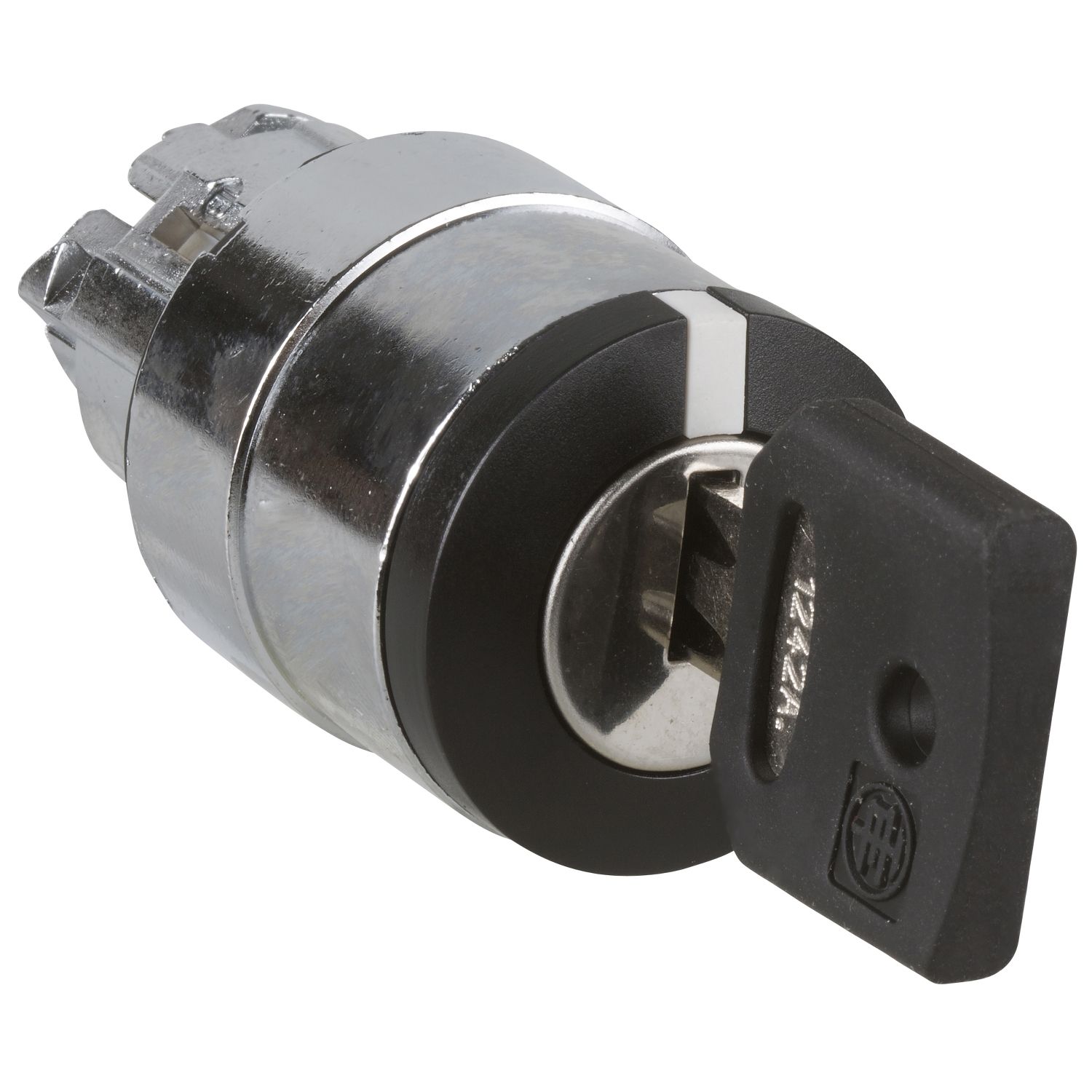

Picture of Head for key selector switch, Harmony XB4, black key, 22mm, 2 positions, left key withdrawal, 1242A
SKU:

ZB4BG2K1242A

Head for key selector switch, Harmony XB4, black key, 22mm, 2 positions, left key withdrawal, 1242A

Old price: $200.30 INC GST
$156.23 INC GST
Available for Shipping : 15-Jan-2026
Head for key selector switch, Harmony XB4, black key, 22mm, 2 positions, left key withdrawal, 1242A
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Jan-2026
Declaration of conformity
Catalog
Environmental Disclosure
Circularity Profile
Instruction sheet
CAD
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name ZB4
Sale per indivisible quantity 1
Head type standard
Range of product Harmony XB4
Operator position information 2 positions 90°
Operator profile key switch
Shape of signaling unit head round
Product or component type head for key selector switch
Mounting diameter 22 mm
Complementary
Group of product key switch
Compatibility code ZB4
Mechanical durability 1000000 cycles
Device presentation basic element
Customizable 0, no
Main group selector switch
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
NEMA degree of protection NEMA 13
Overvoltage category class I conforming to IEC 60536
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.300 cm
Package 1 Width 5.200 cm
Package 1 Length 8.600 cm
Package 1 Weight 103.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.130 kg
