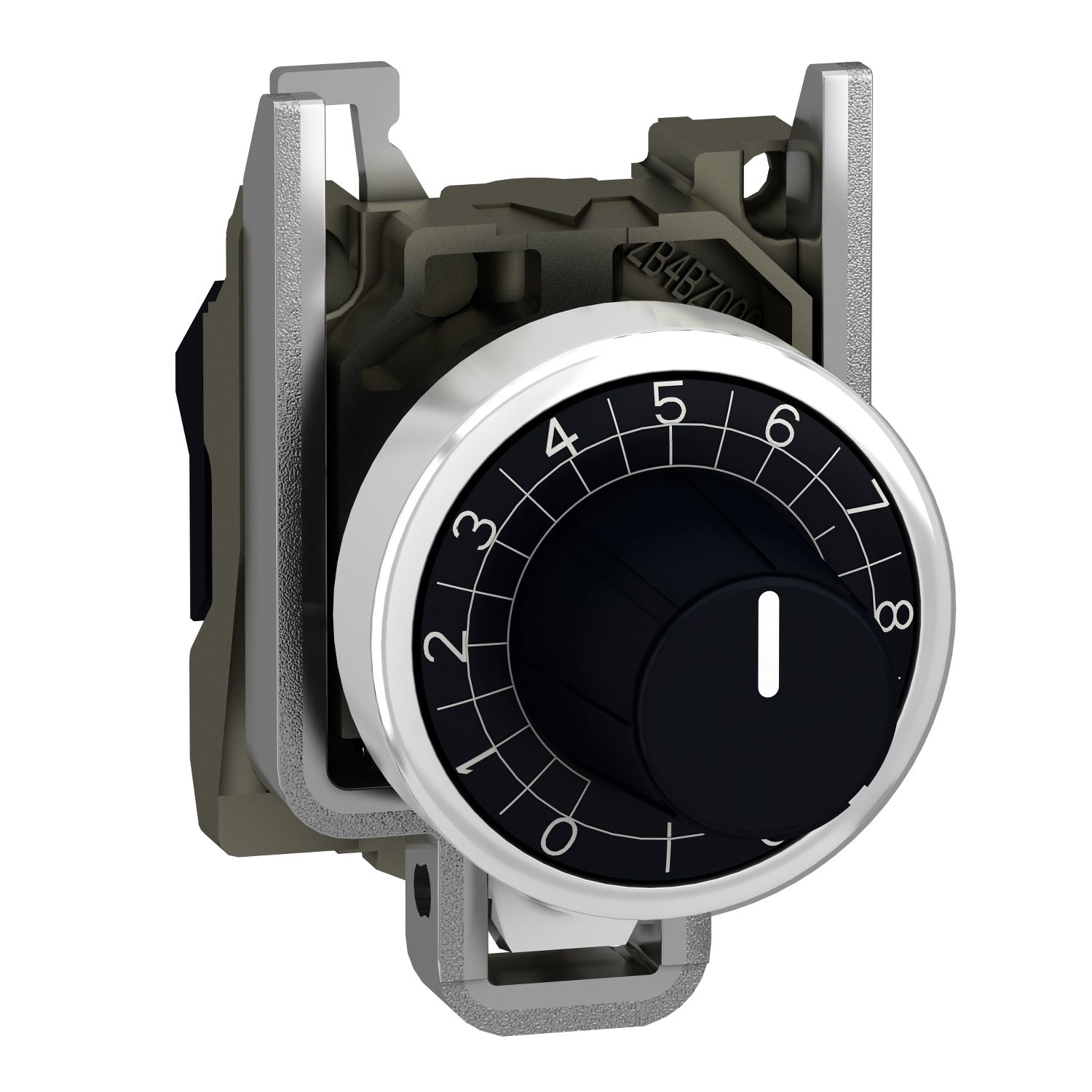

Picture of Potentiometer head, Harmony XB4, metal,black, 22mm, for use with 6.35mm shaft

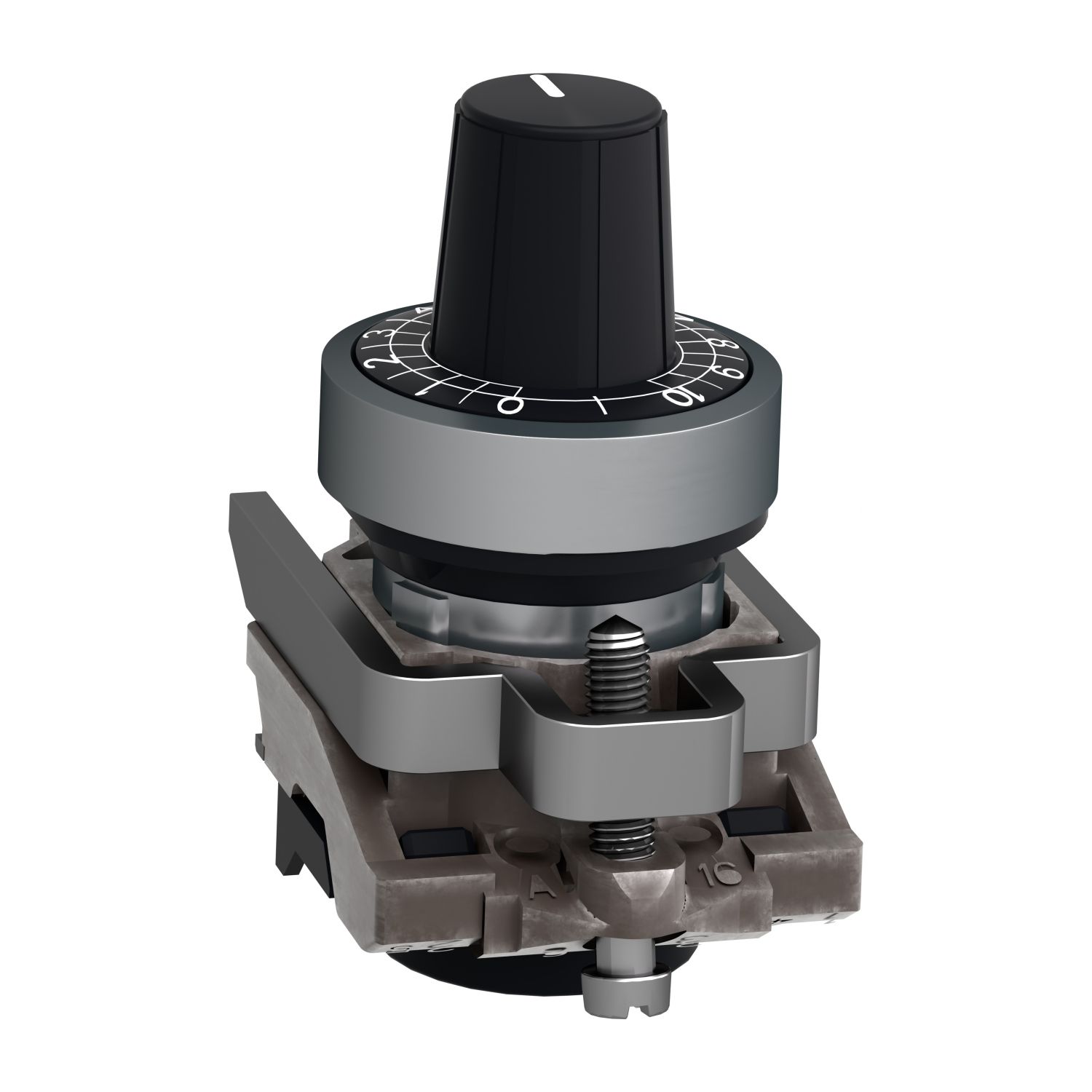

Picture of Potentiometer head, Harmony XB4, metal,black, 22mm, for use with 6.35mm shaft

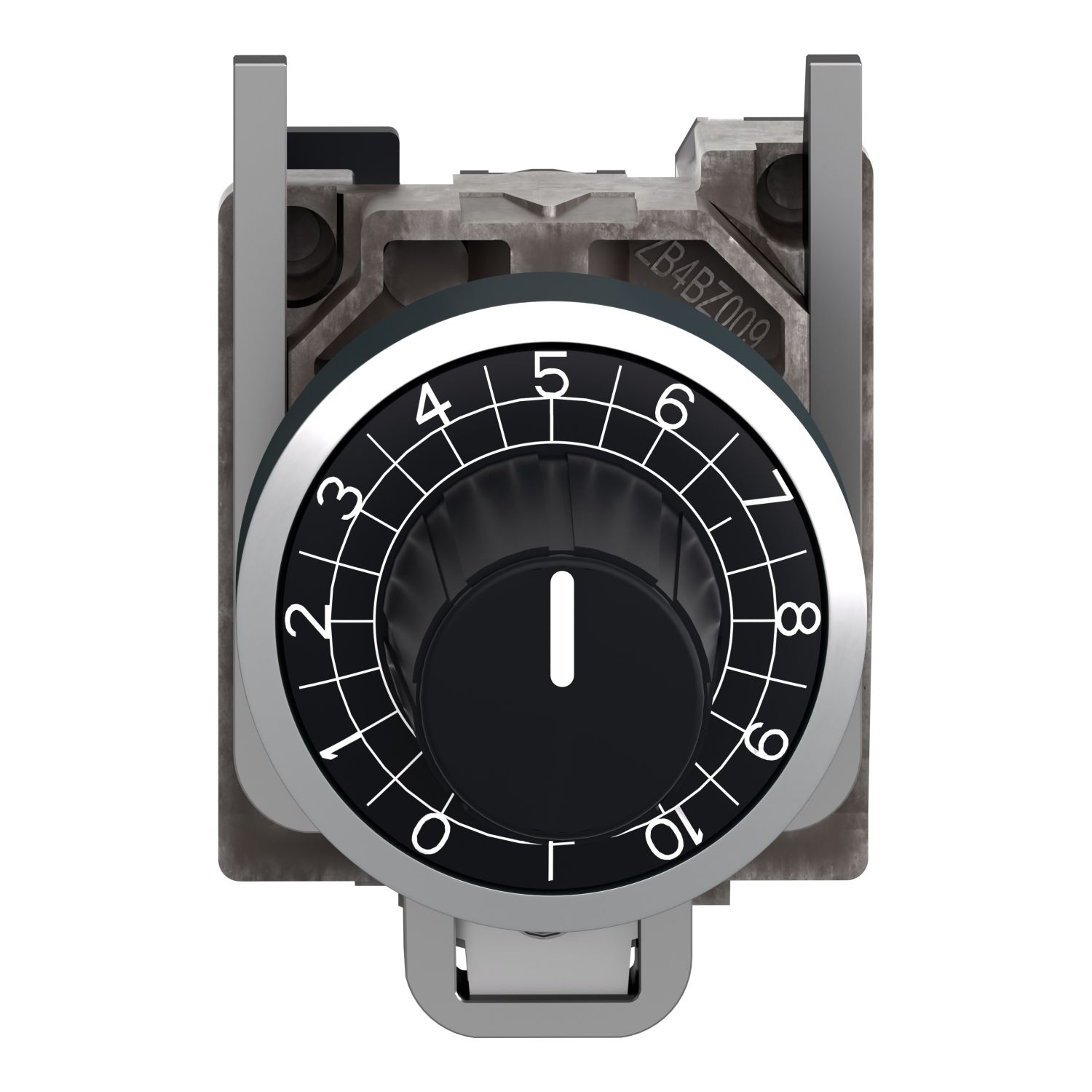

Picture of Potentiometer head, Harmony XB4, metal,black, 22mm, for use with 6.35mm shaft

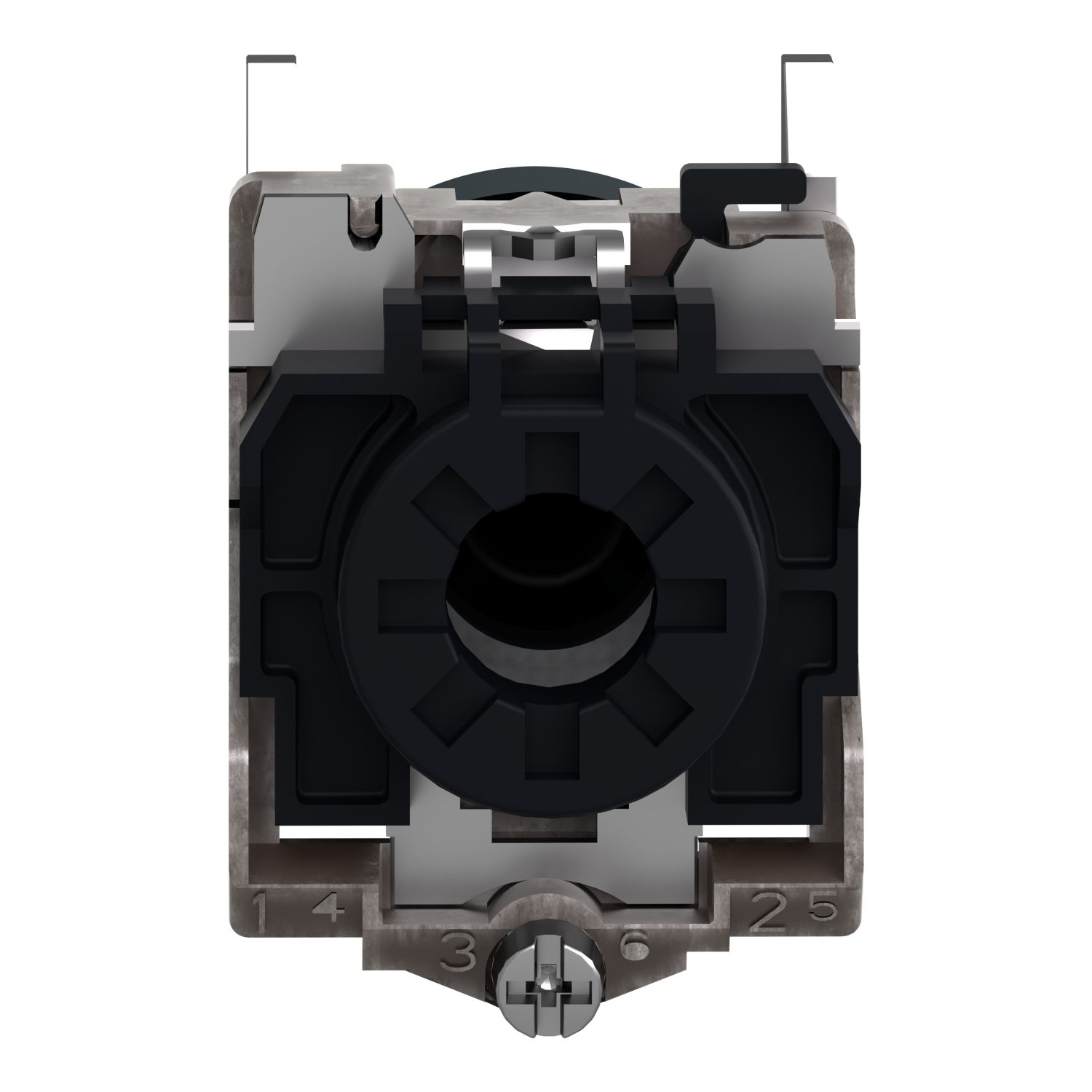

Picture of Potentiometer head, Harmony XB4, metal,black, 22mm, for use with 6.35mm shaft

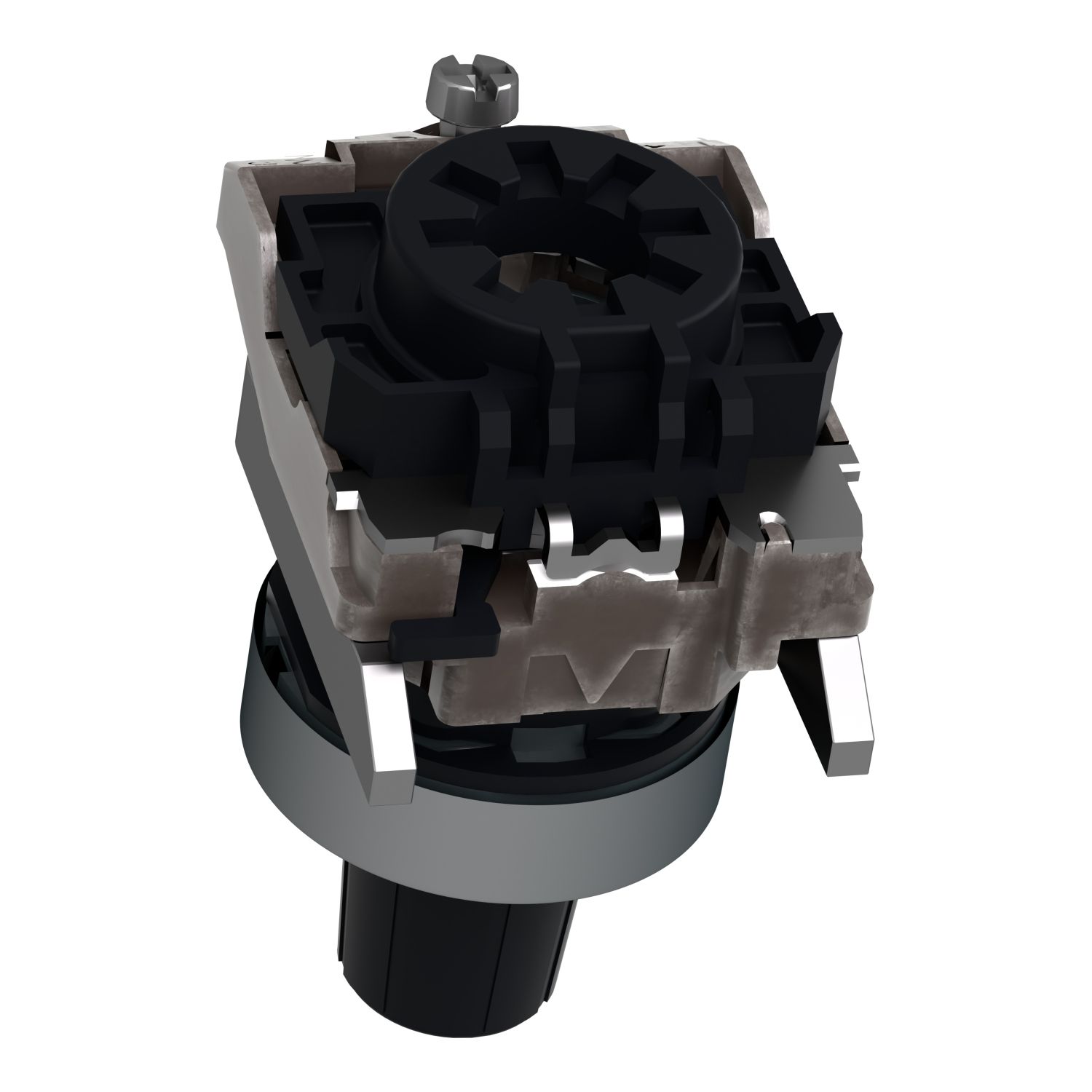

Picture of Potentiometer head, Harmony XB4, metal,black, 22mm, for use with 6.35mm shaft

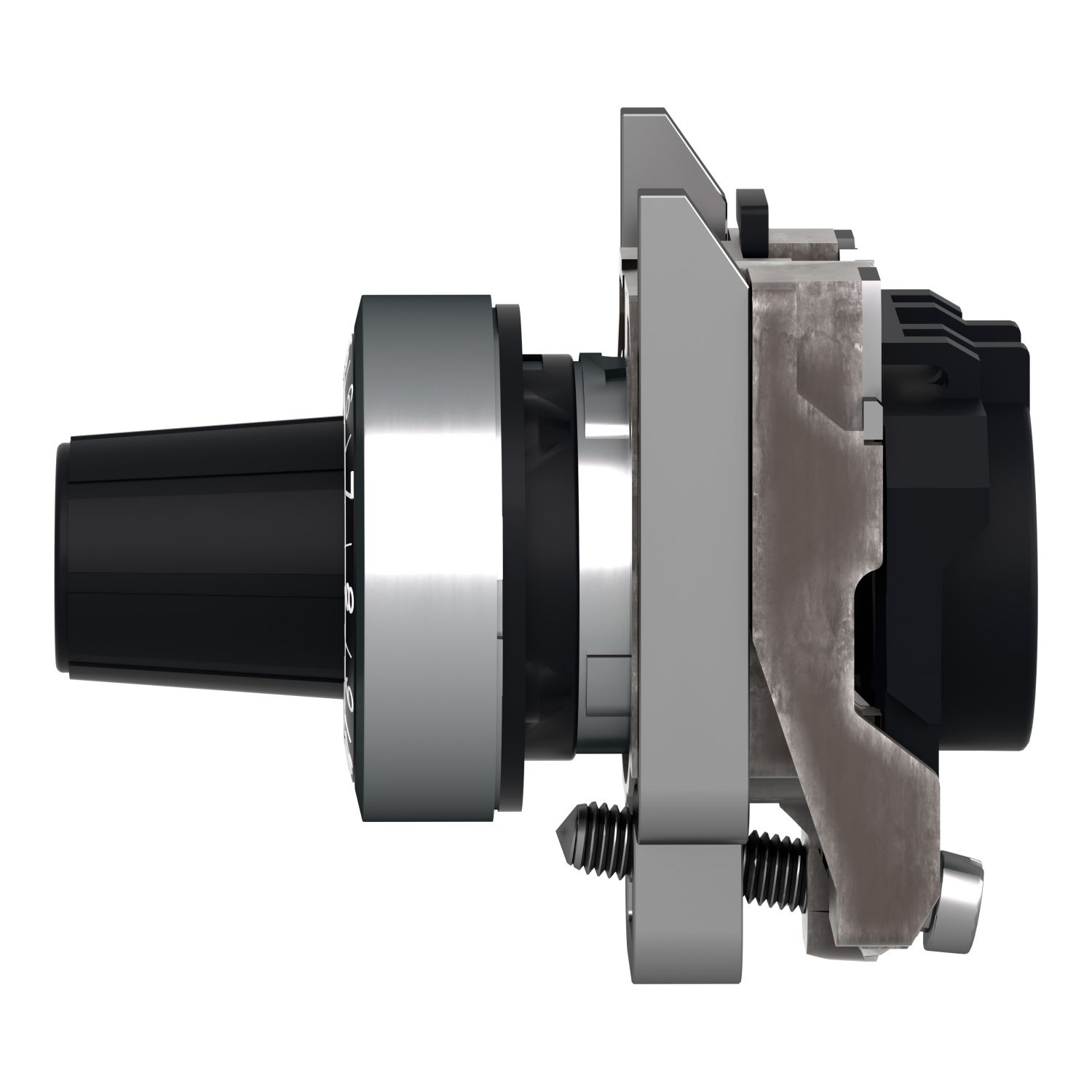

Picture of Potentiometer head, Harmony XB4, metal,black, 22mm, for use with 6.35mm shaft

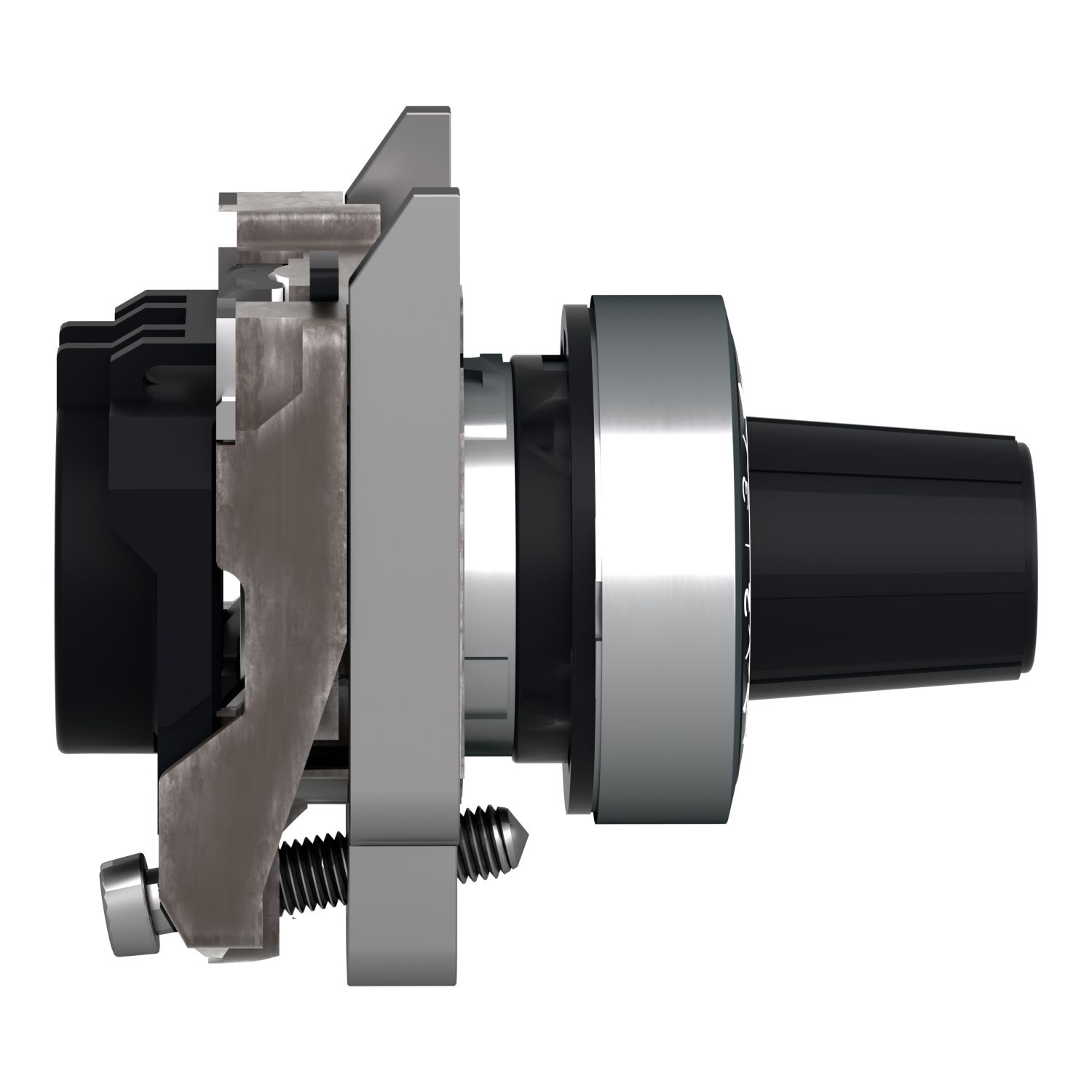

Picture of Potentiometer head, Harmony XB4, metal,black, 22mm, for use with 6.35mm shaft
Picture of Potentiometer head, Harmony XB4, metal,black, 22mm, for use with 6.35mm shaft
Picture of Potentiometer head, Harmony XB4, metal,black, 22mm, for use with 6.35mm shaft
Picture of Potentiometer head, Harmony XB4, metal,black, 22mm, for use with 6.35mm shaft
Picture of Potentiometer head, Harmony XB4, metal,black, 22mm, for use with 6.35mm shaft
SKU:

ZB4BD922

Potentiometer head, Harmony XB4, metal,black, 22mm, for use with 6.35mm shaft

Old price: $207.24 INC GST
$161.65 INC GST
Available for Shipping : 14-Dec-2025
Product Selector
Potentiometer head, Harmony XB4, metal,black, 22mm, for use with 6.35mm shaft
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 14-Dec-2025
Image of product in real life situation
Image of product in real life situation
Catalog
Declaration of conformity
Environmental Disclosure
Circularity Profile
Image of product in real life situation
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony XB4, head and mounting base is used for potentiometer application. This head and mounting base for potentiometer provides an ergonomic external interface for controlling your machines thanks to its knurled knob head. It is ideal for controlling key parameters of automation components like drives and inverters and is easily installed and replaced on compatible potentiometers. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZB4
Product compatibility for use with Ø 6.35 mm shaft
Sale per indivisible quantity 1
Head type standard
Range of product Harmony XB4
Bezel material chromium plated metal
Product or component type head + mounting base for potentiometer
Mounting diameter 22 mm
Complementary
Group of product potentiometer knurled knob
Compatibility code ZB4
Device presentation basic element
Customizable 0, no
Colour of marking white
Main group potentiometer
Operator profile knurled knob, with (white)
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Net weight 0.08 kg
Shape of signaling unit head round
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 50102
Electrical shock protection class class I conforming to IEC 60536
NEMA degree of protection NEMA 4X, NEMA 13
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-5, IEC 60947-5-1, JIS C8201-5-1, UL 508, IEC 60947-5-4
Product certifications BV, UL listed, GL, LROS (Lloyds register of shipping), CSA, DNV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 4.500 cm
Package 1 Length 5.500 cm
Package 1 Weight 80.000 g
Unit Type of Package 2 2
Number of Units in Package 2 80
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.809 kg
