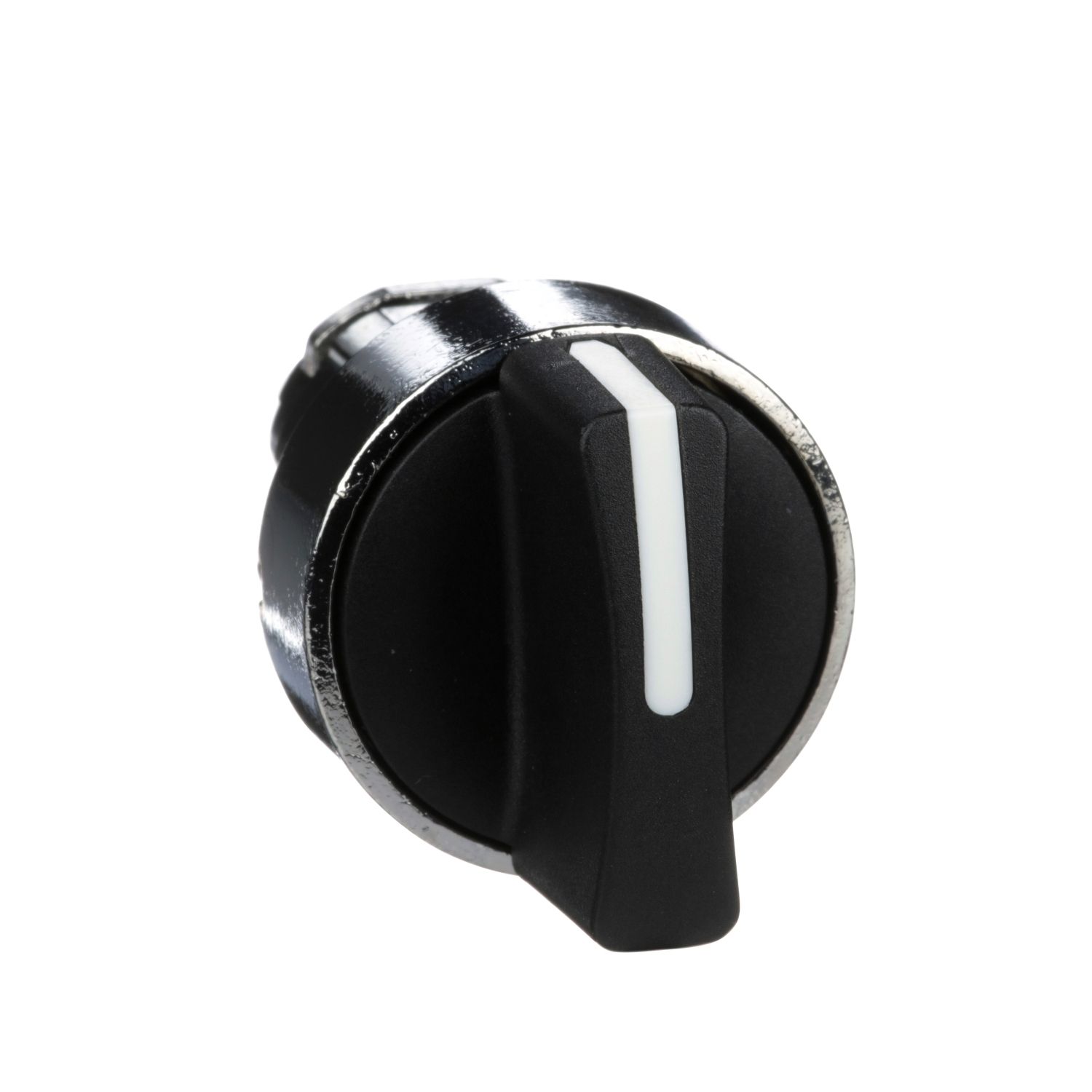

Picture of Harmony XB4, Selector switch head, metal, black, 22mm, 3 positions, spring return to center

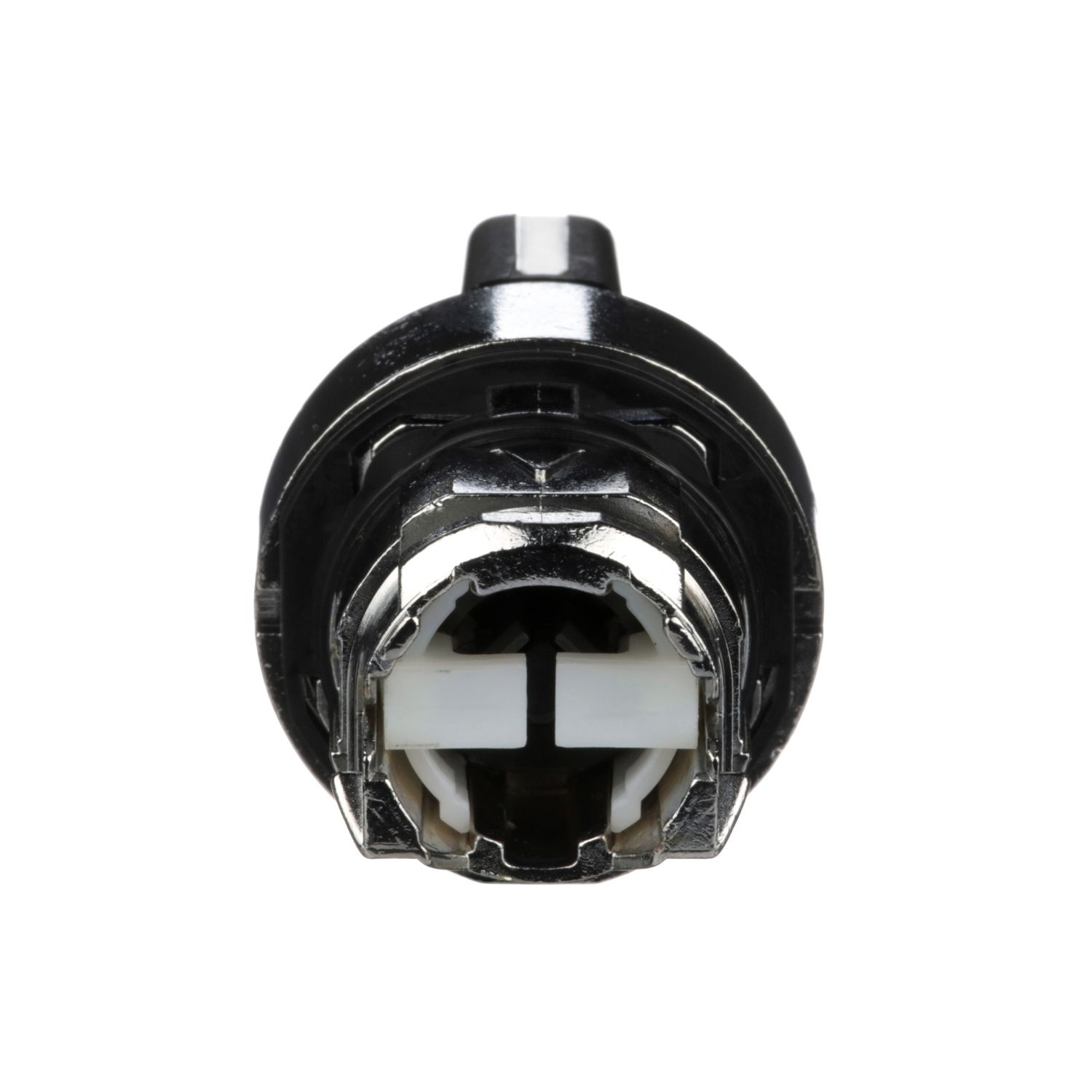

Picture of Harmony XB4, Selector switch head, metal, black, 22mm, 3 positions, spring return to center

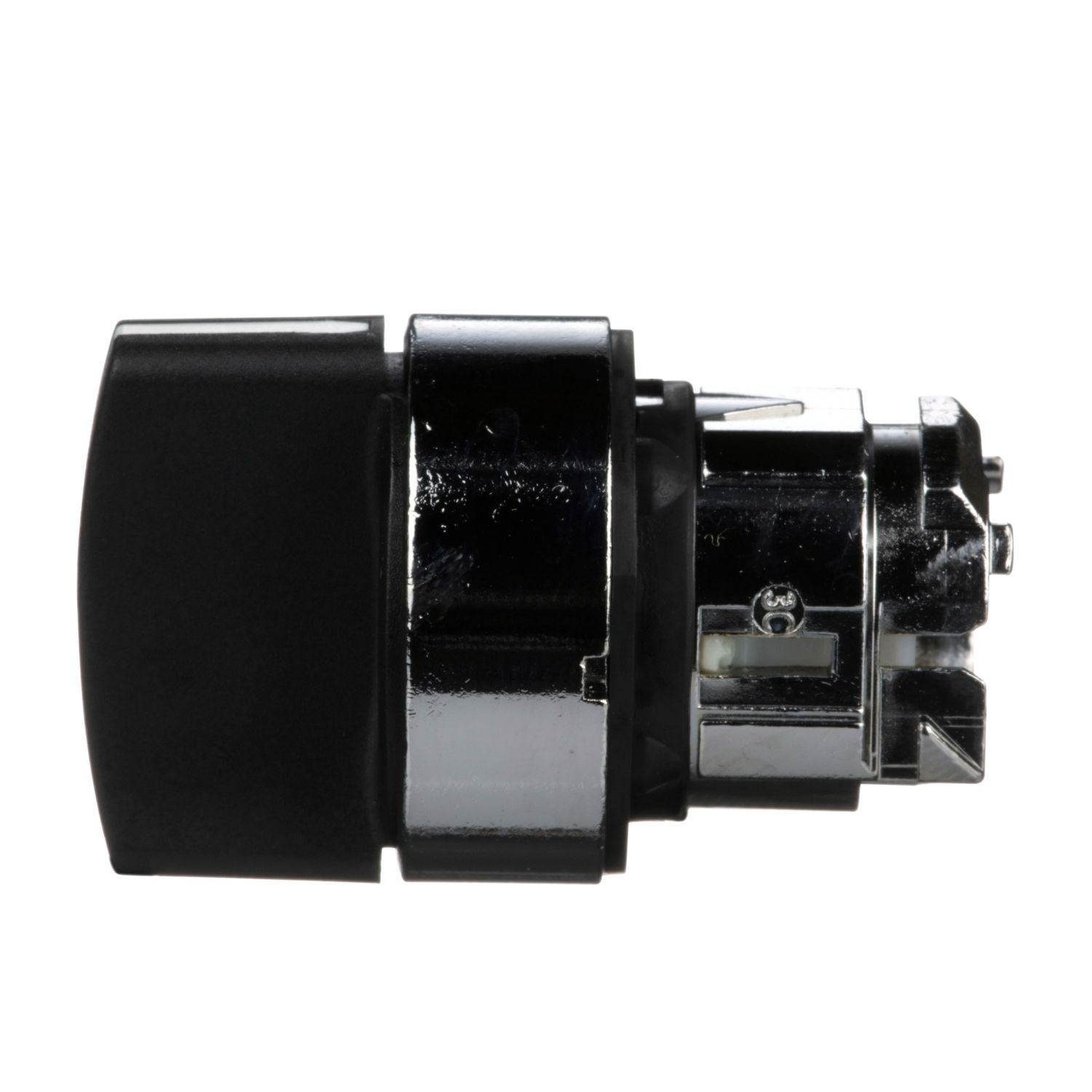

Picture of Harmony XB4, Selector switch head, metal, black, 22mm, 3 positions, spring return to center

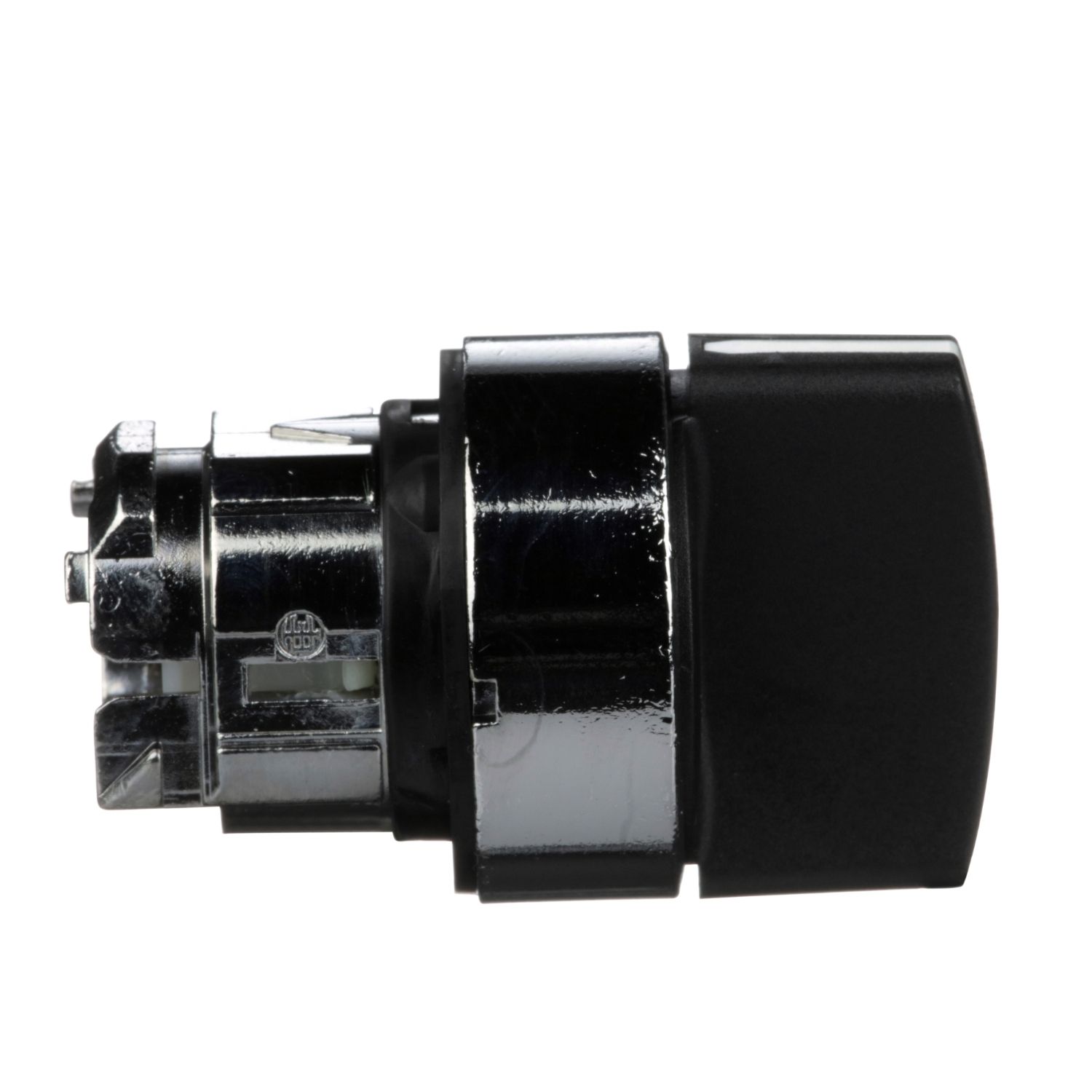

Picture of Harmony XB4, Selector switch head, metal, black, 22mm, 3 positions, spring return to center

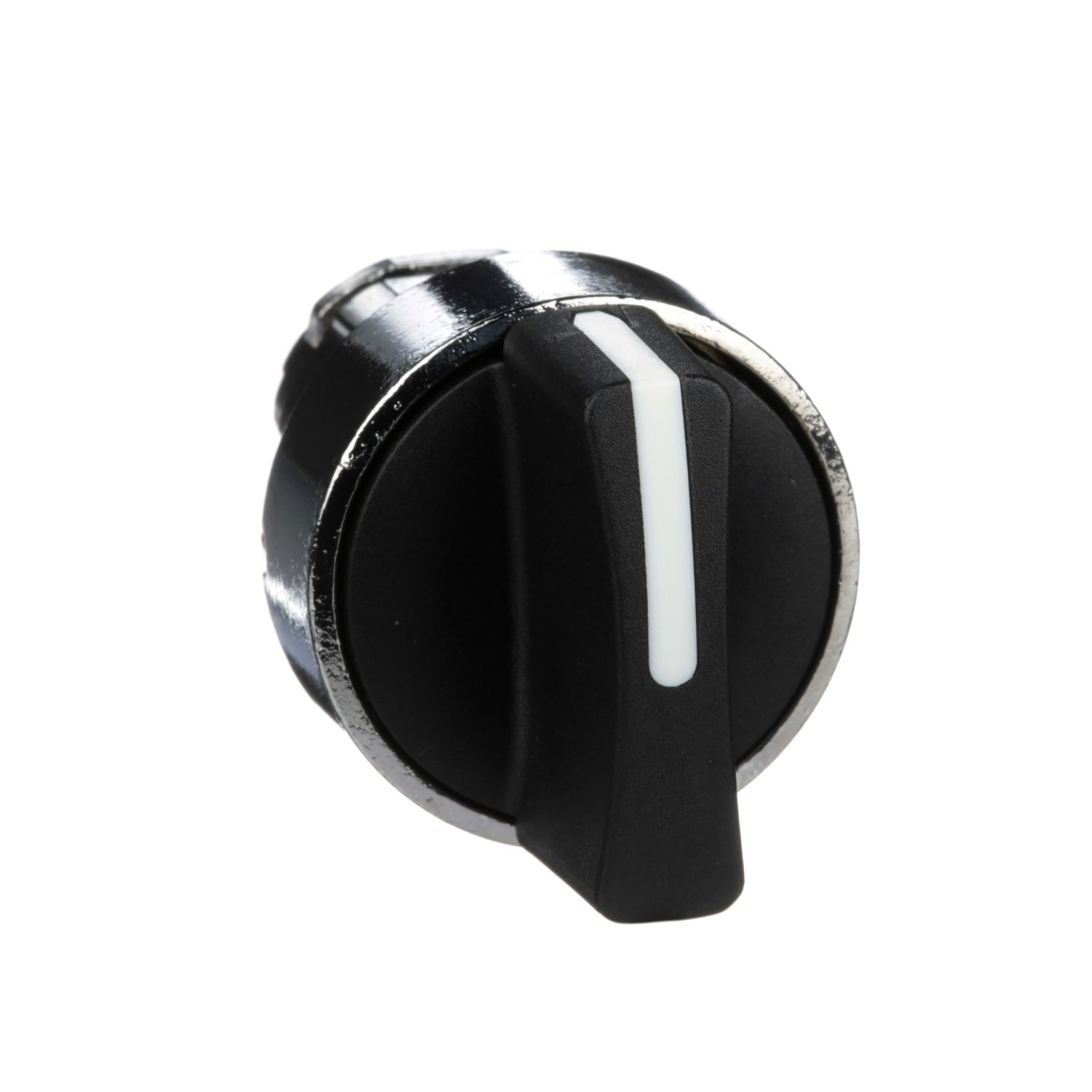

Picture of Harmony XB4, Selector switch head, metal, black, 22mm, 3 positions, spring return to center
Picture of Harmony XB4, Selector switch head, metal, black, 22mm, 3 positions, spring return to center
Picture of Harmony XB4, Selector switch head, metal, black, 22mm, 3 positions, spring return to center
Picture of Harmony XB4, Selector switch head, metal, black, 22mm, 3 positions, spring return to center
Picture of Harmony XB4, Selector switch head, metal, black, 22mm, 3 positions, spring return to center
SKU:

ZB4BD5

Harmony XB4, Selector switch head, metal, black, 22mm, 3 positions, spring return to center

Old price: $49.17 INC GST
$38.35 INC GST
Available for Shipping : 11-Dec-2025
Product Selector
Harmony XB4, Selector switch head, metal, black, 22mm, 3 positions, spring return to center
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 11-Dec-2025
Image of product in real life situation
Image of product in real life situation
Catalog
Environmental Disclosure
Declaration of conformity
Circularity Profile
Instruction sheet
Image of product in real life situation
Product Page Link
Product Data Sheet
This Harmony XB4, black selector switch head with standard handle has 3 positions, operates with spring return to center mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZB4
Sale per indivisible quantity 1
Head type standard
Type of operator to centre spring return
Range of product Harmony XB4
Operator position information 3 positions +/- 45°
Operator profile black standard handle
Bezel material chromium plated metal
Shape of signaling unit head round
Product or component type head for selector switch
Mounting diameter 22 mm
Complementary
Group of product non illuminated
Compatibility code ZB4
Mechanical durability 1000000 cycles
Device presentation basic element
CAD overall height 29 mm
Customizable 0, no
Electrical composition code C11 for <3 contacts using single blocks in front mounting, C8 for <4 contacts using single and double blocks in front mounting, C7 for <4 contacts using single blocks in front mounting, C6 for <5 contacts using single and double blocks in front mounting, C5 for <5 contacts using single blocks in front mounting, C4 for <6 contacts using single and double blocks in front mounting, C3 for <6 contacts using single blocks in front mounting
Main group selector switch
CAD overall depth 44 mm
CAD overall width 29 mm
Cap/operator or lens colour black
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Net weight 0.04 kg
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK06 conforming to IEC 50102
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class I conforming to IEC 60536
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, UL 508, JIS C8201-5-1, IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-5-4, IEC 60947-1, IEC 60947-5-5
Product certifications BV, CSA, LROS (Lloyds register of shipping), DNV, GL, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.500 cm
Package 1 Width 5.300 cm
Package 1 Length 5.400 cm
Package 1 Weight 44.000 g
Unit Type of Package 2 2
Number of Units in Package 2 250
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 11.495 kg
Unit Type of Package 3 3
Number of Units in Package 3 2000
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 104.204 kg
