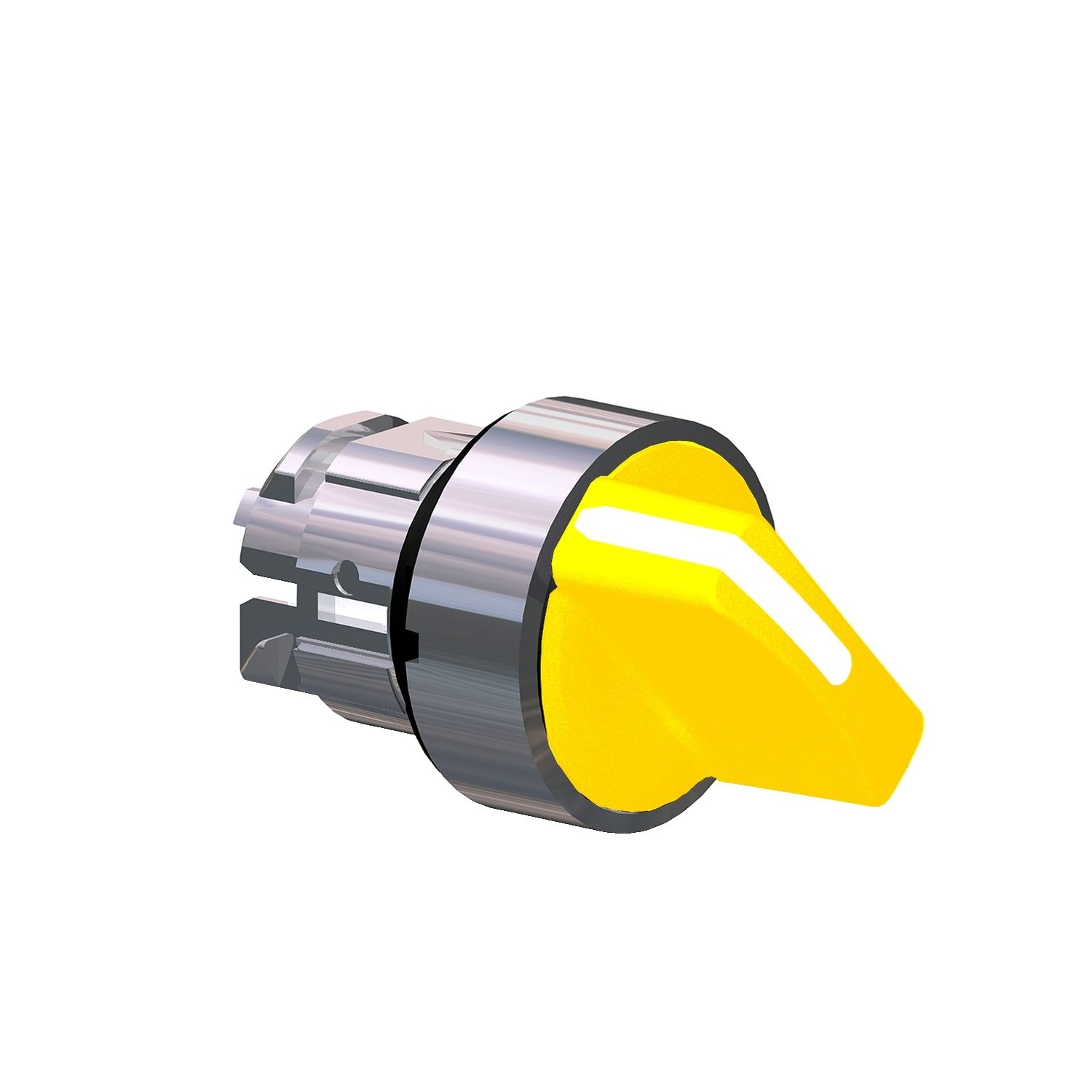

Picture of Head for selector switch, Harmony XB4, yellow handle, 22mm, 2 positions, stay put
SKU:

ZB4BD205

Head for selector switch, Harmony XB4, yellow handle, 22mm, 2 positions, stay put

Old price: $63.91 INC GST
$49.85 INC GST
Available for Shipping : 27-Jan-2026
Product Selector
Head for selector switch, Harmony XB4, yellow handle, 22mm, 2 positions, stay put
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 27-Jan-2026
CAD
Declaration of conformity
Environmental Disclosure
Catalog
Circularity Profile
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony XB4, yellow selector switch head with standard handle has 2 positions, operates with stay-put mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZB4
Sale per indivisible quantity 1
Head type standard
Type of operator stay put
Range of product Harmony XB4
Operator position information 2 positions 90°
Operator profile yellow standard handle
Bezel material chromium plated metal
Shape of signaling unit head round
Product or component type head for selector switch
Mounting diameter 22 mm
Complementary
Group of product non illuminated
Compatibility code ZB4
Mechanical durability 1000000 cycles
Device presentation basic element
CAD overall height 29 mm
Customizable 0, no
Electrical composition code C15 for <1 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C8 for <4 contacts using single and double blocks in front mounting, C7 for <4 contacts using single blocks in front mounting, C6 for <5 contacts using single and double blocks in front mounting, C5 for <5 contacts using single blocks in front mounting, C4 for <6 contacts using single and double blocks in front mounting, C3 for <6 contacts using single blocks in front mounting
Main group selector switch
CAD overall depth 44 mm
CAD overall width 29 mm
Cap/operator or lens colour yellow
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Net weight 0.04 kg
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK06 conforming to IEC 50102
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class I conforming to IEC 60536
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, JIS C8201-5-1, EN/IEC 60947-1, CSA C22.2 No 14, UL 508, EN/IEC 60947-5-5, EN/IEC 60947-5-4, EN/IEC 60947-5-1
Product certifications BV, LROS (Lloyds register of shipping), DNV, CSA, UL listed, GL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.600 cm
Package 1 Width 4.600 cm
Package 1 Length 5.300 cm
Package 1 Weight 44.000 g
