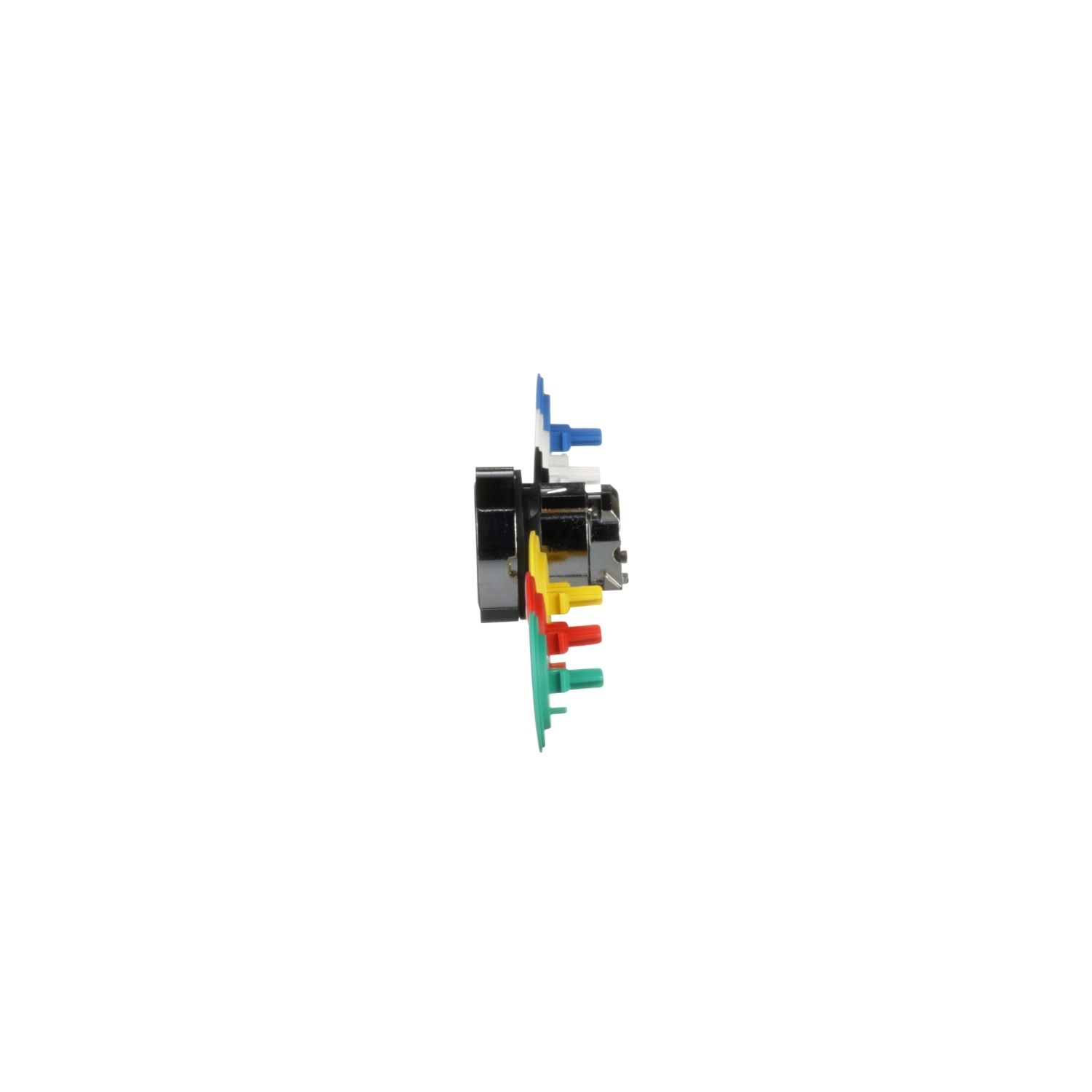

Picture of Head for non illuminated push button, Harmony XB4, metal, flush, 22mm, spring return, with 6 coloured caps unmarked

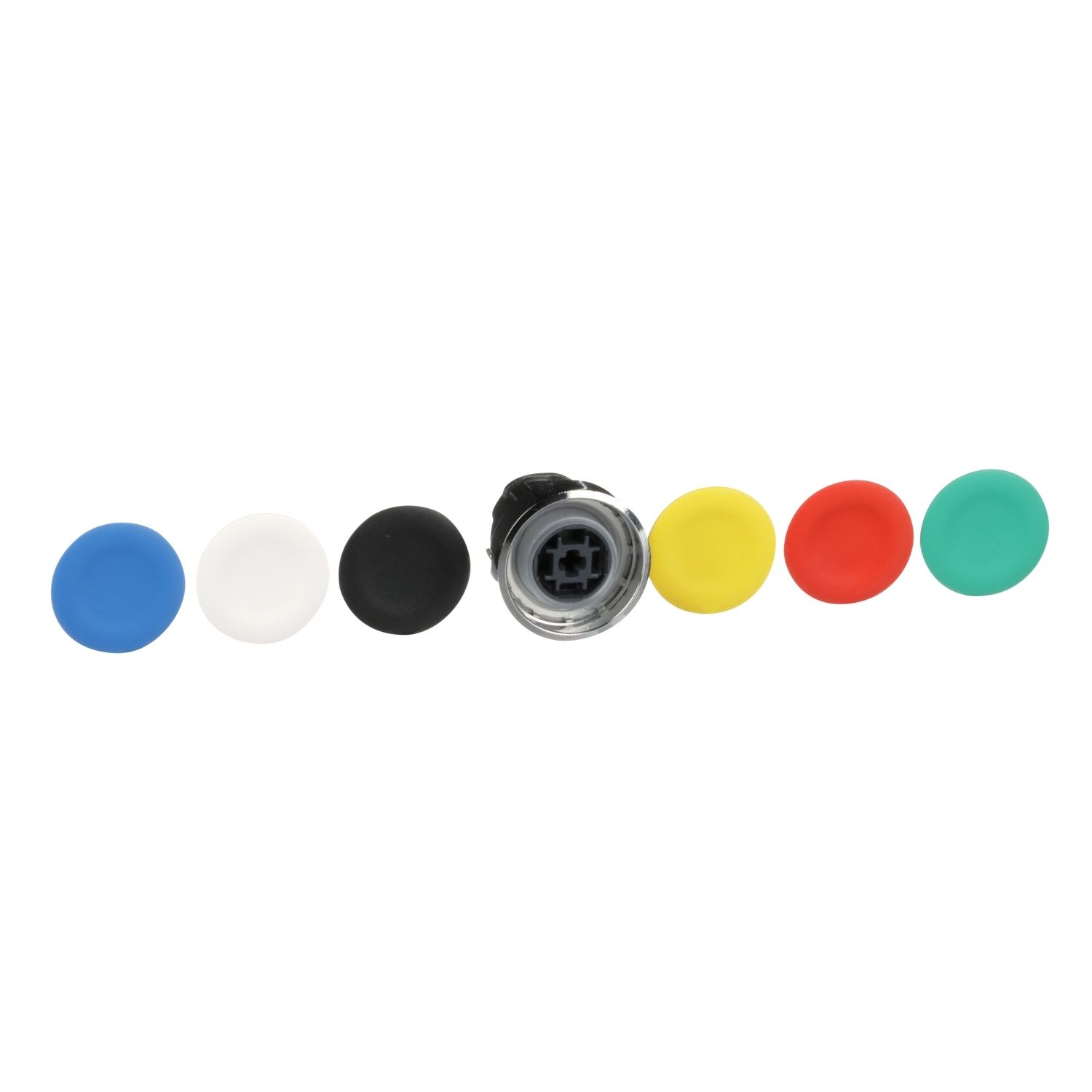

Picture of Head for non illuminated push button, Harmony XB4, metal, flush, 22mm, spring return, with 6 coloured caps unmarked

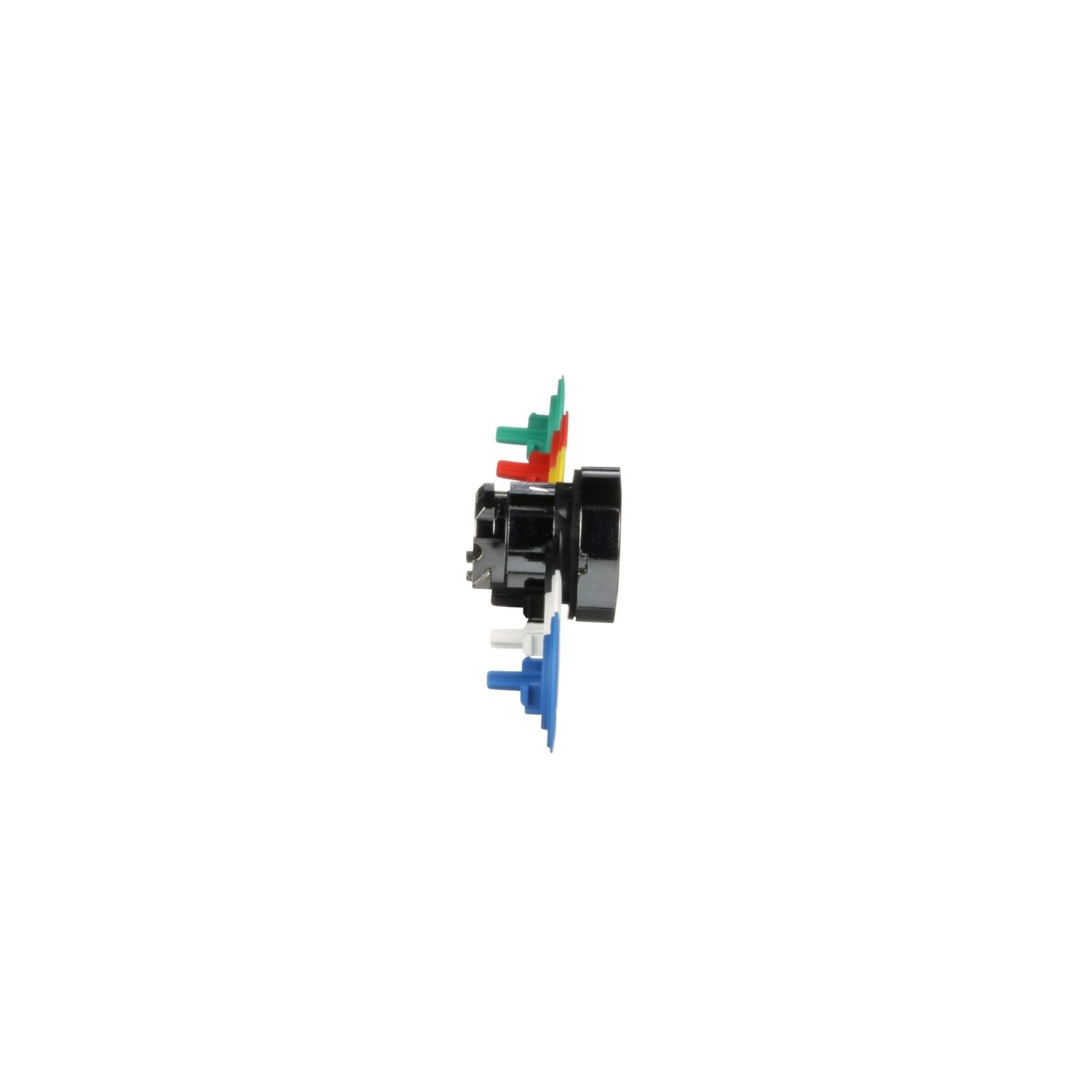

Picture of Head for non illuminated push button, Harmony XB4, metal, flush, 22mm, spring return, with 6 coloured caps unmarked

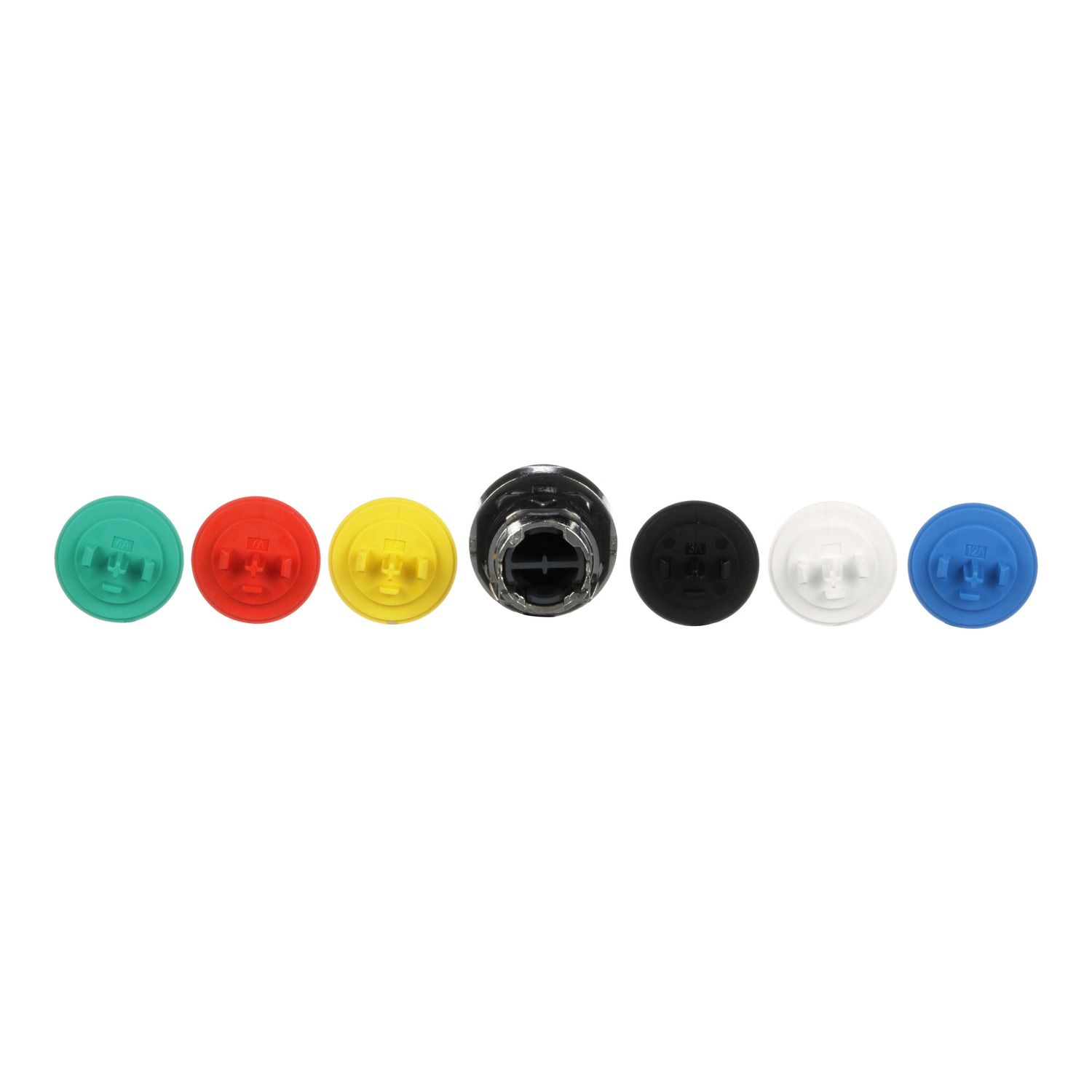

Picture of Head for non illuminated push button, Harmony XB4, metal, flush, 22mm, spring return, with 6 coloured caps unmarked

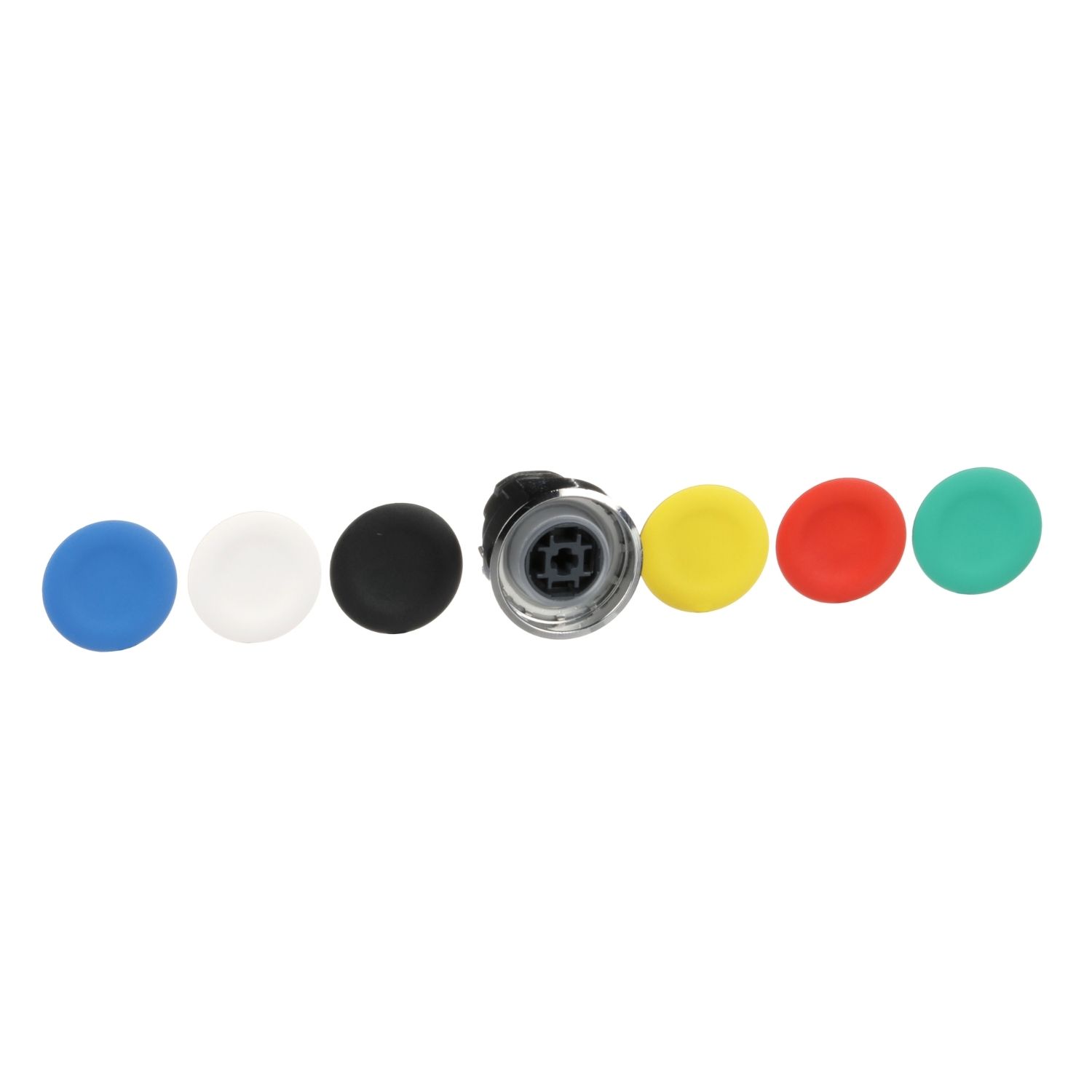

Picture of Head for non illuminated push button, Harmony XB4, metal, flush, 22mm, spring return, with 6 coloured caps unmarked
Picture of Head for non illuminated push button, Harmony XB4, metal, flush, 22mm, spring return, with 6 coloured caps unmarked
Picture of Head for non illuminated push button, Harmony XB4, metal, flush, 22mm, spring return, with 6 coloured caps unmarked
Picture of Head for non illuminated push button, Harmony XB4, metal, flush, 22mm, spring return, with 6 coloured caps unmarked
SKU:

ZB4BA9

Head for non illuminated push button, Harmony XB4, metal, flush, 22mm, spring return, with 6 coloured caps unmarked

Old price: $29.92 INC GST
$23.34 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Head for non illuminated push button, Harmony XB4, metal, flush, 22mm, spring return, with 6 coloured caps unmarked
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Image of product in real life situation
Image of product in real life situation
Catalog
Environmental Disclosure
Circularity Profile
Declaration of conformity
CAD
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony XB4, flush red button head with set of 6 colored caps operates with a spring return / impulse mechanism. This button head with set of colored caps provides 6 different cap colors for multi-purposes use in operation along with an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZB4
Sale per indivisible quantity 1
Head type standard
Type of operator spring return
Range of product Harmony XB4
Operator profile 6 colors choice flush, unmarked
Bezel material chromium plated metal
Shape of signaling unit head round
Product or component type head for non-illuminated push-button
Mounting diameter 22 mm
Operator additional information with set of 6 color cap
Complementary
Group of product flush push with 6 caps
Compatibility code ZB4
Mechanical durability 10000000 cycles
Device presentation basic element
CAD overall height 29 mm
Customizable 0, no
Electrical composition code C15 for <1 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C2 for <9 contacts using single and double blocks in front mounting, C1 for <9 contacts using single blocks in front mounting
Main group push-button
CAD overall depth 28 mm
CAD overall width 29 mm
Marking unmarked
Cap/operator or lens colour 6 colors choice
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK06 conforming to IEC 50102
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class I conforming to IEC 60536
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, CSA C22.2 No 14, IEC 60947-5-5, IEC 60947-1, IEC 60947-5-4, JIS C8201-5-1, UL 508, IEC 60947-5-1
Product certifications DNV, LROS (Lloyds register of shipping), GL, UL listed, BV, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.800 cm
Package 1 Width 3.400 cm
Package 1 Length 5.400 cm
Package 1 Weight 39.000 g
Unit Type of Package 2 2
Number of Units in Package 2 150
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.229 kg
Unit Type of Package 3 3
Number of Units in Package 3 1200
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 57.832 kg
