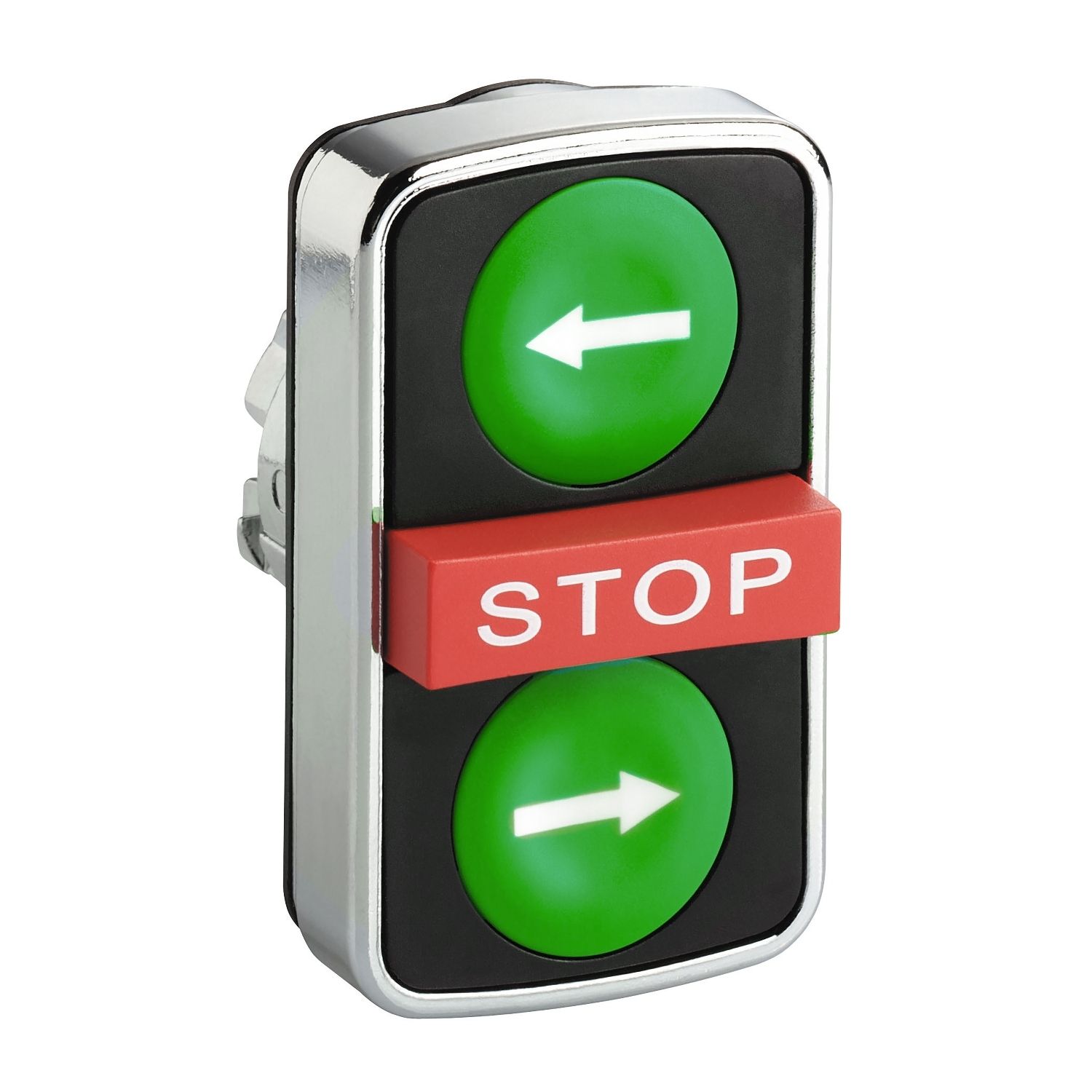

Picture of Head for triple headed push button, Harmony XB4, green flush/red projecting/green flush pushbutton Ø22 mm with marking
SKU:

ZB4BA73133

Head for triple headed push button, Harmony XB4, green flush/red projecting/green flush pushbutton Ø22 mm with marking

Old price: $78.21 INC GST
$61.00 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Head for triple headed push button, Harmony XB4, green flush/red projecting/green flush pushbutton Ø22 mm with marking
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Circularity Profile
Declaration of conformity
Catalog
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This Harmony XB4, triple head has 1 red and 2 green buttons, operates with a spring return / impulse mechanism. It is marked with "left arrow", "STOP" and "right arrow" symbols. This 3-function head provides a complete 3 button interface to your machines with a single panel cut-out. It is easily installed into a standard 22mm diameter cut-outs and assembled with a collar and contact blocks to fulfill a large variety of functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZB4
Sale per indivisible quantity 1
Head type standard
Operators description green ''right arrow'' - green ''left arrow'' - red ''STOP''
Type of operator spring return
Range of product Harmony XB4
Bezel material chromium plated metal
Operator profile 2 flush - 1 central projecting STOP push-buttons
Shape of signaling unit head rectangular
Product or component type head for triple-headed push-button
Mounting diameter 22 mm
Complementary
Group of product flush/proj/flush marked
Compatibility code ZB4
Mechanical durability 1000000 cycles
Device presentation basic element
Colour of marking white/white/white, white marking when green, red or black caps, black marking when white caps
Electrical composition code C11 for <3 contacts using single blocks in front mounting, C2 for <9 contacts using single and double blocks in front mounting, C1 for <9 contacts using single blocks in front mounting
Main group triple head push-button
Marking left arrow/STOP/right arrow
Operator profile green flush, right arrow (white), green flush, left arrow (white), red projecting, STOP (white)
Cap/operator or lens colour green/red/green
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Net weight 0.056 kg
Environment
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
IK degree of protection IK06 conforming to IEC 50102
Electrical shock protection class class I conforming to IEC 60536
NEMA degree of protection NEMA 4X, NEMA 13
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, EN/IEC 60947-1, UL 508, EN/IEC 60947-5-5, EN/IEC 60947-5-4, EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-5-1
Product certifications UL listed, BV, CSA, DNV, LROS (Lloyds register of shipping), GL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.500 cm
Package 1 Width 5.500 cm
Package 1 Length 5.700 cm
Package 1 Weight 58.000 g
Unit Type of Package 2 2
Number of Units in Package 2 200
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 12.061 kg
