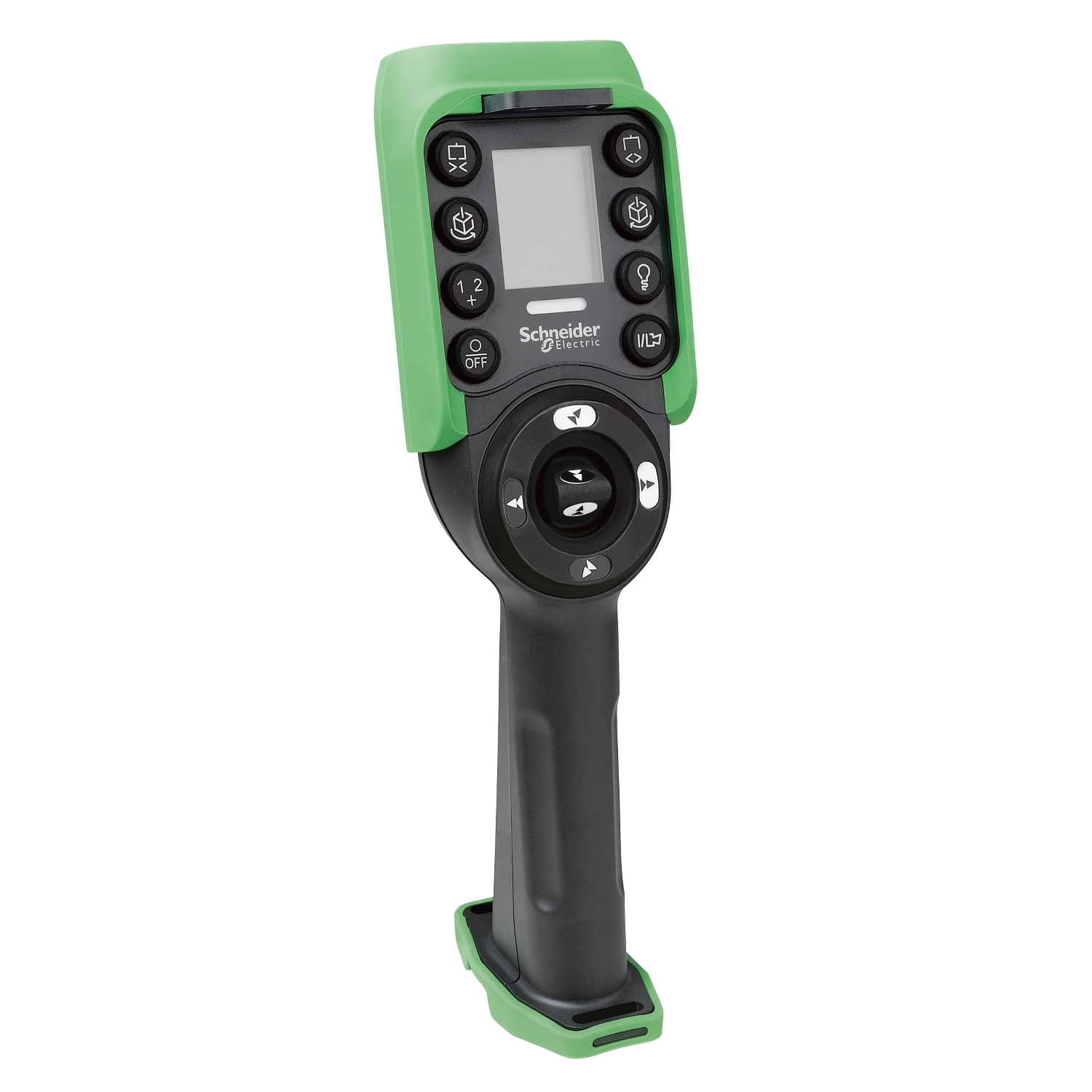

Picture of Remote control, Harmony eXLhoist, standard, display, 6 motion push buttons, 6 auxiliary push buttons, MBC (tandem)
SKU:

ZART12DM

Remote control, Harmony eXLhoist, standard, display, 6 motion push buttons, 6 auxiliary push buttons, MBC (tandem)

$1,861.00
Available for Shipping : 18-Nov-2024
Remote control, Harmony eXLhoist, standard, display, 6 motion push buttons, 6 auxiliary push buttons, MBC (tandem)
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Quick start guide
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name ZART
Control button type 6 configurable auxiliary push-button, 6 configurable motion push-button
Product or component type hand-held remote control
Range of product Harmony eXLhoist
Complementary
Depth 90 mm
Width 100 mm
Display type LCD display 34 x 42 mm
Device application master and slave in multiple bridge control (tandem), slave in multiple bridge control (tandem), master in multiple bridge control (tandem)
Mechanical durability 5000000 cycles
Material protective cover: EPDM rubber, cover: PP (polypropylene), enclosure: PBT (polybutylene terephthalate), enclosure: PC (polycarbonate)
Service life 5 year(s)
Maximum sensing distance 100 m in free field
Function available vibrator function, accelerometer function
Communication network type wireless: bluetooth low energy
Charging time 900 s
Net weight 0.65 kg
Response time < 300 ms at full duplex
Operating distance 50 m
Autonomy 30 h
Transmission frequency 2.4 GHz
Height 340 mm
Mechanical robustness free fall resistance 4.5 m conforming to IEC 60068-2-27
Environment
Operating altitude 0...2000 m
NEMA degree of protection NEMA 4
Relative humidity 0-95 % at -20-60 °C operating
Ambient air temperature for storage -20-45 °C
IP degree of protection IP65
Radio agreement SRRC, ARIB, FCC, RSS, ICASA, ANATEL
Shock resistance 100 gn conforming to IEC 60068-2-27
Vibration resistance 0.075 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
Storage altitude 0-3000 m
Ambient air temperature for operation -20-60 °C
Product certifications EAC, KC, C-Tick, UL, CSA, CE, JIS
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.7 cm
Package 1 Width 10.2 cm
Package 1 Length 33.7 cm
Package 1 Weight 732 g
