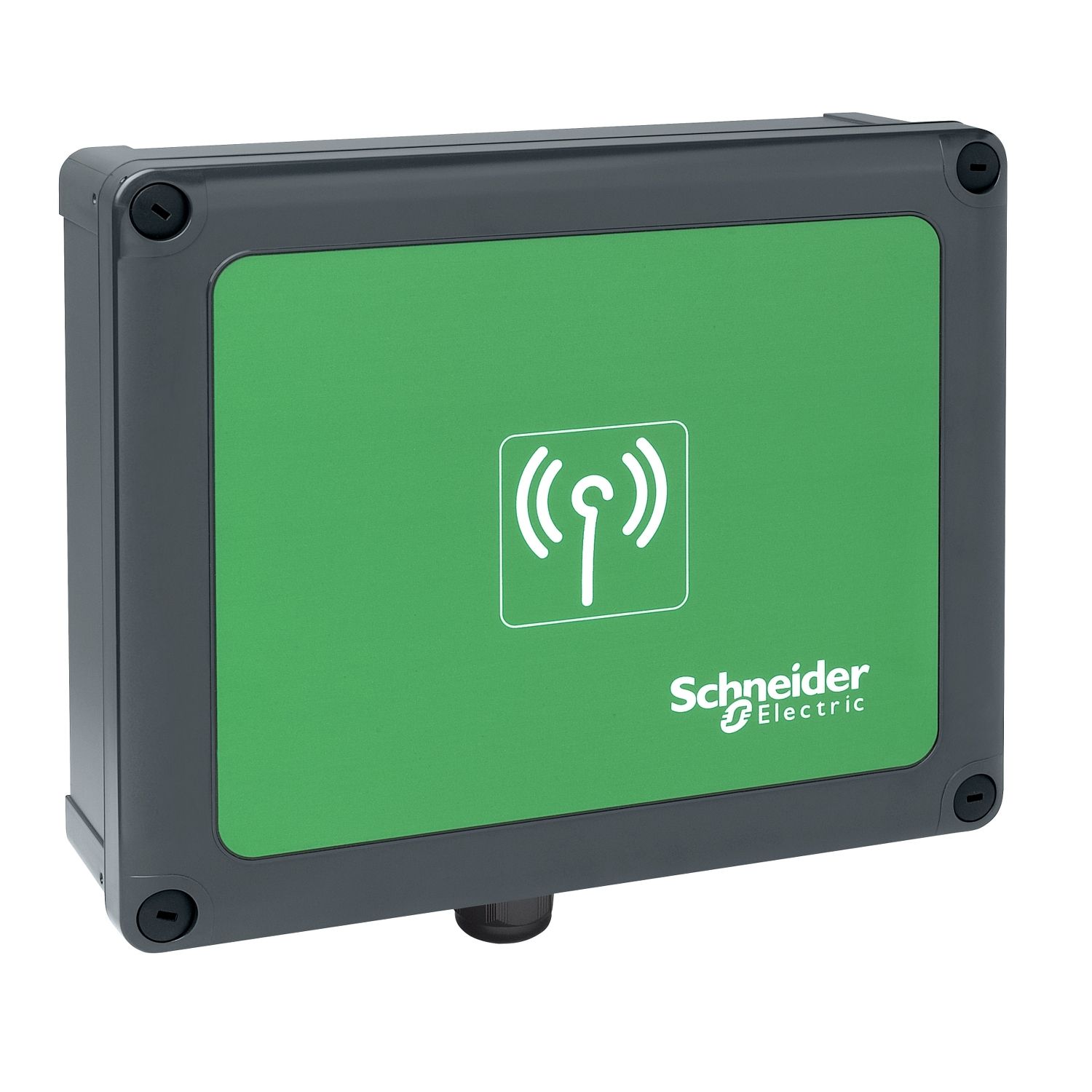

Picture of Harmony eXLhoist, Base station, standard, 18 relay outputs, cable gland connection, 24…240V AC DC

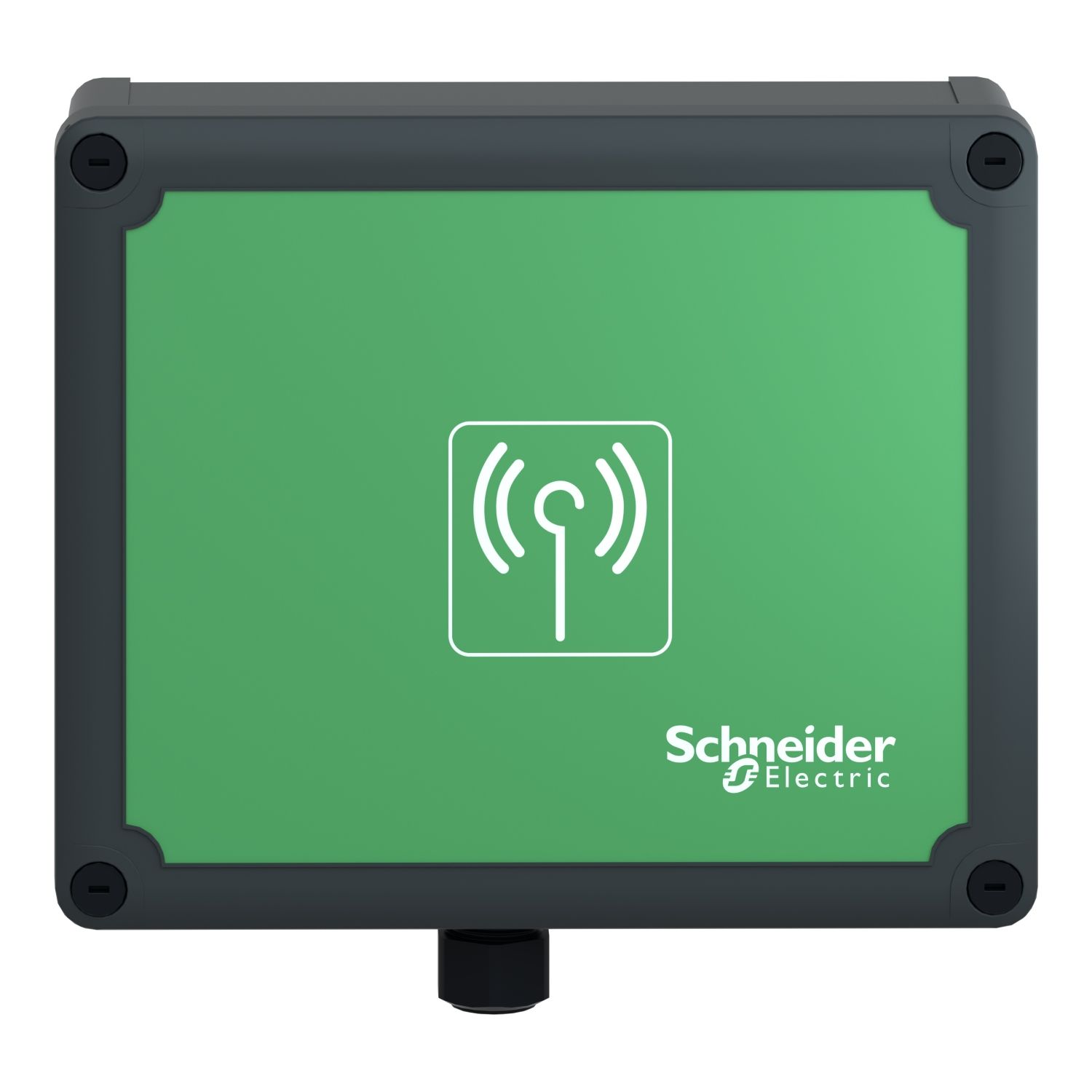

Picture of Harmony eXLhoist, Base station, standard, 18 relay outputs, cable gland connection, 24…240V AC DC

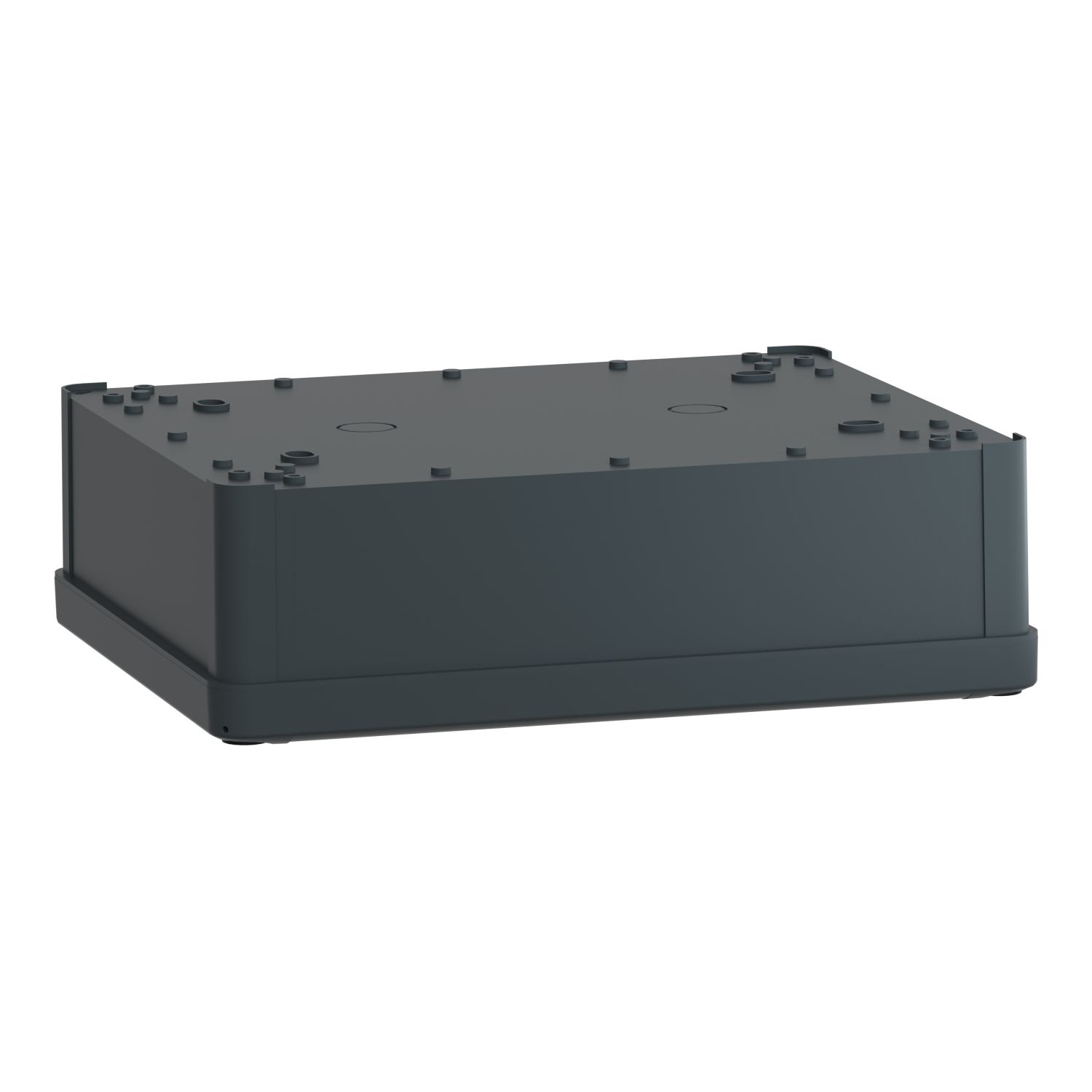

Picture of Harmony eXLhoist, Base station, standard, 18 relay outputs, cable gland connection, 24…240V AC DC

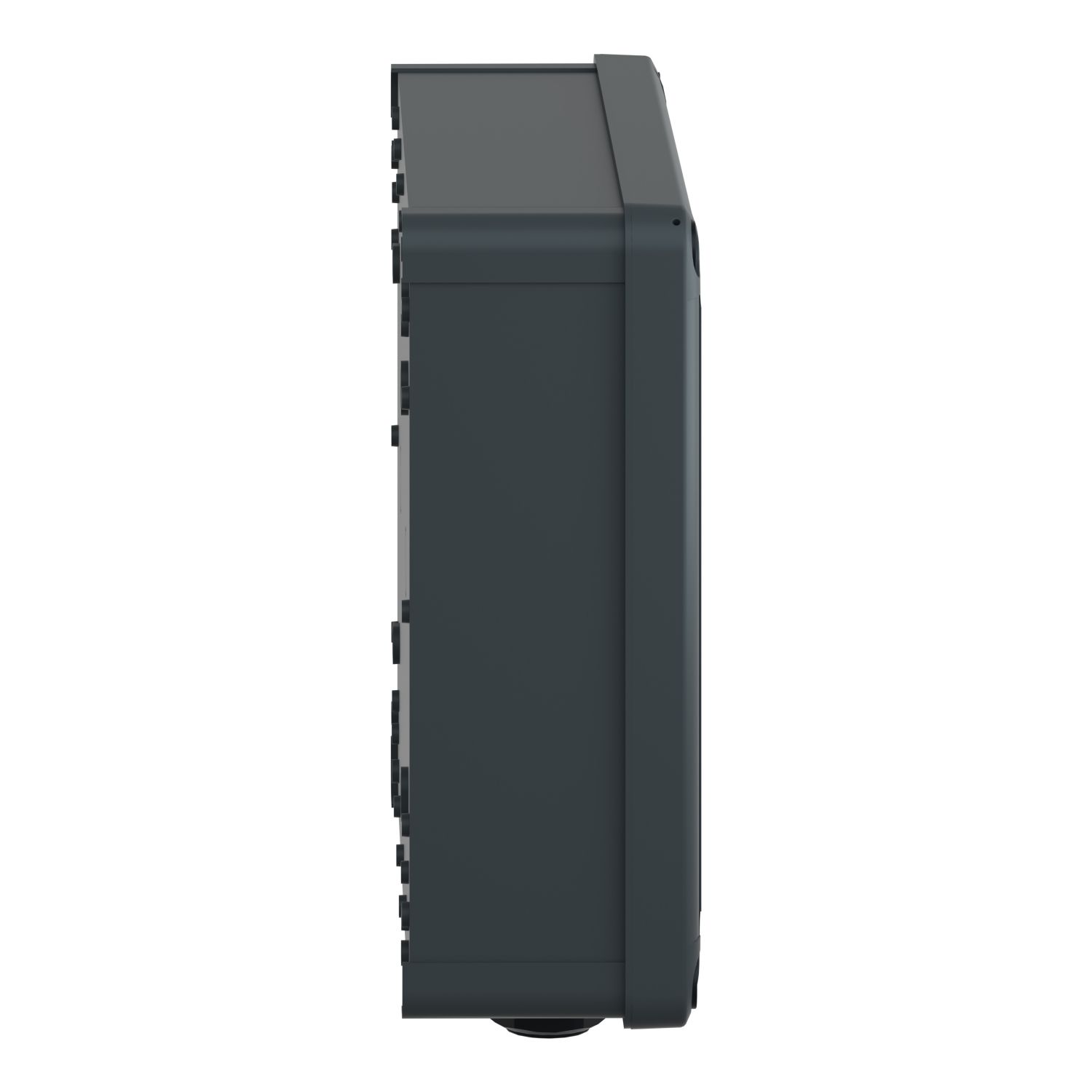

Picture of Harmony eXLhoist, Base station, standard, 18 relay outputs, cable gland connection, 24…240V AC DC
Picture of Harmony eXLhoist, Base station, standard, 18 relay outputs, cable gland connection, 24…240V AC DC
Picture of Harmony eXLhoist, Base station, standard, 18 relay outputs, cable gland connection, 24…240V AC DC
Picture of Harmony eXLhoist, Base station, standard, 18 relay outputs, cable gland connection, 24…240V AC DC
Picture of Harmony eXLhoist, Base station, standard, 18 relay outputs, cable gland connection, 24…240V AC DC
Picture of Harmony eXLhoist, Base station, standard, 18 relay outputs, cable gland connection, 24…240V AC DC
SKU:

ZARB18W

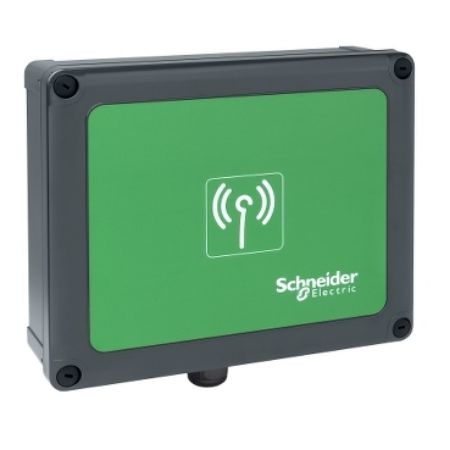

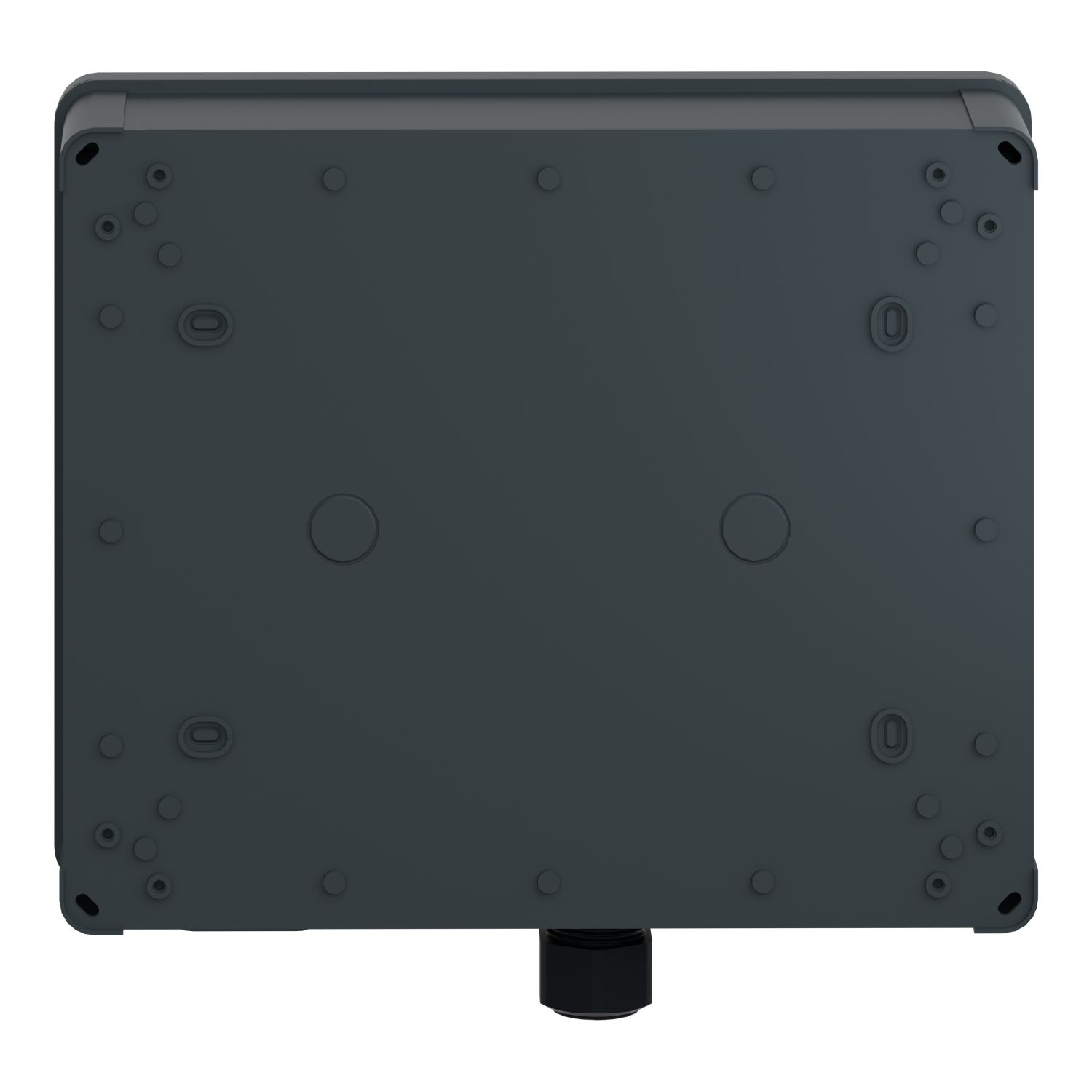

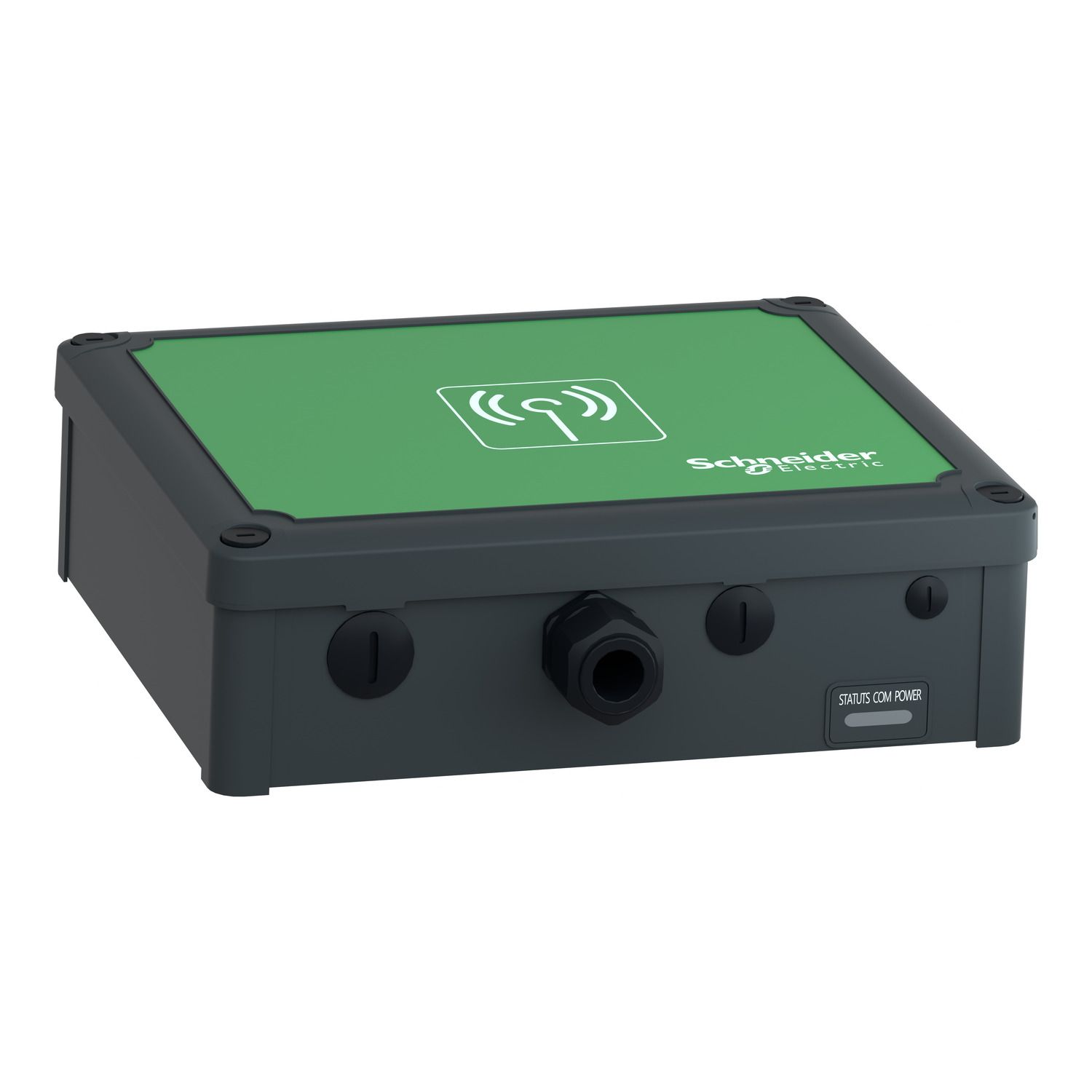

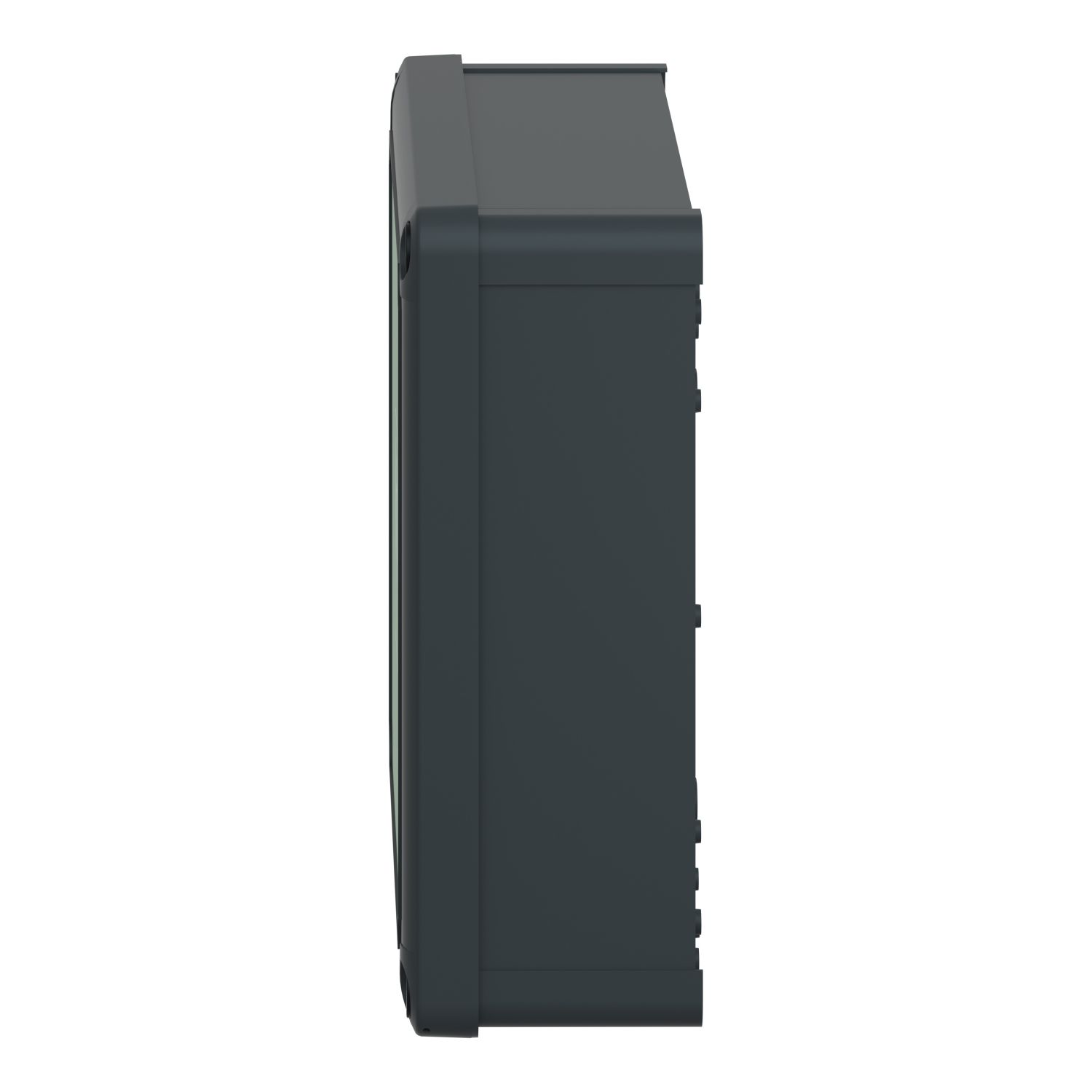

Harmony eXLhoist, Base station, standard, 18 relay outputs, cable gland connection, 24…240V AC DC

Old price: $2,664.20 INC GST
$2,078.08 INC GST
Available for Shipping : 26-Jan-2026
Harmony eXLhoist, Base station, standard, 18 relay outputs, cable gland connection, 24…240V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 26-Jan-2026
Instruction sheet
CAD
User guide
Quick start guide
Declaration of conformity
Catalog

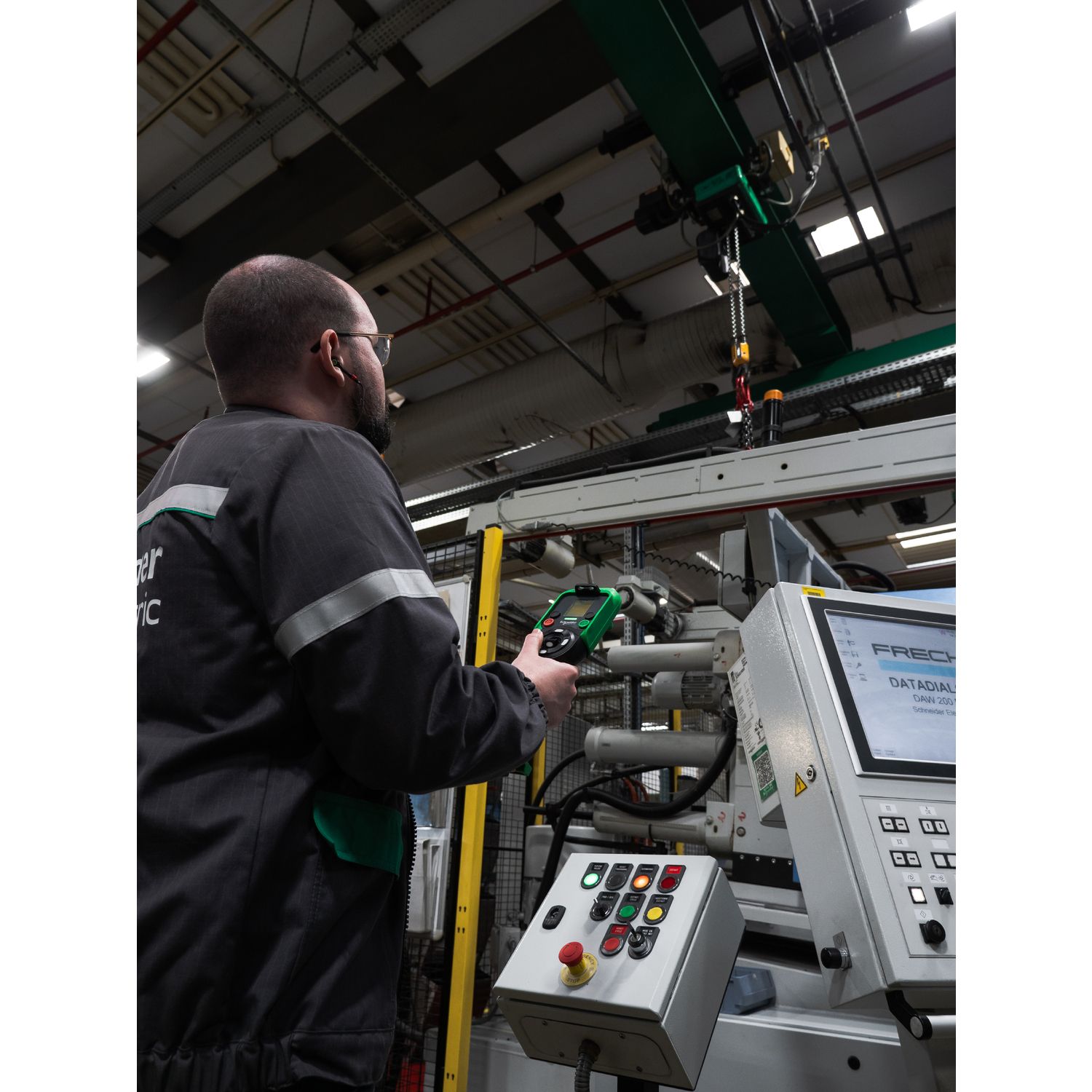

Image of product in real life situation
Product Page Link
Product Data Sheet
This Harmony eXLhoist / XAR black base station (receiver) has 18 relays outputs with 2 safety relays. This black base station (receiver) is designed as receiver for wireless remote control system. It is compatible with the remote control device ZART8D. It has 16 relay outputs with 2 safety relays and has wired connection cable gland. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh (heavy) environments. It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Base station (receiver) has a unique identification code to allow the consistent and stable connection with its compatible remote control system.

Products specifications

Attribute name Attribute value
Main
Device short name ZARB
Product specific application hoisting applications, material handling
Product or component type base station
Range of product Harmony eXLhoist
Complementary
Electrical durability 100000 cycles
Safety outputs 2 NC relay outputs
Depth 100 mm
Width 280 mm
Number of relays 18
Provided equipment internal antenna
Cable entry cable gland
Maximum switching voltage 240 V AC/DC (+ 20 %)
Mechanical durability 1000000 cycles
Number of channels 40
Service life 10 year(s)
Maximum sensing distance 100 m in free field
[Us] rated supply voltage 24...240 V AC/DC
Nominal output current 0.54 A at 48 V AC conforming to IEC 60947-5-1
Communication network type wireless: bluetooth low energy
Net weight 1.45 kg
Material PC (polycarbonate)
Number of alarms 6 programmable alarms
Relay type auxiliary relay outputs with 2 NC + 2 NO contact , auxiliary relay outputs with 7 NO contact , motion relay outputs with 9 NO contact
Vibration resistance 0.075 mm (f = 10-55 Hz)
Shock resistance 15 gn 11 ms
Transmission frequency 2.4 GHz
Fixing mode 4 holes
Number of inputs 12
Switching capacity in VA 26 VA AC, 5 VA DC
Maximum switching current 6.8 mA
Height 305 mm
Environment
Ambient air temperature for storage -40-70 °C
NEMA degree of protection NEMA 4
Pollution degree 3
Relative humidity 0-97 %
IP degree of protection IP65
Radio agreement ARIB, RSS, ICASA, ANATEL, FCC, SRRC
Electromagnetic compatibility resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3, resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2, resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2
Standards IEC 61000-6-2
Ambient air temperature for operation -25-70 °C
Product certifications EAC, C-Tick, KC, UL, CE, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.0 cm
Package 1 Width 28.7 cm
Package 1 Length 30.2 cm
Package 1 Weight 1.7 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 7.656 kg

Related products

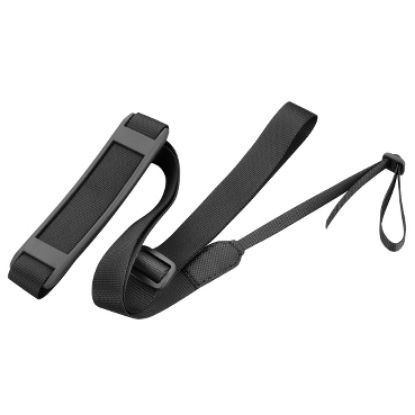

Picture of Harmony eXLhoist, Shoulder belt, standard, for remote device

Harmony eXLhoist, Shoulder belt, standard, for remote device

ZARC02
$71.99 INC GST $92.29 INC GST
View Detail

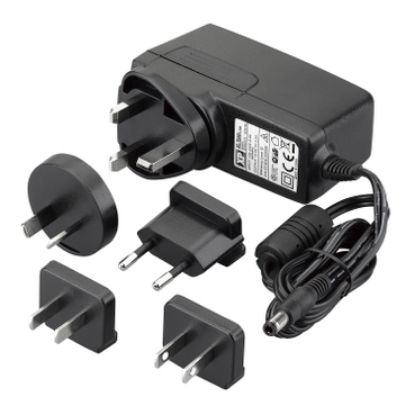

Harmony eXLhoist, Charger for remote device, standard

ZARC01
$204.20 INC GST $261.80 INC GST
View Detail

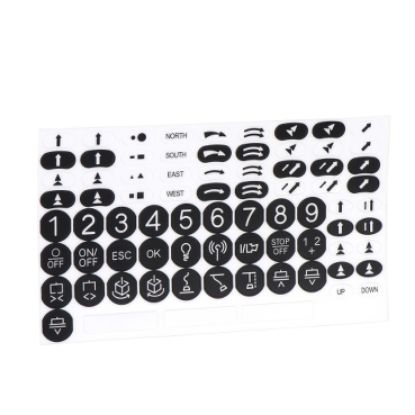

Picture of Harmony eXLhoist, Kit of adhesive labels for remote device, standard, black and white
