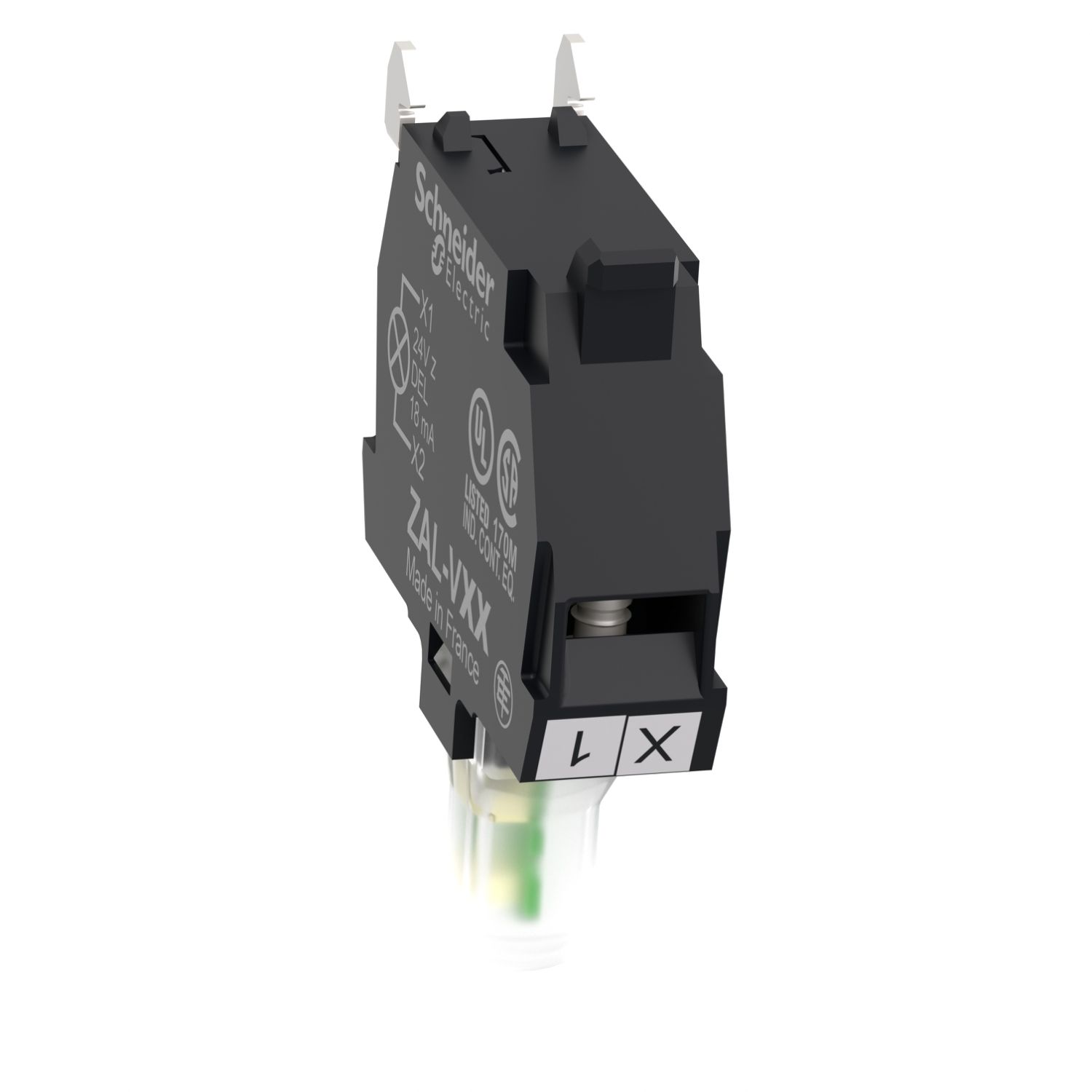

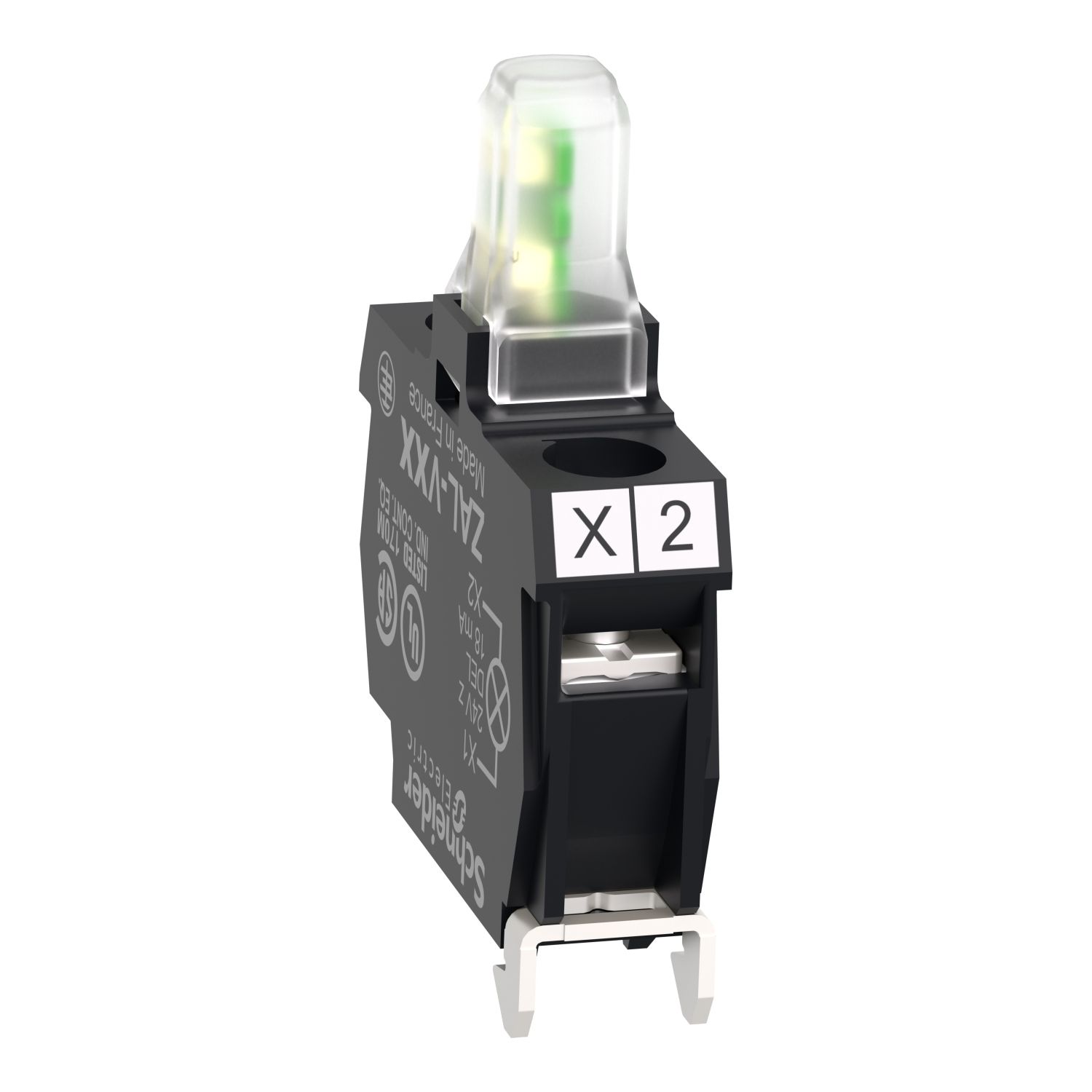

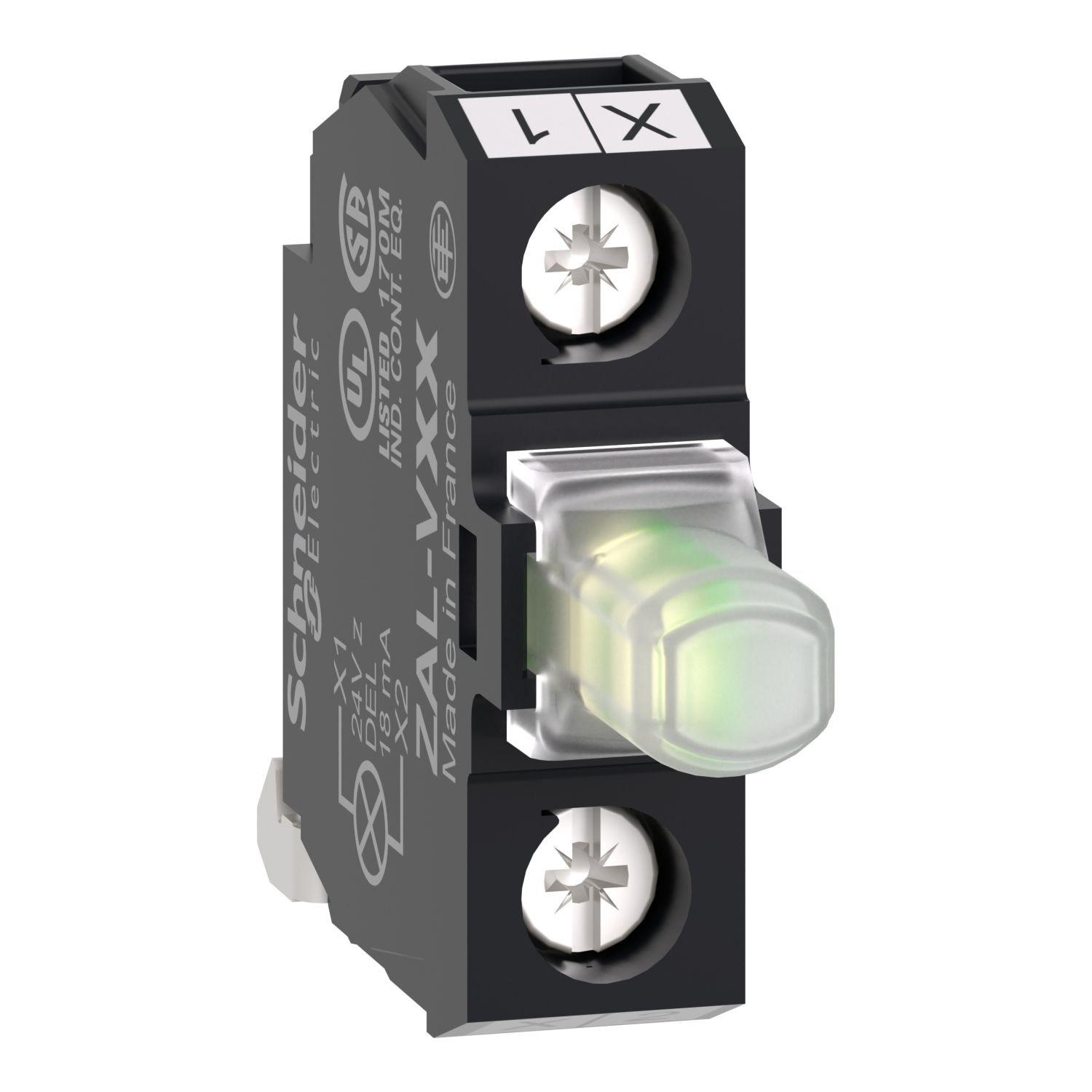

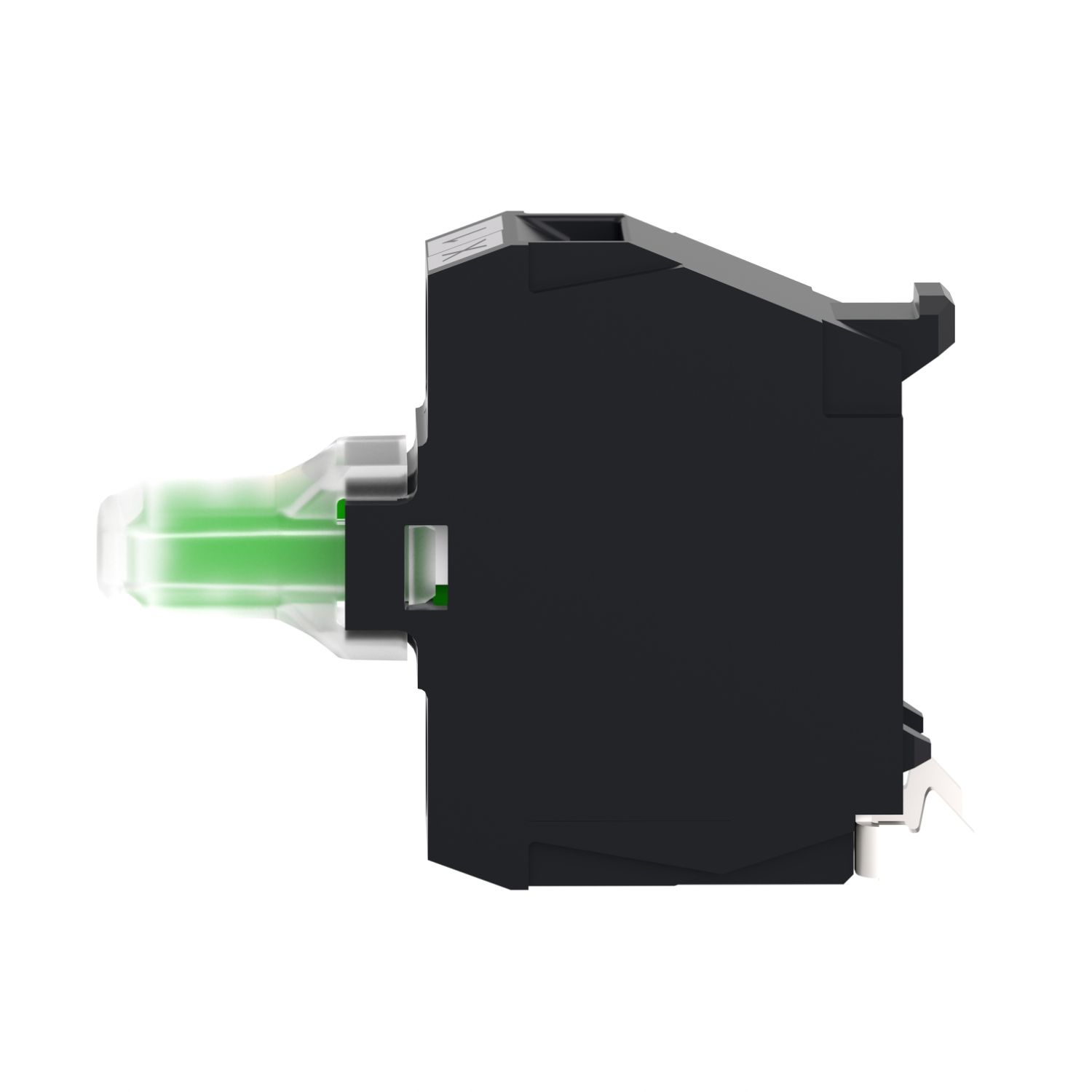

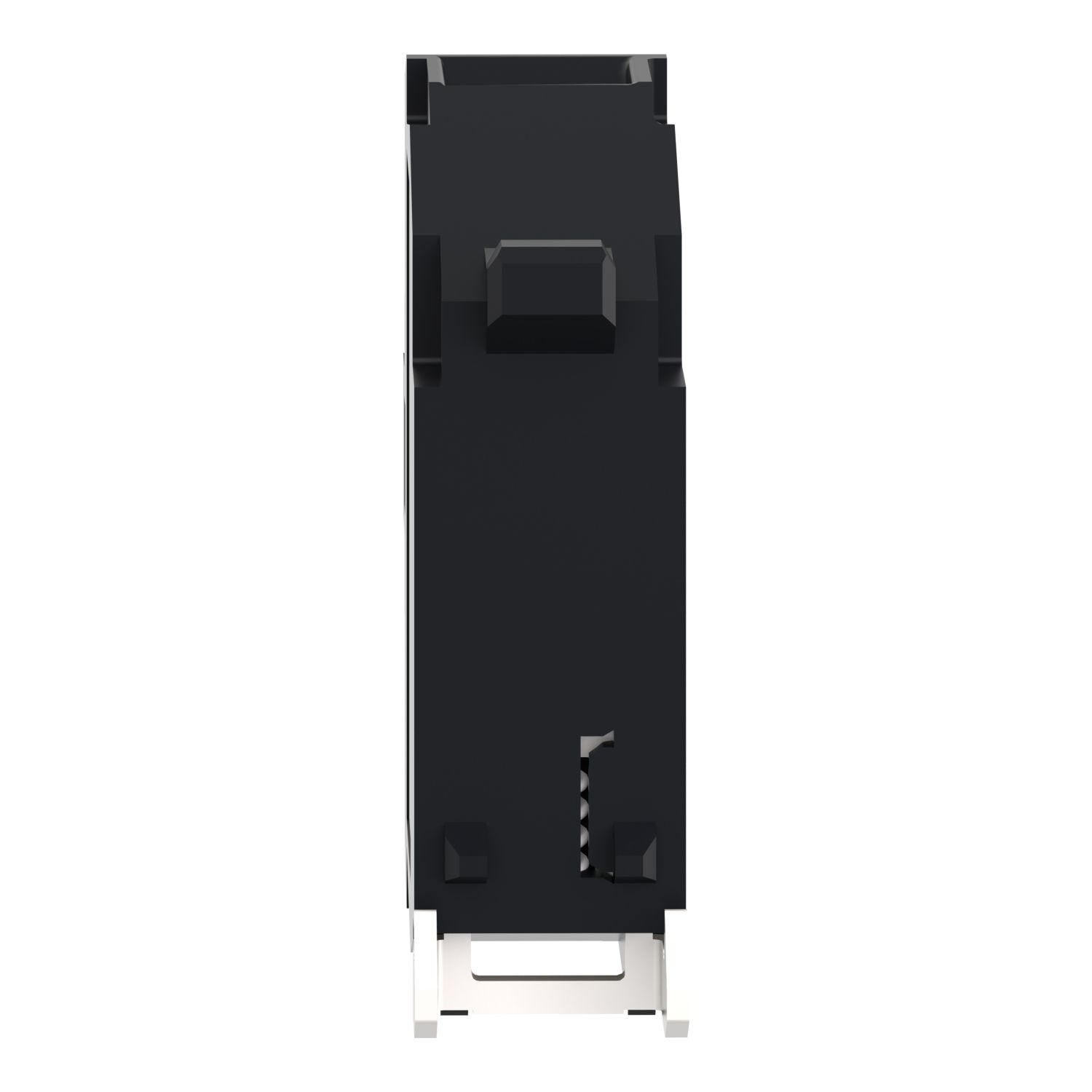

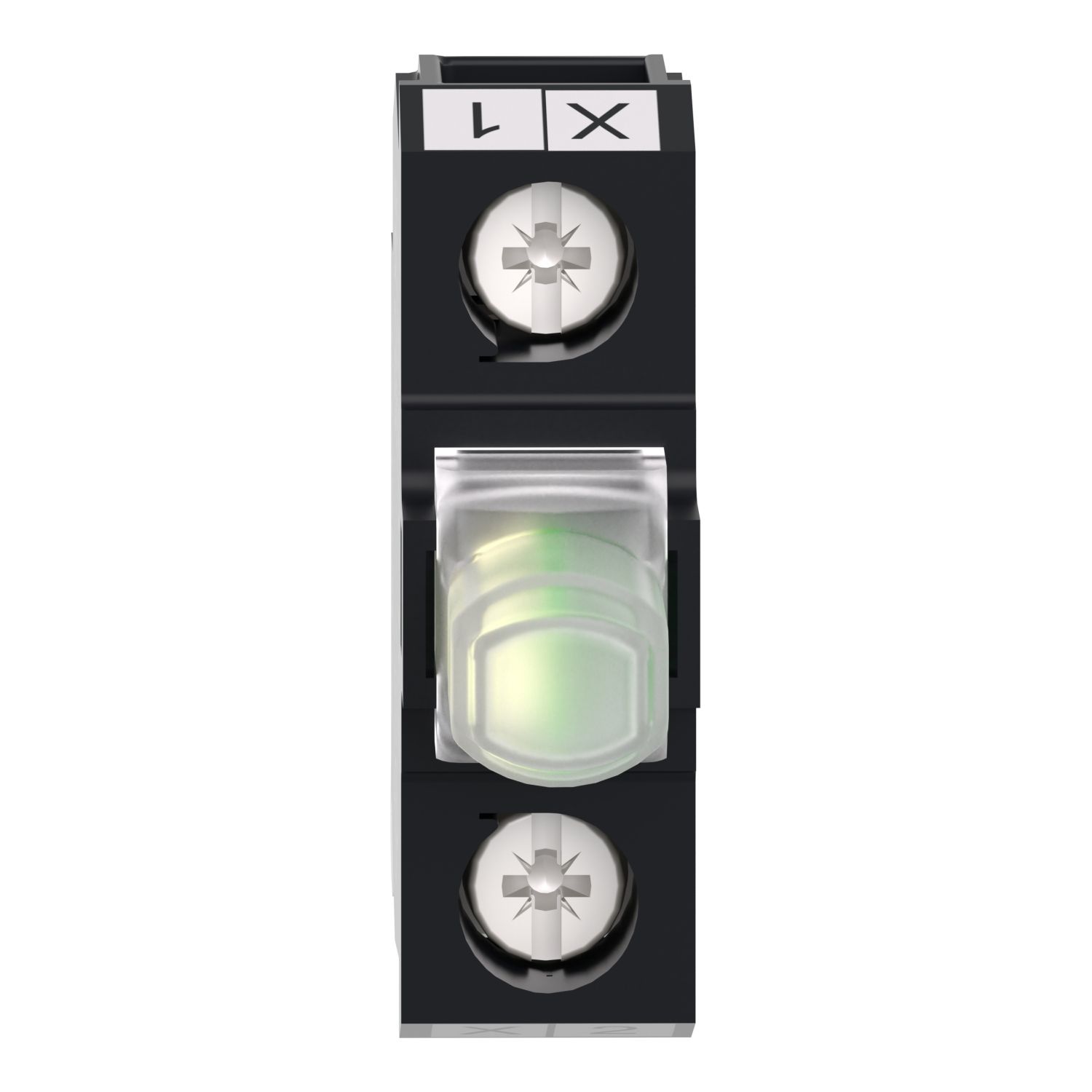

Picture of Light block, Harmony XALD, XALK, for head 22mm, universal LED, mounting in back of enclosure, 24V AC DC
Picture of Light block, Harmony XALD, XALK, for head 22mm, universal LED, mounting in back of enclosure, 24V AC DC
Picture of Light block, Harmony XALD, XALK, for head 22mm, universal LED, mounting in back of enclosure, 24V AC DC
Picture of Light block, Harmony XALD, XALK, for head 22mm, universal LED, mounting in back of enclosure, 24V AC DC
Picture of Light block, Harmony XALD, XALK, for head 22mm, universal LED, mounting in back of enclosure, 24V AC DC
Picture of Light block, Harmony XALD, XALK, for head 22mm, universal LED, mounting in back of enclosure, 24V AC DC
Picture of Light block, Harmony XALD, XALK, for head 22mm, universal LED, mounting in back of enclosure, 24V AC DC
Picture of Light block, Harmony XALD, XALK, for head 22mm, universal LED, mounting in back of enclosure, 24V AC DC
Picture of Light block, Harmony XALD, XALK, for head 22mm, universal LED, mounting in back of enclosure, 24V AC DC
Picture of Light block, Harmony XALD, XALK, for head 22mm, universal LED, mounting in back of enclosure, 24V AC DC
Picture of Light block, Harmony XALD, XALK, for head 22mm, universal LED, mounting in back of enclosure, 24V AC DC
Picture of Light block, Harmony XALD, XALK, for head 22mm, universal LED, mounting in back of enclosure, 24V AC DC
SKU:

ZALVB1

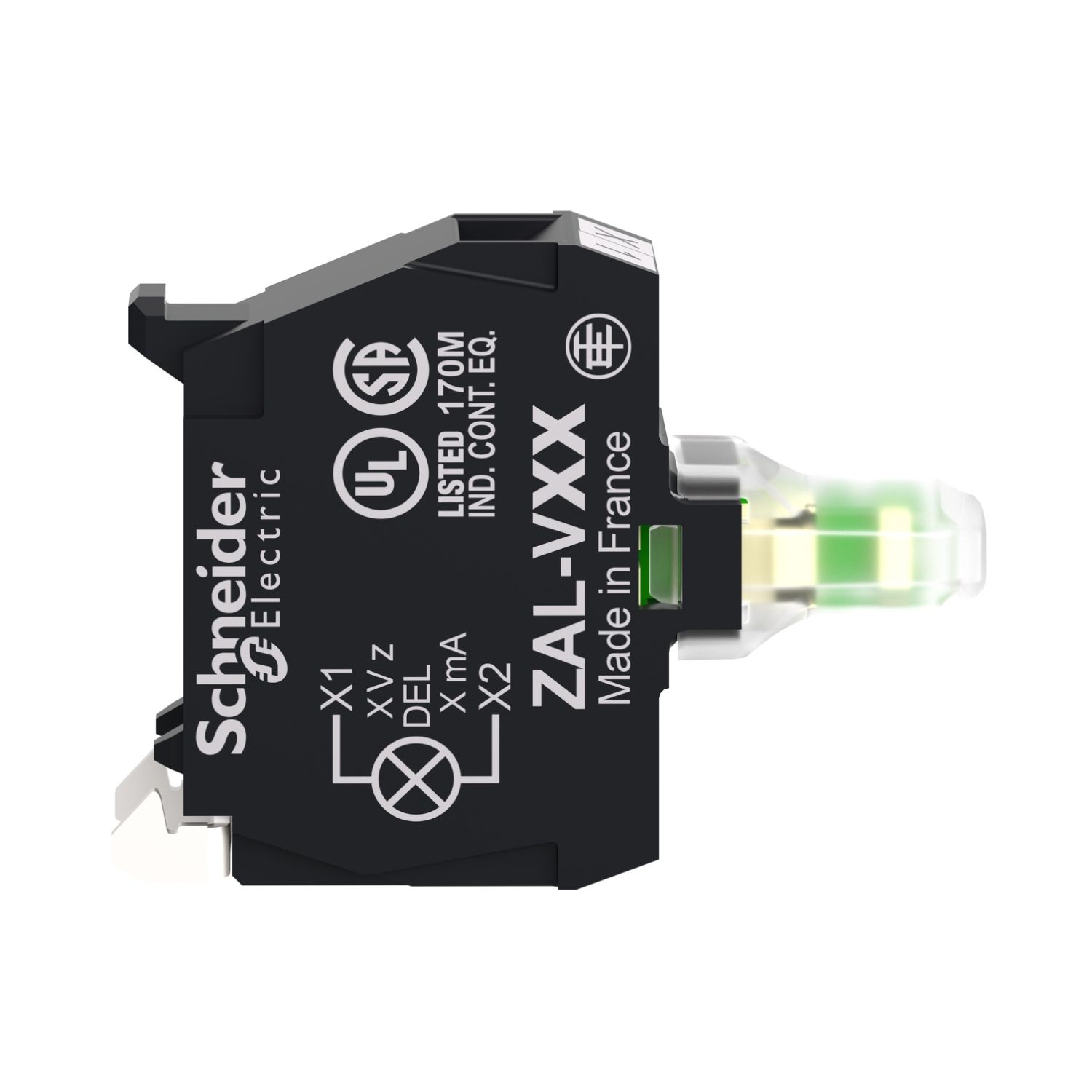

Light block, Harmony XALD, XALK, for head 22mm, universal LED, mounting in back of enclosure, 24V AC DC

Old price: $47.63 INC GST
$37.15 INC GST
Available for Shipping : 18-Dec-2025
Product Selector
Light block, Harmony XALD, XALK, for head 22mm, universal LED, mounting in back of enclosure, 24V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 18-Dec-2025
Declaration of conformity

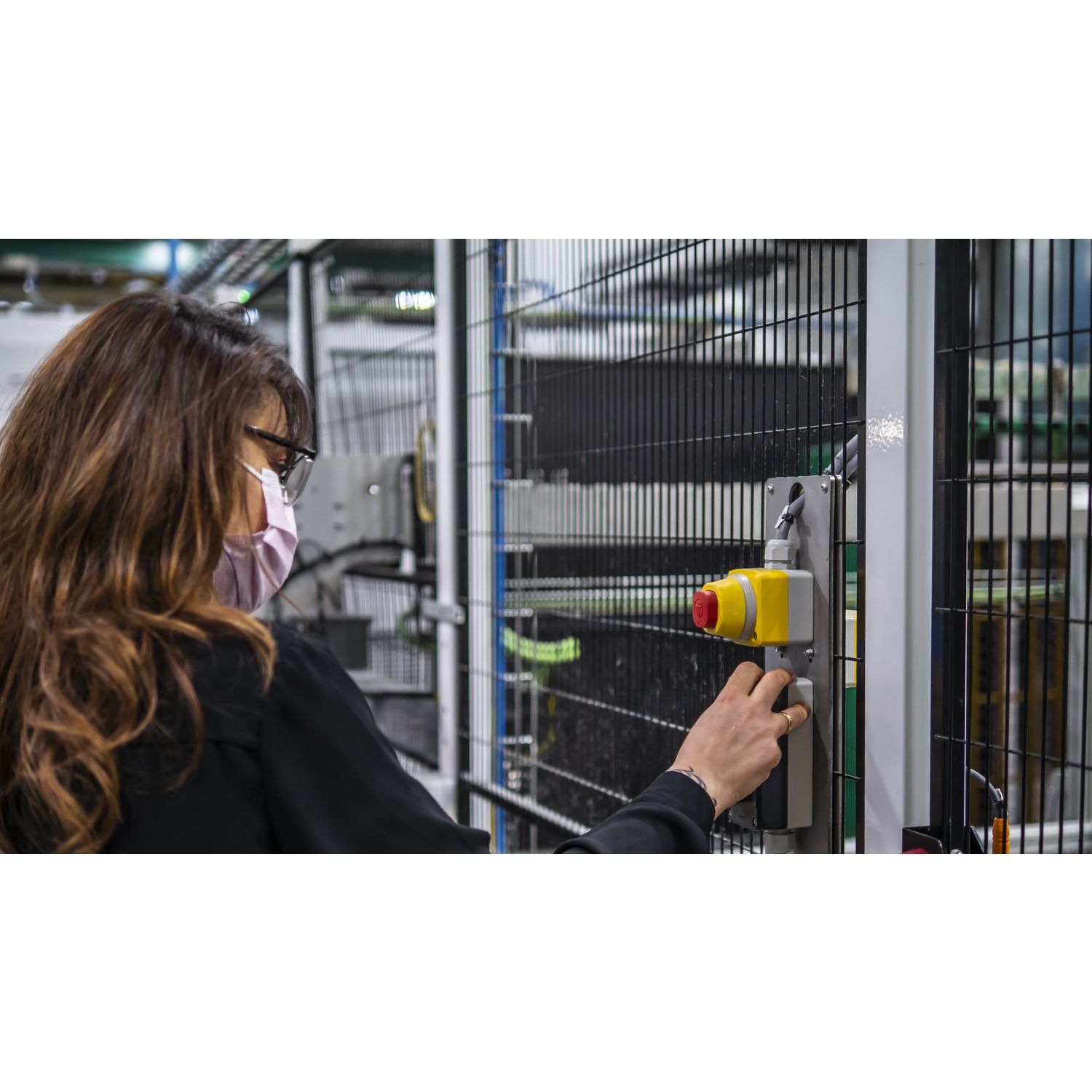

Image of product in real life situation
Image of product in real life situation
Catalog
Environmental Disclosure
Circularity Profile
Image of product in real life situation
Image of product in real life situation
Product Page Link
Product Data Sheet
This white light block with integral LED allows fast and easy replacement and configuration of your signaling units. It is supplied with 24V AC/DC and it connects with simple screw-clamp connections. It is easily installed on compatible illuminated push button or selector switch units via clip together assembly. It is compatible with Harmony XB5 diameter 22mm control and signaling units. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

Products specifications

Attribute name Attribute value
Main
Device short name ZALV
Light source colour white
Sale per indivisible quantity 5
Range of product Harmony XAL
[Us] rated supply voltage 24 V AC/DC
Product or component type light block
Mounting of block rear mounting
Product destination for XB5 Ø 22 mm control and signalling units
Complementary
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Compatibility code ZALV
Assembly style for customer assembly
Supply voltage limits 21.6-26.4 V AC, 19.2-30 V DC
Surge withstand 1 kV conforming to IEC 61000-5-1
Electrical composition code PR1, MR1
Light block supply direct
Bulb base integral LED
Signalling type steady
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to IEC 60947-1
Service life 100000 h at rated voltage and 25 °C
Connections - terminals screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Current consumption 15 mA
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1
Net weight 0.015 kg
Light source universal LED
Environment
Resistance to fast transients 2 kV conforming to IEC 61000-4-4
Protective treatment TH
Resistance to electrostatic discharge 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2, 6 kV on contact (on metal parts) conforming to IEC 61000-4-2
Ambient air temperature for storage -40-70 °C
IP degree of protection IP20 conforming to IEC 60529
Resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3
Ambient air temperature for operation -40-70 °C
Electromagnetic emission class B conforming to IEC 55011
Vibration resistance 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, UL 508, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-1, IEC 60947-5-4, IEC 60947-5-5
Product certifications CSA, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.600 cm
Package 1 Width 4.400 cm
Package 1 Length 5.400 cm
Package 1 Weight 11.000 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 5.600 cm
Package 2 Width 4.400 cm
Package 2 Length 5.400 cm
Package 2 Weight 57.000 g
Unit Type of Package 3 3
Number of Units in Package 3 400
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 4.865 kg
