SKU:

ZA2BP2

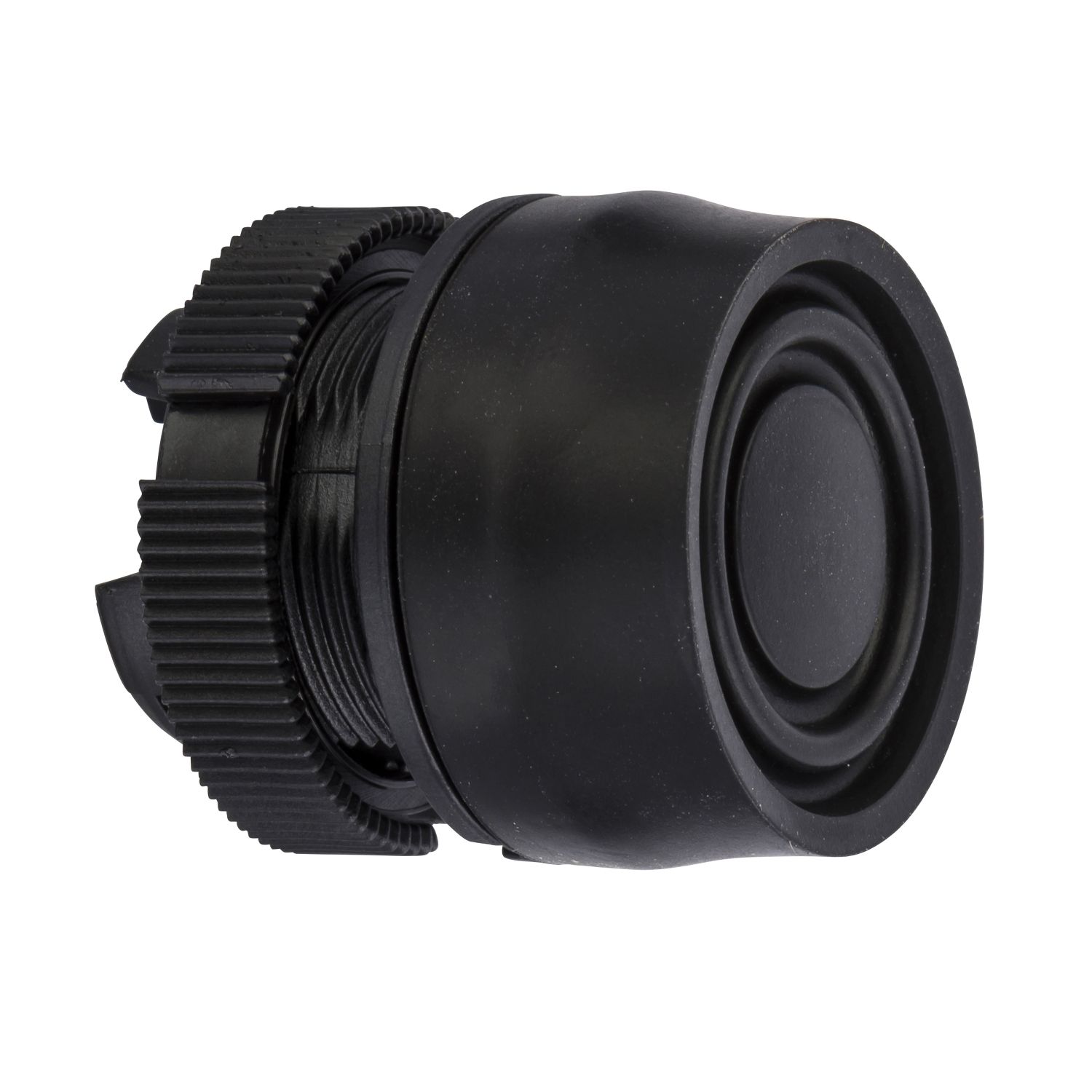

Head for push button, Harmony XAC, black, booted, 22mm, unmarked

Old price: $51.37 INC GST

Price: $40.07 INC GST

Qty:

Available for Shipping : 06-Jan-2026

Head for push button, Harmony XAC, black, booted, 22mm, unmarked

Manufacturer: Schneider Electric

Delivery date: 06-Jan-2026

Declaration of conformity

Catalog

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Component name	XACA
Product or component type	head for push-button
Range of product	Harmony XAC
Complementary
Product compatibility	XACA..
Overvoltage category	class II conforming to IEC 61140
Ambient air temperature for storage	-40-70 °C
Sale per indivisible quantity	1
IP degree of protection	IP65 conforming to IEC 60529
Mounting location	front of enclosure
Net weight	0.025 kg
Vibration resistance	15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Cap/operator or lens colour	black
Marking	unmarked
Shock resistance	100 gn conforming to IEC 60068-2-27
Standards	EN/IEC 60204-32, EN/IEC 60947-5-1, CSA C22.2 No 14, UL 508
Operator additional information	booted
Ambient air temperature for operation	-25-70 °C
IK degree of protection	IK08 conforming to EN 50102
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	6.000 cm
Package 1 Width	3.000 cm
Package 1 Length	6.000 cm
Package 1 Weight	16.000 g
Unit Type of Package 2	2
Number of Units in Package 2	10
Package 2 Height	5.000 cm
Package 2 Width	16.000 cm
Package 2 Length	20.000 cm
Package 2 Weight	165.000 g
Unit Type of Package 3	3
Number of Units in Package 3	100
Package 3 Height	15.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	1.960 kg
