Picture of Selector switch, Harmony XAC, plastic, black, 2 positions, left withdrawal position, stay put
Picture of Selector switch, Harmony XAC, plastic, black, 2 positions, left withdrawal position, stay put
Picture of Selector switch, Harmony XAC, plastic, black, 2 positions, left withdrawal position, stay put
Picture of Selector switch, Harmony XAC, plastic, black, 2 positions, left withdrawal position, stay put
SKU:

ZA2BG2

Selector switch, Harmony XAC, plastic, black, 2 positions, left withdrawal position, stay put

Old price: $162.80 INC GST
$126.98 INC GST
Availability: Please contact our sales team on 1300 724 622.
Selector switch, Harmony XAC, plastic, black, 2 positions, left withdrawal position, stay put
Be the first to review this product
Manufacturer: Schneider Electric

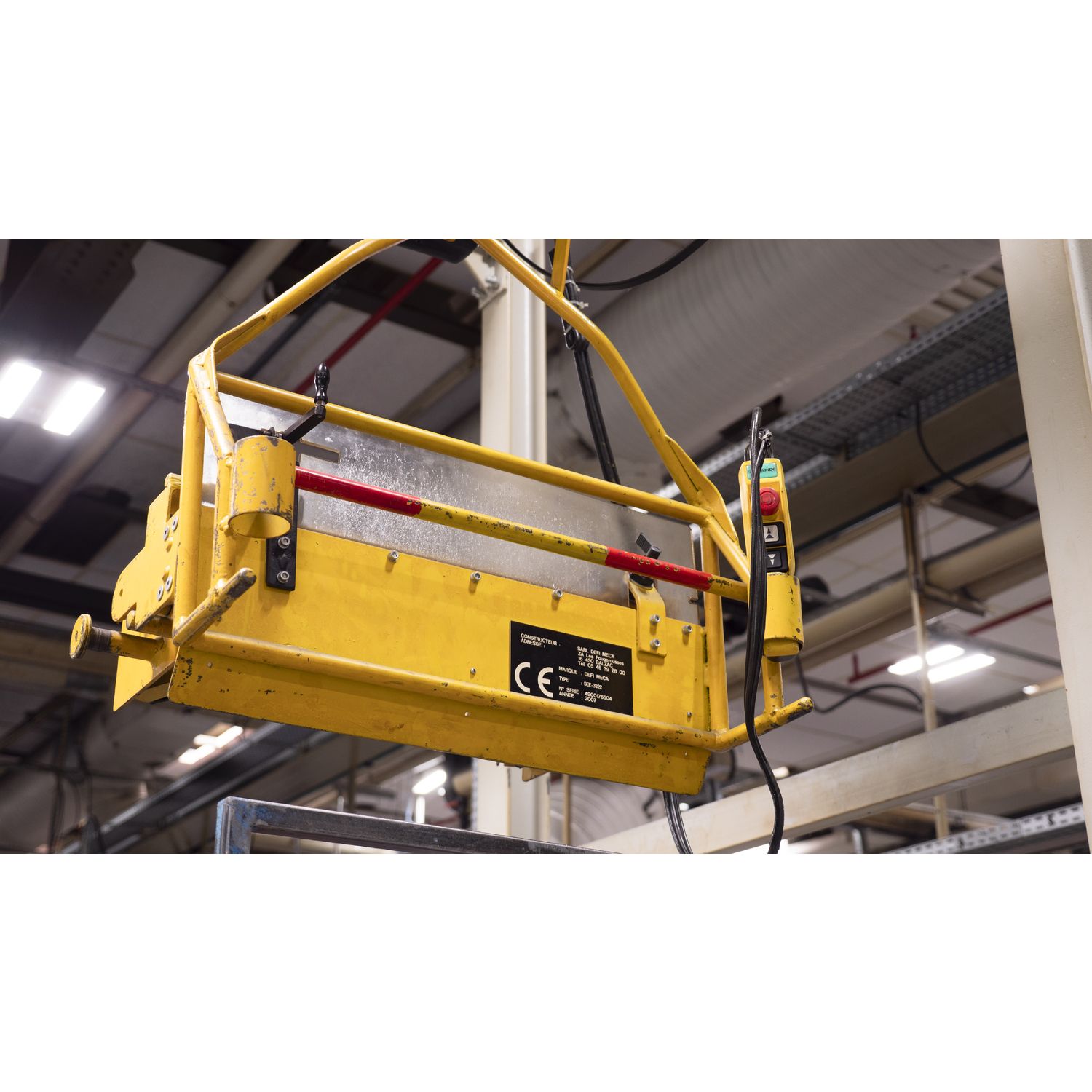

Image of product in real life situation

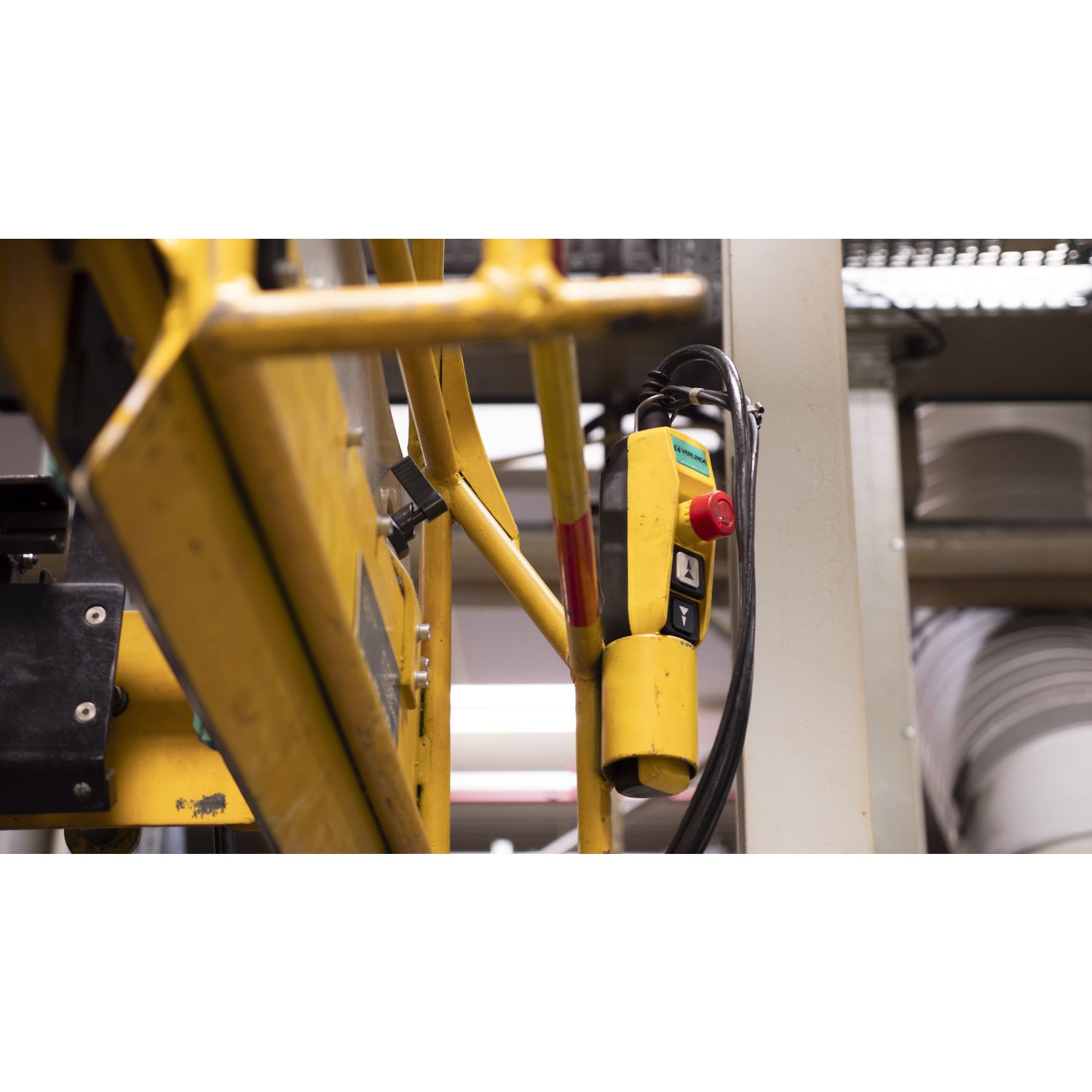

Image of product in real life situation
Circularity Profile
Declaration of conformity
Catalog
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet

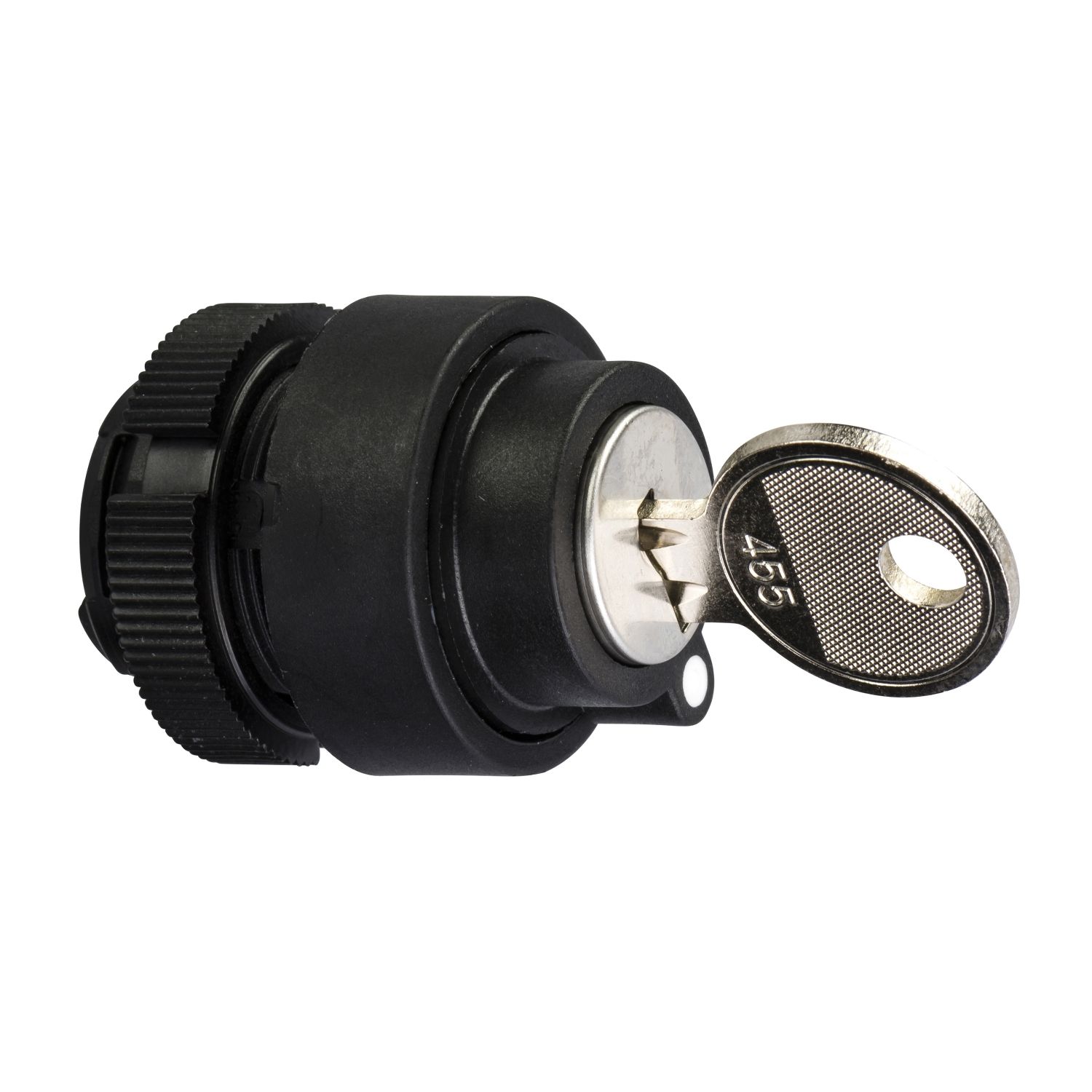

This Harmony ZA2 range is a black selector switch head. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units and it has 2 positions. It is supplied with key operated knob (key n° 455). It features 2 positions maintained, at 90°. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It is easily installed and replaced on XAC pendant control stations in diameter 22.5mm cut-out. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It weighs 42g. It is a green premium product and conforms to international standard and certifications.

Products specifications

Attribute name Attribute value
Main
Product compatibility XACA
Component name ZA2
Product or component type selector switch
Range of product Harmony XAC
Complementary
Sale per indivisible quantity 1
Mounting location base of enclosure, front of enclosure
Net weight 0.042 kg
Cap/operator or lens colour black
Marking unmarked
Environment
Overvoltage category class II conforming to IEC 61140
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to IEC 60529
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance 100 gn conforming to IEC 60068-2-27
Standards IEC 60204-32, UL 508, CSA C22.2 No 14, IEC 60947-5-1
Ambient air temperature for operation -25-70 °C
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.8 cm
Package 1 Width 7.2 cm
Package 1 Length 9.8 cm
Package 1 Weight 50.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 6.0 cm
Package 2 Width 17.0 cm
Package 2 Length 28.0 cm
Package 2 Weight 508.0 g
Unit Type of Package 3 3
Number of Units in Package 3 50
Package 3 Height 15.0 cm
Package 3 Width 30.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 2.864 kg
