SKU:

ZA2BD5

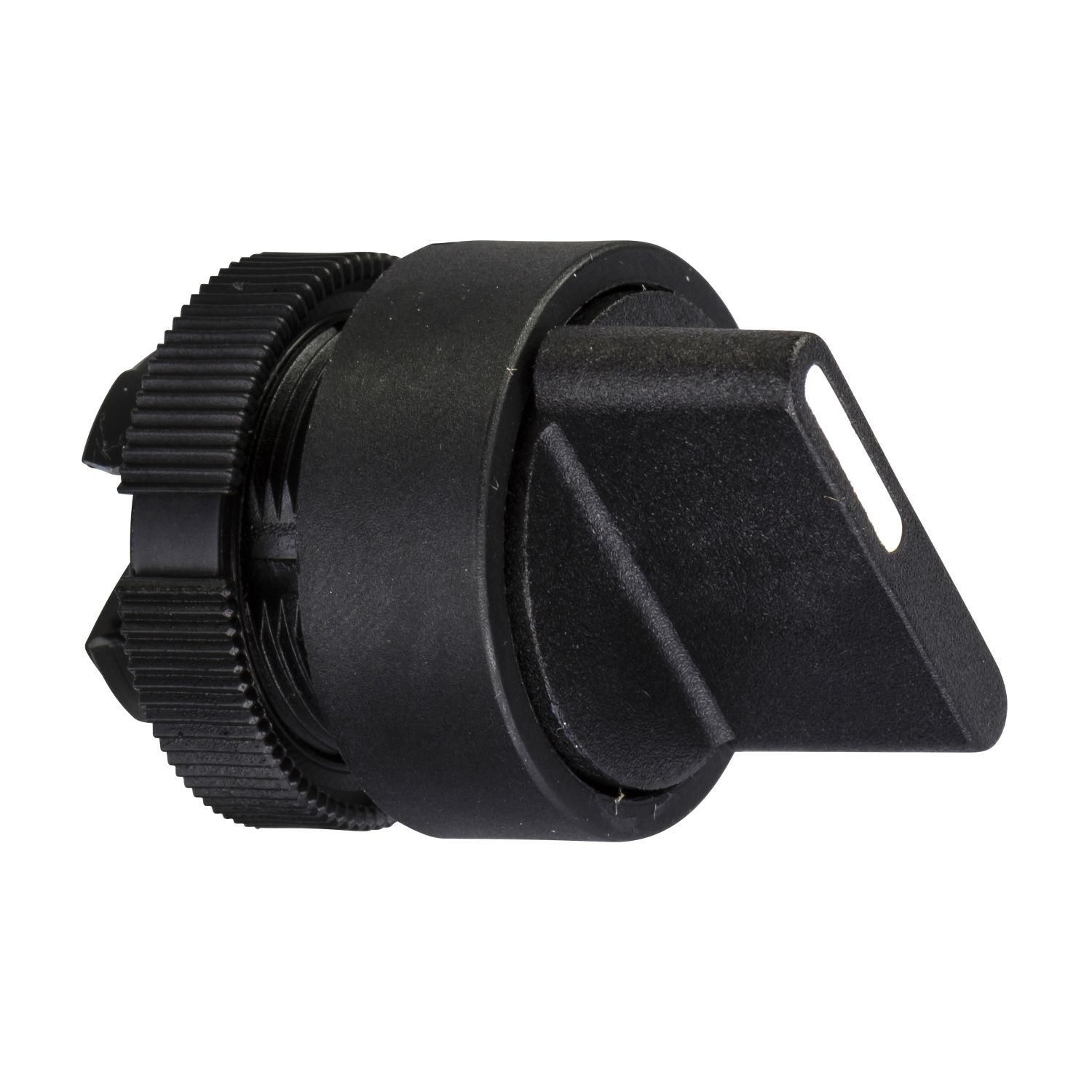

Selector switch, Harmony XAC, plastic, black handle, 22mm, 3 positions, unmarked

Old price: $69.74 INC GST
$54.40 INC GST
Availability: Please contact our sales team on 1300 724 622.
Selector switch, Harmony XAC, plastic, black handle, 22mm, 3 positions, unmarked
Be the first to review this product
Manufacturer: Schneider Electric

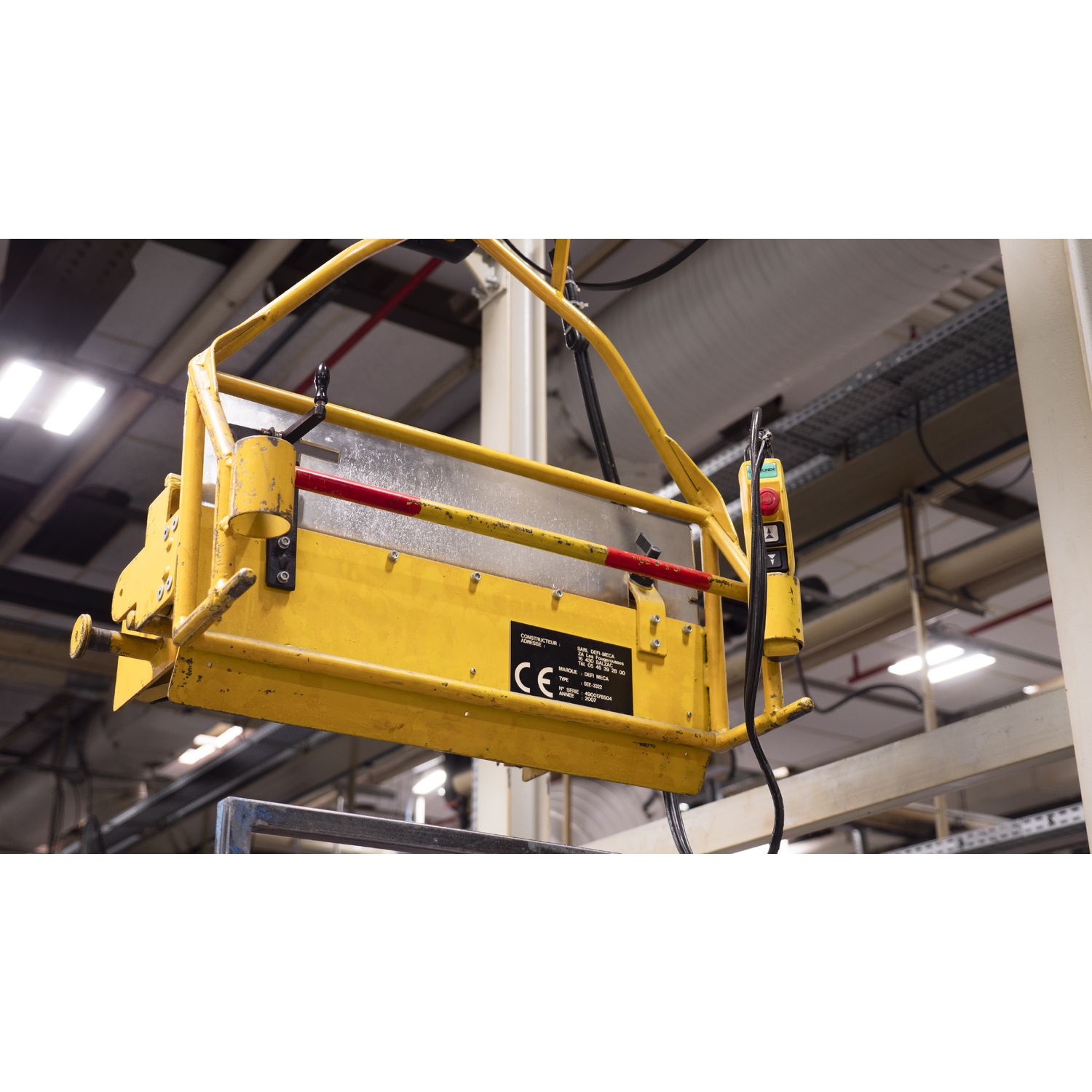

Image of product in real life situation

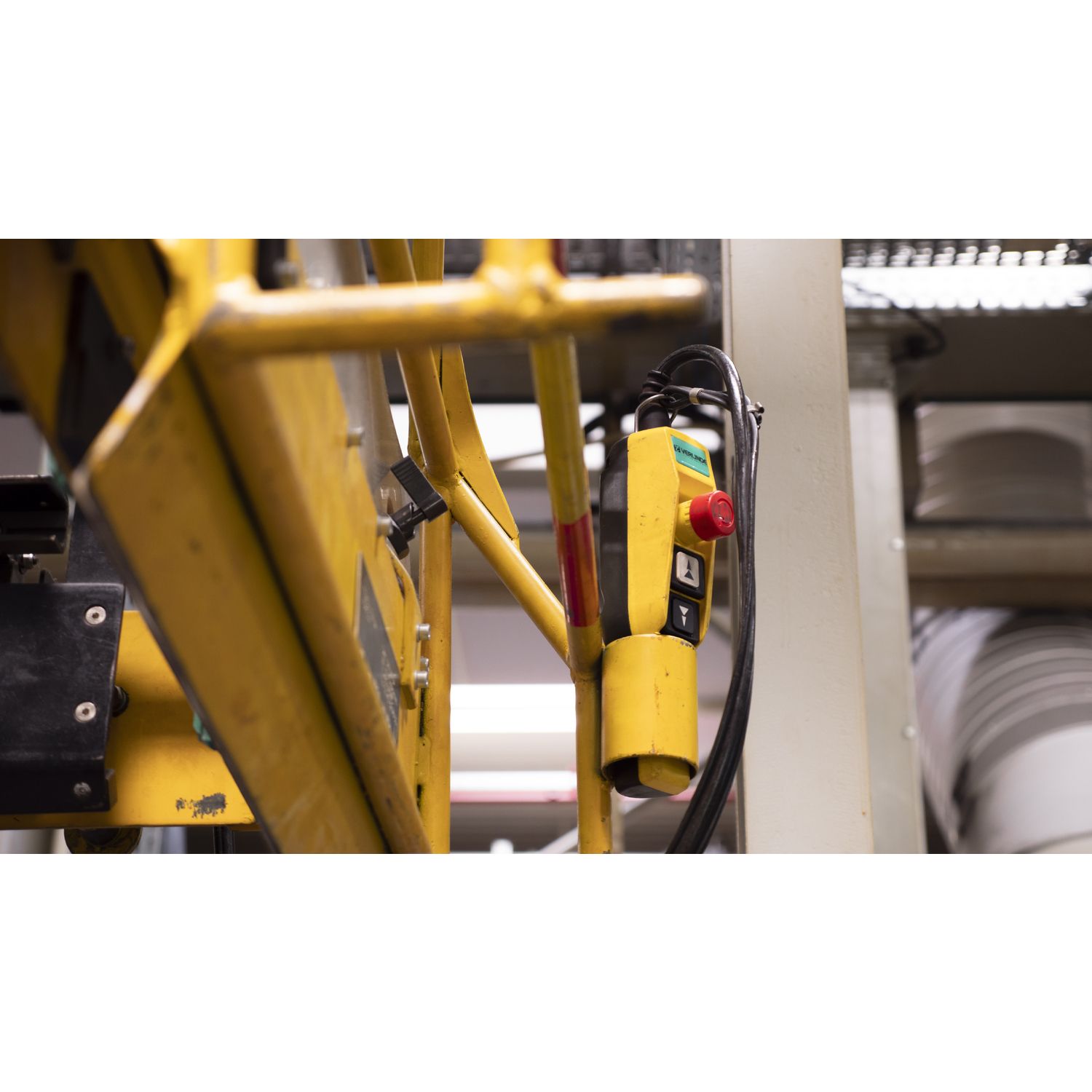

Image of product in real life situation
Environmental Disclosure
Catalog
Declaration of conformity
Instruction sheet
Circularity Profile
Product Page Link
Product Data Sheet
This Harmony ZA2BD5 is a selector switch head, 3 positions diameter 22mm, black. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

Products specifications

Attribute name Attribute value
Main
Product compatibility XACA
Component name ZA2
Product or component type selector switch
Range of product Harmony XAC
Complementary
Sale per indivisible quantity 1
Net weight 0.018 kg
Cap/operator or lens colour black
Marking unmarked
Environment
Overvoltage category class II conforming to IEC 61140
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to IEC 60529
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance 100 gn conforming to IEC 60068-2-27
Standards CSA C22.2 No 14, IEC 60947-5-1, UL 508, IEC 60204-32
Ambient air temperature for operation -25-70 °C
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.0 cm
Package 1 Width 3.0 cm
Package 1 Length 3.0 cm
Package 1 Weight 21.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 5.0 cm
Package 2 Width 24.5 cm
Package 2 Length 20.0 cm
Package 2 Weight 213.0 g
Unit Type of Package 3 3
Number of Units in Package 3 100
Package 3 Height 15.0 cm
Package 3 Width 30.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 2.454 kg
