SKU:

XVS14BMW

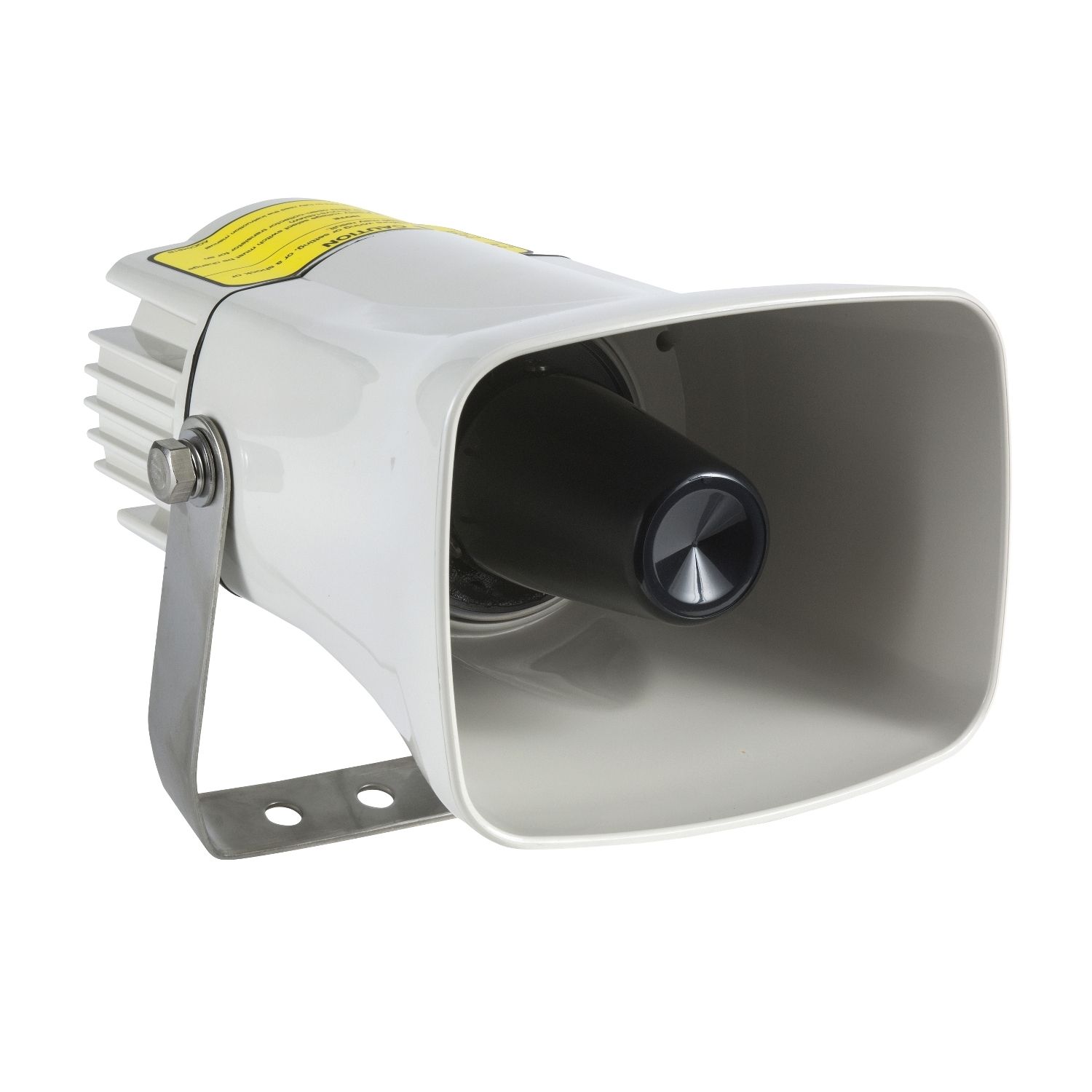

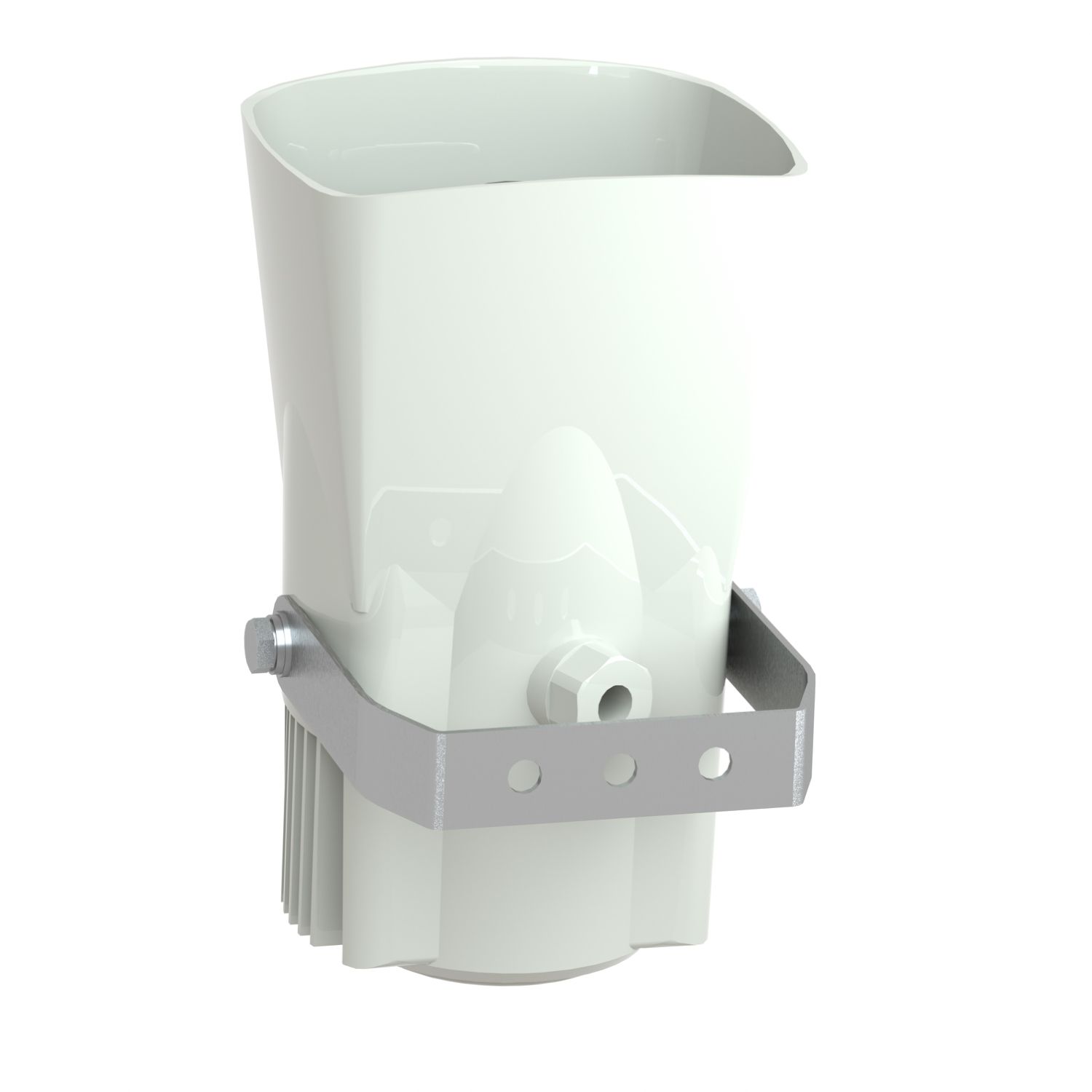

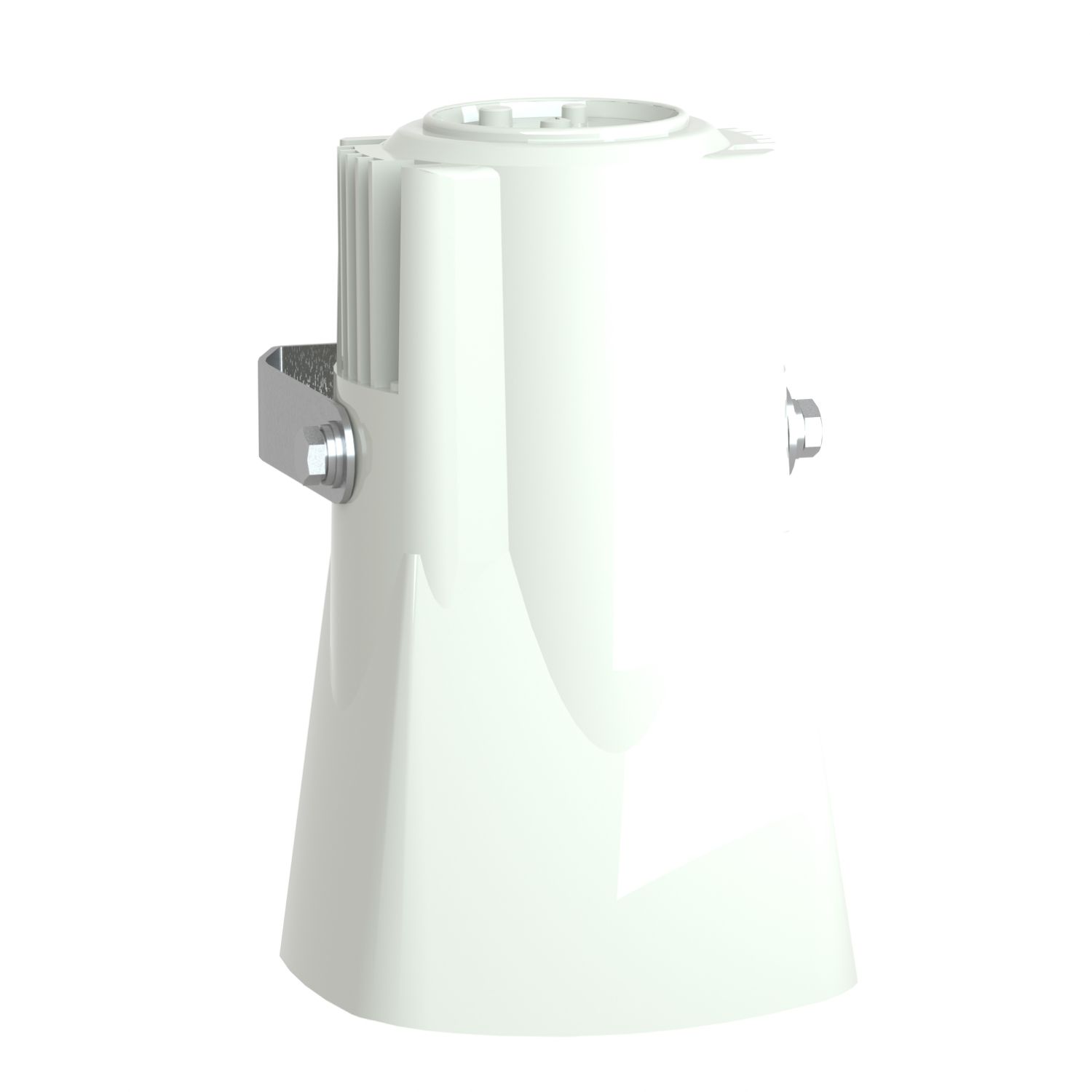

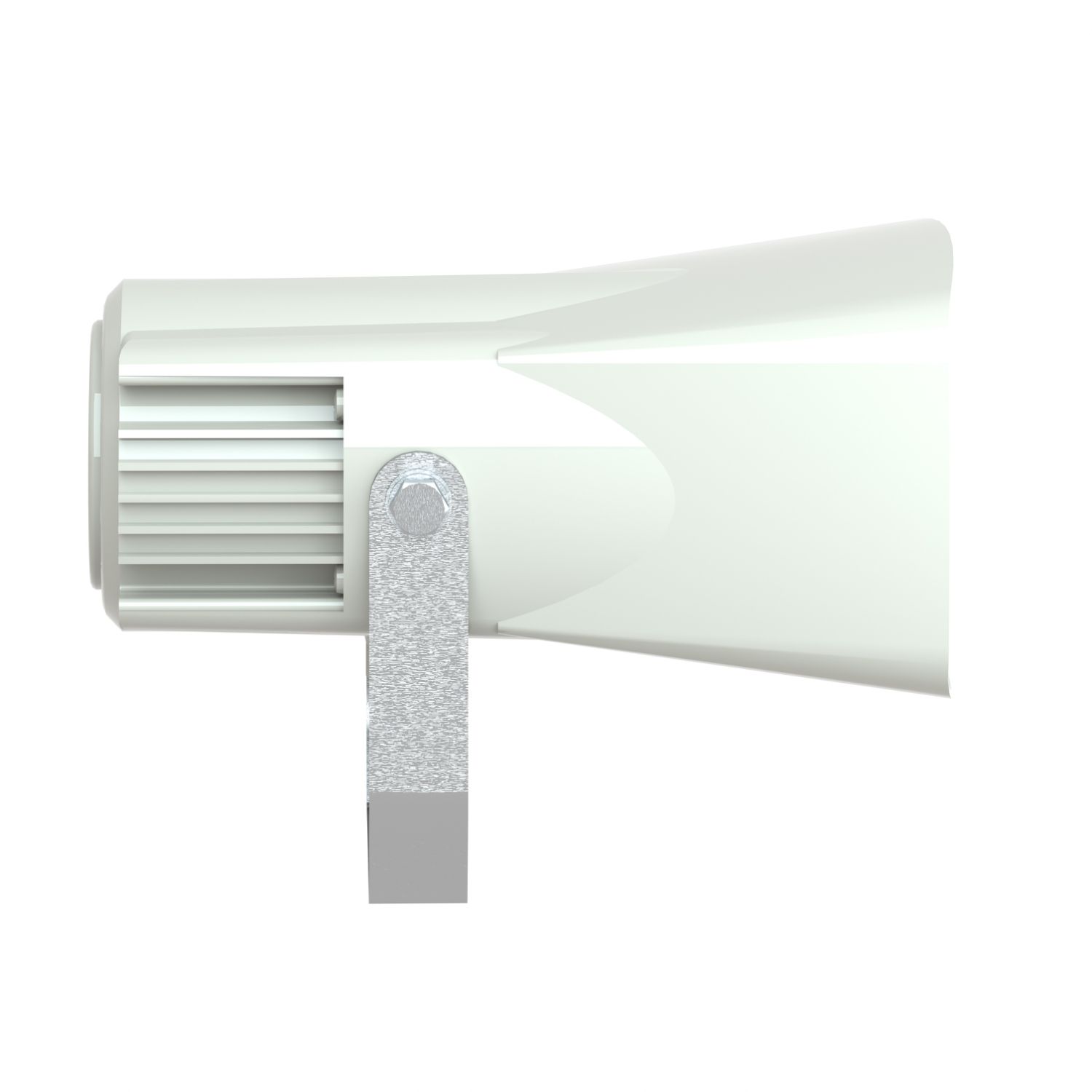

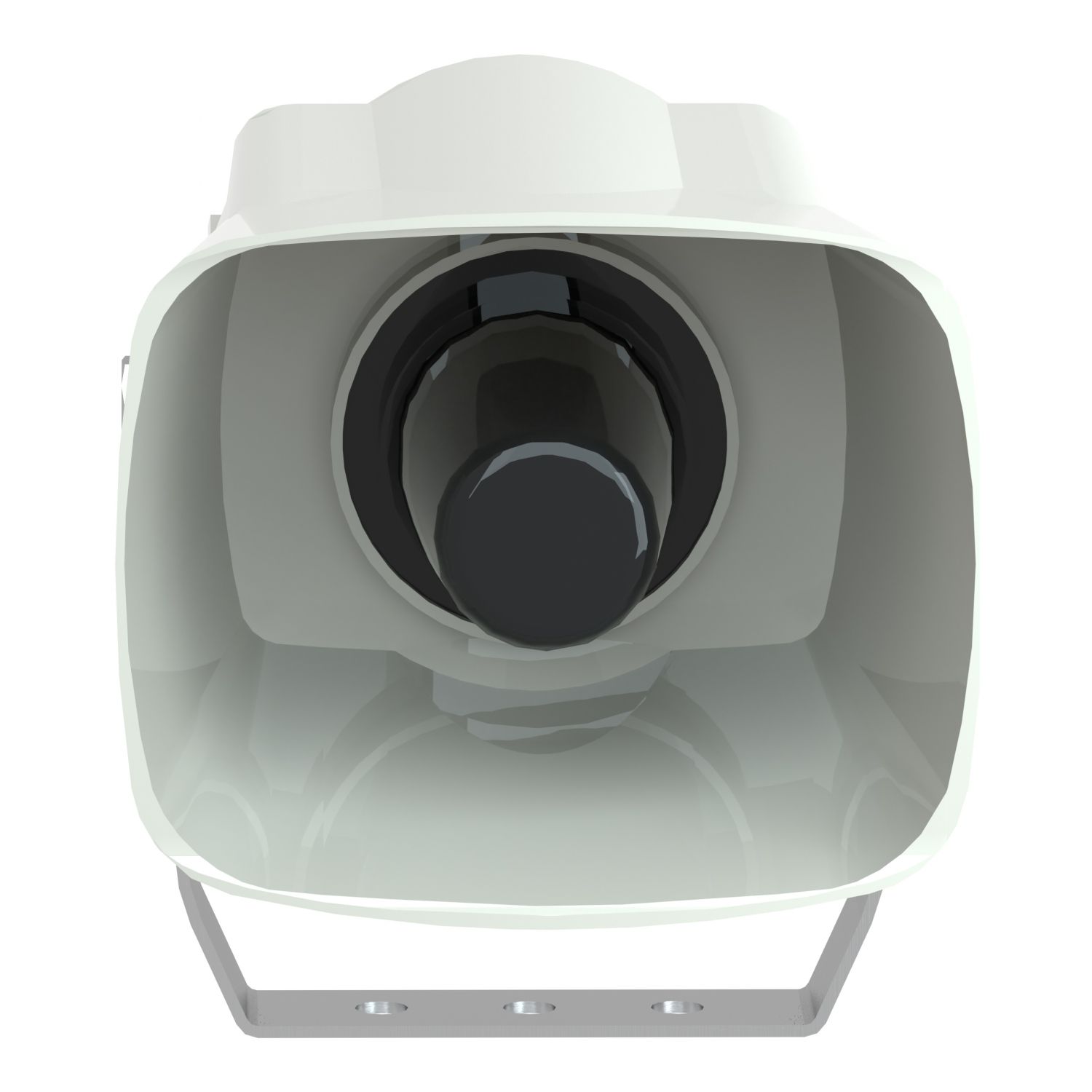

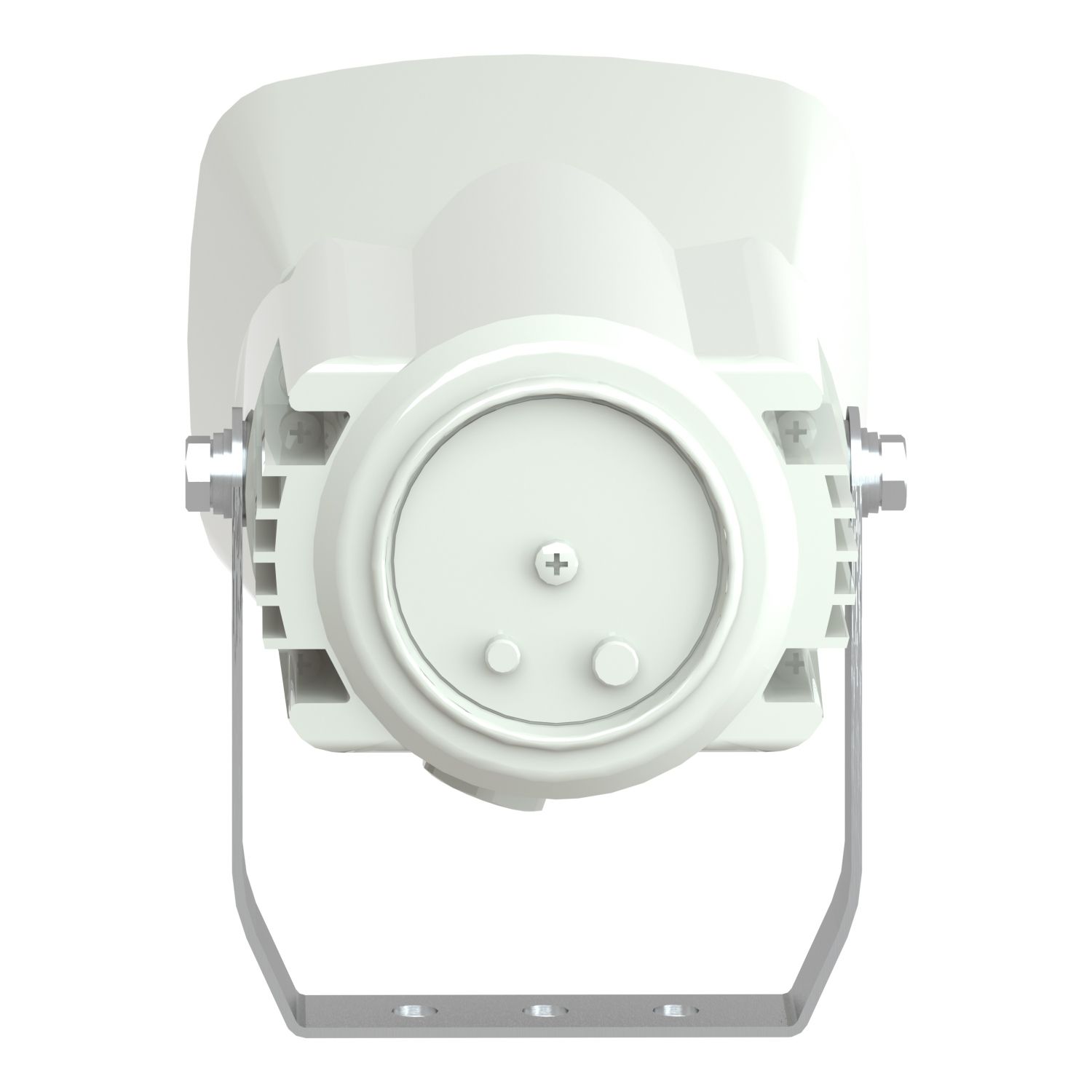

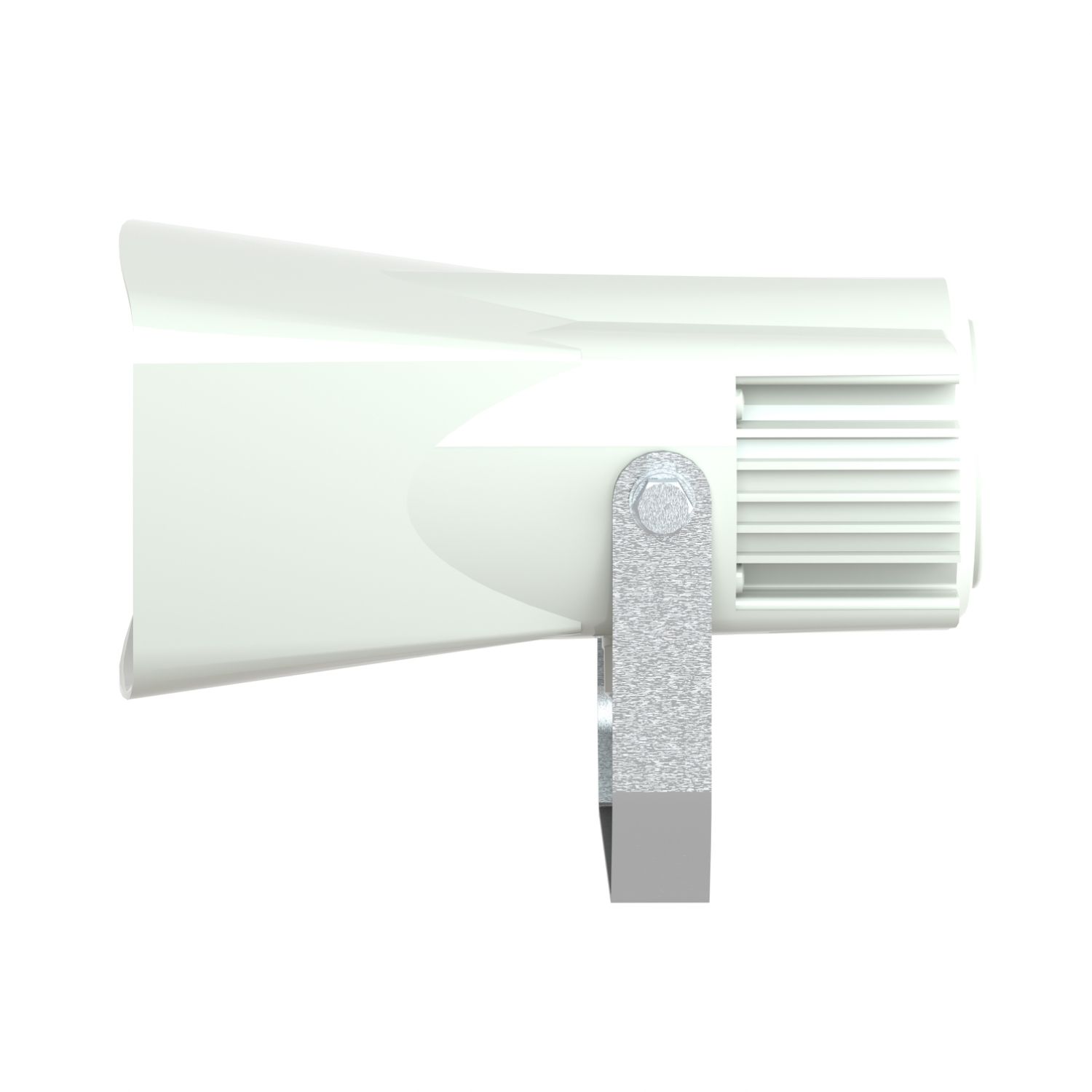

Multisound siren, Harmony XVS, prewired, white colour, 0...105dB, 43tones, 12...24V DC

Old price: $455.95 INC GST

Price: $355.64 INC GST

Qty:

Available for Shipping : 06-Jan-2026

Multisound siren, Harmony XVS, prewired, white colour, 0...105dB, 43tones, 12...24V DC

Manufacturer: Schneider Electric

Delivery date: 06-Jan-2026

Catalog

Declaration of conformity

Instruction sheet

Product Page Link

Product Data Sheet

This Harmony XVS14BMW is a multi-sound siren. It is part of the range Harmony XVS sirens and electronics alarms range .

Attribute name	Attribute value
Main
Device short name	XVS
Range of product	Harmony XVS
Product or component type	multisound siren
Complementary
Compatibility code	XVS
Electrical connection	cable: 6.5-8.5 mm, 0.52-0.52 mm² / AWG 20 (power circuit), cable: 6.5-8.5 mm, 0.33-0.33 mm² / AWG 22 (signalling circuit)
Colour	white
Marking	CE
Height	114 mm
Depth	223 mm
Width	140 mm
Material	PC (polycarbonate): back cover, ASA (Acrylonitrile Styrene Acrylate): back, ASA (Acrylonitrile Styrene Acrylate): front
[Uimp] rated impulse withstand voltage	0.8 kV
Net weight	1 kg
Current consumption	250 mA at 12 V, 350 mA at 24 V
Fixing mode	3 holes Ø 9 mm
Mounting support	bracket
Environment
Protective treatment	TC
[Us] rated supply voltage	24 V DC, 12 V DC
Noise level	0-105 dB (continuous or intermittent tone) at 1 m
Ambient air temperature for storage	-35-70 °C
IP degree of protection	IP53 conforming to IEC 60529
Ambient air temperature for operation	-10-50 °C
Overvoltage category	class II conforming to IEC 61140
Signalling type	43 tones siren
Standards	IEC 61000-6-3, EN 55022, EN 55014-2, IEC 61000-6-2
Product certifications	UL
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	27.500 cm
Package 1 Width	16.000 cm
Package 1 Length	16.000 cm
Package 1 Weight	1.340 kg
Unit Type of Package 2	2
Number of Units in Package 2	6
Package 2 Height	30.000 cm
Package 2 Width	40.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	9.302 kg
