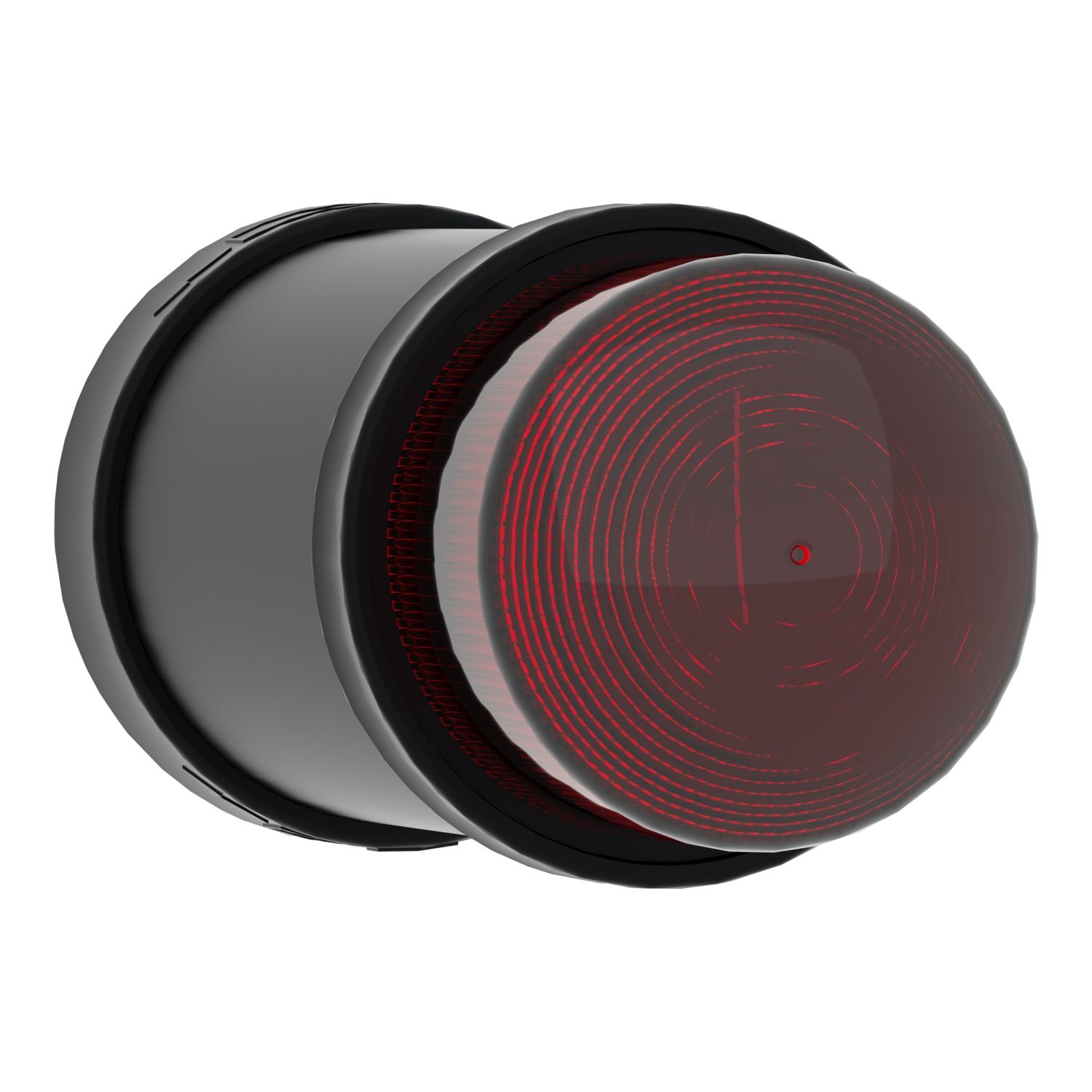

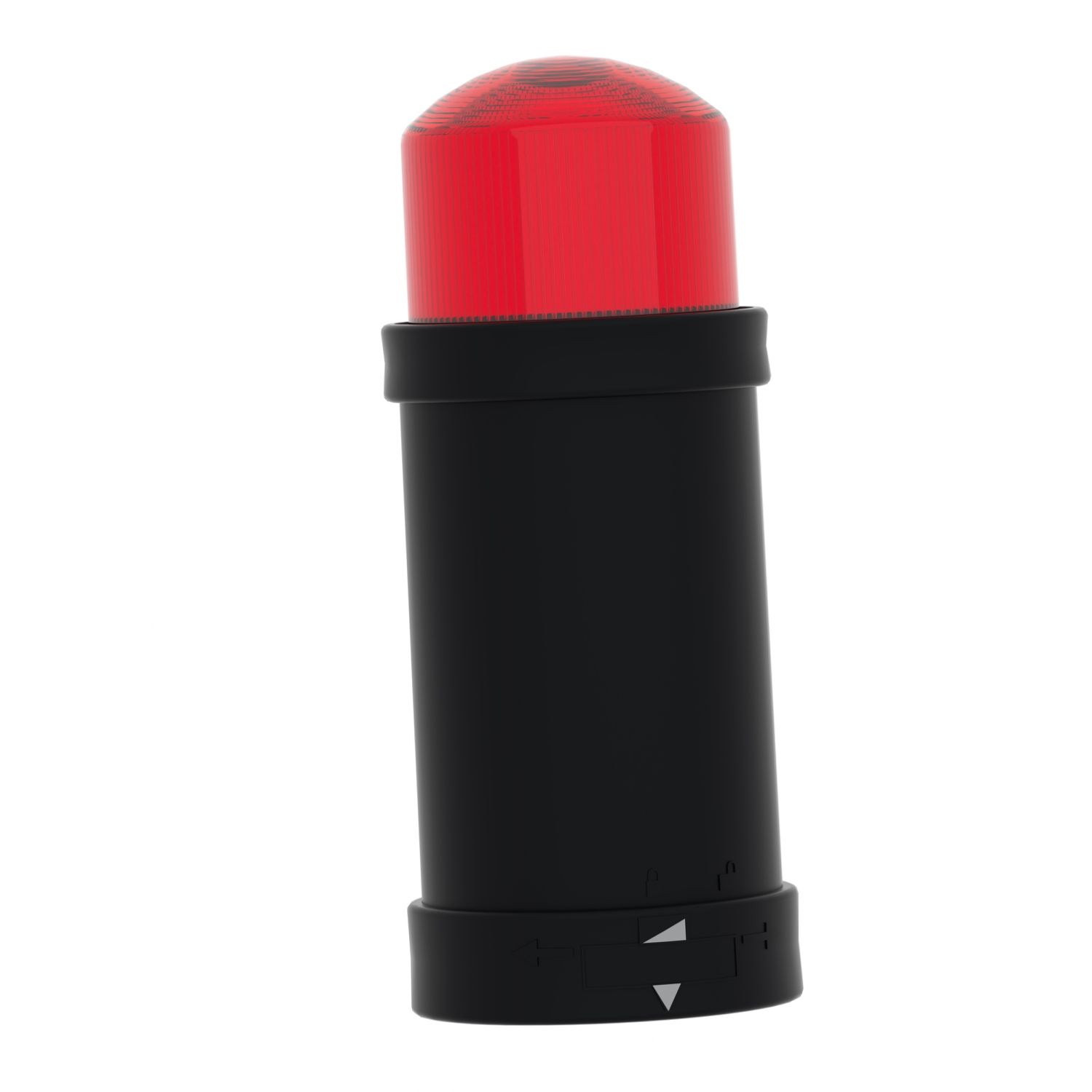

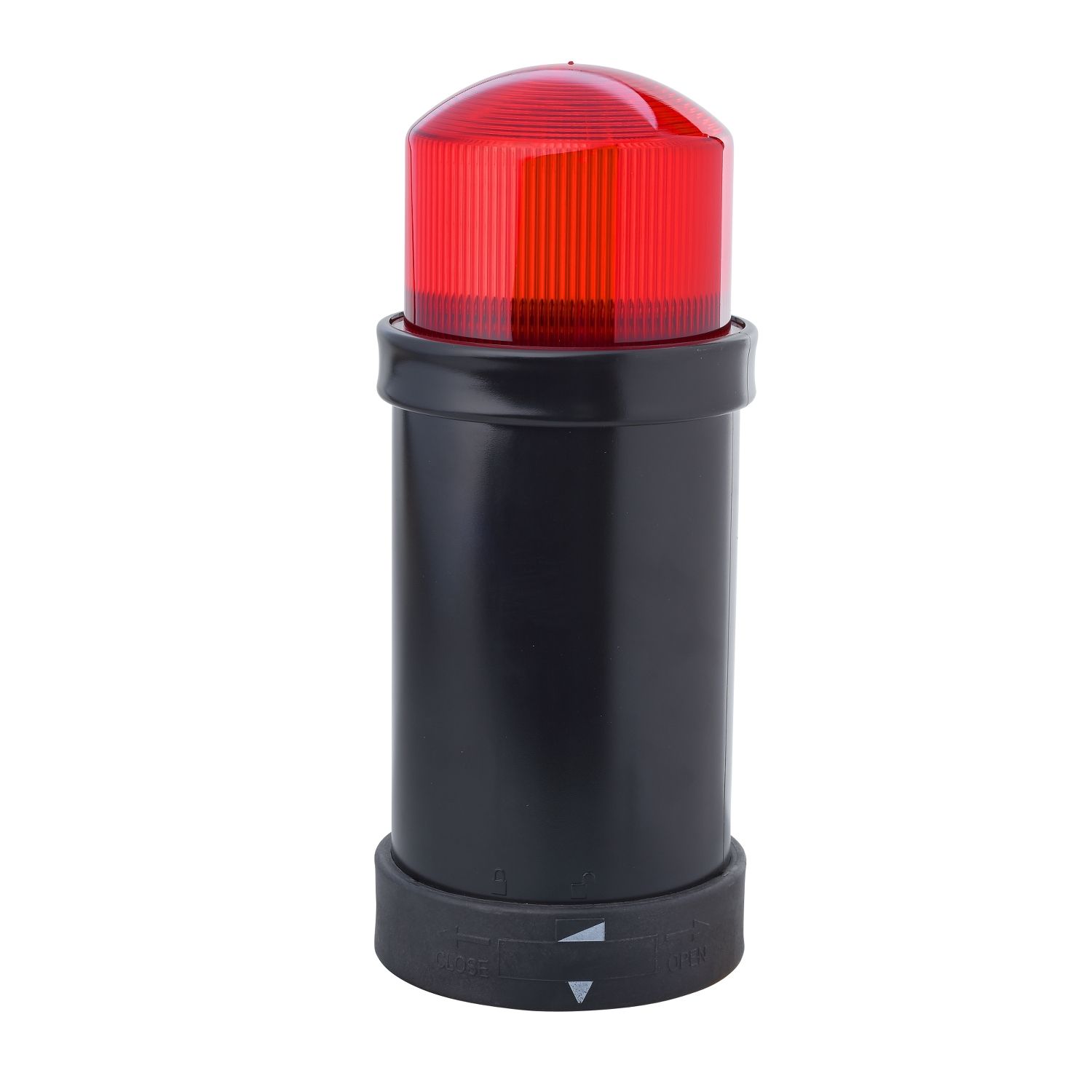

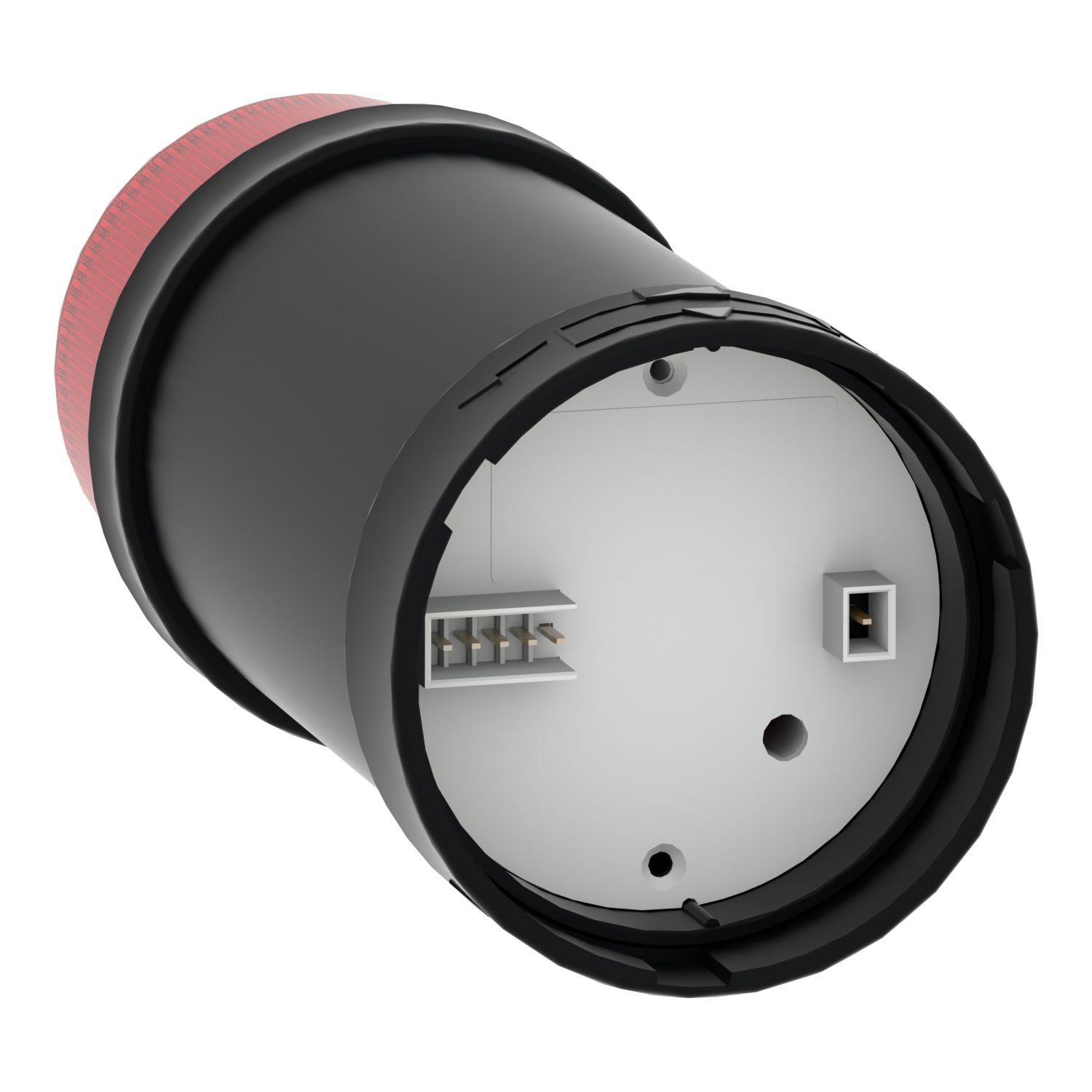

Picture of Harmony XVB, Indicator bank, illuminated unit, plastic, red, 70mm, integral flash discharge tube, 5joule, 24V AC/DC
Picture of Harmony XVB, Indicator bank, illuminated unit, plastic, red, 70mm, integral flash discharge tube, 5joule, 24V AC/DC
Picture of Harmony XVB, Indicator bank, illuminated unit, plastic, red, 70mm, integral flash discharge tube, 5joule, 24V AC/DC
Picture of Harmony XVB, Indicator bank, illuminated unit, plastic, red, 70mm, integral flash discharge tube, 5joule, 24V AC/DC
Picture of Harmony XVB, Indicator bank, illuminated unit, plastic, red, 70mm, integral flash discharge tube, 5joule, 24V AC/DC
Picture of Harmony XVB, Indicator bank, illuminated unit, plastic, red, 70mm, integral flash discharge tube, 5joule, 24V AC/DC
Picture of Harmony XVB, Indicator bank, illuminated unit, plastic, red, 70mm, integral flash discharge tube, 5joule, 24V AC/DC
SKU:

XVBC6B4

Harmony XVB, Indicator bank, illuminated unit, plastic, red, 70mm, integral flash discharge tube, 5joule, 24V AC/DC

Old price: $481.80 INC GST
$375.80 INC GST
Available for Shipping : 14-Jan-2026
Product Selector
Harmony XVB, Indicator bank, illuminated unit, plastic, red, 70mm, integral flash discharge tube, 5joule, 24V AC/DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 14-Jan-2026

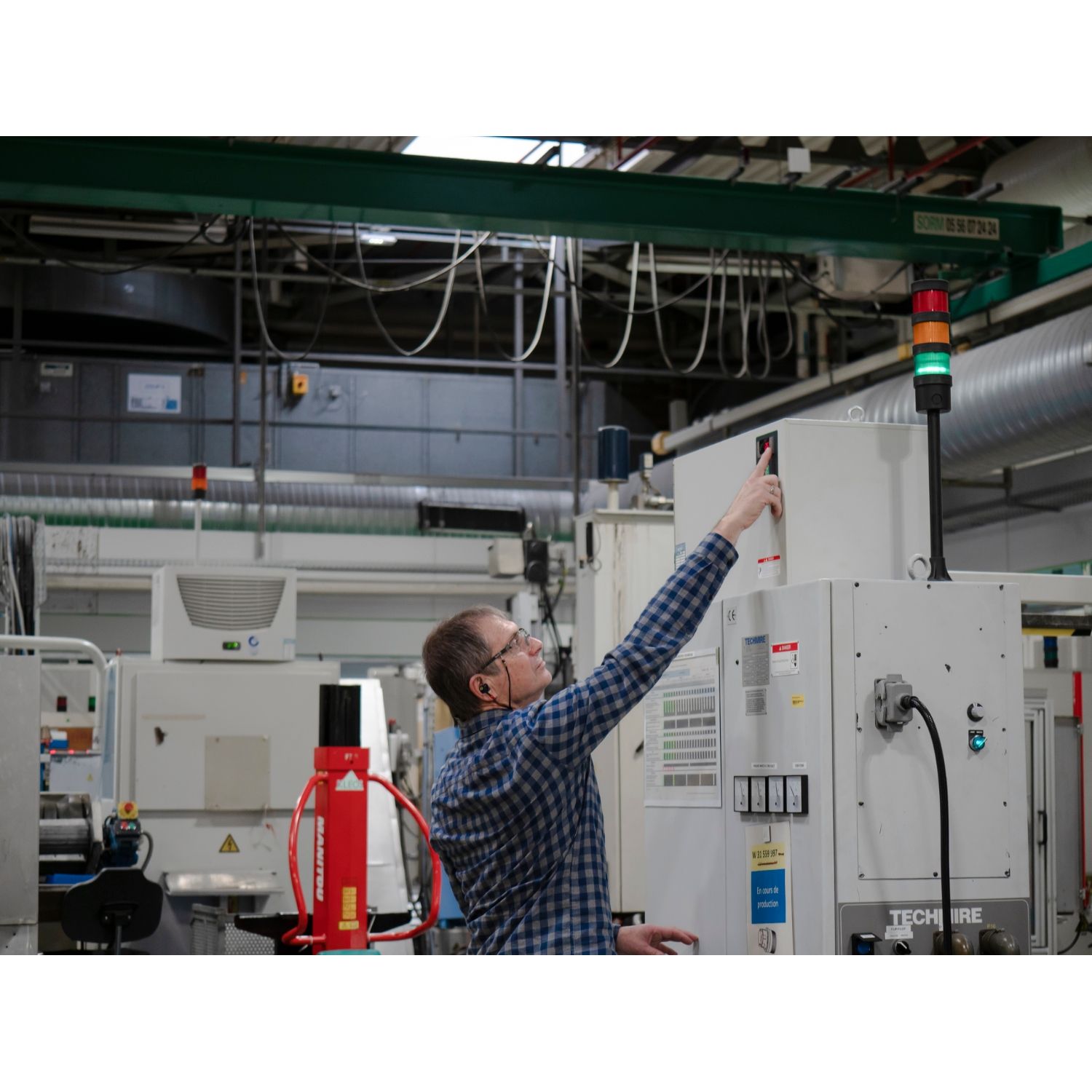

Image of product in real life situation
Declaration of conformity
User guide
Instruction sheet
Catalog
Product Page Link
Product Data Sheet
This Harmony XVB illuminated unit is supplied with 24V AC/DC and has a integral red flash discharge tube with a strobe light. This red indicating bank lens is designed as an illuminated unit to be connected with base and create complete tower light. It has a 70mm diameter It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its flash discharge tube offers a strobe light, allowing it to clearly display the status of your machines in applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. Simple and modular design to allow for easy installation with base unit and make complete tower light. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 24 V AC/DC
Beacon or indicator bank unit type illuminated unit
Bulb type flash discharge tube
Signalling type flashing
Material polycarbonate
Component name XVBC
Product or component type indicator bank
Light source integral flash discharge tube, red
Mounting diameter 70 mm
Range of product Harmony XVB Universal
Flash energy 5 J
Complementary
CAD overall depth 70 mm
CAD overall width 70 mm
Assembly style customer assembly, up to 5 units
Flashing frequency 1-1 Hz
Nominal voltage limit 0.85...1.1 Un conforming to IEC 60947-5-1
[Ui] rated insulation voltage 250 V conforming to IEC 60947-1
Connections - terminals screw clamp terminals, <= 1 x 1.5 mm² with cable end
CAD overall height 157 mm
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1
Net weight 0.295 kg
Current consumption < 550 mA AC, < 350 mA DC
Environment
Protective treatment TC
Electrical shock protection class class II on base unit conforming to IEC 61140, class I on support tube conforming to IEC 61140
NEMA degree of protection Type 4X conforming to UL (indoor)
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 on base unit conforming to IEC 60529, IP65 on fixing base XVBZ0. conforming to IEC 60529
Standards EN/IEC 60947-5-1
Product certifications UL 508, CSA C22-2 No 14, EAC, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.0 cm
Package 1 Width 8.0 cm
Package 1 Length 19.2 cm
Package 1 Weight 295.0 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.005 kg
