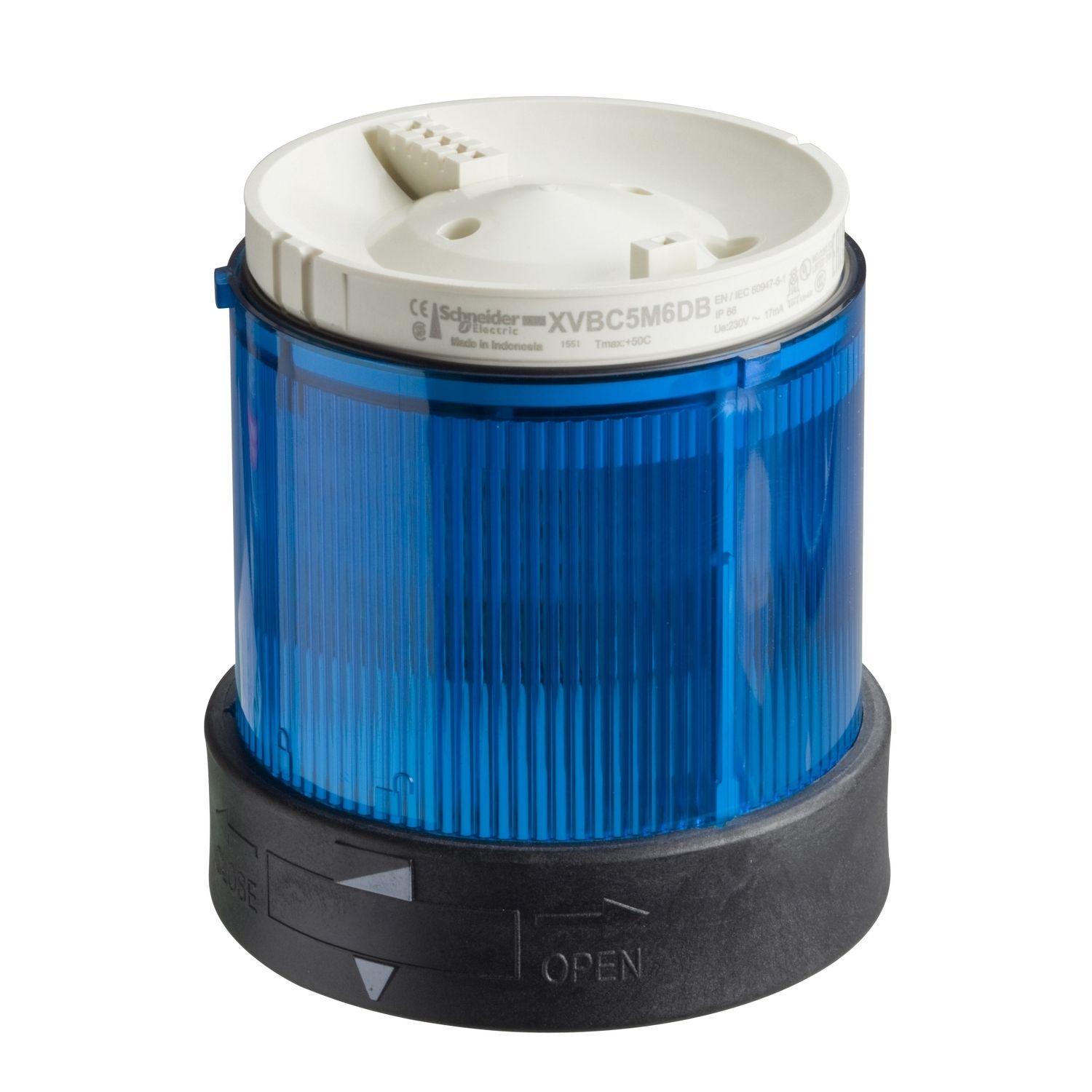

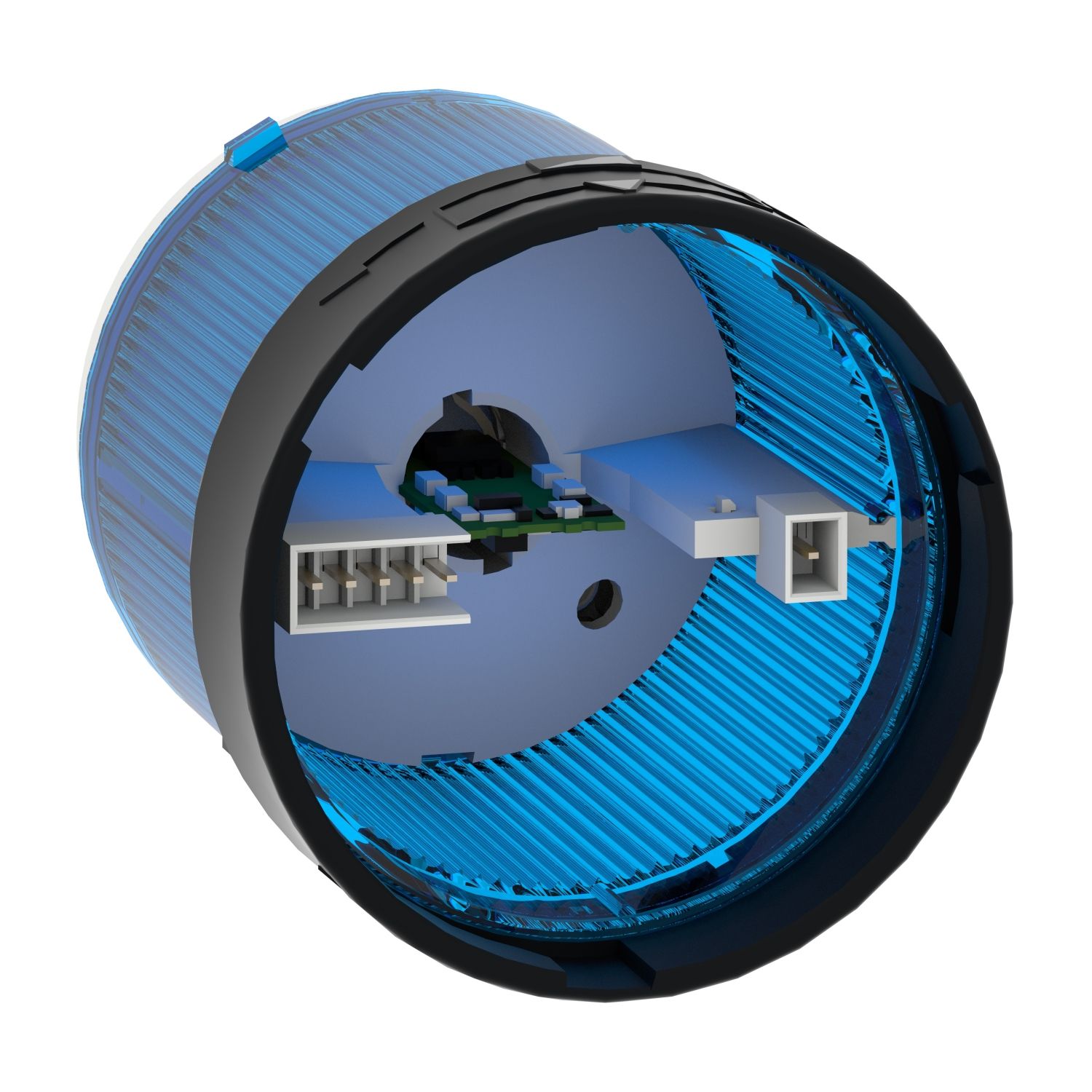

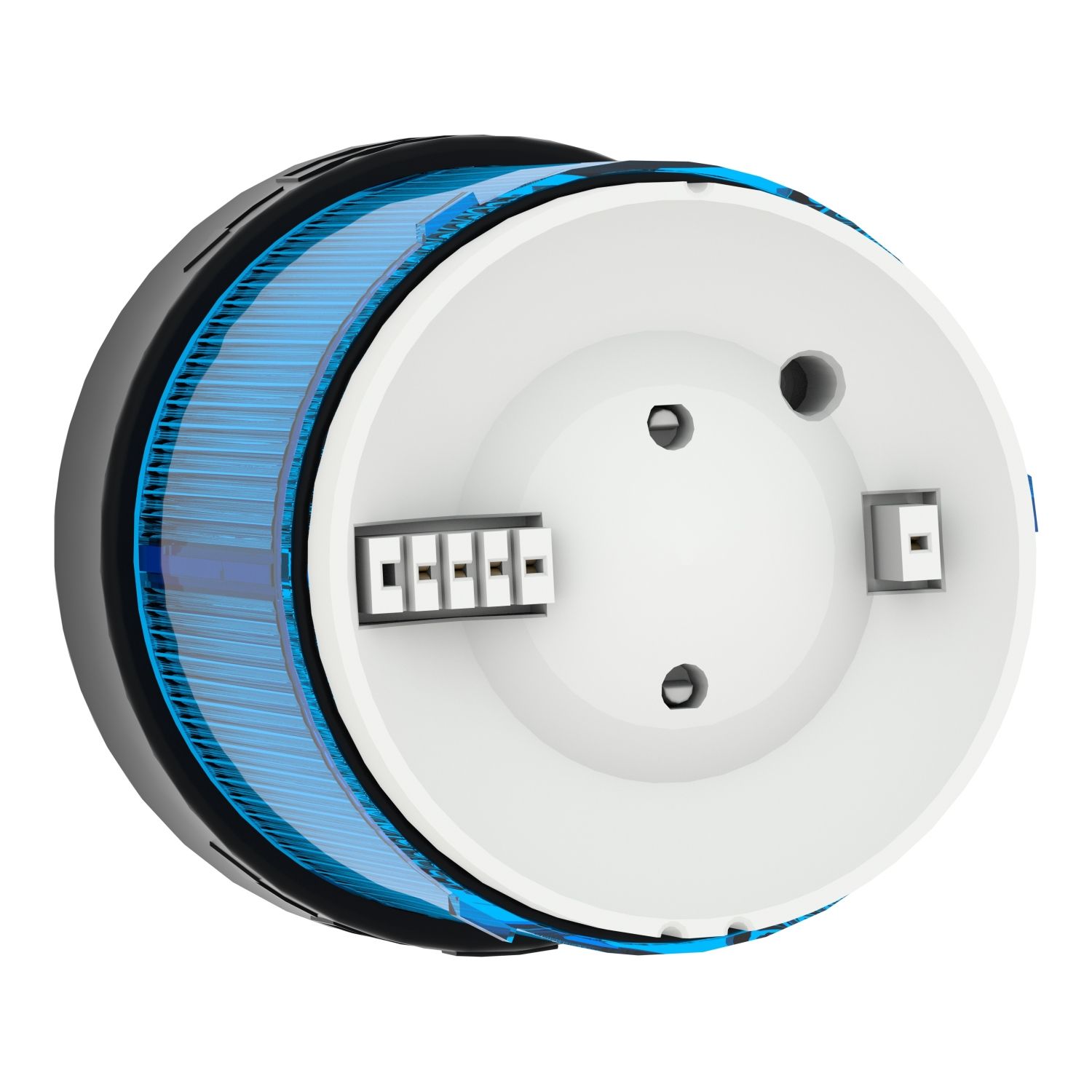

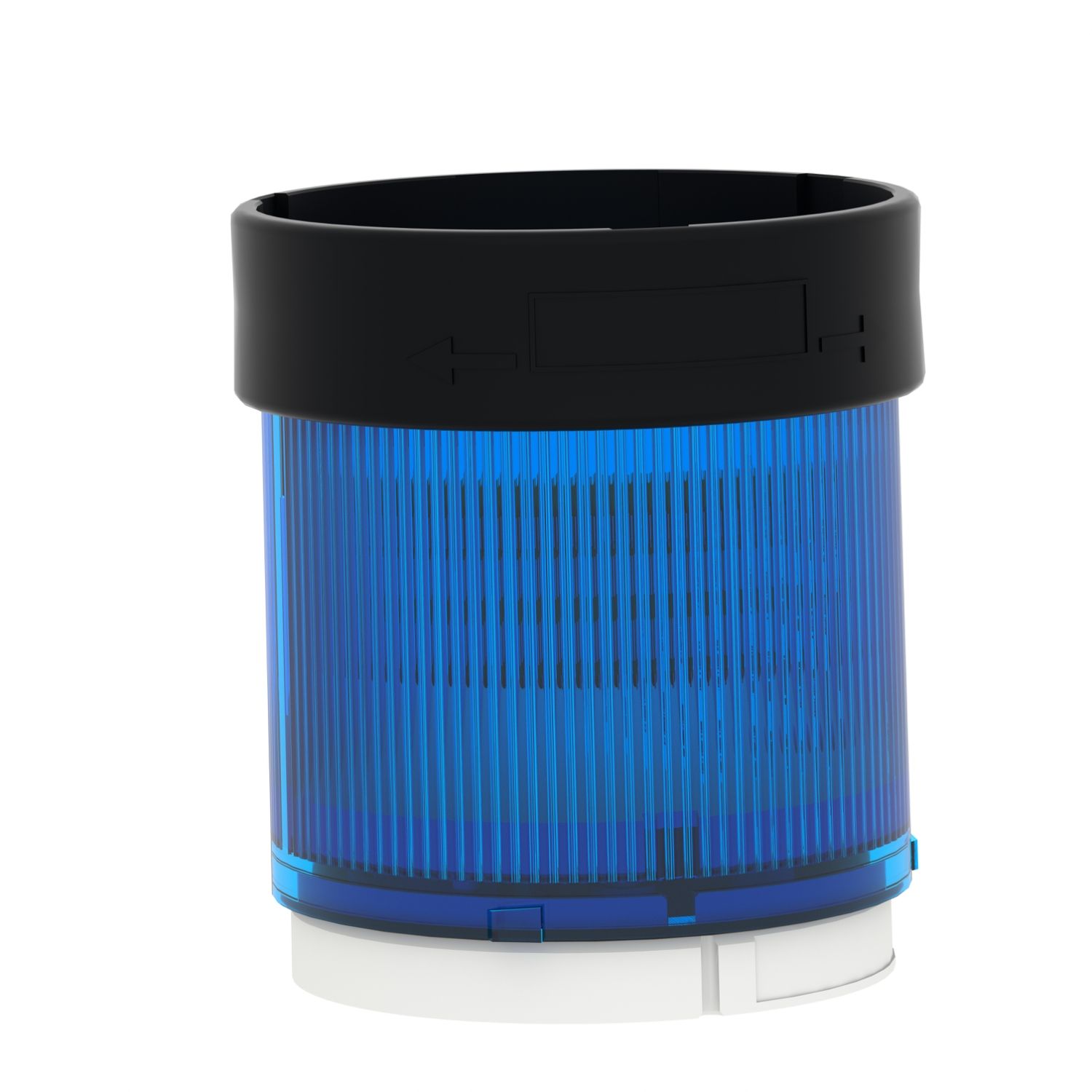

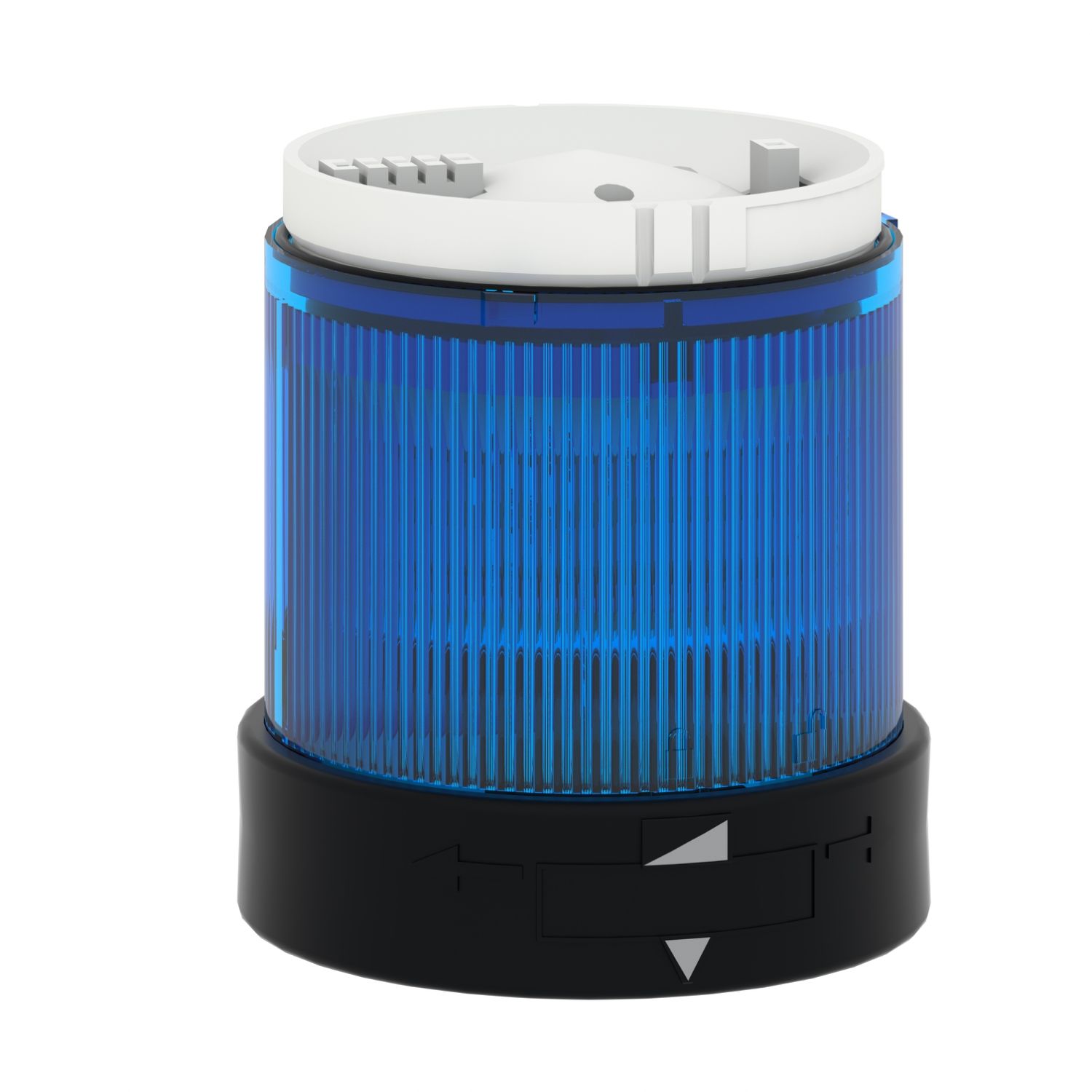

Picture of Harmony XVB, Indicator bank, illuminated unit, plastic, blue, 70mm, flashing, for bulb or LED, 24V AC, 24...48V DC
Picture of Harmony XVB, Indicator bank, illuminated unit, plastic, blue, 70mm, flashing, for bulb or LED, 24V AC, 24...48V DC
Picture of Harmony XVB, Indicator bank, illuminated unit, plastic, blue, 70mm, flashing, for bulb or LED, 24V AC, 24...48V DC
Picture of Harmony XVB, Indicator bank, illuminated unit, plastic, blue, 70mm, flashing, for bulb or LED, 24V AC, 24...48V DC
Picture of Harmony XVB, Indicator bank, illuminated unit, plastic, blue, 70mm, flashing, for bulb or LED, 24V AC, 24...48V DC
Picture of Harmony XVB, Indicator bank, illuminated unit, plastic, blue, 70mm, flashing, for bulb or LED, 24V AC, 24...48V DC
Picture of Harmony XVB, Indicator bank, illuminated unit, plastic, blue, 70mm, flashing, for bulb or LED, 24V AC, 24...48V DC
SKU:

XVBC4B6

Harmony XVB, Indicator bank, illuminated unit, plastic, blue, 70mm, flashing, for bulb or LED, 24V AC, 24...48V DC

Old price: $382.25 INC GST
$298.16 INC GST
Available for Shipping : 21-Jan-2026
Harmony XVB, Indicator bank, illuminated unit, plastic, blue, 70mm, flashing, for bulb or LED, 24V AC, 24...48V DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 21-Jan-2026
CAD

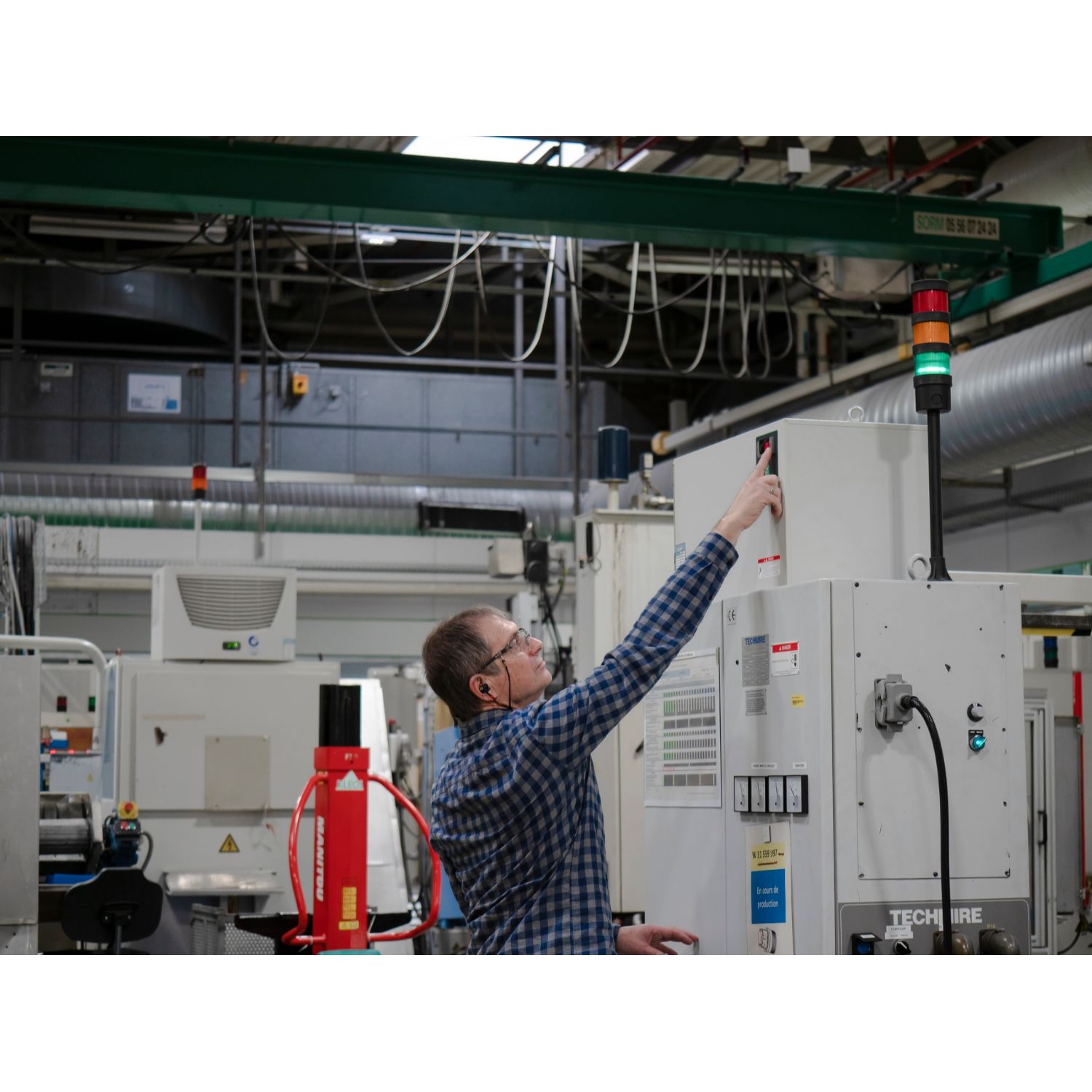

Image of product in real life situation
Circularity Profile
Environmental Disclosure
User guide
Declaration of conformity
Instruction sheet
Catalog
Product Page Link
Product Data Sheet
This blue illuminated unit is designed to be connected with base to create complete tower light. Its integral LED offers a steady light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 24...48 V DC, 24 V AC
Beacon or indicator bank unit type illuminated unit
Bulb type incandescent, protected LED, incandescent with BA 15d base
Signalling type flashing
Material polycarbonate
Component name XVBC
Product or component type indicator bank
Light source bulb not included, blue
Mounting diameter 70 mm
Range of product Harmony XVB Universal
Complementary
CAD overall depth 70 mm
CAD overall width 70 mm
Assembly style customer assembly, up to 5 units
Flashing frequency 1-1 Hz
Nominal voltage limit 0.85...1.1 Un conforming to IEC 60947-5-1
[Ui] rated insulation voltage 250 V conforming to IEC 60947-1
Maximum power dissipation in W 7 W
Connections - terminals screw clamp terminals, <= 1 x 1.5 mm² with cable end
CAD overall height 63 mm
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1
Net weight 0.16 kg
Environment
Protective treatment TC
Electrical shock protection class class II on base unit conforming to IEC 61140, class I on support tube conforming to IEC 61140
NEMA degree of protection Type 4X conforming to UL (indoor)
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 on base unit conforming to IEC 60529, IP65 on fixing base XVBZ0. conforming to IEC 60529
Pollution degree 2
Standards EN/IEC 60947-5-1
Ambient air temperature for operation -25-50 °C: LED, -25-50 °C: incandescent
Product certifications UL 508, CSA C22-2 No 14, EAC, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.0 cm
Package 1 Width 8.0 cm
Package 1 Length 9.3 cm
Package 1 Weight 150.0 g
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.2 kg
