XPSUVN31AP

safety module, Harmony XPS, zero speed monitoring with time delay, 48 to 240V AC or DC, screw

$915.23
Available for Shipping : 10-Dec-2024
safety module, Harmony XPS, zero speed monitoring with time delay, 48 to 240V AC or DC, screw
Manufacturer: Schneider Electric

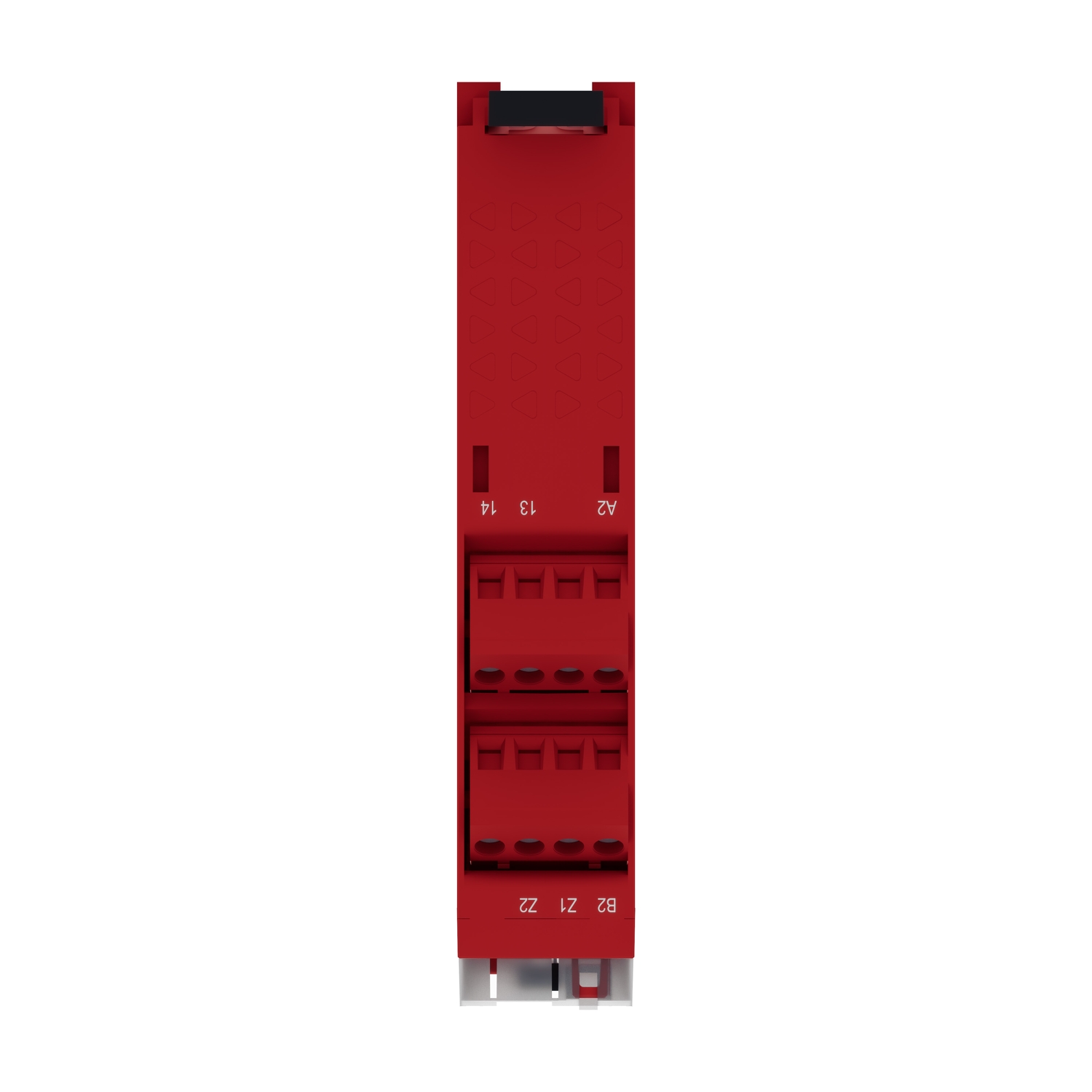

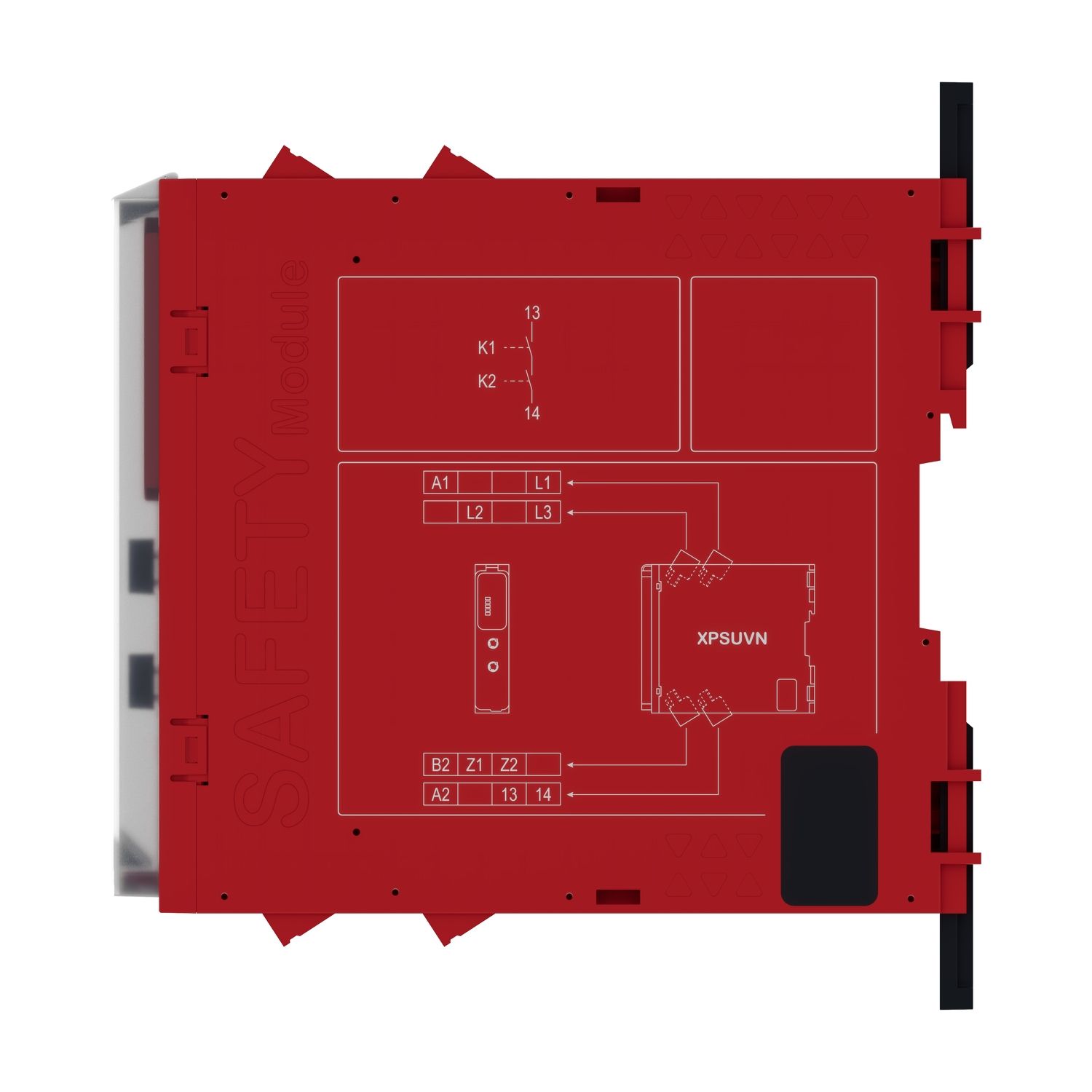

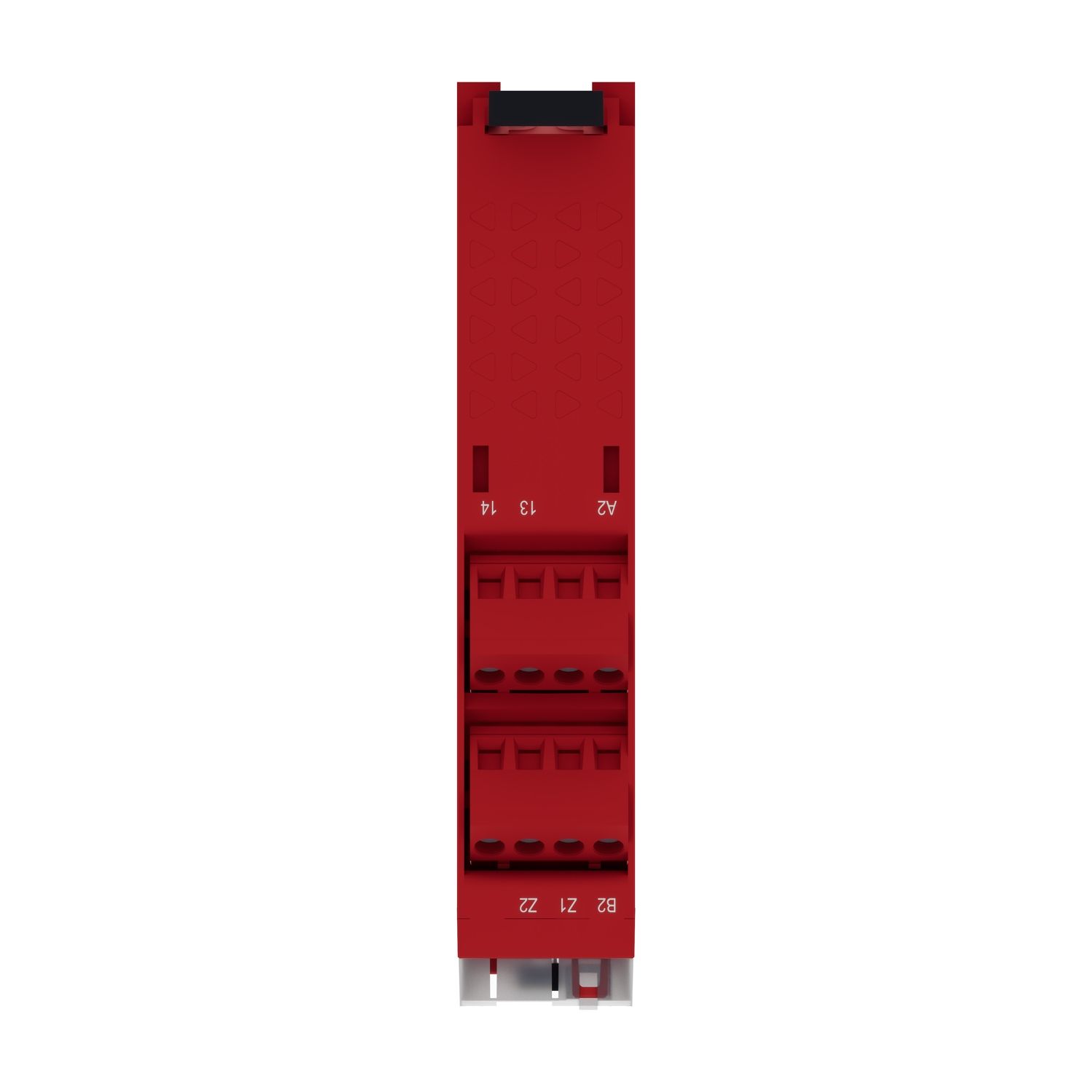

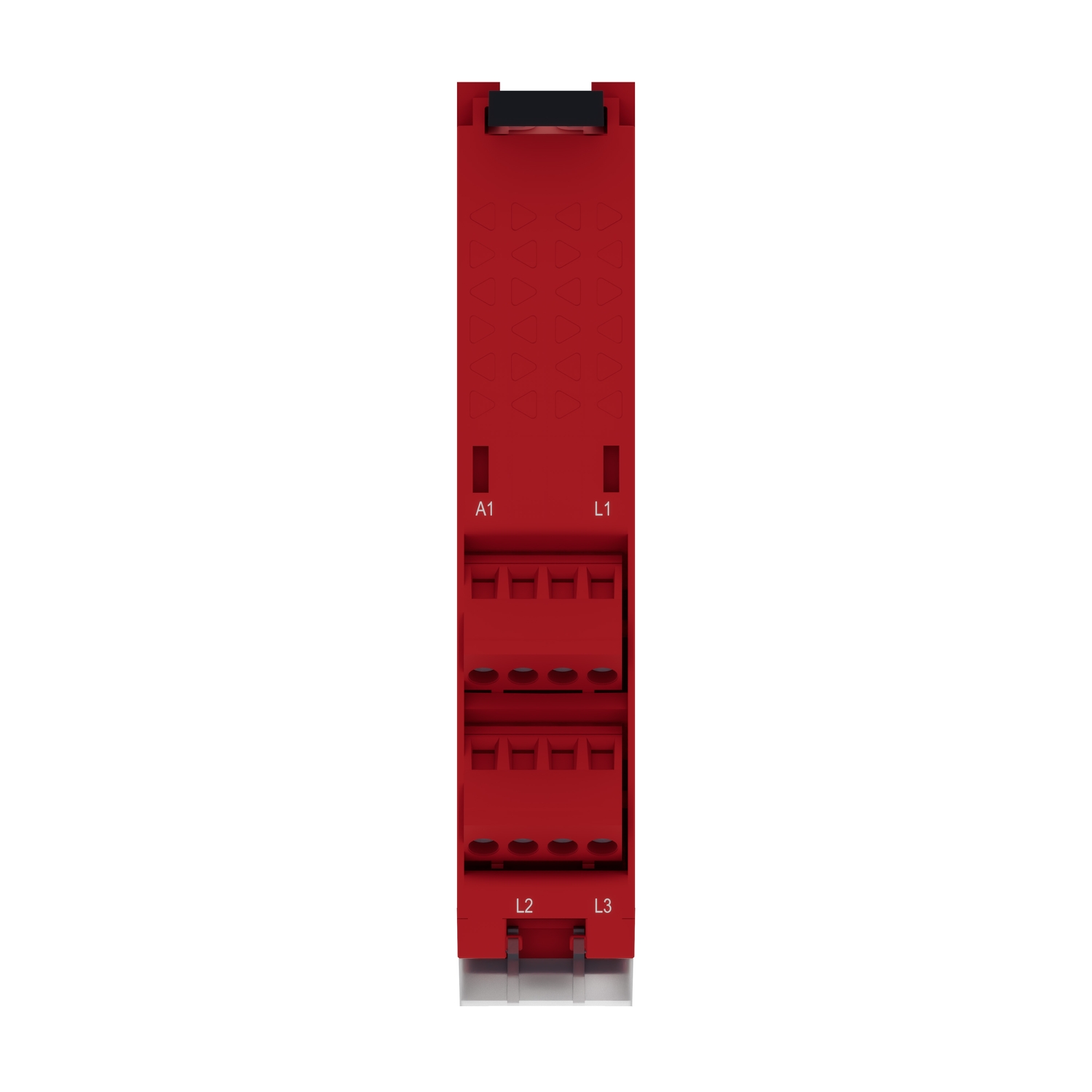

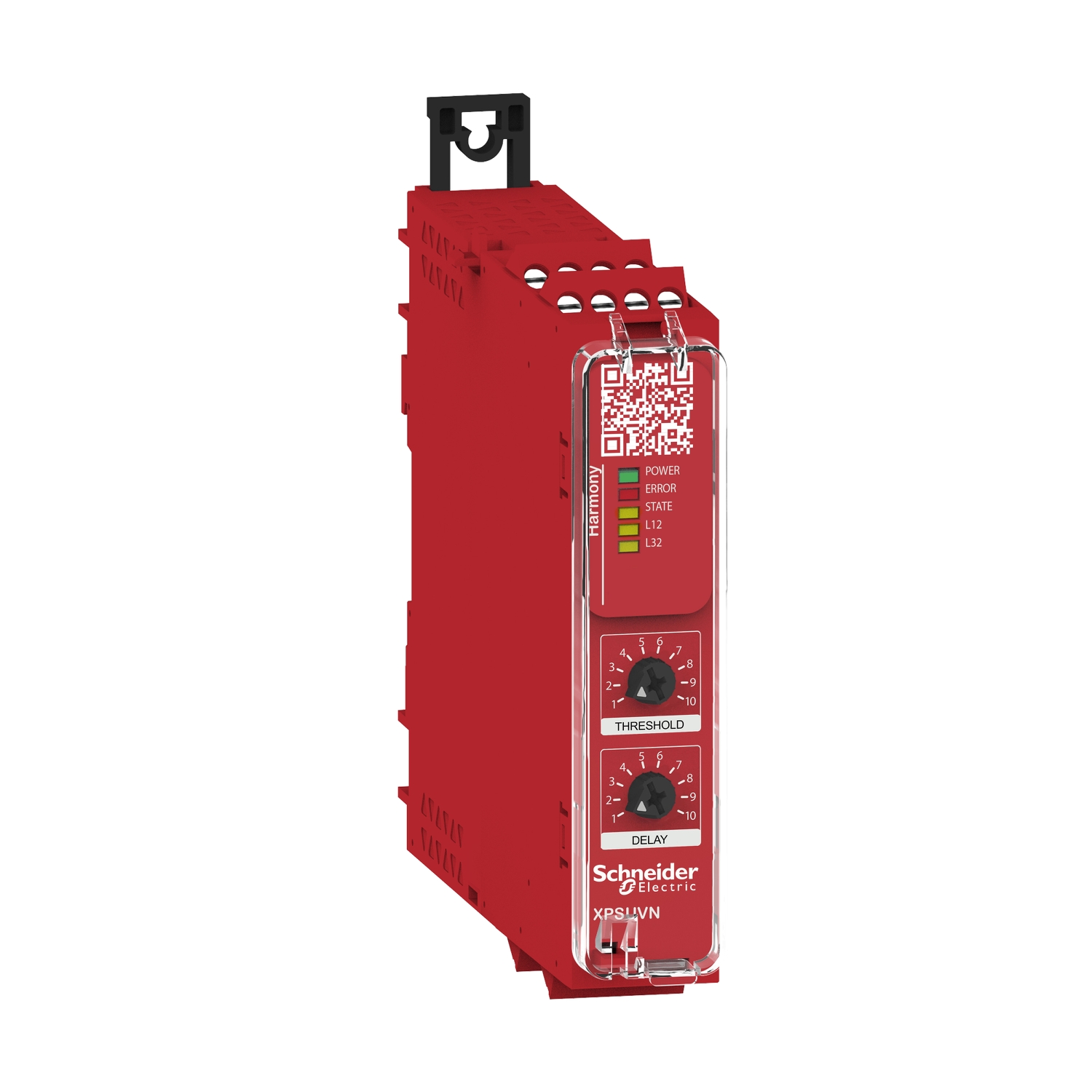

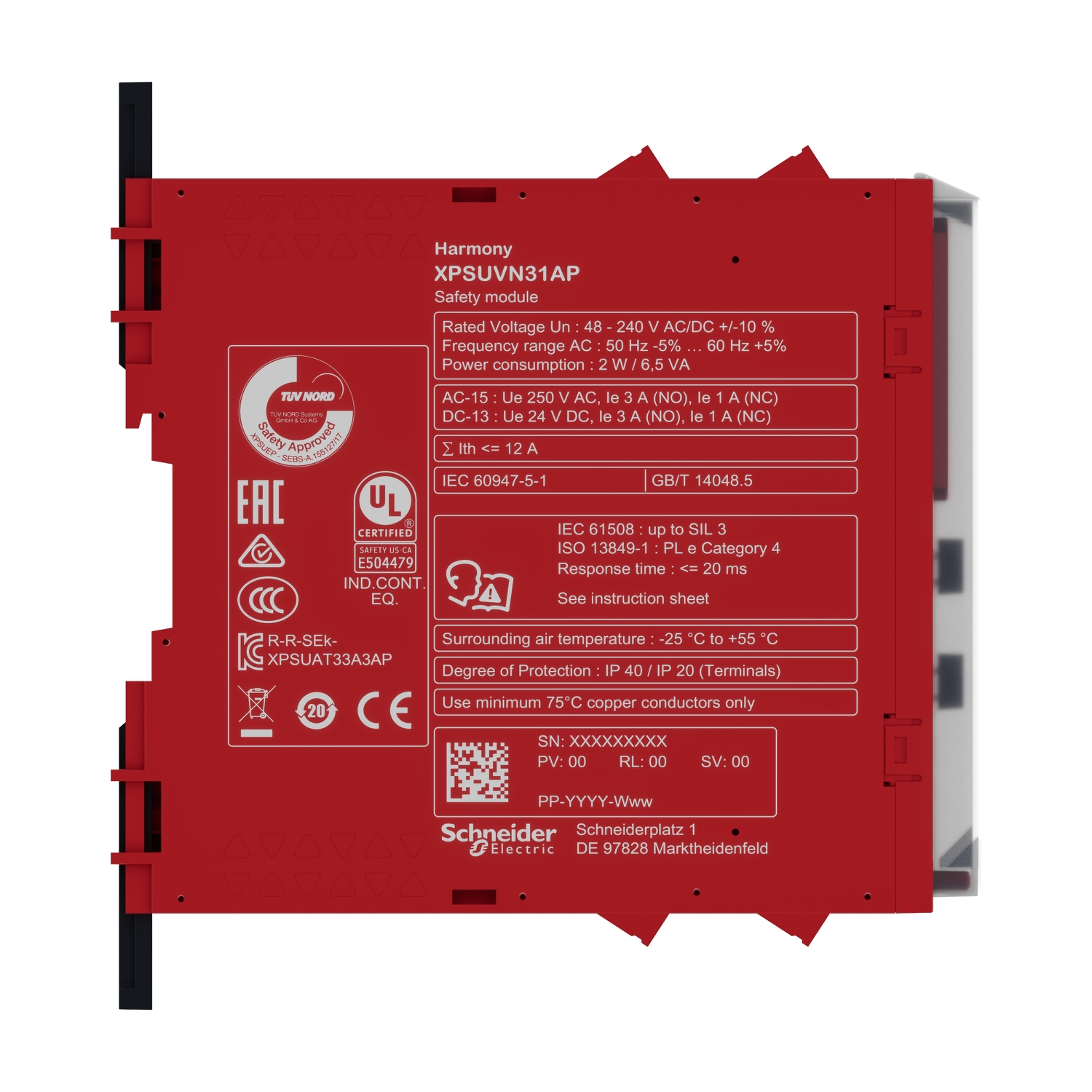

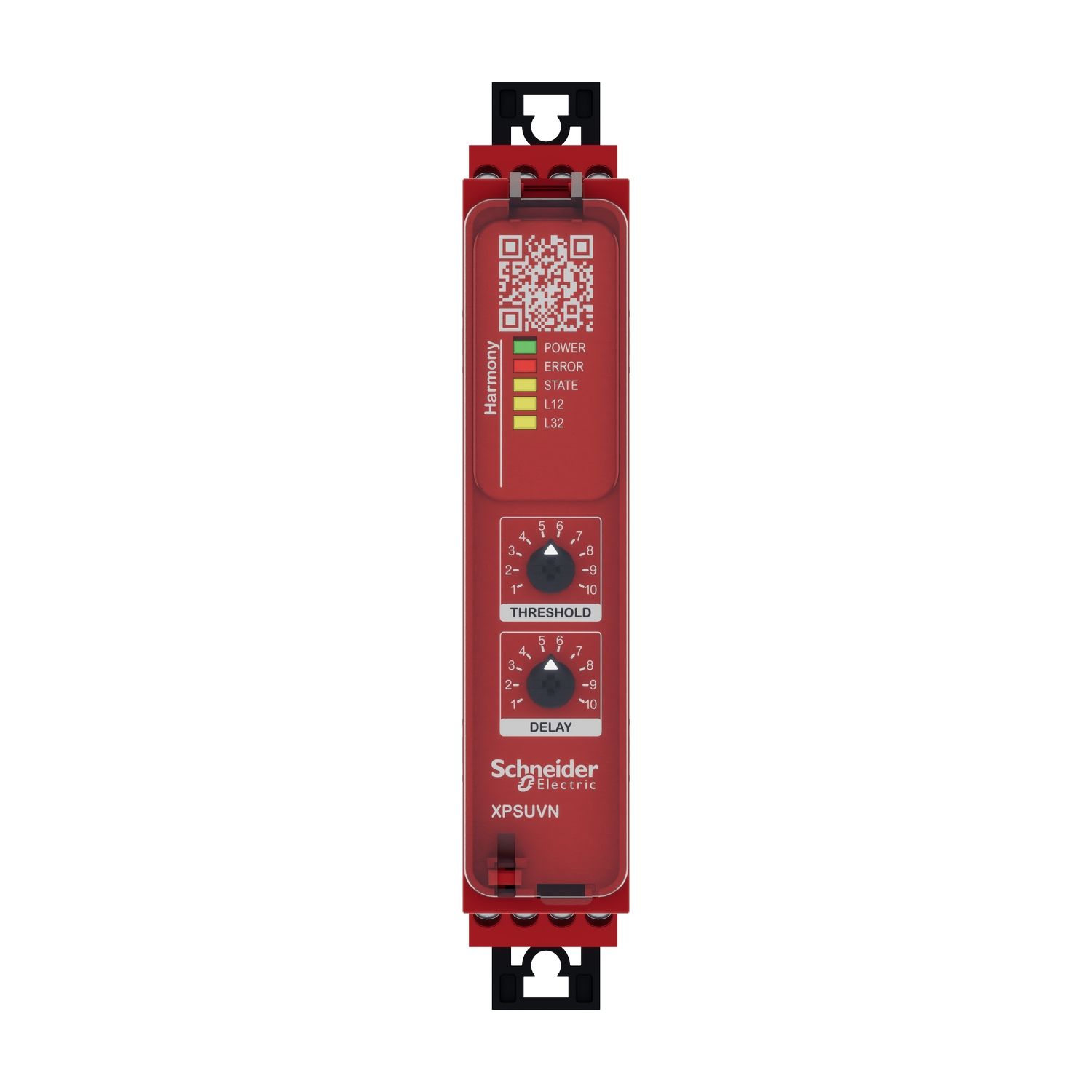

This safety relay is designed for zero speed monitoring with delayed access to dangerous area. The safety relay is powered with 48 to 240V AC/DC, and equipped with a screw removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds 3 safety inputs, 1 NO output configurable between 0,5s and 60s, and 2solid state diagnostic outputq with complete status information. The maximum safety level achieved by this safety relay is PLe/Category 3 conforming to ISO 13849-1, SILCL 3 conforming to IEC 62061 and SIL 3 conforming to IEC 61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC 60947-5-1, IEC 61508-1, IEC 61508-2/-3, ISO 13849-1, IEC 62061 functional safety standards, is certified by cULus, TÜV. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Universal is the first choice for a broad range of simple to mid-complex machines.

Products specifications

Attribute name Attribute value
Main
Safety reliability data type = B conforming to IEC 61508-1, SFF > 99% conforming to IEC 61508-1, PFHd = 2.44E-9 1/h conforming to IEC 61508-1, HFT = 1 conforming to IEC 61508-1, SFF > 99% conforming to IEC 62061, PFHd = 2.44E-9 1/h conforming to IEC 62061, HFT = 1 conforming to IEC 62061, PFHd = 2.44E-9 1/h conforming to ISO 13849-1, Dcavg = 98.9 % conforming to ISO 13849-1, MTTFd > 30 years conforming to ISO 13849-1
Safety module application for zero speed detection
Number of additional circuits 2 solid state outputs
Safety module name XPSUVN
Range of product Harmony Safety Automation
[Us] rated supply voltage 48...240 V AC/DC - 10...10 %
Safety level can reach SIL 3 for normally open relay contact conforming to IEC 61508, can reach SILCL 3 for normally open relay contact conforming to IEC 62061, can reach PL e/category 3 for normally open relay contact conforming to ISO 13849-1
Function of module controlling enegization to open of guard switch type XCSE, XCSLE, XCSLF, XCST, monitoring 3-phase motor supplied by servo drive, monitoring 3-phase motor supplied by variable speed drive, monitoring servo motor, monitoring dc motor, monitoring 3-phase motor with variable number of poles and star-delta starting, monitoring 3-phase motor with variable number of poles, monitoring 3-phase motor with star-delta starting, monitoring 3-phase motor
Output type relay, 1 NO circuit(s), volt-free
Product or component type safety module
Product certifications cULus, TÜV
Complementary
Input detection threshold 500 mV, 400 mV, 300 mV, 230 mV, 180 mV, 140 mV, 110 mV, 85 mV, 65 mV, 50 mV
Connections - terminals removable screw terminal block flexible with ferrule cable: 2 x 0.5...1.5 mm² with cable end, with bezel, removable screw terminal block flexible with ferrule cable: 2 x 0.25...1 mm² without cable end, with bezel, removable screw terminal block solid or flexible cable: 0.2...1.5 mm² twin conductor, removable screw terminal block flexible with ferrule cable: 0.25...2.5 mm² single conductor, removable screw terminal block solid or flexible cable: 0.2...2.5 mm²
[Ie] rated operational current 3 A DC-13 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A AC-15 for normally open relay contact, 5 A AC-1 for normally open relay contact
Associated fuse rating 6 A gG for relay output conforming to IEC 60947-1
Time delay 60 s, 35 s, 20 s, 12 s, 8 s, 5 s, 3 s, 2 s, 1 s, 0.5 s
Minimum output voltage 5 V for relay output
[Ith] conventional free air thermal current 6 A for NO relay output circuit
Height 100 mm
Depth 120 mm
Width 22.5 mm
Input voltage 690 V
Power consumption in VA 5.5 VA
[Ui] rated insulation voltage 400 V phase to earth (pollution degree 2) conforming to IEC 60947-1, 690 V phase to phase (pollution degree 2) conforming to IEC 60947-1
Standards IEC 62061 functional safety standard, ISO 13849-1 functional safety standard, IEC 61508-7 functional safety standard, IEC 61508-6 functional safety standard, IEC 61508-5 functional safety standard, IEC 61508-4 functional safety standard, IEC 61508-3 functional safety standard, IEC 61508-2 functional safety standard, IEC 61508-1 functional safety standard, IEC 60947-5-1
Net weight 0.2 kg
[Uimp] rated impulse withstand voltage 4 kV overvoltage category II conforming to IEC 60947-1
Local signalling LED yellow with L32 marking for input line comparison, LED yellow with L12 marking for input line comparison, LED yellow with state marking for status, LED red with error marking for error, LED green with power marking for power ON
Minimum output current 10 mA for relay output
Power consumption in W 2.5 W
Mounting support 35 mm symmetrical DIN rail
Environment
Relative humidity 5-95 % non-condensing
Ambient air temperature for storage -40-70 °C
IP degree of protection IP54 (mounting area) conforming to IEC 60529, IP40 (housing) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529
Ambient air temperature for operation -25-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.5 cm
Package 1 Width 13.5 cm
Package 1 Length 15.5 cm
Package 1 Weight 272.0 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 5.075 kg
