SKU:

XPSUAF33AP

safety module, Harmony XPSU, Cat 4, potential free 2 NC, NO NC, 2 PNP, 48 to 240V AC or DC, screw

$360.66
Available for Shipping : 09-Jan-2025
safety module, Harmony XPSU, Cat 4, potential free 2 NC, NO NC, 2 PNP, 48 to 240V AC or DC, screw
Manufacturer: Schneider Electric

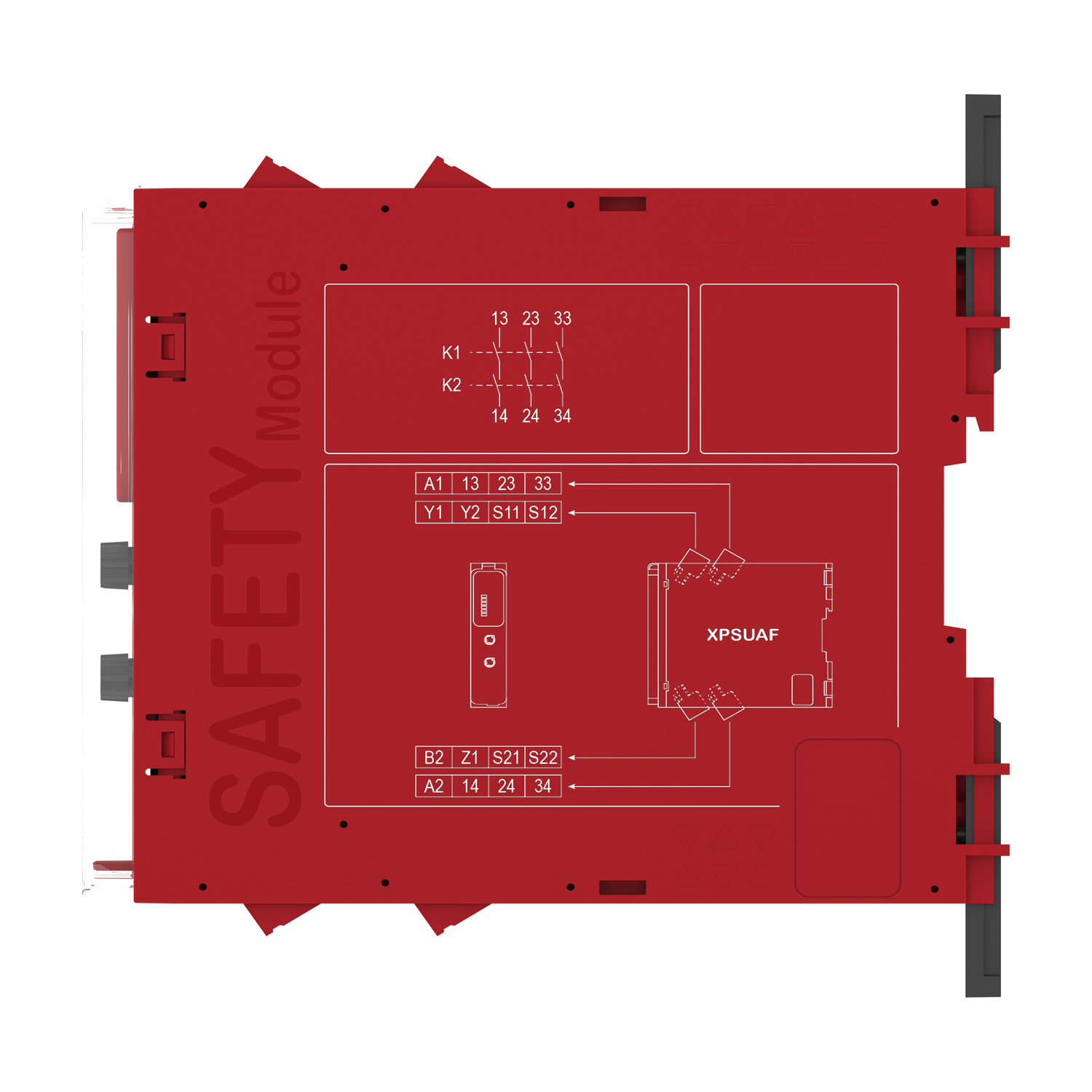

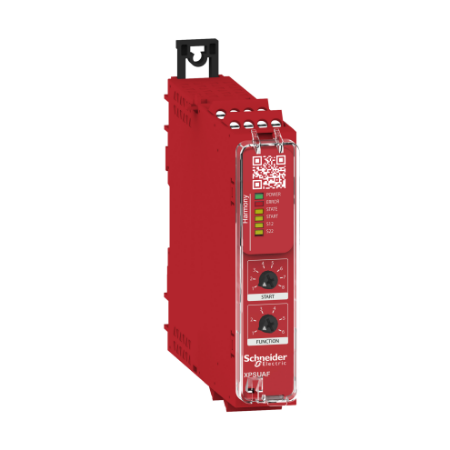

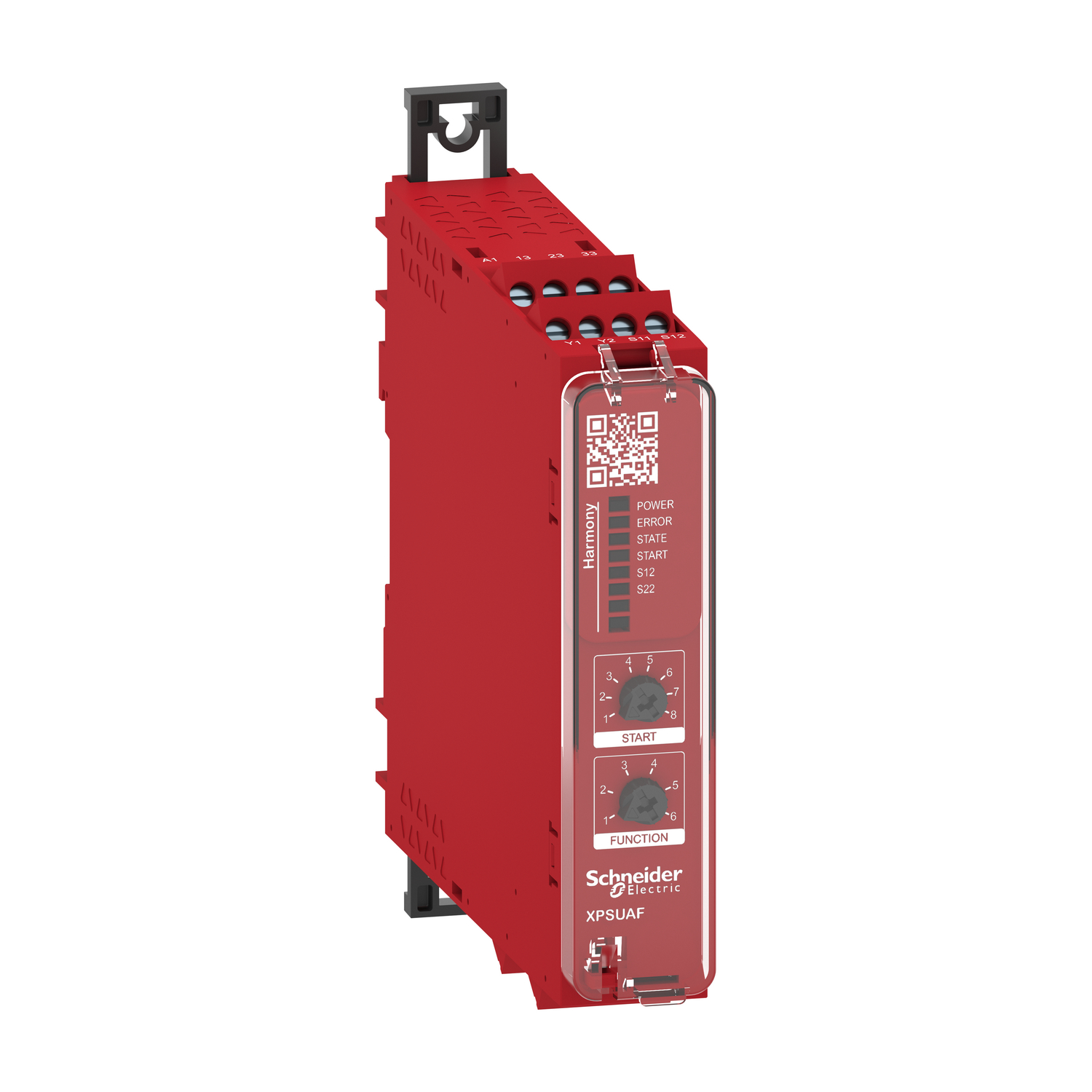

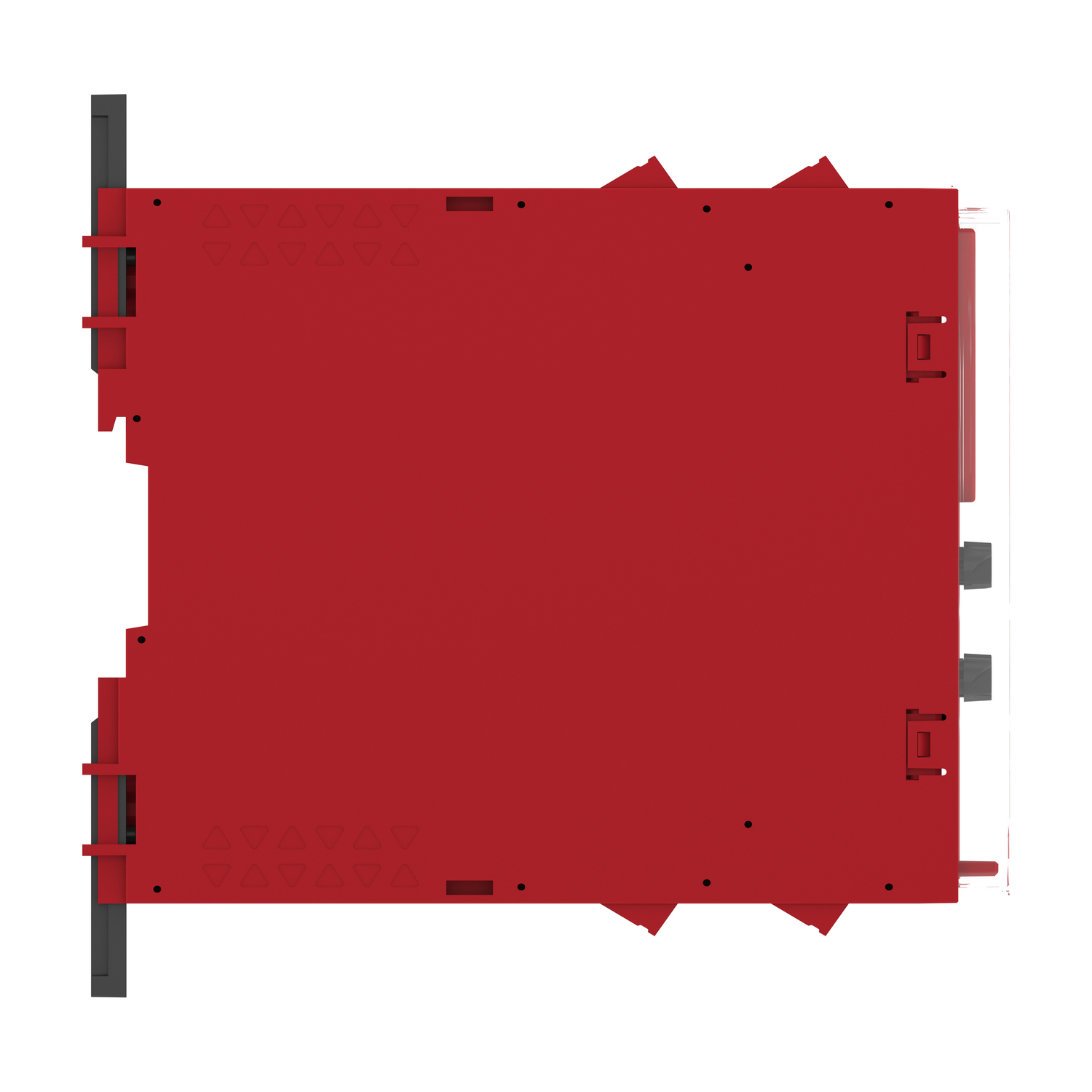

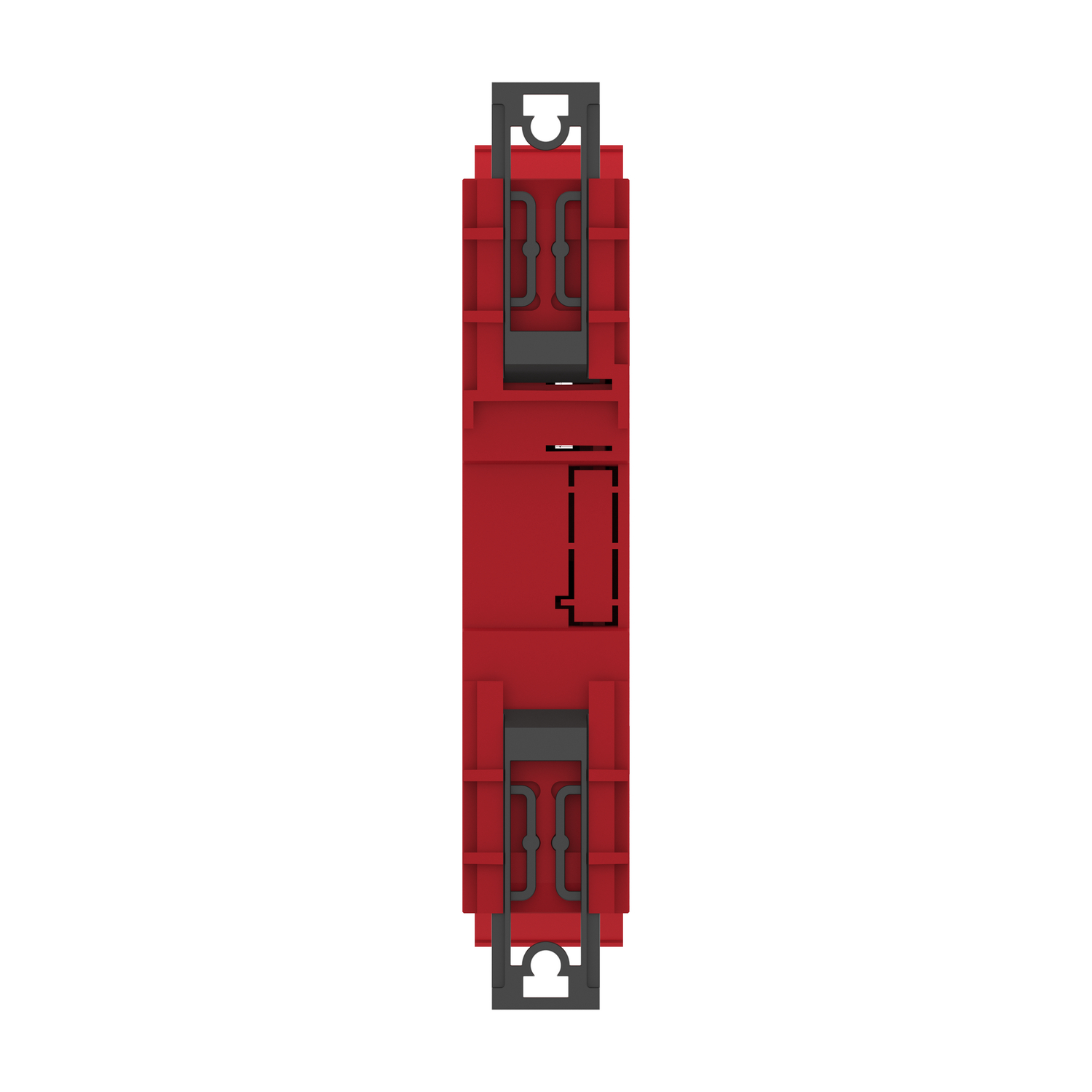

This safety relay is designed for monitoring Emergency stop, Guard switch, Magnetic switch, Proximity safety switch, PNP sensor, RFID safety switch or Safety light curtain. The safety relay is powered with 48-240V AC/DC, and equipped with a screw removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds 2 safety inputs, 3 ON/OFF configurable pulsed outputs, 3 NO safety outputs, and 1 solid state diagnostic output with complete status information. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO 13849-1, SILC L 3 conforming to IEC 62061, and SIL 3 conforming to IEC 61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC60947-5-1, IEC61508-1/2/3, ISO13849-1, IEC62061 functional safety standards, is certified by cULus, TĂśV, EAC, CCC and KC marking. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Universal is the first choice for a broad range of simple to mid-complex machines.

Products specifications

Attribute name Attribute value
Main
Electrical circuit type OSSD pair, antivalent pair, PNP pair, NC pair
Safety reliability data type = B conforming to IEC 61508-1, SFF > 99% conforming to IEC 61508-1, PFHd = 1.61E-09 conforming to IEC 61508-1, HFT = 1 conforming to IEC 61508-1, SFF > 99% conforming to IEC 62061, PFHd = 1.61E-09 conforming to IEC 62061, HFT = 1 conforming to IEC 62061, PFHd = 1.61E-09 conforming to ISO 13849-1, Dcavg >= 99 % conforming to ISO 13849-1, MTTFd > 30 years conforming to ISO 13849-1
Safety module application for emergency stop, guard and light curtain monitoring, monitoring antivalent contacts
Safety module name XPSUAF
Range of product Harmony Safety Automation
[Us] rated supply voltage 48...240 V AC/DC - 10...10 %
Safety level can reach SIL 3 conforming to IEC 61508, can reach SILCL 3 conforming to IEC 62061, can reach PL e/category 4 conforming to ISO 13849-1
Function of module proximity sensor monitoring, monitoring of electro-sensitive protection equipment (ESPE), RFID switch, light curtain monitoring, magnetic switch monitoring, monitoring 2 PNP sensors, guard monitoring with 1 or 2 limit switches, emergency stop button with 2 NC contacts

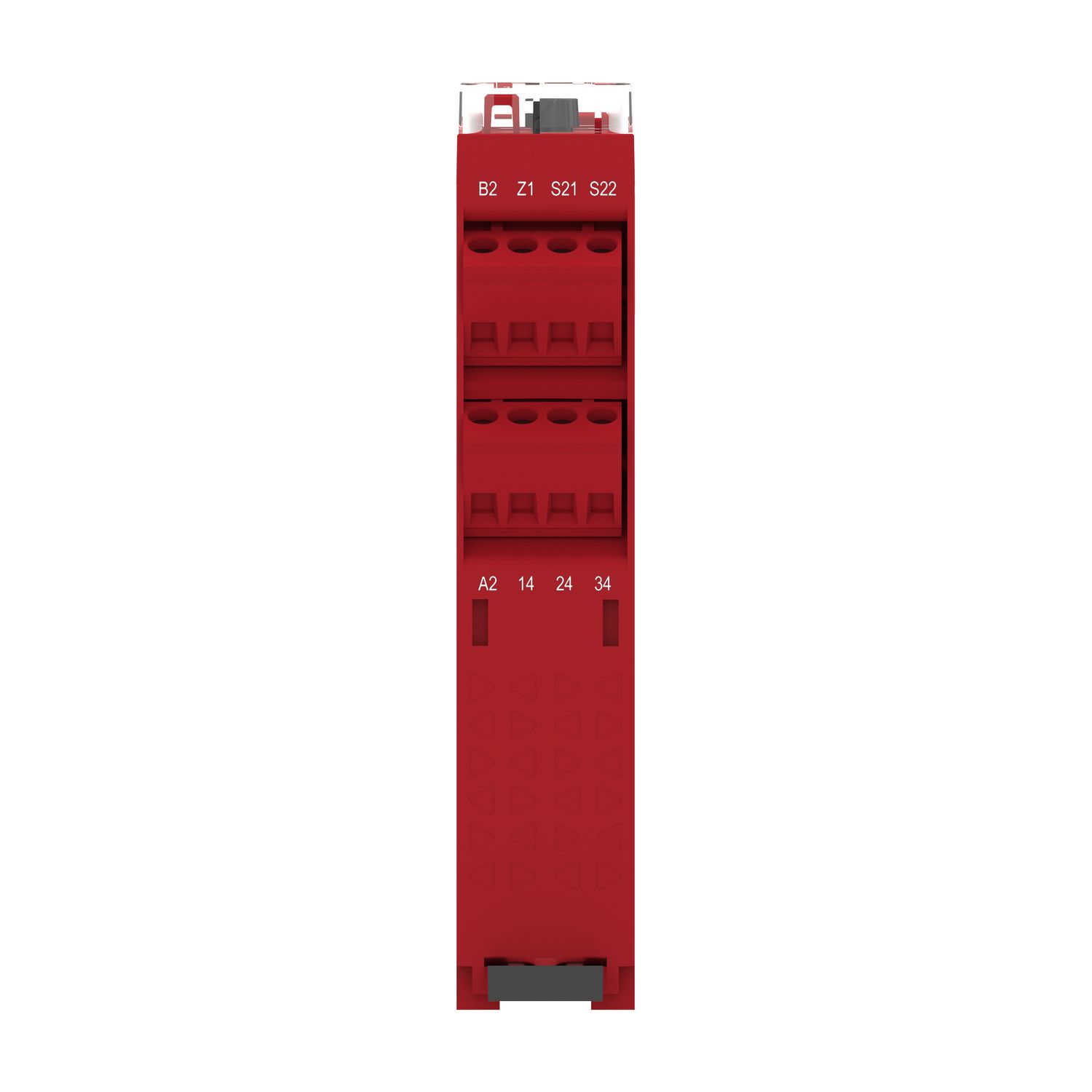

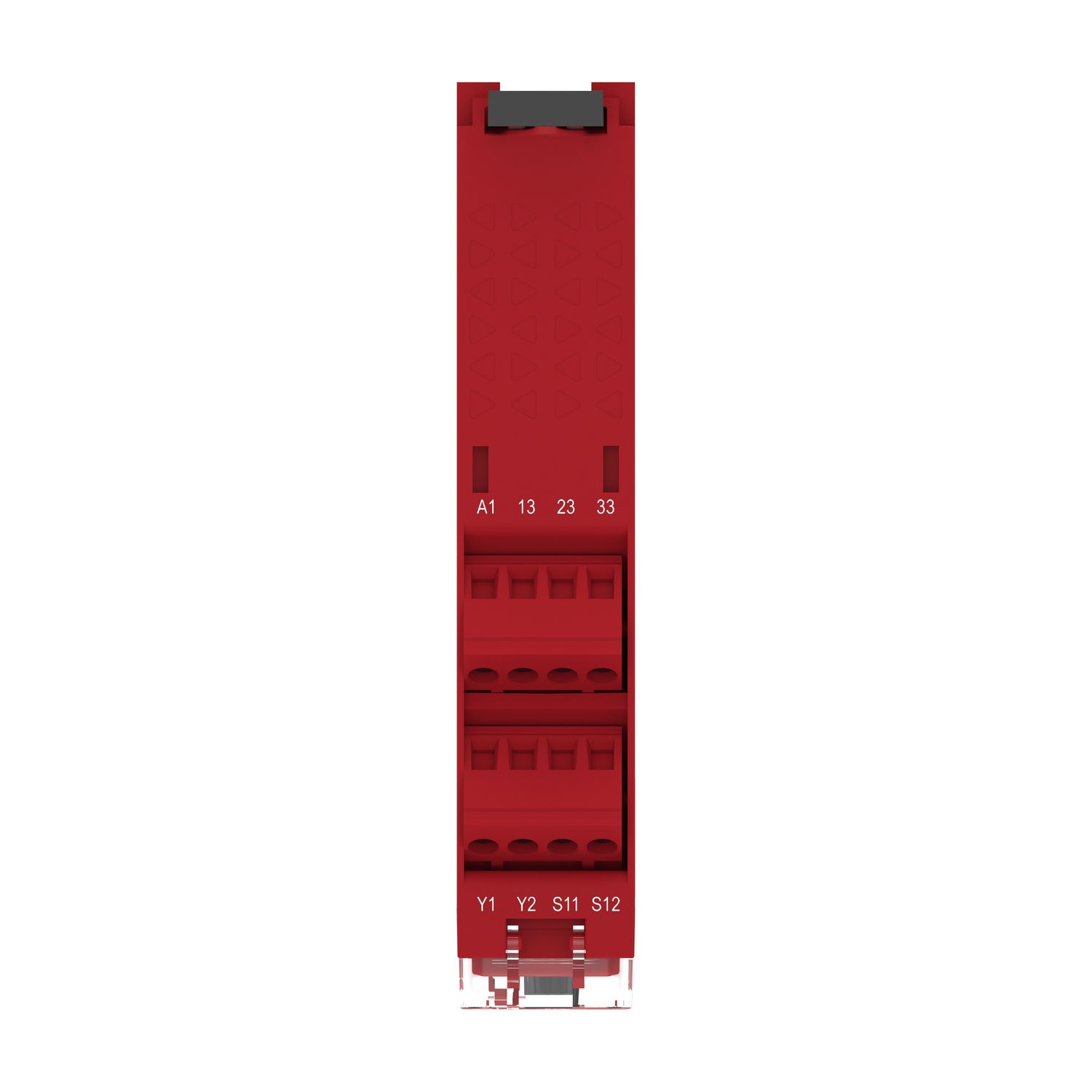

Connections - terminals removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel, removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel, removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor, removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor, removable screw terminal block, 0.2...2.5 mm² solid or flexible
Product or component type safety module
Complementary
Maximum response time on input open 20 ms
Synchronisation time between inputs 4 s, 2 s, 0.5 s
Input protection type internal, electronic
Maximum line resistance 500 Ohm
Power consumption in W 3.0 W 48 V DC
Auxiliary contact composition 3 NO
[Ie] rated operational current 3 A DC-13 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A AC-15 for normally open relay contact, 5 A AC-1 for normally open relay contact
Power consumption in VA 6.5 VA 240 V AC 50/60 Hz
Input compatibility 3-wire proximity sensors PNP, OSSD pair conforming to IEC 61496-1-2, antivalent pair conforming to ISO 14119, normally closed circuit conforming to ISO 13850, mechanical contact conforming to ISO 14119, XC limit switch conforming to ISO 14119, normally closed circuit conforming to ISO 14119
Number of inputs 2 safety input 24 V DC 5
Associated fuse rating 10 A gG for NO relay output circuit conforming to IEC 60947-1
Input/output type semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related
Minimum output voltage 15 V for relay output
Height 100 mm
Number of outputs 3 on/off configurable pulsed output
Depth 120 mm
Width 22.5 mm

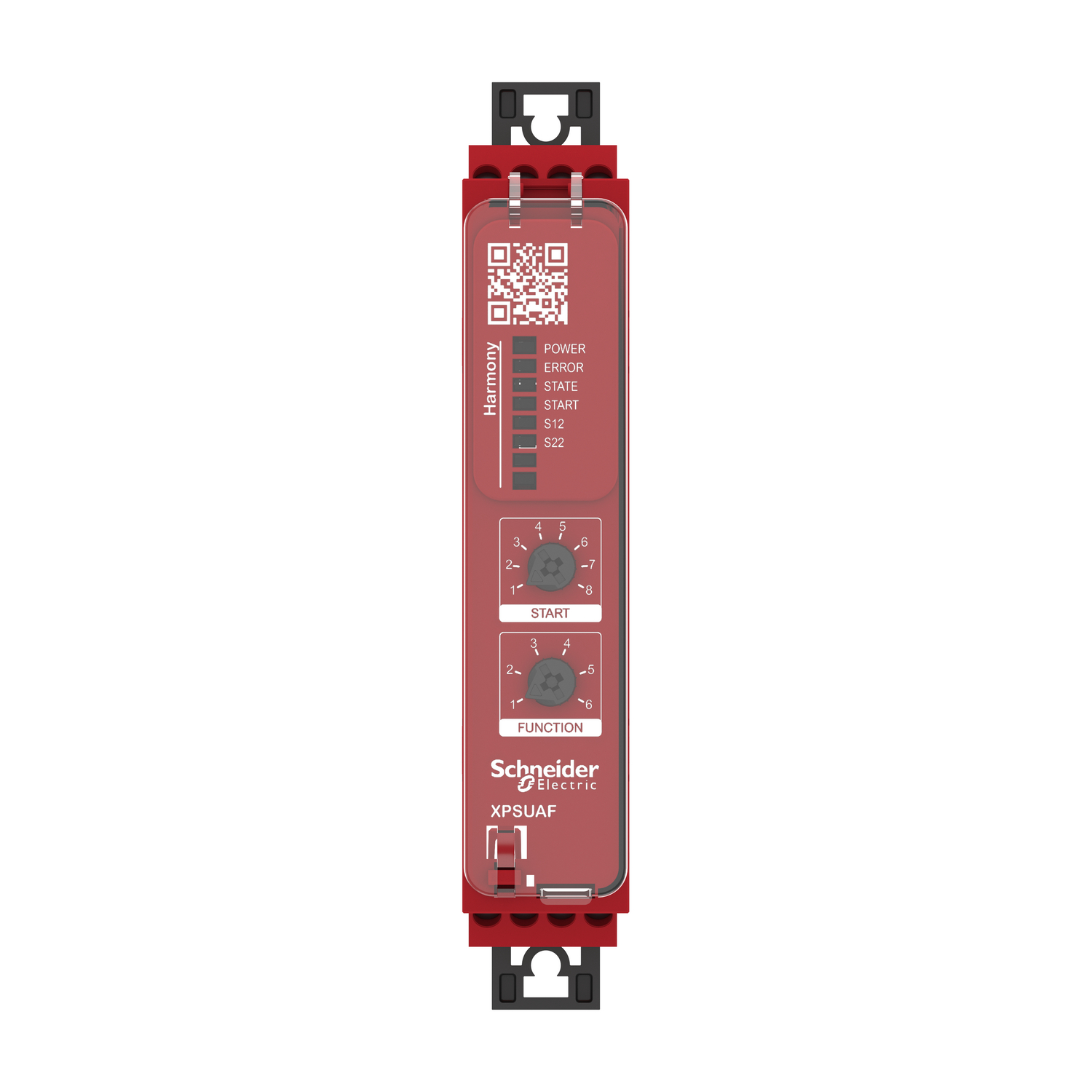

Local signalling LED (yellow) for safety input S22, LED (yellow) for safety input S12, LED (yellow) for safety status, LED (yellow) for start, LED (red) for error, LED (green) for power ON
[Ui] rated insulation voltage 250 V (pollution degree 2) conforming to IEC 60947-1
Type of start automatic/manual/monitored
Net weight 0.200 kg
[Uimp] rated impulse withstand voltage 4 kV overvoltage category II conforming to IEC 60947-1
[Ith] conventional free air thermal current 8 A
Minimum output current 10 mA for relay output

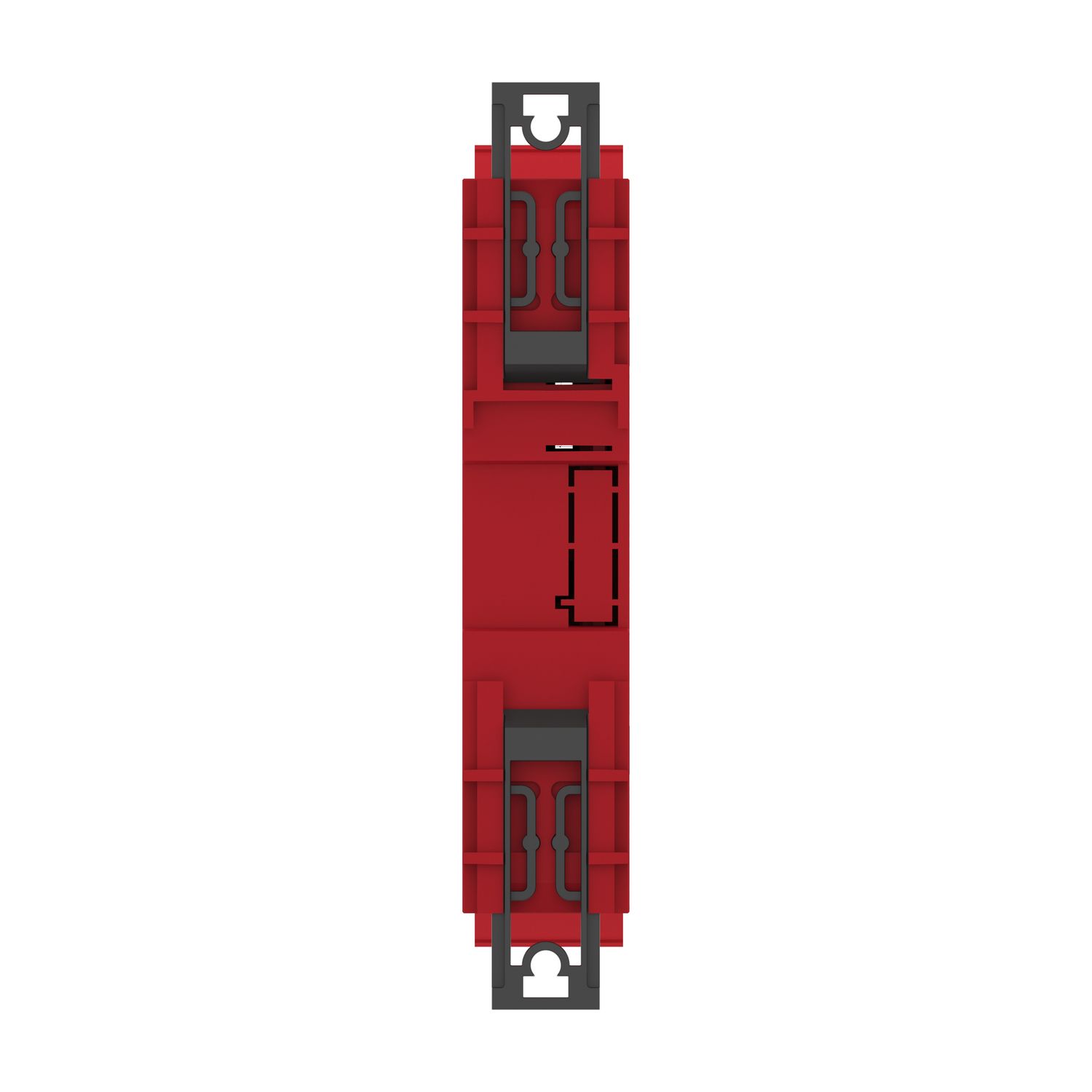

Mounting support 35 mm symmetrical DIN rail
Environment
Relative humidity 5-95 % non-condensing
Ambient air temperature for storage -25-85 °C
IP degree of protection IP54 (mounting area) conforming to IEC 60529, IP40 (housing) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529
Standards IEC 62061 functional safety standard, ISO 13849-1 functional safety standard, IEC 61508-7 functional safety standard, IEC 61508-6 functional safety standard, IEC 61508-5 functional safety standard, IEC 61508-4 functional safety standard, IEC 61508-3 functional safety standard, IEC 61508-2 functional safety standard, IEC 61508-1 functional safety standard, IEC 60947-5-1
Product certifications cULus, TÜV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.5 cm
Package 1 Width 13.7 cm
Package 1 Length 15.5 cm
Package 1 Weight 286.0 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 5.293 kg
