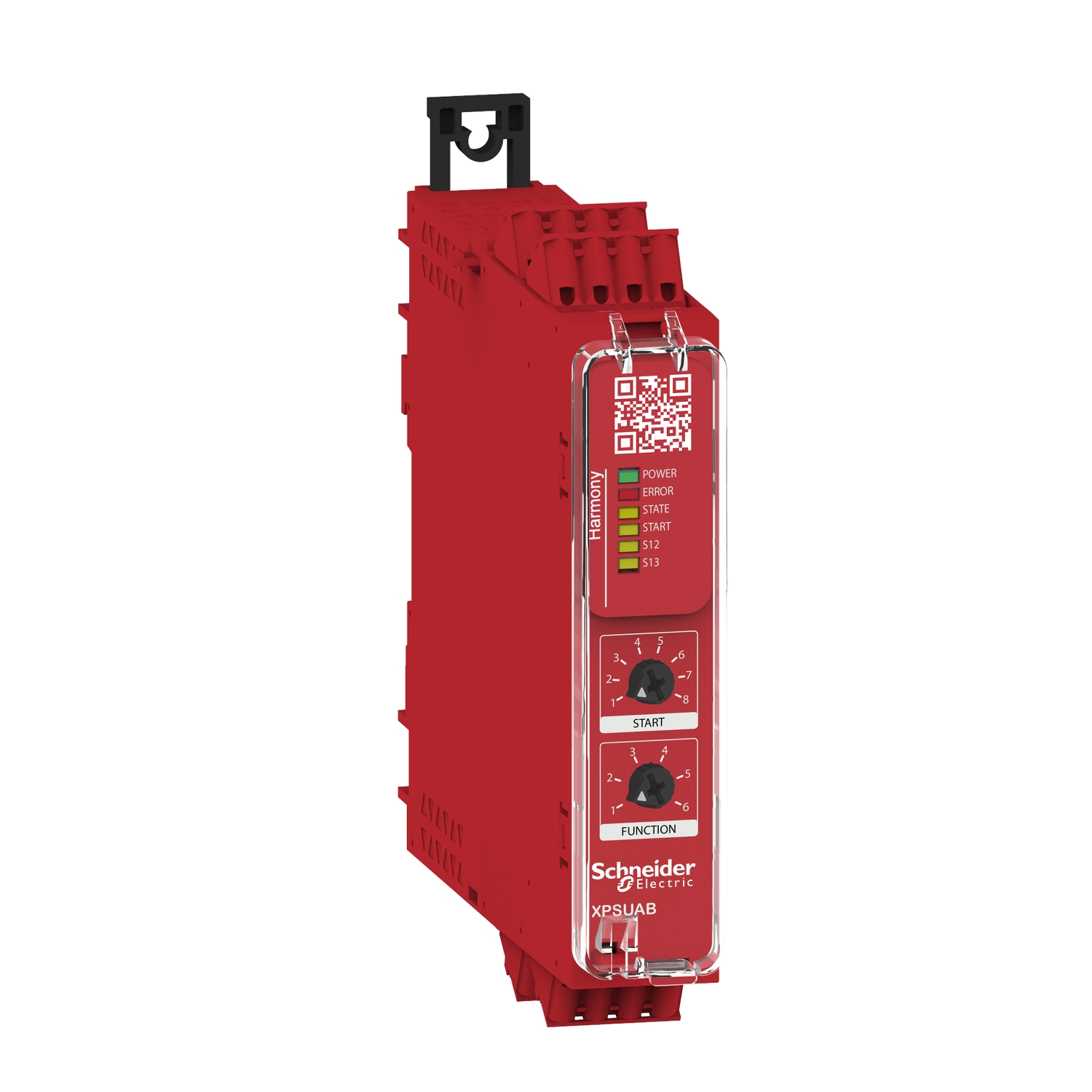

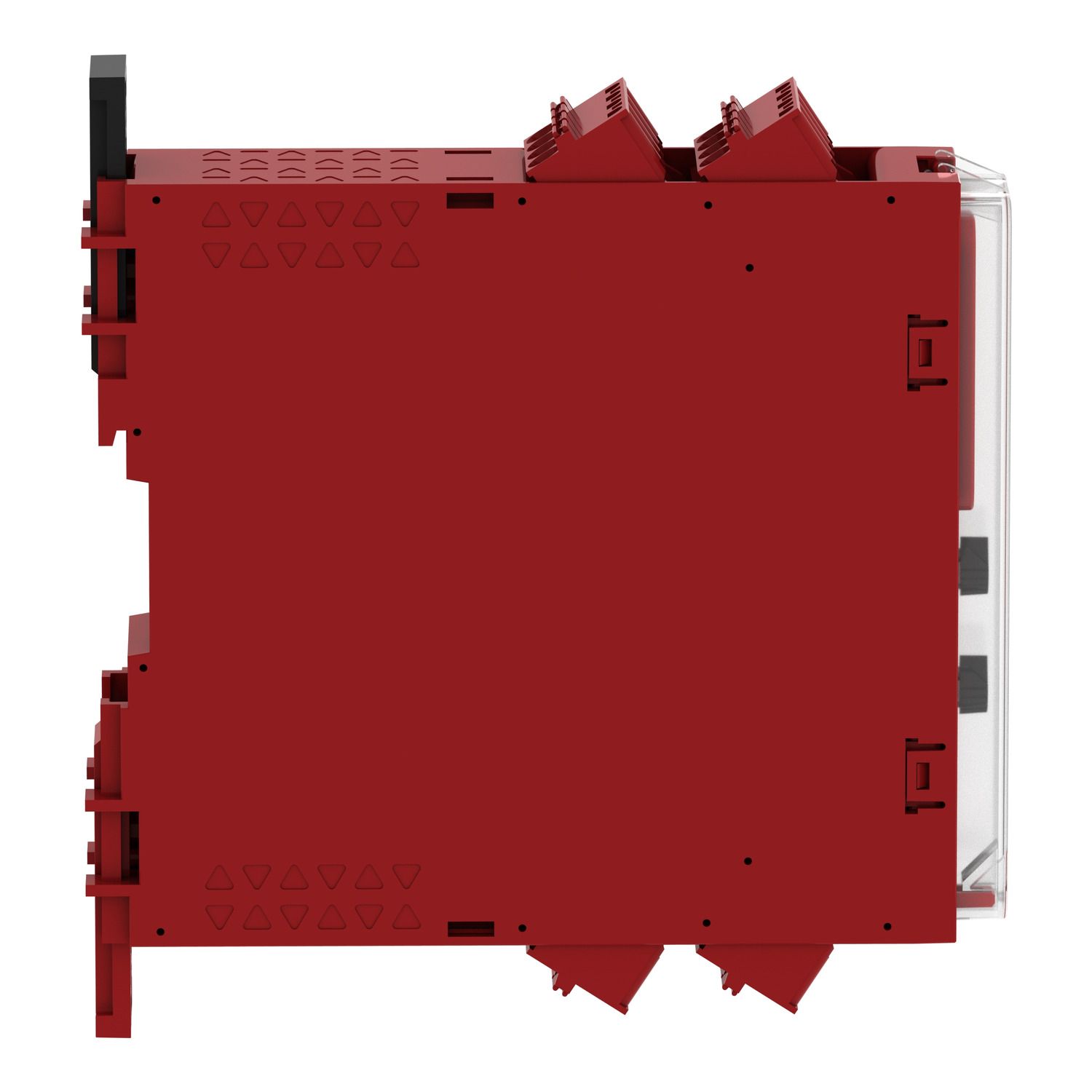

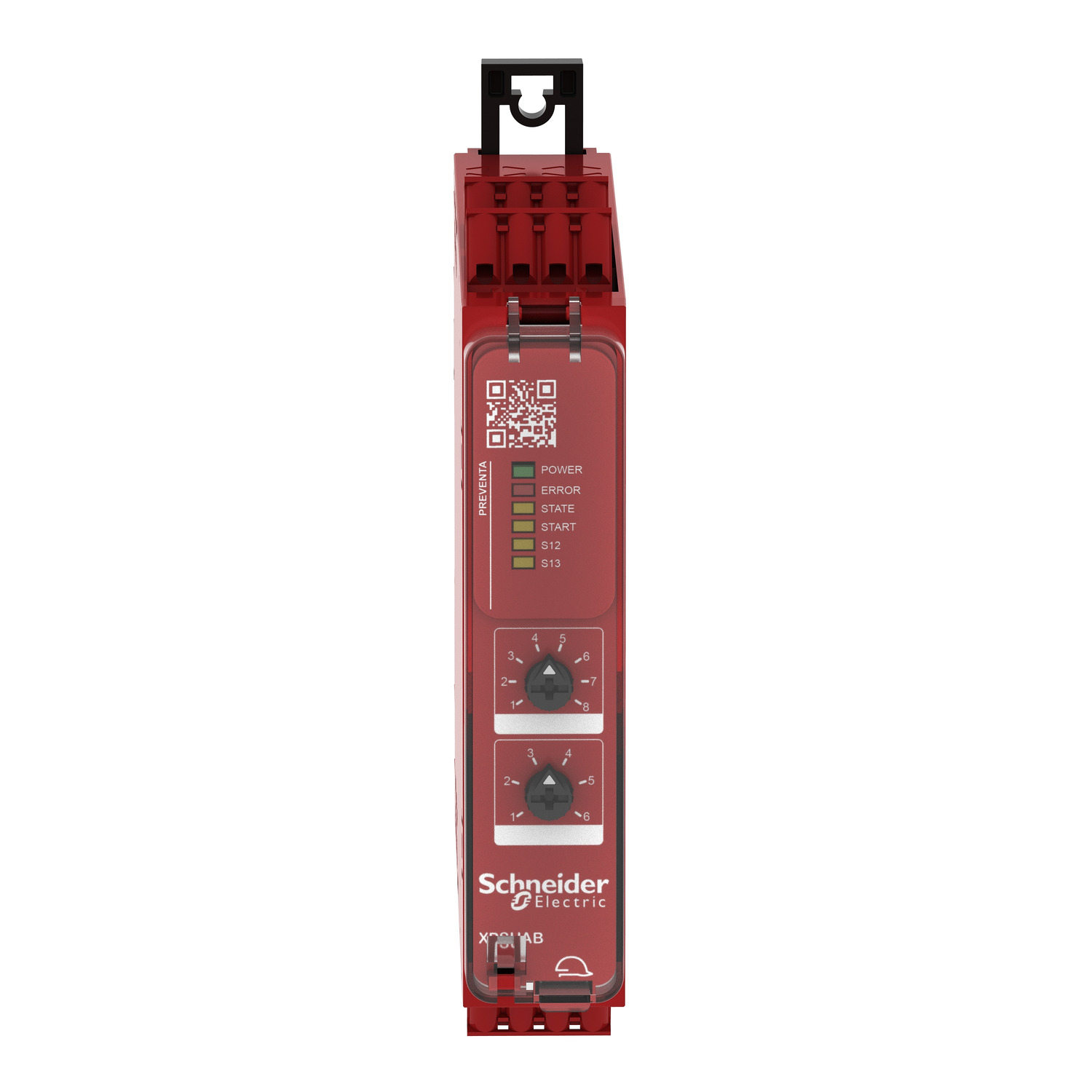

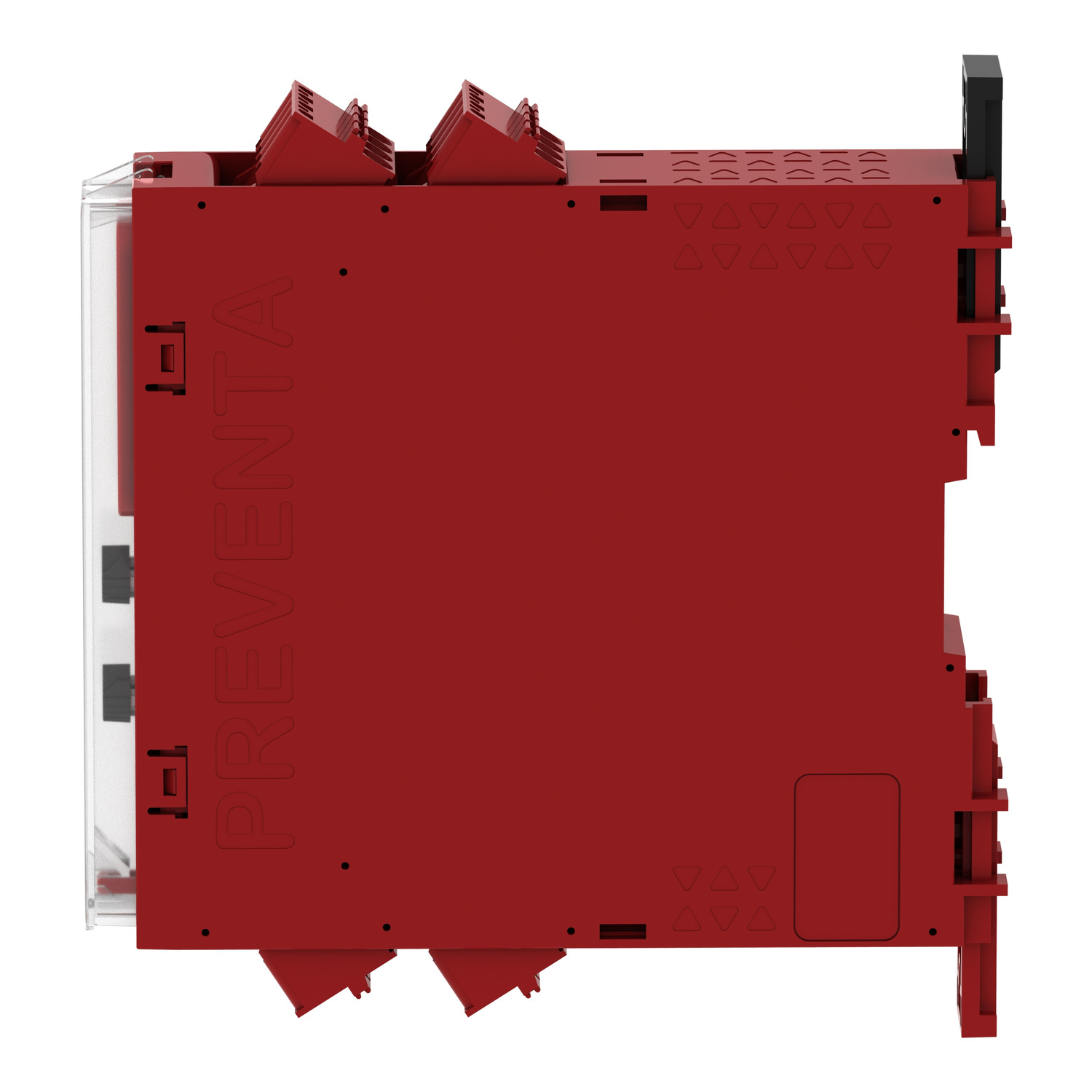

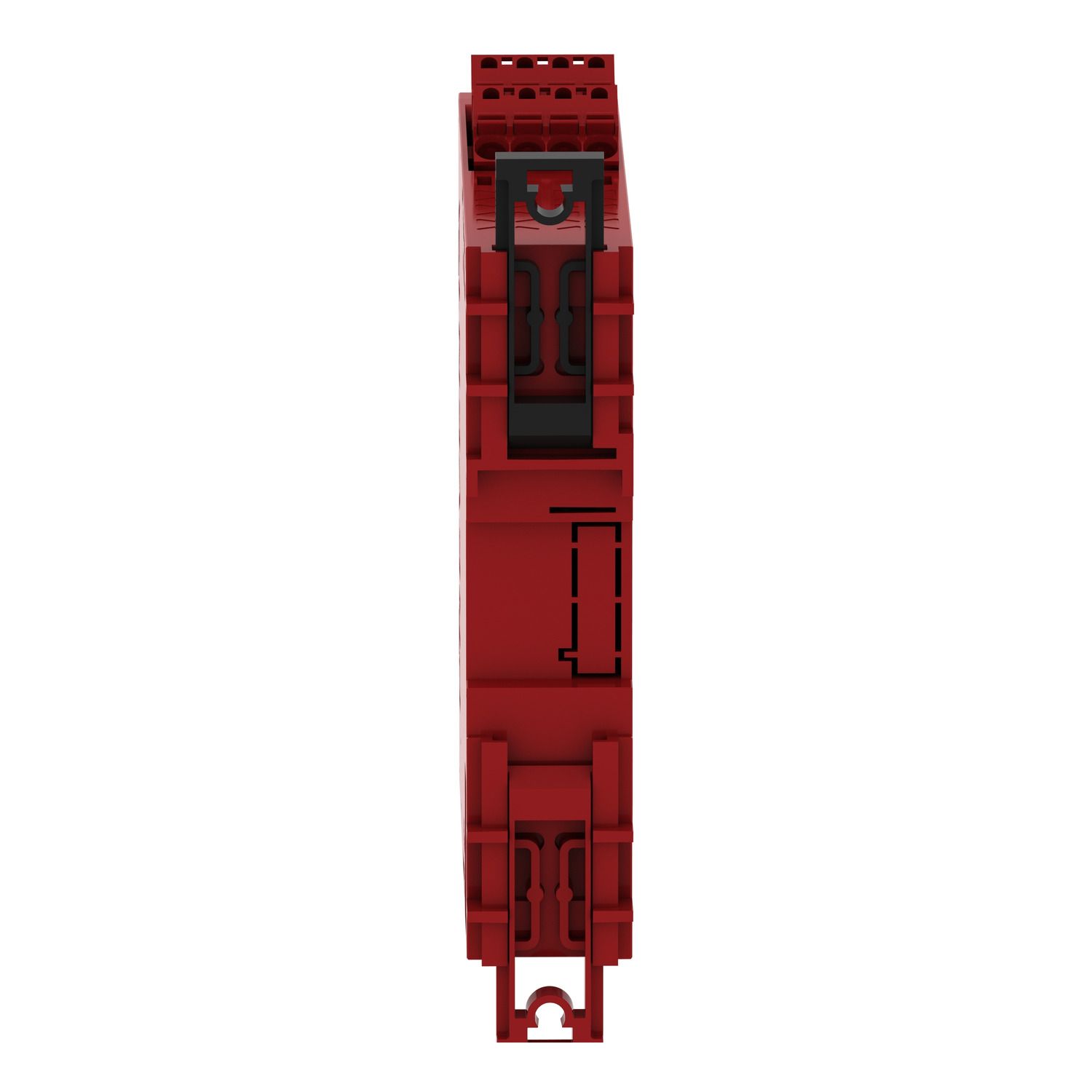

Picture of safety module, Harmony XPSU, potential free 2 NC, NO NC, 2 PNP, 24V AC or DC, spring
SKU:

XPSUAB11CC

safety module, Harmony XPSU, potential free 2 NC, NO NC, 2 PNP, 24V AC or DC, spring

$219.01
Available for Shipping : 05-Nov-2024
safety module, Harmony XPSU, potential free 2 NC, NO NC, 2 PNP, 24V AC or DC, spring
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product environmental
User guide
Declaration of conformity
End of life manual
Product Page Link
Product Data Sheet
This safety relay is designed for monitoring Emergency stop, Antivalent contacts, Guard switch, Magnetic switch, Proximity safety switch, PNP sensor, RFID safety switch, Safety light curtain or Two-hand control stations. The safety relay is powered with 24V AC/DC, and equipped with a spring removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds 1 safety input, 2 ON/OFF configurable pulsed outputs, 1 single changeover safety output , and 1 solid state diagnostic output with complete status information. The maximum safety level achieved by this safety relay is PLc/Category 1 conforming to ISO 13849-1, SILCL 1 conforming to IEC 62061 and SIL 1 conforming to IEC 61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC60947-5-1, IEC61508-1/2/3, ISO13849-1, IEC62061 functional safety standards, is certified by cULus, TÜV, EAC, CCC and KC marking. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Universal is the first choice for a broad range of simple to mid-complex machines.

Products specifications

Attribute name Attribute value
Main
Electrical circuit type OSSD pair, antivalent pair, PNP pair, NC pair
Safety reliability data type = B conforming to IEC 61508-1, SFF > 60% conforming to IEC 61508-1, PFHd = 1177E-09 1/h conforming to IEC 61508-1, HFT=0 conforming to IEC 61508-1, SFF > 60% conforming to IEC 62061, PFHd = 1177E-09 1/h conforming to IEC 62061, HFT = 0 conforming to IEC 62061, PFHd = 1177E-09 1/h conforming to ISO 13849-1, Dcavg < 60 % conforming to ISO 13849-1, MTTFd >= 30 years conforming to ISO 13849-1
Safety module application monitoring antivalent contacts, for emergency stop, guard and light curtain monitoring, for application with safety switchover contact, for electrical monitoring of two-hand control stations
Safety module name XPSUAB
Range of product Harmony Safety Automation
[Us] rated supply voltage 24 V DC - 20...20 %, 24 V AC - 15...10 %
Safety level can reach SIL 1 conforming to IEC 61508, can reach SILCL 1 conforming to IEC 62061, can reach PL c/category 1 conforming to ISO 13849-1
Function of module proximity sensor monitoring, monitoring of electro-sensitive protection equipment (ESPE), RFID switch, light curtain monitoring, magnetic switch monitoring, monitoring two-hand control station type IIIA, monitoring 1 PNP sensor, guard monitoring 1-channel wiring, emergency stop monitoring 1-channel wiring
Connections - terminals removable spring terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel, removable spring terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel, removable spring terminal block, 0.2...1.5 mm² solid or flexible twin conductor, removable spring terminal block, 0.25...2.5 mm² flexible with ferrule single conductor, removable spring terminal block, 0.2...2.5 mm² solid or flexible
Product or component type safety module
Complementary
Maximum response time on input open 20 ms
Synchronisation time between inputs 2.2 s, 0.5 s
Input protection type internal, electronic
Maximum line resistance 500 Ohm
Power consumption in W 1.5 W 24 V DC
Auxiliary contact composition 1 C/O
[Ie] rated operational current 1 A DC-13 for normally closed relay contact, 2 A DC-1 for normally closed relay contact, 1 A AC-15 for normally closed relay contact, 3 A AC-1 for normally closed relay contact, 3 A DC-13 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A AC-15 for normally open relay contact, 5 A AC-1 for normally open relay contact
Power consumption in VA 3.5 VA 24 V AC 50/60 Hz
Input compatibility 3-wire proximity sensors PNP, two-hand control conforming to EN 574/ISO 13851-III A, OSSD pair conforming to IEC 61496-1-2, antivalent pair conforming to ISO 14119, normally closed circuit conforming to ISO 13850, mechanical contact conforming to ISO 14119, XC limit switch conforming to ISO 14119, normally closed circuit conforming to ISO 14119
Number of inputs 1 safety input 24 V DC 5
Associated fuse rating 6 A gG for relay output conforming to IEC 60947-1
Input/output type semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related
Minimum output voltage 15 V for relay output
Ambient air temperature for operation -25-55 °C
Height 100 mm
Number of outputs 2 on/off configurable pulsed output
Depth 120 mm
Width 22.5 mm
Local signalling LED (yellow) for safety input S13, LED (yellow) for safety input S12, LED (yellow) for safety status, LED (yellow) for start, LED (red) for error, LED (green) for power ON
[Ui] rated insulation voltage 250 V (pollution degree 2) conforming to IEC 60947-1
Type of start automatic/manual/monitored
Net weight 0.200 kg
[Uimp] rated impulse withstand voltage 4 kV overvoltage category II conforming to IEC 60947-1
[Ith] conventional free air thermal current 3 A
Minimum output current 10 mA for relay output
Mounting support 35 mm symmetrical DIN rail
Environment
Relative humidity 5-95 % non-condensing
IP degree of protection IP54 (mounting area) conforming to IEC 60529, IP40 (housing) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529
Standards IEC 62061 functional safety standard, ISO 13849-1 functional safety standard, IEC 61508-7 functional safety standard, IEC 61508-6 functional safety standard, IEC 61508-5 functional safety standard, IEC 61508-4 functional safety standard, IEC 61508-3 functional safety standard, IEC 61508-2 functional safety standard, IEC 61508-1 functional safety standard, IEC 60947-5-1
Product certifications cULus, TÜV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.8 cm
Package 1 Width 14.0 cm
Package 1 Length 15.5 cm
Package 1 Weight 261.0 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.884 kg
