Picture of Speed monitoring 1 Sin/Cos encoder expansion module with screw term
SKU:

XPSMCMEN0100SC

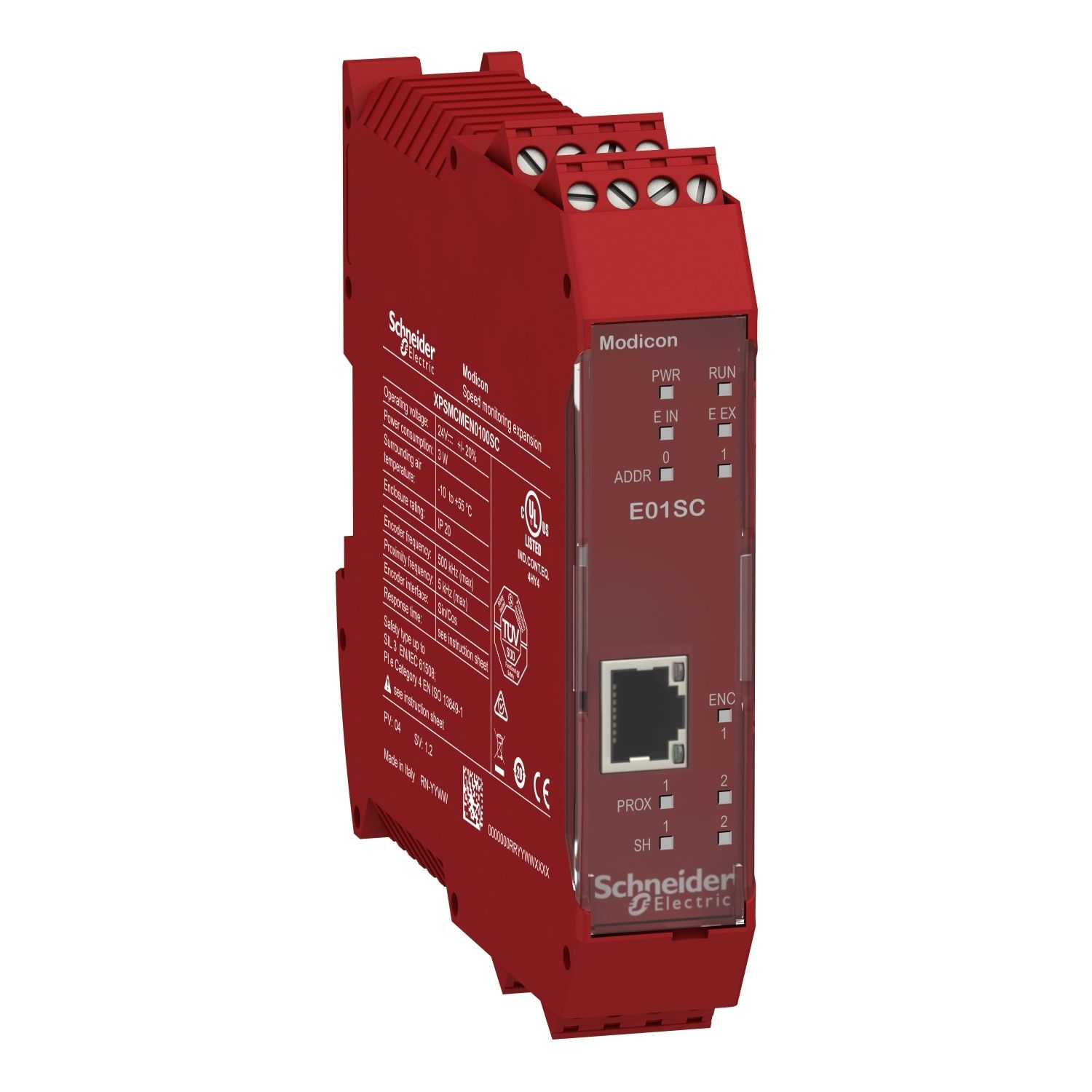

Speed monitoring 1 Sin/Cos encoder expansion module with screw term

$1,481.04 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Speed monitoring 1 Sin/Cos encoder expansion module with screw term
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Declaration of conformity
Instruction sheet
User guide
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
This Modicon MCM safe speed monitoring module has 1 Sin/Cos encoder input (with RJ45 connector) and 2 proximity sensor inputs (connection via terminal) and is fitted with captive screw clamp terminals. It is designed to monitor zero speed control, max speed (limited speed), speed range and direction. It has a rated supply voltage of 24V DC. It offers up to four logically selectable limited speed thresholds (freely configurable via SoSafe Configurable software) for each logical intput (axis), and a maximum input frequency of 500kHz (for encoders) and 5kHz for proximity sensors. It completes your safety CPU with safe-speed monitoring function, ideal for cutting machines like band-saw, circular saw and grinding machines. This module figures LEDs on its front face, displaying the status (power supply, reset, internal or external errors, node address, encoder or proximity sensors connection status, speed monitoring status). The safe speed monitoring module is connected to the safety controller via the backplane expansion connector. It weighs 0.28kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. This module can reach such safety levels as category 4 conforming to EN/ISO 13849-1, PL = e conforming to EN/ISO 13849-1, Type 4 conforming to EN/IEC 61496-1, and SILCL 3 conforming to IEC 62061. The modular safety controllers Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The safe speed monitoring module instals on Omega 35mm DIN rail conforming to EN 50022, and is connected to the safety controller via the backplane expansion connector. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.

Products specifications

Attribute name Attribute value
Main
Device short name XPSMCM
Function of module speed monitoring
Electrical connection screw terminal
[Us] rated supply voltage 24 V - 20...20 % DC
Product or component type safe speed monitoring module
Discrete input voltage 24 V DC
Range of product Preventa Safety automation
Complementary
Safety level SILCL 3 conforming to IEC 62061, type 4 conforming to IEC 61496-1, can reach PL = e conforming to ISO 13849-1, can reach category 4 conforming to ISO 13849-1
Depth 22.5 mm
Width 114.5 mm
Sensor type inductive proximity sensor
Mounting support omega 35 mm DIN rail conforming to EN 50022
Quality labels CE
Power dissipation in W 3 W
Maximum input frequency 500 kHz for encoder SinCos, 5 kHz for sensor
Net weight 0.28 kg
Local signalling 2 LEDs yellow with SH marking for speed monitoring status, 2 LEDs yellow with PROX marking for proximity sensors connection status, 1 LED yellow with ENC marking for encoder connection status, 2 LEDs orange with ADDR marking for node address, 1 LED red with E EX marking for external error, 1 LED red with E IN marking for internal error, 1 LED green with RUN marking for RUN (status), 1 LED green with PWR marking for power ON
Power consumption in W 3 W
Cable cross section 0.2-1 mm² - AWG 24...AWG 18 solid cablewithout cable end, 0.5-1.5 mm² - AWG 20...AWG 16 flexible cablewith cable end, with double bezel, 0.25-1 mm² - AWG 23...AWG 18 flexible cablewith cable end, without bezel, 0.2-1.5 mm² - AWG 24...AWG 16 flexible cablewithout cable end, 0.25-2.5 mm² - AWG 23...AWG 14 flexible cablewith cable end, without bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible cablewith cable end, with bezel, 0.2-2.5 mm² - AWG 24...AWG 14 solid cablewithout cable end, 0.2-2.5 mm² - AWG 24...AWG 14 flexible cablewithout cable end
Integrated connection type backplane expansion bus
Electrical connection 1 connector RJ45 conforming to EIA/TIA-568-A
Height 99 mm
Number of terminal blocks 4
Connections - terminals 1 captive screw clamp terminals, removable terminal block, 2 captive screw clamp terminals, removable terminal block
Environment
Insulation 250 V AC between power supply and housing conforming to IEC 61800-5-1
Overvoltage category II
Relative humidity 10-95 %
Service life 20 year(s)
Ambient air temperature for storage -20-85 °C
IP degree of protection IP20 (enclosure)
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 61800-5
Vibration resistance +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Shock resistance 10 gn (duration = 16 ms) for 1000 shocks on each axis conforming to IEC 61496-1
Electromagnetic compatibility susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2
Ambient air temperature for operation -10-55 °C
Pollution degree 2
Standards ISO 13849-1, IEC 62061, IEC 61800-5-1, IEC 61508, IEC 61496-1
Product certifications RCM, TÜV, cULus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.2 cm
Package 1 Width 12.5 cm
Package 1 Length 16.1 cm
Package 1 Weight 227.0 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.587 kg
