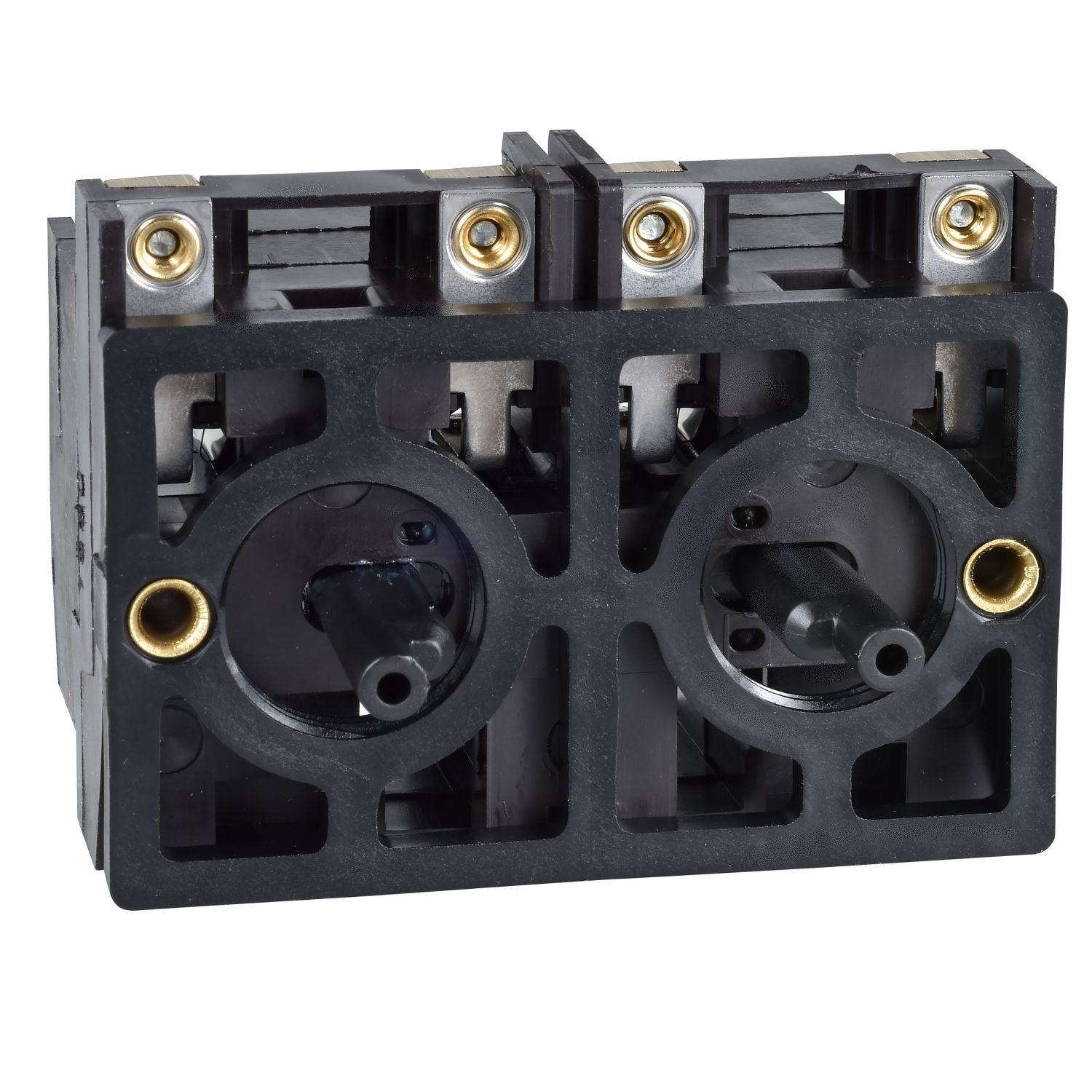

Picture of Double contact block, Harmony XAC, spring return, single speed, snap action, 2NO
Picture of Double contact block, Harmony XAC, spring return, single speed, snap action, 2NO
Picture of Double contact block, Harmony XAC, spring return, single speed, snap action, 2NO
Picture of Double contact block, Harmony XAC, spring return, single speed, snap action, 2NO
SKU:

XESD1191

Double contact block, Harmony XAC, spring return, single speed, snap action, 2NO

Old price: $684.20 INC GST
$533.68 INC GST
Available for Shipping : 06-Jan-2026
Double contact block, Harmony XAC, spring return, single speed, snap action, 2NO
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026

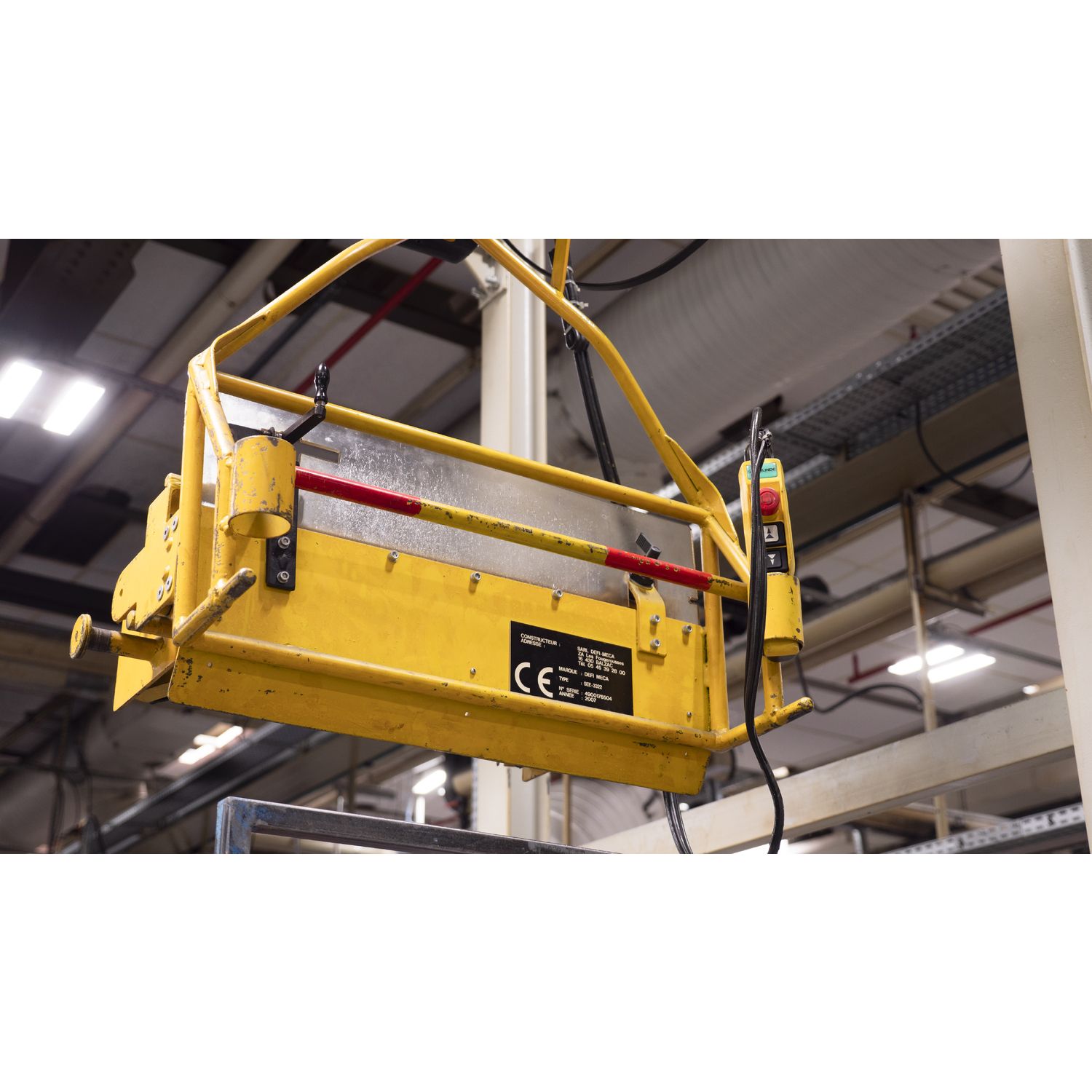

Image of product in real life situation
Instruction sheet

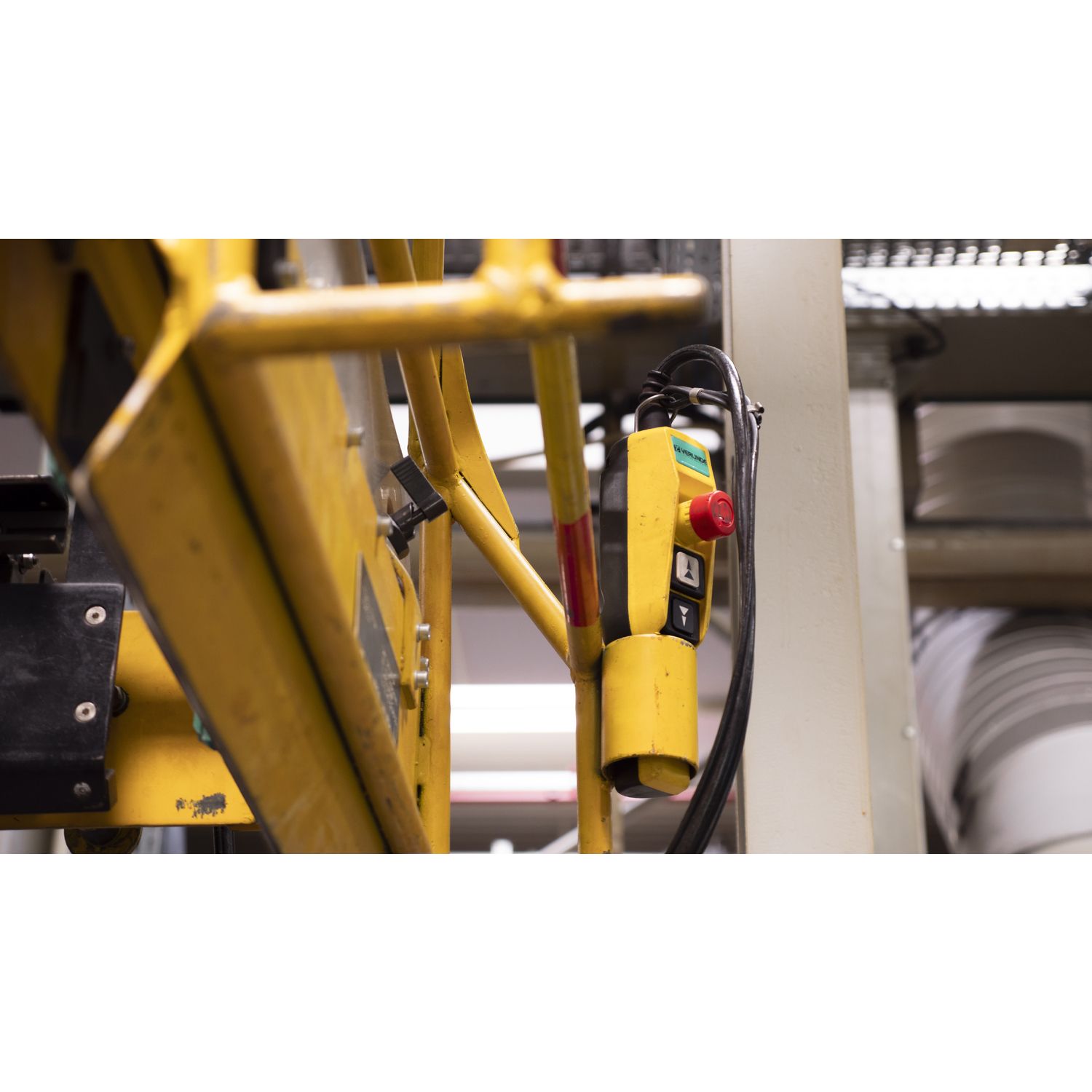

Image of product in real life situation
Declaration of conformity
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
This contact block is a separate component of the range of pendant control stations Harmony XAC. It consists in a double block 2-pole with 2 spring return operators mechanically interlocked (operator centres 40 mm). It features 2 NO functions and and screw clamp connection type. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It is easily installed and replaced on XACB pendant control stations (front mounting). It weighs 140g. It is designed for power circuits simple speed applications.

Products specifications

Attribute name Attribute value
Main
Product compatibility XACB
Electrical circuit type power circuit
Contact operation snap action
Contact block application single speed
Contact block type double
Range of product Harmony XAC
Type of operator 2 spring return
Poles description 2-pole
Mechanical interlocking with mechanical interlocking
Contacts type and composition 2 NO
Component name XESD
Product or component type contact block
Mounting of block front mounting
Complementary
Operating force 17 N
Rated power in HP 5 hp at 400 V, CSA certified, 3 hp at 600 V, CSA certified, 2 hp at 240 V, CSA certified
Mechanical durability 1000000 cycles, 500000 cycles
Electrical durability 800000 cycles AC-4, 1500 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A, 800000 cycles AC-3, 1500 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A, 500000 cycles AC-4, 1500 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A, 500000 cycles AC-3, 1500 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A, 300000 cycles AC-4, 2200 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A, 300000 cycles AC-4, 2200 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A, 300000 cycles AC-3, 2200 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A, 300000 cycles AC-3, 2200 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A
Short-circuit protection 10 A fuse protection by cartridge fuse type aM
Horizontal fixing centres 40 mm
Rated operational power in W 2200 W AC-4 at 400 V conforming to IEC 60947-3 appendix A, 2200 W AC-3 at 240 V conforming to IEC 60947-3 appendix A
[Ui] rated insulation voltage 600 V conforming to CSA
Connections - terminals screw clamp terminals, 2 x 1.5 mm² with or without cable end, screw clamp terminals, 1 x 2.5 mm² with or without cable end
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
[Ithe] conventional enclosed thermal current 12 A
Terminals description ISO n°1 B, (13-14)NO, (23-24)NO
Terminals description ISO n°2 B, (33-34)NO, (43-44)NO
Terminal identifier (13-14)NO, (11-12)NC
Environment
Ambient air temperature for storage -40-70 °C
Shock resistance 100 gn conforming to IEC 60068-2-27
Ambient air temperature for operation -25-70 °C
Electrical shock protection class class II conforming to IEC 61140
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Standards CSA C22.2 No 14, IEC 60947-3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 7.000 cm
Package 1 Length 9.000 cm
Package 1 Weight 160.000 g
Unit Type of Package 2 2
Number of Units in Package 2 42
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.016 kg
Unit Type of Package 3 3
Number of Units in Package 3 336
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 60.696 kg

Related products

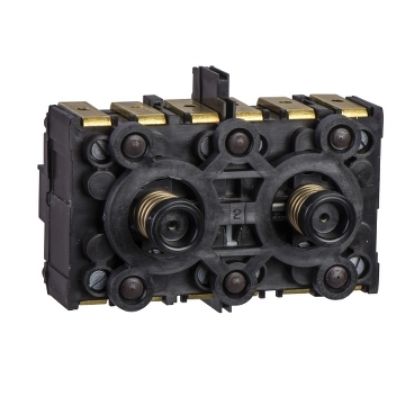

Double contact block, Harmony XAC, spring return, single speed, snap action, 3NO
