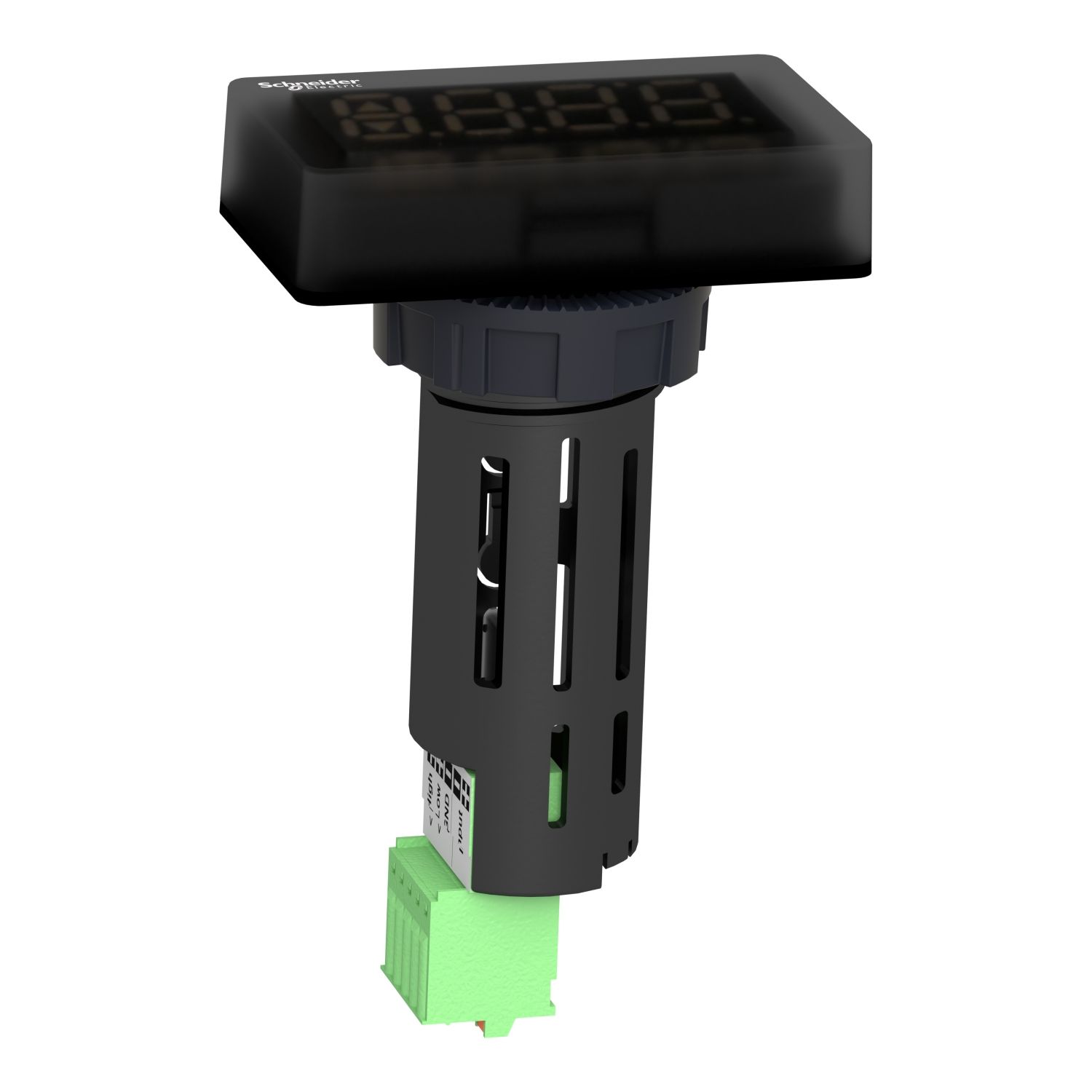

Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input

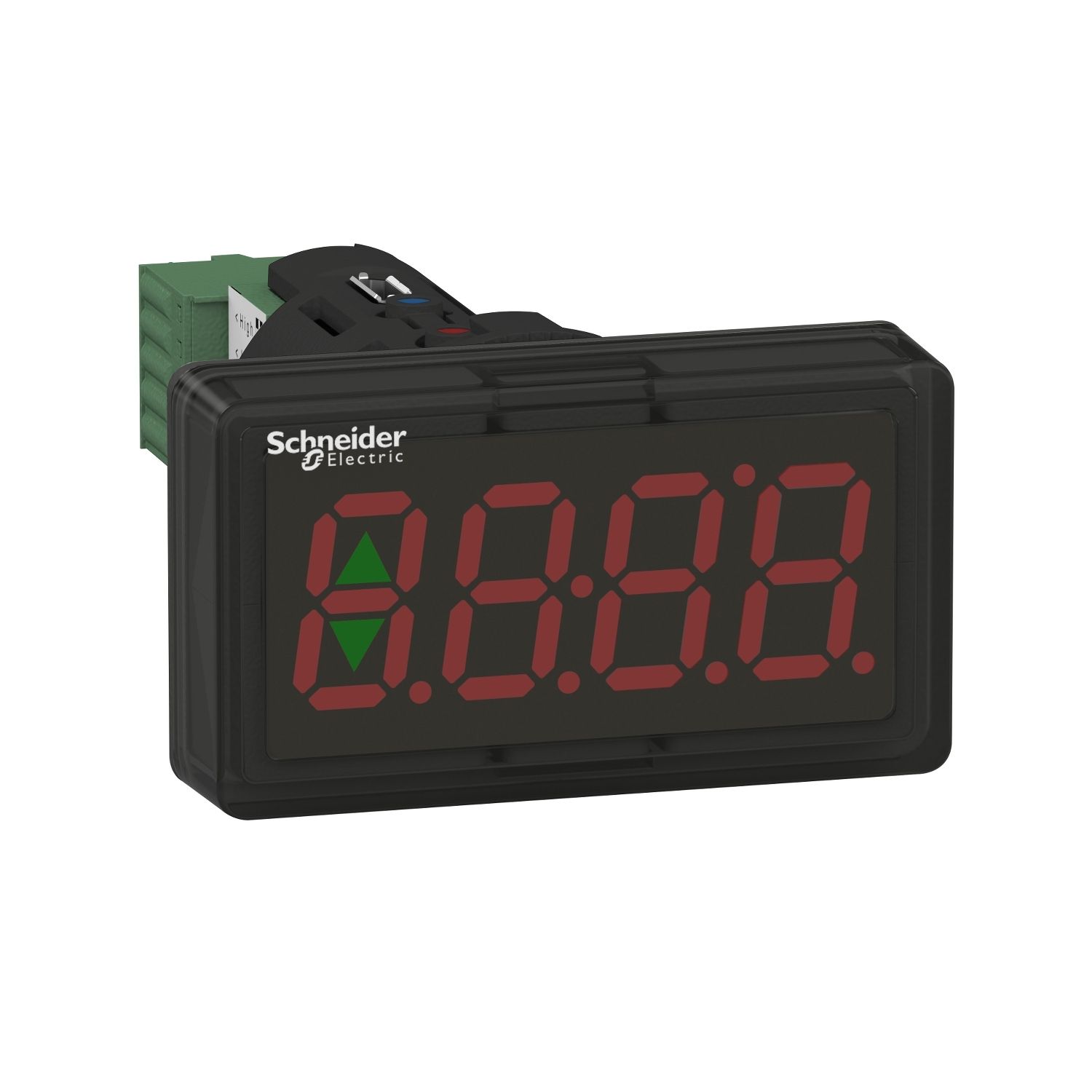

Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input

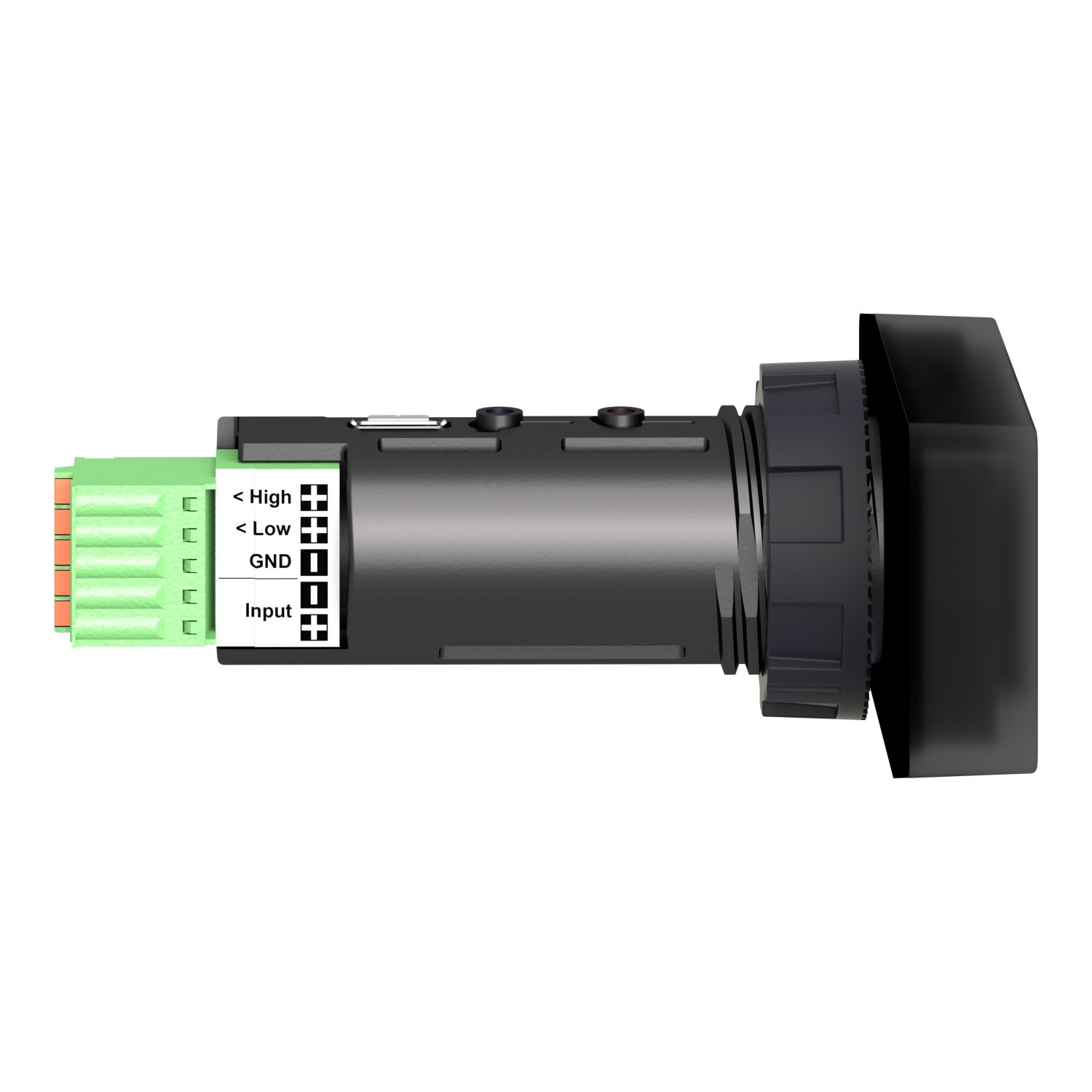

Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input

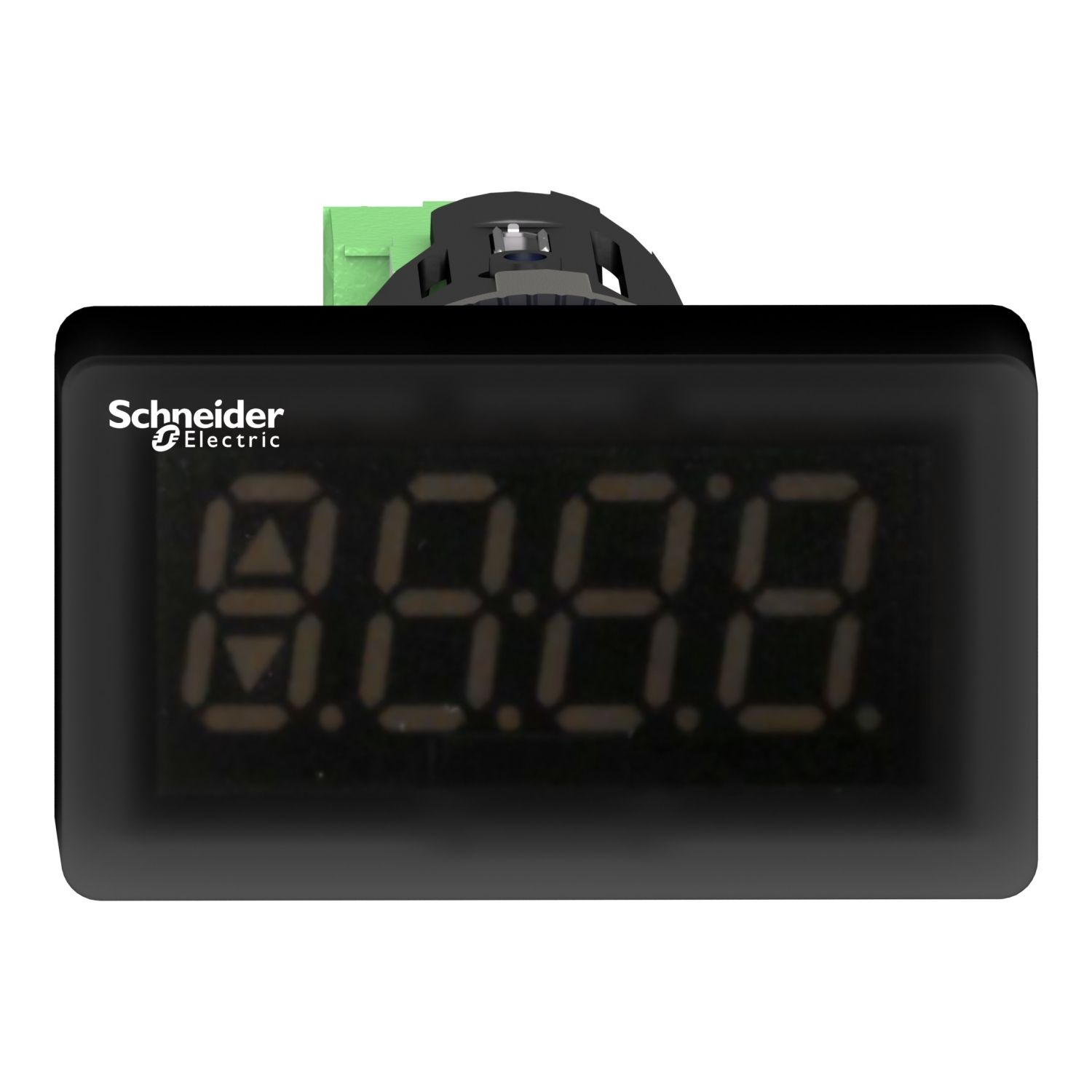

Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input

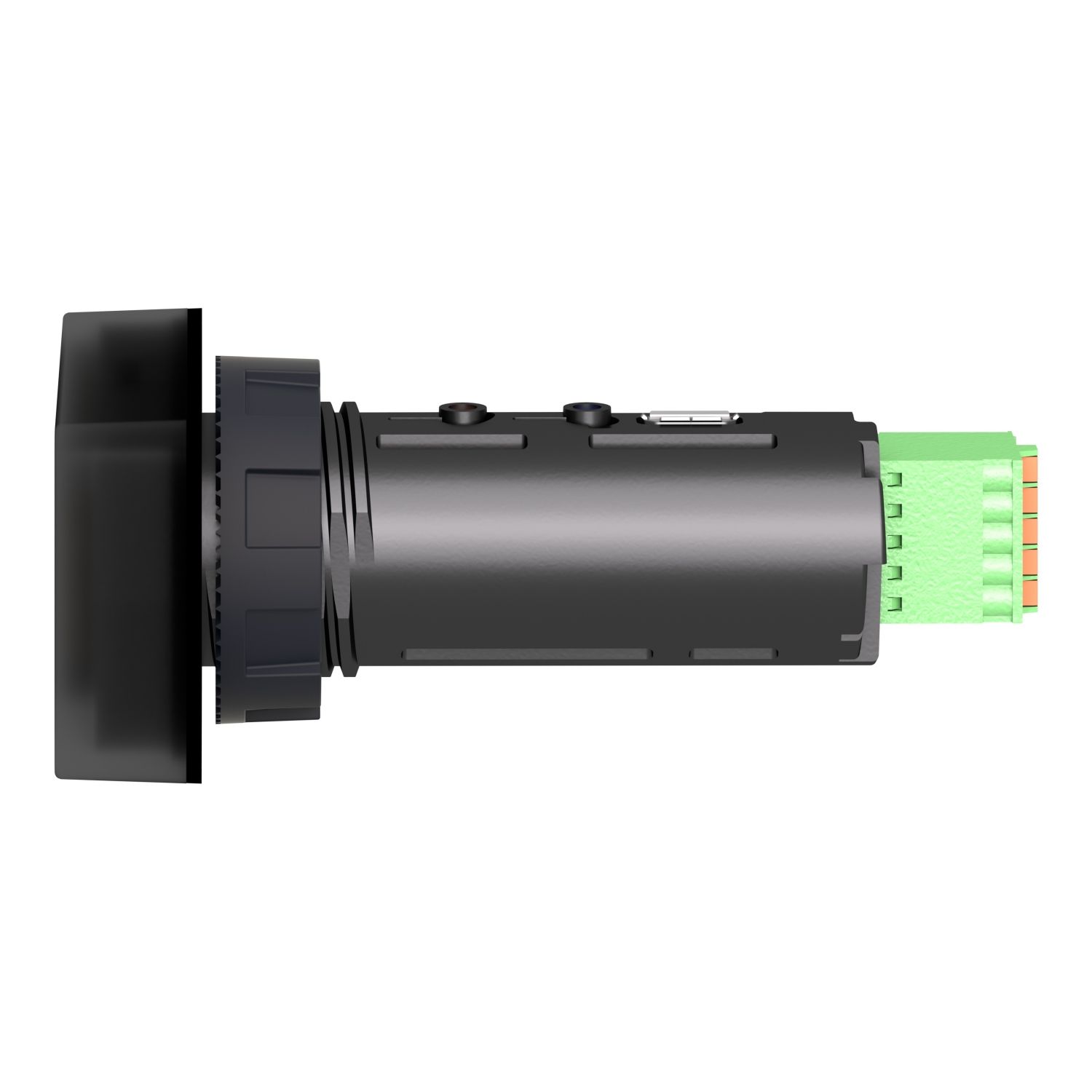

Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input

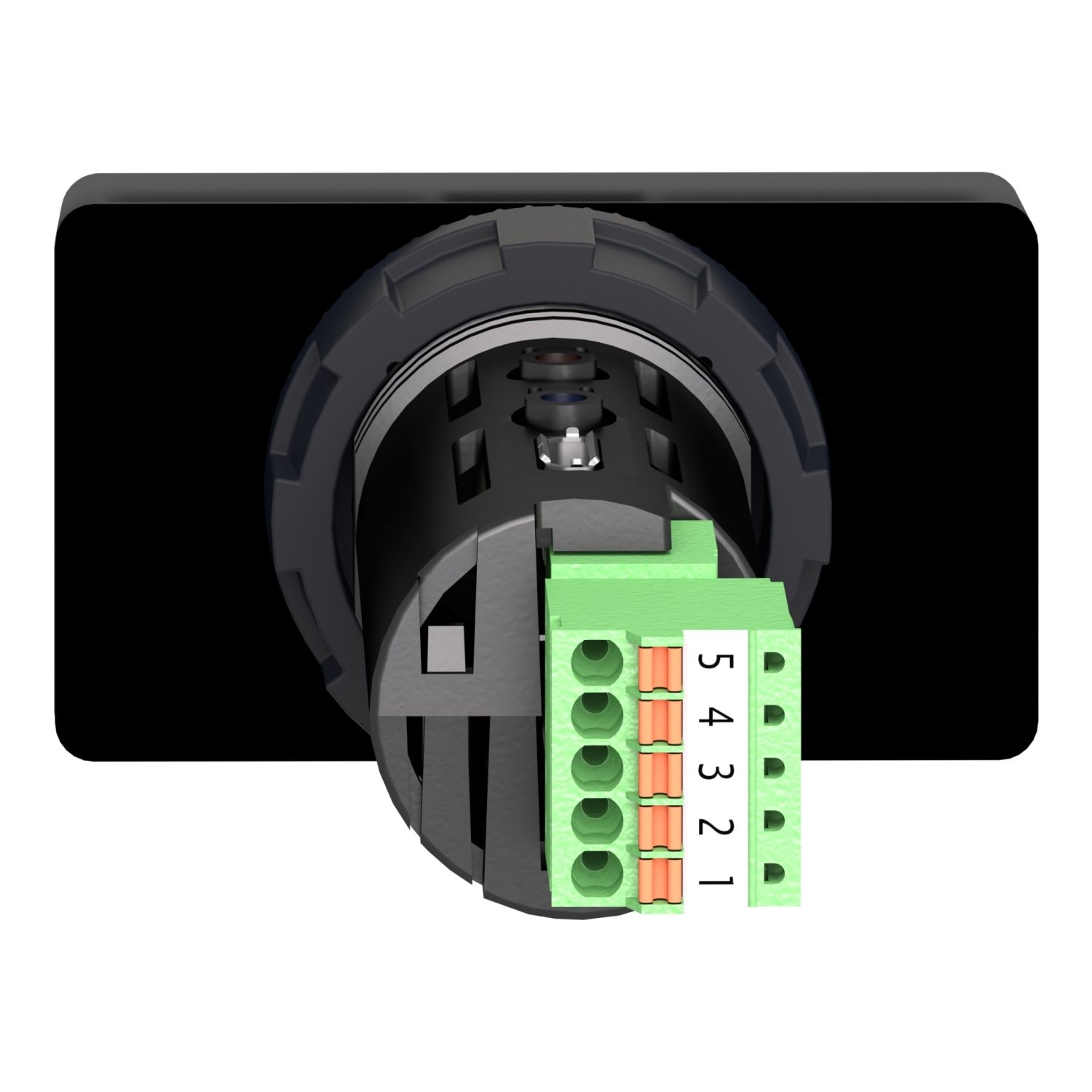

Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input

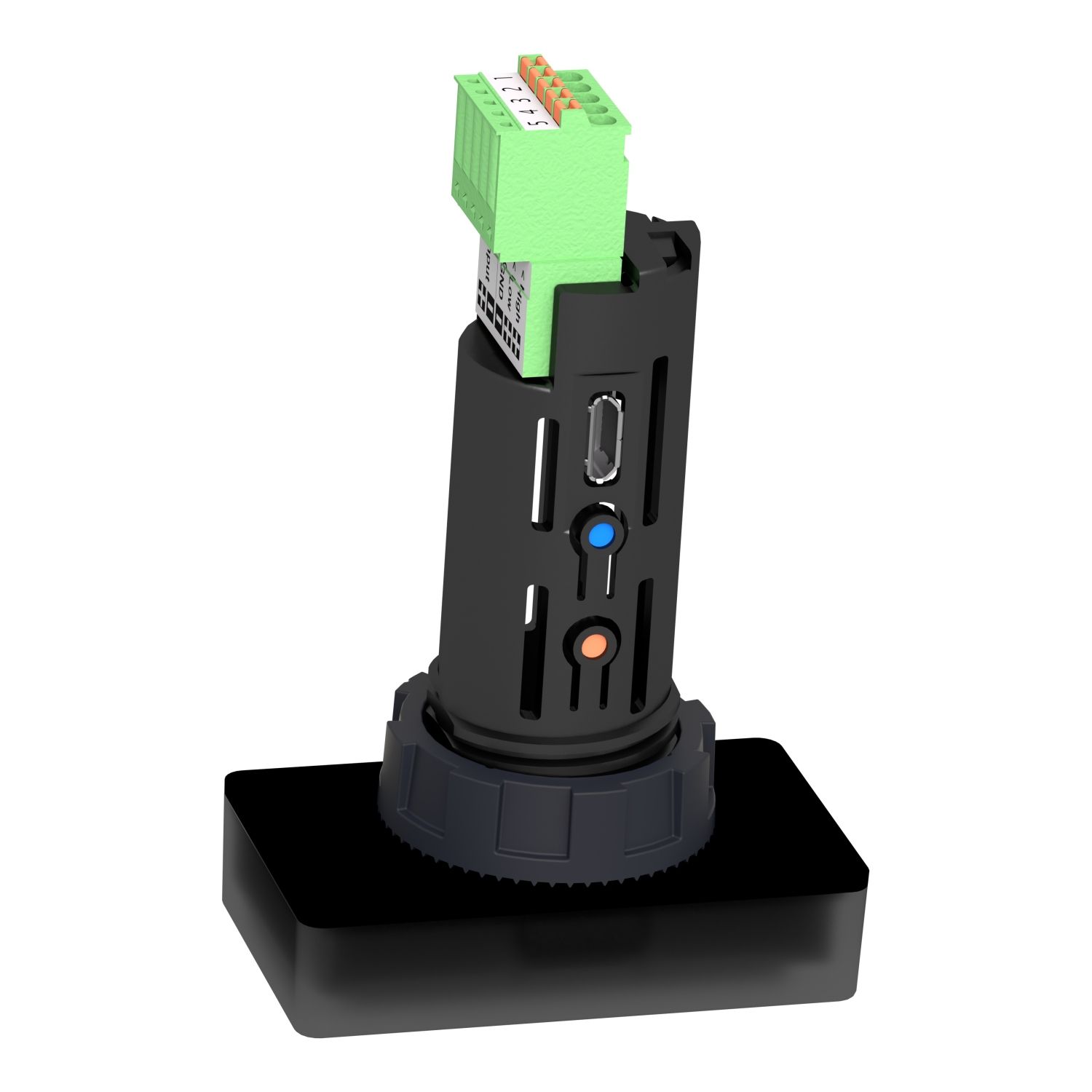

Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Picture of Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
SKU:

XBH1AA0R4

Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input

Old price: $176.00 INC GST
$167.20 INC GST
Available for Shipping : 14-Dec-2025
Display module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 14-Dec-2025
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Instruction sheet
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Declaration of conformity
Image of product in real life situation
Catalog
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Product Page Link
Product Data Sheet
This display module provides a versatile interface for your machines It is impact resistant (strength), dust resistant (strength), water resistant (strength), corrosion resistant (strength), and vibration resistant (strength) thanks to its IP65, making it ideal for operation in harsh (heavy) environments

Products specifications

Attribute name Attribute value
Main
Display digits 4 digit(s) - 14 mm in height
Range of product Harmony XB5
Product or component type display module
Complementary
Display type 7 segments LED
Display colour red
Temperature drift 50 ppm/°C
Discrete output voltage 30 V DC
Accuracy +/- 0.15 % of the measuring range + 1 digit
Analogue input range 4...20 mA DC
Height 29.5 mm
Housing material plastic
Solid state output type 2 x power MOSFET
Connections - terminals spring terminals,clamping capacity: 1 x 0.2...1 mm² (AWG 24...AWG 17)
Net weight 0.032 kg
Tightening torque 11.5 lb.in +/- 1.8 lb.in, 1.3 N.m +/- 0.2 N.m
Flame retardance UL94-V1
Discrete output current 0.5 A
Counting capacity -999...9999
Depth 78.2 mm
Width 51.5 mm
Mounting diameter 22.5 mm
Maximum voltage drop 6 V
Brightness fixed
Environment
Ambient air temperature for storage -20-85 °C
IP degree of protection IP65 (front panel) conforming to IEC 60529
Ambient air temperature for operation -20-60 °C
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Standards IEC 61326-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.000 cm
Package 1 Width 8.000 cm
Package 1 Length 13.000 cm
Package 1 Weight 70.000 g
Unit Type of Package 2 2
Number of Units in Package 2 62
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.687 kg
