SKU:

XB7ND25

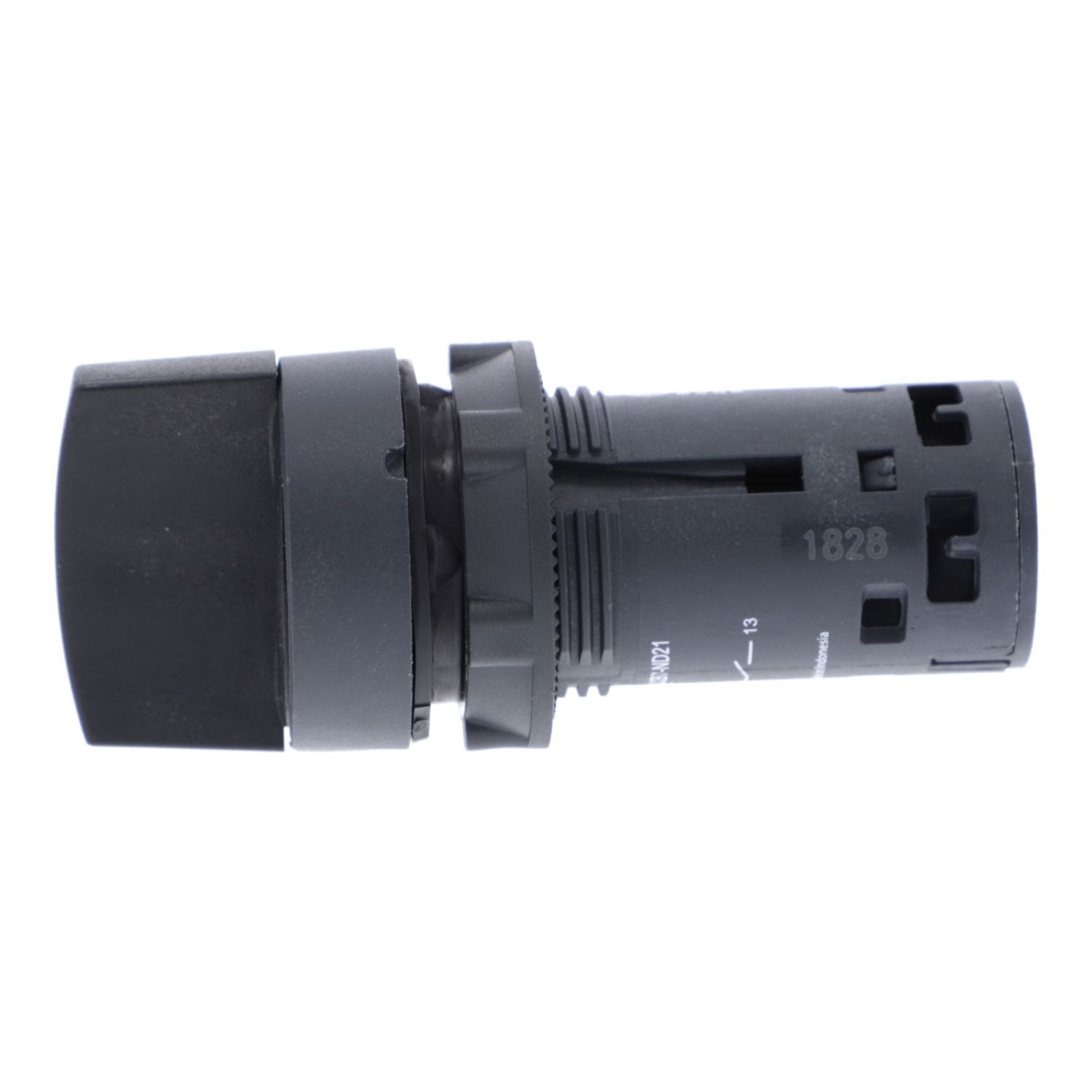

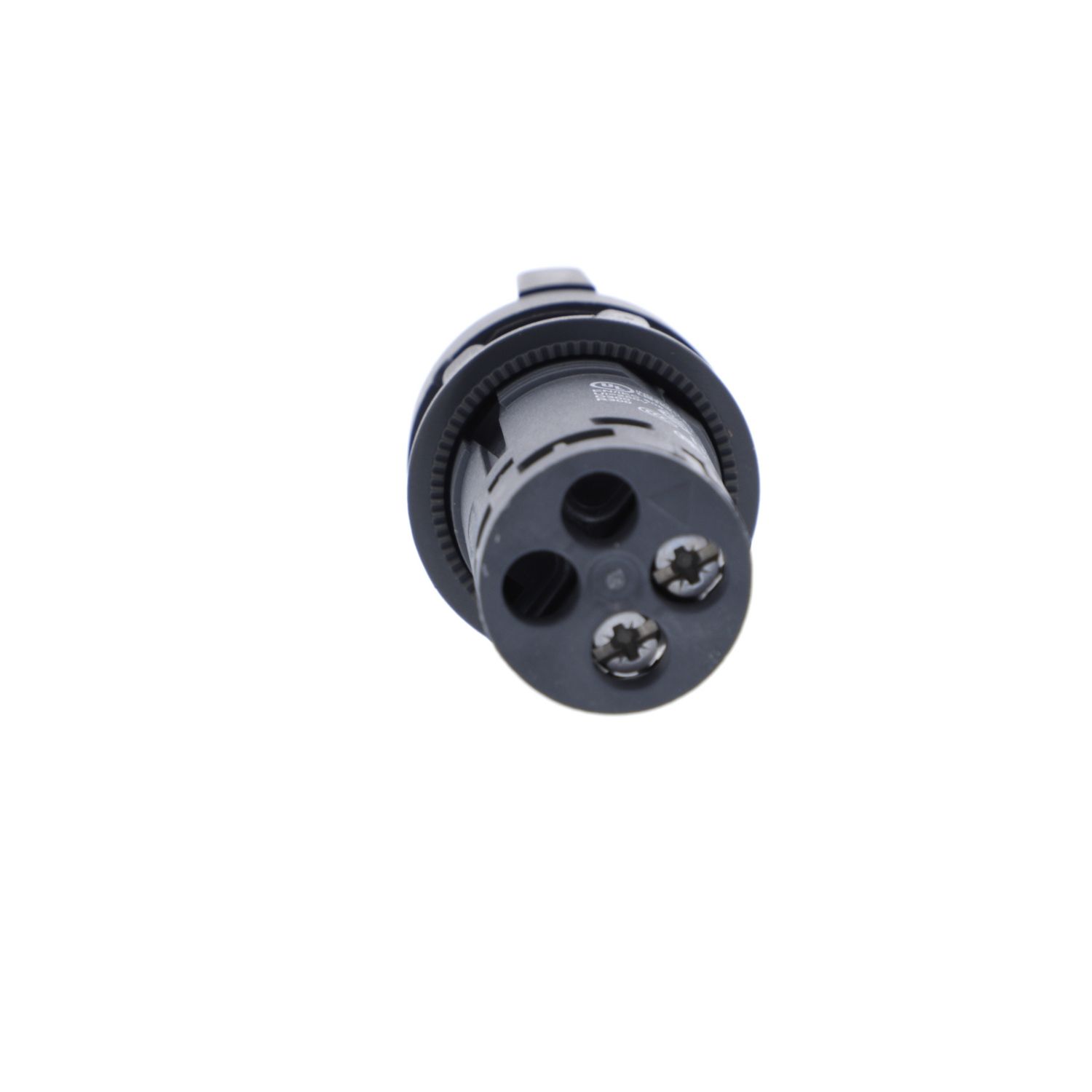

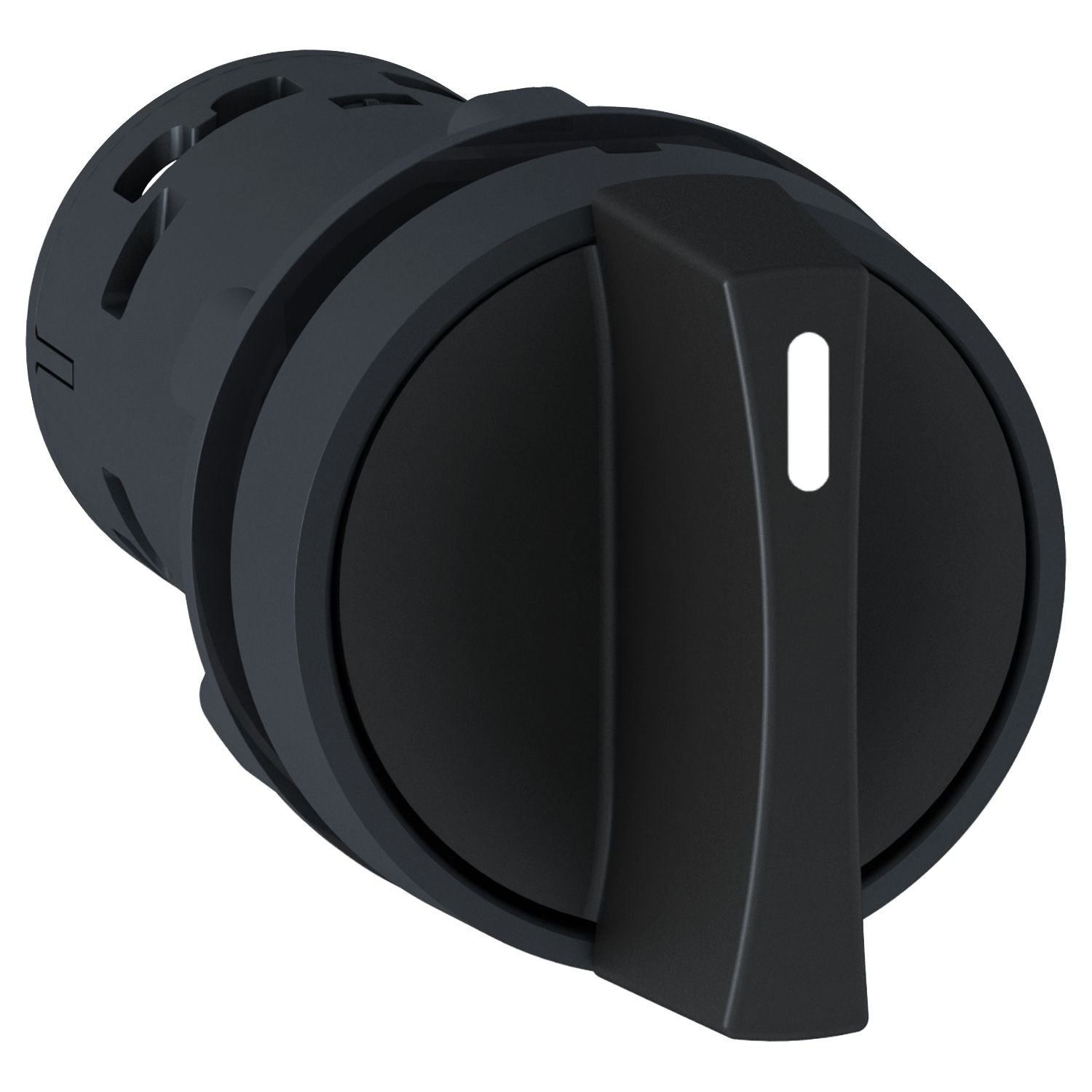

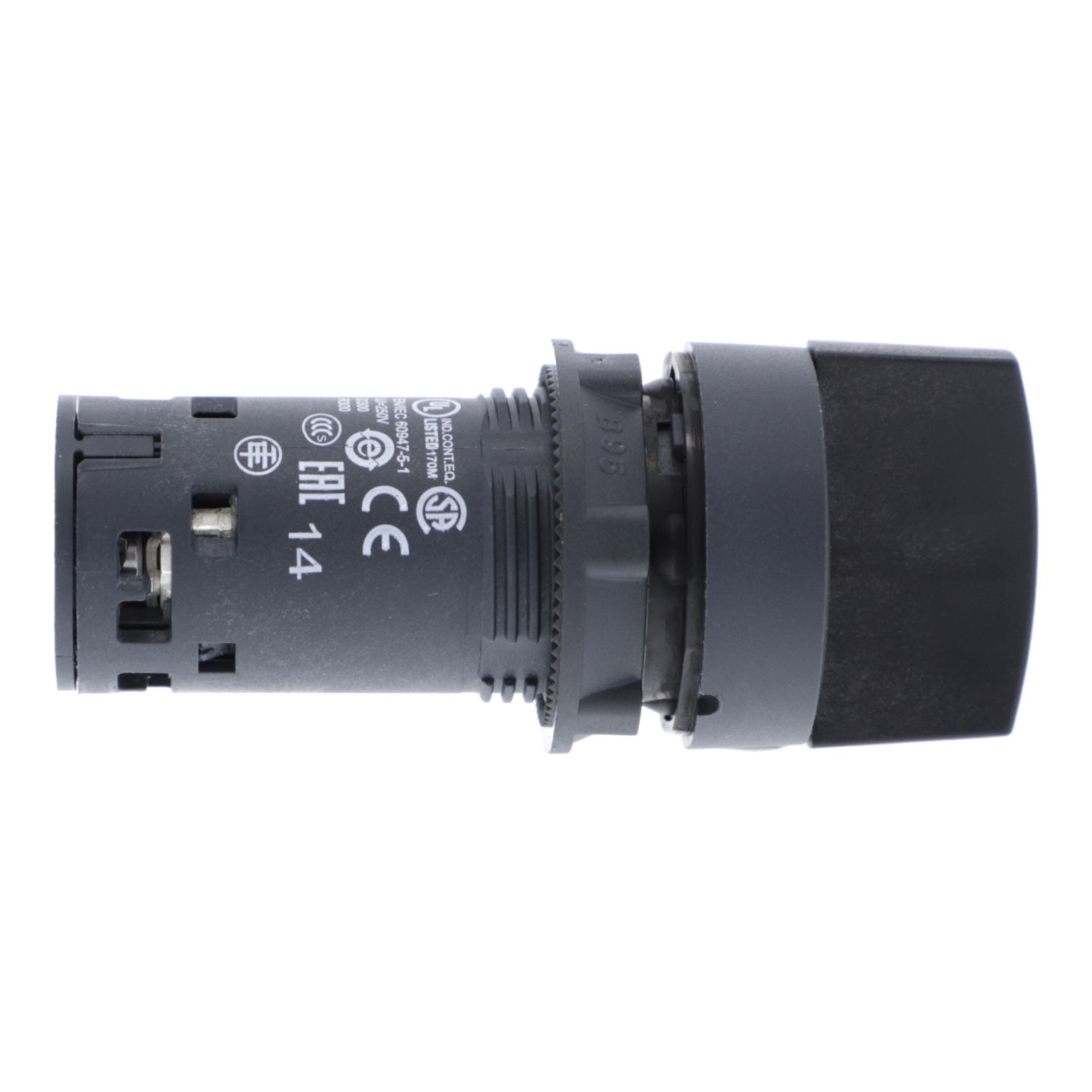

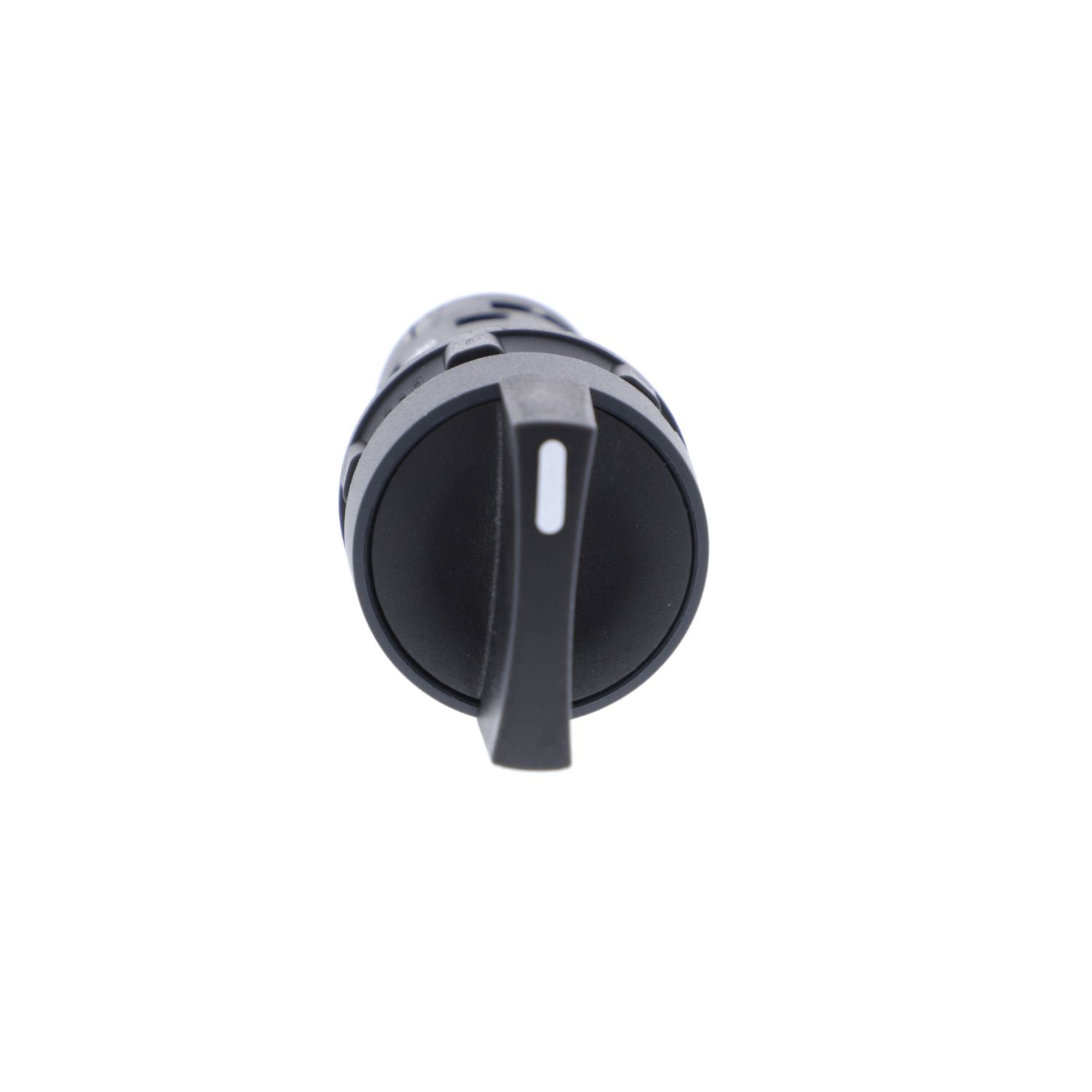

Monolithic selector switch, Harmony XB7, plastic, black, 22mm, stay put, 2 positions, stay put, 1NO+1NC

Old price: $54.78 INC GST
$42.73 INC GST
Available for Shipping : 16-Dec-2025
Product Selector
Monolithic selector switch, Harmony XB7, plastic, black, 22mm, stay put, 2 positions, stay put, 1NO+1NC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 16-Dec-2025
Declaration of conformity
Environmental Disclosure
Circularity Profile
Instruction sheet

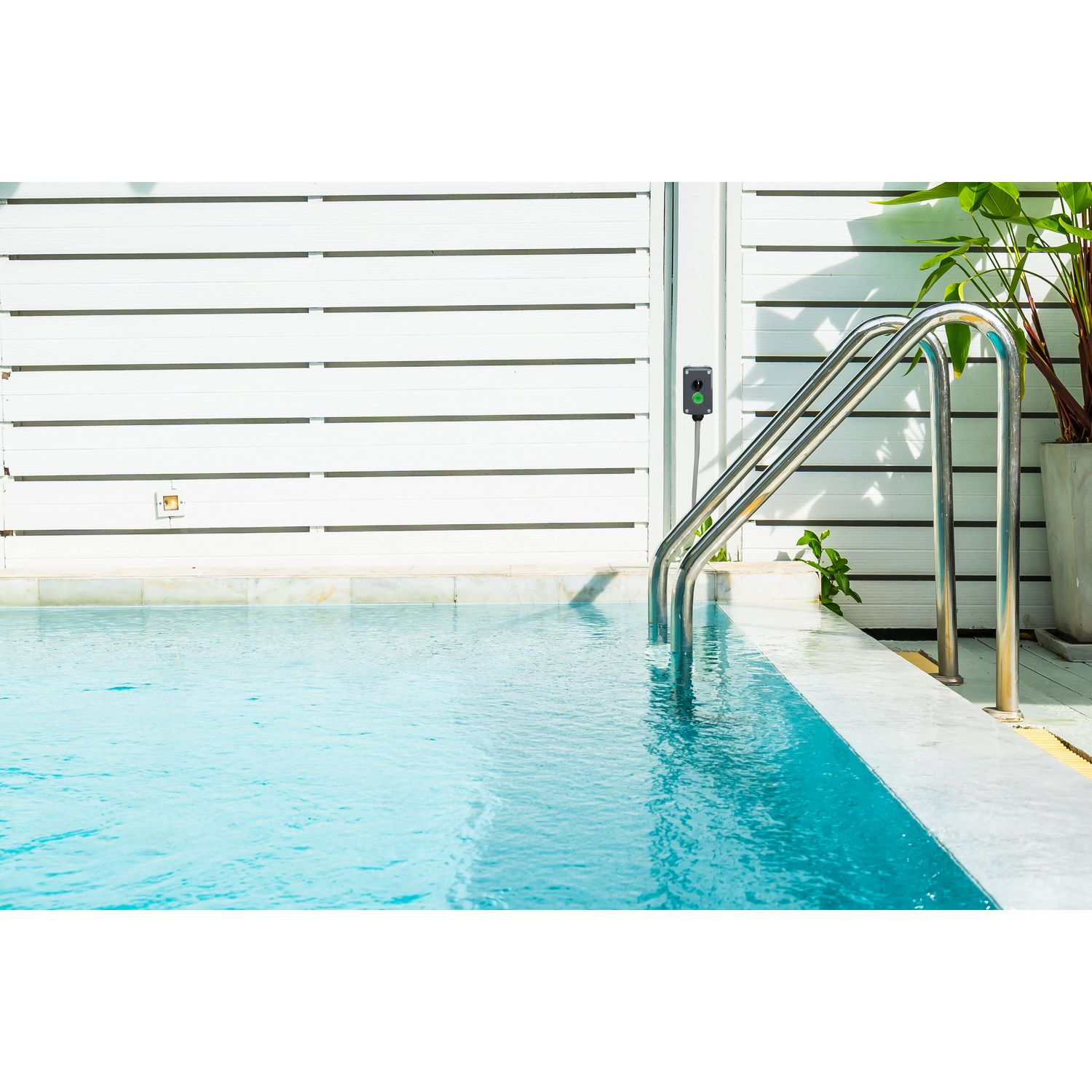

Image of product in real life situation
CAD
Catalog
Product Page Link
Product Data Sheet
This Harmony XB7, monolithic black selector switch has 2 positions, operates with a stay-put mechanism and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to give your machine multiple different inputs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name XB7
Sale per indivisible quantity 10
IP degree of protection IP65 (front face) conforming to IEC 60529, IP20 (rear face) conforming to IEC 60529
Type of operator stay put
Range of product Harmony XB7
Operator position information 2 positions 90°
Operator profile black standard handle
Contacts type and composition 1 NO + 1 NC
Net weight 0.026 kg
Shape of signaling unit head round
Product or component type selector switch
Mounting diameter 22 mm
Positive opening with conforming to IEC 60947-5-1 appendix K
Complementary
Device mounting fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-1
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver, cross compatible with JIS No 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Electrical reliability λ < 10exp(-6) at 17 V and 5 mA conforming to IEC 60947-5-4
Compatibility code XB7
Mechanical durability 300000 cycles
Contact operation slow-break
[Ie] rated operational current 0.6 A at 120 V, AC-14, D300 conforming to IEC 60947-5-1, 0.3 A at 240 V, AC-14, D300 conforming to IEC 60947-5-1, 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1, 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1
Electrical durability 1000000 cycles, AC-15, 0.09 A at 240 V, operating rate <108000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.03 A at 230 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.3 A at 24 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
CAD overall height 29 mm
Cap/operator or lens colour black
Fixing mode fixing nut: 2-2.4 N.m
CAD overall depth 68.5 mm
CAD overall width 29 mm
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1
Fixing center >= 30 x 40 mm (support panel) plastic - thickness: 2-6 mm, >= 30 x 40 mm (support panel) metal - thickness: 1-6 mm
Short-circuit protection 4 A cartridge fuse type gG conforming to IEC 60947-5-1
Terminals description ISO n°1 (21-22)NC, (13-14)NO
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -25-70 °C
Electrical shock protection class class II conforming to IEC 61140
NEMA degree of protection NEMA 3 conforming to UL 50 E, NEMA 12 conforming to UL 50 E
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-5-1, CSA C22.2 No 14, UL 508, IEC 60947-1, JIS C8201-5-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 3.200 cm
Package 1 Length 3.200 cm
Package 1 Weight 30.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 7.000 cm
Package 2 Width 3.200 cm
Package 2 Length 3.200 cm
Package 2 Weight 307.000 g
Unit Type of Package 3 3
Number of Units in Package 3 100
Package 3 Height 15.000 cm
Package 3 Width 15.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 3.384 kg
