Picture of Emergency switching off monolithic push button, Harmony XB7, 22mm, red pushbutton 40mm, latching key release, 1NO + 1NC, key 455
SKU:

XB7ES145P

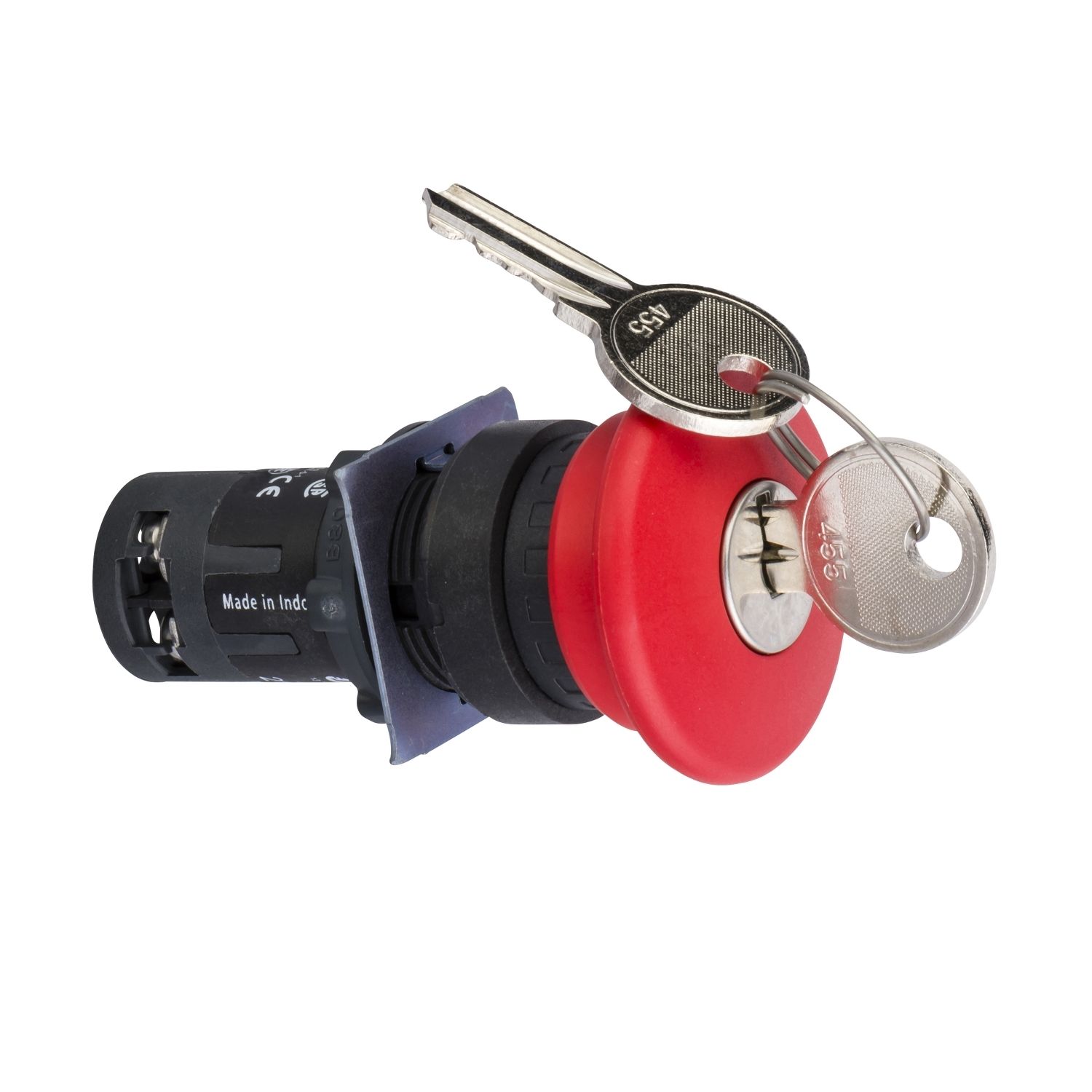

Emergency switching off monolithic push button, Harmony XB7, 22mm, red pushbutton 40mm, latching key release, 1NO + 1NC, key 455

Old price: $258.50 INC GST
$201.63 INC GST
Availability: Please contact our sales team on 1300 724 622.
Emergency switching off monolithic push button, Harmony XB7, 22mm, red pushbutton 40mm, latching key release, 1NO + 1NC, key 455
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalog
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name XB7
Sale per indivisible quantity 10
Device presentation monolithic product
Type of operator mechanical latching
Range of product Harmony XB7
Reset key release
Type of keylock key 455
Operator profile red mushroom Ø 40 mm, unmarked
Contacts type and composition 1 NO + 1 NC
Connections - terminals screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Shape of signaling unit head round
Product or component type emergency switching off monolithic push-button
Mounting diameter 22 mm
Complementary
Device mounting fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-1
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver, cross compatible with JIS No 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Electrical reliability λ < 10exp(-6) at 17 V and 5 mA conforming to IEC 60947-5-4
Compatibility code XB7
Mechanical durability 10000 cycles
Contact operation slow-break
[Ie] rated operational current 0.6 A at 120 V, AC-14, D300 conforming to IEC 60947-5-1, 0.3 A at 240 V, AC-14, D300 conforming to IEC 60947-5-1, 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1, 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1
Electrical durability 1000000 cycles, AC-15, 0.09 A at 240 V, operating rate <108000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.03 A at 230 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.3 A at 24 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
CAD overall height 40 mm
Cap/operator or lens colour red
Fixing mode fixing nut beneath head: 2-2.4 N.m
CAD overall depth 95 mm
CAD overall width 40 mm
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.058 kg
Positive opening with conforming to IEC 60947-5-1 appendix K
Fixing center >= 30 x 40 mm (support panel) plastic - thickness: 2-6 mm, >= 30 x 40 mm (support panel) metal - thickness: 1-6 mm
Short-circuit protection 4 A cartridge fuse type gG conforming to IEC 60947-5-1
Terminals description ISO n°1 (13-14)NO, (21-22)NC
Contacts usage standard
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP54 (front face) conforming to IEC 60529, IP20 (rear face) conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
Electrical shock protection class class II conforming to IEC 60536
NEMA degree of protection NEMA 12 conforming to UL 50
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 10 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards IEC 60947-5-1, IEC 60947-1, UL 508, IEC 60364-5-53, CSA C22.2 No 14
Product certifications CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.000 cm
Package 1 Width 16.000 cm
Package 1 Length 9.500 cm
Package 1 Weight 64.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 6.000 cm
Package 2 Width 16.000 cm
Package 2 Length 19.000 cm
Package 2 Weight 644.000 g
Unit Type of Package 3 3
Number of Units in Package 3 100
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 7.000 kg
