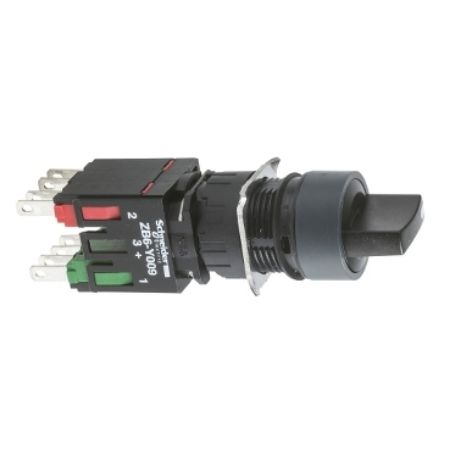

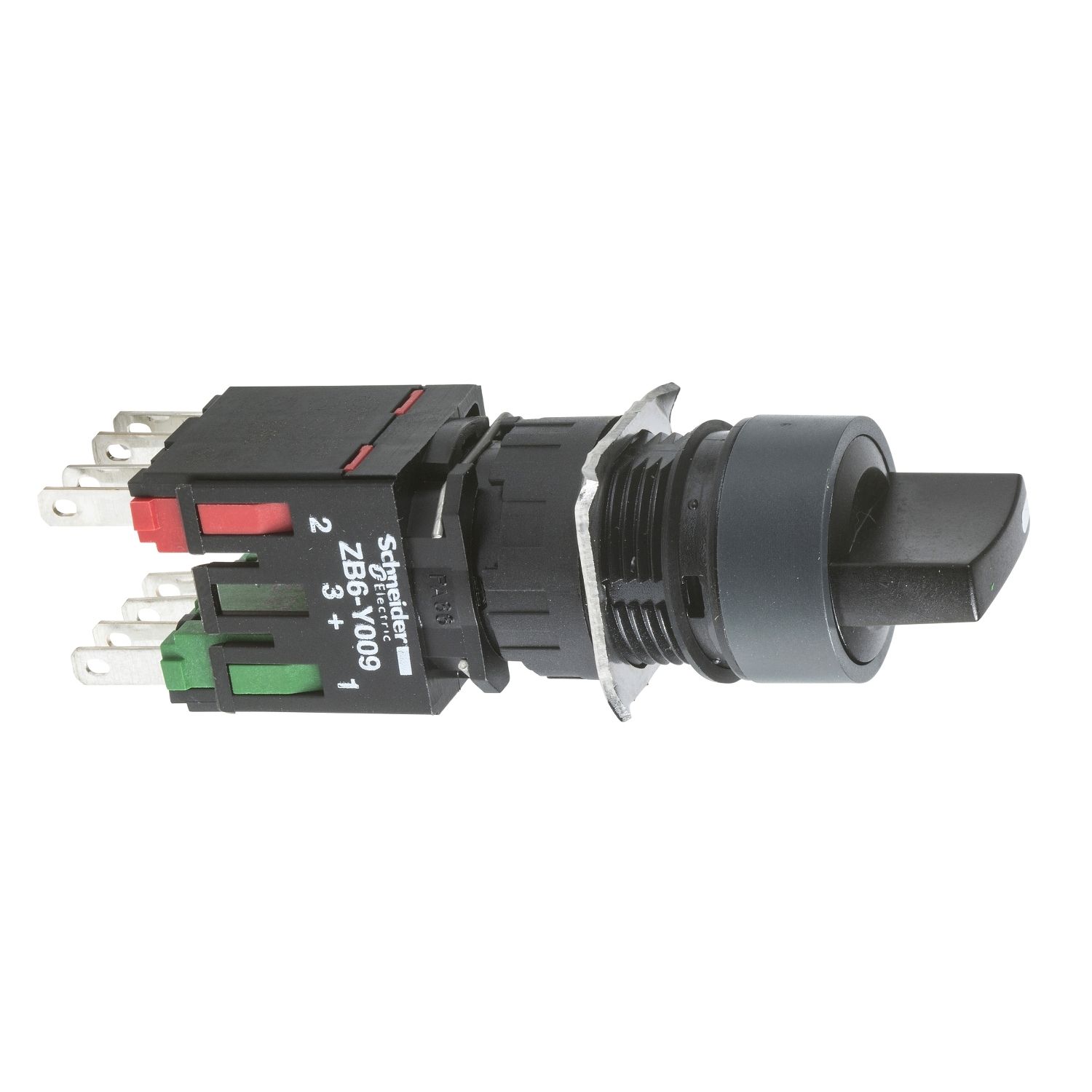

Picture of Selector switch, Harmony XB6, black round, 16mm, 3 positions, stay put, 1NO + 1NC
SKU:

XB6AD235B

Selector switch, Harmony XB6, black round, 16mm, 3 positions, stay put, 1NO + 1NC

Old price: $119.46 INC GST
$93.18 INC GST
Available for Shipping : 06-Jan-2026
Product Selector
Selector switch, Harmony XB6, black round, 16mm, 3 positions, stay put, 1NO + 1NC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Catalog
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name XB6
Operating position any position
Operator position information 3 positions 60°
Operator profile black standard handle
Contact operation slow-break
Bezel material plastic
Sale per indivisible quantity 1
Contacts type and composition 2 NO
Shape of signaling unit head square
Product or component type complete selector switch
Type of operator stay put
Mounting diameter 16 mm
Range of product Harmony XB6
Complementary
Depth 68 mm
Width 18 mm
Electrical reliability λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to IEC 60947-5-4
Compatibility code XB6
Mechanical durability 500000 cycles
[Ie] rated operational current 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1, 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1, 1.5 A at 240 V, AC-15, B300 conforming to IEC 60947-5-1, 3 A at 120 V, AC-15, B300 conforming to IEC 60947-5-1
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals Faston connectors, connection size: 2.8 x 0.5 mm
Electrical durability 1000000 cycles, DC-13 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1
Net weight 0.024 kg
Positive opening with conforming to IEC 60947-5-1 appendix K
Contacts material silver alloy (Ag/Ni)
Short-circuit protection 6 A cartridge fuse type gG
Terminals description ISO n°1 (13-14)NO, (21-22)NC
Height 18 mm
Environment
Protective treatment TC
Electrical shock protection class class II conforming to IEC 61140
NEMA degree of protection NEMA 4X conforming to CSA C22.2 No 94, NEMA 4 conforming to CSA C22.2 No 94, NEMA 13 conforming to CSA C22.2 No 94, NEMA 4X conforming to UL 50, NEMA 4 conforming to UL 50, NEMA 13 conforming to UL 50
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, JIS C 852, IEC 60947-5-5, IEC 60947-5-1, JIS C8201-5-1, IEC 60947-1, CSA C22.2 No 14, UL 508
Ambient air temperature for operation -25-70 °C
Product certifications CSA, CCC, UL, GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.0 cm
Package 1 Width 11.0 cm
Package 1 Length 16.0 cm
Package 1 Weight 16.0 g
Unit Type of Package 2 2
Number of Units in Package 2 60
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.141 kg
