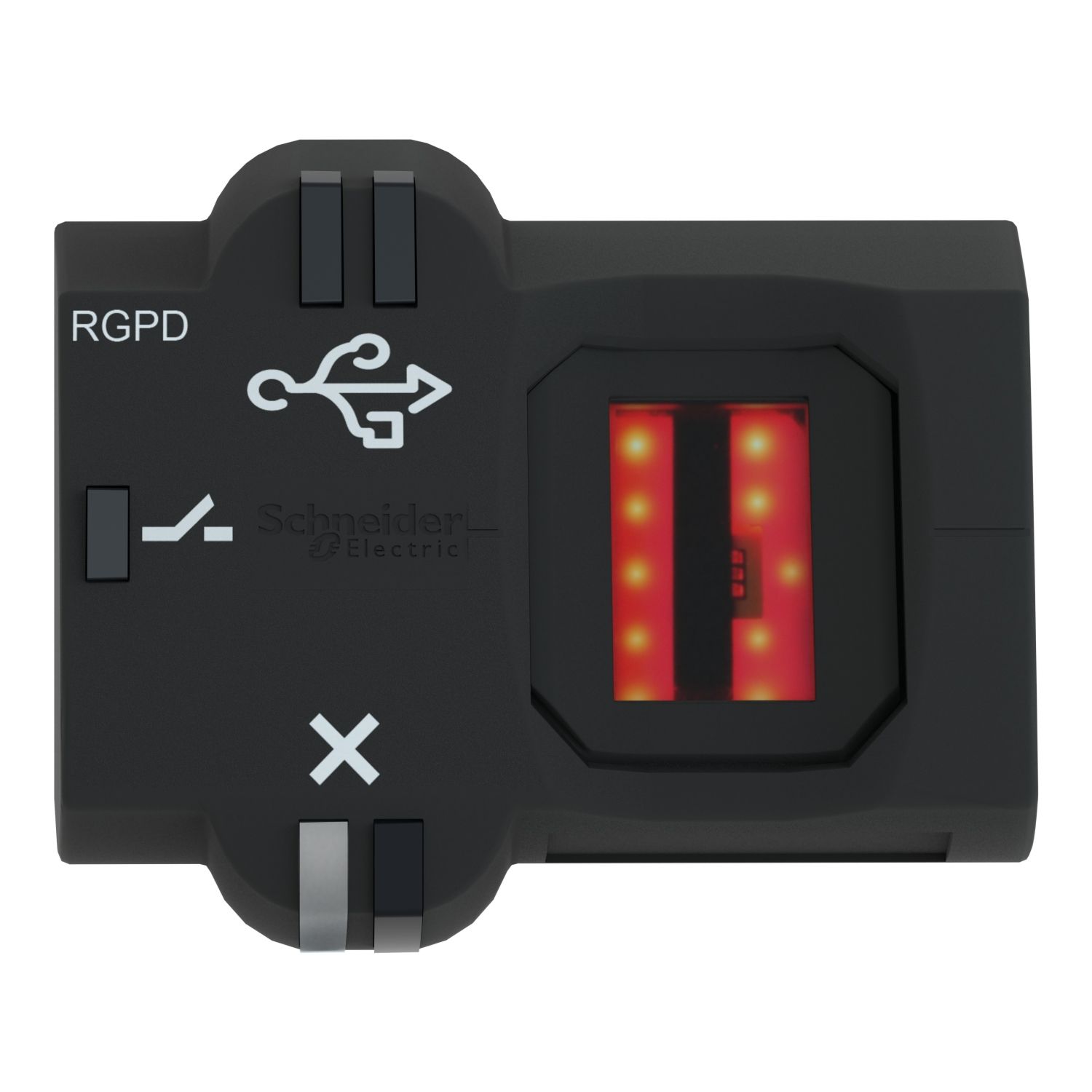

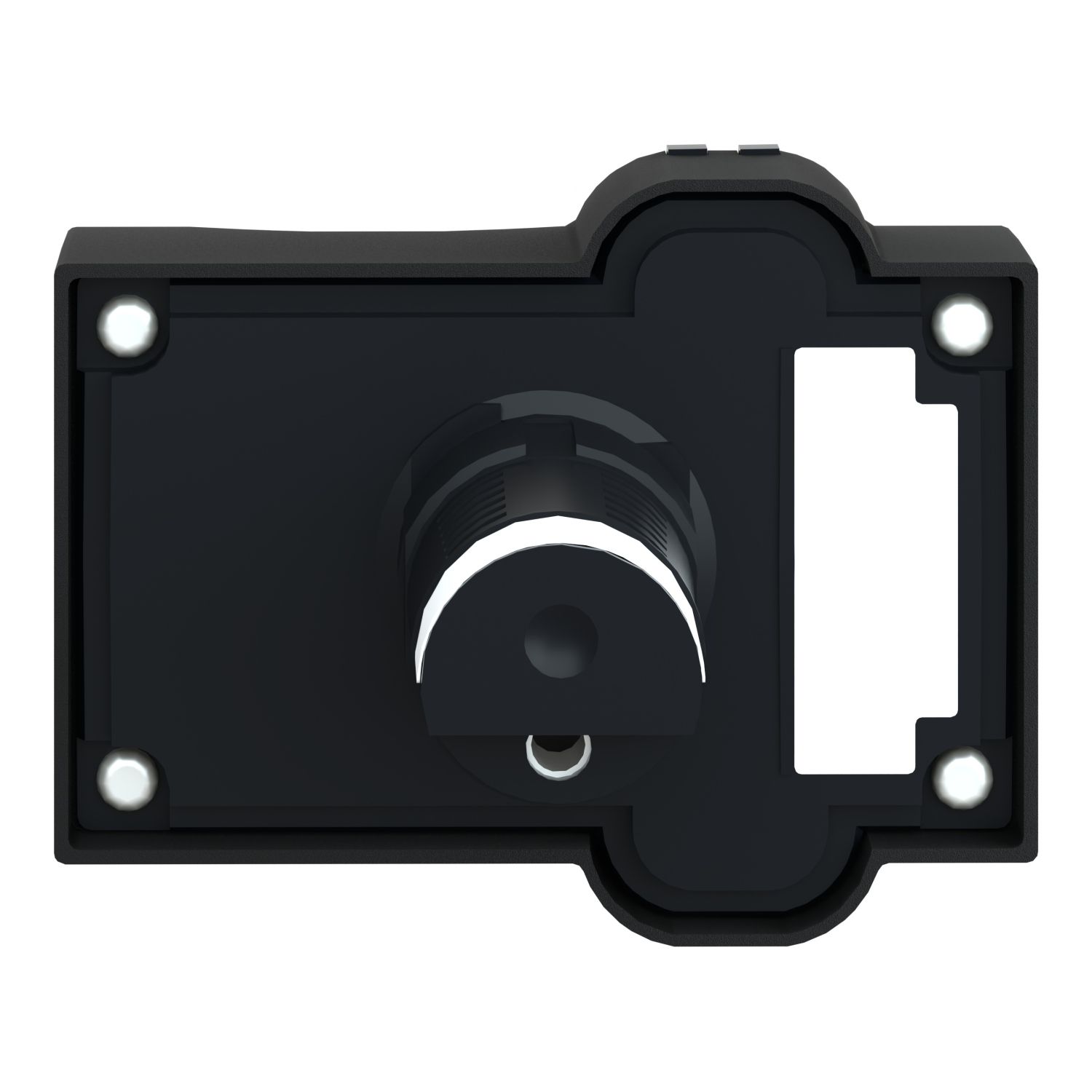

Picture of Biometric switch monostable RGPD, Harmony XB5S, plastic, 22mm, USB, connection by 2m cable, 24V AC DC
SKU:

XB5S9B2L2

Biometric switch monostable RGPD, Harmony XB5S, plastic, 22mm, USB, connection by 2m cable, 24V AC DC

Old price: $821.70 INC GST
$640.93 INC GST
Availability: Please contact our sales team on 1300 724 622.
Biometric switch monostable RGPD, Harmony XB5S, plastic, 22mm, USB, connection by 2m cable, 24V AC DC
Be the first to review this product
Manufacturer: Schneider Electric

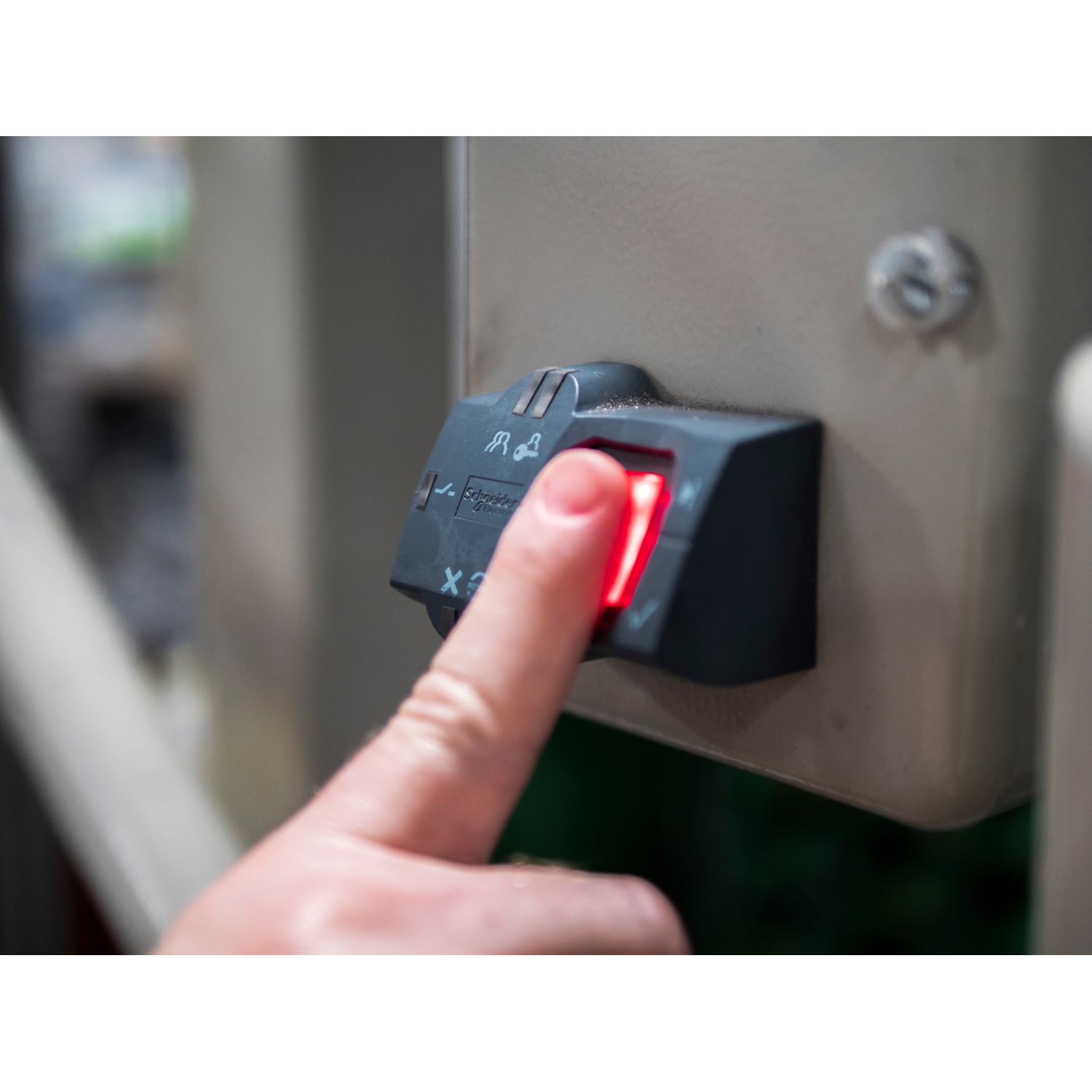

Image of product in real life situation
Catalog
Circularity Profile
Instruction sheet
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet
This biometric switch allows control of authorization to access areas, machine commands and functions without the use of easy-to-lose keys. It has a high detection reliability with minimal false positive detections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name XB5S
Memory usage 200 users with up to 2 fingerprints per user
Output type PNP
Type of operator momentary
Product specific application industrial machines, materials handling
Operator profile fingerprint reader
Bezel material plastic
Sale per indivisible quantity 1
Connections - terminals 1 pre-wired cable, 3 x 0.11 mm²
IP degree of protection IP65 (front face) conforming to IEC 60529, IP20 (rear face) conforming to IEC 60529
Product or component type biometric switch RGPD
Mounting diameter 22 mm
Complementary
Maximum delay first up 3 s + 0.5 ms per user registered
[Ures] residual voltage 1 V closed state
Function of module monostable
Enclosure material polyamide PA66
Protection type overload protection, short-circuit, reverse polarity
Operating position horizontal position, flat surface installation, vertical surface installation
Customizable no, 0
Local signalling 1 LED (red) for error, 1 LED (green) for output state indicator
Supply voltage limits 20-30 V DC
Software designation XB5SSoft
Maximum delay recovery 1.5 s
Communication port protocol USB
[Us] rated supply voltage 24 V DC, 24 V
Net weight 0.202 kg
Marking CE
Maximum switching current 200 mA
Connector type USB type A male with 1 m cable
Cable insulation material PvR
Short-circuit protection 250 mA external fuse type gG
Maximum delay response 1.5 s
Electrical connection free wire ends with 3 wires of 2 m
Current consumption <= 70 mA no-load
Environment
NEMA degree of protection NEMA 12
Ambient air temperature for storage -25-70 °C
Vibration resistance 1 gn (f= 9-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 5-9 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn 11 ms conforming to IEC 60068-2-27
Standards IEC 61000-6-2, IEC 61000-6-4
Range of product Harmony XB5S
Ambient air temperature for operation -5-50 °C
Product certifications UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.6 cm
Package 1 Width 9.5 cm
Package 1 Length 18.4 cm
Package 1 Weight 193.0 g
