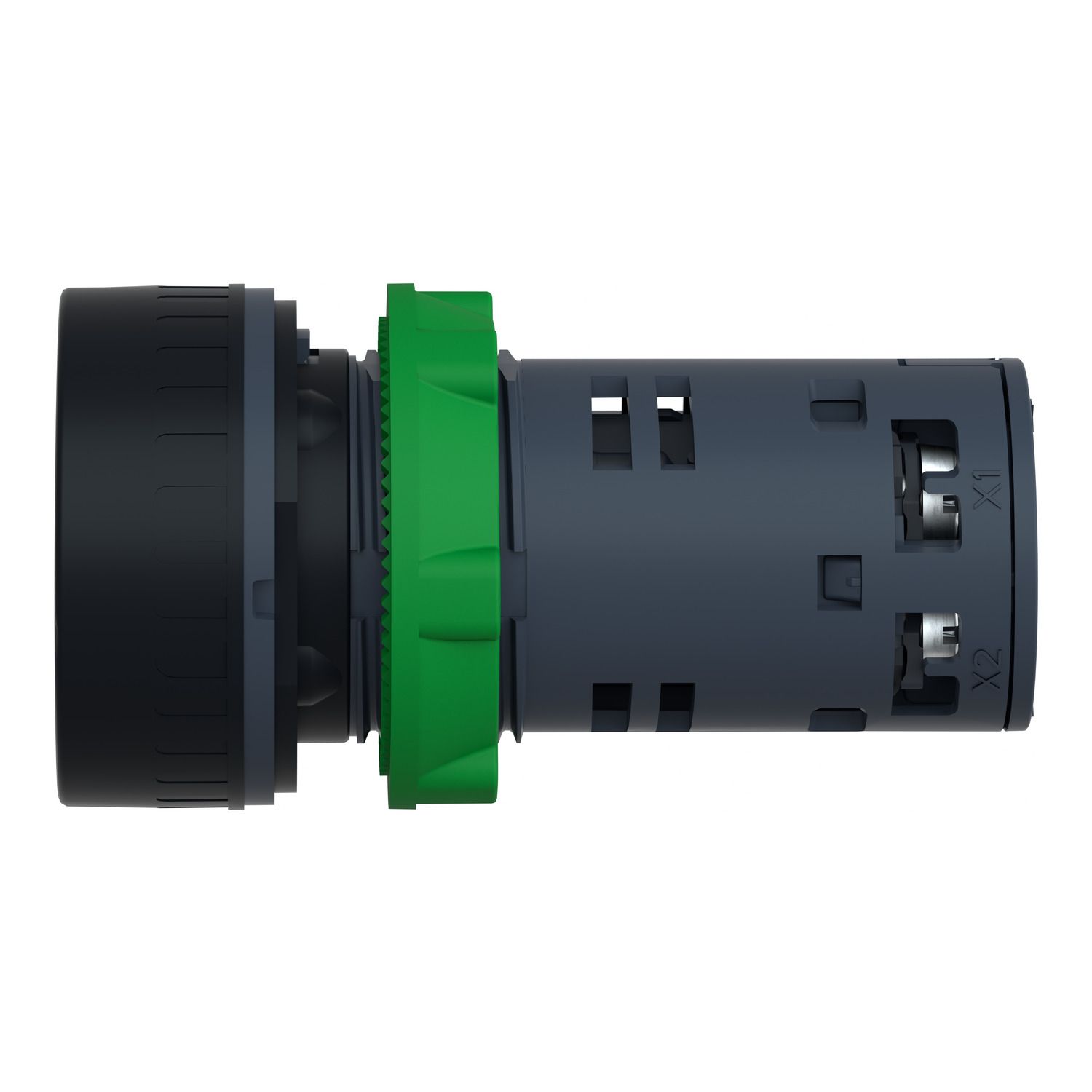

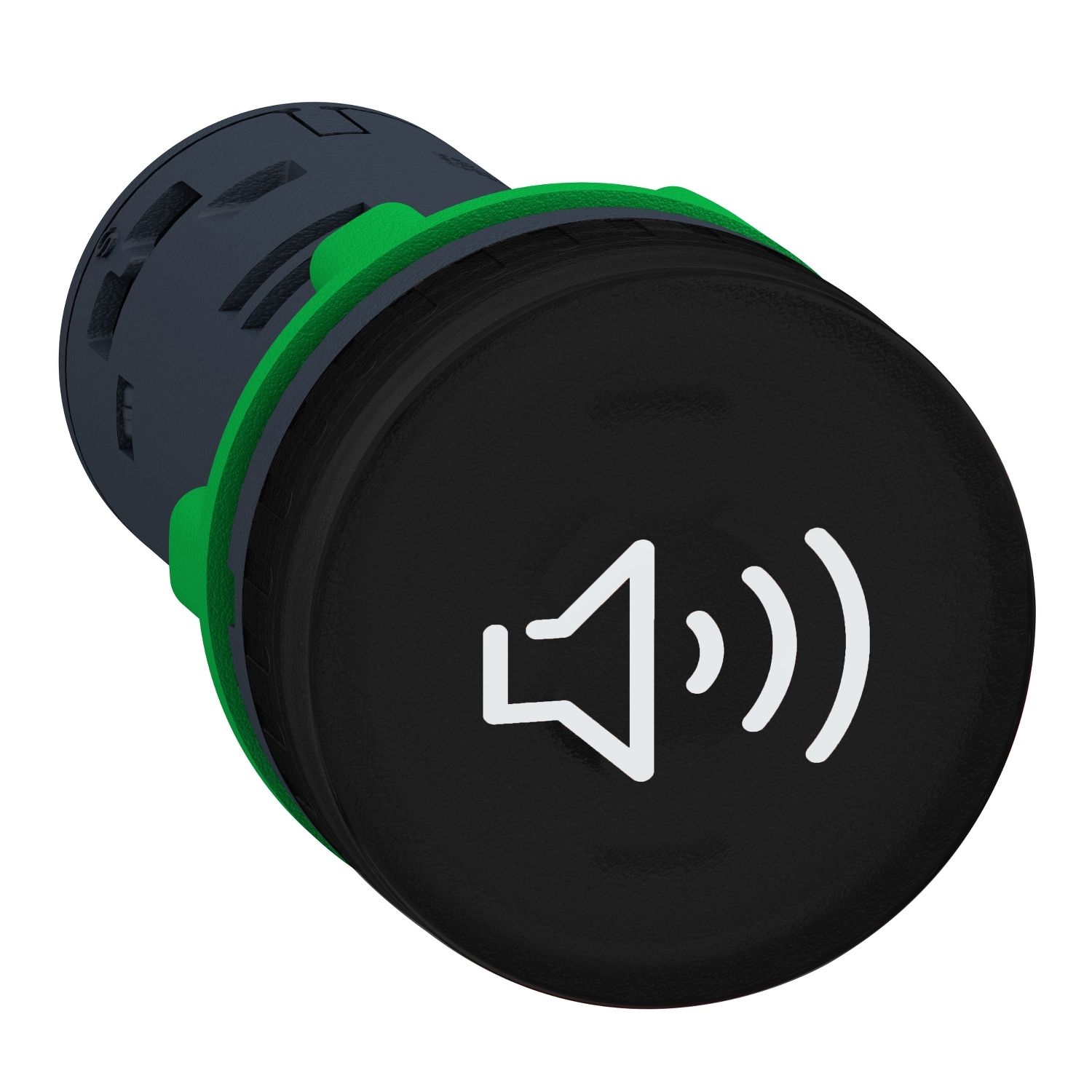

Picture of Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 110...120V AC

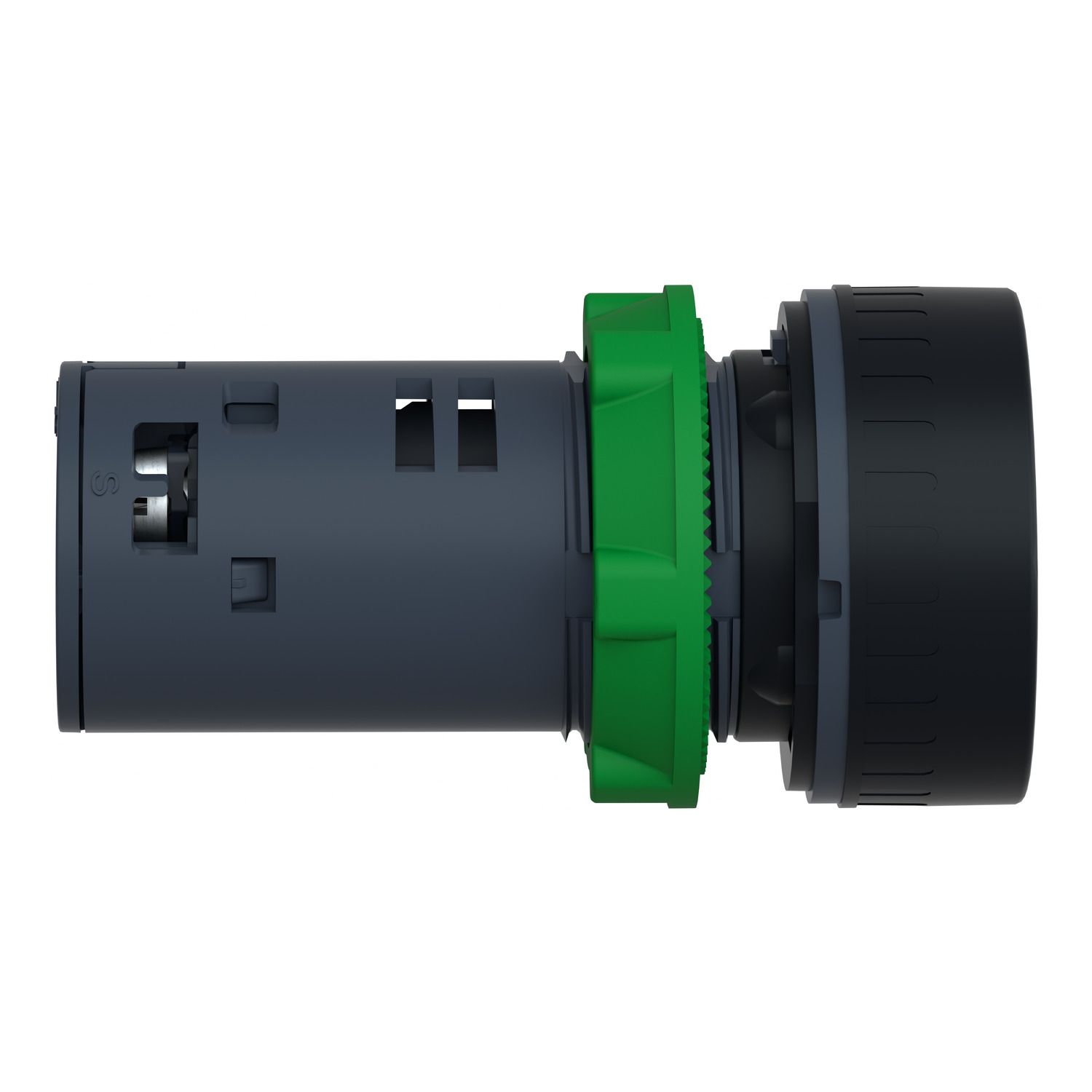

Picture of Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 110...120V AC

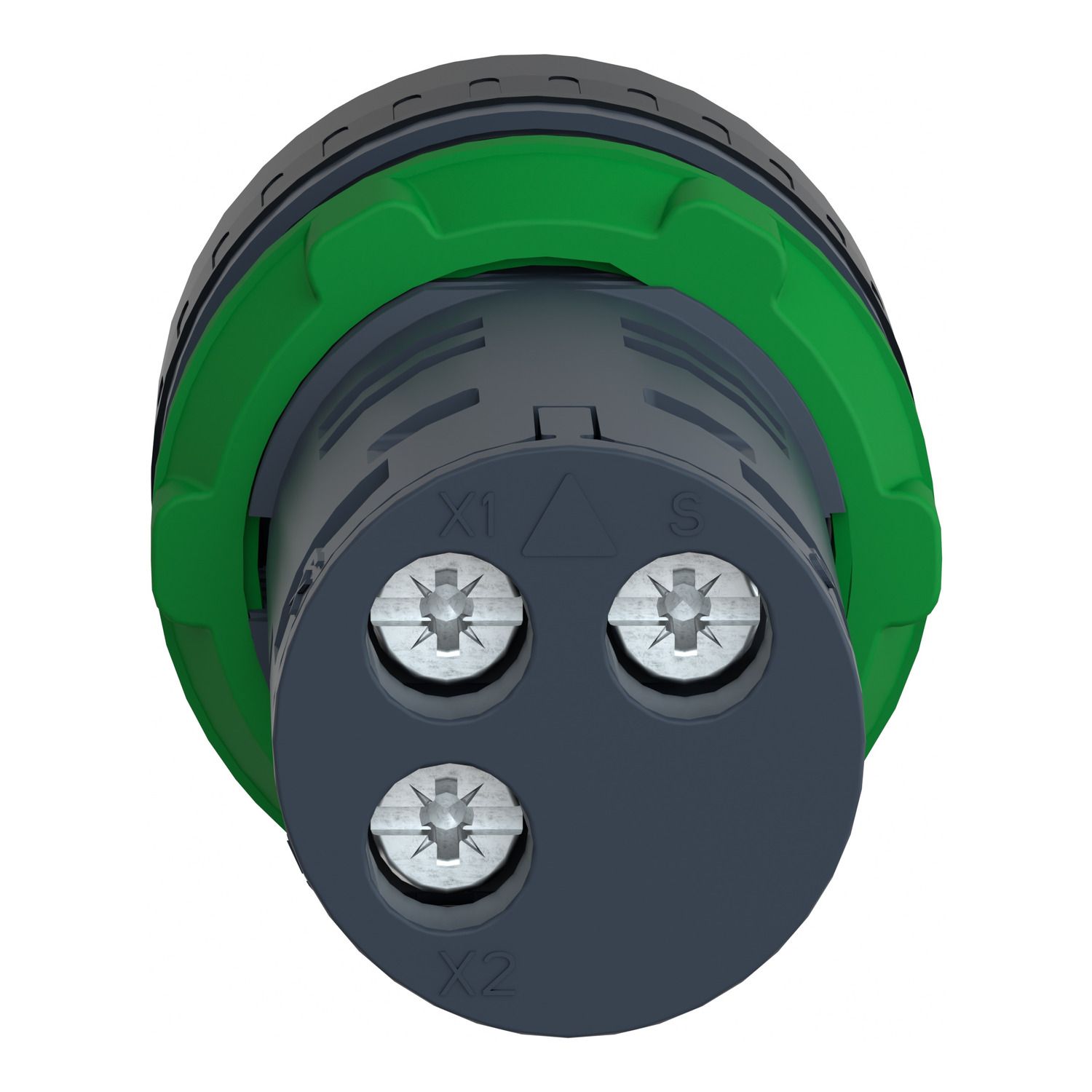

Picture of Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 110...120V AC

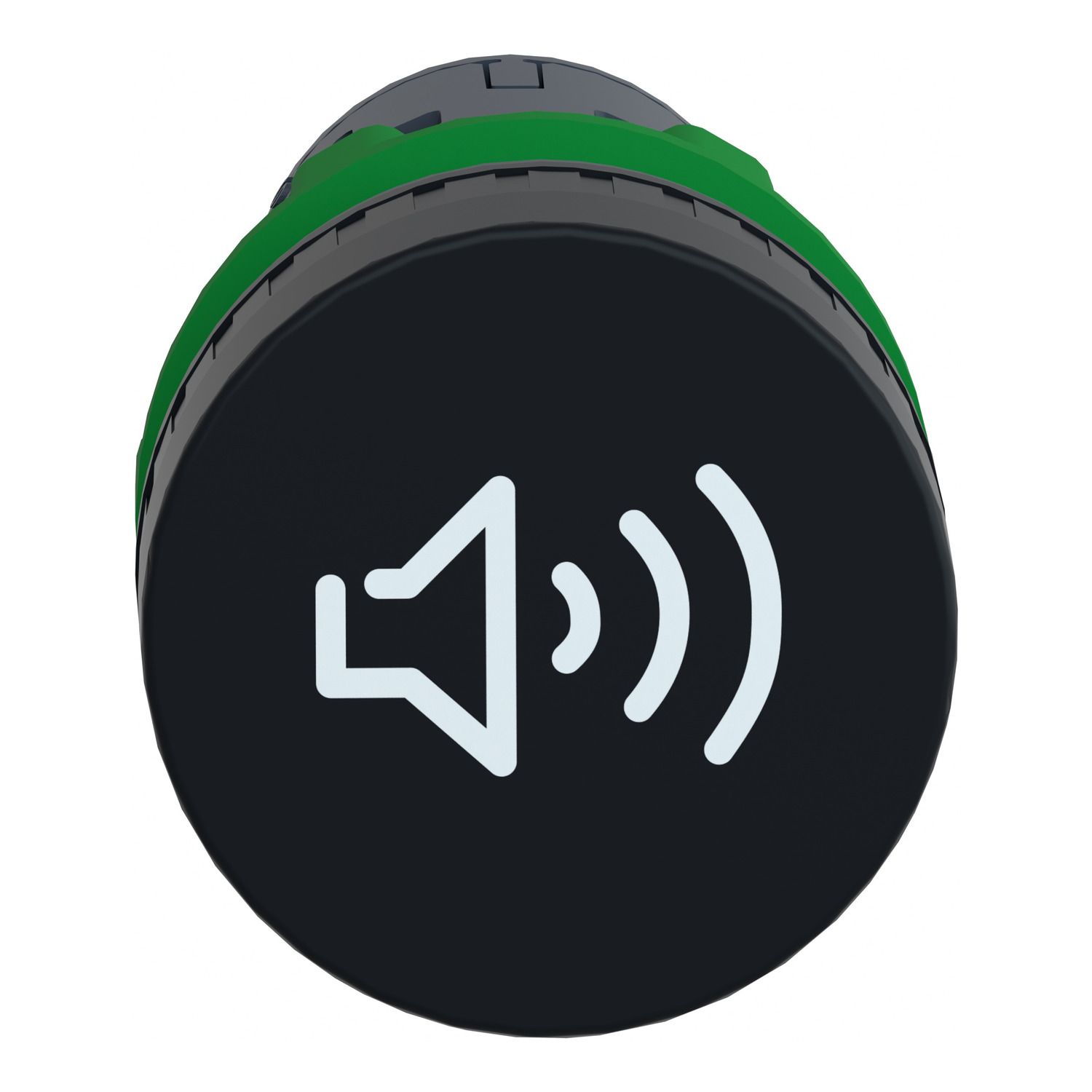

Picture of Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 110...120V AC

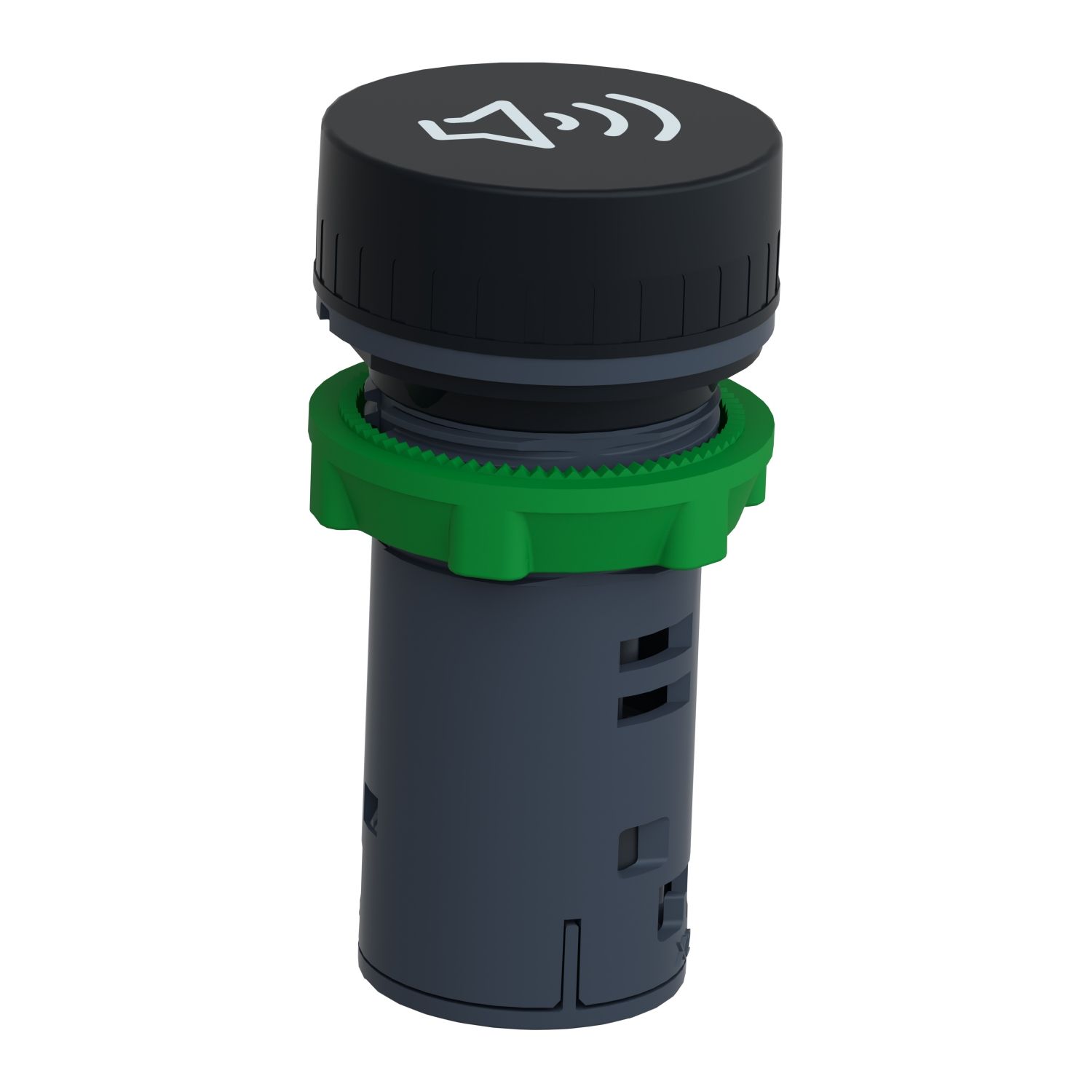

Picture of Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 110...120V AC
Picture of Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 110...120V AC
Picture of Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 110...120V AC

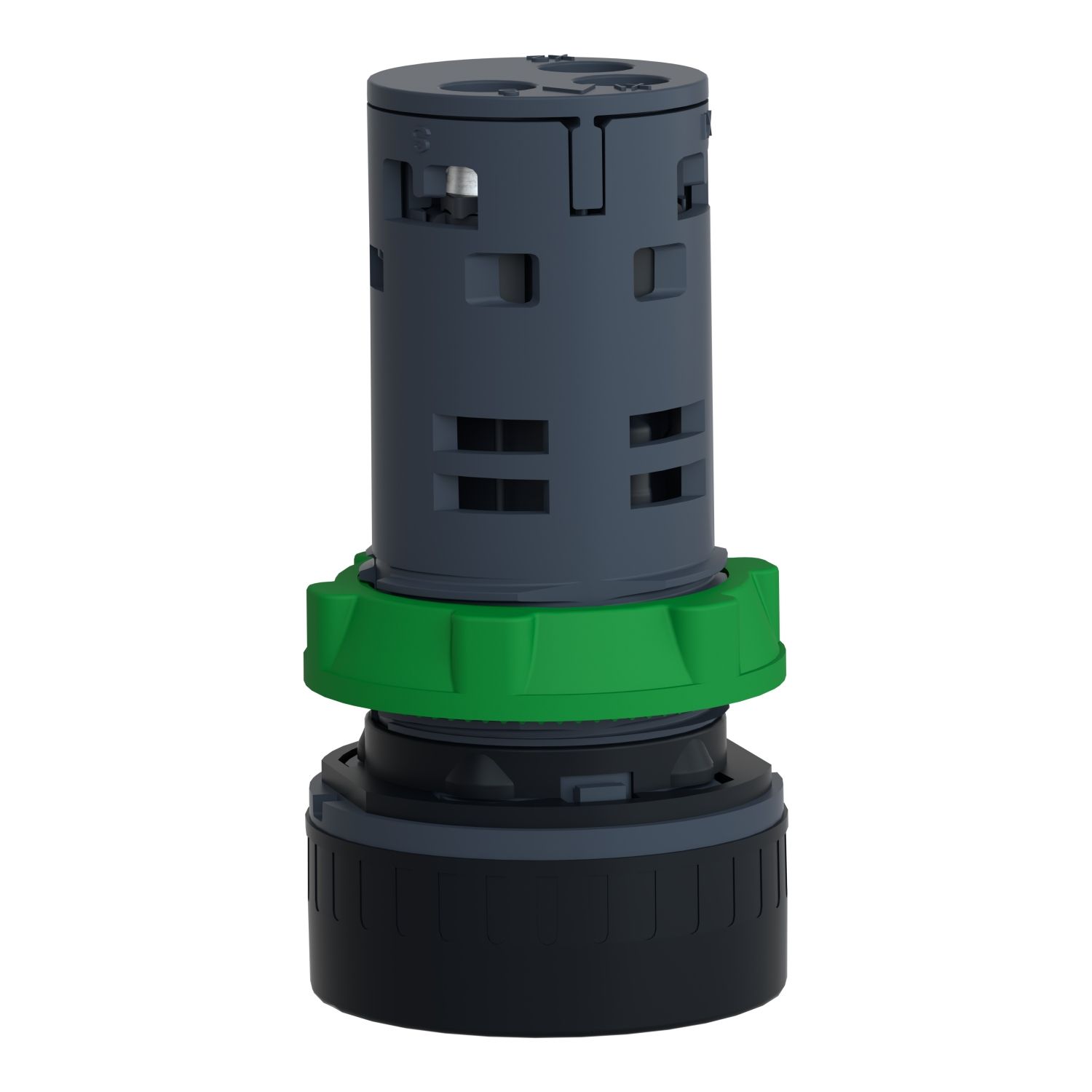

Picture of Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 110...120V AC
Picture of Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 110...120V AC
Picture of Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 110...120V AC
SKU:

XB5KSG

Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 110...120V AC

Old price: $328.90 INC GST
$256.54 INC GST
Available for Shipping : 20-Jan-2026
Product Selector
Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 110...120V AC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 20-Jan-2026

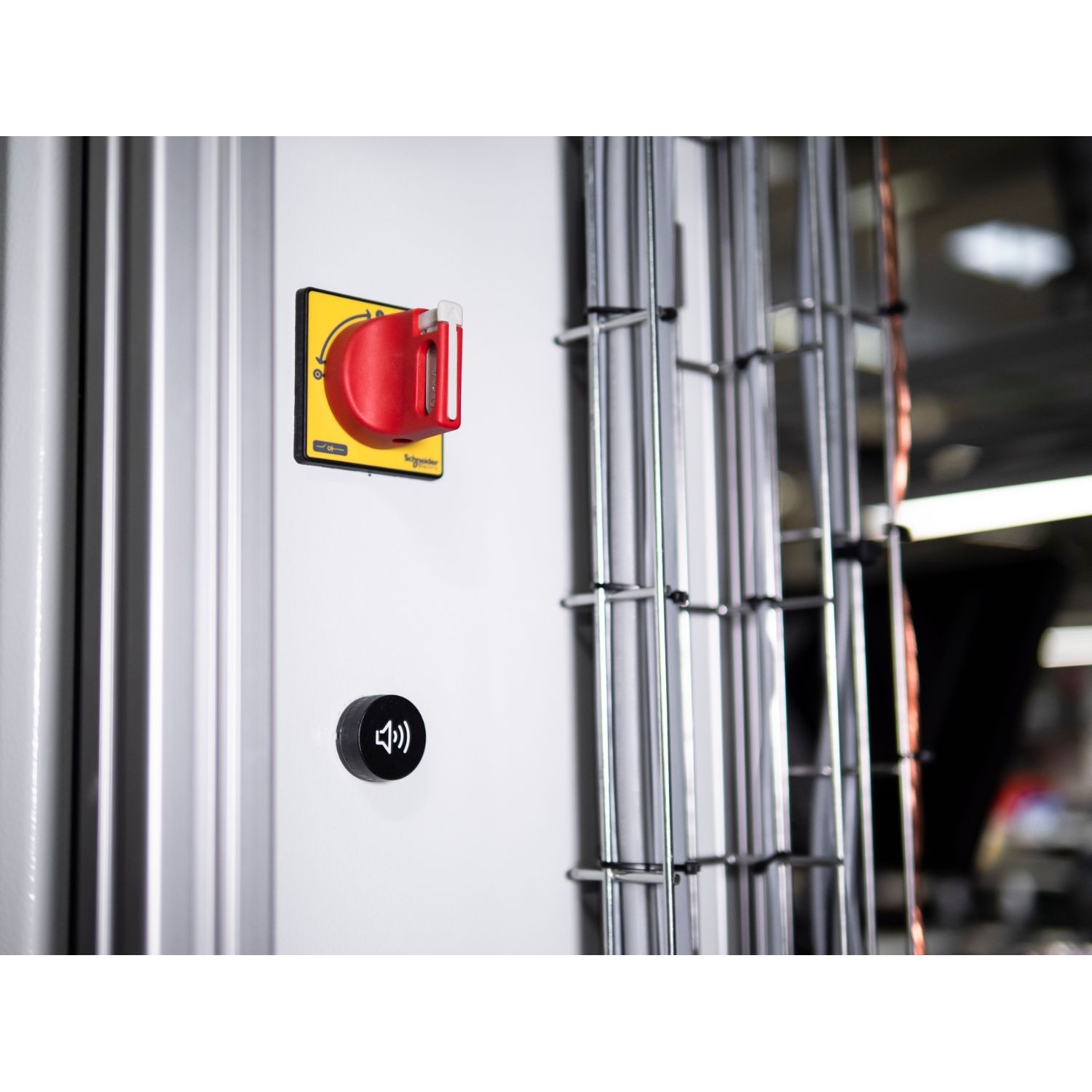

Image of product in real life situation
Declaration of conformity

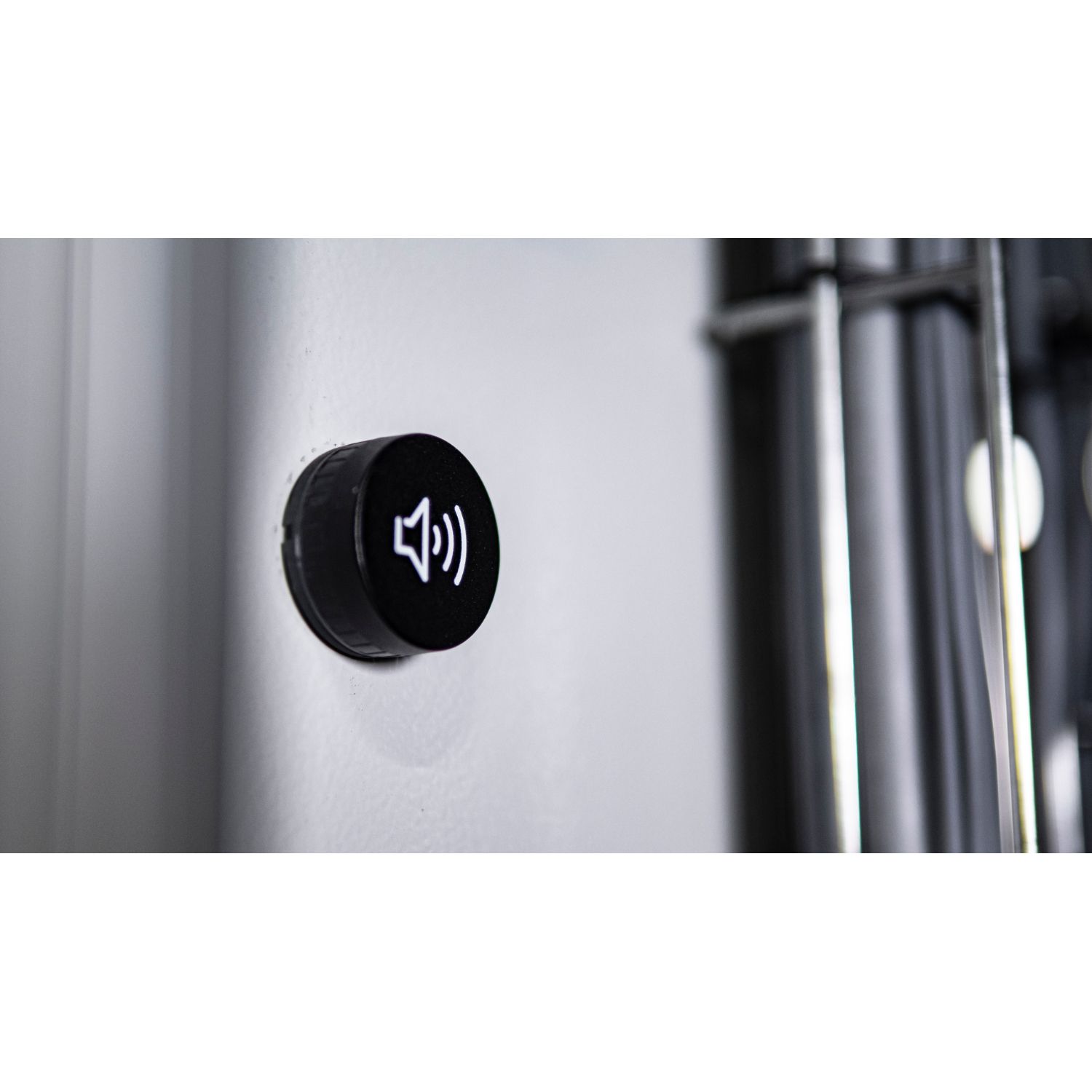

Image of product in real life situation
Instruction sheet
Catalog
Product Page Link
Product Data Sheet
This Harmony XB5, annunciator siren is supplied with 120V AC with noise level 85dB. This annuciator siren provides a signaletic sound alarm for your installation. It is easily installed into standard 22mm diameter cut-outs. It has an IP40 protection. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Products specifications

Attribute name Attribute value
Main
Bezel material dark grey plastic
Head type standard
Cap/operator or lens colour black
Product or component type annunciator
Mounting diameter 22 mm
Range of product Harmony XB5
Complementary
Supply frequency 50/60 Hz
Depth 55 mm
Width 29 mm
Supply circuit type AC/DC
Signalling type continuous or intermittent tone
Noise level 90 dB 6.8 kHz 0.1 m +/- 10 %
Resistance to high pressure washer 9000000 Pa at 80 °C, distance : 0.1 m
Current consumption <= 20 mA
Net weight 0.024 kg
Height 29 mm
[Us] rated supply voltage 120 V +/- 10 %, 120 V
Environment
Protective treatment TH
Electrical shock protection class class II conforming to IEC 60536
Overvoltage category class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
NEMA degree of protection NEMA 4X, NEMA 13
Standards IEC 50102, IEC 62262, IEC 60529, JIS C8201-1, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-5-4, UL 508, IEC 60947-5-1, IEC 60947-1
Ambient air temperature for operation -40-70 °C
Product certifications BV, CSA, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.2 cm
Package 1 Width 3.4 cm
Package 1 Length 5.8 cm
Package 1 Weight 28.0 g
Unit Type of Package 2 2
Number of Units in Package 2 88
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 2.796 kg
