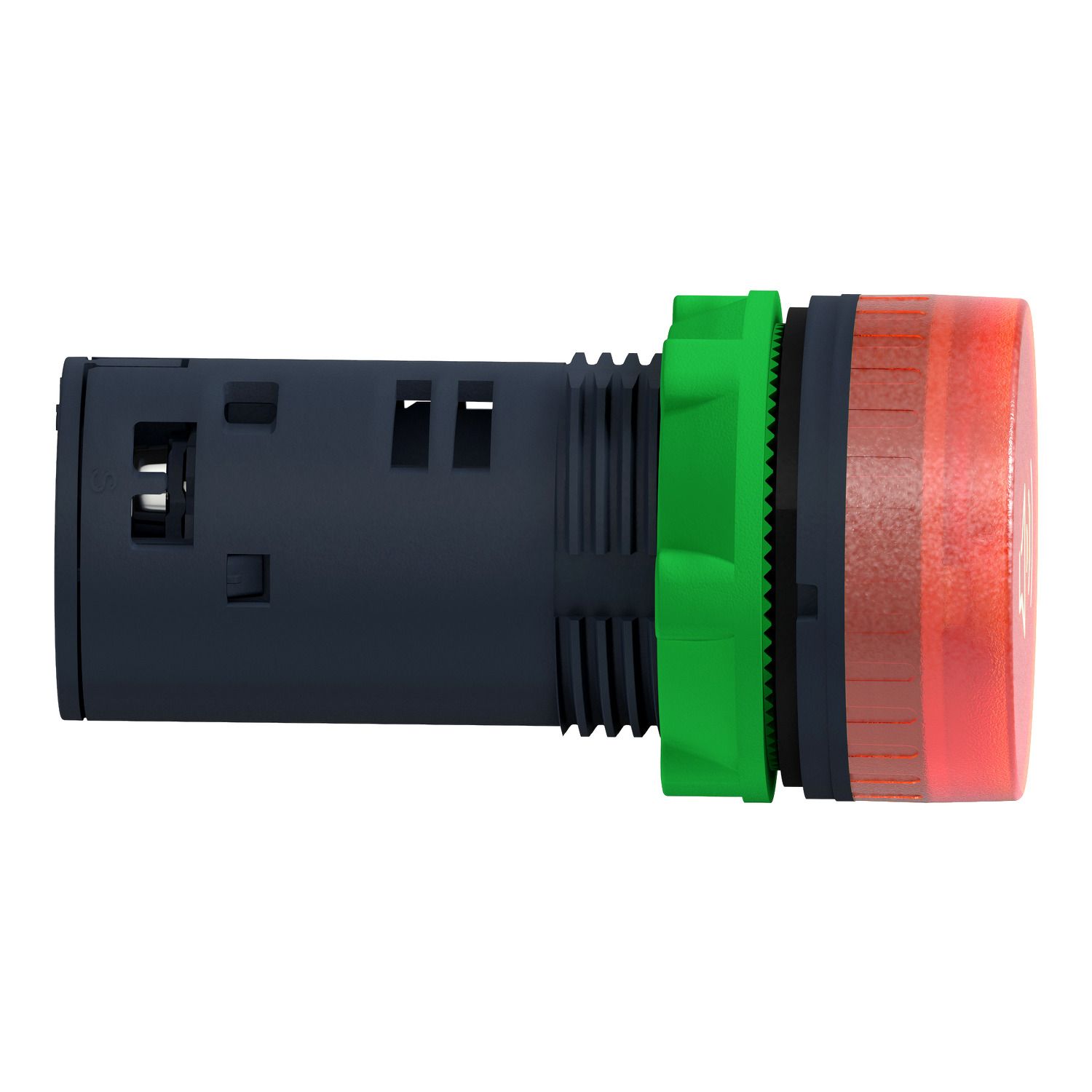

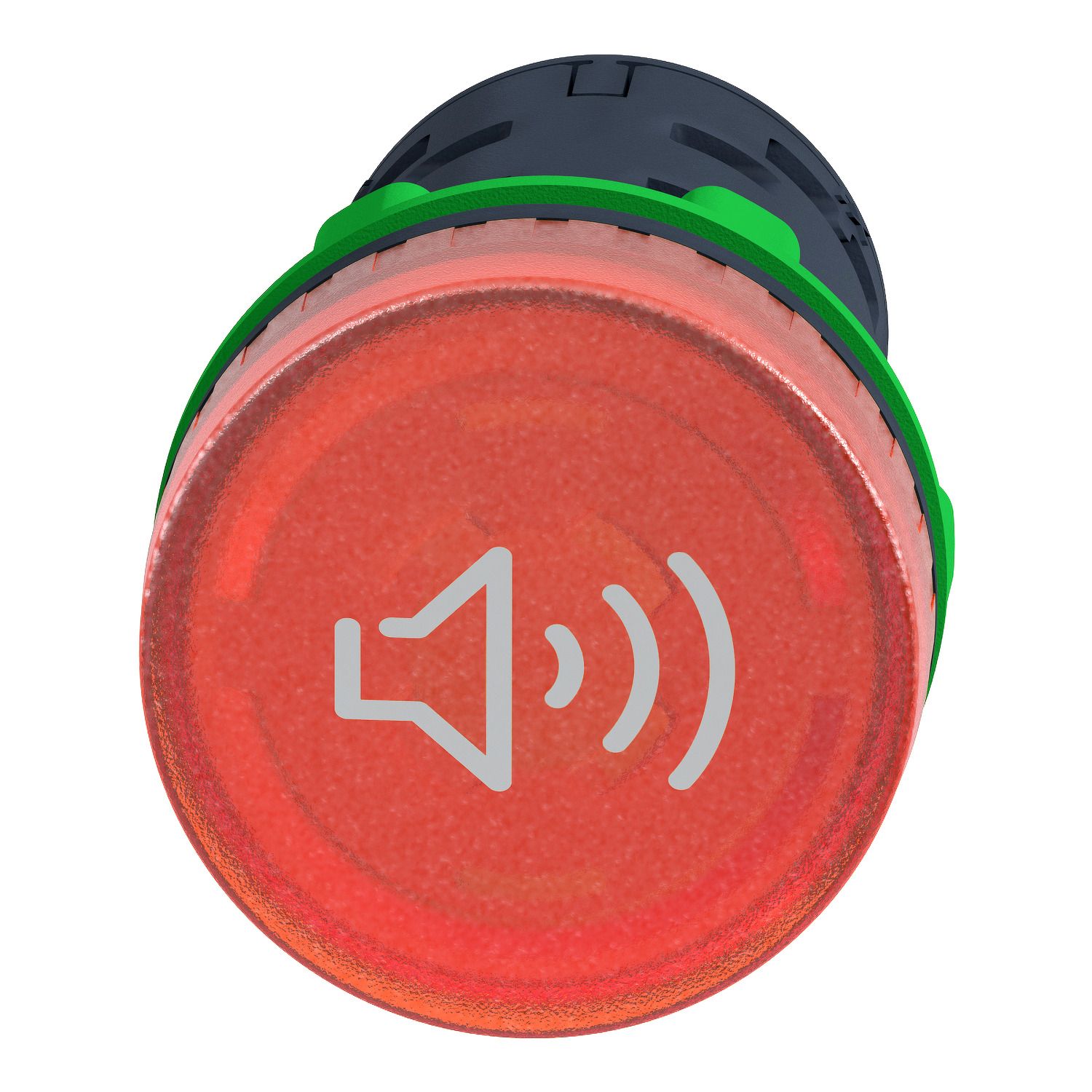

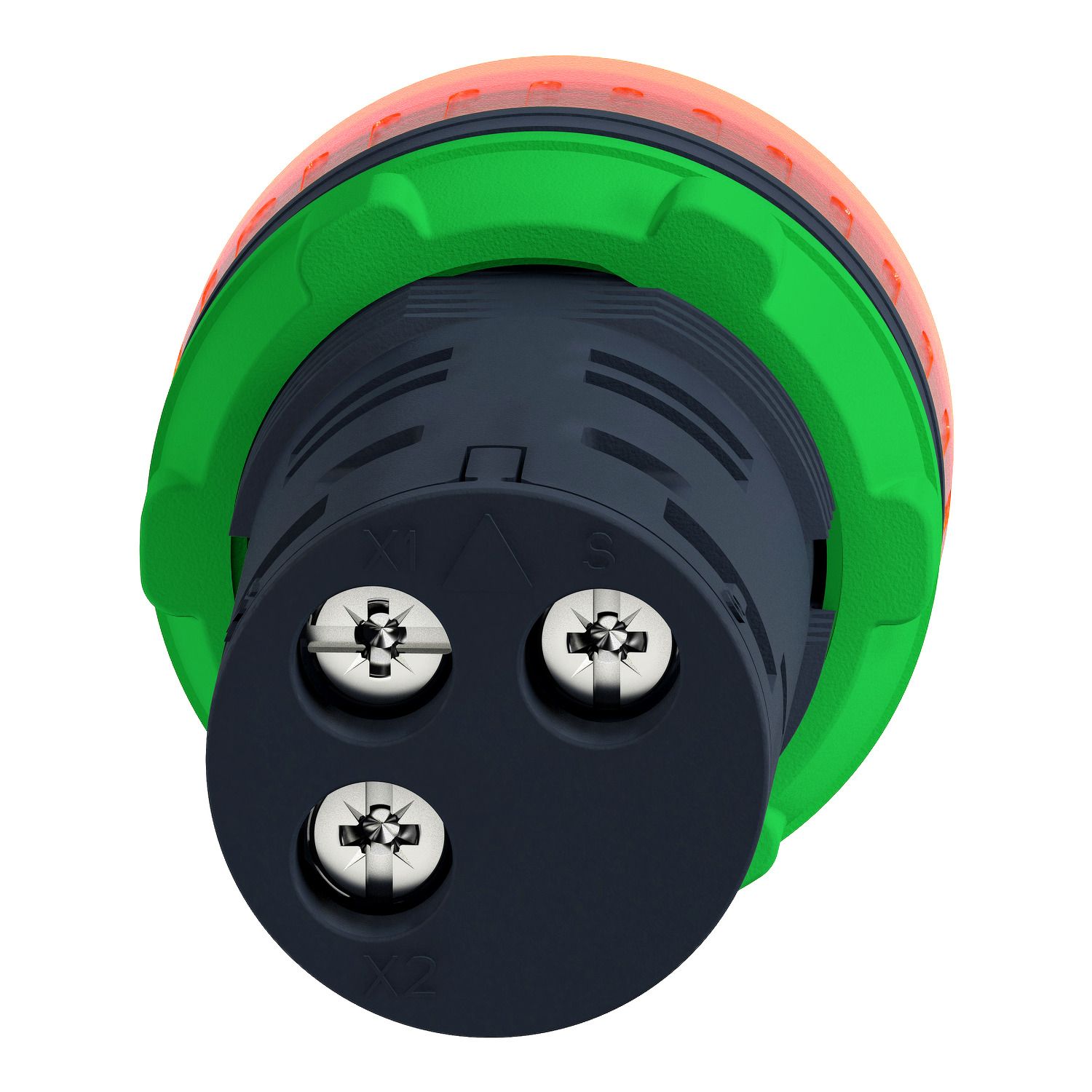

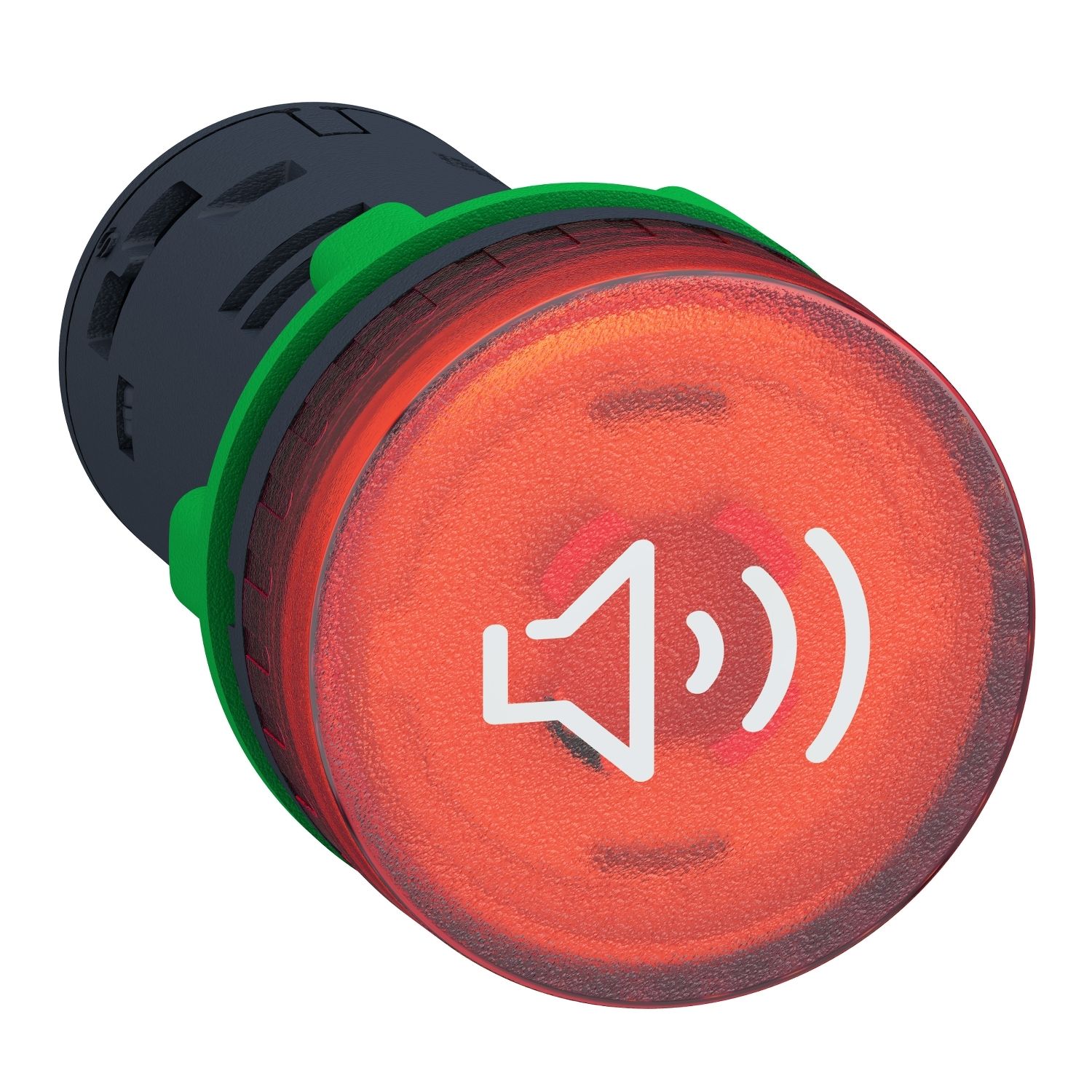

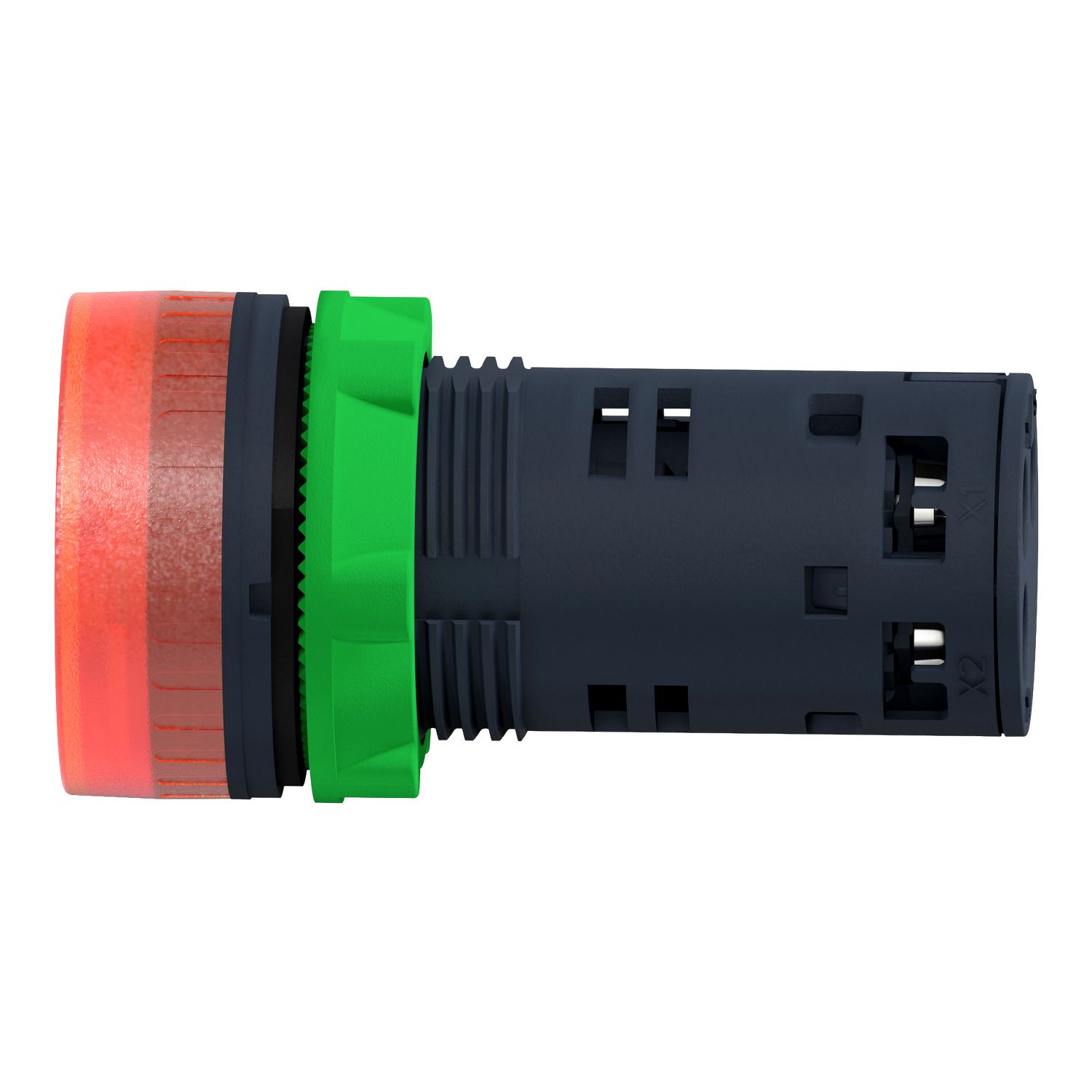

Picture of Annunciator, Harmony XB5, Illuminated buzzer, plastic, red, 22mm, continuous or intermittent tone, 24V AC DC
Picture of Annunciator, Harmony XB5, Illuminated buzzer, plastic, red, 22mm, continuous or intermittent tone, 24V AC DC
Picture of Annunciator, Harmony XB5, Illuminated buzzer, plastic, red, 22mm, continuous or intermittent tone, 24V AC DC
Picture of Annunciator, Harmony XB5, Illuminated buzzer, plastic, red, 22mm, continuous or intermittent tone, 24V AC DC
Picture of Annunciator, Harmony XB5, Illuminated buzzer, plastic, red, 22mm, continuous or intermittent tone, 24V AC DC
Picture of Annunciator, Harmony XB5, Illuminated buzzer, plastic, red, 22mm, continuous or intermittent tone, 24V AC DC
Picture of Annunciator, Harmony XB5, Illuminated buzzer, plastic, red, 22mm, continuous or intermittent tone, 24V AC DC
Picture of Annunciator, Harmony XB5, Illuminated buzzer, plastic, red, 22mm, continuous or intermittent tone, 24V AC DC
SKU:

XB5KS2B4

Annunciator, Harmony XB5, Illuminated buzzer, plastic, red, 22mm, continuous or intermittent tone, 24V AC DC

Old price: $215.82 INC GST
$168.34 INC GST
Available for Shipping : 10-Dec-2025
Product Selector
Annunciator, Harmony XB5, Illuminated buzzer, plastic, red, 22mm, continuous or intermittent tone, 24V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 10-Dec-2025
Catalog

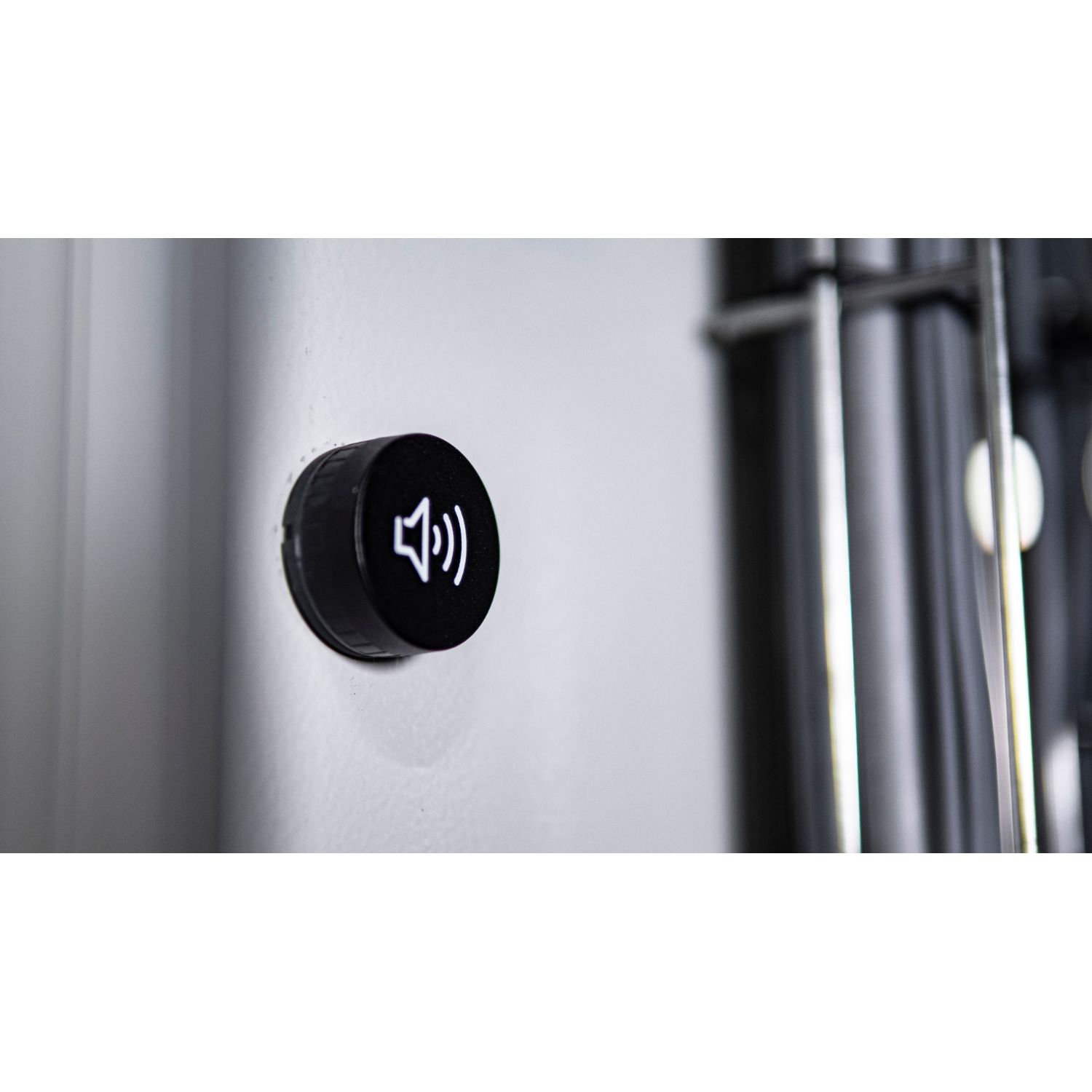

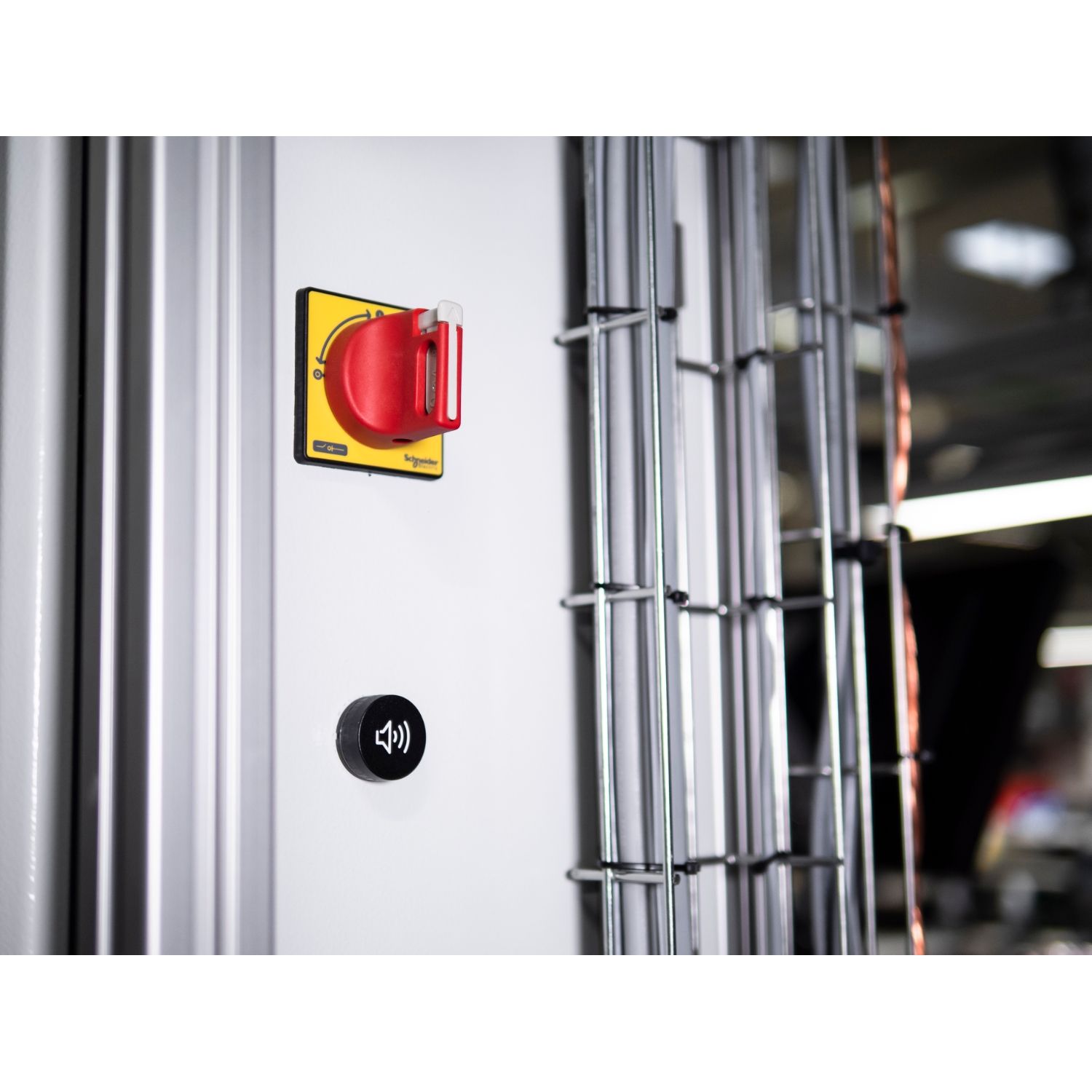

Image of product in real life situation
Image of product in real life situation
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This indicating bank buzzer is an accessory designed as an audible and signaling unit for custom assembly. It has a continuous or intermittent signal and its sound acoustic level is adjustable. It complies with EN/IEC60947-1, EN/IEC60947-4-1, EN/IEC60947-5-1, JIS C 4520, UL 508, CSA C22.2 No 14 standards. It is also dust, impact, high pressure washer, vibration and corrosion resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Bezel material plastic
Cap/operator or lens colour red
Product or component type annunciator
Mounting diameter 22 mm
Range of product Harmony XB5
Complementary
Supply frequency 50/60 Hz
Depth 55 mm
Width 29 mm
Supply circuit type AC/DC
Signalling type continuous or intermittent tone
Noise level 90 dB 6.8 kHz 0.1 m +/- 10 %
Resistance to high pressure washer 9000000 Pa at 80 °C, distance : 0.1 m
Current consumption <= 58 mA
Net weight 0.024 kg
Height 29 mm
[Us] rated supply voltage 24 V +/- 10 %, 24 V
Environment
Protective treatment TH
Overvoltage category class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
NEMA degree of protection NEMA 13, NEMA 4X
Standards IEC 50102, IEC 62262, IEC 60529, JIS C8201-1, UL 508, IEC 60947-1, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-5-1, CSA C22.2 No 14
Ambient air temperature for operation -40-70 °C
Product certifications BV, CSA, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.300 cm
Package 1 Width 3.300 cm
Package 1 Length 5.900 cm
Package 1 Weight 28.000 g
Unit Type of Package 2 2
Number of Units in Package 2 88
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.629 kg
Unit Type of Package 3 3
Number of Units in Package 3 1408
Package 3 Height 70.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 43.016 kg
