SKU:

XB5DTB22

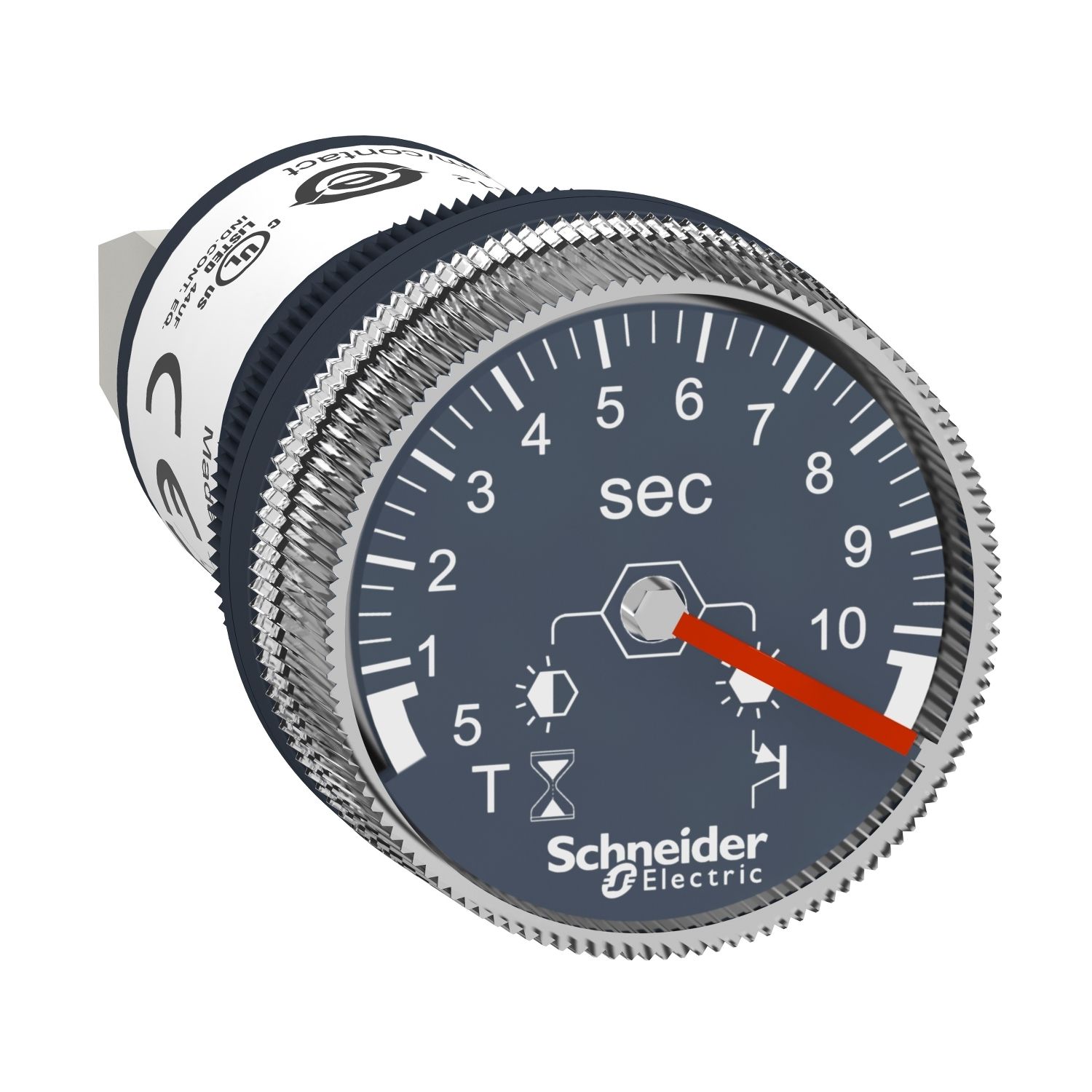

Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 0.5...10s, 24V DC

Old price: $179.30 INC GST
$139.85 INC GST
Available for Shipping : 06-Jan-2026
Product Selector
Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 0.5...10s, 24V DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Declaration of conformity
Image of product in real life situation
Catalog
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Instruction sheet
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Product Page Link
Product Data Sheet
This Harmony XB5, monolithic analog timer can be set for timing intervals between 0.5s to 10s and is supplied with a 24V DC input. This analog timer provides visual timing of your processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It provides highly visible timing of machine processes, ensuring accuracy and consistency of operation.

Products specifications

Attribute name Attribute value
Main
Sale per indivisible quantity 1
Product or component type timer
Range of product Harmony XB5
Complementary
Nominal output current 200 mA at 20 °C( derating 1.5 mA per °C)
Resistance to fast transients 2 kV class level 3 conforming to IEC 61000-4-4
Immunity to radioelectric fields 10 V level 3 conforming to IEC 61000-4-6
Time delay type A
Output type open collector PNP
Protection type reverse polarity protection,  overvoltage protection
Maximum residual current 0.1 mA
IP degree of protection IP20 back: conforming to IEC 60529, IP65 front: conforming to IEC 60529
Temporary permissible current 10 A for 0.01 s
Supply voltage limits 16.8-31.2 V DC
Minimum switching current 10 mA
Connections - terminals screw terminals 1 x 2.5 mm² conforming to IEC 60947-1, screw terminals 1 x 4 mm² conforming to IEC 60947-1
Output short-circuit protection yes
Tightening torque 0.5 N.m
Bezel material plastic
Overvoltage category class 3 conforming to IEC 60664-1, class 3 conforming to IEC 60536
Surge withstand 1 kV, level 2 conforming to IEC 61000-4-5
Ambient air temperature for storage -20-80 °C
[Ui] rated insulation voltage 50 V conforming to IEC 60664-1, 50 V conforming to IEC 60947-1
Pollution degree 3 conforming to IEC 60664-1
Local signalling LED, steady for no timing in progress and output relay energised, LED green, flashing for timing in progress
Time delay range 0.5...10 s
Temperature drift +/- 0.05 %/°C
Electromagnetic compatibility electromagnetic emission class B conforming to IEC 55011, electrostatic discharge 6 kV level 3 conforming to IEC 61000-4-2
Thickness 1-6 mm
Device presentation monolithic product
Voltage drift +/- 0.2 %/V
Fixing collar material plastic
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60664-1, 4 kV conforming to IEC 60947-1
Net weight 0.027 kg
Reset time 7 ms during time delay on de-energisation, 5 ms after time delay on de-energisation
Shock resistance +/- 15 gn for 11 ms (6 shocks on each axis) conforming to IEC 60068-2-27
Vibration resistance 2 gn (f= 60-150 Hz) conforming to IEC 60068-2-6, 0.15 mm (f= 10-60 Hz) conforming to IEC 60068-2-6
Dielectric strength 1500 V conforming to IEC 61812-1
Shape of signaling unit head round
Power consumption in W 1 W
Mounting diameter 22 mm
Repeat accuracy +/- 0.5 %
Disturbance radiated/conducted class B conforming to EN 50022
Standards UL 508, IEC 61812-1
Maximum voltage drop 3 V
Diameter 29 mm
Resistance to electromagnetic fields 1 V/m 2...2.7 GHz level 1 conforming to IEC 61000-4-3, 3 V/m 1.4...2 GHz level 2 conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz level 3 conforming to IEC 61000-4-3
Ambient air temperature for operation -20-60 °C
Height 62 mm
Setting accuracy of time delay +/- 10 % of full scale at 25 °C conforming to IEC 61812-1
[Us] rated supply voltage 24 V DC, 24 V
Product certifications UL listed, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.600 cm
Package 1 Width 3.000 cm
Package 1 Length 7.400 cm
Package 1 Weight 28.000 g
Unit Type of Package 2 2
Number of Units in Package 2 72
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.339 kg

Related products

Tightening tool for fixing nut, Harmony XB5, plastic, black

ZB5AZ905
$19.22 INC GST $24.64 INC GST
