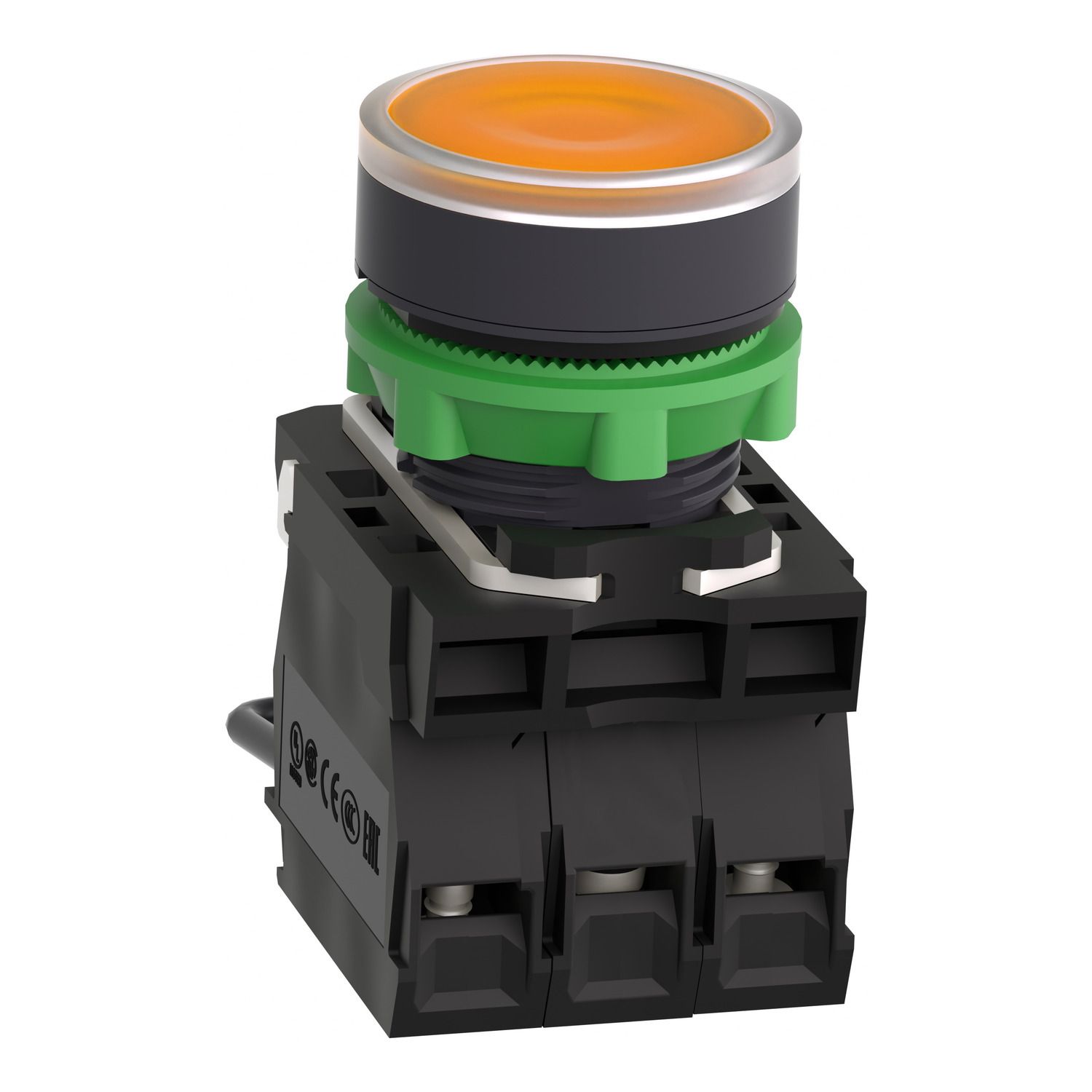

Picture of Push-to-test pilot light, Harmony XB5, plastic, orange, universal LED, screw clamp terminals, 24V

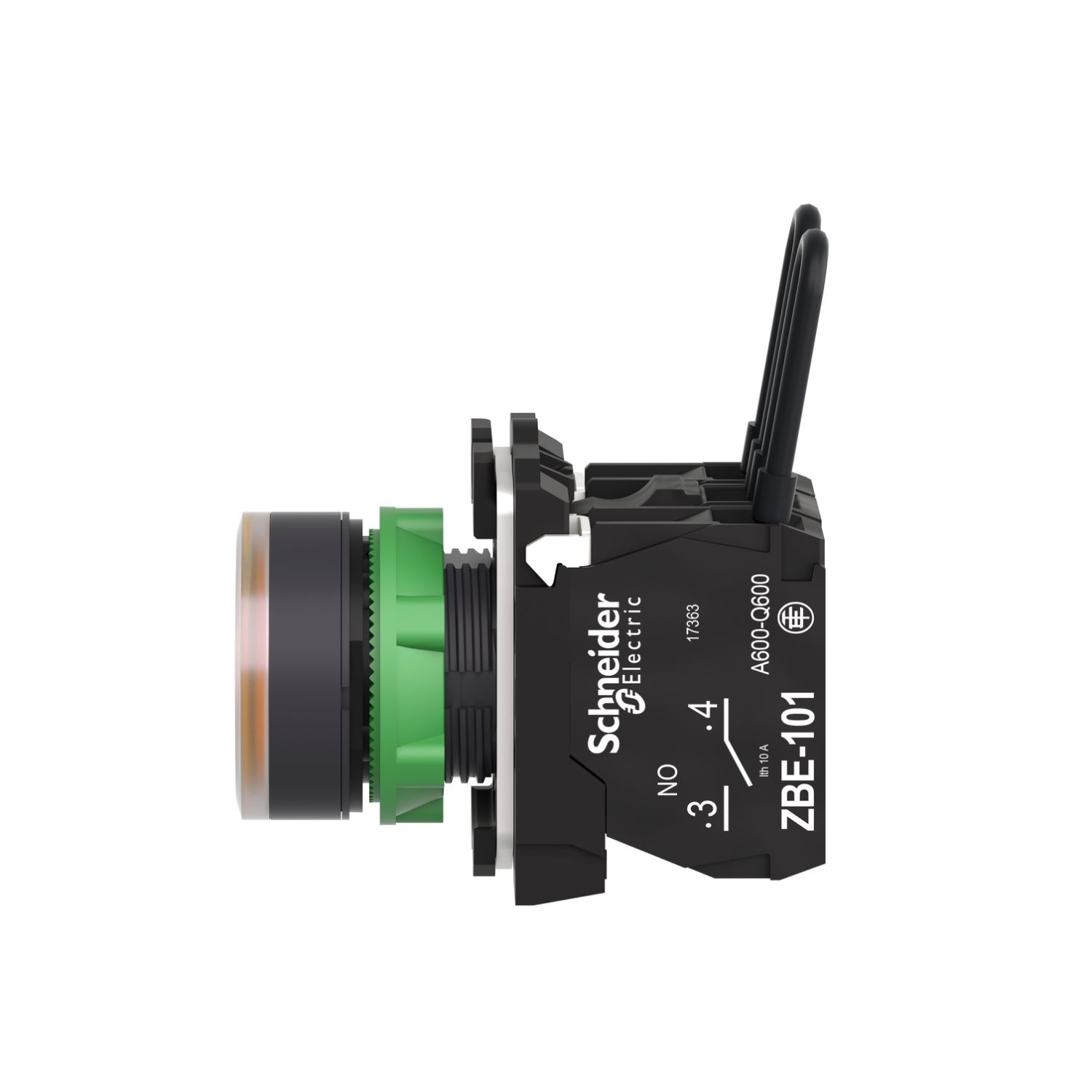

Picture of Push-to-test pilot light, Harmony XB5, plastic, orange, universal LED, screw clamp terminals, 24V

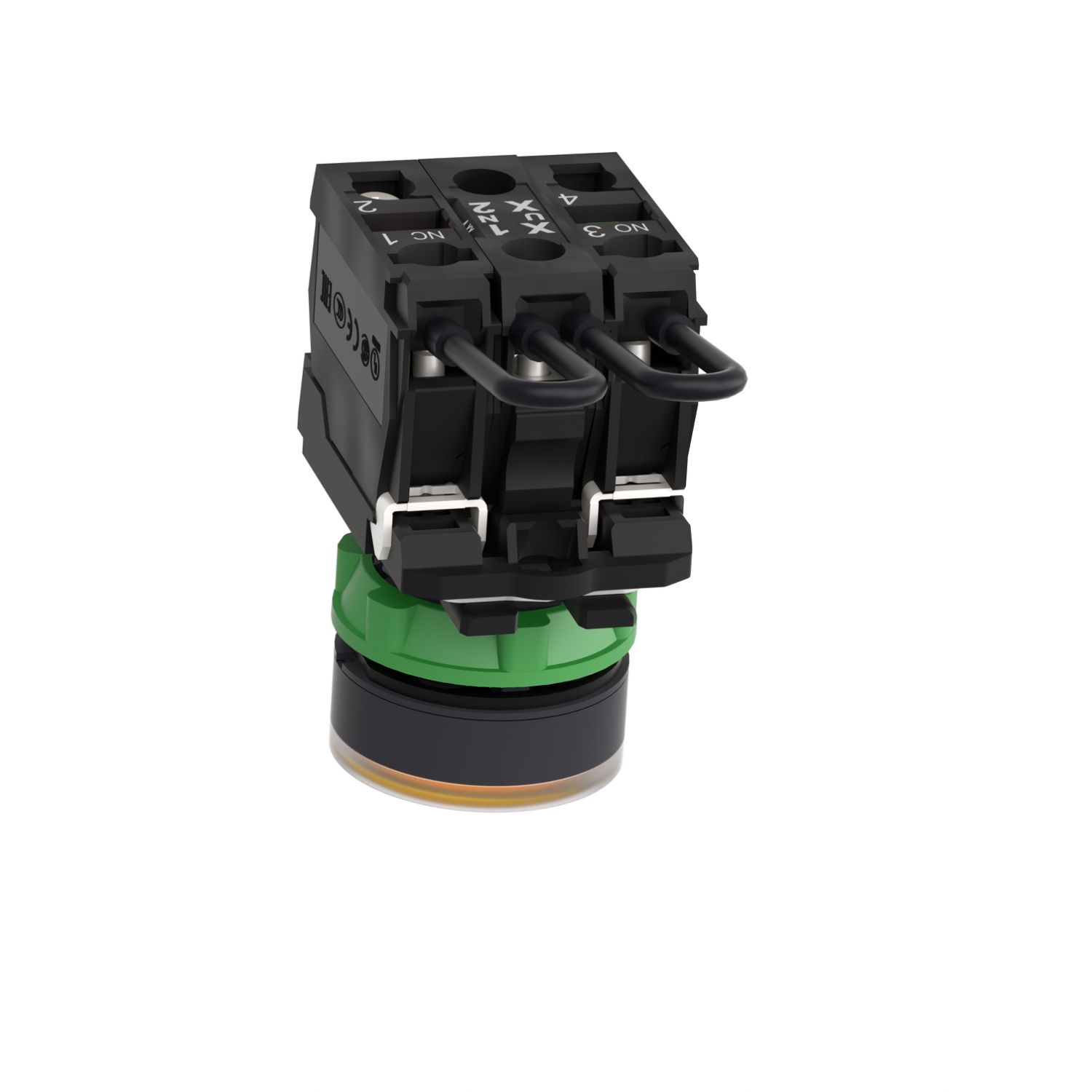

Picture of Push-to-test pilot light, Harmony XB5, plastic, orange, universal LED, screw clamp terminals, 24V

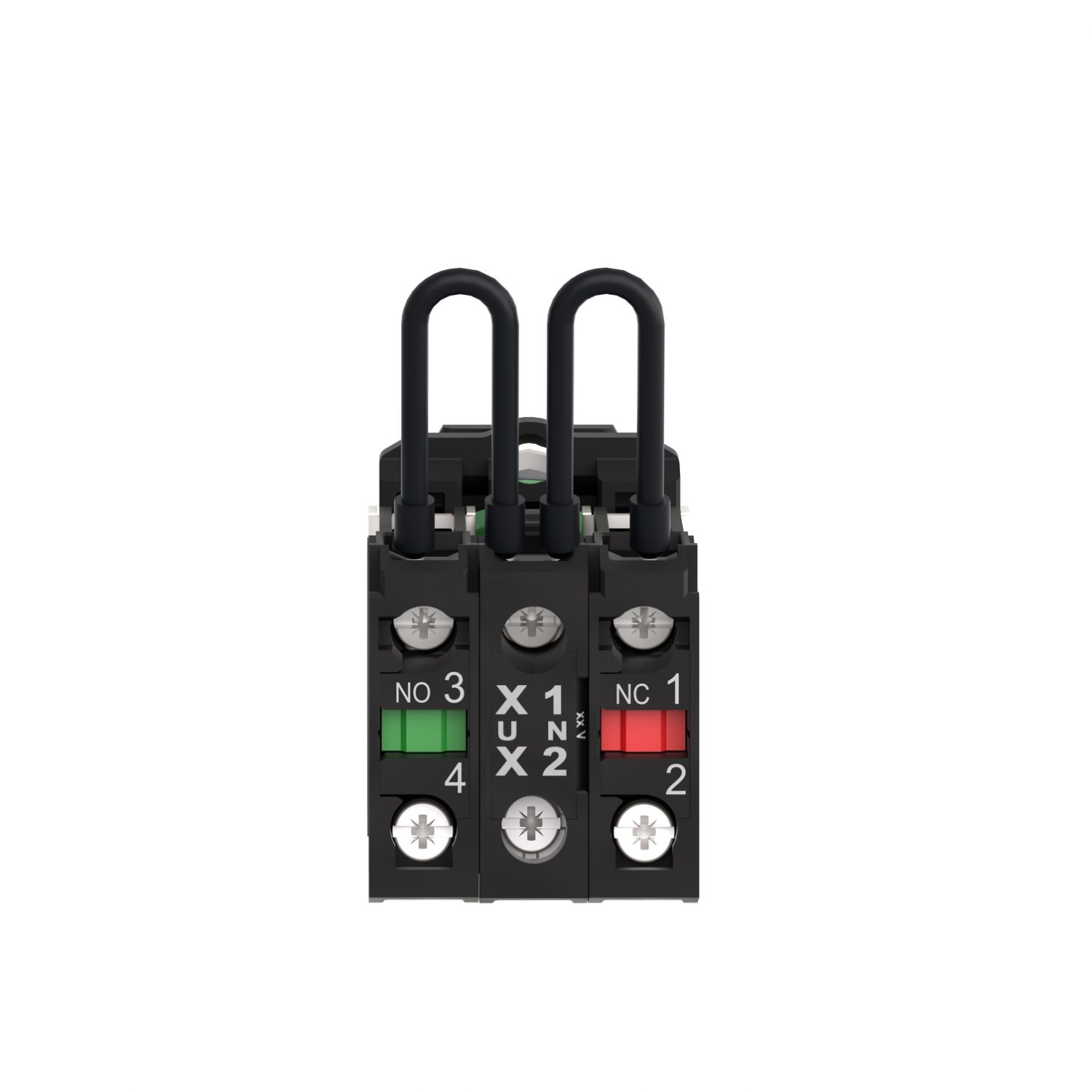

Picture of Push-to-test pilot light, Harmony XB5, plastic, orange, universal LED, screw clamp terminals, 24V

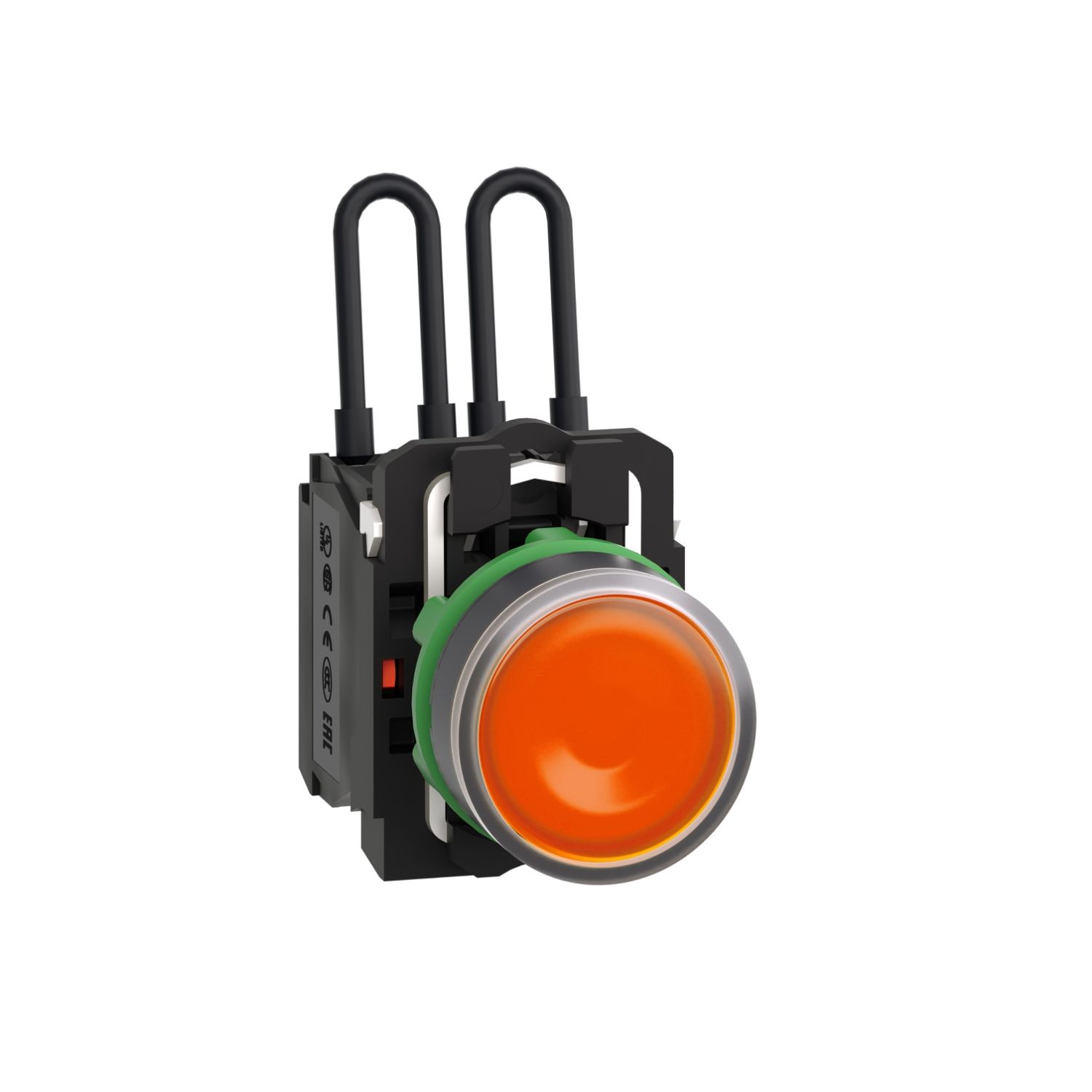

Picture of Push-to-test pilot light, Harmony XB5, plastic, orange, universal LED, screw clamp terminals, 24V

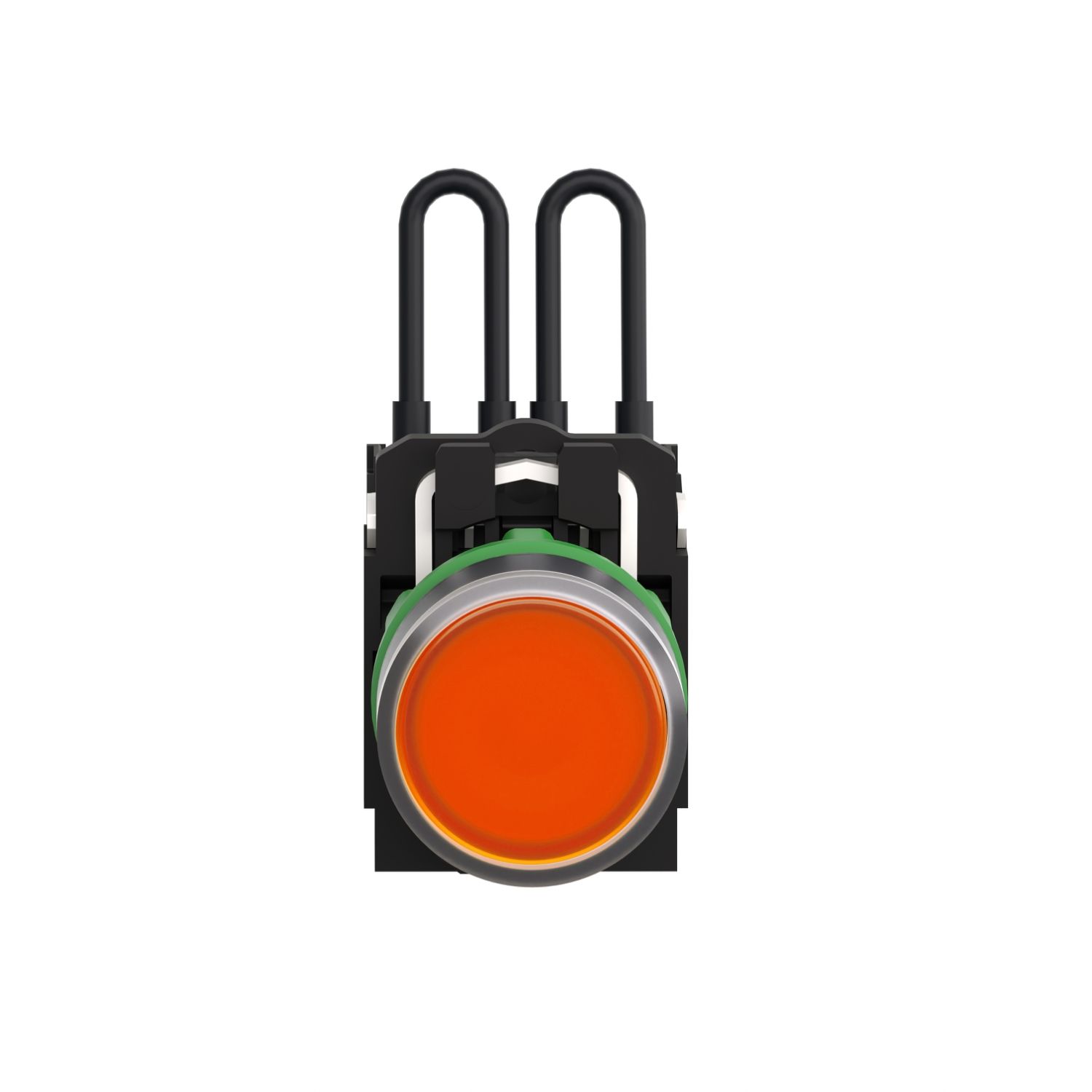

Picture of Push-to-test pilot light, Harmony XB5, plastic, orange, universal LED, screw clamp terminals, 24V

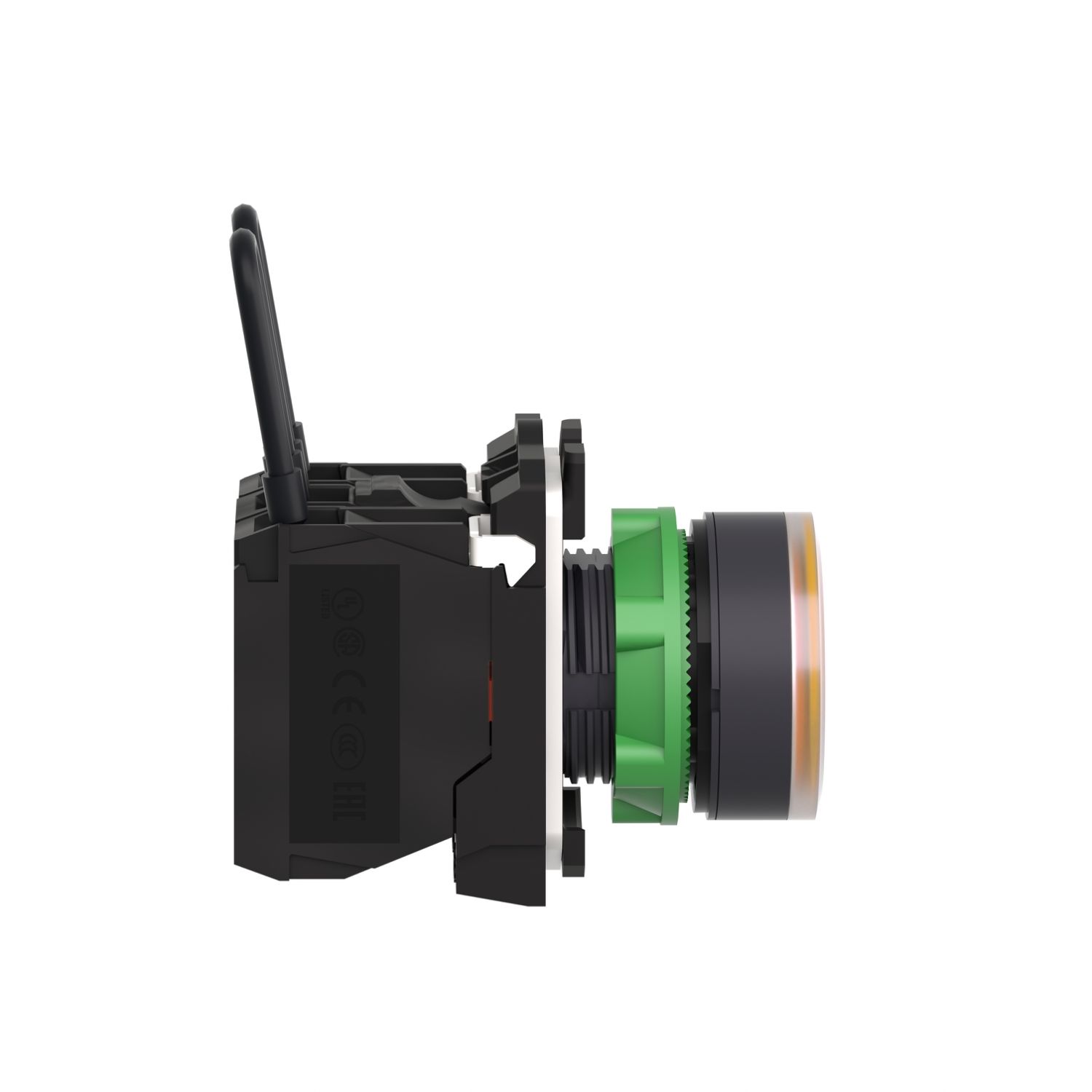

Picture of Push-to-test pilot light, Harmony XB5, plastic, orange, universal LED, screw clamp terminals, 24V
Picture of Push-to-test pilot light, Harmony XB5, plastic, orange, universal LED, screw clamp terminals, 24V
SKU:

XB5AW25B5

Push-to-test pilot light, Harmony XB5, plastic, orange, universal LED, screw clamp terminals, 24V

Old price: $151.14 INC GST
$117.89 INC GST
Available for Shipping : 13-Jan-2026
Push-to-test pilot light, Harmony XB5, plastic, orange, universal LED, screw clamp terminals, 24V
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 13-Jan-2026
Circularity Profile
Declaration of conformity
Environmental Disclosure
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony XB5, push-to-test pilot light orange is supplied with 24V AC/DC. Under normal conditions, the push-to-test pilot light is providing a best-in-class illumination to service your panel signalisation functions. During maintenance, one push on the head is enough to test the lamp and to confirm its good health. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name XB5
Bezel material plastic
Product or component type push-to-test pilot light
Range of product Harmony XB5
Complementary
[Us] rated supply voltage 24 V AC/DC at 50/60 Hz, 24 V
Tightening torque 0.8-1.2 N.m
Depth 55 mm
Width 30 mm
Compatibility code XB5
Light source colour orange
Signalling type steady
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Surge withstand 1 kV
Sale per indivisible quantity 1
Service life 1.5 year(s)
Connections - terminals screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Fixing collar material plastic
Current consumption 18 mA
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.047 kg
Cap/operator or lens colour orange
Shape of signaling unit head round
Mounting diameter 22 mm
Light source universal LED
Embedding depth 46 mm
Height 42 mm
Environment
Protective treatment TH
Electrical shock protection class class II conforming to IEC 60536
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-1, IEC 60947-5-1, GB 14048.5, CSA C22.2 No 14, IEC 60947-5-4, JIS C8201-5-1, UL 508
Ambient air temperature for operation -40-70 °C
IK degree of protection IK05 conforming to IEC 50102
Product certifications CSA, GL, DNV, LROS (Lloyds register of shipping), BV, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.334 cm
Package 1 Width 3.556 cm
Package 1 Length 9.144 cm
Package 1 Weight 58.967 g
