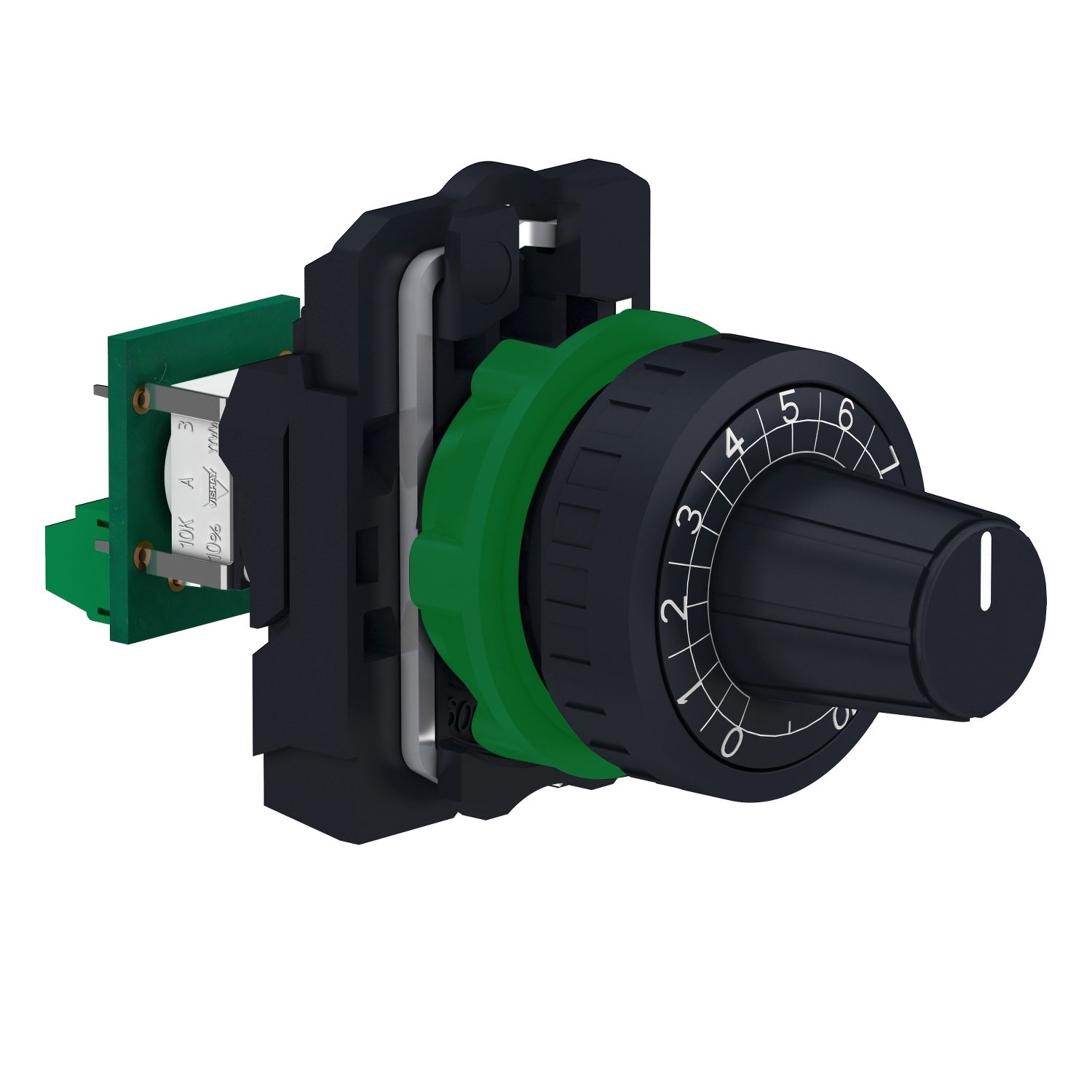

Picture of Complete potentiometer, Harmony XB5, plastic, 22mm, 47K
Picture of Complete potentiometer, Harmony XB5, plastic, 22mm, 47K
Picture of Complete potentiometer, Harmony XB5, plastic, 22mm, 47K
SKU:

XB5AD912R47K

Complete potentiometer, Harmony XB5, plastic, 22mm, 47K

Old price: $199.32 INC GST
$155.47 INC GST
Available for Shipping : 06-Jan-2026
Product Selector
Complete potentiometer, Harmony XB5, plastic, 22mm, 47K
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Declaration of conformity
Circularity Profile

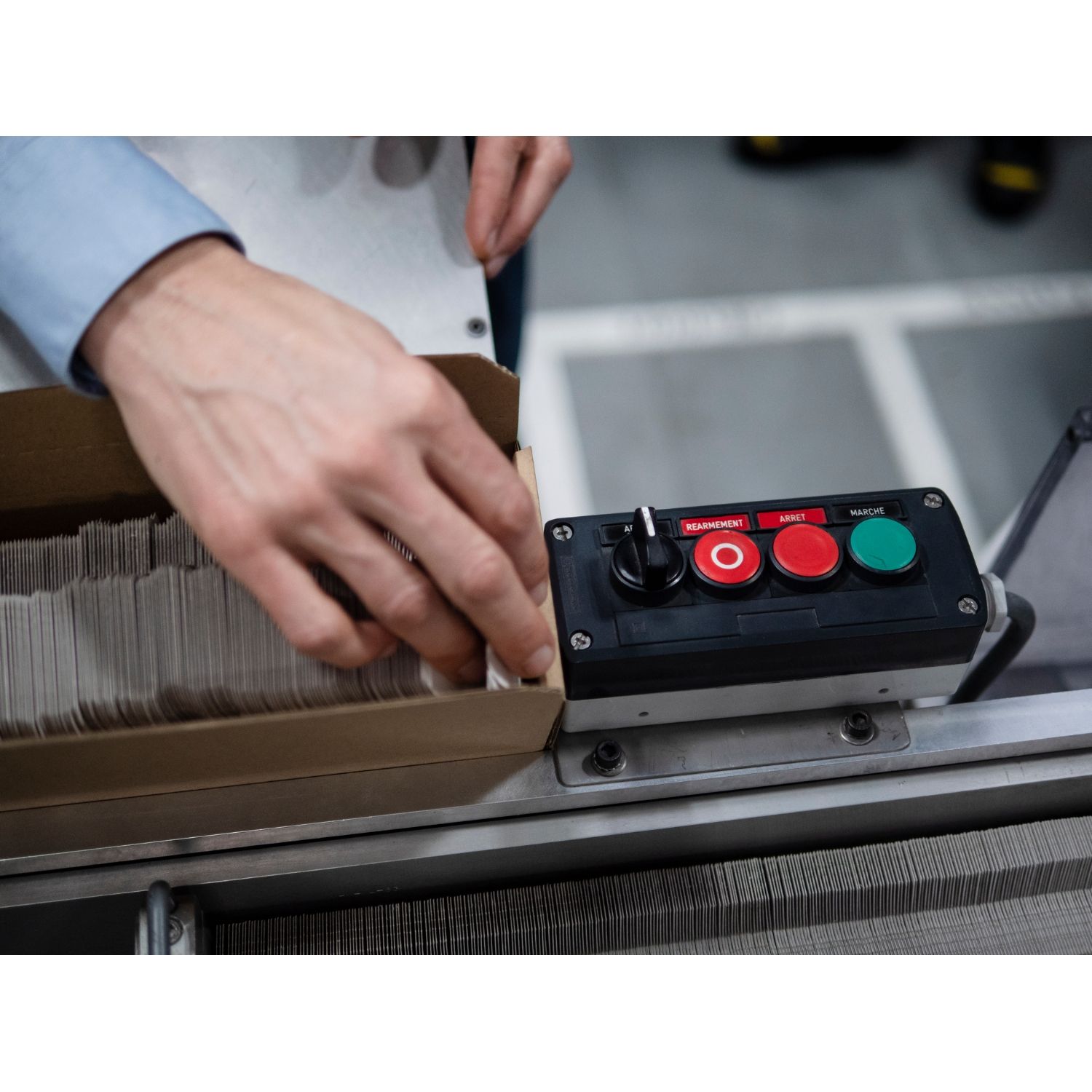

Image of product in real life situation
Catalog
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony XB5, 22mm diameter potentiometer has a resistance of 47kΩ and uses screw clamp terminals. This potentiometer provides an external interface for controlling key parameters of automation components like drives and inverters. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 IP69 IP69K, making it ideal for operation in harsh environments. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery.

Products specifications

Attribute name Attribute value
Main
Device short name XB5
Device presentation complete product
Head type standard
Product or component type potentiometer
Range of product Harmony XB5
Complementary
Group of product potentiometer knurled knob
Protective treatment TH
CAD overall depth 82 mm
CAD overall width 30 mm
Product compatibility Ø 6 mm shaft
Electrical shock protection class class II conforming to IEC 60536
Customizable no, 0
Compatibility code XB5
Mechanical durability 50000 cycles
Operator profile knurled knob, with (white)
NEMA degree of protection NEMA 4X, NEMA 13
Bezel material dark grey plastic
Ambient air temperature for storage -40-70 °C
Sale per indivisible quantity 1
[Us] rated supply voltage <= 42 V DC, <= 30 V AC
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
IP degree of protection IP66 conforming to IEC 60529
Potentiometer characteristic linear
CAD overall height 42 mm
Net weight 0.048 kg
Material cermet
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shape of signaling unit head round
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Colour of marking white
Mounting diameter 22 mm
Main group potentiometer
Precision of internal conversion resistor +-10%
Standards UL 508, EN/IEC 60947-1, CSA C22.2 No 14
Ambient air temperature for operation -40-70 °C
Ohmic value 47000 Ohm
IK degree of protection IK03 conforming to IEC 50102
Rated power in W 1 W at 70 °C
Product certifications UL listed, BV, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.4 cm
Package 1 Width 5.4 cm
Package 1 Length 4.0 cm
Package 1 Weight 58.0 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 2.699 kg
