SKU:

XB5AD33

Selector switch, Harmony XB5, plastic, black, 22mm, 3 positions, stay put, 2 NO

Old price: $92.29 INC GST
$71.99 INC GST
Available for Shipping : 17-Dec-2025
Product Selector
Selector switch, Harmony XB5, plastic, black, 22mm, 3 positions, stay put, 2 NO
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 17-Dec-2025

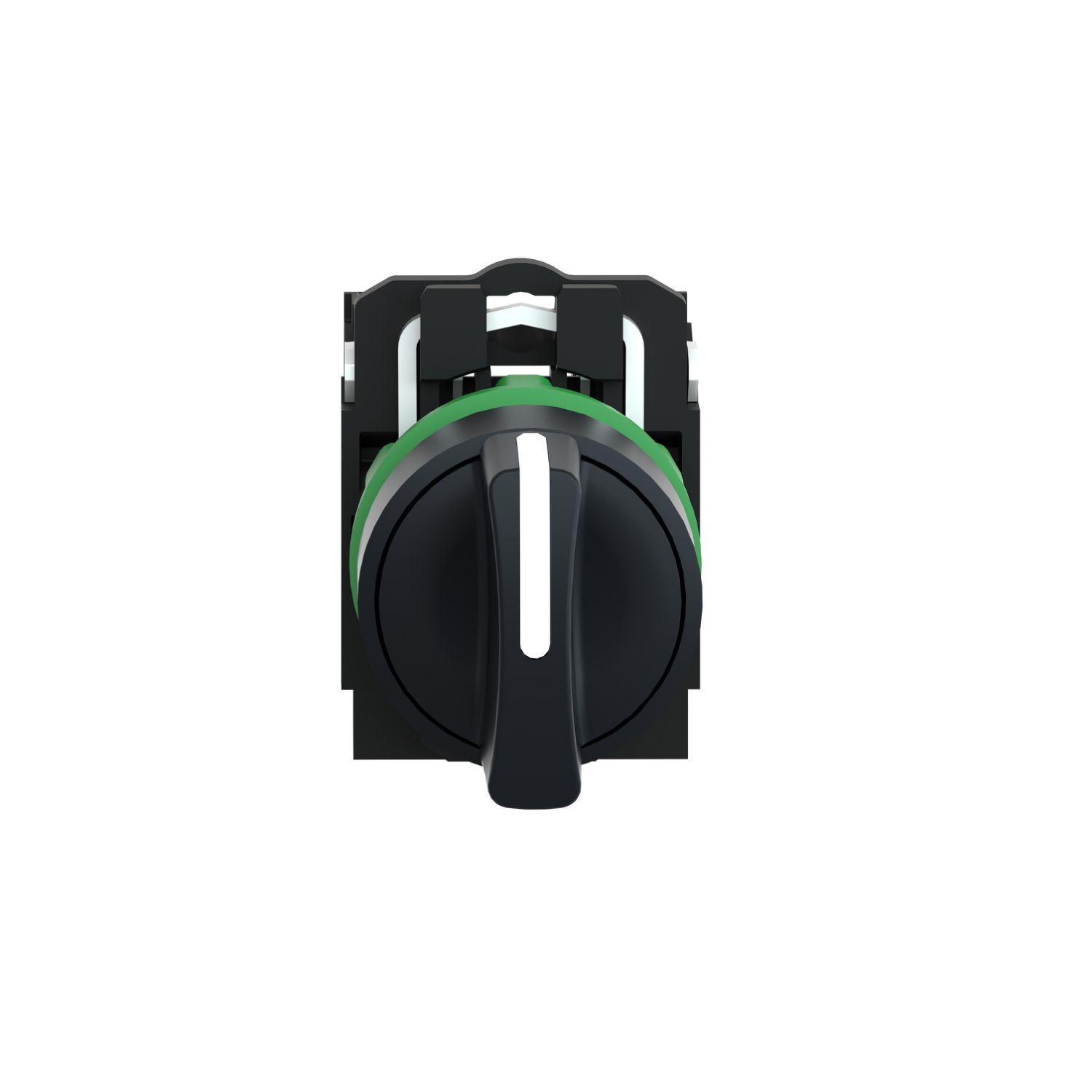

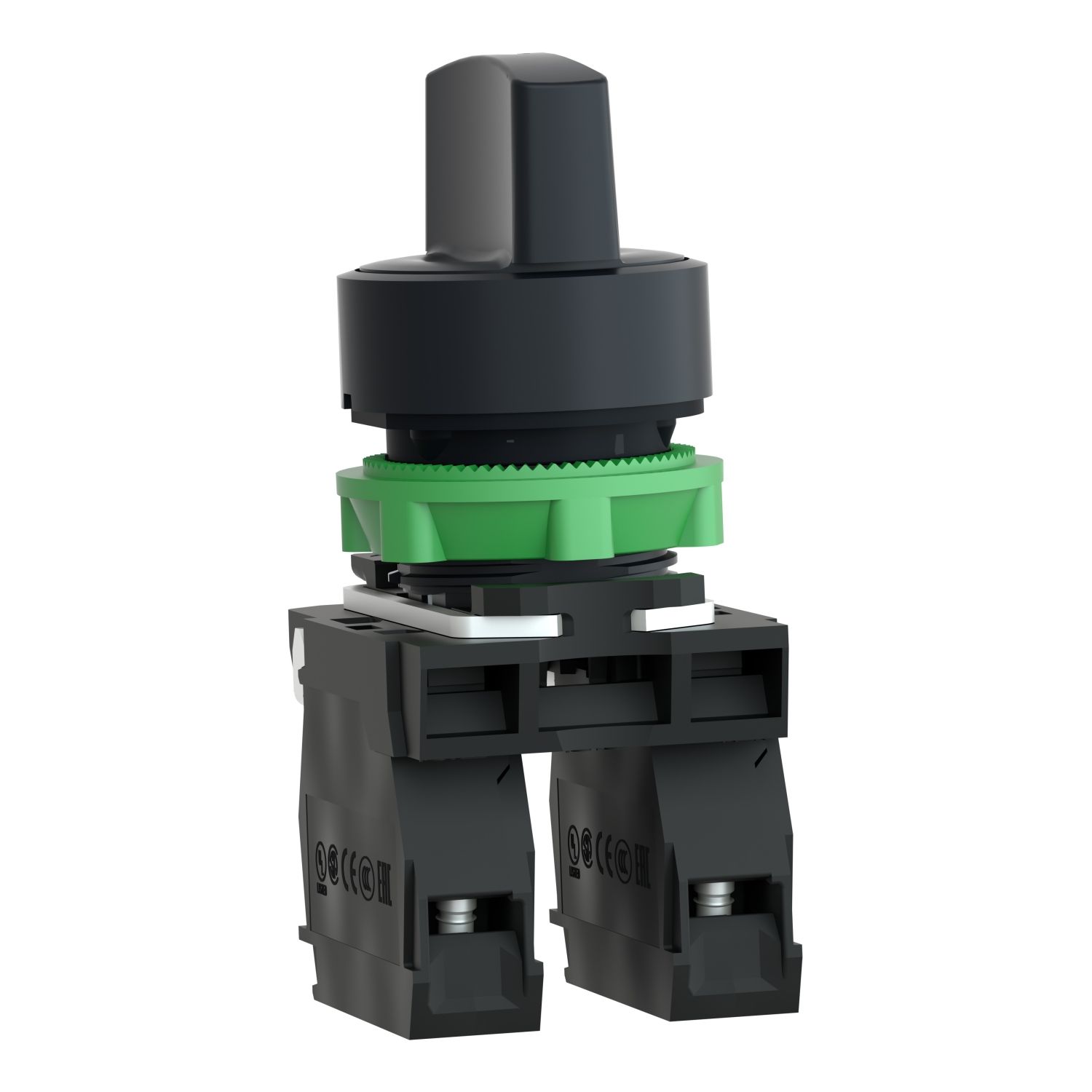

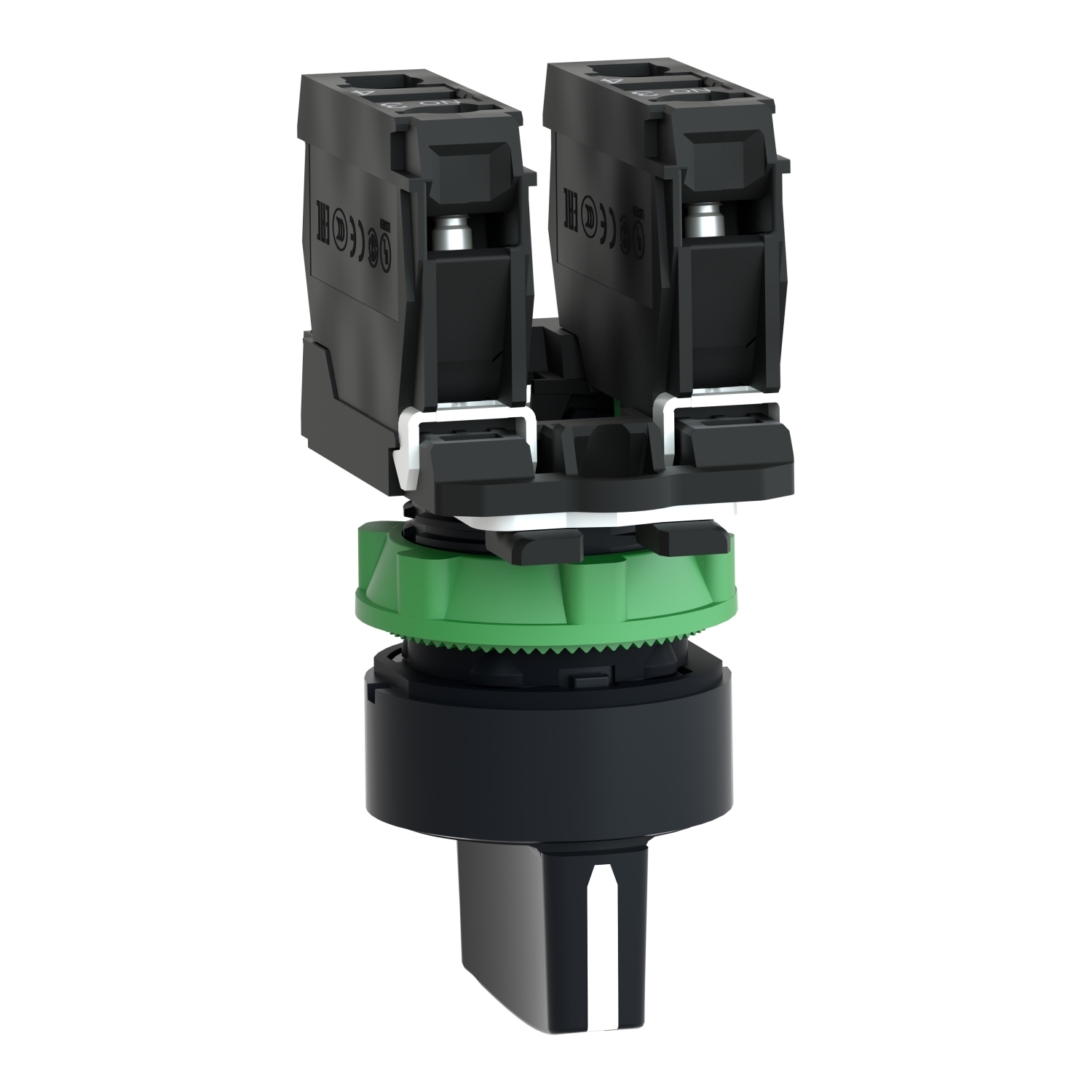

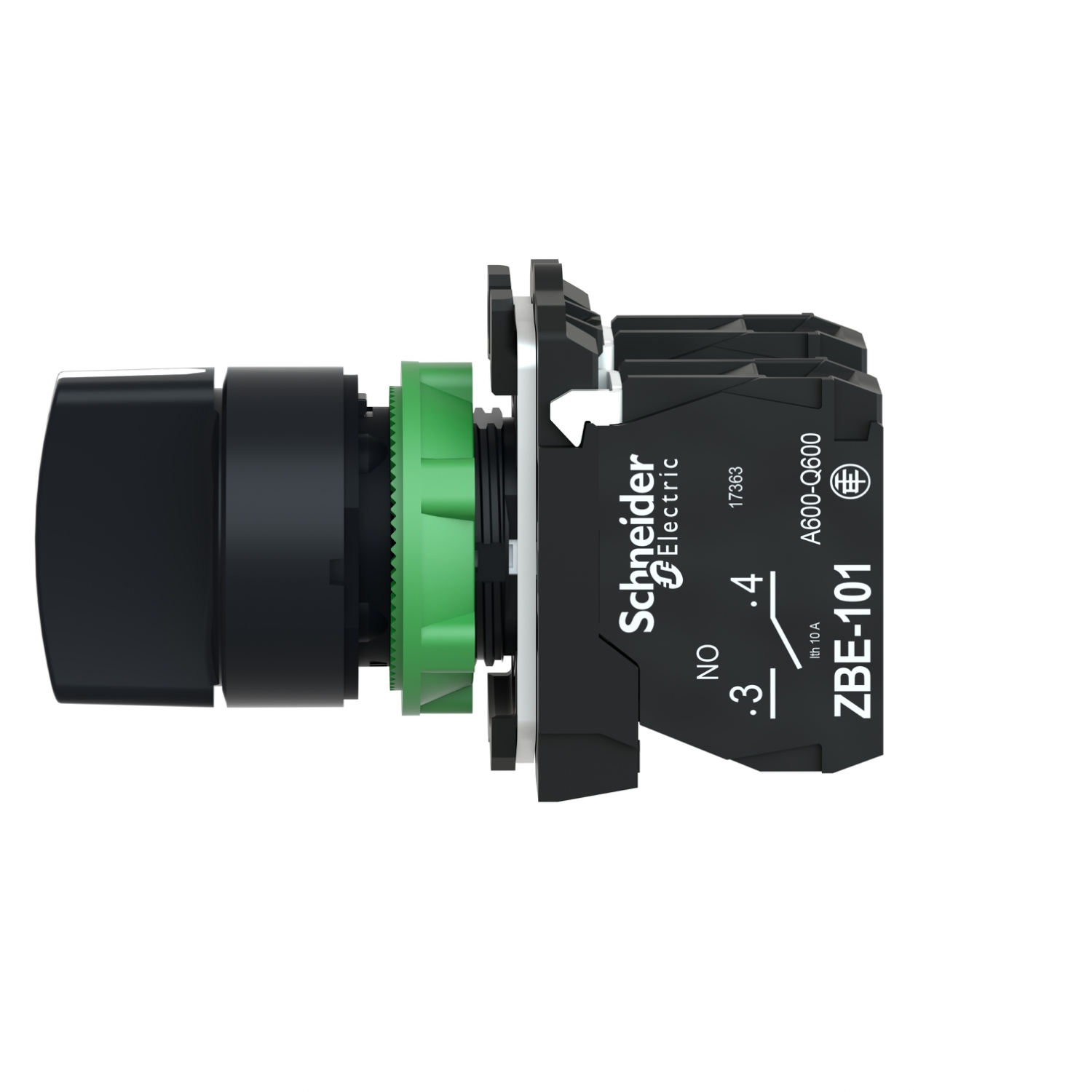

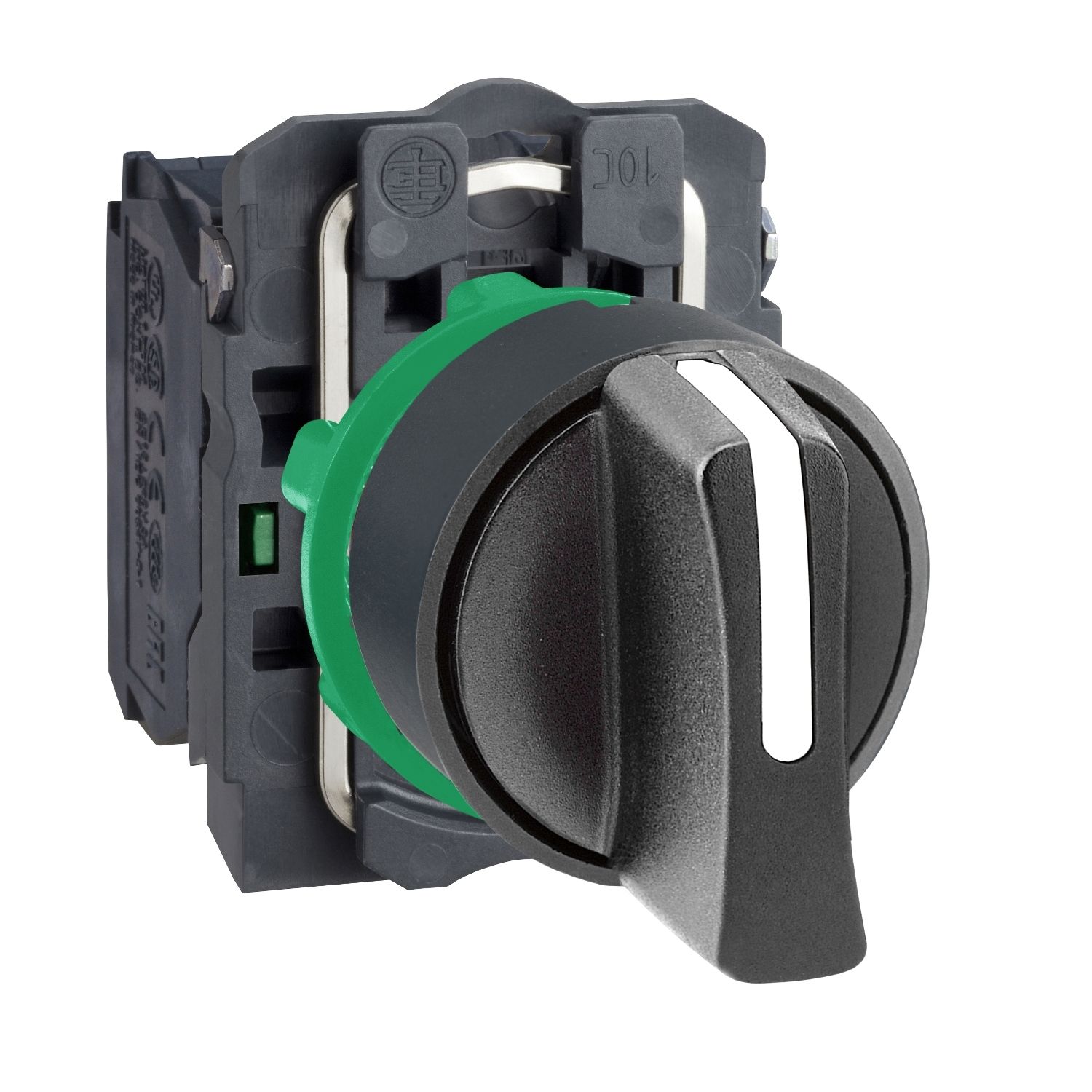

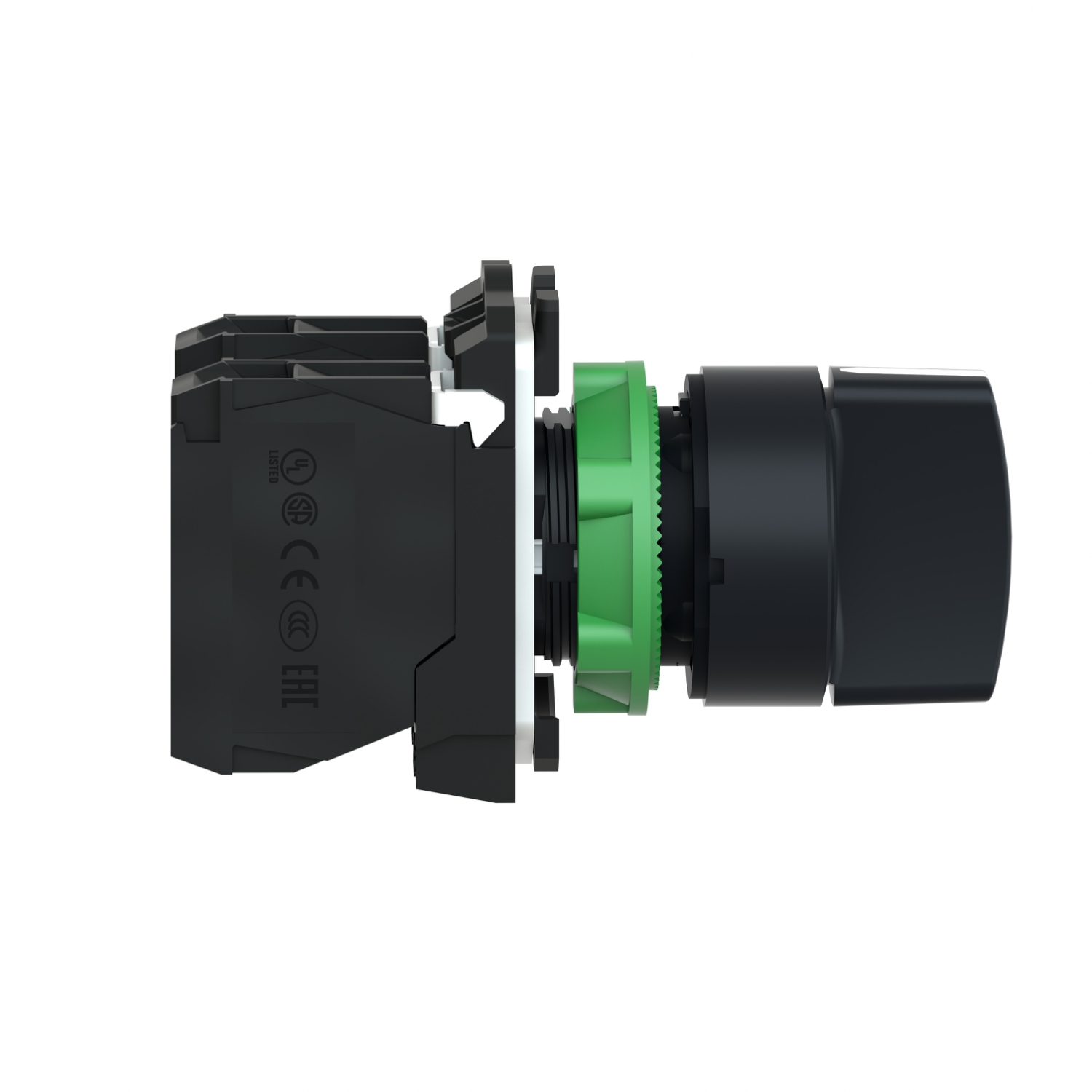

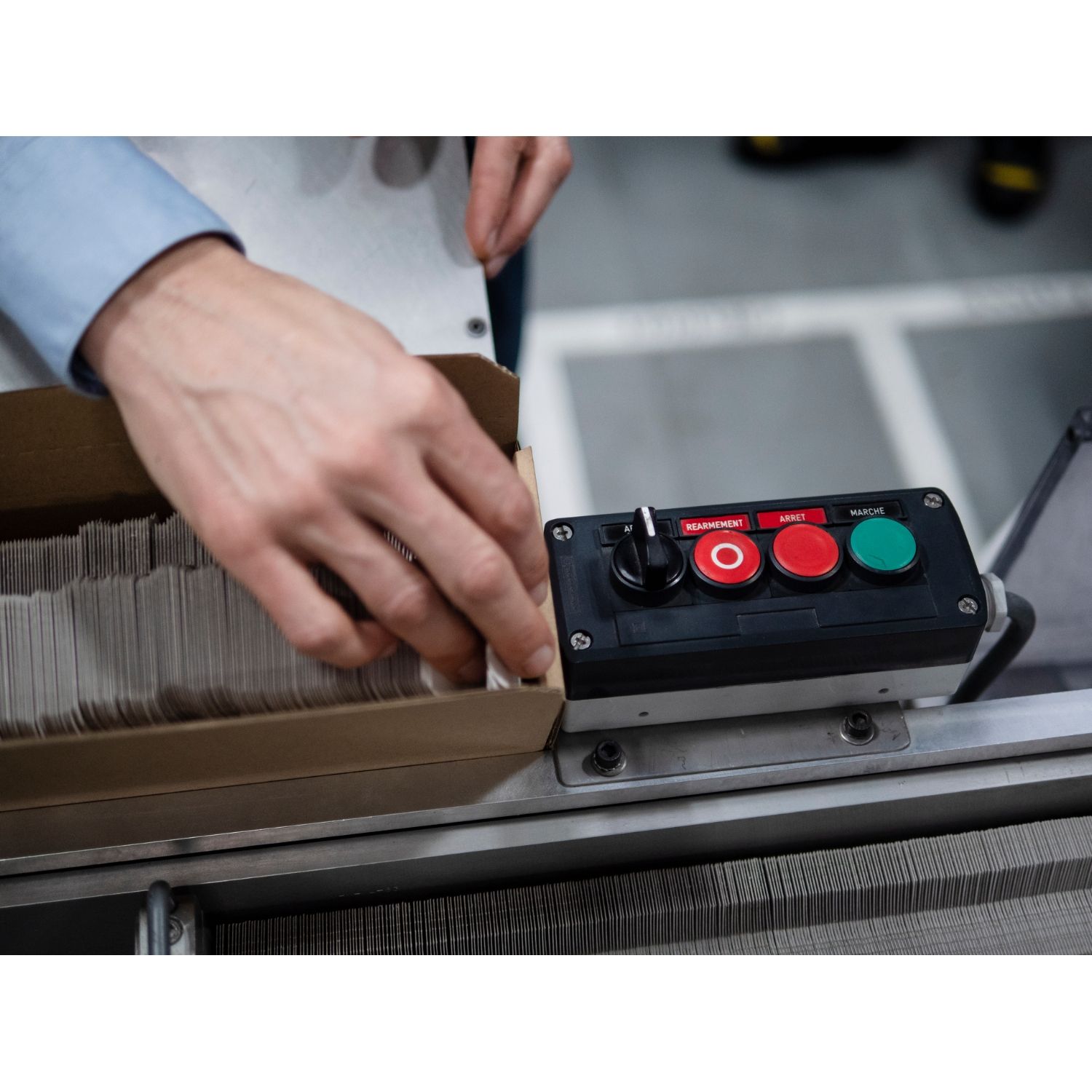

Image of product in real life situation
Circularity Profile
Declaration of conformity
Environmental Disclosure
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony XB5, modular black selector switch has 3 positions, operates with a stay-put mechanism and uses screw clamp terminals. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Products specifications

Attribute name Attribute value
Main
Contact operation slow-break
Sale per indivisible quantity 1
Type of operator stay put
Operator position information 3 positions +/- 45°
Contacts type and composition 2 NO
Connections - terminals screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Device short name XB5
Head type standard
Range of product Harmony XB5
Operator profile black standard handle
Bezel material dark grey plastic
Shape of signaling unit head round
Product or component type selector switch
Mounting diameter 22 mm
Complementary
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
Electrical reliability λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4
Compatibility code XB5
[Ie] rated operational current 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
Electrical durability 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Device presentation complete product
Customizable 0, no
Cap/operator or lens colour black
Height 42 mm
[Us] rated supply voltage 230...240 V
Torque value 0.14 N.m NO changing electrical state
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Net weight 0.052 kg
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
Positive opening without
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Mechanical durability 1000000 cycles
Contacts material silver alloy (Ag/Ni)
Depth 70 mm
Width 30 mm
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1

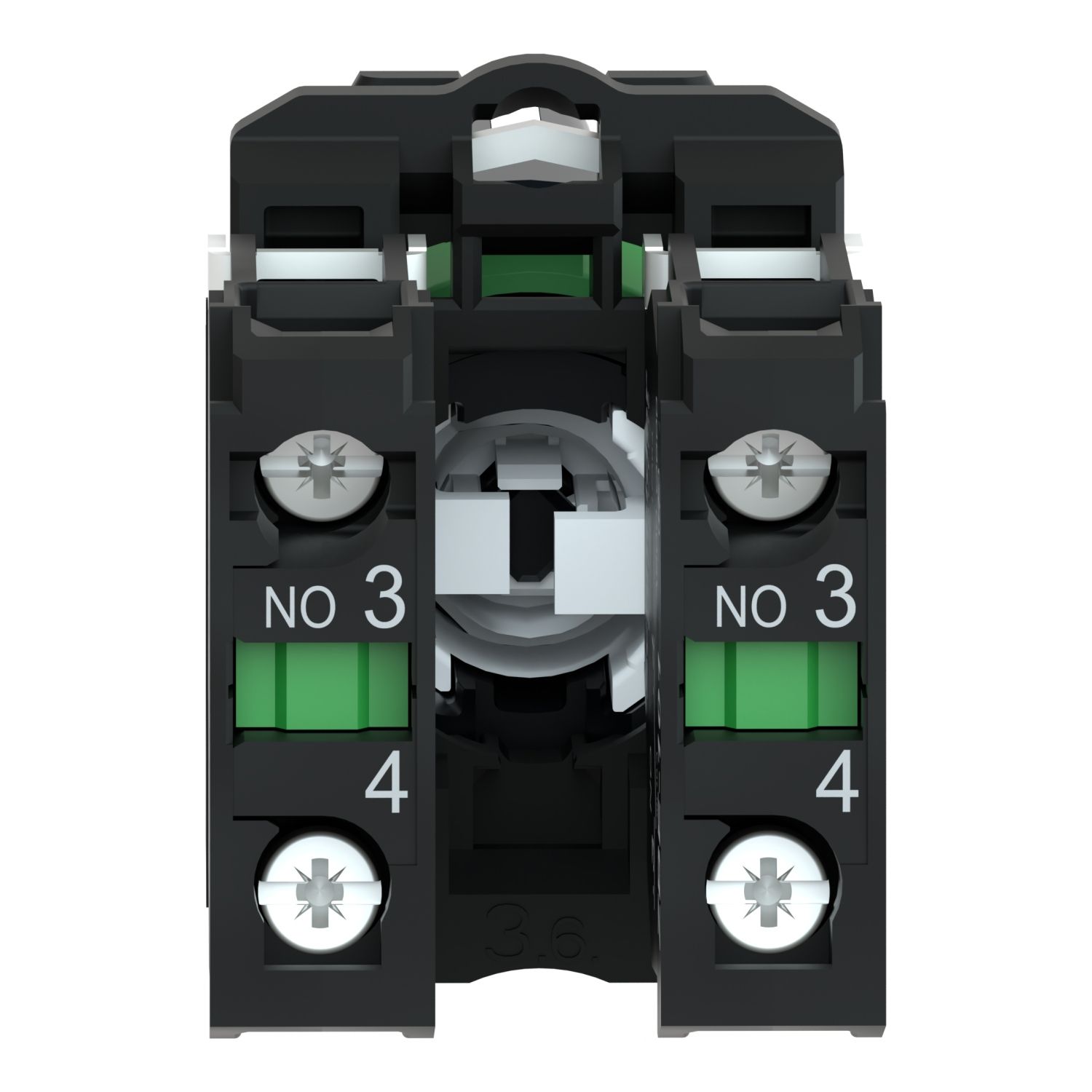

Terminals description ISO n°1 (13-14)NO
Contacts usage standard contacts
Environment
Ambient air temperature for storage -40-70 °C
Standards JIS C8201-1, UL 508, IEC 60947-5-4, CSA C22.2 No 14, JIS C8201-5-1, IEC 60947-5-1, IEC 60947-1
NEMA degree of protection NEMA 4X, NEMA 13
Product certifications BV, CSA, DNV, LROS (Lloyds register of shipping), GL, UL
Protective treatment TH
IP degree of protection IP69K, IP69, IP67 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK04 conforming to IEC 50102
Electrical shock protection class class II conforming to IEC 60536
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.500 cm
Package 1 Width 5.500 cm
Package 1 Length 9.100 cm
Package 1 Weight 52.000 g
Unit Type of Package 2 2
Number of Units in Package 2 150
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 8.120 kg
Unit Type of Package 3 3
Number of Units in Package 3 1200
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 75.460 kg
