SKU:

XB4FVG6

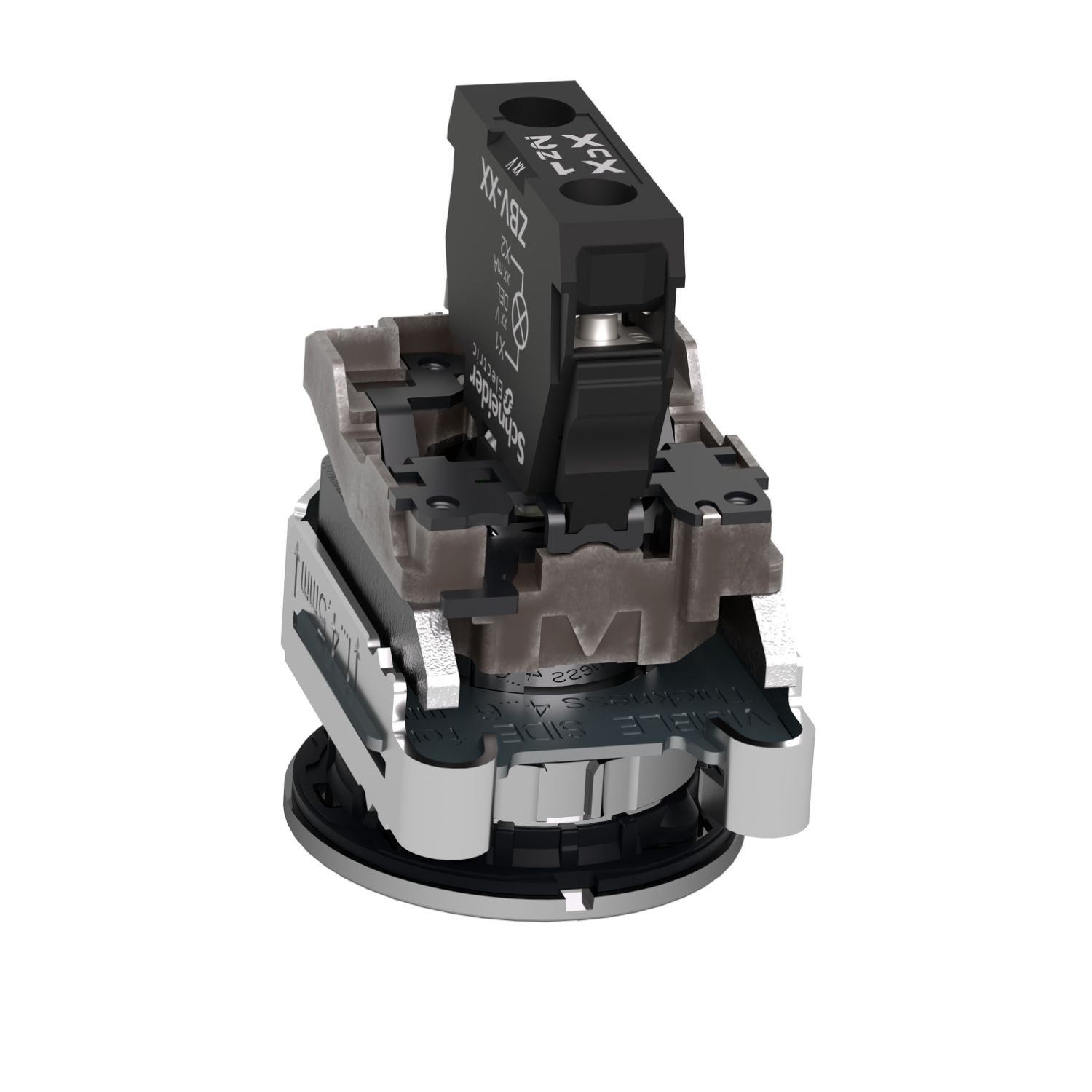

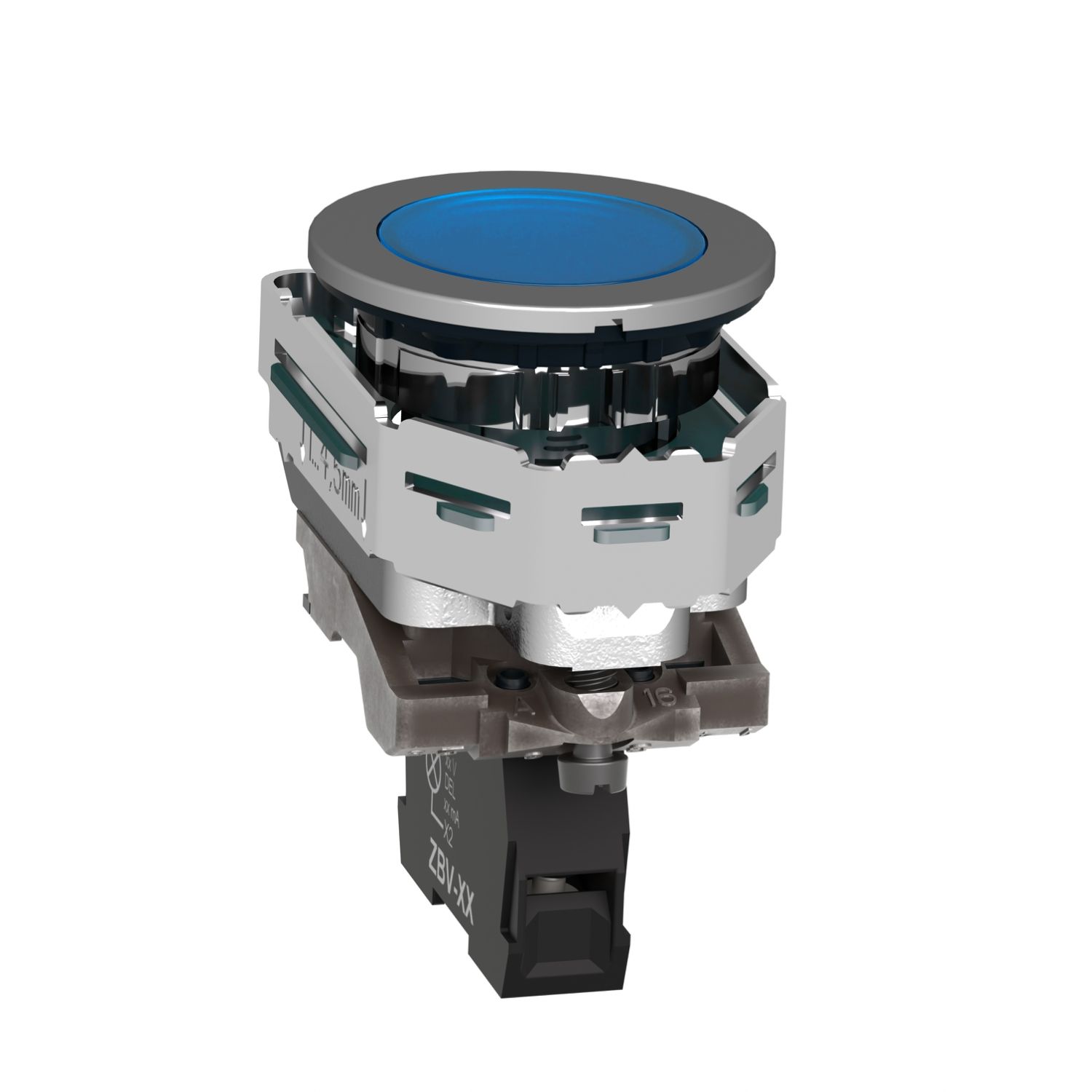

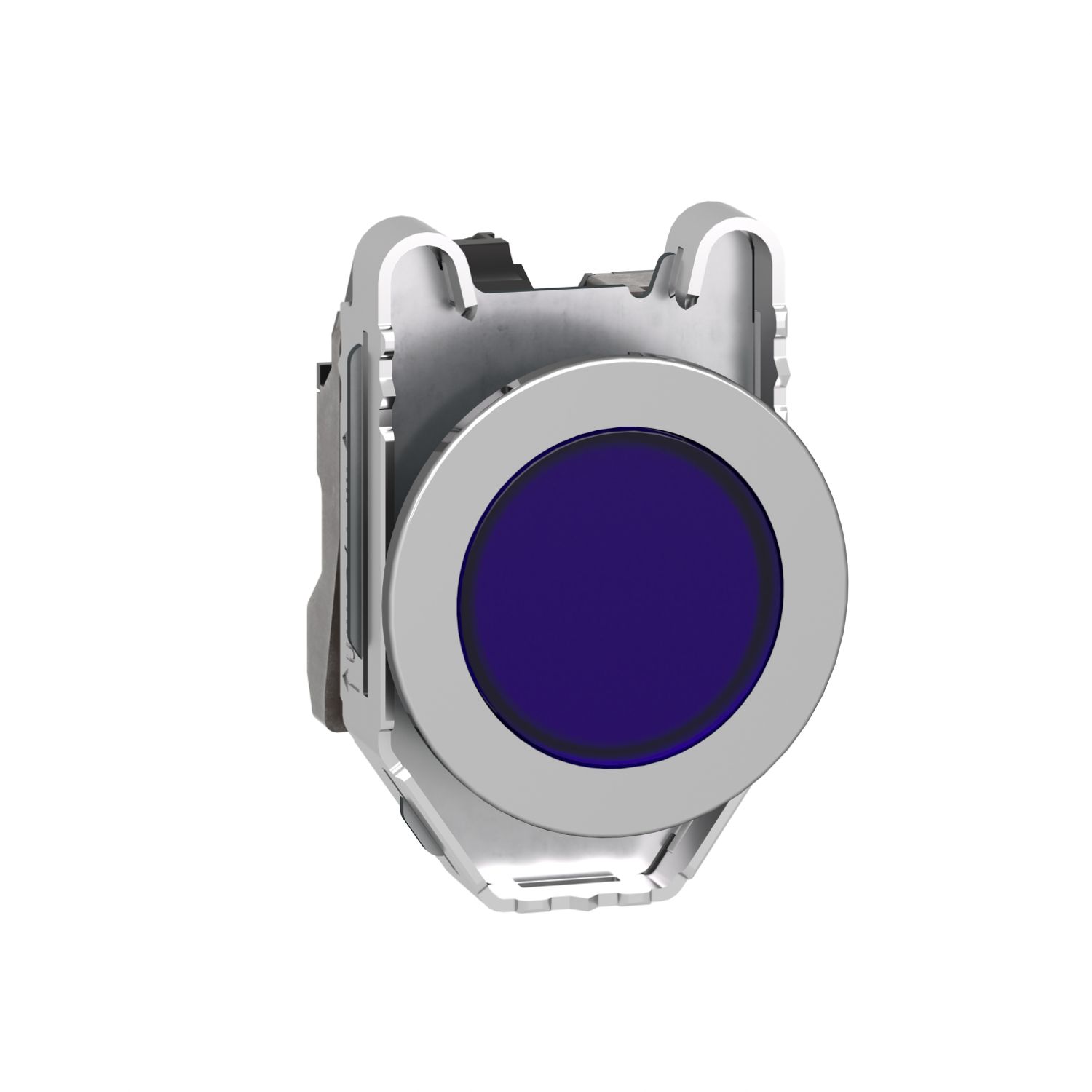

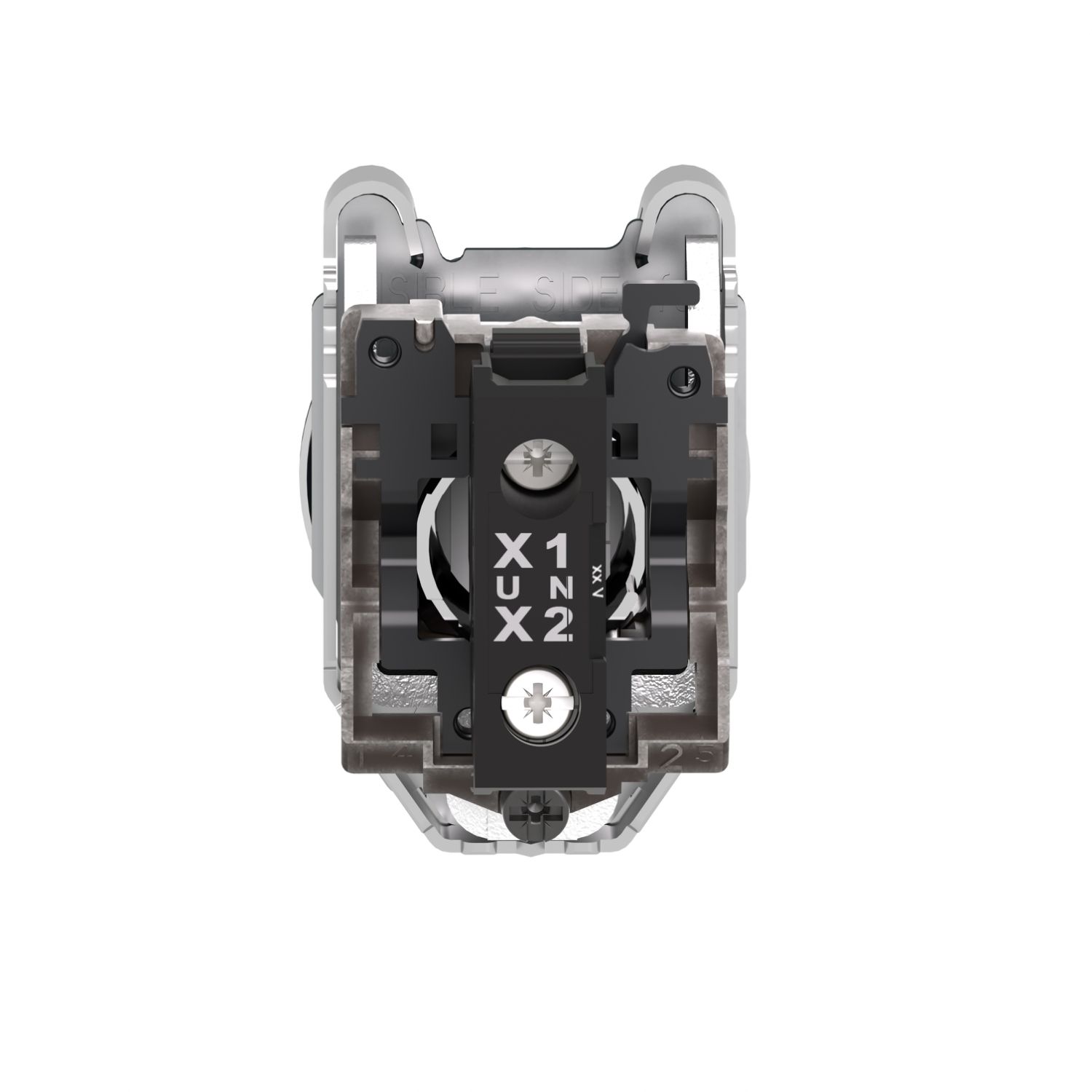

Pilot light, Harmony XB4,metal, blue flush mounted, 30mm, plain lenswith universal LED, 110…120V AC

Old price: $105.71 INC GST
$82.45 INC GST
Available for Shipping : 14-Jan-2026
Product Selector
Pilot light, Harmony XB4,metal, blue flush mounted, 30mm, plain lenswith universal LED, 110…120V AC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 14-Jan-2026

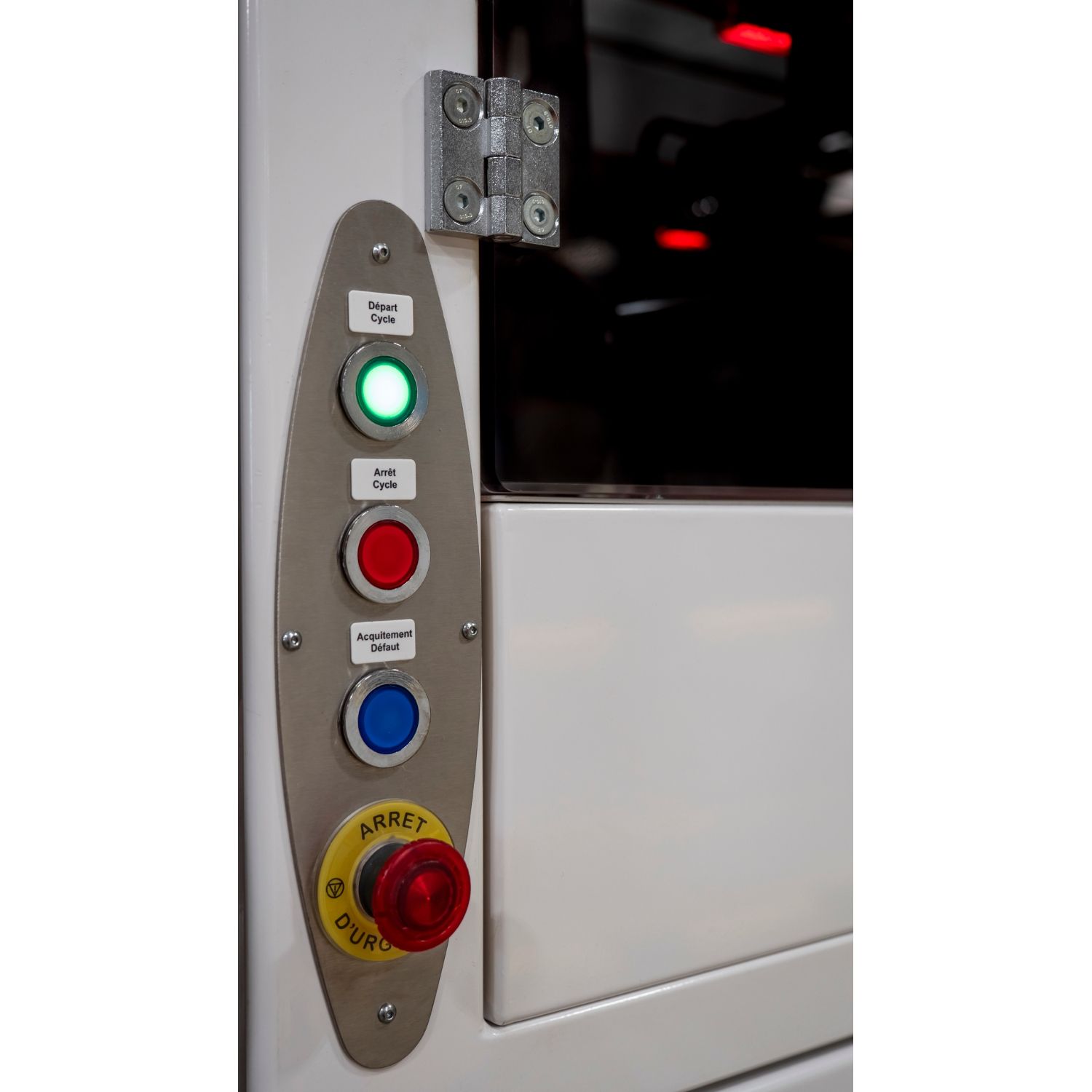

Image of product in real life situation
Catalog
Environmental Disclosure
Instruction sheet

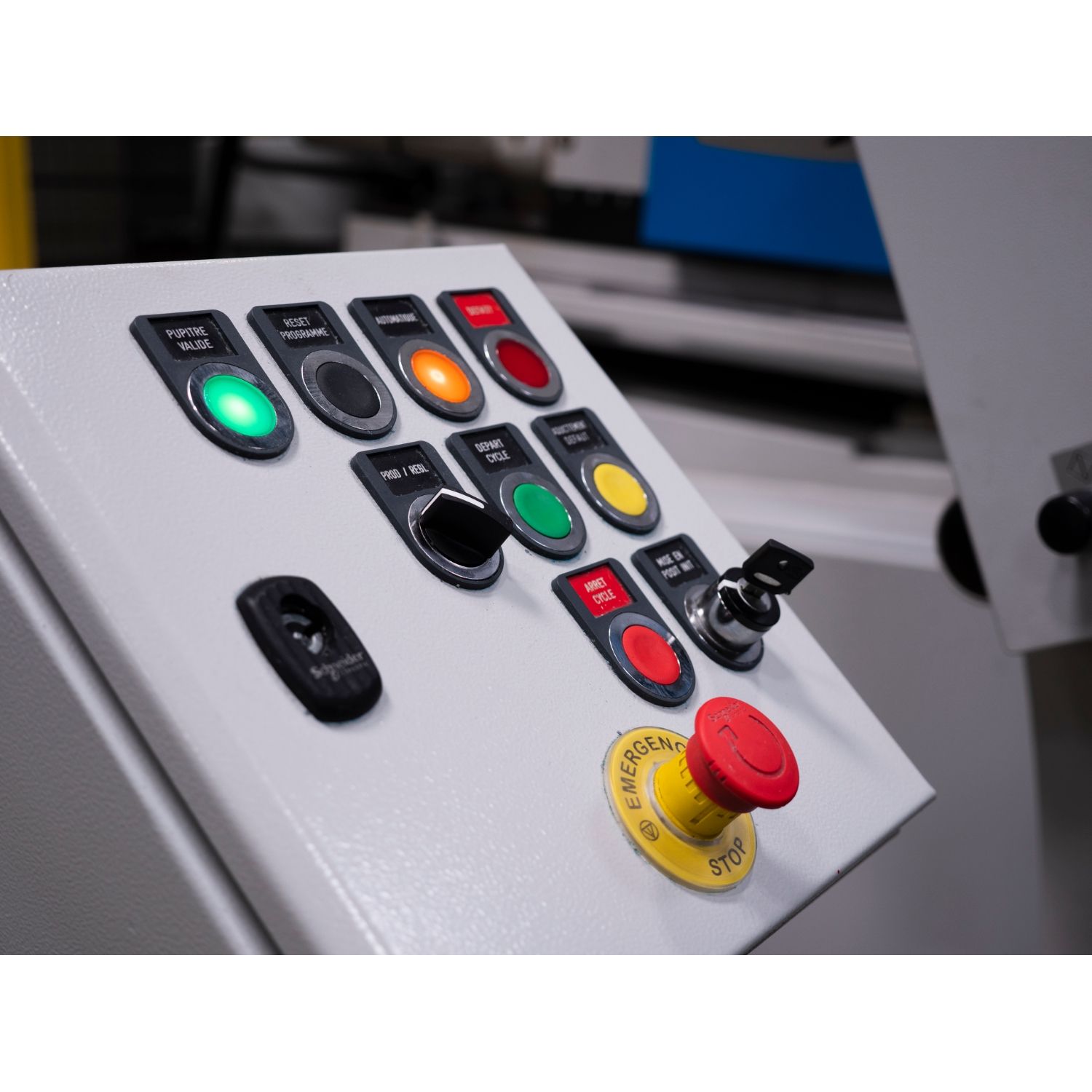

Image of product in real life situation
Declaration of conformity
Circularity Profile
Image of product in real life situation
Product Page Link
Product Data Sheet
This flush mounted pilot light is a part of the Harmony XB4 metallic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 110 V to 120 V AC. Customized marking option through web customization tool is available in Schneider Electric website. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. It has a plain lens and the source of light is an integral LED. The bright and long-lasting illumination makes it clearly distinguishable even at a disctance. The connection terminal is screw clamp. The shape of the head is round and blue. The bezel is chromium plated and the fixing collar is zamak. The weight of this pilot light is 112 grams, height and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 12, 13, 4, and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. It complies with directives such as RoHS, WEEE, etc. related to environmental protection.

Products specifications

Attribute name Attribute value
Main
Device short name XB4F
Sale per indivisible quantity 1
Head type built-in-flush
Fixing collar material zamak
Cap/operator or lens colour blue
Range of product Harmony XB4
Bulb base integral LED
[Us] rated supply voltage 110...120 V AC at 50/60 Hz
Bezel material chromium plated metal
Shape of signaling unit head round
Product or component type pilot light
Mounting diameter 30.5 mm
Light source universal LED
Operator additional information with plain lens
Complementary
Device mounting fixing hole - diameter: 30.75 mm +/- 0.25 mm
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Compatibility code XB4
Supply voltage limits 100-132 V AC
Surge withstand 1 kV conforming to IEC 61000-4-5
Device presentation complete product
CAD overall height 36.6 mm
Customizable 1, no
Fixing mode by screw
[Us] rated supply voltage 110...120 V
CAD overall depth 53.6 mm
CAD overall width 36.6 mm
Signalling type steady
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Service life 100000 h at rated voltage and 25 °C
Connections - terminals screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
GCR BRIDGE XB4FVCUST02
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Current consumption 14 mA
Net weight 0.112 kg
Environment
Resistance to fast transients 2 kV conforming to IEC 61000-4-4
Protective treatment TH
Resistance to electrostatic discharge 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2, 6 kV on contact (on metal parts) conforming to IEC 61000-4-2
Ambient air temperature for storage -40-70 °C
IP degree of protection Type 4X conforming to UL 50 E, Type 4 conforming to UL 50 E, Type 12 conforming to UL 50 E, Type 13 conforming to UL 50 E, IP69K conforming to ISO 20653, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3
Ambient air temperature for operation -40-55 °C
IK degree of protection IK06 conforming to IEC 50102
Electromagnetic emission class B conforming to IEC 55011
Electrical shock protection class class I conforming to IEC 60536
Vibration resistance 2 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6, 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, CE, JIS C8201-5-1, IEC 60947-1, UL 508, IEC 60947-5-4, IEC 60947-5-1, CSA C22.2 No 14
Product certifications EAC, CCC, CSA, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.3 cm
Package 1 Width 5.2 cm
Package 1 Length 8.6 cm
Package 1 Weight 112.0 g
