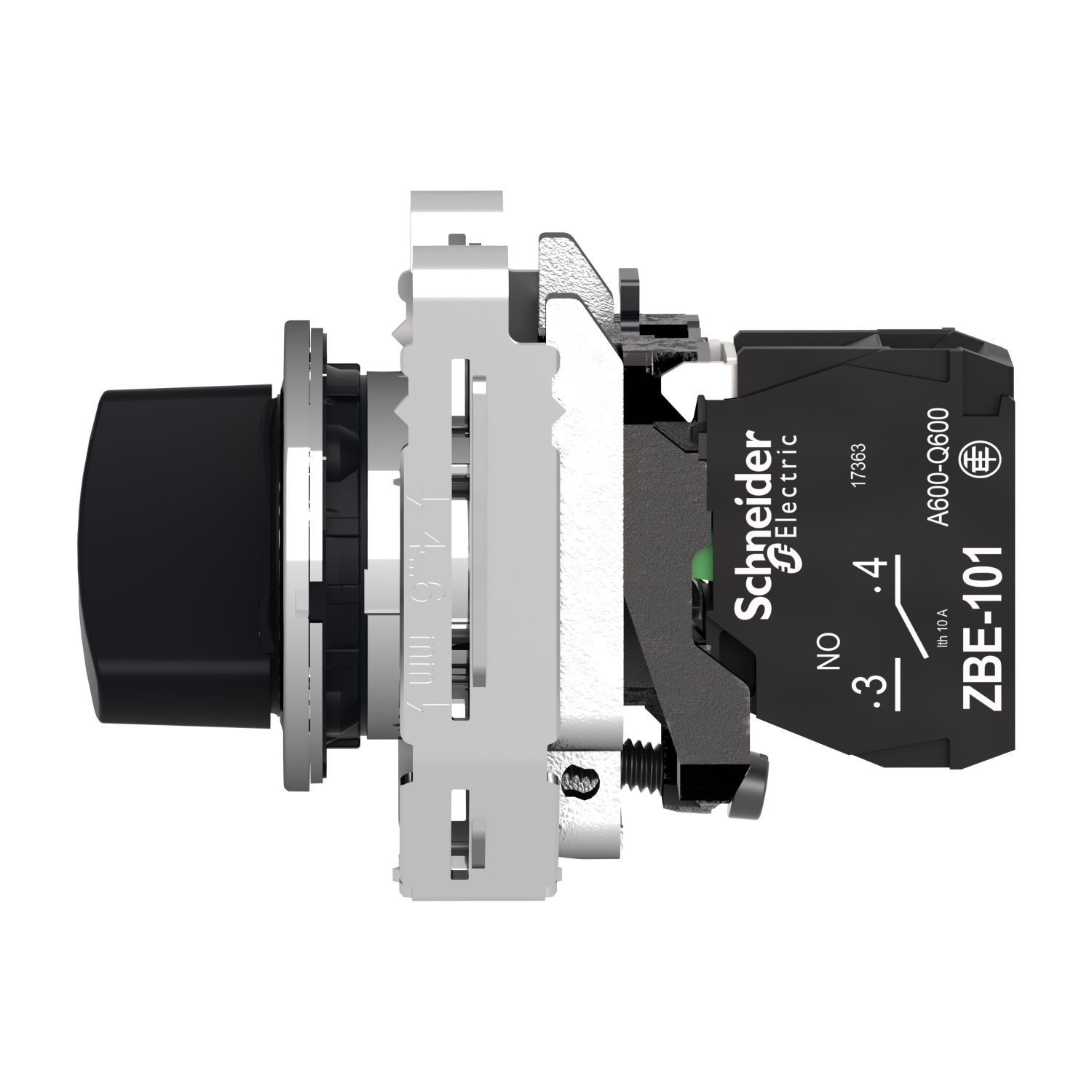

Picture of Selector switch flush mounted, Harmony XB4, metal, black, 30mm, 2 positions, stay put, 1NO

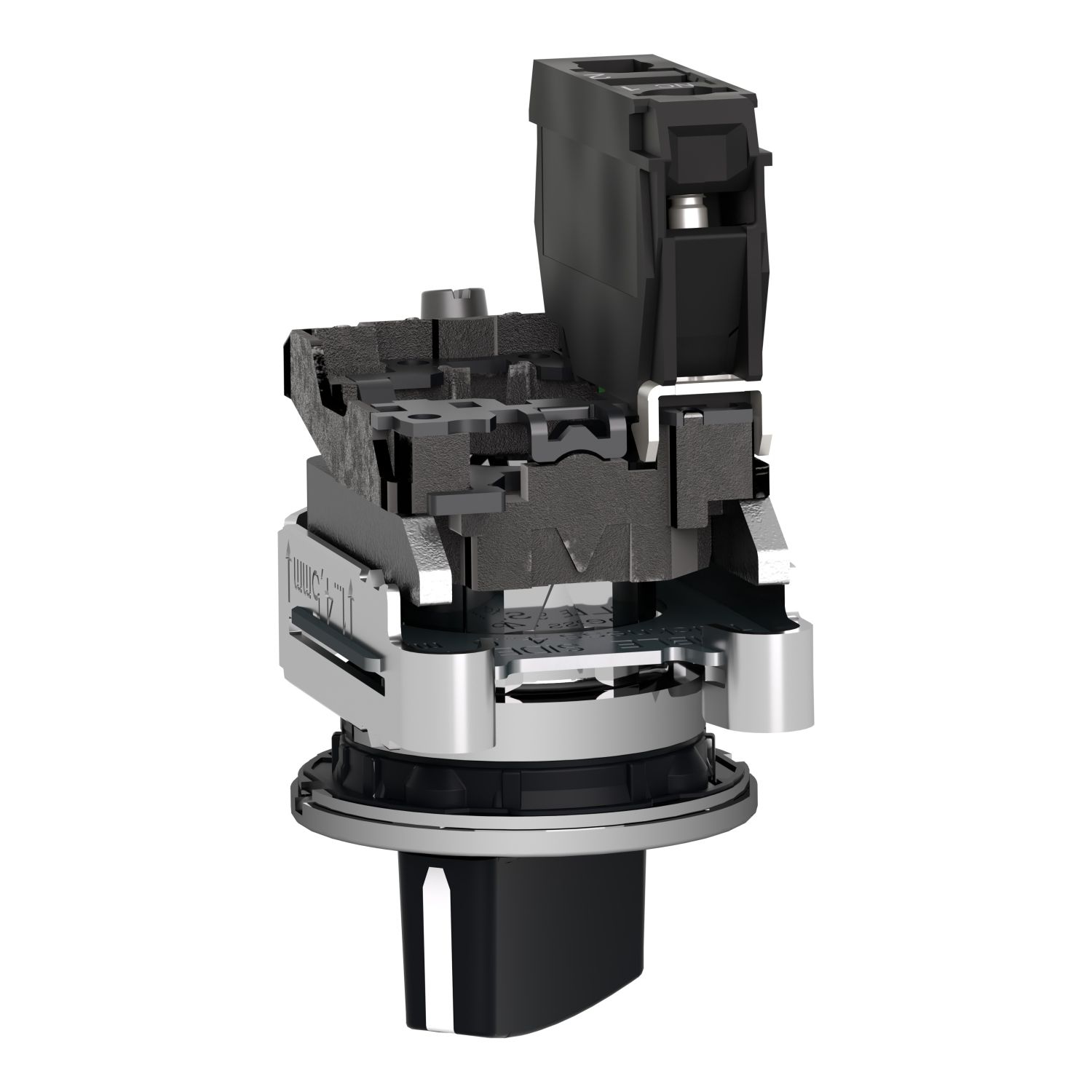

Picture of Selector switch flush mounted, Harmony XB4, metal, black, 30mm, 2 positions, stay put, 1NO

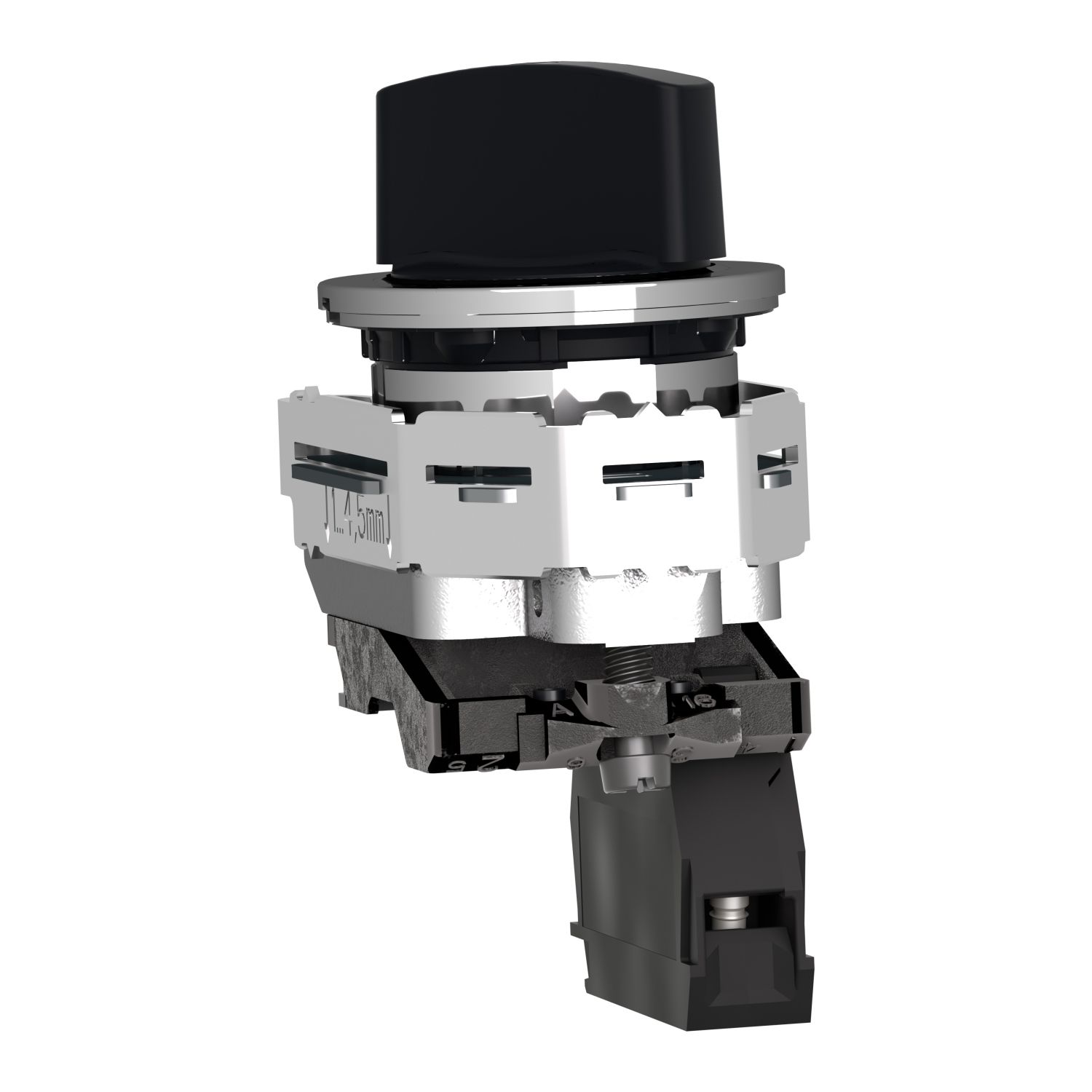

Picture of Selector switch flush mounted, Harmony XB4, metal, black, 30mm, 2 positions, stay put, 1NO
Picture of Selector switch flush mounted, Harmony XB4, metal, black, 30mm, 2 positions, stay put, 1NO
Picture of Selector switch flush mounted, Harmony XB4, metal, black, 30mm, 2 positions, stay put, 1NO
Picture of Selector switch flush mounted, Harmony XB4, metal, black, 30mm, 2 positions, stay put, 1NO
Picture of Selector switch flush mounted, Harmony XB4, metal, black, 30mm, 2 positions, stay put, 1NO
Picture of Selector switch flush mounted, Harmony XB4, metal, black, 30mm, 2 positions, stay put, 1NO
Picture of Selector switch flush mounted, Harmony XB4, metal, black, 30mm, 2 positions, stay put, 1NO
Picture of Selector switch flush mounted, Harmony XB4, metal, black, 30mm, 2 positions, stay put, 1NO
Picture of Selector switch flush mounted, Harmony XB4, metal, black, 30mm, 2 positions, stay put, 1NO
SKU:

XB4FD21

Selector switch flush mounted, Harmony XB4, metal, black, 30mm, 2 positions, stay put, 1NO

Old price: $88.88 INC GST
$69.33 INC GST
Available for Shipping : 06-Jan-2026
Product Selector
Selector switch flush mounted, Harmony XB4, metal, black, 30mm, 2 positions, stay put, 1NO
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Image of product in real life situation
Image of product in real life situation
Catalog
Instruction sheet
Environmental Disclosure
Declaration of conformity
Circularity Profile
Image of product in real life situation
Product Page Link
Product Data Sheet
This flush mounted selector switch is a part of the Harmony XB4 metallic range and is a complete product. It has a mounting diameter of 30.5 mm. Customized marking option through web customization tool is available in Schneider Electric website. The flush mount design of this selector switch addresses the market demands for ergonomic and aesthetics. It has a black standard handle with 2 positions 90 degree stay put. The contact type is 1NO slow break and the connection terminal is screw clamp. The shape of the head is round. The bezel is chromium plated and the fixing collar is zamak. The weight of this selector switch is 95 grams, height is 47 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 12, 13, 4, and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this selector switch. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. It complies with directives such as RoHS, WEEE, etc. related to environmental protection.

Products specifications

Attribute name Attribute value
Main
Device short name XB4F
Contact operation slow-break
Sale per indivisible quantity 1
Head type built-in-flush
Fixing collar material zamak
Type of operator stay put
Range of product Harmony XB4
Operator position information 2 positions 90°
Operator profile black standard handle
Bezel material chromium plated metal
Contacts type and composition 1 NO
Connections - terminals screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Shape of signaling unit head round
Product or component type selector switch
Mounting diameter 30.5 mm
Complementary
Device mounting built-in
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Electrical reliability λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4
Compatibility code XB4
Mechanical durability 1000000 cycles
[Ie] rated operational current 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
Electrical durability 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C
Device presentation complete product
Customizable 1, no
Cap/operator or lens colour black
Contacts material silver alloy (Ag/Ni)
Fixing mode by screws
Height 47 mm
Depth 70 mm
Width 36.6 mm
Torque value 0.14 N.m NO changing electrical state
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
GCR BRIDGE XB4FDCUST01
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.095 kg
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
Positive opening without
Fixing center 40 x 50 mm (1...6 mm thick panel)
Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1
Terminals description ISO n°1 (13-14)NO
Contacts usage standard contacts
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection Type 4X conforming to UL 50 E, Type 4 conforming to UL 50 E, Type 12 conforming to UL 50 E, Type 13 conforming to UL 50 E, IP69K conforming to ISO 20653, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK04 conforming to IEC 50102
Overvoltage category class I conforming to IEC 60536
Vibration resistance 2 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6, 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, CE, JIS C8201-5-1, IEC 60947-1, UL 508, IEC 60947-5-4, IEC 60947-5-1, CSA C22.2 No 14
Product certifications EAC, CCC, CSA, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.3 cm
Package 1 Width 5.2 cm
Package 1 Length 8.6 cm
Package 1 Weight 121.0 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 4.3 cm
Package 2 Width 8.6 cm
Package 2 Length 26.5 cm
Package 2 Weight 610.0 g
Unit Type of Package 3 3
Number of Units in Package 3 80
Package 3 Height 30.0 cm
Package 3 Width 30.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 10.272 kg
