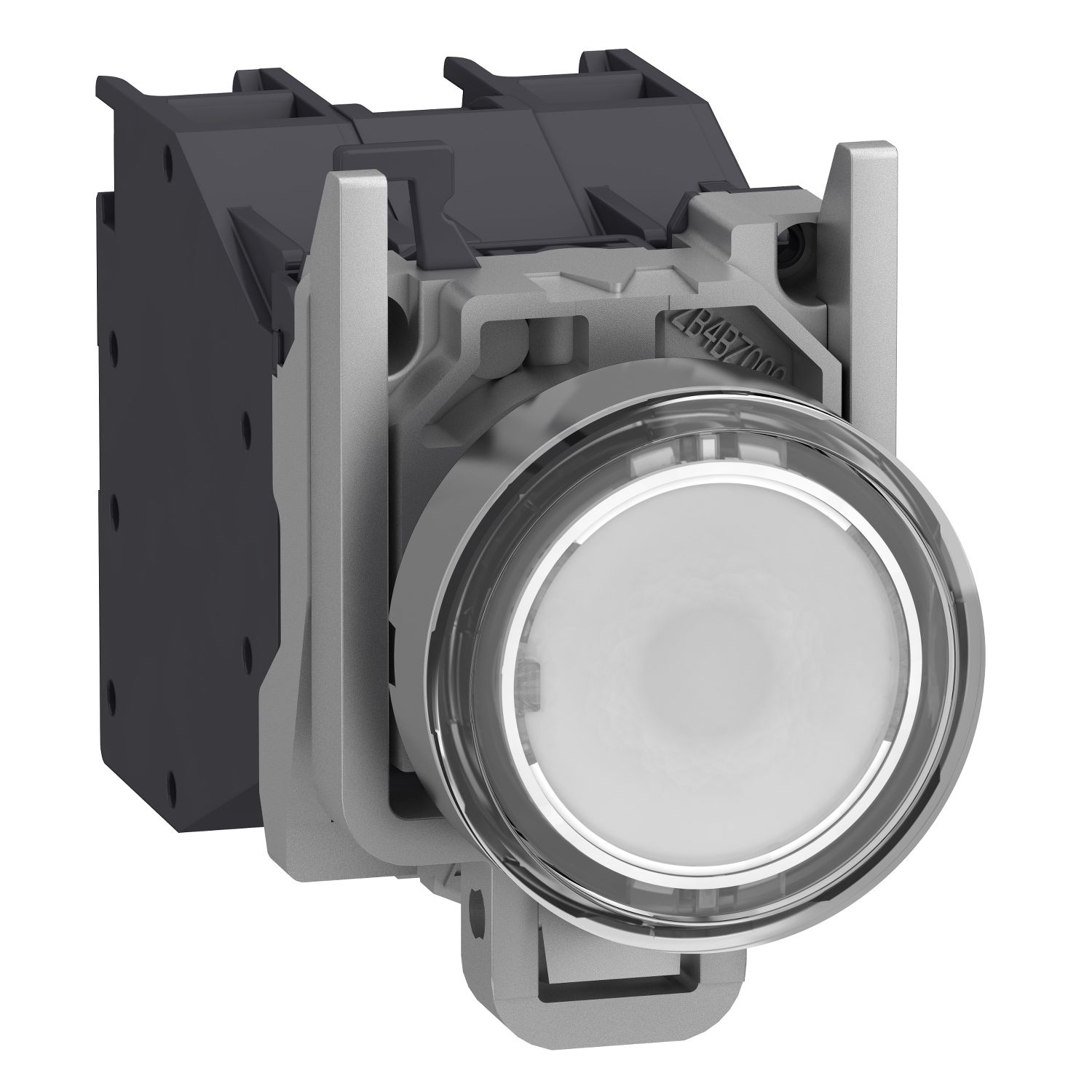

Picture of Complete illuminated push button, Harmony XB4 - ATEX D, metal, white flush, 22mm, spring return, booted, 1NO, 24...254V AC/DC

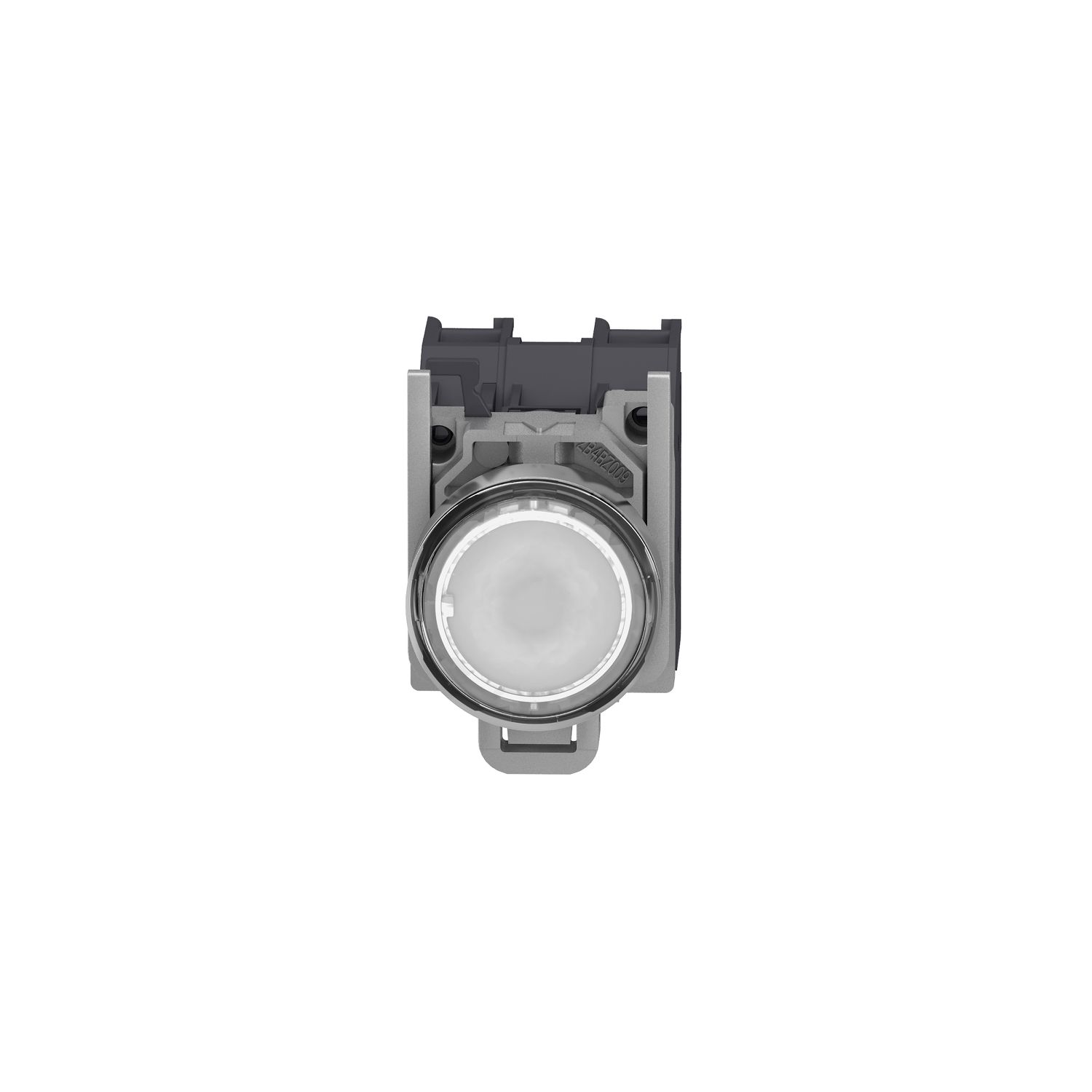

Picture of Complete illuminated push button, Harmony XB4 - ATEX D, metal, white flush, 22mm, spring return, booted, 1NO, 24...254V AC/DC

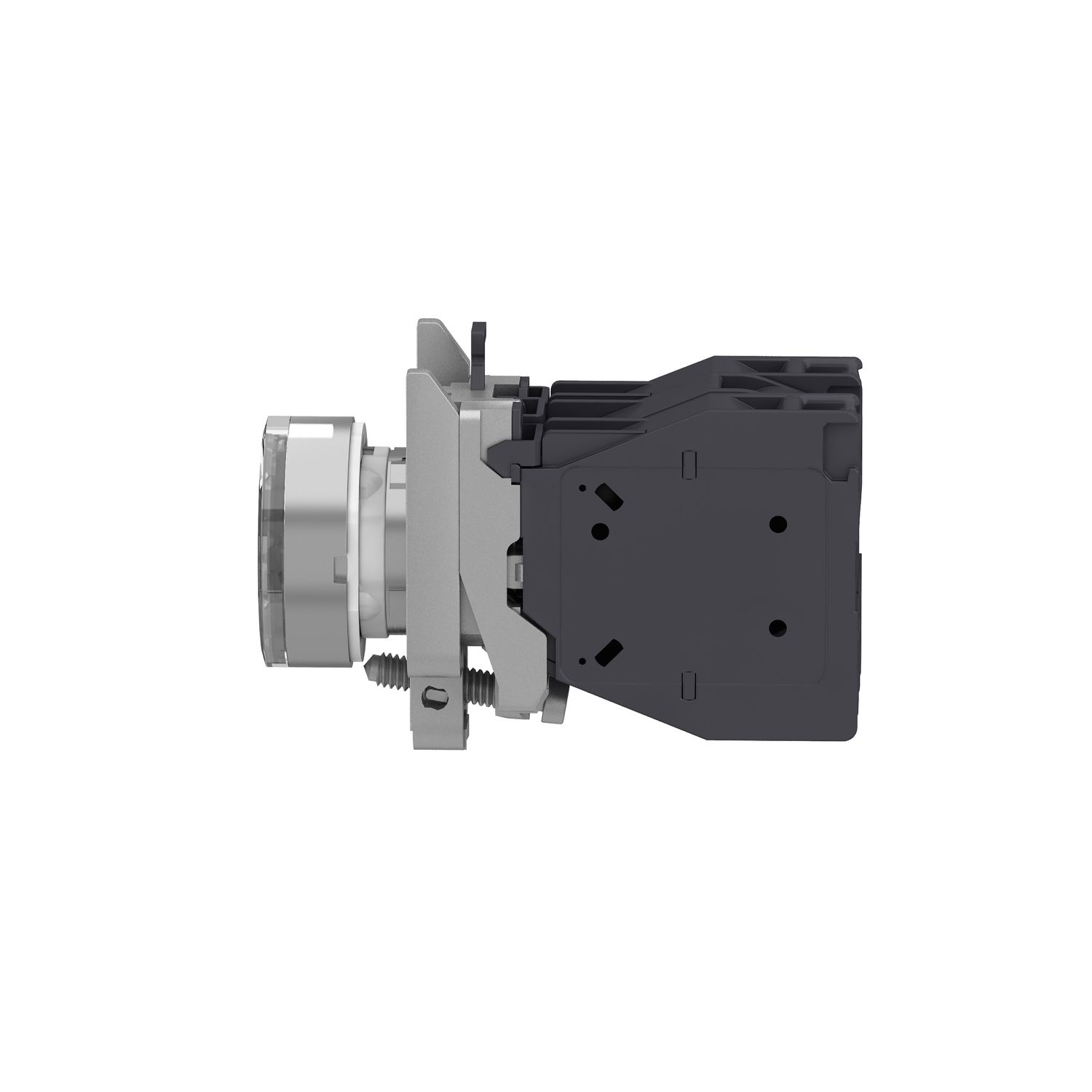

Picture of Complete illuminated push button, Harmony XB4 - ATEX D, metal, white flush, 22mm, spring return, booted, 1NO, 24...254V AC/DC

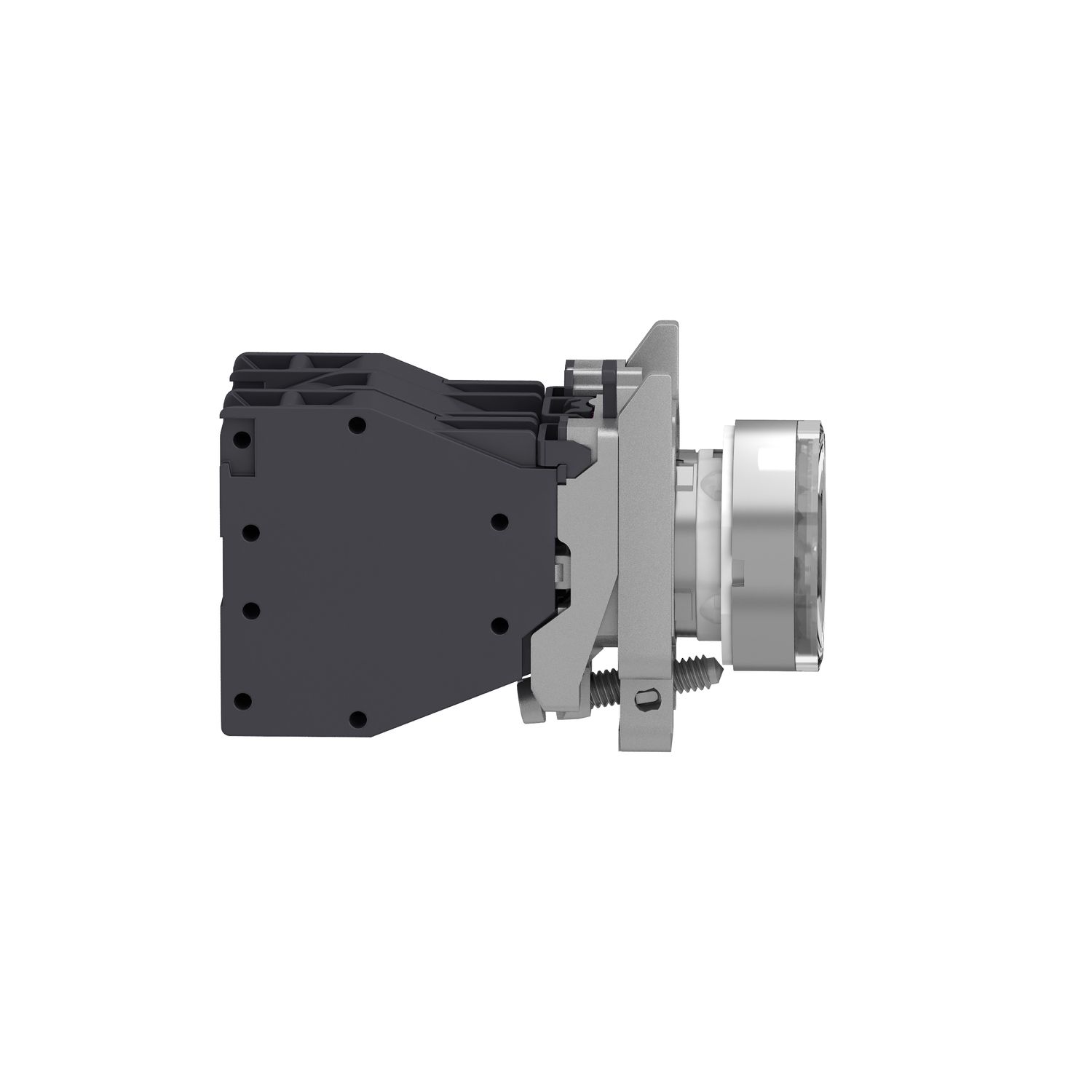

Picture of Complete illuminated push button, Harmony XB4 - ATEX D, metal, white flush, 22mm, spring return, booted, 1NO, 24...254V AC/DC

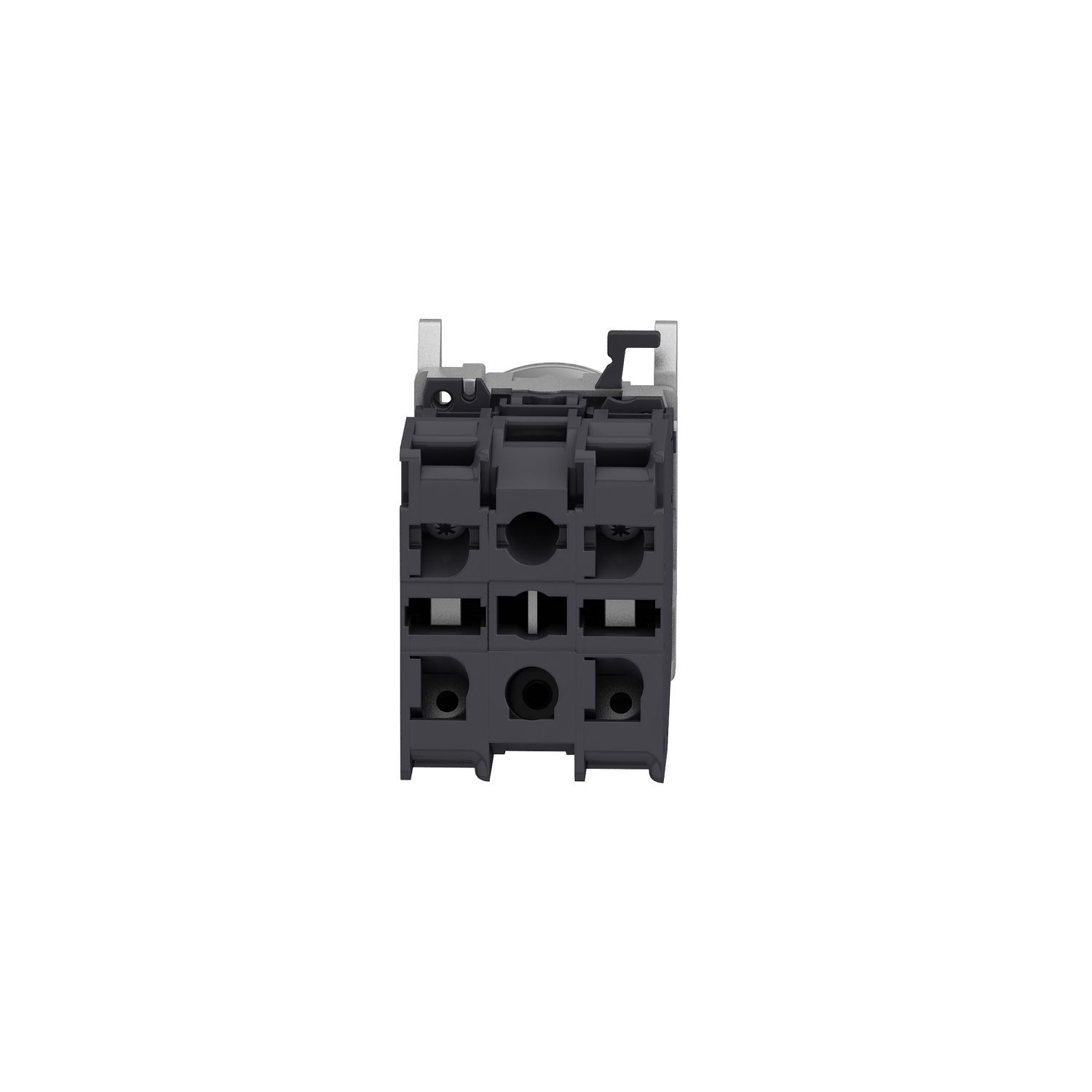

Picture of Complete illuminated push button, Harmony XB4 - ATEX D, metal, white flush, 22mm, spring return, booted, 1NO, 24...254V AC/DC
Picture of Complete illuminated push button, Harmony XB4 - ATEX D, metal, white flush, 22mm, spring return, booted, 1NO, 24...254V AC/DC
Picture of Complete illuminated push button, Harmony XB4 - ATEX D, metal, white flush, 22mm, spring return, booted, 1NO, 24...254V AC/DC
SKU:

XB4BP183BM5GEX

Complete illuminated push button, Harmony XB4 - ATEX D, metal, white flush, 22mm, spring return, booted, 1NO, 24...254V AC/DC

Old price: $412.50 INC GST
$321.75 INC GST
Available for Shipping : 21-Jan-2026
Complete illuminated push button, Harmony XB4 - ATEX D, metal, white flush, 22mm, spring return, booted, 1NO, 24...254V AC/DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 21-Jan-2026
Environmental Disclosure
Catalog
Circularity Profile
Image of product in real life situation
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This white pushbutton has a circular head shape with a booted, clear silicon flush push and is supplied with an integral LED. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This illuminated pushbutton with integral LED provides an ergonomic and visual interface for controlling machines. It comes with 1 NO contact with slow-break operation and operates with a spring return mechanism. This pushbutton has a 24V to 254V AC/DC rating. It has a chromium plated metal bezal and has a 22mm diameter head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.

Products specifications

Attribute name Attribute value
Main
Device short name XB4
Sale per indivisible quantity 1
Fixing collar material zamak
Type of operator spring return
Range of product Harmony XB4
Operator profile white flush
Bezel material chromium plated metal
Contacts type and composition 1 NO
Gas zone zone 1 - 2
Product or component type complete illuminated push-button
Mounting diameter 22 mm
Dust zone zone 21 - 22
Operator additional information booted (clear silicon)
Complementary
Device mounting fixing hole - diameter: 22.5 mm +/- 0.2 mm conforming to IEC 60947-1
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Compatibility code XB4
Mechanical durability 5000000 cycles
Contact operation slow-break
[Ie] rated operational current 2.87 A at 24 V, DC, Q300 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC, Q300 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC, Q300 conforming to IEC 60947-5-1, 6 A at 120 V, AC, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC, A600 conforming to IEC 60947-5-1, 1.9 A at 380 V, AC, A600 conforming to IEC 60947-5-1
Marking Ex db eb mb IIC Gb, Ex tb IIIC Db, II 2 GD
Operating travel 4.452 mm (total travel), 4.622 mm (changing state point), 1.657 mm (engagement point)
Operating force 3.962 N
Height 30 mm
Depth 72 mm
Width 46.2 mm
Signalling type steady
[Ui] rated insulation voltage 415 V
Service life 100000 h
Connections - terminals screw clamp terminals, 1 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Current consumption 2...10 mA
Net weight 0.108 kg
Shape of signaling unit head round
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
Positive opening without
Light source integral LED
Fixing center >= 30 x 40 mm (support panel) - thickness: 1-6 mm
Embedding depth 58 mm
[Us] rated supply voltage 24...254 V AC/DC
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Standards CSA C22.2 No 213, ANSI/ISA 12.12.01, UL 60079-31, UL 60079-18, UL 60079-0, IEC 60079-31:2009, EN/IEC 60079-18:2009, IEC 60079-7:2009, IEC 60079-0:2009
Ambient air temperature for operation -20-75 °C
Overvoltage category I conforming to IEC 60536
Product certifications INERIS 04ATEX9004U
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.9 cm
Package 1 Width 4.8 cm
Package 1 Length 7.5 cm
Package 1 Weight 123.0 g
