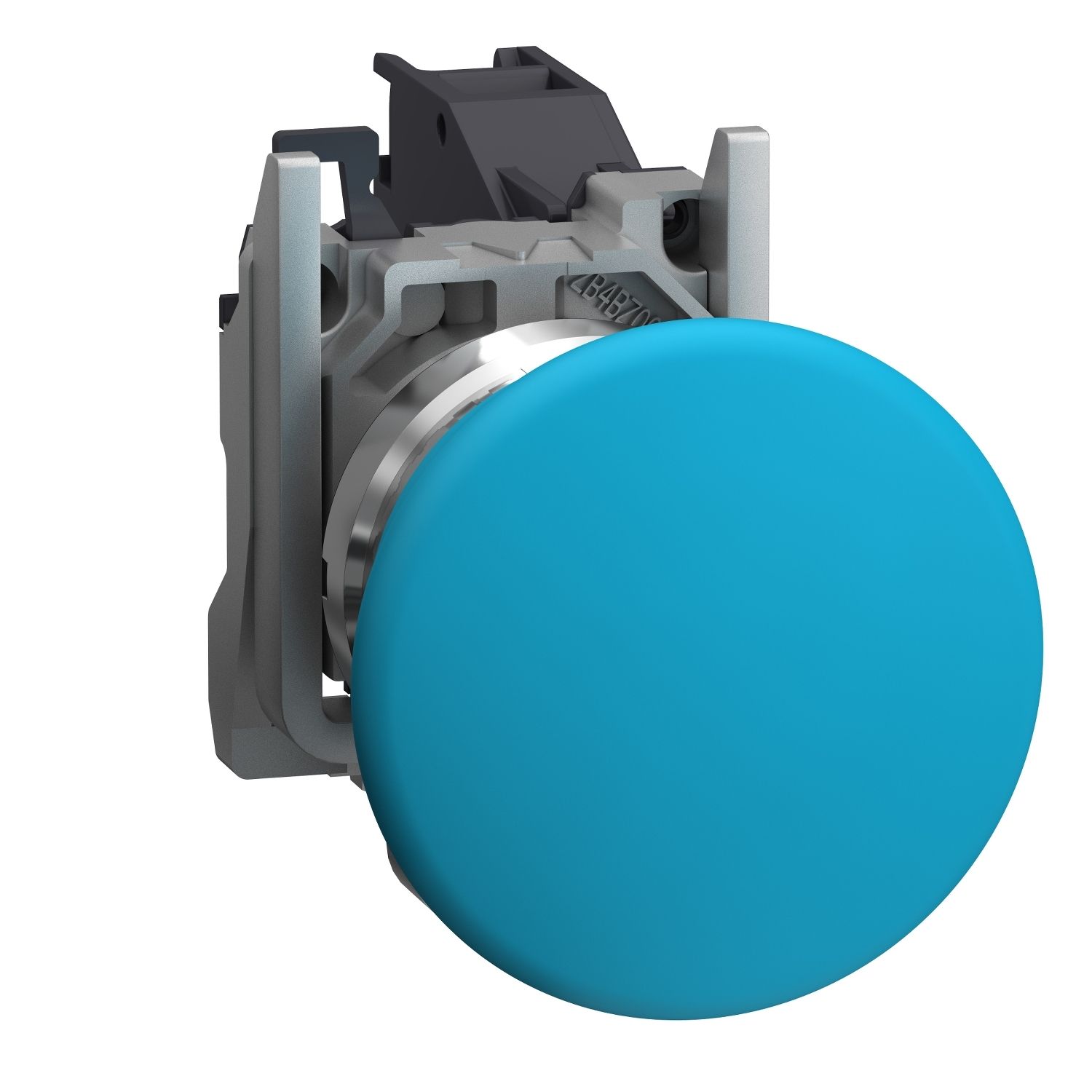

Picture of Complete push button, Harmony XB4, Explosive atmosphere, blue mushroom pushbutton
SKU:

XB4BC61GEX

Complete push button, Harmony XB4, Explosive atmosphere, blue mushroom pushbutton

Old price: $178.86 INC GST
$139.51 INC GST
Available for Shipping : 22-Jan-2026
Complete push button, Harmony XB4, Explosive atmosphere, blue mushroom pushbutton
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 22-Jan-2026
Circularity Profile
Declaration of conformity
Instruction sheet
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. It is a blue pushbutton with mushroom head. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This mushroom headed pushbutton provides an ergonomic interface for controlling machines. It comes with 1 NO contact with slow-break operation and operates with a spring return mechanism. It has silver alloy contact material. It has a chromium plated metal bezal and has a 40mm mushroom diameter head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.

Products specifications

Attribute name Attribute value
Main
Device short name XB4
Sale per indivisible quantity 1
Fixing collar material zamak
Type of operator spring return
Range of product Harmony XB4
Operator profile blue mushroom Ø 40 mm
Bezel material chromium plated metal
Contacts type and composition 1 NO
Gas zone zone 1 - 2
Product or component type complete push-button
Mounting diameter 22 mm
Dust zone zone 21 - 22
Complementary
Device mounting fixing hole - diameter: 22.5 mm +/- 0.2 mm conforming to IEC 60947-1
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Compatibility code XB4
Mechanical durability 5000000 cycles
Contact operation slow-break
[Ie] rated operational current 2.87 A at 24 V, DC, Q300 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC, Q300 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC, Q300 conforming to IEC 60947-5-1, 6 A at 120 V, AC, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC, A600 conforming to IEC 60947-5-1, 1.9 A at 380 V, AC, A600 conforming to IEC 60947-5-1
Marking Ex db eb IIC Gb, Ex tb IIIC Db, II 2 GD
Operating travel 4.452 mm (total travel), 4.622 mm (changing state point), 1.657 mm (engagement point)
Operating force 3.962 N
Height 30 mm
Depth 96.5 mm
Width 46.2 mm
[Ui] rated insulation voltage 415 V
Connections - terminals screw clamp terminals, 1 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Net weight 0.126 kg
Shape of signaling unit head round
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
Positive opening without
Fixing center >= 30 x 40 mm (support panel) - thickness: 1-6 mm
Embedding depth 58 mm
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to IEC 60529
Standards CSA C22.2 No 213, ANSI/ISA 12.12.01, UL 60079-31, UL 60079-1, UL 60079-0, IEC 60079-31:2009, IEC 60079-7:2009, EN/IEC 60079-1:2009, IEC 60079-0:2009
Ambient air temperature for operation -20-75 °C
Product certifications INERIS 04ATEX9004U
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.6 cm
Package 1 Width 3.0 cm
Package 1 Length 4.6 cm
Package 1 Weight 130.0 g
