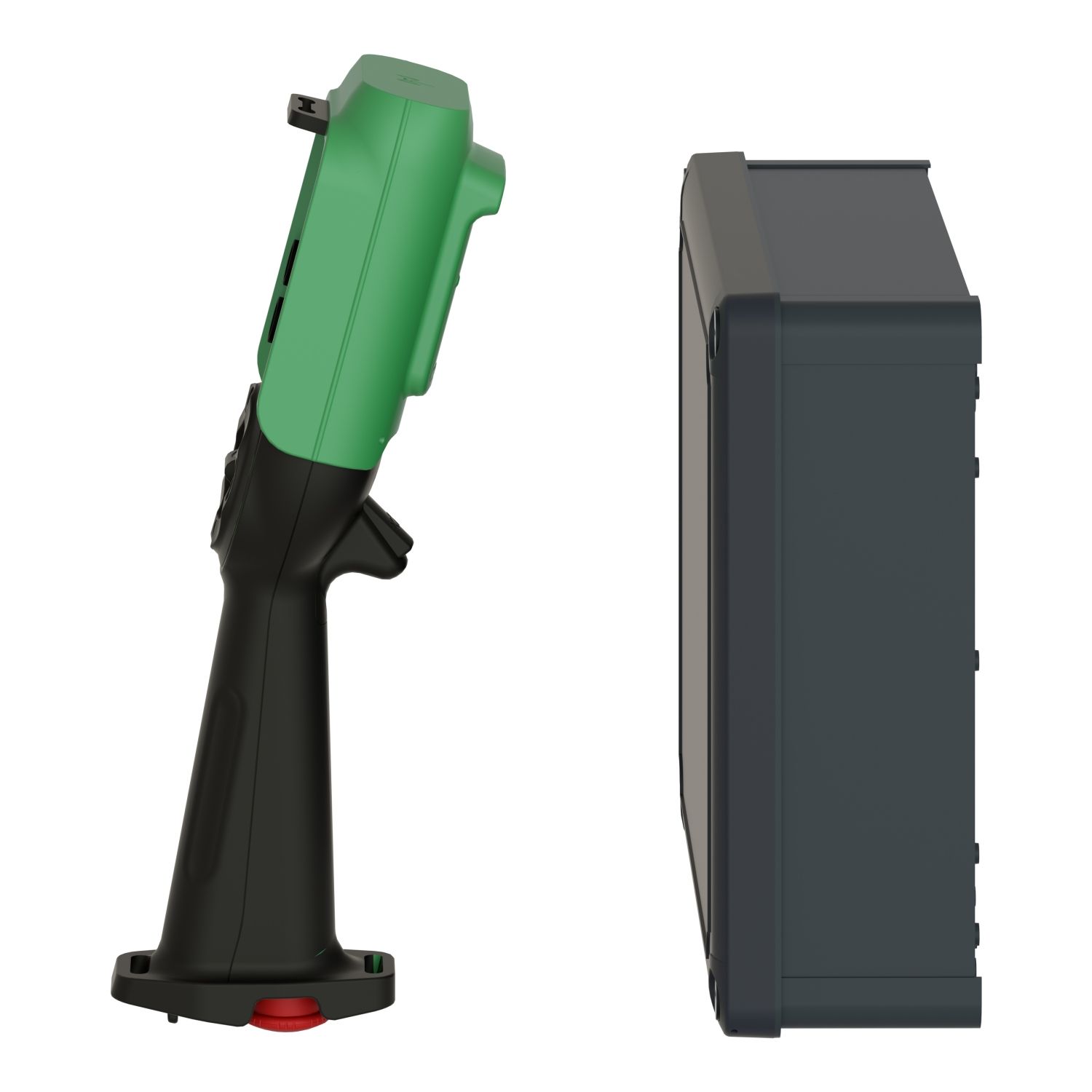

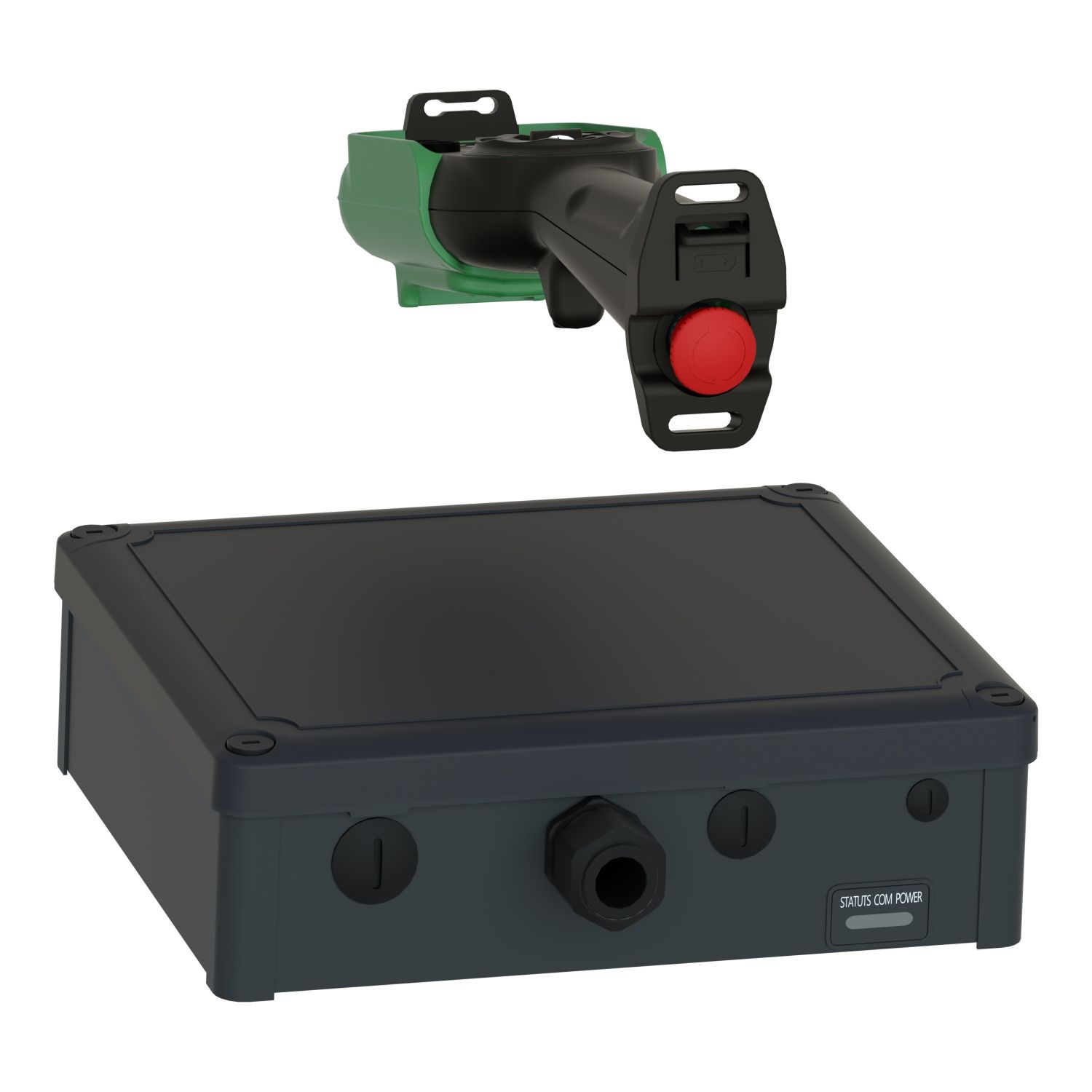

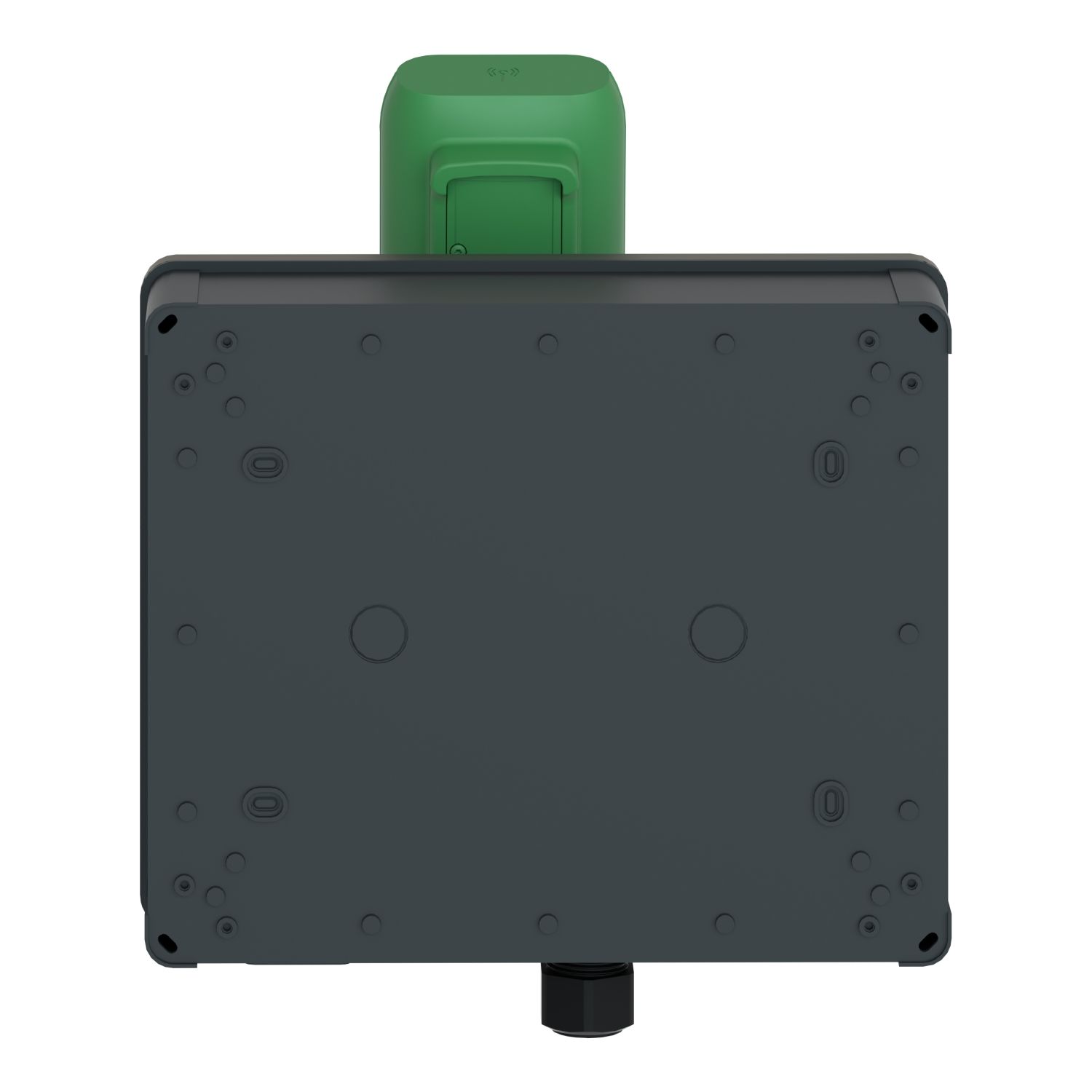

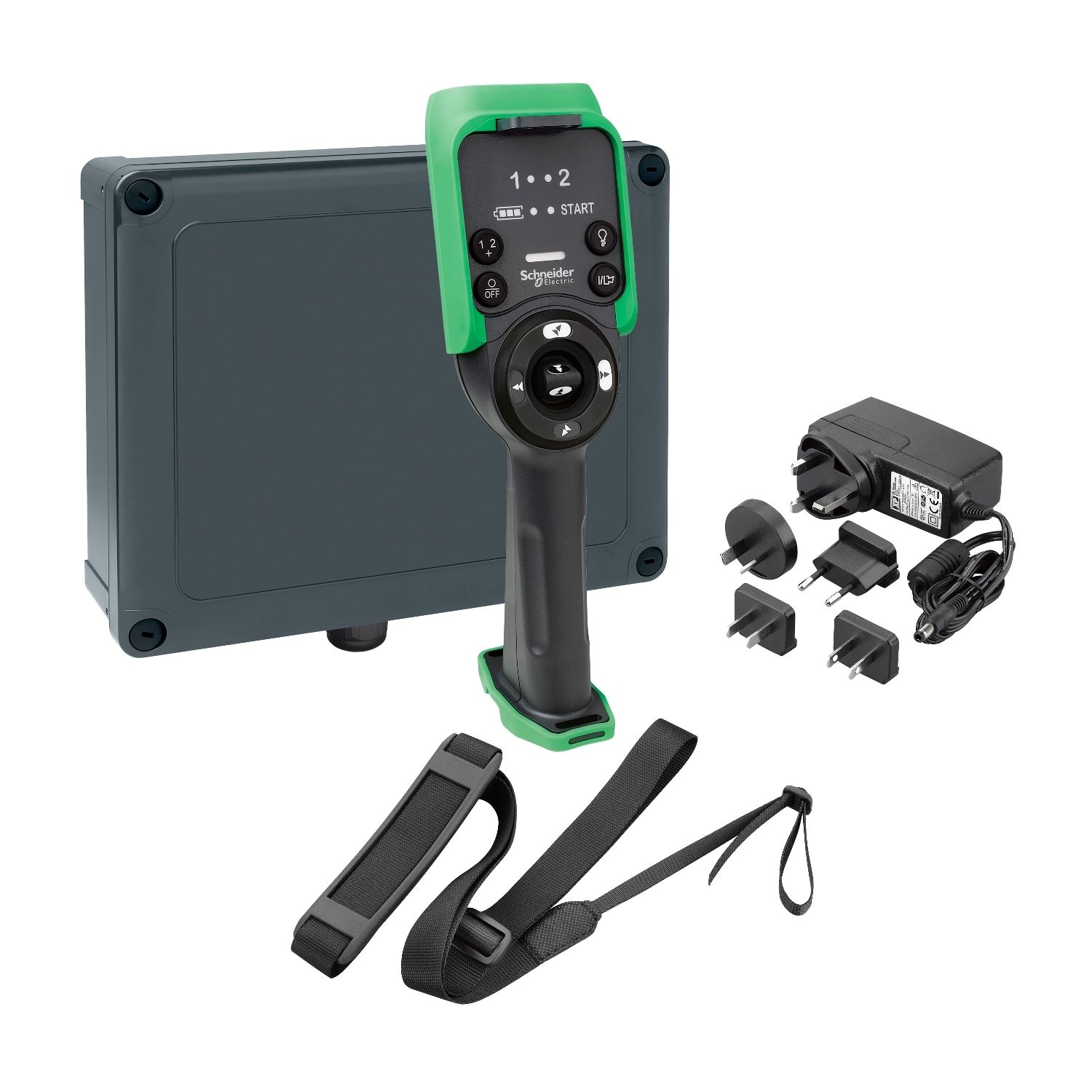

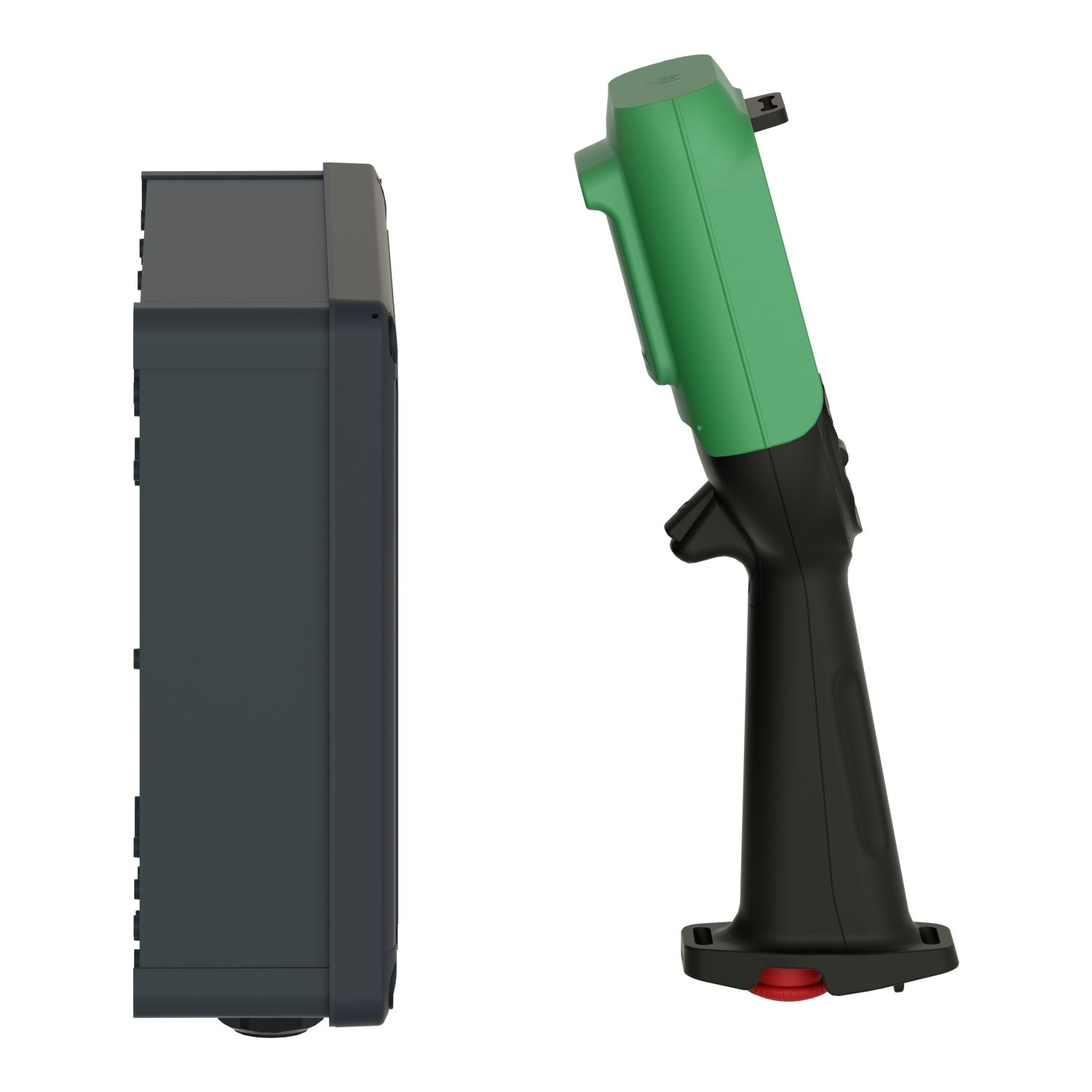

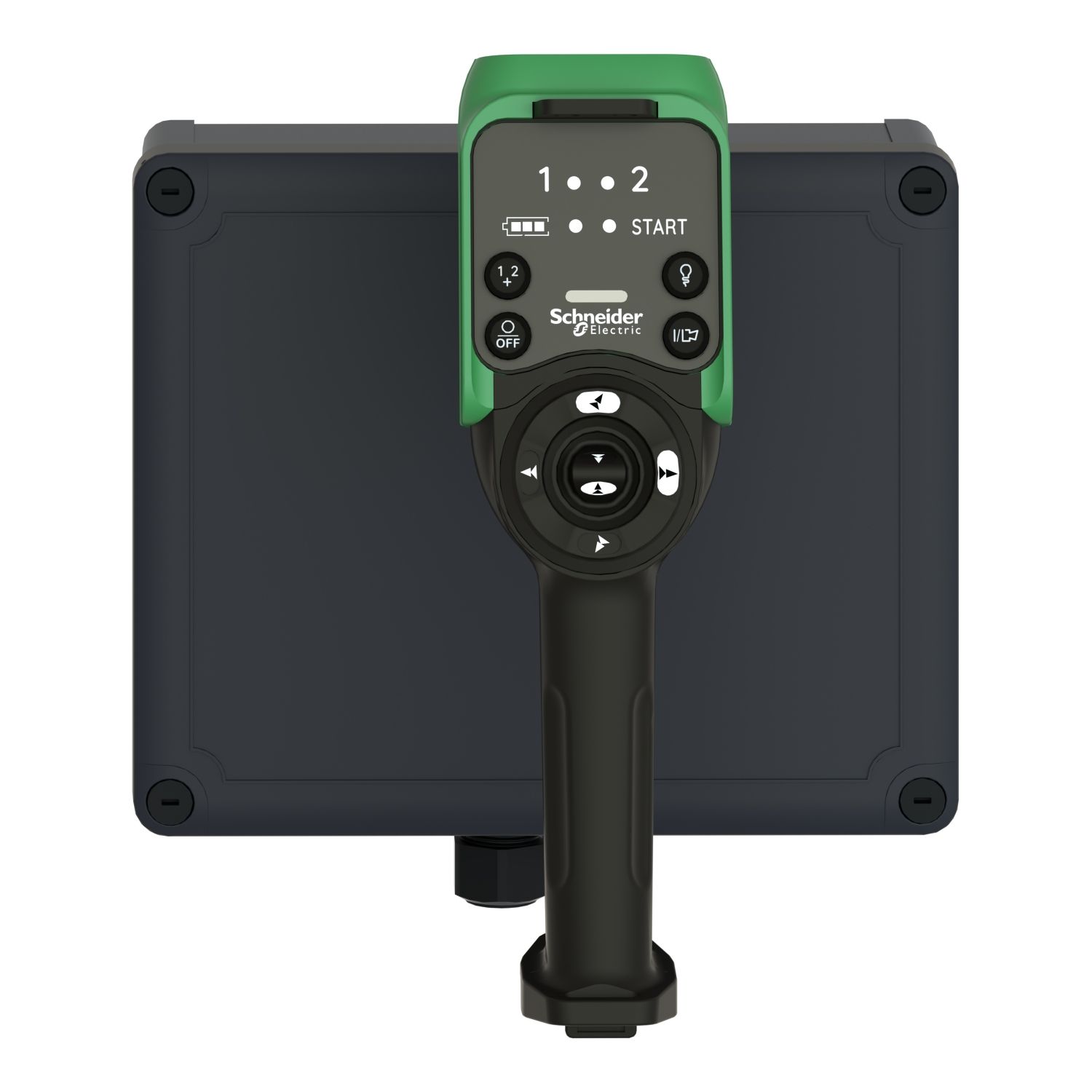

Picture of Harmony eXLhoist, standard, system with charger, shoulder belt, cable USB/RJ45 and config software
Picture of Harmony eXLhoist, standard, system with charger, shoulder belt, cable USB/RJ45 and config software
Picture of Harmony eXLhoist, standard, system with charger, shoulder belt, cable USB/RJ45 and config software
Picture of Harmony eXLhoist, standard, system with charger, shoulder belt, cable USB/RJ45 and config software
Picture of Harmony eXLhoist, standard, system with charger, shoulder belt, cable USB/RJ45 and config software
Picture of Harmony eXLhoist, standard, system with charger, shoulder belt, cable USB/RJ45 and config software
Picture of Harmony eXLhoist, standard, system with charger, shoulder belt, cable USB/RJ45 and config software
Picture of Harmony eXLhoist, standard, system with charger, shoulder belt, cable USB/RJ45 and config software
Picture of Harmony eXLhoist, standard, system with charger, shoulder belt, cable USB/RJ45 and config software
SKU:

XARSK8L12W

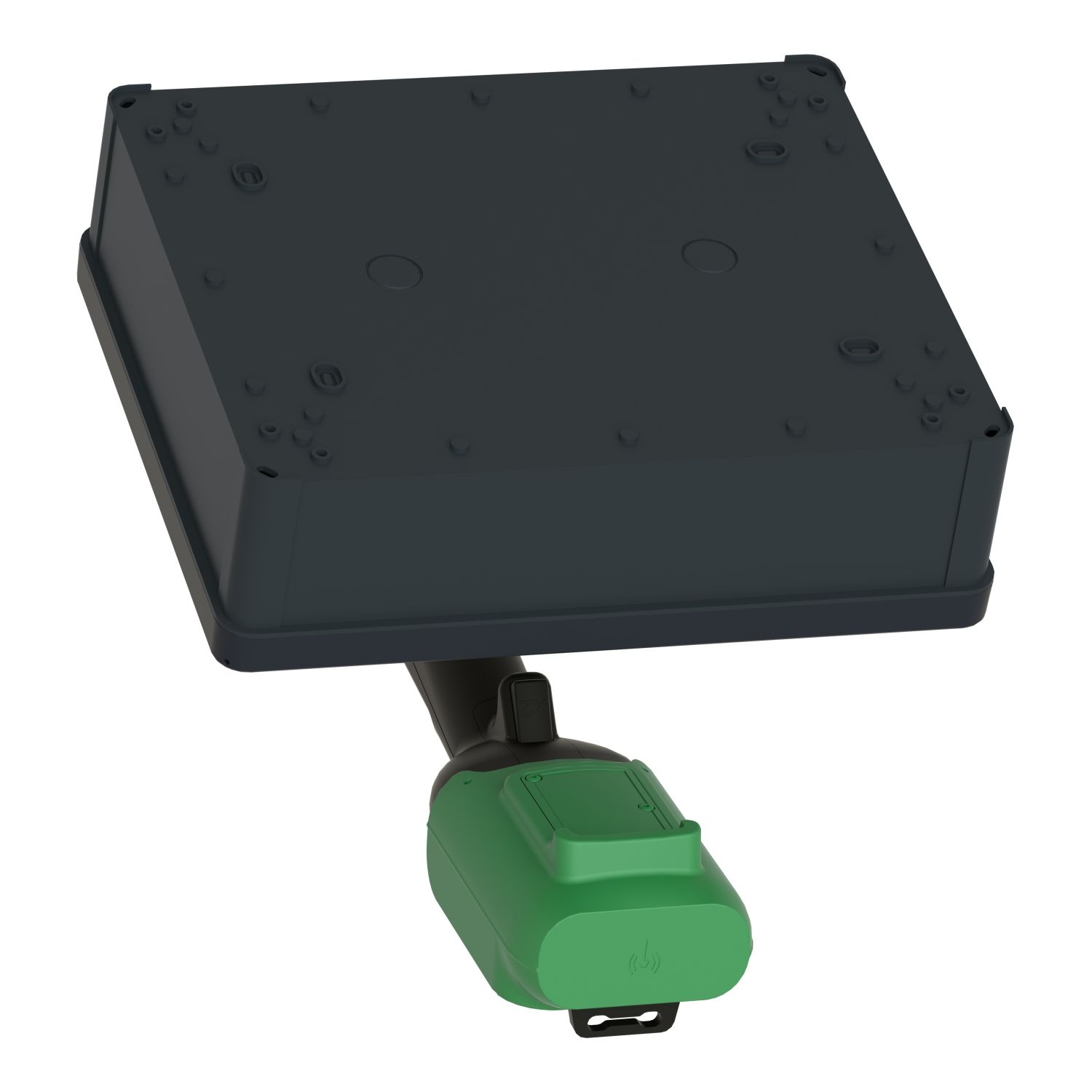

Harmony eXLhoist, standard, system with charger, shoulder belt, cable USB/RJ45 and config software

Old price: $3,359.40 INC GST
$2,620.33 INC GST
Available for Shipping : 26-Jan-2026
Harmony eXLhoist, standard, system with charger, shoulder belt, cable USB/RJ45 and config software
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 26-Jan-2026
Instruction sheet

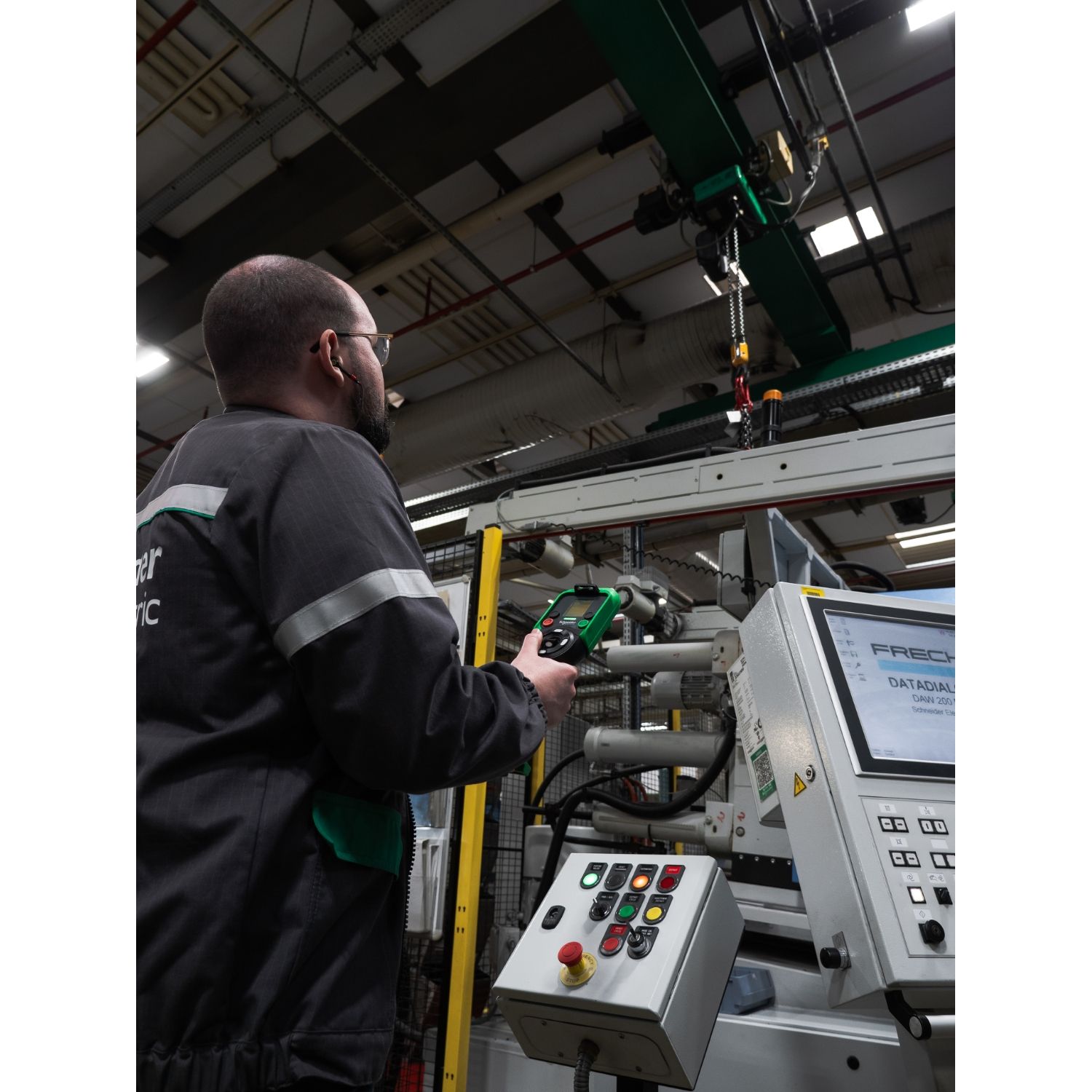

Image of product in real life situation
User guide
Declaration of conformity
Quick start guide
Catalog
Product Page Link
Product Data Sheet
This starting kit is part of the range wireless remote control system Harmony eXLhoist. It comprises remote control system, accessories, USB/RJ45 cable and configuration software. It is designed for hoisting or material handling applications. Its innovative design and the button positions on the remote device allow intuitive and easy one-hand operation.

Products specifications

Attribute name Attribute value
Main
Device short name XARS
Number of channels 50
Control station type wireless
Range of product Harmony eXLhoist
Control station application limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1, limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061, motion function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1, motion function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061, emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to ISO 13849-1, emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to IEC 62061, stop function: SIL 2 maximum (can reach PL d/category 3) conforming to ISO 13849-1, stop function: SIL 2 maximum (can reach PL d/category 3) conforming to IEC 62061
Product specific application hoisting applications, material handling
Product or component type control station
Complementary
Operating distance 100 m in free air
Communication network type wireless: bluetooth low energy
Transmission frequency 2.4 GHz
Kit composition configuration software, base station, shoulder belt, remote control, cable
Cable entry cable gland
Environment
Relative humidity 0-95 % at -20-45 °C storage
Radio agreement ANATEL, RSS, ARIB, FCC, ICASA, SRRC
Electromagnetic compatibility resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3, resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2, resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2
Product certifications EAC, KC, JIS, C-Tick, CSA, UL, CE
Standards ARIB STD-T81 radio, RSS 210 issue 8 radio, RSS GEN issue 3 radio, FCC part 15 radio, ETSI EN 300 328 radio, ETSI EN 300 440-2 radio, ETSI EN 301 489-17 radio, ETSI EN 301 489-3 radio, ETSI EN 301 489-1 radio, IEC 60204-32 hoisting applications, ISO 13850 safety, IEC 61508 safety, IEC 62061 safety, ISO 13849-1 safety, IEC 60204-1 safety
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 20.000 cm
Package 1 Width 28.500 cm
Package 1 Length 30.700 cm
Package 1 Weight 3.029 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 6.600 kg

Related products

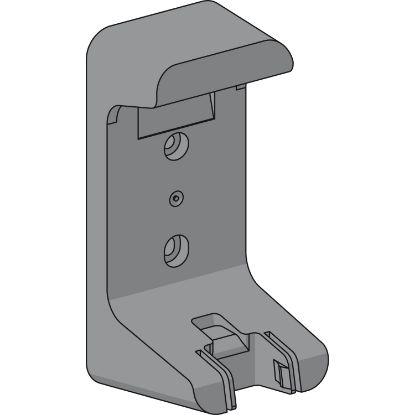

Picture of Harmony eXLhoist, Holder for remote device, standard
