XAPD54

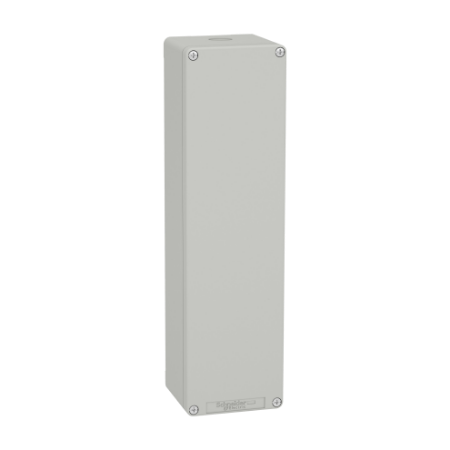

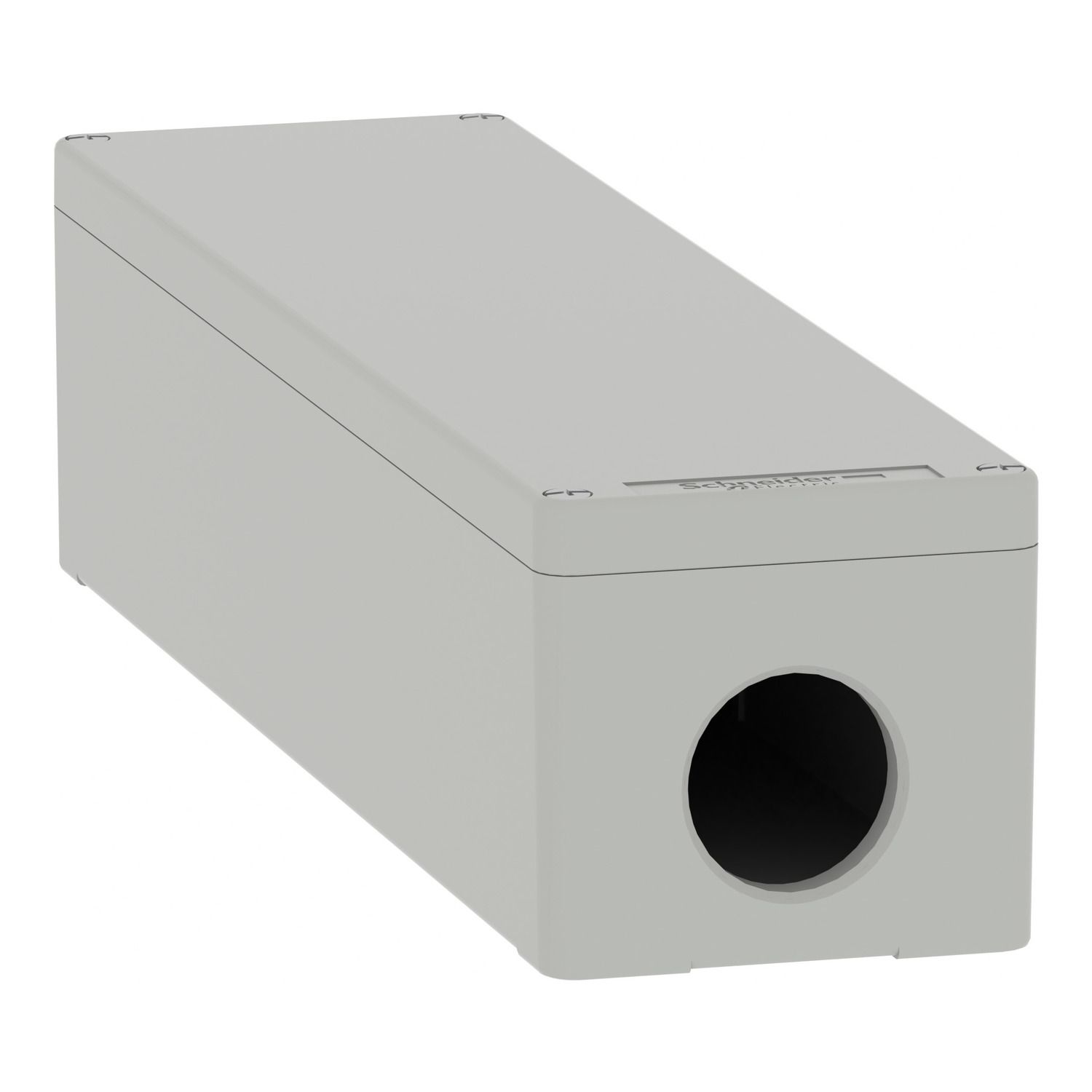

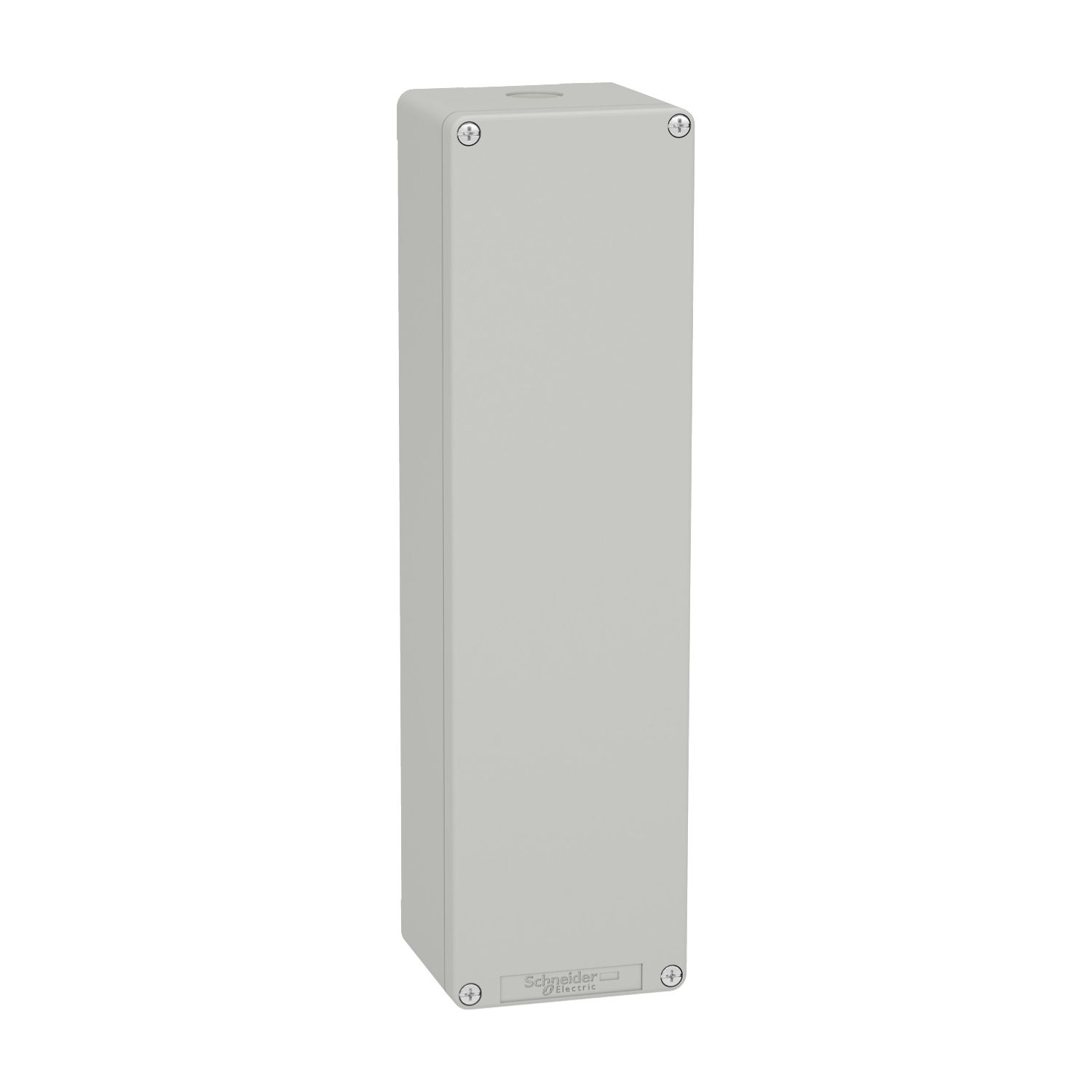

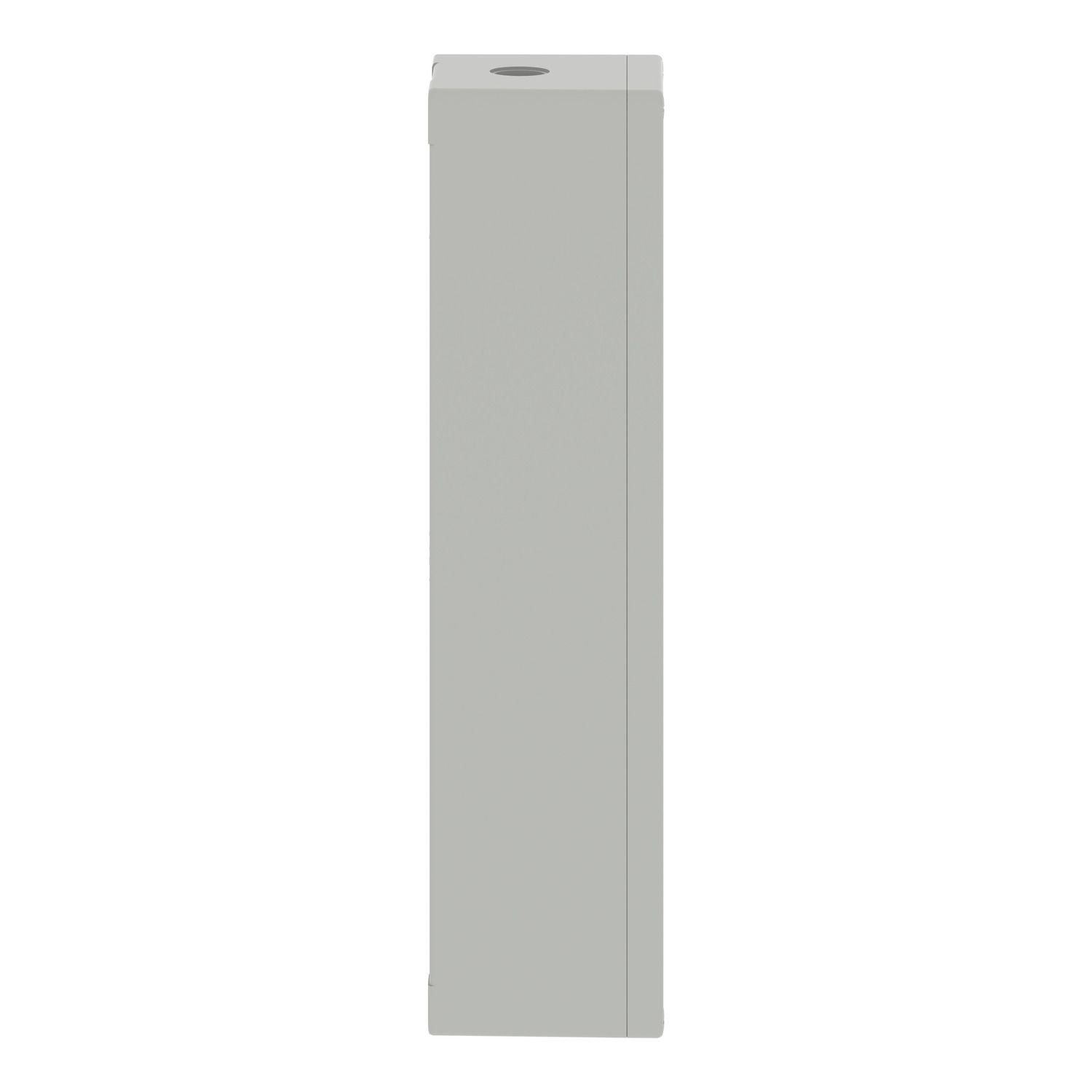

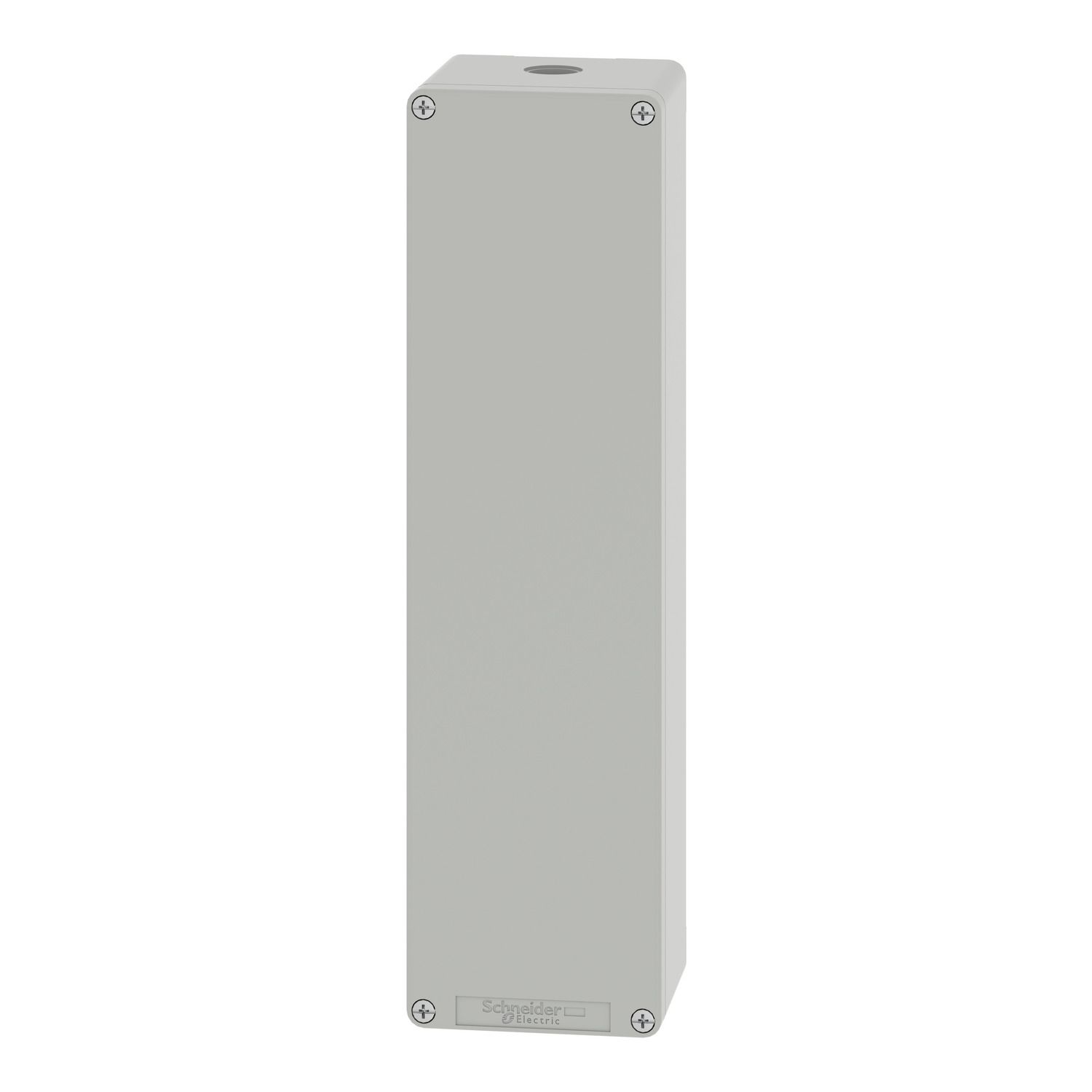

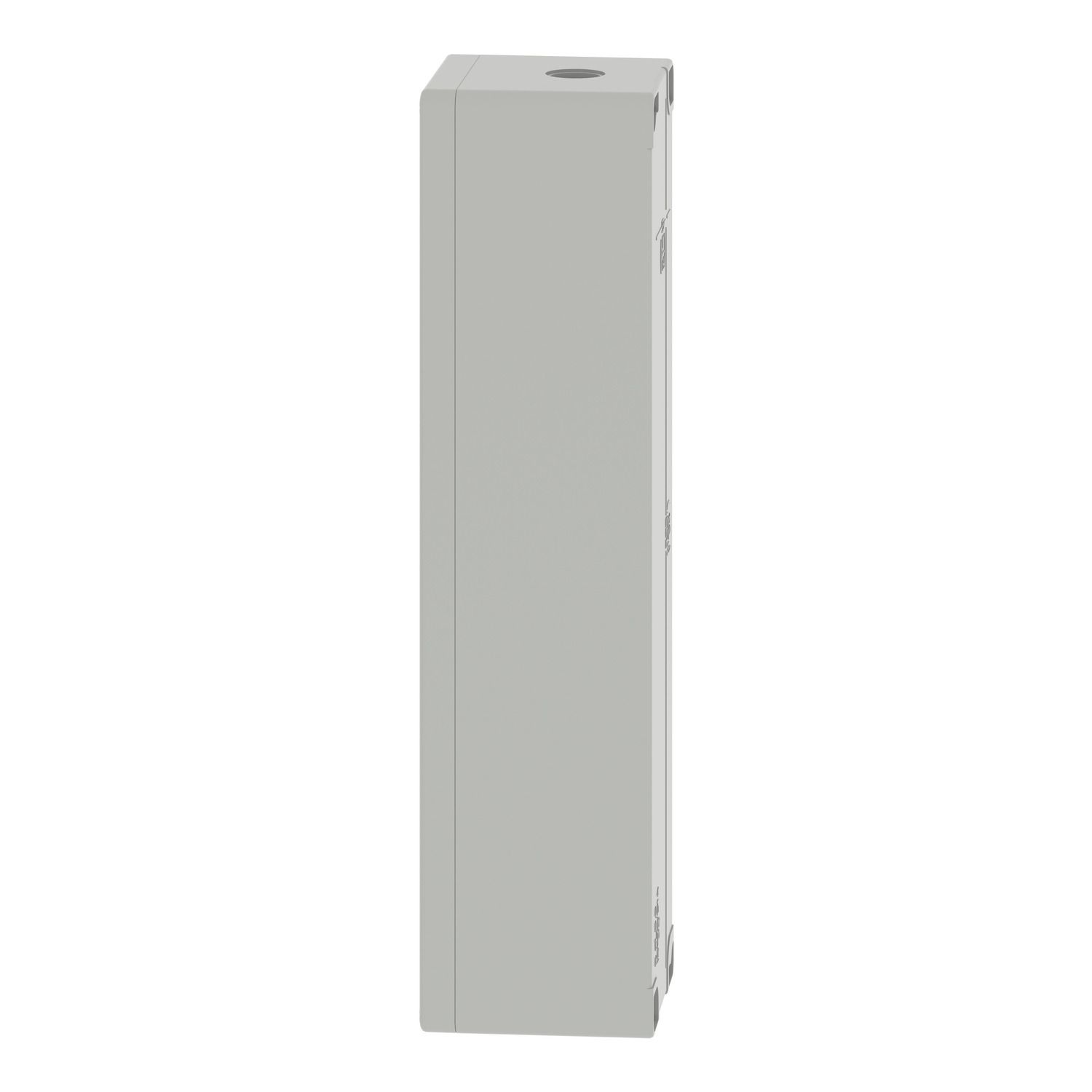

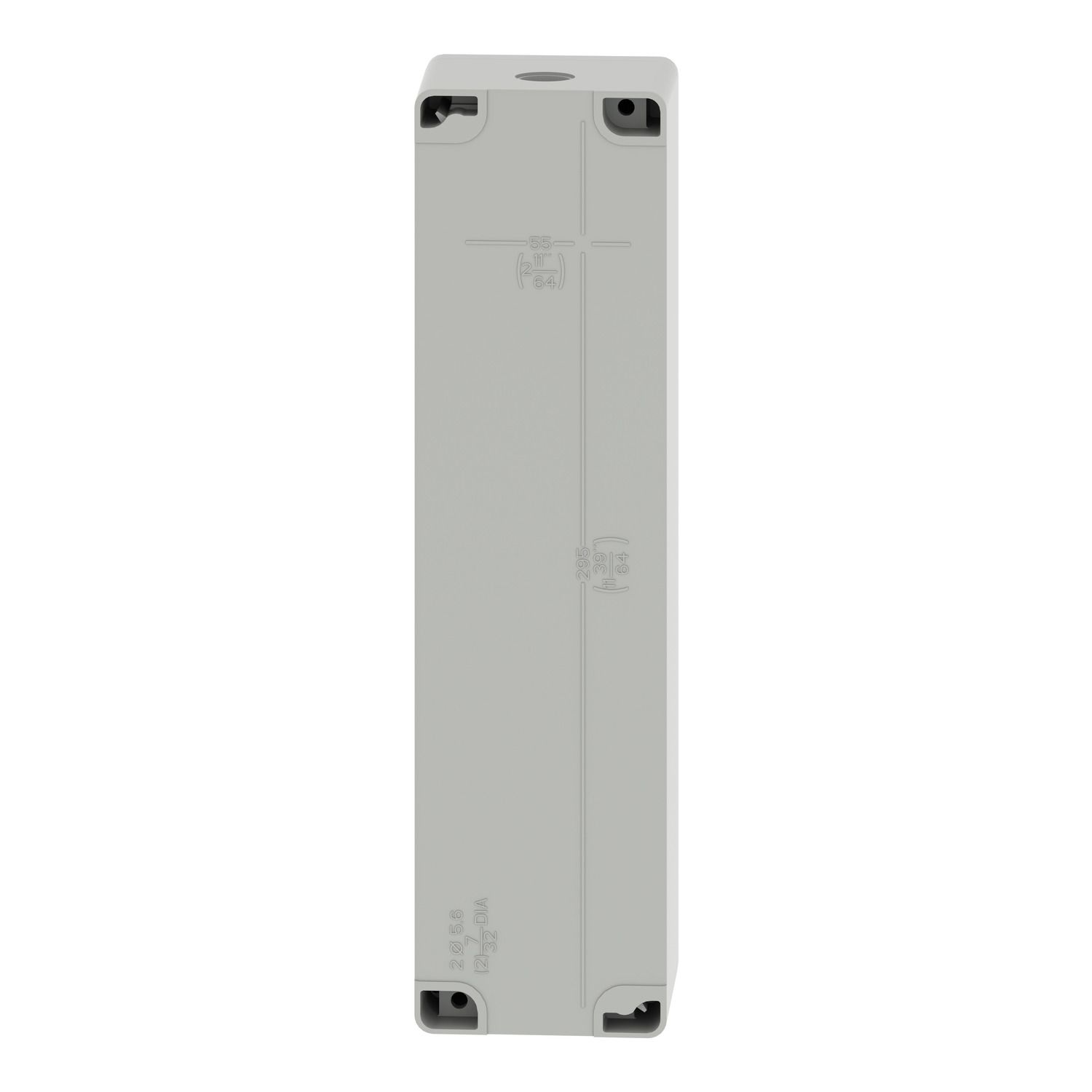

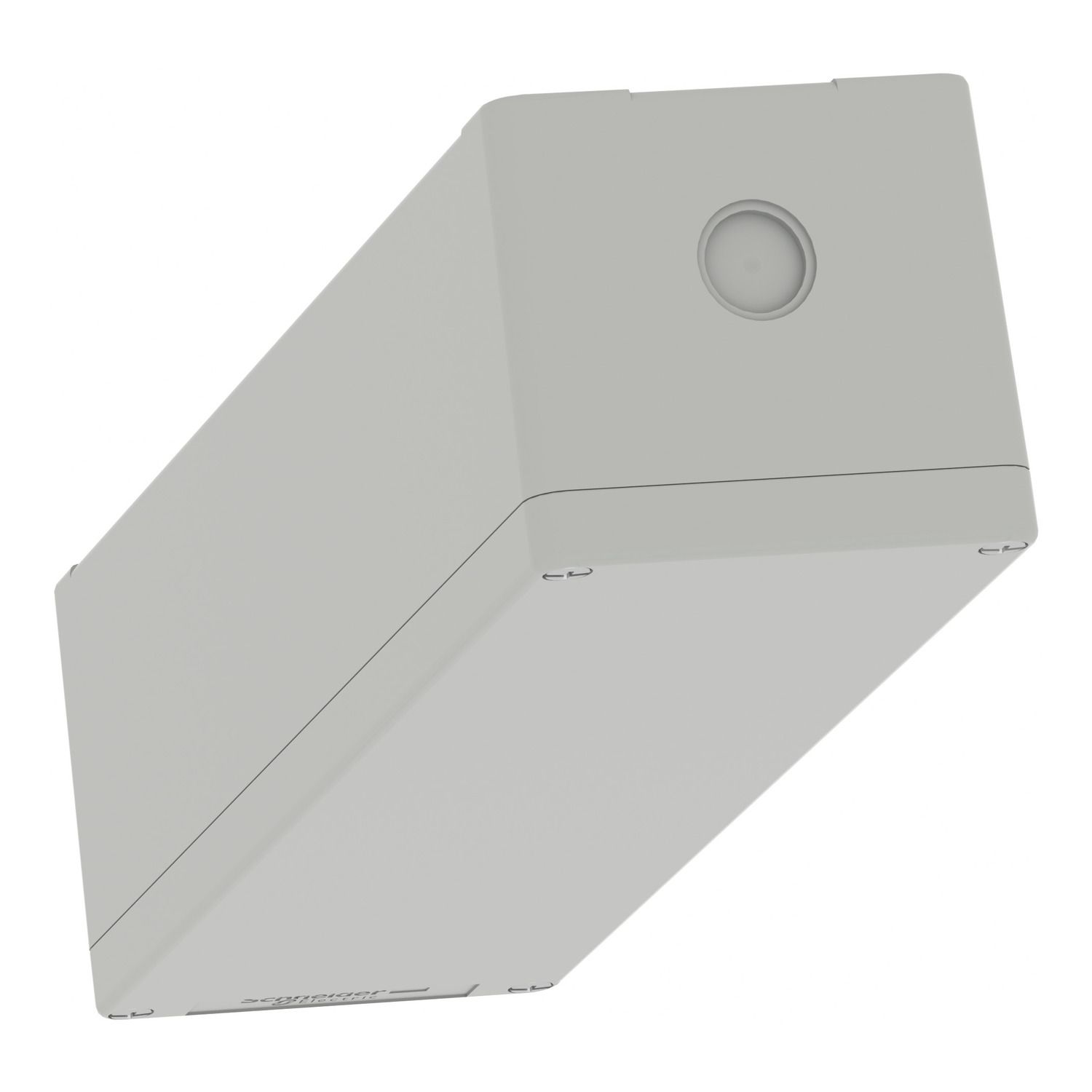

Die cast empty control station, Harmony XAP, XB2 SL, aluminium, grey, M32, undrilled, 85x310x77mm

$347.26
Available for Shipping : 14-Jan-2025
Die cast empty control station, Harmony XAP, XB2 SL, aluminium, grey, M32, undrilled, 85x310x77mm
Manufacturer: Schneider Electric
This product is part of XAP range, an offer of metal control stations for XB4 and XB5 series of Ø 22mm pushbuttons. XAPD54 is an empty enclosure with grey color (RAL7035). This version without hole allows a customizable position of pushbuttons on the lid. It can also be used as a connection box. Its dimension leaves a comfortable space for wiring. It is possible to customize the XAP with the Harmony online product selector and configurator. This product has been standardized with metric thread to be used with ISO cable glands to be fully compliant with the IEC 62444. It comes with two M32 holes. The electric shock protection is at class I conforming to EN/IEC 61140 and the mechanical shock protection level is up to IK07 conforming to EN/IEC 62262. This is a zinc alloy offer and the dimensions are 85mm (width) x 310mm (height) x 77mm (depth) and it weighs 0.850kg. XAPD is designed for Original Equipment Manufacturers (OEMs) that meets heavy duty application requirements such as material handling, food & beverage, wind turbines, Mining, Minerals and Metals (MMM), vehicles, etc. This enclosure complies with EN/IEC 60529 and EN/IEC 60947-5-1 and comes with CE and EAC certification. Fully customized legend panel are available to improve interface experience and enclosure's aesthetic. XAP is designed to be mounted in both vertical and horizontal position with 4 fixing holes. The form factor allows a combination between simplicity, customization flexibility and attractive design for machines It is eco-friendly and complies with directives such as RoHS, WEEE and REACh relating to environmental protection.

Products specifications

Attribute name Attribute value
Main
Device short name XAPD
Usable depth 74.5 mm
Sale per indivisible quantity 1
Number of cut-out without cut-out
Colour of cover grey (RAL 7035)
IP degree of protection IP65 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
Colour of base of enclosure grey (RAL 7035)
Range of product Harmony XAP
Material die cast aluminium
Product front plate size 85 x 310 mm
Product or component type die-cast empty control station
Product destination for Ø 22 mm control and signalling units
Complementary
Thread type M32 x 1.5
Control station type metal
CAD overall height 310 mm
Number of vertical rows 0
CAD overall depth 77 mm
CAD overall width 85 mm
Net weight 0.81 kg
Cable entry 1 x cable gland conforming to ISO
Number of horizontal rows 0
Environment
Protective treatment TC
Resistance to chemical agents special treatment can be obtained on request
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -25-70 °C
IK degree of protection IK06 conforming to IEC 62262
Electrical shock protection class class I conforming to IEC 61140
Product certifications EAC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.200 cm
Package 1 Width 12.800 cm
Package 1 Length 31.800 cm
Package 1 Weight 978.000 g
