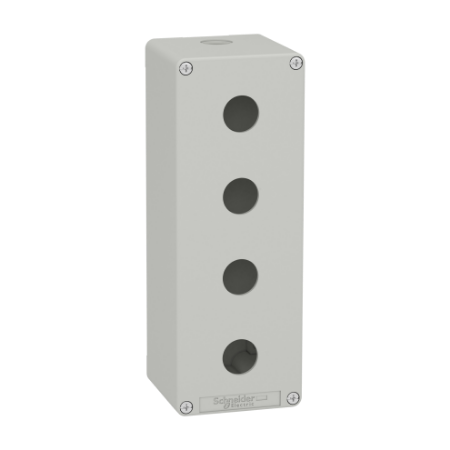

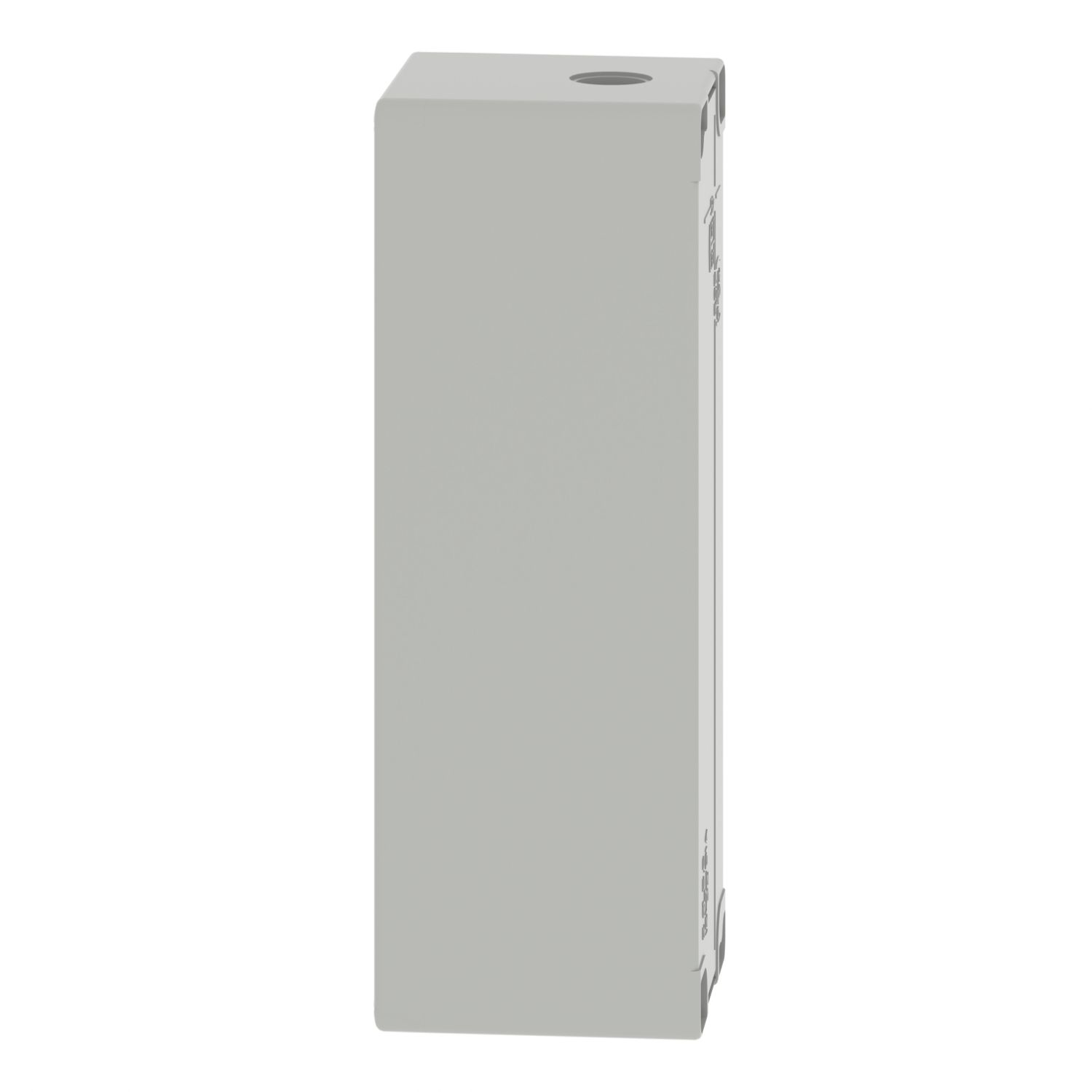

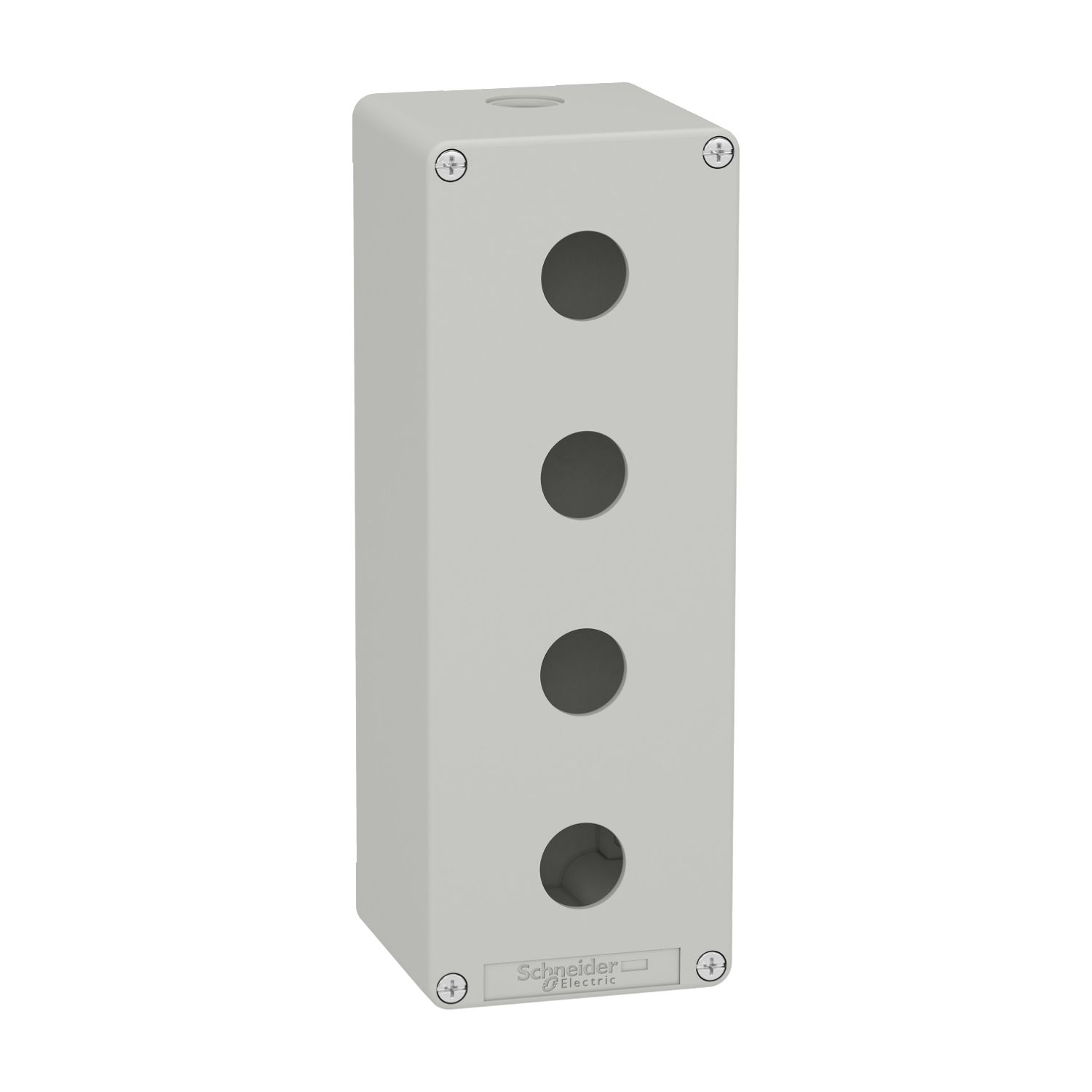

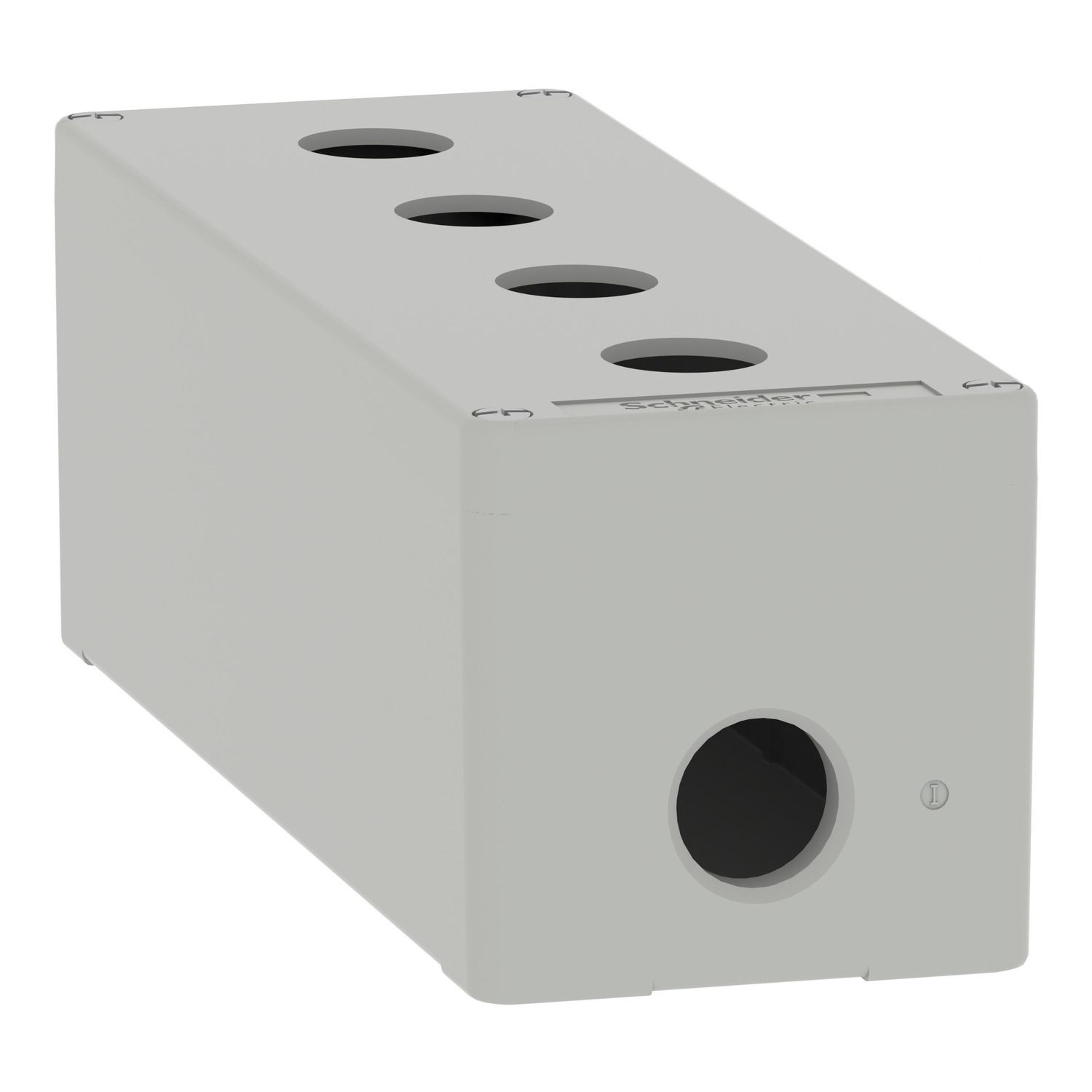

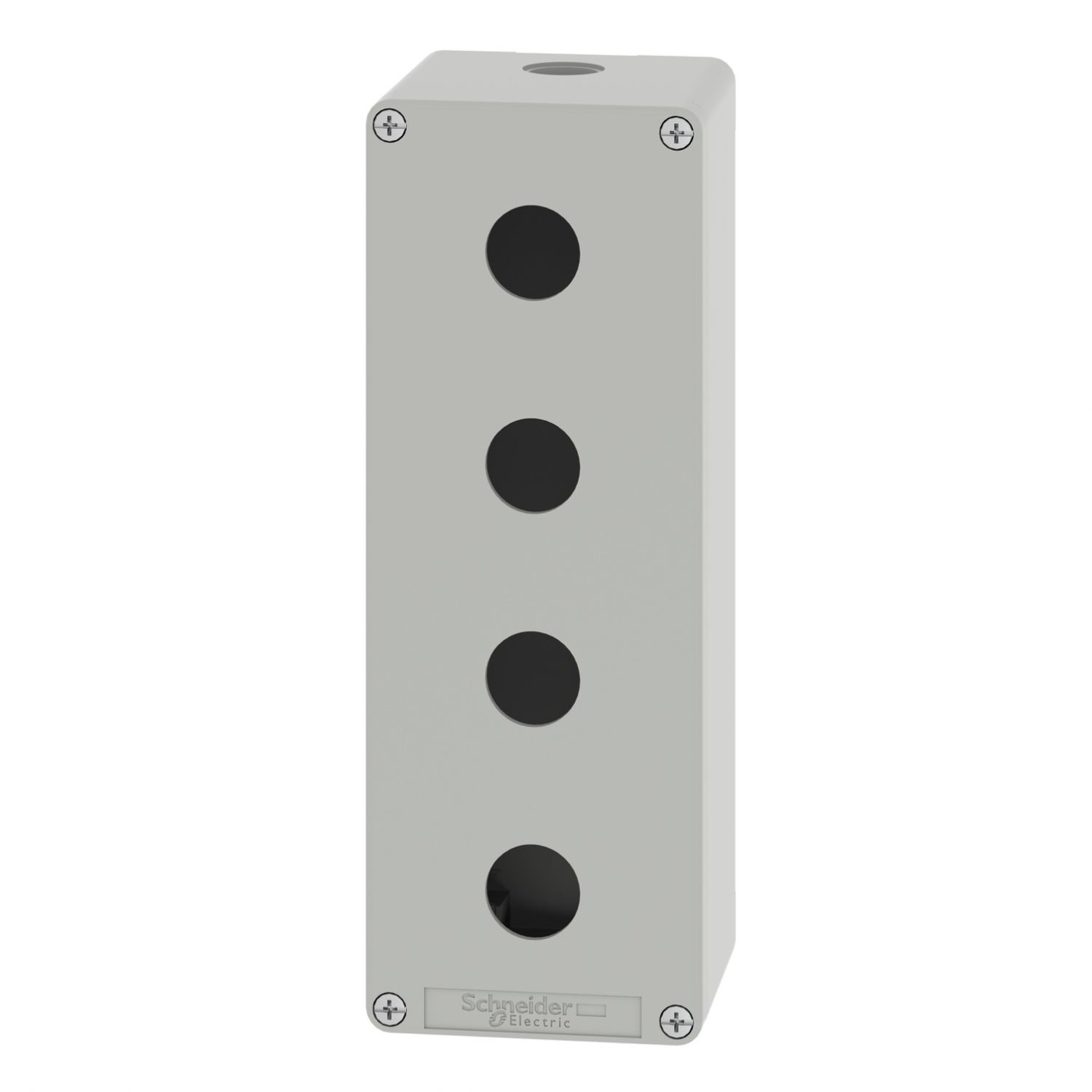

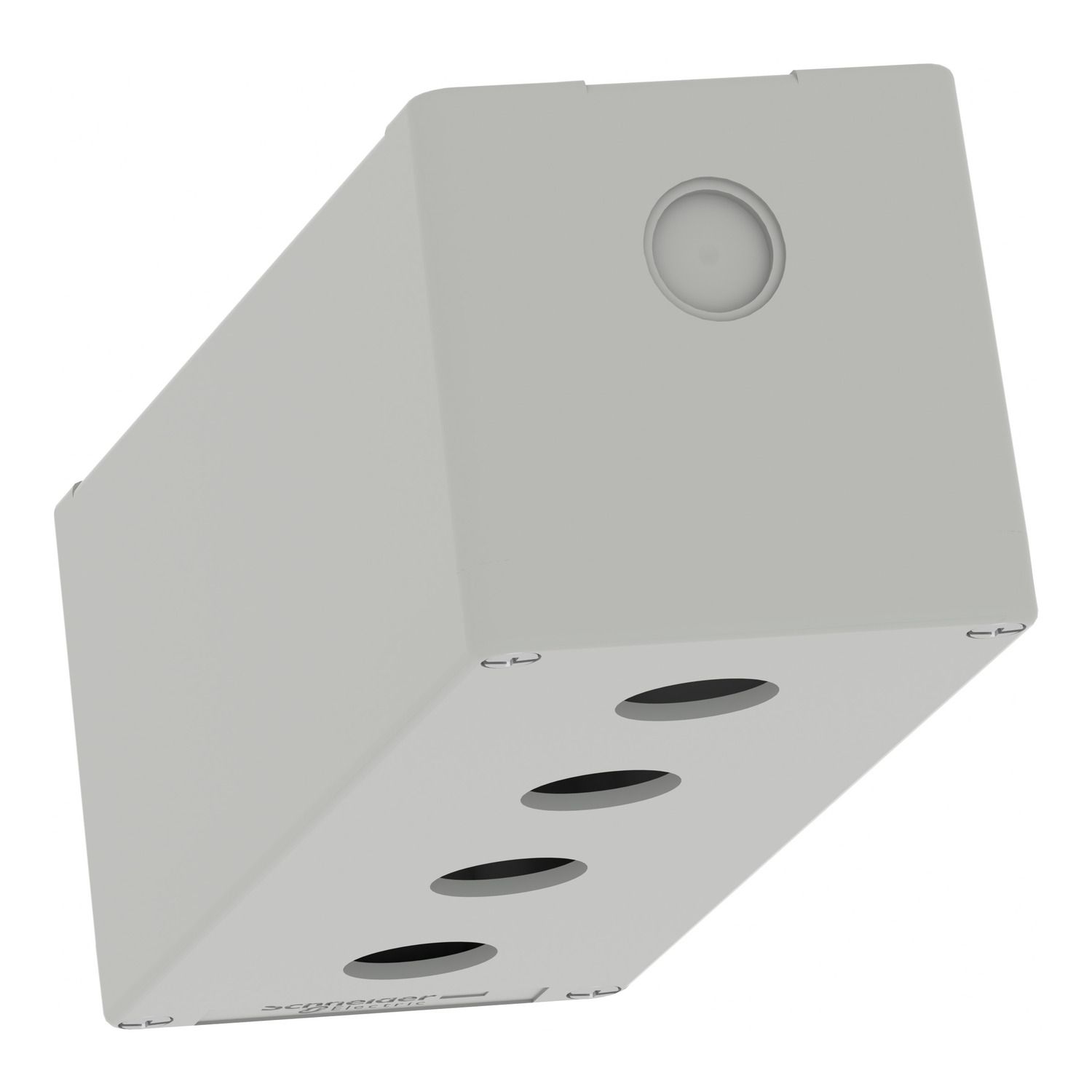

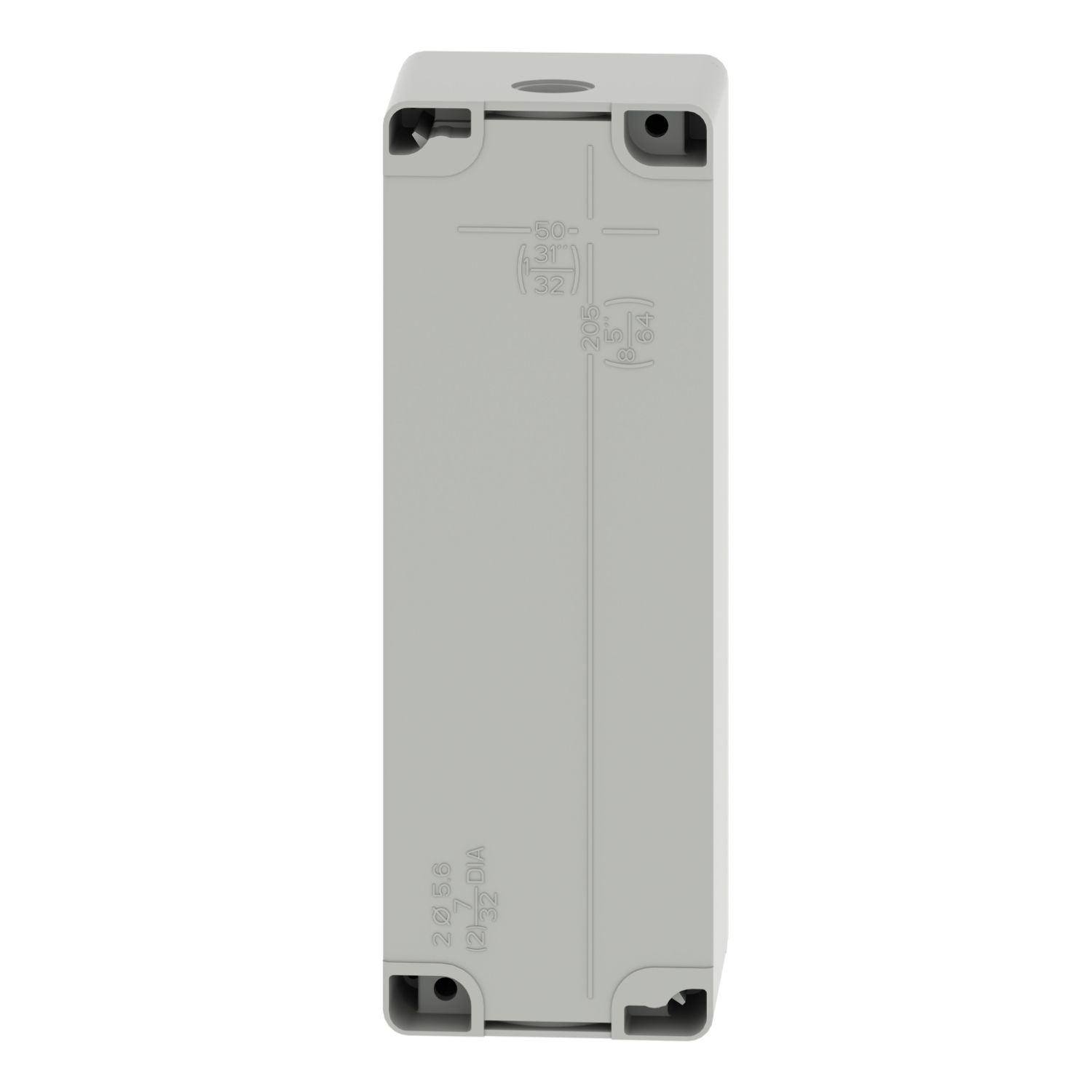

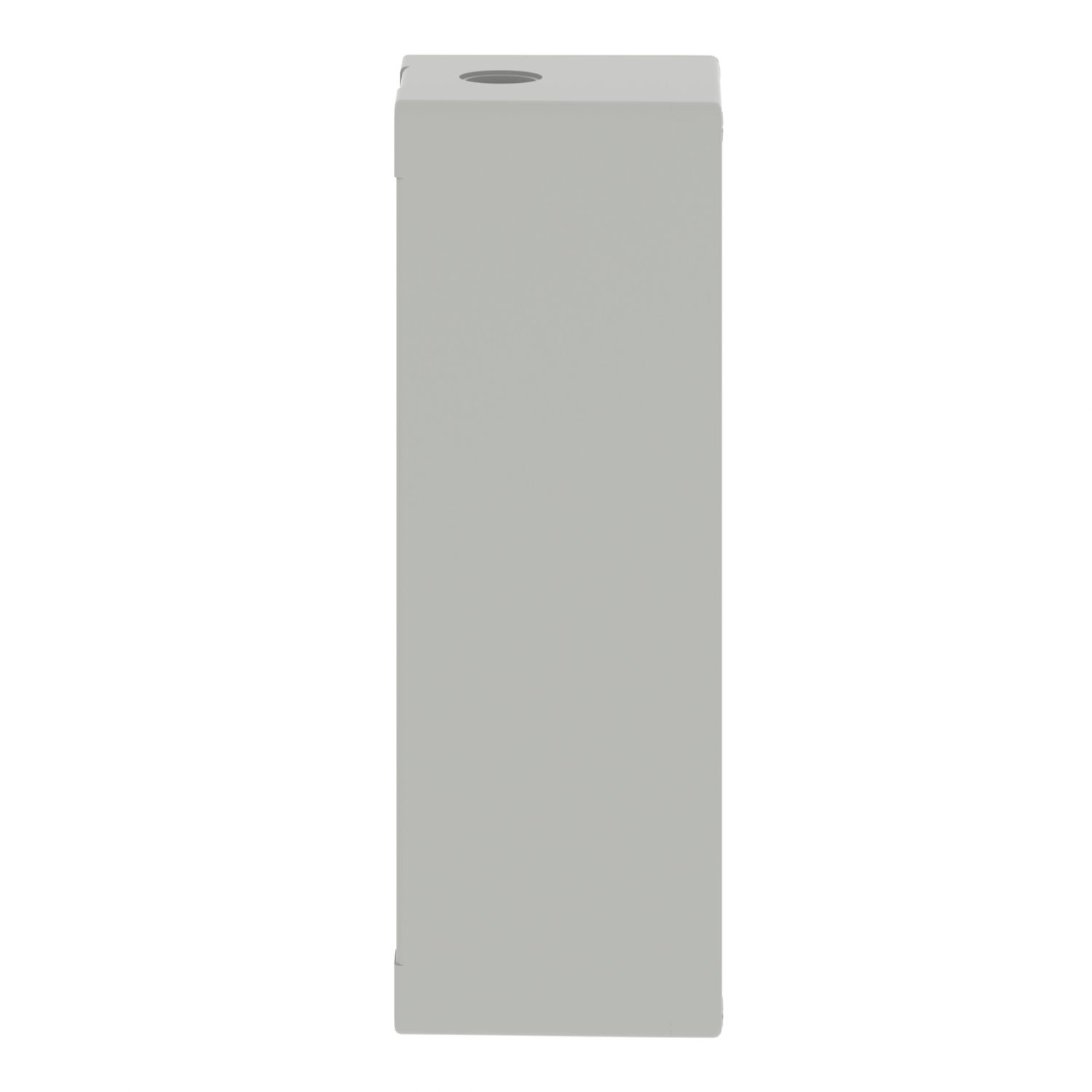

Die cast empty control station, Harmony XAP, XB2 SL, zinc alloy, grey, M25, 4 cut outs 22mm, 80x220x77mm

$243.91
Available for Shipping : 28-Nov-2024
Die cast empty control station, Harmony XAP, XB2 SL, zinc alloy, grey, M25, 4 cut outs 22mm, 80x220x77mm
Manufacturer: Schneider Electric
This product is part of XAP range, an offer of metal control stations for XB4 and XB5 series of Ø 22mm pushbuttons. XAPD4504 is an empty enclosure with grey color (RAL7035). This version with 4 holes allows any type of XB4/XB5 functions, including E-stops with legend plate. 2 sizes of legend holders can be used in different positions. Its dimension leaves a comfortable space for wiring. It is possible to customize the XAP with the Harmony online product selector and configurator. This product has been standardized with metric thread to be used with ISO cable glands to be fully compliant with the IEC 62444. It comes with two M25 holes. The electric shock protection is at class I conforming to EN/IEC 61140 and the mechanical shock protection level is up to IK07 conforming to EN/IEC 62262. This is a zinc alloy offer and the dimensions are 80mm (width) x 220mm (height) x 77mm (depth) and it weighs 1.390kg. XAPD is designed for Original Equipment Manufacturers (OEMs) that meets heavy duty application requirements such as material handling, food & beverage, wind turbines, Mining, Minerals and Metals (MMM), vehicles, etc. This enclosure complies with EN/IEC 60529 and EN/IEC 60947-5-1 and comes with CE and EAC certification. Fully customized legend panel are available to improve interface experience and enclosure's aesthetic. XAP is designed to be mounted in both vertical and horizontal position with 4 fixing holes. The form factor allows a combination between simplicity, customization flexibility and attractive design for machines It is eco-friendly and complies with directives such as RoHS, WEEE and REACh relating to environmental protection.

Products specifications

Attribute name Attribute value
Main
Device short name XAPD
Usable depth 74.5 mm
Sale per indivisible quantity 1
Number of cut-out 4 cut-outs
Colour of cover grey (RAL 7035)
IP degree of protection IP65 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
Colour of base of enclosure grey (RAL 7035)
Range of product Harmony XAP
Material die cast zinc
Product front plate size 80 x 220 mm
Product or component type die-cast empty control station
Product destination for Ø 22 mm control and signalling units
Complementary
Cut-out dimensions Ø 22 mm
Thread type M25 x 1.5
Control station type metal
CAD overall height 220 mm
Number of vertical rows 1
CAD overall depth 77 mm
CAD overall width 80 mm
Net weight 1.38 kg
Cable entry 1 x cable gland conforming to ISO
Number of horizontal rows 4
Environment
Protective treatment TC
Resistance to chemical agents special treatment can be obtained on request
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -25-70 °C
IK degree of protection IK07 conforming to IEC 62262
Electrical shock protection class class I conforming to IEC 61140
Product certifications EAC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 22.000 cm
Package 1 Width 8.000 cm
Package 1 Length 7.700 cm
Package 1 Weight 1.390 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 20.850 kg
