Picture of Complete control station, Harmony XALD, dark grey, 1 red flush pushbutton,22mm,spring return, 1NC, marked STOP
SKU:

XALD114

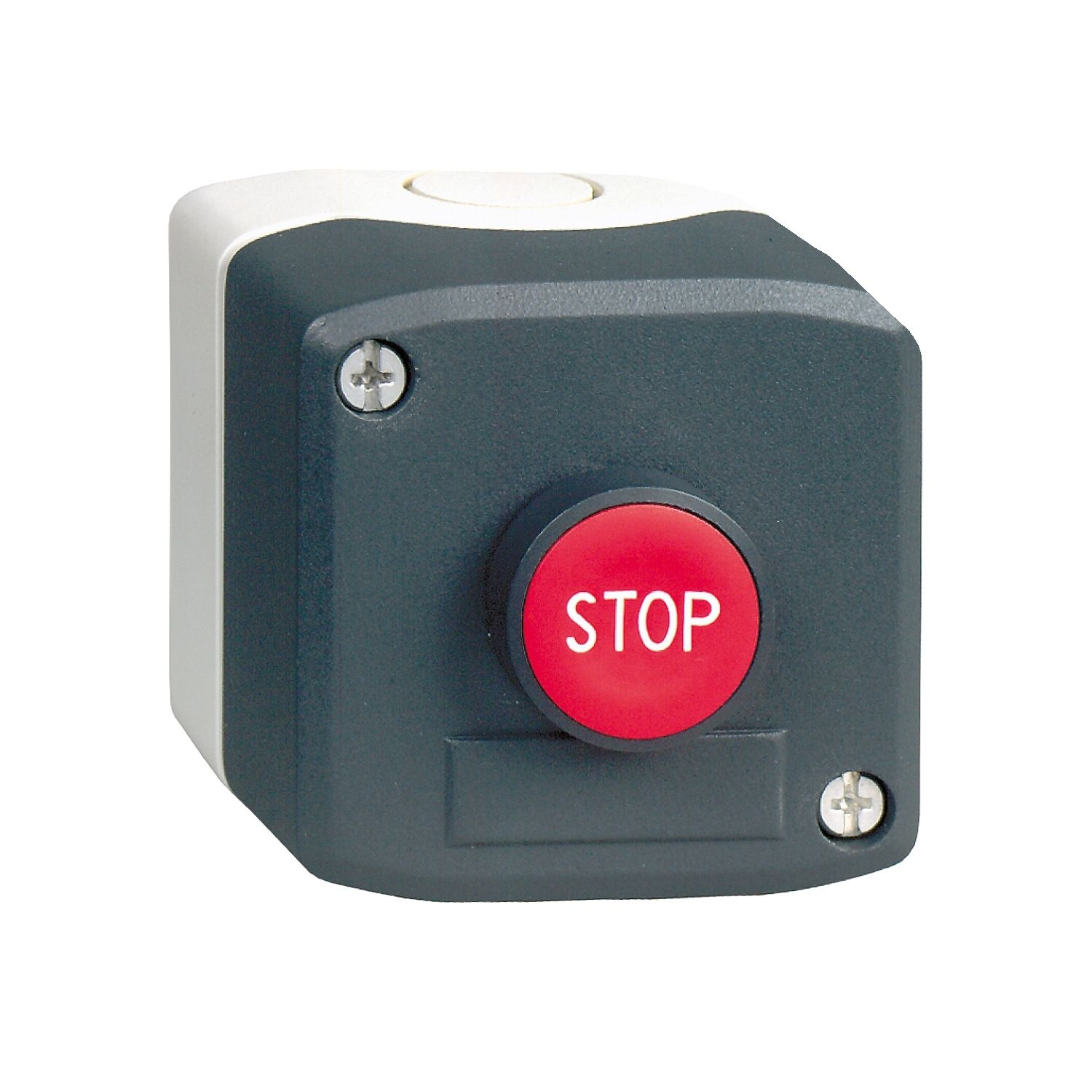

Complete control station, Harmony XALD, dark grey, 1 red flush pushbutton,22mm,spring return, 1NC, marked STOP

Old price: $124.52 INC GST
$97.13 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Complete control station, Harmony XALD, dark grey, 1 red flush pushbutton,22mm,spring return, 1NC, marked STOP
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Declaration of conformity
Instruction sheet
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet
This Harmony XALD dark grey control station for start/stop function is ideal for your complete control station. It operates with spring return mechanism and uses screw-clamp terminals. This control station with flush push buttons is ideal to control start / stop operation in your machines. Its schematic is clearly distinguishable thanks to clear colors and markings. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Products specifications

Attribute name Attribute value
Main
Device short name XALD
Contact operation slow-break
Colour of cover dark grey (RAL 7016)
Operators description red ''STOP'' 1 NC
Control station composition 1 flush push-button, red 1 NC STOP marking
Colour of base of enclosure light grey (RAL 7035)
Range of product Harmony XALD
Control station application stop function
Operator profile 1 flush push-button
Marking location marking on push-button
Material polycarbonate
Product or component type complete control station
Product destination for XB5 Ø 22 mm control and signalling units
Complementary
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Electrical reliability λ < 10exp(-8) at 17 V and 5 mA conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V and 1 mA conforming to IEC 60947-5-4
Compatibility code XALD
Mechanical durability 10000000 cycles
[Ie] rated operational current 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1
Electrical durability 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Contacts material silver alloy (Ag/Ni)
Operating travel 4.3 mm (total travel), 1.5 mm (NC changing electrical state)
Operating force 3.5 N NC changing electrical state
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.165 kg
Colour of marking white marking when green, red or black caps, black marking when white caps
Cable entry 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12-12 mm, 1 knock-out for cable entry, clamping capacity: 14-14 mm
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
Positive opening with conforming to IEC 60947-5-1 appendix K
Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 62262
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Vibration resistance 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-1, IEC 60947-5-5, JIS C8201-5-1, UL 508, IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-5-4
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.300 cm
Package 1 Width 6.800 cm
Package 1 Length 6.800 cm
Package 1 Weight 156.000 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.240 kg
