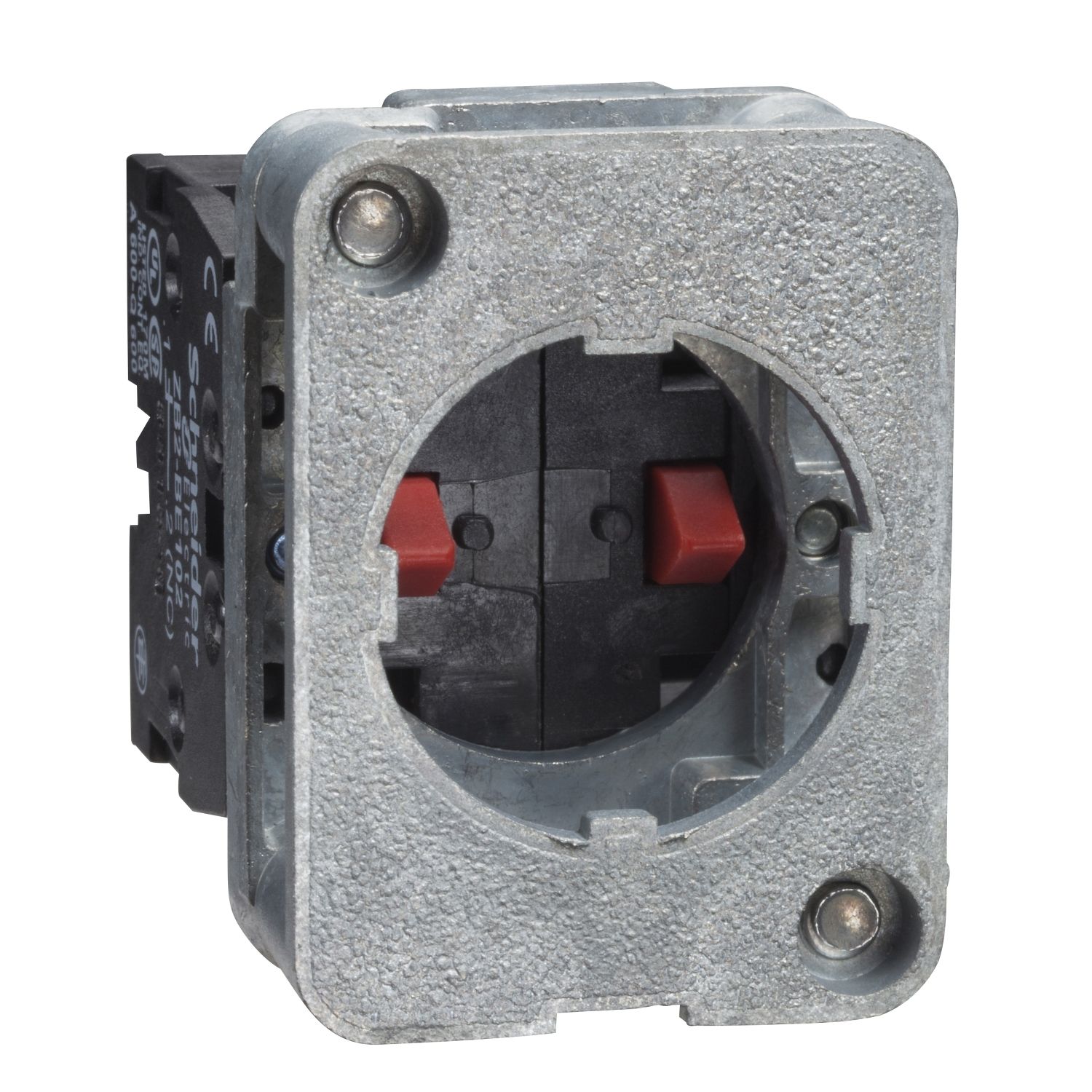

Picture of Contact block, Harmony XAC, single contact, spring return, front mounting, 40mm horizontal, 30mm vertical fixing centres, 2NC
Picture of Contact block, Harmony XAC, single contact, spring return, front mounting, 40mm horizontal, 30mm vertical fixing centres, 2NC
Picture of Contact block, Harmony XAC, single contact, spring return, front mounting, 40mm horizontal, 30mm vertical fixing centres, 2NC
Picture of Contact block, Harmony XAC, single contact, spring return, front mounting, 40mm horizontal, 30mm vertical fixing centres, 2NC
SKU:

XACS414

Contact block, Harmony XAC, single contact, spring return, front mounting, 40mm horizontal, 30mm vertical fixing centres, 2NC

Old price: $91.19 INC GST
$71.13 INC GST
Available for Shipping : 06-Jan-2026
Contact block, Harmony XAC, single contact, spring return, front mounting, 40mm horizontal, 30mm vertical fixing centres, 2NC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026

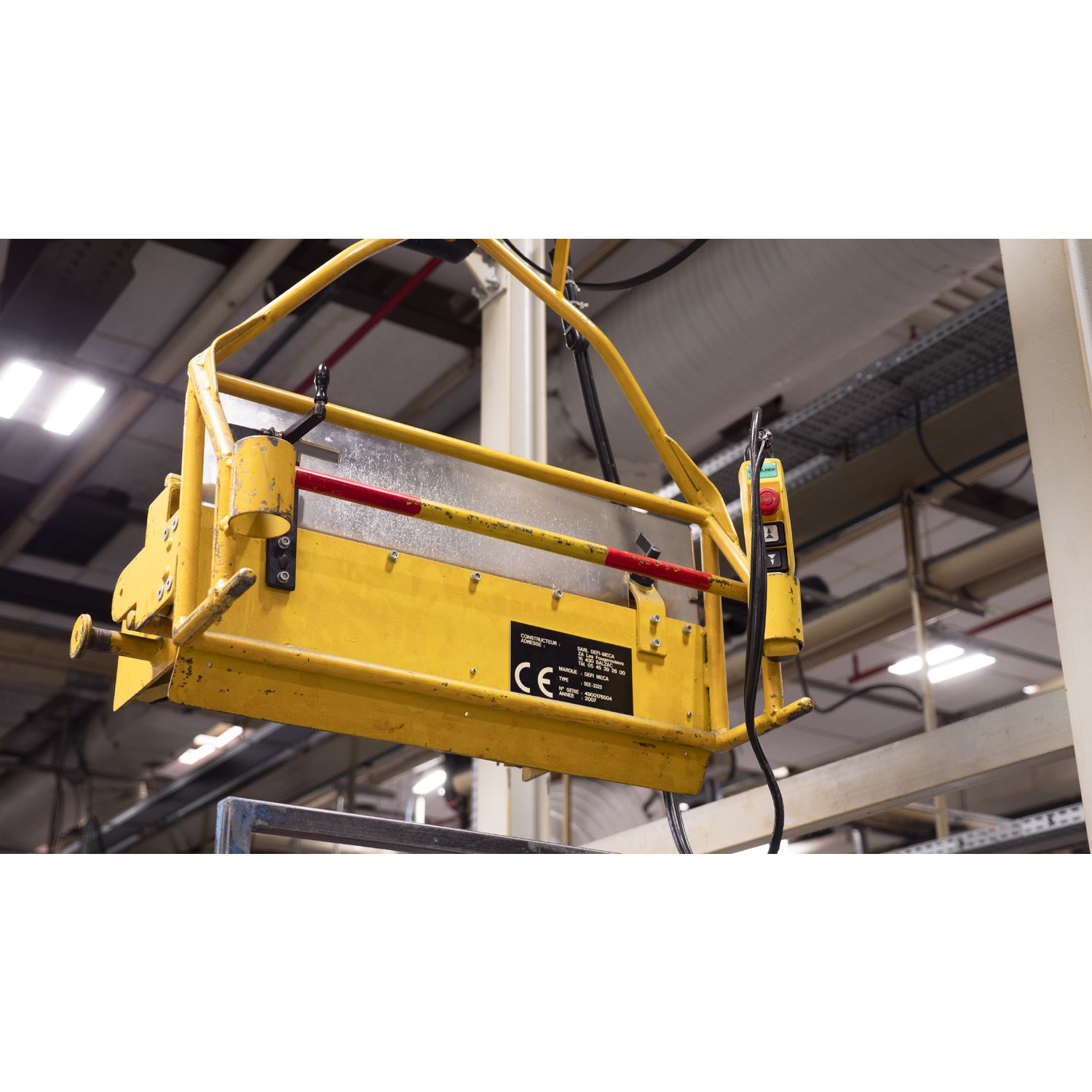

Image of product in real life situation
Image of product in real life situation
Catalog
Environmental Disclosure
Declaration of conformity
Product Page Link
Product Data Sheet
This spring return contact block is a separate component for double insulated, XACB pendant control station. It is designed for front mounting and features 2 NC contacts.

Products specifications

Attribute name Attribute value
Main
Product compatibility XACA, ZA2B... head
Electrical circuit type control circuit
Type of operator spring return
Mechanical interlocking without mechanical interlock
Contact operation slow-break
Contacts type and composition 2 NC
Component name XACS
Product or component type contact block
Contact block type single
Range of product Harmony XAC
Mounting of block front mounting
Complementary
Rated operational power in W 60 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 45 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 42 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
Contact code designation Q300 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A300 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
Mechanical durability 1000000 cycles
Rated operational power in VA 525 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 127 V 50/60 Hz, load factor = 0.5 (inductive load), 455 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 230 V 50/60 Hz, load factor = 0.5 (inductive load), 385 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 48 V 50/60 Hz, load factor = 0.5 (inductive load), 140 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 24 V 50/60 Hz, load factor = 0.5 (inductive load)
[Ui] rated insulation voltage 500 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals screw clamp terminals, 2 x 1.5 mm² with or without cable end, screw clamp terminals, 1 x 2.5 mm² with or without cable end
Vertical fixing centres 30 mm
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.07 kg
Short-circuit protection 10 A fuse protection by cartridge fuse type gG
[Ithe] conventional enclosed thermal current 10 A
Horizontal fixing centres 40 mm
Maximum resistance across terminals 25 MOhm
Terminals description ISO n°1 (11-12)NC, (21-22)NC
Terminal identifier (11-12)NC, (13-14)NO
Environment
Ambient air temperature for storage -40-70 °C
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance 100 gn conforming to IEC 60068-2-27
Standards IEC 60947-5-1, CSA C22.2 No 14
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.6 cm
Package 1 Width 8.2 cm
Package 1 Length 9.6 cm
Package 1 Weight 73.0 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.107 kg
