SKU:

XACS102

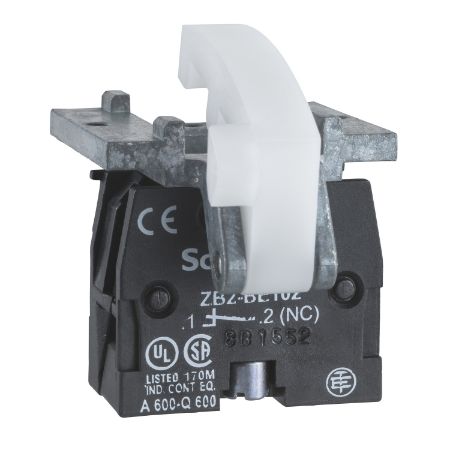

Single contact block, Harmony XAC, spring return, screw clamp terminal, 1NC

Old price: $65.01 INC GST
$50.71 INC GST
Available for Shipping : 16-Dec-2025
Single contact block, Harmony XAC, spring return, screw clamp terminal, 1NC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 16-Dec-2025
Image of product in real life situation
Catalog
Environmental Disclosure
Declaration of conformity
Image of product in real life situation
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony XACS102 is a spring return contact block - 1 NC - base mounting. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

Products specifications

Attribute name Attribute value
Main
Product compatibility XACA
Electrical circuit type control circuit
Contact operation slow-break
Contact block type single
Range of product Harmony XAC
Type of operator spring return
Contacts type and composition 1 NC
Component name XACS
Product or component type contact block
Mounting of block base mounting
Complementary
Contact code designation Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
Operating force 8 N
Mechanical durability 1000000 cycles
Short-circuit protection 10 A fuse protection by cartridge fuse type gG
Maximum resistance across terminals 25 MOhm
Rated operational power in W 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end, screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
[Ithe] conventional enclosed thermal current 10 A
Terminals description ISO n°1 (11-12)NC
Environment
Ambient air temperature for storage -40-70 °C
Shock resistance 100 gn conforming to IEC 60068-2-27
Ambient air temperature for operation -25-70 °C
Overvoltage category class II conforming to IEC 61140
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Standards UL 508, EN/IEC 60947-5-1, CSA C22.2 No 14
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.0 cm
Package 1 Width 6.0 cm
Package 1 Length 8.0 cm
Package 1 Weight 38.0 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.718 kg
